XMRS25-4 - Ratchet strap Vevor - Free user manual and instructions

Product Type	Ratchet Strap with S-Hooks
Model	XMRS25-4
Strap Length	15 ft (4.57 m)
Strap Width	1 in (25.4 mm)
Working Load Limit (WLL)	733 lb (333 kg)
Minimum Breaking Strength (MBS)	2,200 lb (998 kg)
Quantity per Package	4 pieces
Hook Type	S-Hooks
Package Dimensions	260 x 155 x 100 mm
Gross Weight	2.78 kg
Strap Material	High-strength Polyester
Tension Mechanism	Manual Ratchet
Usage Instructions	Thread strap through ratchet spool, pull to remove slack, operate ratchet, lock handle in down position
Release Instructions	Pull release tab, open ratchet fully, remove strap
Safety Precautions	Do not exceed maximum load, wear gloves and safety glasses, do not use if tired or under influence
Maintenance and Cleaning	Inspect strap and ratchet regularly for damage, clean with a damp cloth, do not use solvents
Storage Conditions	Store in a dry, clean place away from moisture and chemicals
Manufacturer	Shanghai Muxin Muye Youxian Gongsi, China

Frequently Asked Questions - XMRS25-4 Vevor

What is the Working Load Limit (WLL) of the XMRS25-4 strap?

The Working Load Limit (WLL) is 733 lb (333 kg). Never exceed this limit.

How do I thread the strap into the ratchet?

Thread the strap from the bottom through the slot in the central ratchet spool, then pull to remove slack before beginning to ratchet.

How do I release the strap after use?

Pull and hold the release tab, open the ratchet fully flat, then remove the strap by pulling gently.

What safety precautions should I take when using this strap?

Wear safety glasses and sturdy gloves, do not overload the strap, keep the area clear, and do not use if tired or under the influence.

What is the Minimum Breaking Strength (MBS) of this strap?

The Minimum Breaking Strength (MBS) is 2,200 lb (998 kg).

Are the straps sold in a pack?

Yes, this model is sold in a pack of 4 pieces.

How do I maintain my ratchet strap?

Regularly inspect the strap and ratchet for signs of wear or damage. Clean with a damp cloth and store in a dry place.

Can I use this strap for vertical lifting?

Ratchet straps are designed for horizontal securing. For vertical lifting, use appropriate equipment such as slings.

What should I do if the strap is damaged?

Never use a damaged strap. Replace it immediately with a new one of identical specifications.

Where can I find technical support for this product?

Technical support and the electronic warranty certificate are available on the website www.vevor.com/support.

USER MANUAL XMRS25-4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RATCHET STRAP

USER MANUAL

MODEL: XMRS25-4/XMRS38-4/XMRS50-4 XMRS50-4-2/XMRS50-4-3/XMES50-8/XMFS-10

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands

VEVOR®

TOUGH TOOLS, HALF PRICE

RATCHET STRAP

MODEL: XMRS25-4/XMRS38-4/XMRS50-4 XMRS50-4-2/XMRS50-4-3/XMES50-8/XMFS-10

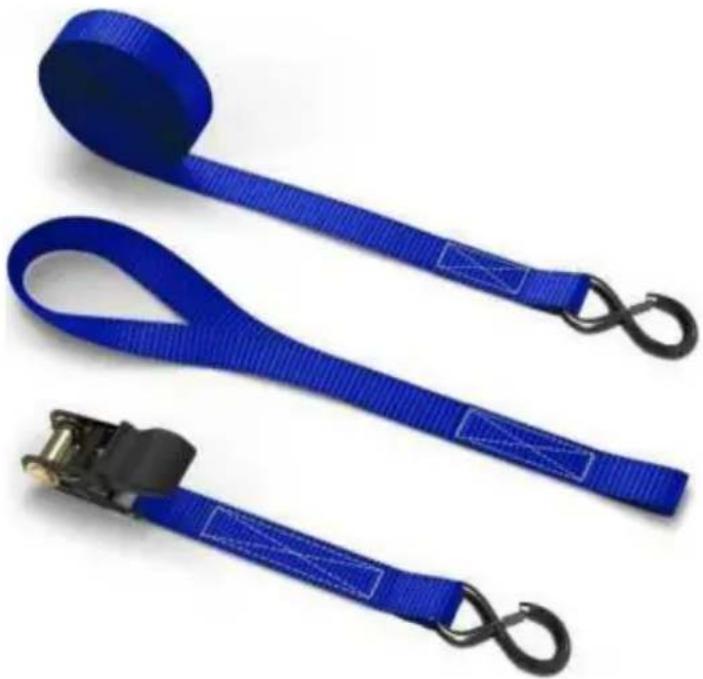

Three blue shipping harnesses with black end caps, shown against white background (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result serious injury.

Precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs or medication.
6. Do not overload the chock tie. Never exceed the maximum weight capacity of the parameter table.

RATCHET INSTRUCTIONS

STEP 1

Line drawing of a car with a black cable extending from its side (no text or symbols)

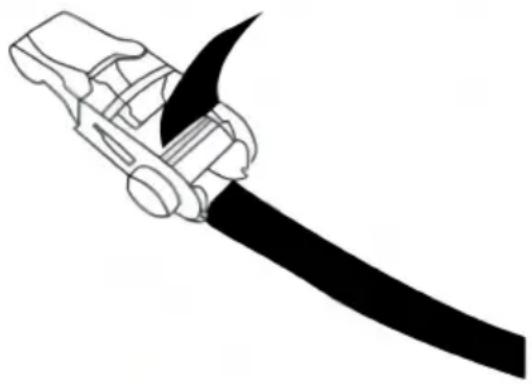

From bottom, thread webbing though slot in center spool of closed ratchet.

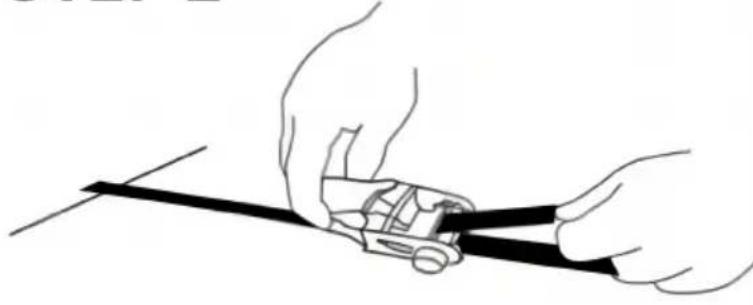

STEP 2	Pull webbing through, removing the slack.

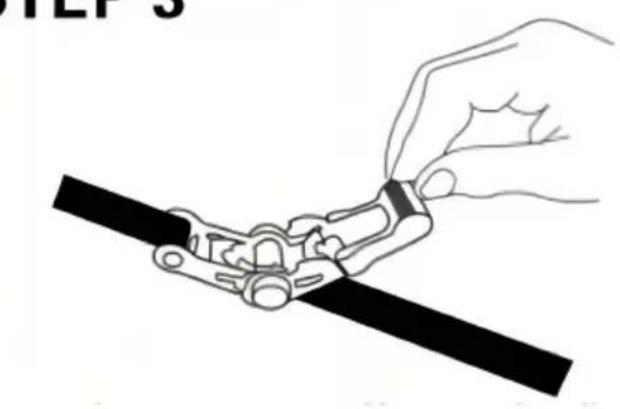

STEP 3	Start ratcheting--raising and lowering handle.

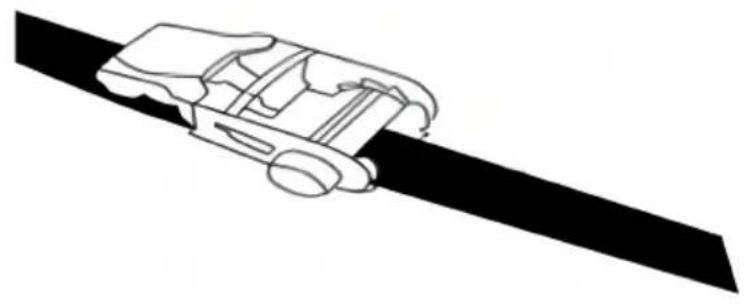

STEP 4	Finish ratcheting with lowered handle.

RELEASE INSTRUCTIONS

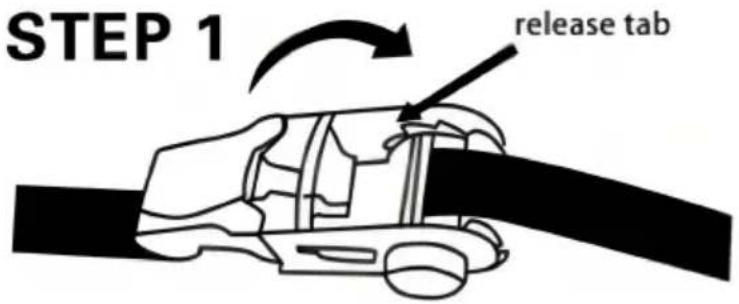

	Pull&hold release tab(to override ratcheting function).
STEP 2	Open ratchet until it is completely open and flat.

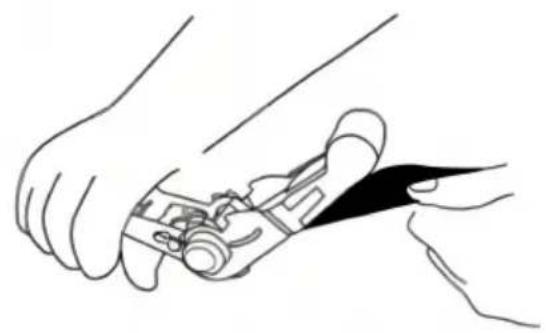

STEP 3	Remove webbing from ratchet by gently pulling out.

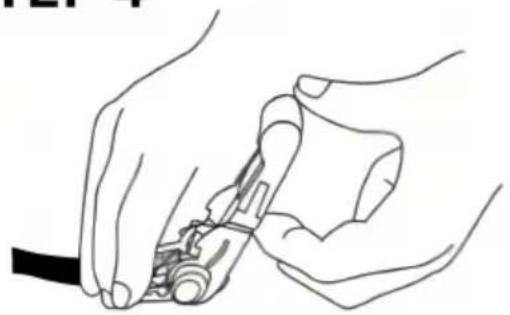

STFP 4	Pull and hold release tab close ratchet.

	Items	Description
1	Name	Ratchet Strap with S Hooks
2	Model	XMRS25-4
3	Parameter	1inx15ft, WLL =733LBS, MBS=2200LBS, 4PCS, S Hooks
4	Package Size	260x155x100mm
5	G.W.	2.78KG
	Items	Description
1	Name	Ratchet Strap with S Hooks
2	Model	XMRS38-4
3	Parameter	1.6inx8ft, WLL =1738LBS, MBS=5208LBS, 4PCS, S Hooks
4	Package Size	265x165x140mm
5	G.W.	4.48KG
	Items	Description
1	Name	J-Hook Ratchet Strap
2	Model	XMRS50-4
3	Parameter	2inx27ft, WLL =3333LBS, MBS=10000LBS, 4PCS, J Hooks
4	Package Size	265x260x230mm
5	G.W.	10KG
	Items	Description
1	Name	J-Hook Ratchet Strap
2	Model	XMRS50-4-2
3	Parameter	2inx15ft, WLL =1666LBS, MBS=5000LBS, 4PCS, J Hooks
4	Package Size	355x260x125mm
5	G.W.	6.75KG
	Items	Description
1	Name	J-Hook Ratchet Strap
2	Model	XMRS50-4-3
3	Parameter	2inx8ft, WLL =3700LBS, MBS=11128LBS, 4PCS, J Hooks
4	Package Size	500x225x160mm
5	G.W.	9.77KG
	Items Description
1	Name E-Track Ratchet Straps
2	Model XMES50-8
3	Parameter	2inx15ft, WLL =1460LBS, MBS=4400LBS, 8PCS, E-Track
4	Package Size 315x175x200mm
5	G.W. 7.32KG

	Items Description
1	Name Ratchet Strap with flat Hooks
2	Model XMFS-10
3	Parameter 2inx30ft, WLL =3333LBS, MBS=10000LBS, 10PCS, Flat Hooks
4	Package Size 580x260x230mm
5	G.W. 26.2KG

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.
