USER MANUAL VS1J-S Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Electric Vegetable Slicer

MODEL:VS1J-S

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Electric Vegetable Slicer

MODEL:VS1J-S

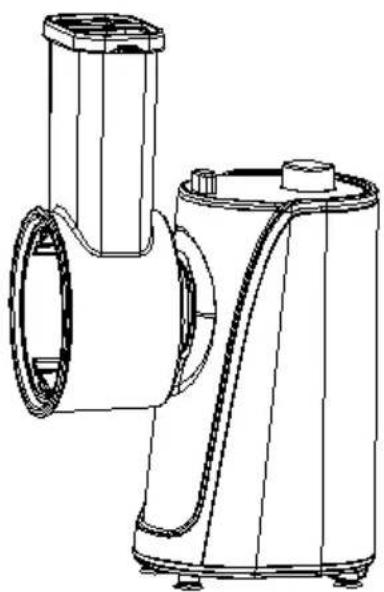

Technical line drawing of a mechanical component with no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, the user must re instructions manual carefully.
	Indoor Use Only
	This product is of protection class II. That means it is with enhanced or double insulation.
	CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices.

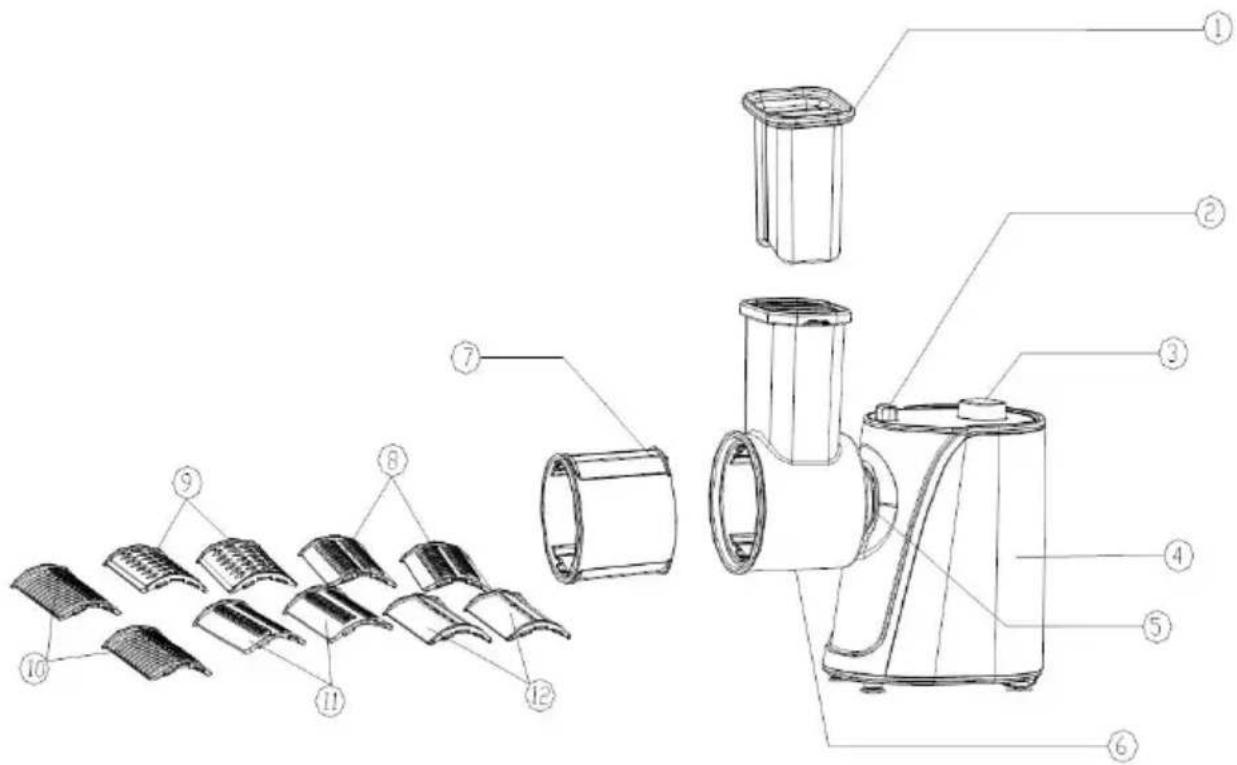

DESCRIPTION

Technical diagram of a blender with numbered parts for identification

1. Vegetable pusher2. Fasten button3. ON/OFF switch4. Body5. Gear box head6. Vegetable cutting of the

7. Cutter tube8. Strip cutter (coarse)9. Reticular cutter10. Waved cutter11. Strip cutter (fine)12. Sliced cutter

IMPORTANT SAFEGUARDS

• Home use only. Do not use for industrial purposes.
- Unplug when assembling and disassembling the unit.
- Close supervision is necessary when any appliance is used near ch
- When carrying the unit, be sure to hold the body with both hands. carry the unit by the Vegetable head.
- Never push products by hand. Use Vegetable pusher.
- Che continuous running of the vegetable salad grinder should not be more than 10 minutes, with the following 10-minute intervals for motor cooling.
- To avoid jamming, do not force to operate the unit with excessive pressure.
- When the circuit breaker activates, do not switch on.
- Never try to replace the parts and repair the unit by yourself.
- This appliance is not intended for use by persons(including children) reduced physical, sensory, or mental capabilities or lack of experience knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with appliance.
- Do not operate this appliance if the cord or plug is damaged. Retire the store of service or repair by the professional serviceman.

FOR THE FIRST TIME

• Check that voltage indicated on the rating label corresponds to the voltage in your home.
• Wash all parts (except body) in warm soapy water.
• Before plug in, ensure the ON/OFF switch is in "OFF" position.

INSTRUCTION FOR USE

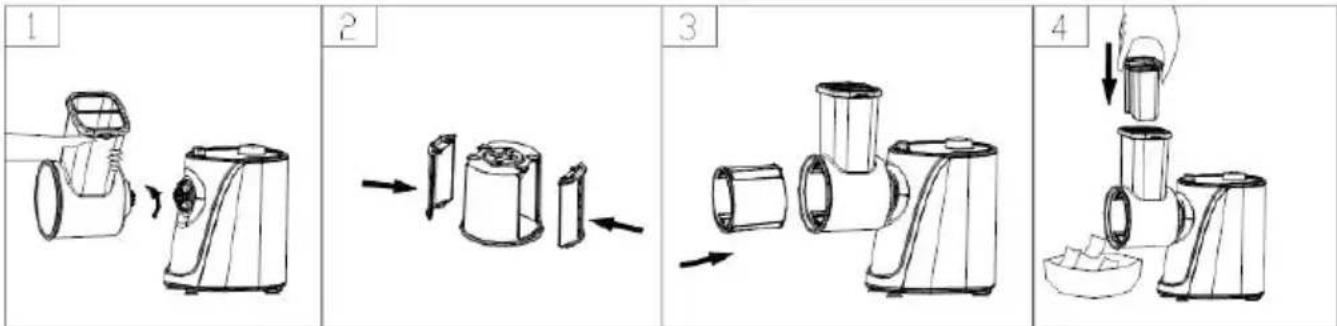

ASSEMBLING

• Press the fasten button, hold the head, and insert it into the inlet(inserting pls, pay attention the head must be slanted as per the arrow indicated on the top; see Fig. 1), then move the head anticlockwise the head is fastened tightly. The fasten button won't move that has I locked up!
• Put the cutter into the cutter tube. After the two buckle positions in lower direction are aligned, press the top position of the cutter. (fig.2)
• Put the cutter tube attachments into the cutting head. Note: Must be place. (fig.3)
• Switch ON/OFF to the "ON" position when cutting. Push the food in feeder, and then push down the food. (fig.4)
  • After use, switch the unit off and unplug it from the power supply.

MINCING VEGETABLES

- Cut all vegetable into strips, smaller than the cutting of the head,

they will easily put into the cutting of the head

• Plug the unit on and switch ON/OFF to the "ON" position.
• Feed foods into the cutting head. Use the Vegetable pusher only.
  • After use, switch the unit off and unplug it from the power supply.

CLEANING AND MAINTENANCE DISMANTLE

DISMANTLE

• Determine that the motor is completely stationary.
• Unplug the power plug.
• Dismantle as described in Figure 1-4, reverse step.
• Press the fasten button and turn the Head clockwise to dismantle i

CLEANING

• Remove vegetable residue and other items, and clean all the parts (except the main body) with warm, clean water.
• Can not put the main body into the water; can only wipe with a
• Do not use thinner and gasoline to clean the machine.

FCC Information:

• CAUTION: Changes or modifications not expressly approved by the responsible for compliance could void the user's authority to operate equipment!
• This device complies with Part 15 of the FCC Rules. Operation is to the following two conditions:

1) This product may cause harmful interference.

2) This product must accept any interference received, including interference that may cause undesired operation.

- WARNING: Changes or modifications to this product not expressly approved by the party. Responsible for compliance could void the use authority to operate the product.

• Note: This product has been tested and found to comply with the a Class B digital device pursuant to Part 15 of the FCC Rules. The

are designed to provide reasonable protection against harmful interferer in a residential installation.

- This product generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception which can be determined by turning the product off and on, the user encouraged to try to correct the interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

- Increase the distance between the product and the receiver.

- Connect the product to an outlet on a circuit different from that to the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for assista

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
