USER MANUAL SHL-2000BR Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

INFRARED HEATER

OPERATING INSTRUCTIONS

Model:SHL-2000BR

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Model:SHL-2000BR

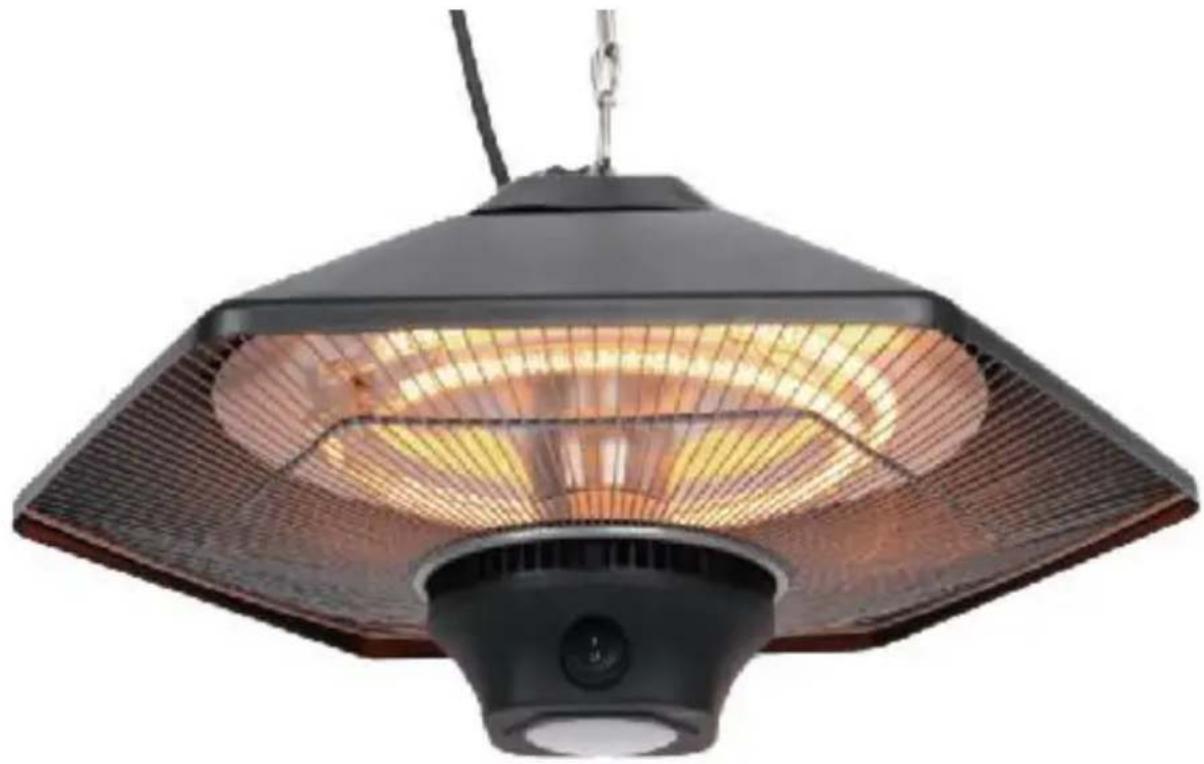

Exterior view of a black outdoor heating lamp with a fan-shaped shade and central panel (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Thank you for purchasing your new heater.

These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this instruction ma in order that you fully understand all the operational features it offers Read all the safety instructions carefully before use and keep this instruction manual for future reference.

SAFETY WARNINGS

READ ALL INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE TH UNIT. KEEP THE ASSEMBLY INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THE ASSEMBLY INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THE ORIGINAL PACKAGING FOR USE WHEN STORING THE HEATER DURING EXTENDED PERIODS OF NON-USE

Read all instructions before using this unit.

Do not leave this unit unattended when in use.

This heater will get hot when in use. Do not touch hot surfaces.

Caution: Some parts of this product can become very hot and cause Particular attention has to be given when children and vulnerable people are present.

Do not move the unit when in use. Wait until the heater is complete before moving and check that it has been unplugged from the power supply.

Position the unit at least 1m away from highly combustible materials as furniture, trees, leaves, dry grass and bushes.

The heater must be a minimum of 1.8m away from the ground and minimum of 0.5m away from the ceiling of a building or overhanging. The heater must not face with the heating element pointing upwards towards a ceiling. The heater element must be facing the area it is Warning: In order to avoid overheating do not cover the heater. It is drying clothes.

Keep children and pets at a safe distance from the unit.

This appliance can be used by children aged from 8 years and above persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and undershers the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Do not operate the heater if any signs of damage or malfunction ma themselves.

Do not attempt to repair or adjust any electrical or mechanical function this unit. The unit does not contain any user serviceable parts. Only qualified electrician should perform servicing or repairs. Attempting to repair the unit yourself will void your warranty.

If the power cable is damaged, it must be replaced by the manufacture service agent or similarly qualified persons in order to avoid a hazard. Do not handle the element with bare hands. If it is inadvertently touched remove finger marks with a soft cloth and methylated spirits or alcohol, otherwise the marks will burn into the element causing premature heat failure.

Do not replace or attempt to replace the element in this product.

This product is suitable for indoor and outdoor use. Do not use this in the immediate surroundings of a bath, shower or swimming pool.

This product must not be left outdoors exposed to the elements for I periods of time.

Do not touch the plug with wet or damp hands.

Do not run the power cable under carpeting. Do not cover the power with rugs, runner, or similar coverings. Arrange the power cable away foot traffic and where it will not be tripped over.

Do not wind the power cable around the unit.

Do not insert or allow foreign objects to enter any ventilation or open the heater, as this may result in electric shock, fire, or damage to the heater.

To prevent a possible fire, do not block the air vents.

A heater has hot and arcing or sparking parts inside. Do not use in where petrol, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.

Where possible, avoid the use of an extension cable as this may over and cause a fire. However, if you have to use an extension cable, it is suitable for the purpose, has been tested for outdoor use and pre has an RCD device fitted or attached.

Always ensure the heater is plugged into a suitable socket, one that tested for outdoor use.

To disconnect heater, turn controls to OFF, then remove plug from so Do not unplug by pulling on the power cable.

Always unplug the unit and ensure the unit is completely cold before moving, cleaning or storing.

This heater is intended for domestic use only and should not be used commercially for contract purposes. Any alternative use, not recommended by the manufacturer, may result in fire, electric shock, or injury to perform. The use of attachments on the heater is not recommended.

Warning: This heater is not equipped with a device to control the roof temperature. Do not use this heater in small rooms when occupied by persons not capable of leaving a room on their own, unless constant supervision is provided.

Check exterior walls for areas of damage before installing the heater. Always use on a dry, suitably strong, stable, flat and level surface.

Check exterior walls for communication and electrical cables and pipeli. Should any service lines be present in the immediate vicinity do not your heater, find an alternative location to install this product.

Do not position directly above or below an electrical socket.

Do not remove any of the warning stickers or signs from the product

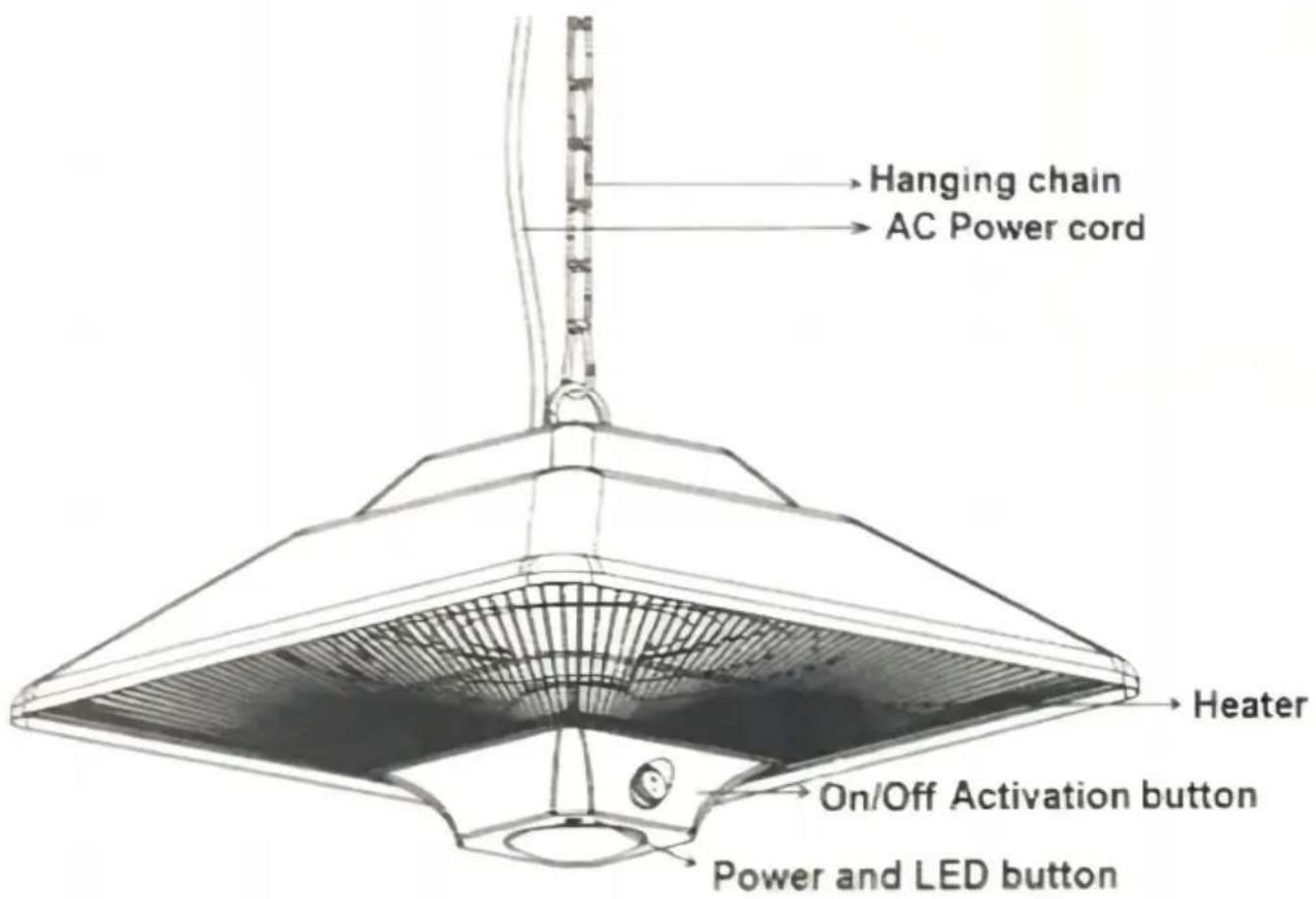

COMPONENTS

Hanging chain AC Power cord Heater On/Off Activation button Power and LED button

1. Please empty the packing box thoroughly, and make sure that then no missing parts.
2. DO NOT PLUG THE UNIT IN UNTIL THE UNIT IS COMPLETELY ASSEMBLED. MAKE SURE THERE IS NO DAMAGE TO THE UNIT A POWER CORD.

ASSEMBLY

MAKE SURE THE HEATER IS NOT FUNCTIONING BEFORE YOU HANG IT ON A GAZEBO, OR UNDERNEATH A BALCONY OR A I

1. Make sure Hook 'A' is well attached to the heater.

2. Attach Hook 'B' onto a secure post, beam or any solid attachmen. You can also attach hook 'B' to Hook 'A' to go around an obstacle itself to install the heater.

3. Connect the heater to an AC 230V/50 Hz wall outlet.

NOTE: Wait until the heater's heating element has cooled down before moving it.

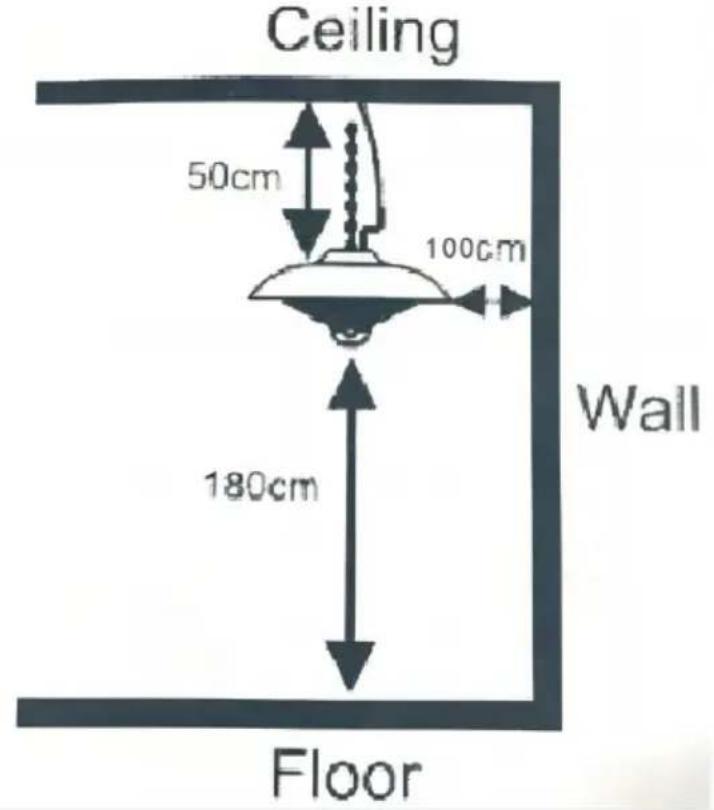

Ceiling 50cm 100cm Wall 180cm Floor

OPERATION

1. Plug in, push rocker power switch, red light on, standby

2. Touch one time, blue light on, low power setting

3. Touch second time, medium power setting

4. Touch third time, high power setting

5. Touch fourth time, medium power setting + LED light on

6. Touch fifth time, only LED light on

7. Touch sixth time, red light on, standby

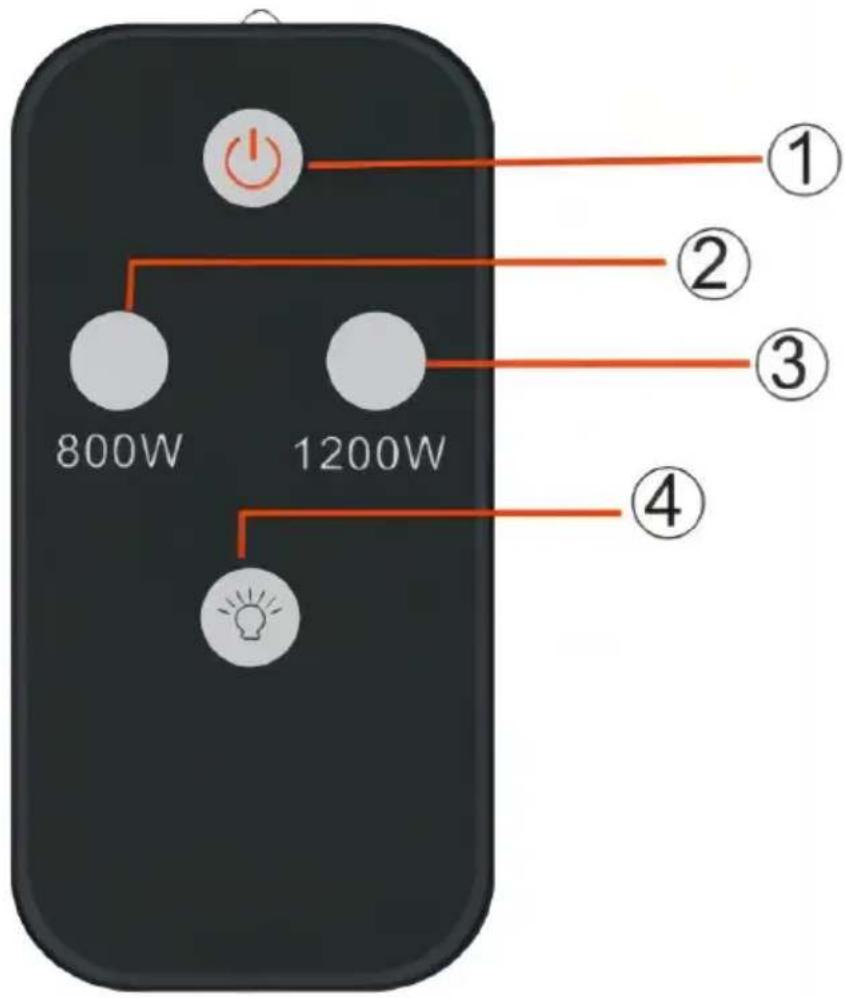

Remote control

800W 1200W ① ② ③ ④

1.OFF button: control power off only
2.800W button: control low power setting
3.1200W button: control medium power setting
4.Light button: control LED light

SPECIFICATIONS

Voltage Rating	AC220-240V 50Hz
Power	2000W

Maintenance and Cleaning

Maintenance

Attention! Careful and regular maintenance of Infrared Heater is required to maintain a long and efficient operation of your appliance.

1-Check the cleanliness of the Reflector and IR-Filament at least once month. If necessary, apply cleaning and maintenance instructions.

2-The number of checks may be increased considering the amount of dust in the environment.

3-Check the shape of the heater, inner wire and appearance while cl the appliance. If any problem with heater please contact professionals.

4-Check the cable and plug while cleaning the heater. If any problem heater please contact professionals.

5-It is recommended to replace the mirror every two years to improve operating efficiency.

Cleaning

Attention! Regular and careful cleaning helps your heater operate for longer years and more efficiently.

1-For your safety, make sure the power is off before cleaning your appliance.

2-Use a slotted screwdriver to remove the front grille from the frame's entrance.

3- For your safety, make sure the power is off and the power cable must be unplugged.

4- Reflectors and filaments must be cleaned with soft cloth, smooth br

Cleaner should not too wet and could moist, the cleaner should not any chemicals.

5- Avoid using cleaning tools(cleaners, etc.) that can damage reflectors
6- Insert a wire grid with a slotted screwdriver.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
