USER MANUAL LB-33B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ANIMAL TRAP

MODEL:LB-33A/LB-33B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ANIMAL TRAP

MODEL:LB-33A/LB-33B

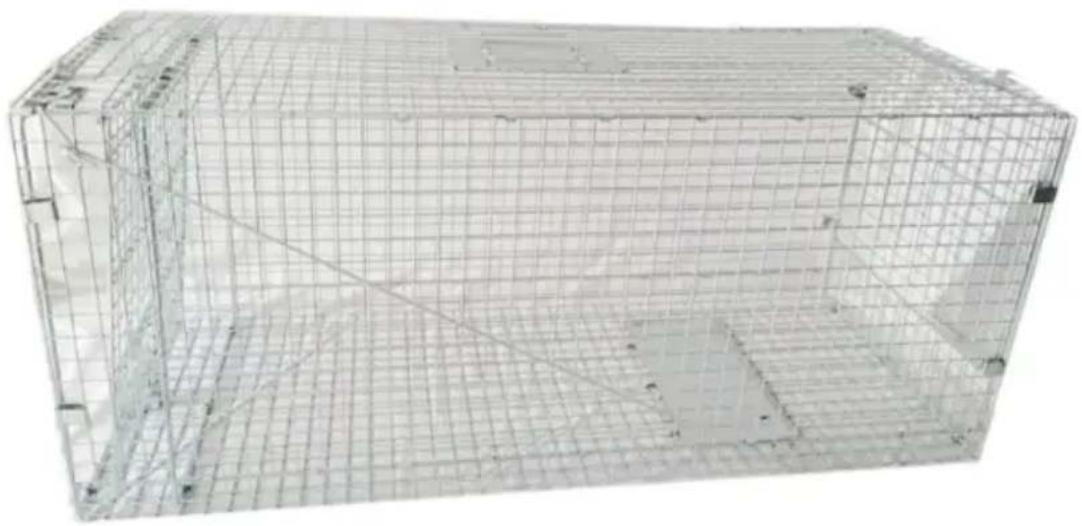

3D wireframe model of a transparent enclosure with grid lines and structural details (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. In order to ensure your own safety, please make sure to ANSI-approved goggles and heavy-duty work gloves when installing this product.
3. Keep the assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs medication.
6. Product capabilities apply to properly and completely assembled product only.
7. Assemble on a flat, level, hard and smooth surface capable of safely support a fully loaded animal trap.

Use precautions

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this. Please keep small spare parts out of children's reach.
3. Use only on a flat, level, hard and smooth surface capable of safely sup fully loaded animal trap.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damaged.
6. We recommend 2 or more people to install.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Model	LB-33A	LB-33B
Product Size	1067X406X457 mm	1270X508X660mm
Color	silver	silver
accessories	cable ties*10	cable ties*10

Assembly Instructions

Notice:

1. When installing, please wear gloves and be careful where you touch (pull rod, etc.) to avoid being hurt.
2. Use nylon cable ties to reinforce the back door where the wild animal may be more likely.

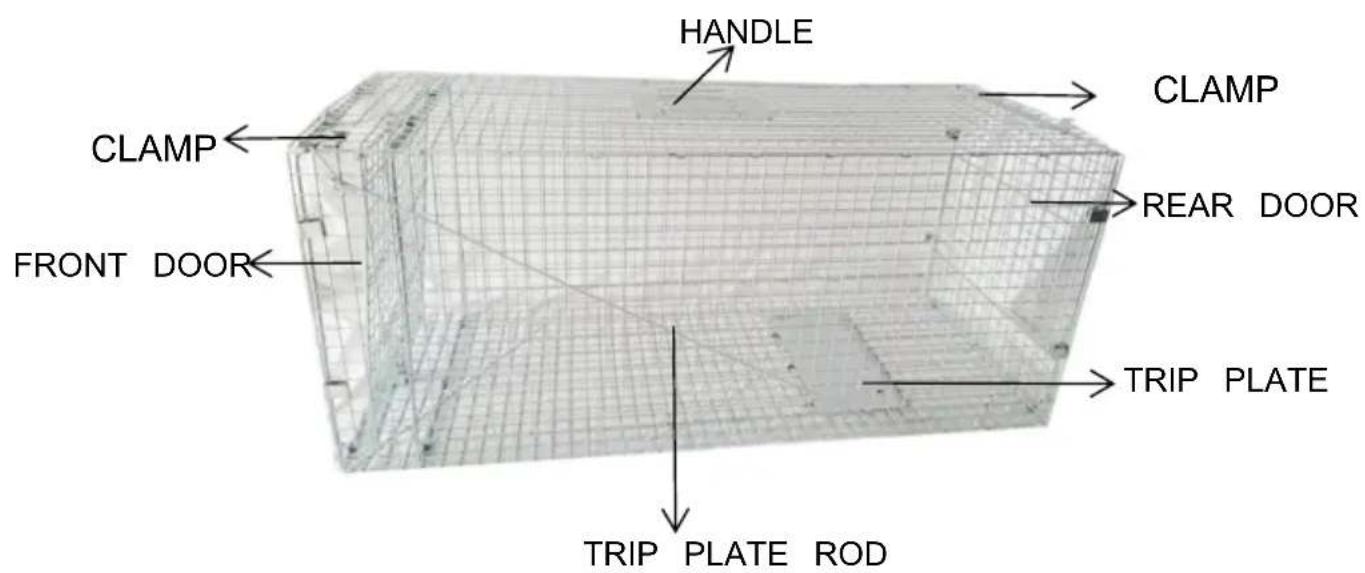

HANDLE CLAMP FRONT DOOR TRIP PLATE TRIP PLATE ROD REAR DOOR

Scanned document with Chinese text and a hand pointing to it, likely a form or report with structured content.

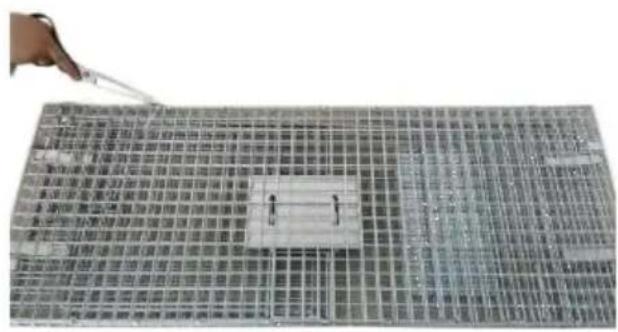

1. Use scissors to cut the cable.

Metal wire cage array on a workbench, no visible text or symbols

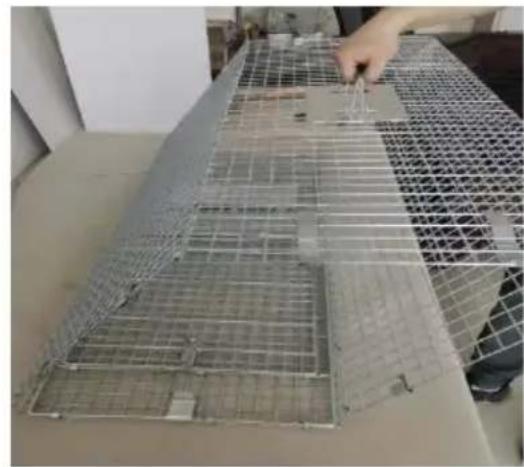

2.Unfold trap into erect form.

Metal wire cage with grid pattern, no visible text or symbols

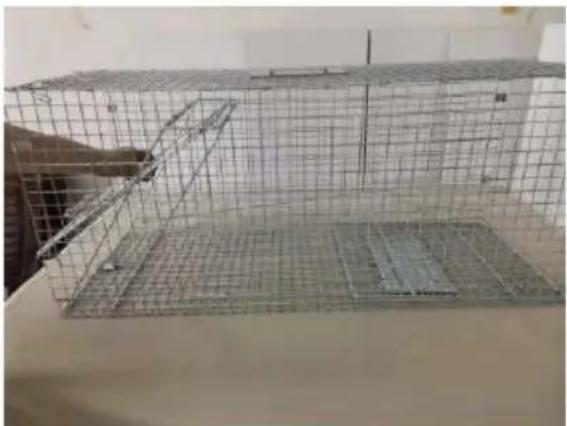

3.Pull the front door out.

Hand holding a metal wire cage with a small object attached (no visible text or symbols)

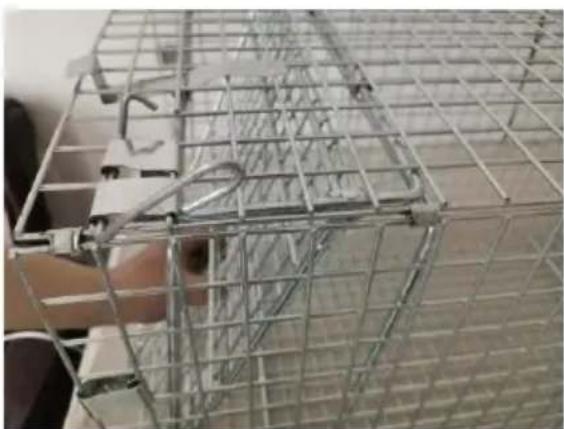

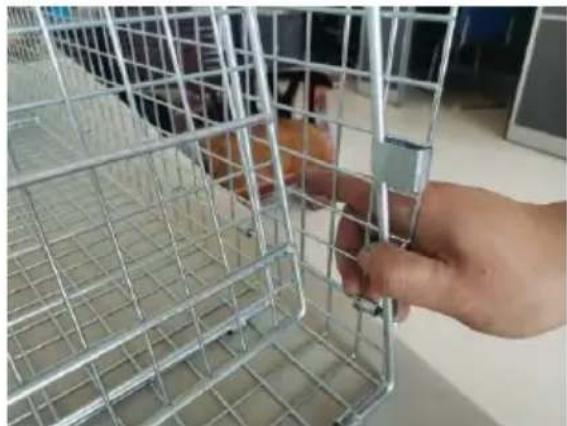

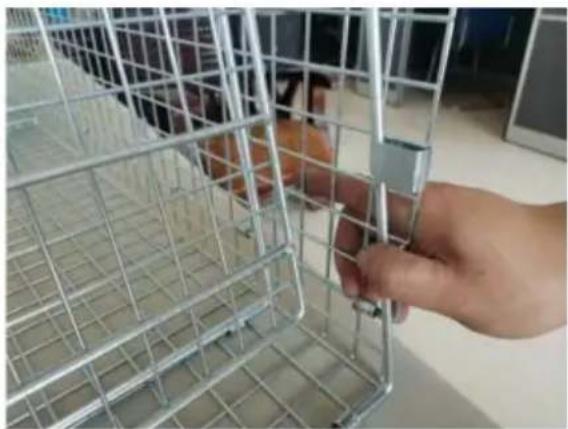

4.Fixed left and right card

Note: The door must be pulled out.

Close-up of a metal wire cage with grid patterns and metal clips (no text or symbols visible)

Close-up of a hand holding a small object over a metal wire cage (no visible text or symbols)

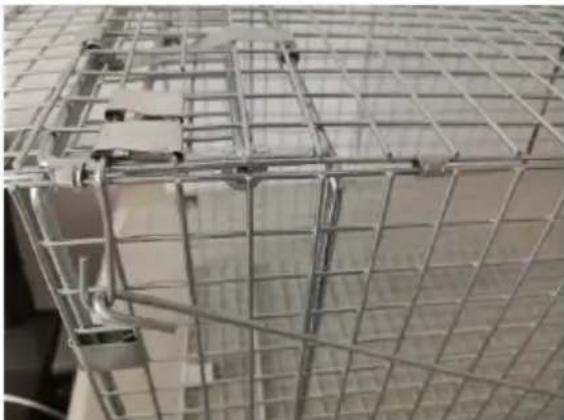

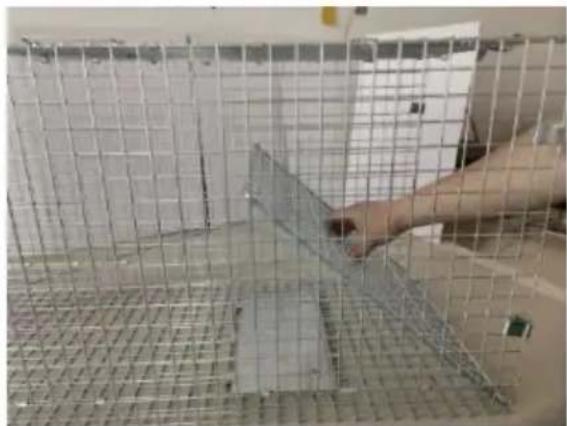

1. Secure the upper and lower bayonet. Pull the Front Door Frame into place Door Latch Rings, making sure the Door Latch is in front of the Door Stop F

Hand placing a small object into a metal wire cage (no text or symbols visible)

Close-up of a metal wire cage with grid pattern, partially visible hand holding tool (no text or symbols)

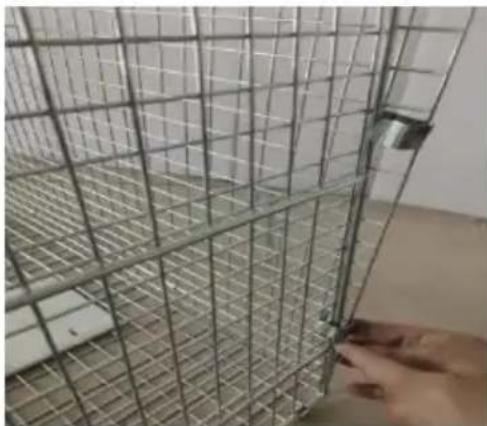

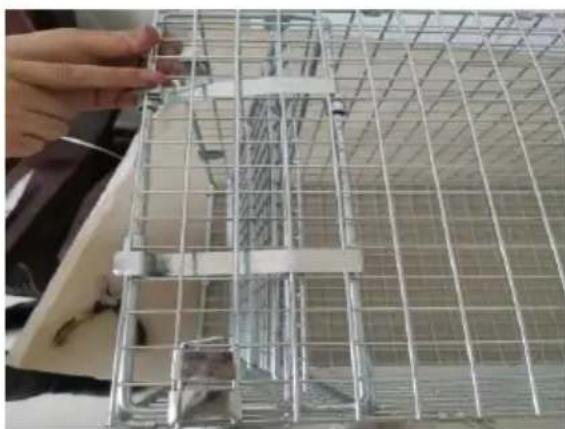

6.Pull out the back door and secure it with a buckle. If you feel that the doors are not secure, use nylon cable ties to reinforce them.

Close-up of a metal wire cage structure with grid pattern and metal components (no visible text or symbols)

Metal wire cage placed on a white surface, no visible text or symbols

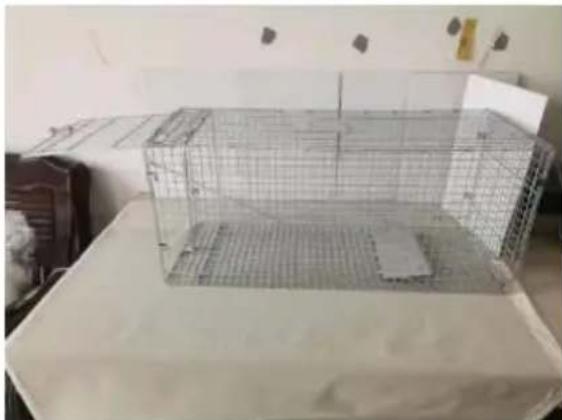

1. Pull the rod up at a suitable angle, push trip plate rod into its position
