Product Type	Animal Trap
Brand	Vevor
Model	LB-18
Dimensions	813 x 254 x 305 mm
Weight	Approximately 6 kg
Power Supply	None (manual)
Main Functions	Capture of wild animals
Maintenance and Cleaning	Clean after each use, avoid rust
Safety	Do not sit or stand on it; assemble correctly; wear safety glasses and gloves
Spare Parts and Repairability	Cable ties, metal rod, spring; repairable with common tools
Warranty	Electronic warranty via www.vevor.com/support
Color	Silver
Material	Metal
Included Accessories	10 nylon cable ties
Assembly	Requires 2 people, follow provided instructions

Frequently Asked Questions - LB-18 Vevor

How to assemble the LB-18 trap?

Follow the steps in the manual: wear gloves, assemble the cage by turning the base over, insert the metal rod, attach the bait plate and spring. Tighten the cable ties at the indicated locations. Incorrect assembly can cause injuries.

What animals can be captured with this trap?

The trap is designed for wild animals of medium size such as raccoons, opossums, or stray cats. Check local regulations before use.

How to install the bait in the trap?

Place the bait behind the bait plate inside the cage. Secure the metal rod using the folding attachments already in place to hold the bait in position.

Where to place the trap for effective capture?

Install the trap on a flat, hard, and stable surface, sheltered from the weather. Leave it in place for at least 7 days before moving to acclimate the animals.

How to transport the trap?

Use the carrying handles located on top of the cage. Make sure the door is locked and the captured animal cannot escape.

How to clean the trap after use?

Clean with soapy water and dry thoroughly to avoid rust. Disinfect if necessary. Store in a dry place.

What safety precautions should be followed?

Never sit on the cage and do not let children play nearby. Wear safety glasses and gloves during assembly. Inspect before each use.

What to do if the trap does not close properly?

Check that the adjustment hook is properly in place under the trapdoor and that the spring is correctly tensioned. Refer to diagram 14 in the manual.

Where to find spare parts for the LB-18?

The cable ties are included. For other parts (metal rod, spring), contact technical support via www.vevor.com/support.

How to contact Vevor technical support?

Visit www.vevor.com/support for technical assistance and the electronic warranty certificate. You will also find contact information based on your region.

USER MANUAL LB-18 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ANIMAL TRAP

MODEL:LB-18/LB-28A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

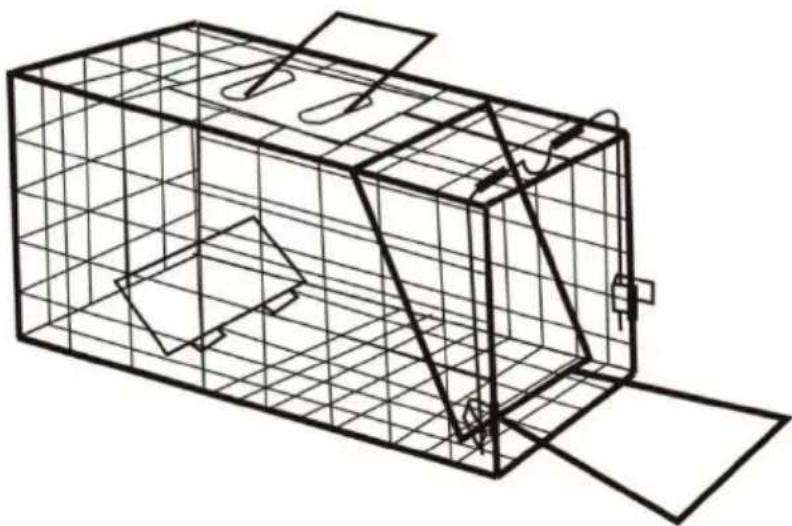

ANIMAL TRAP

MODEL:LB-18/LB-28A

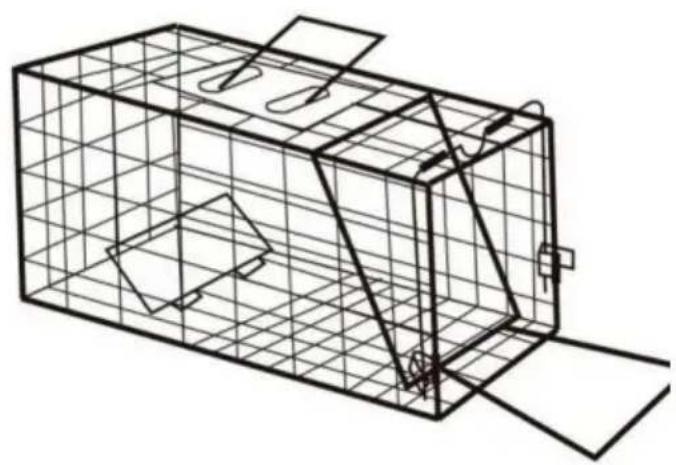

Wireframe diagram of a 3D rectangular box with internal geometric shapes and a folded paper clip (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. In order to ensure your own safety, please make sure to ANSI-approved goggles and heavy-duty work gloves when installing this product.
3. Keep the assembly area clean and well lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs medication.
6. Product capabilities apply to properly and completely assembled product only.
7. Assemble on a flat, level, hard and smooth surface capable of safely support a fully loaded animal trap.

Use precautions

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this. Please keep small spare parts out of children's reach.
3. Use only on a flat, level, hard and smooth surface capable of safely sup fully loaded animal trap.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damaged.
6. We recommend 2 or more people to install.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Model	LB-18	LB-28A
Product Size	610X203X203 mm	813X254X305mm
Color	silver	silver
accessories	cable ties*10	cable ties*10

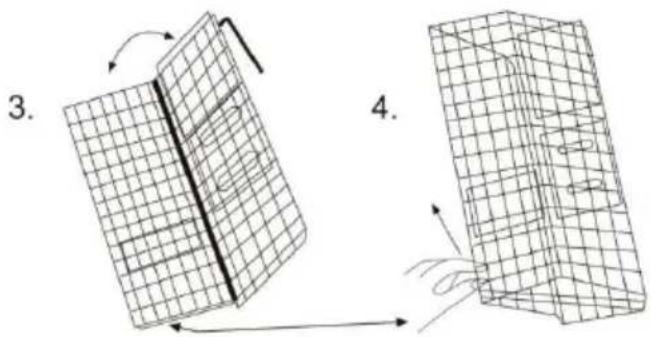

Assembly Instructions

Notice:

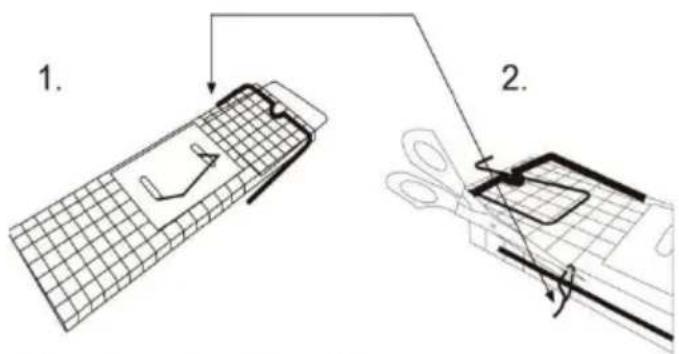

1. When installing, please wear gloves and be careful where you touch (pull rod, etc.) to avoid being hurt.
2. Use nylon cable ties to reinforce the back door where the wild animal may be more likely.

Use scissors to cut the cable.

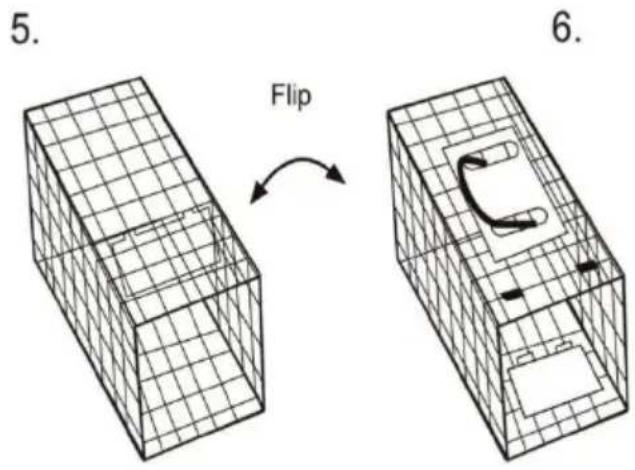

Flip the cage over to the right has side and then lift the cage up.

1. Back of the cag

The cage should look like diagram Pull the back plate down and locl Its currently in an upside down place, insert the short metal rod position. Flip and turn the whole (through the holes(do not forget to around so its the correct side up hook the rod around the side of are now looking at the back of th cage) cage

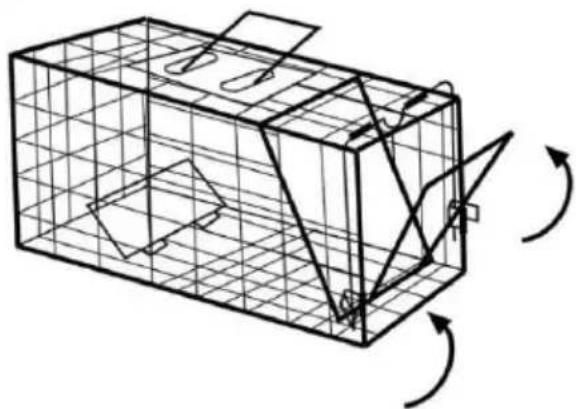

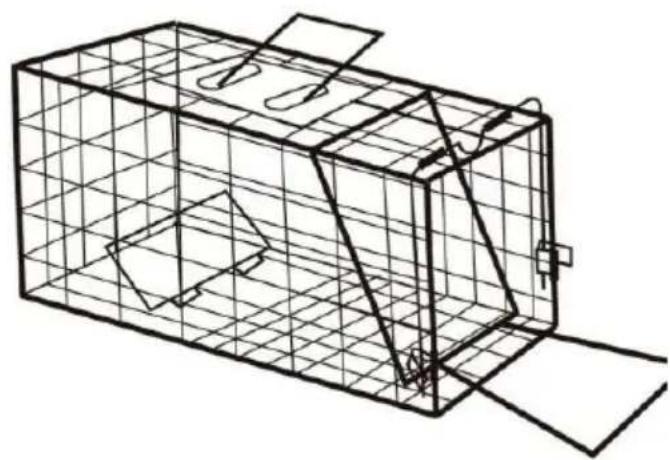

Front of the cage

Wireframe diagram of a 3D rectangular box with internal geometric cutouts and paper clips (no text or symbols)

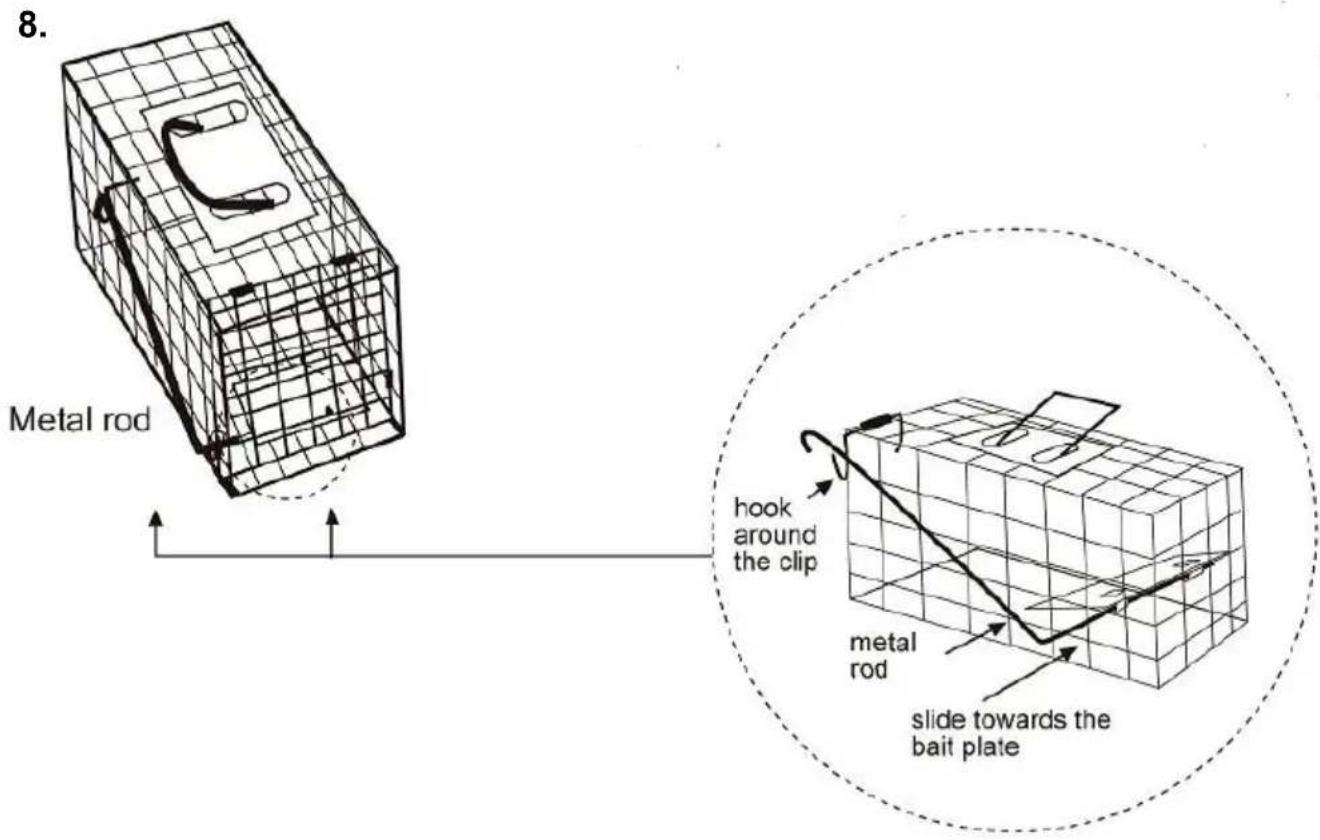

Slide the metal rod towards the bottom of the bait plate and then the rod around the clip. Setting up back is now complete

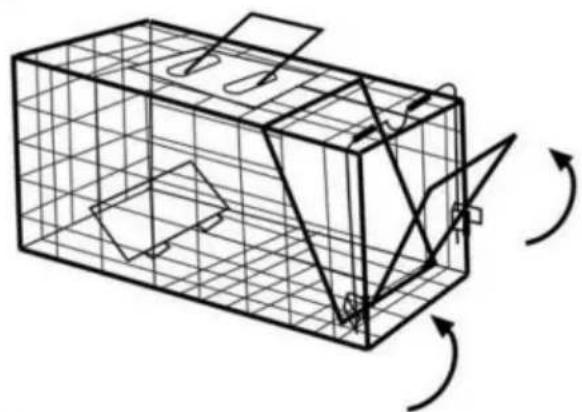

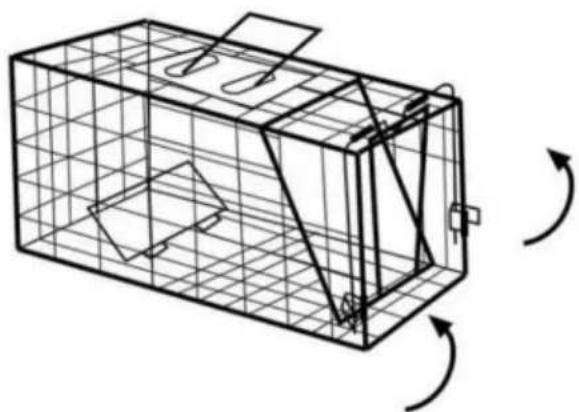

Turn the cage around so you are facing the front of the cage.

1.

Wireframe diagram of a 3D wireframe box with internal geometric shapes and cutouts (no text or symbols)

1.

Wireframe diagram of a 3D container with internal geometric shapes and directional arrows indicating rotation (no text or symbols)

1.

Wireframe diagram of a rectangular enclosure with internal structural elements and directional arrows indicating rotation (no text or symbols)

1.

Wireframe diagram of a wireframe cage with internal compartments and mounting points (no text or symbols)

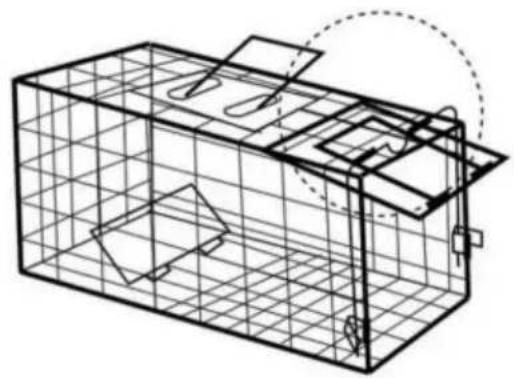

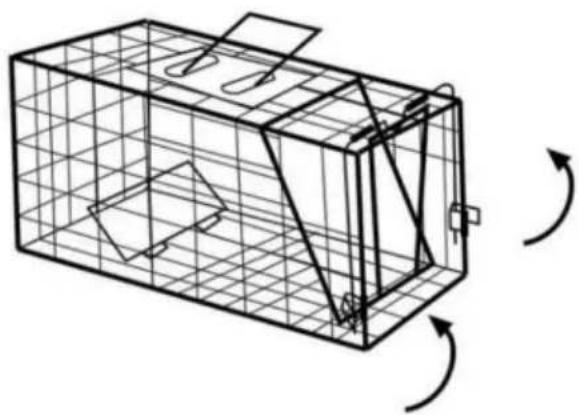

Lift the trap door spring and push towards the bait plate. Now is the time to the baits behind the bait plate Secure the metal rod using the metal folding already attached to the cage.

1.

Technical diagram of a structural component with grid lines and directional arrows, no visible text or symbols

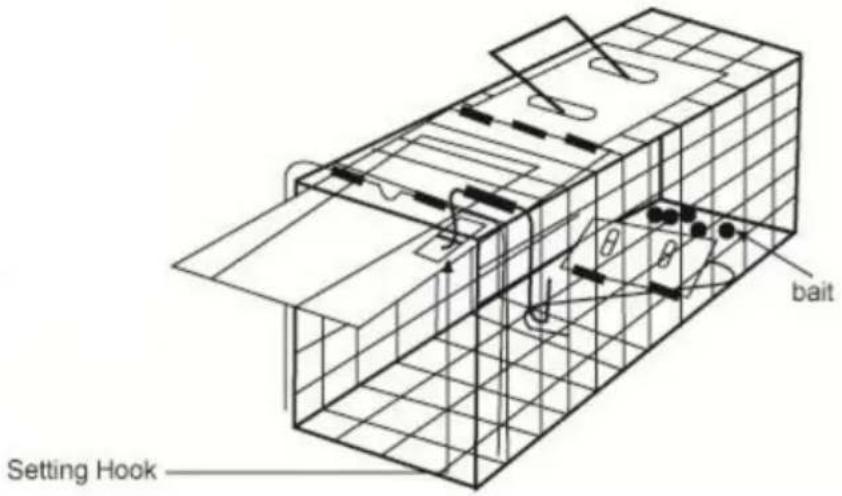

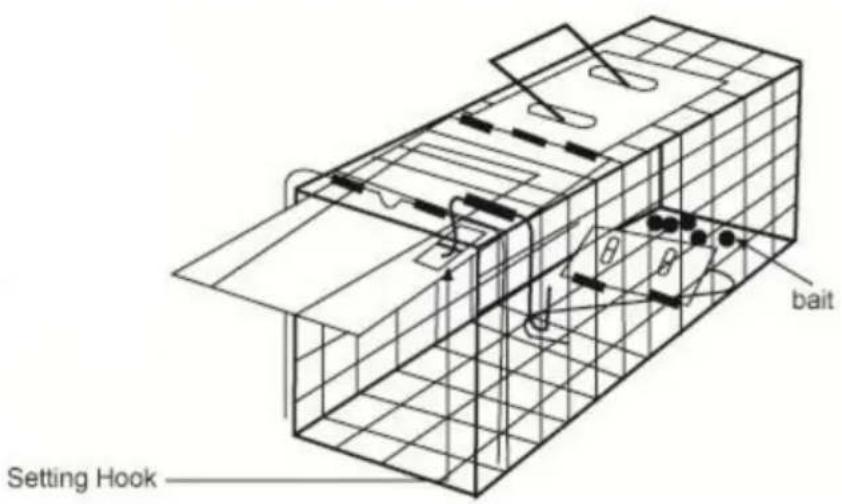

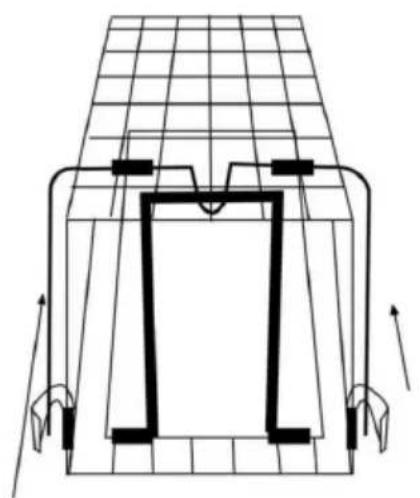

Hold the trap door in an open position, set the trap by swinging the set beneath the bush on the trap door, and then lower the door to release onto the setting hook. The cage should look like diagram 14. Once set, should be left in position for at least 7 days before relocating.

You can transport the cage using the carrier handles at the top of the t
