USER MANUAL 1/4-5/16A Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

RATCHET CHAIN BINDERS

Model:1/4-5/16A

1/4-5/16B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

RATCHET CHAIN

BINDERS

Model: 1/4-5/16A

1/4-5/16B

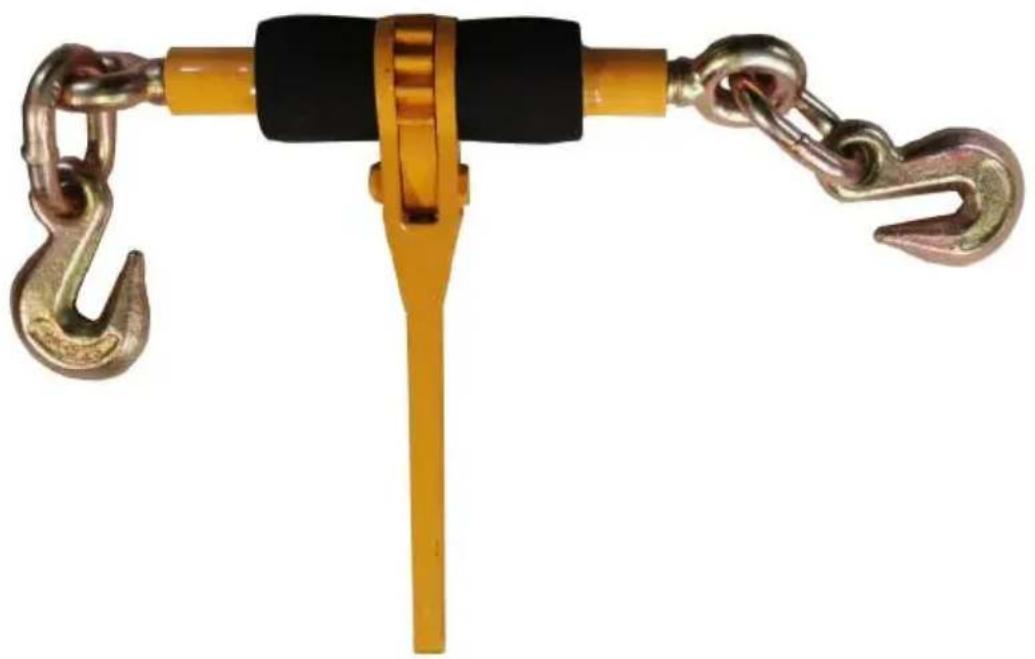

Yellow mechanical lever with two metal chains attached, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

1. Read this material before using this product. Failure to do so can result in serious injury. Carefully read instructions and procedures for safe operations.
2. The Ratchet Chain Binder must be used flexibly, and it is strictly prohibited to use it compulsorily when individual connections are inflexible

INSPECTIONS:

1. Before each use

Each time the ratchet style load binder is used, a visual inspection should be carried out to determine whether there are abnormal conditions such as cracking, bending, deformation, etc.

2. After each use

After each use, if the tightening of the ratchet style load binder is abnormal, the manufacturer or the supplier's authorized maintenance personnel should be advised to check immediately.

Suggestions for Safe Use of The Ratchet Style Load Binder

• According to the size of the binder, it should be used with the matching chain.
• When connecting the binder hook with the chain, hang the chain at the bottom of the hook.
• Do not knot the chain when using the binder.
• When using the binder, make sure that the binder is straight without folding and twisting.
• Due to the shipping(handing) or transportation, the binder may have knots at the connection between the ring and the hook or the screw rod may be tightened. Please smooth them before use.
• Make sure that the chain is straight without folding and twisting, If the chain has knots, please smooth the chain before use. Do not use this product directly when the chain is twisted.
  ● The goods are bundled on hard or relatively hard objects. When

tightening the binder, please do not stretch your hand under the chain or avoid other objects that may affect personal safety.

- When using the binder, please confirm whether the goods can be fixed with the chain and whether the hardness of the chain will damage your goods.

Save This Manual

MODEL AND PARAMETERS

NOTE: Please match your purchase.

Model	1/4-5/16A	1/4-5/16B
Adaptive chain	1/4-5/16inch
Working Load Limi	2600Lbs
BreakingStrength Limit	13200lbs
Adjustable lengthrange	E=45-52cm
Material	Alloy Steel
Color	Yellow

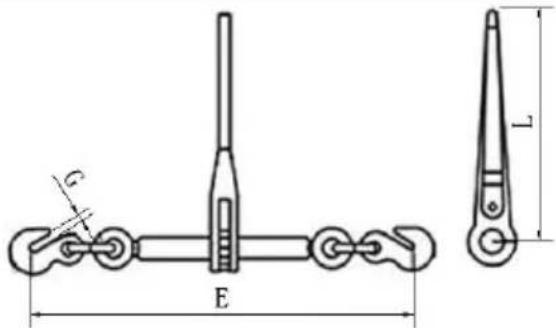

Argument	L=21cm; E=45-52cm; G=10mm
Package Content	Ratchet chain binder*2+User Manual*1	Ratchet chain binder*4+User Manual*1

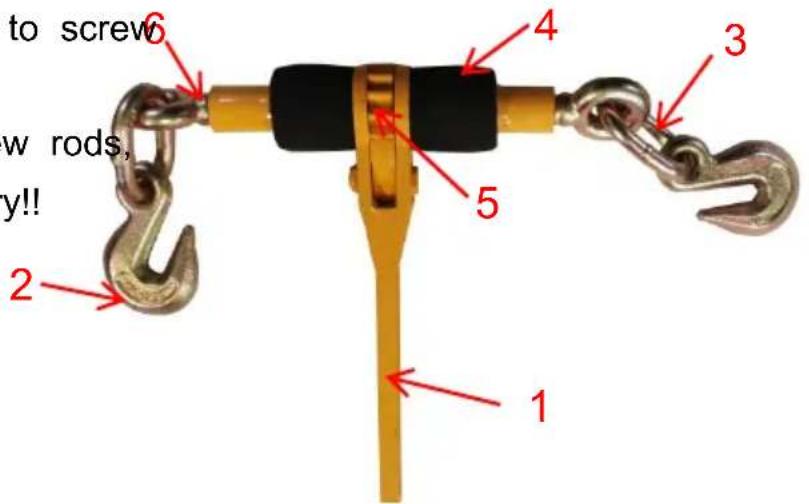

STRUCTURE DIAGRAM

Warning: Make sure to screw in >3cm!

Beware of falling screw rods, which can cause injury!!

to screw w rods, y!! 2 1 3 4 5

1. Handle 2. Hook 3. Hanging ring 4. Rubber sleeve 5. Ratchet wheel 6. Screw rod

INSTRUCTIONS

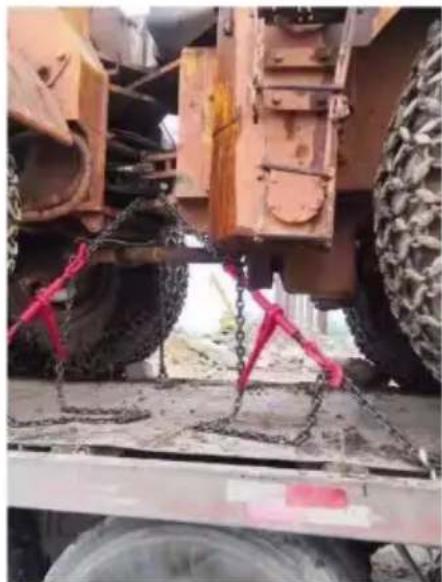

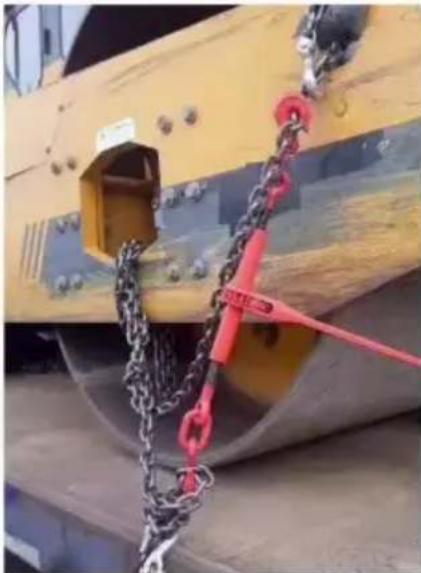

This product is often used with chain. The following examples illustrate.(The image is for explanation only,please match your purchase.)

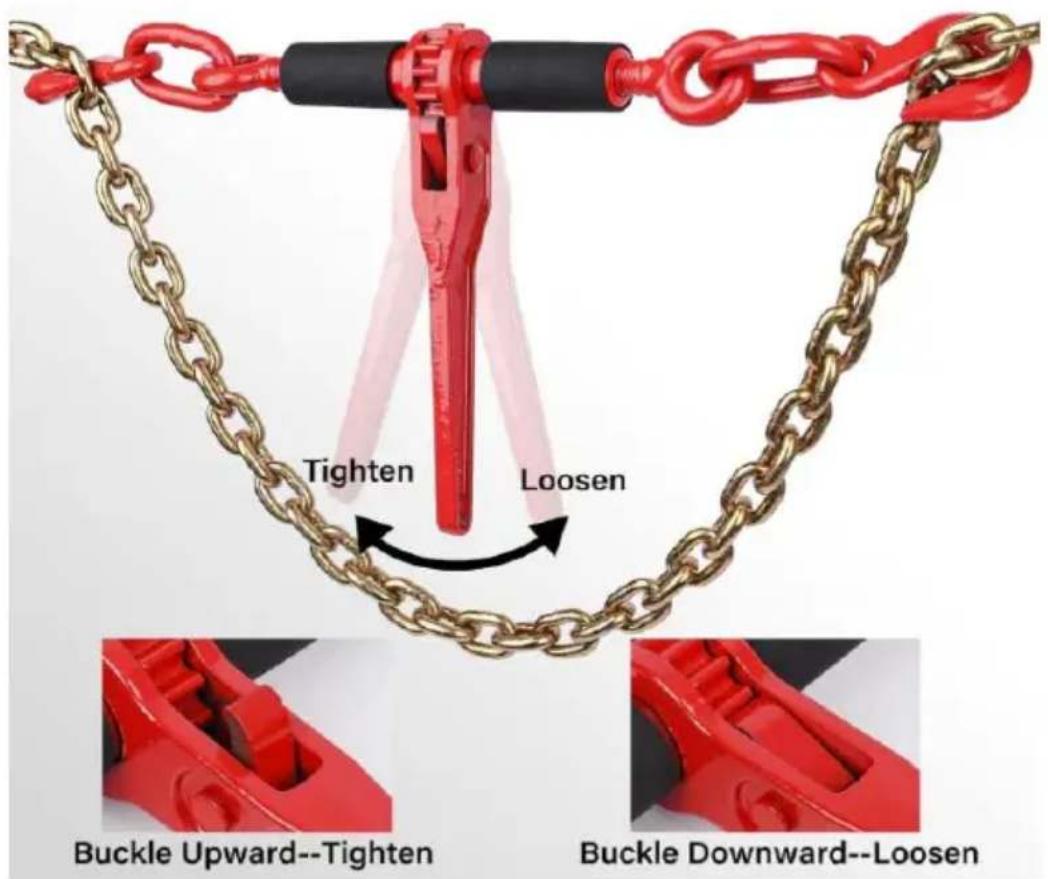

Tighten Loosen Buckle Upward--Tighten Buckle Downward--Loosen

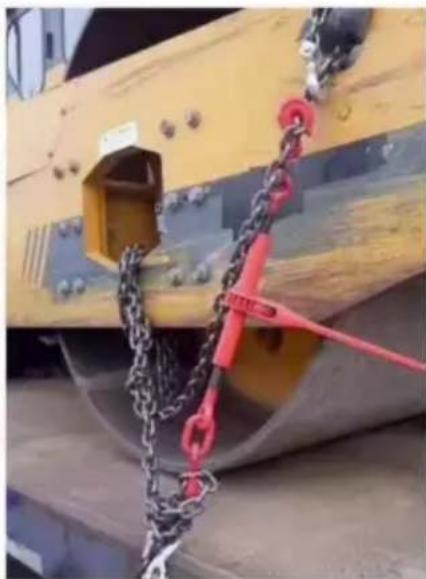

Close-up of heavy machinery lifting a large tire, with chains attached to the vehicle (no visible text or symbols)

Close-up of a yellow industrial pipe with heavy chains and metal fittings, no visible text or symbols

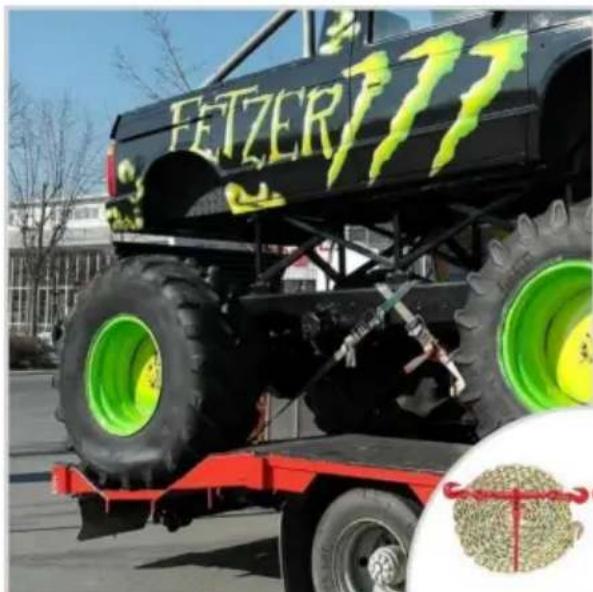

FETZER 711

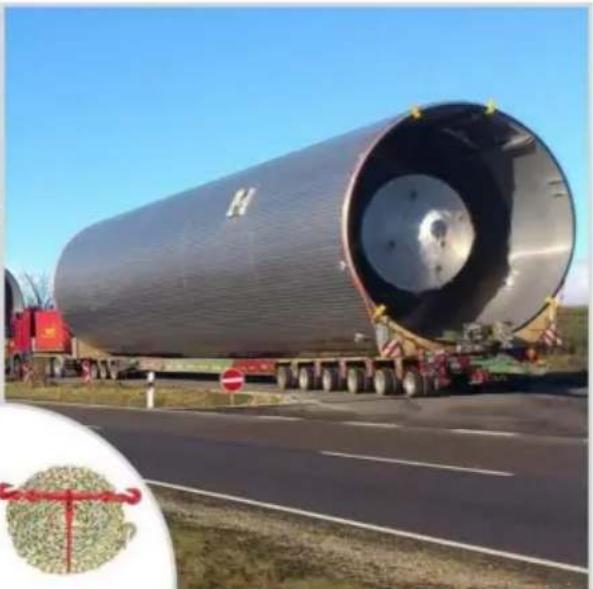

Large cylindrical industrial pipe being loaded onto a flatbed truck on a highway under clear blue sky (no visible text or symbols)

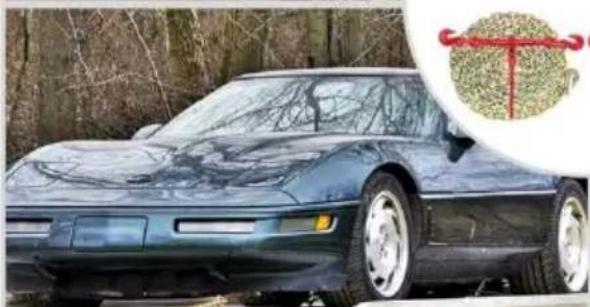

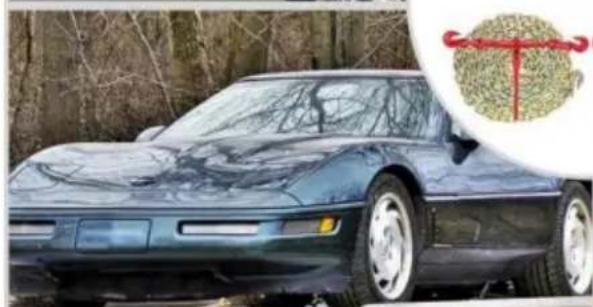

Side view of a black 95th-century car parked outdoors with tree branches in the background (no visible text or symbols)

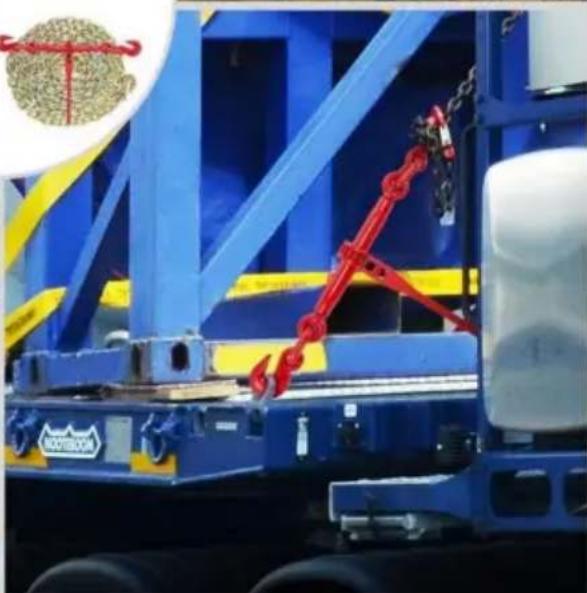

Industrial machinery with blue frame and red chain link, no visible text or symbols

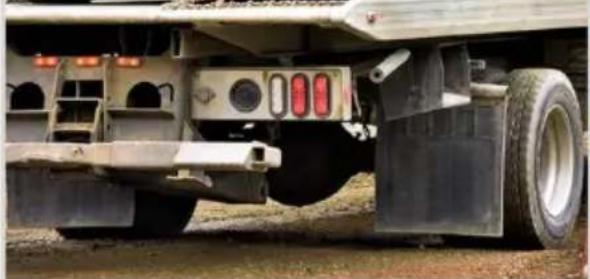

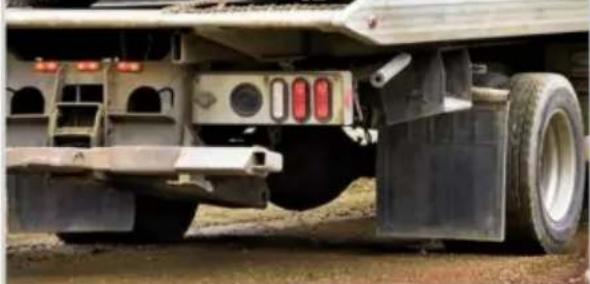

Close-up of a large heavy-duty truck with visible tire, trailer, and side-mounted sensors (no text or symbols)

MAINTENANCE

• Do not exceed WLL (working load limit) .
• After use, Please clean and dry the product and store it in a dry, ventilated place.

WARNING:

Procedures not specifically explained in this manual must be performed only by a qualified technician.

To prevent serious injury from tool failure, do not use it when it is damaged

1. Please check the overall condition of the binder before each use.

Is the screw loose flexible?

Is the main body deformed?

Does the opening of the hook widen?

Is the gear deformed?

Whether there are cracks in all parts.

1. Before each use, thoroughly test whether the binder works properly before actual use. If the binder doesn't work properly, please follow the inspection instructions to see if the problem occurs.
2. To prevent serious injury, be carefully when troubleshooting the faulty binder, solve all problems before use. If the solution provided in the troubleshooting guide cannot solved problem, please ask qualified

- 5 -technicians to check the binder before use.

After the binder is repaired, twist the puller back and forth to see if it can retracted freely.

Make sure that the binder is safe enough to continue to use it. Wish that the binder can bring you convenience at work.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House London Road, Staines-upon-Thames, Surrey, TW18 4A
