USER MANUAL DM306 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Multi-function Air quality detector

MODEL: DM306

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MODEL:DM306

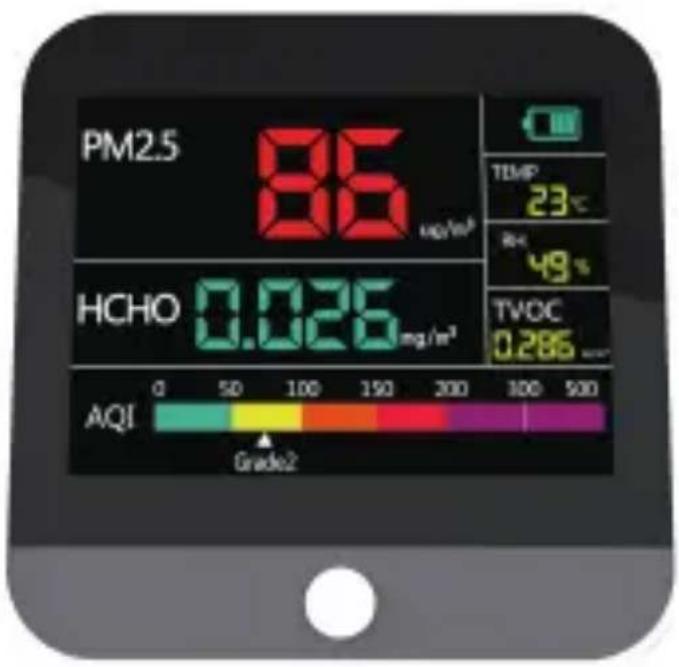

Multi-function Air quality detector

PM2.5 86 up/m³ HCHO 0.026 mg/m³ AQI 0 50 100 150 200 300 500 Grade2 TEMP 23°C HV 49°C TVOC 0.286 mm⁻³

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Product Specifications

Display method: LCD screen display

Atmospheric pressure: 86Kpa - 106Kpa

Detection method for PM: Laser Scattering

Sampling time: 1.5 seconds

Product Size: 90 x 90x50mm

Detection temperature: -10°C to 50°C

Relative humidity: 20% - 85%

Storage temperature: -10°C to 60°C

Concentration unit for PM2.5 : ug/m³

Concentration unit for HCHO and TVOC: mg/m³

Power source: Lithium battery with 2200 mAh capacity;

5V DC power charging via micro USB port

Product weight: 200g

Product Description

This product is a multifunctional air quality monitor that detects Formaldehyde (HCHO), Total Volatile Organic Compounds (TVOC), Particulate Matter 2.5, Temperature, and Humidity. As a scientific air quality detection device, it combines multiple air sensors with a built-in fan to allow real-time monitoring of formaldehyde (HCHO), total volatile organic compounds (TVOC), PM2.5, temperature, and humidity on its digital LCD display.

Considerations

Please read the instructions carefully before using this device.

Please calibrate the device before use for most accurate results.

Please keep the manual handy for quick reference and troubleshooting.

Precautions

Avoid covering the air intake areas during use to avoid inaccurate measurements.

Avoid use of solvents to clean the product as residual fumes will skew air quality readings.

Avoid water or other liquids near the product to avoid electrical damage.

Do not allow unauthorized modification or repair of this product.

Instructions

Start Up

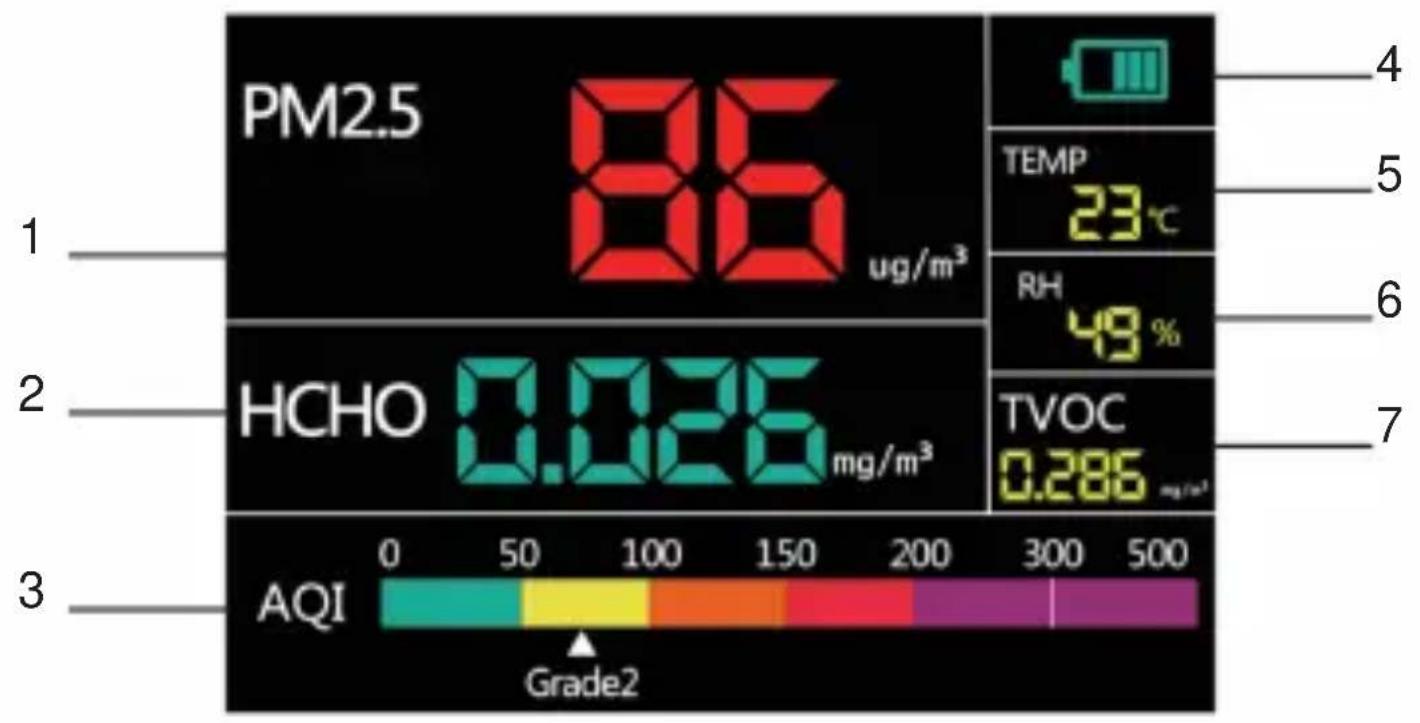

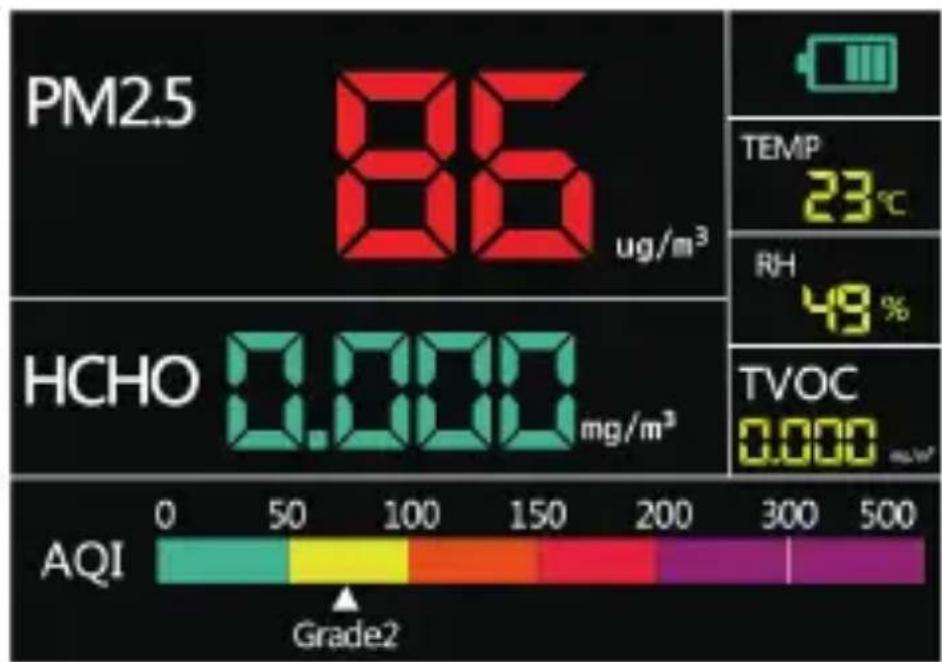

When you long-press the center power button, the air quality monitor will boot up. Detector will proceed through its warm-up sequence for 200 seconds to allow sensors to preheat and fan to draw in fresh ambient air. This is necessary for accurate results. If device is new, please calibrate first for most accurate results. Countdown timer showing remaining time for warm-up sequence is shown in the HCHO display area. HCHO and TVOC will not display level until 200 seconds preheating process is completed

1. PM2.5 display area, showing the current PM2.5 level.
   2.HCHO display area, showing the current Formaldehyde level.
2. Air Quality Index, which shows the current AQI pollution index value.
3. Battery symbol, showing the battery or charging indicator.
4. Temperature display area, showing the current temperature in Celsius.
5. Humidity display area, showing the current humidity level.
   7.TVOC display area, showing the current Total Volatile Organic Compound level.

HCHO (formaldehyde) ideal range: <=0.10 mg/m3 (0.08 ppm/m3)

TVOC ideal range: <= 0.6 mg/m3 (0.45 ppm/m3)

The formaldehyde alarm threshold is 0.100 mg/m3. If levels of HCHO exceed this formaldehyde alarm threshold, the device will alarm with short beeps.

Switch Temperature Unit

The temperature unit's default is Fahrenheit(°F).

Note: Turn on the monitor at the same time to continue to long press Power Button until the unit switch can not be released, otherwise it can not be switched, you need to re-power off and on again to switch.

Formaldehyde correction method

When the formaldehyde content is not in the normal range, the machine need to be calibrated. Correction method: Put the device into a place of good air quality ,turn it on,then after 5-10 minutes,quickly click the power button twice . you will see the HCHO value is 0.000 and TVOC value is 0.000, the calibration is completed.

Product Key function description :

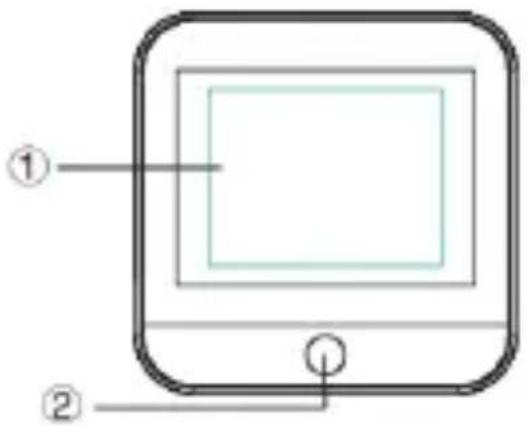

Diagram of a device with two labeled components, showing a square and circular outline with numbered annotations.

Figure 1

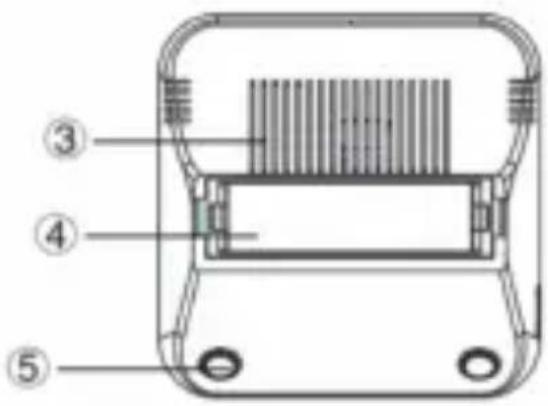

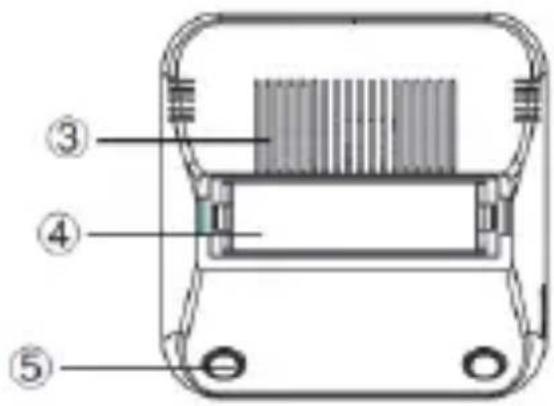

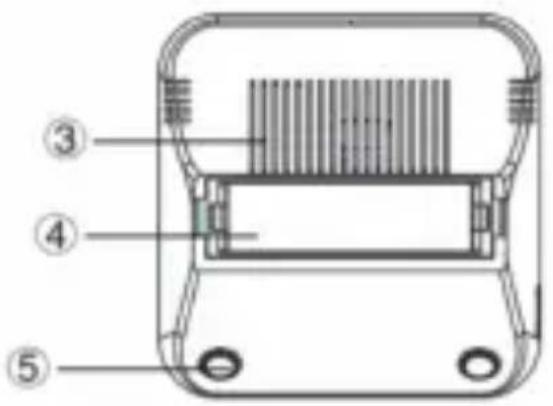

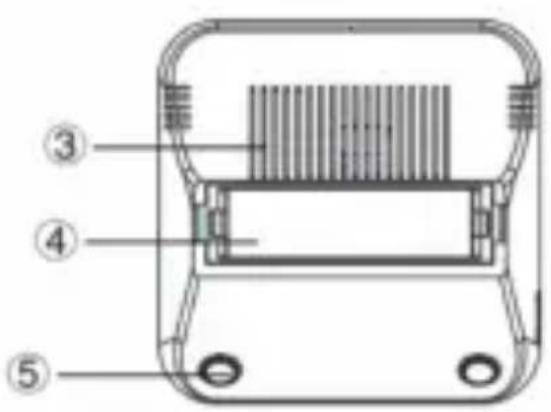

Technical diagram of a device with numbered parts labeled ③, ④, and ⑤

Figure2

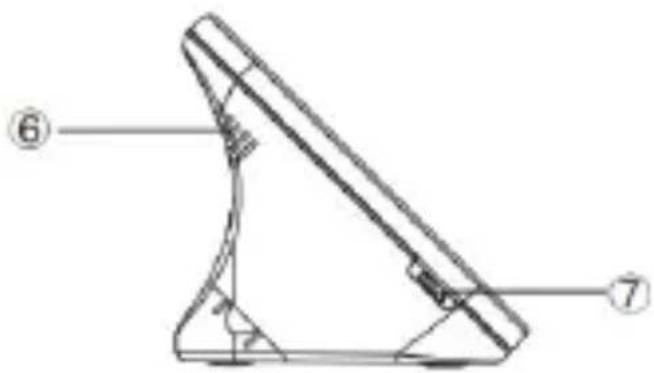

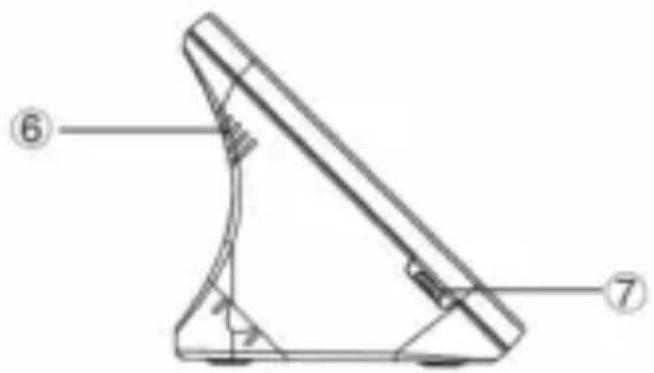

Technical diagram of a mechanical component with numbered parts labeled ⑥ and ⑦

Figure3

①display screen
②Power/ calibration Button, used to turn device on/off by pressing for 3 seconds or to calibrate the device by double pressing
③air hole of back
④battery cover of back
⑤foot pads
⑥side air flow holes
⑦USB charging port

About Charging

When low battery icon is displayed, the device needs to be charged. Insert the included or another compatible micro USB charging cable into the device. Attach the other end to a USB DC charger (such as a smartphone charger) that outputs DC 5V at >=1000mA. Fully charge for at least 2-3 hours before use. Avoid charging with a USB computer port which only outputs 500mA.

Air Quality Standard

AQI level reference table:

AQI:Level	AQI quality index pollution level corlor
AQI:1 0-50	excellent green
AQI:2 51-100	good yellow
AQI:3 101-150	mild pollution orange
AQI:4 151-200	moderately pollution red
AQI:5 201-300	severe pollution purple
AQI:6 above	300 serious pollution maroon

PM2.5 standard reference table :

PM2.5	0-60 Excellent
	61-120	Good
	121-999	Poor

Formaldehyde standard reference table:

Formaldehyde	less than 0.1	Safety range
	Reach 0.1	Oder and discomfort
	Reach 0.5	Can irritate eyes and cause tears
	Reach 0.6	May cause throat discomfort or pain
	higher	Can cause and vormiting, cough,chest tightness, wheezing and even pulmonary edema.

Packing List

Main device * 1 Charging cable *1 User manual *1

Package Box * 1

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including

interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

- Increase the distance between the product and receiver.

- Connect the product to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for assistance.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place,

Rancho Cucamonga, CA 91730

EC REP: SHUNSHUN GmbH.

Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany

Tel: [phone] [e-mail]

UK REP: Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Tel: [phone] [e-mail]

Made in china
