Product Type	Torque Multiplier
Brand	Vevor
Model	BD-58D-A (compatible with BD-58D-C, BD-64D-A, BD-78D-C)
Material	Heat-treated alloy steel
Reduction Ratio	1:64
Maximum Torque	6800 N·m (output)
Maximum Recommended Input Torque	100 N·m
Main Use	Dismounting and mounting vehicle tires
Mechanism	Multi-stage planetary system
Dimensions	Approximately 250 x 80 x 80 mm (estimated)
Weight	Approximately 2.5 kg (estimated)

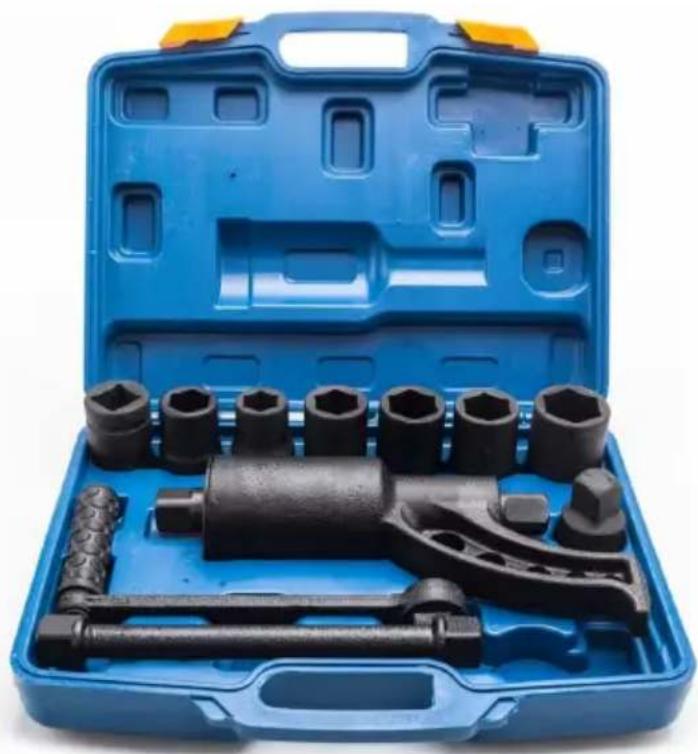

Included Accessories	Impact socket wrench, handle, rocker
Safety Instructions	Wear protective gloves and goggles; do not use as a hammer; keep out of reach of children
Maintenance	Wipe after use to prevent rust; store in a dry place
Repairability	Spare parts available at www.vevor.com/support
Warranty	Electronic warranty on Vevor website
Usage Instructions	Insert the impact socket wrench into the output end; turn the rocker until the handle touches the bolt; to loosen, use a long extension rod

Frequently Asked Questions - BD-58D-A Vevor

What is the maximum output torque of this multiplier?

The maximum output torque is 6800 N·m, for a maximum input torque of 100 N·m.

How to use the torque multiplier to remove a tire?

Insert the impact socket wrench into the output end, wrap the nut with the rocker, then turn the rocker in the direction that brings the handle closer to another bolt. Once loosened, replace with a long extension rod to finish removal.

Can I use this multiplier as a hammer?

No, never use the torque multiplier as a striking tool. This could damage the tool and cause injury.

What protective equipment should I wear?

Wear protective gloves, safety goggles, and possibly a mask to avoid injury during use.

How to maintain the torque multiplier?

Wipe it after each use to prevent rust. Store it in a dry place. Do not use abrasive products.

What is the input torque limit?

Do not exceed an input torque of 100 N·m when tightening. Excessive force may damage the nut or tool.

Is this product suitable for all vehicles?

Yes, it can be used to dismount and mount tires of all vehicle sizes, provided the nut is accessible with the appropriate socket.

Can I connect a pinch bar to the rocker?

No, do not connect a socket wrench or pinch bar to the rocker. Use only the supplied accessories to avoid risks.

What if I cannot loosen a nut?

Check the rotation direction of the rocker. Make sure the handle is well supported against an adjacent bolt. If necessary, gradually increase force within the limit of 100 N·m.

Where can I find spare parts or assistance?

Visit www.vevor.com/support to obtain spare parts or technical assistance. Your electronic warranty certificate is available there.

USER MANUAL BD-58D-A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TORQUE MULTIPLIER

USER MANUAL

MODEL: BD-78D-C/BD-64D-A/BD-58D-A/BD-58D-C

We continue to be committed to provide you tools with competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TORQUE MULTIPLIER

MODEL: BD-78D-C/BD-64D-A/BD-58D-A/BD-58D-C

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

1. Before using this product, please read the instructions carefully and adhere to the specifications.
2. This product is not a toy. This product contains small parts. If swallowed, they pose a choking hazard. Keep these small parts away from children when assembling! Keep this product out of the reach of children.
3. When using this product, be sure to wear personal protective equipment such as protective gloves and goggles to prevent accidental injury.
4. When using this product, do not put your fingers or other objects in it to avoid injury.
5. Please don't use the torque multiplier instead of a hammer to strike.
6. Be sure to wipe dry when wet to avoid rust.
7. Be careful when opening, closing, and using to avoid accidental injury.

Product Introduction

The Labor Saving Wrench, the assistant for dismantling and assembling, is made from advanced metal alloy steel, bears precise and fine hot processing, and is of a multiple-planet tire system of combination. It has characteristics of good hand feeling, small dimension, light weight, and convenient use. It is used to dismantle and assemble all sizes of vehicles' tires. When your tire needs to be changed on your way, it can not only save your time but also your strength. It is really an ideal tool for all the way.

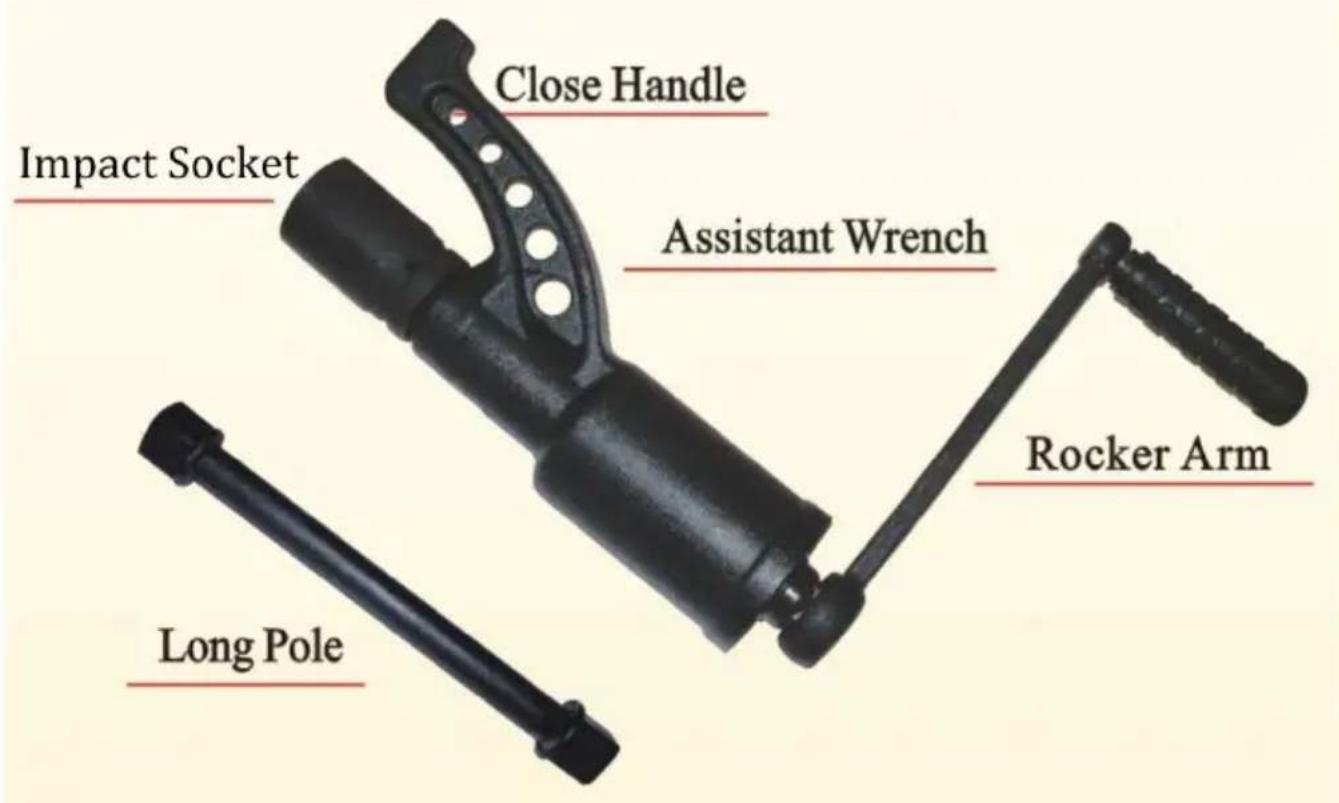

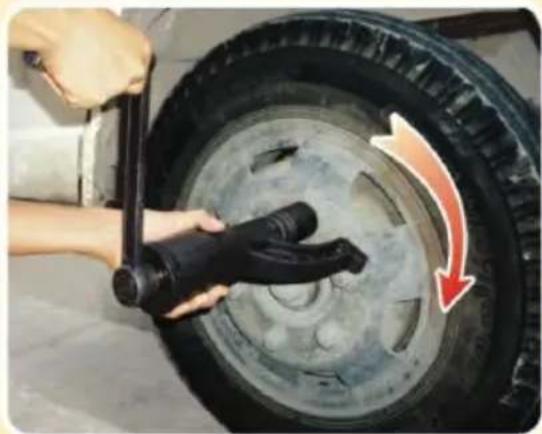

The Sketch Map For Operating

I. Operating Methods

1. Pack the impact socket wrench into the output end linked to a handle end is packed by the rocker arm;
2. Pack the impact socket wrench into the screw nut, which is to dismantle or fasten; meanwhile, pay attention to your turning direction. Turn the rocker in the direction which makes the handle close to the side of another screw bolt extent that the handle is closely against the side of the screw bolt;
3. When the screw nut is loosened, replace it with a long pole, and it promptly, (when fastening, first have a quick action to turn the then use this wrench to turn it tightly)

II. Regulations Need To Be Attention

1. When fastening the screw nut, don't use more than 100N·m. The arm is to rebound half circle, which means the screw fastened has been arrived at the firm point. Remember, overuse of your strength may damage the screw nut itself or even this tool.
2. Don't use it as a strike tool.
3. Don't connect a socket wrench or a pinch bar to the rocker arm to increase your strength when using it.
4. Special attention: if you have already used considerable strength but the screw nut is still tight, check the turning direction of the screw nut to see whether the rocker arm is moving in the correct direction.

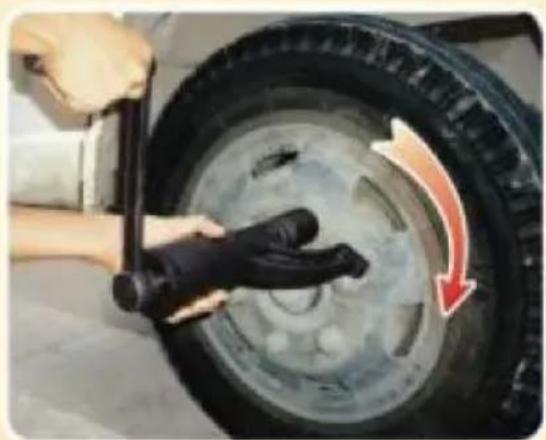

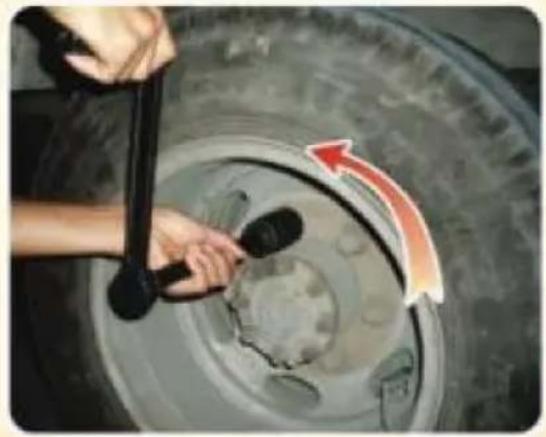

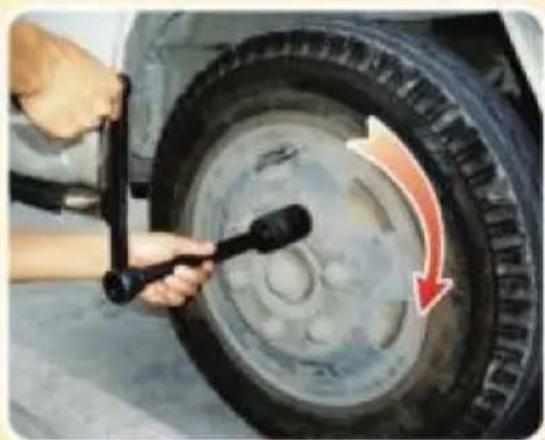

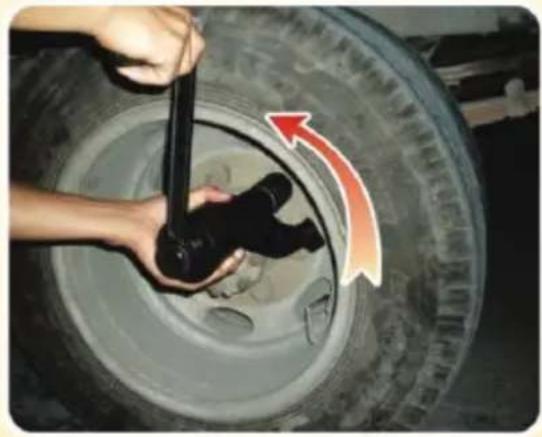

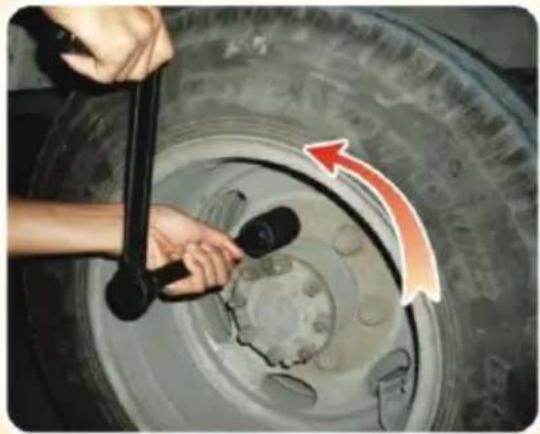

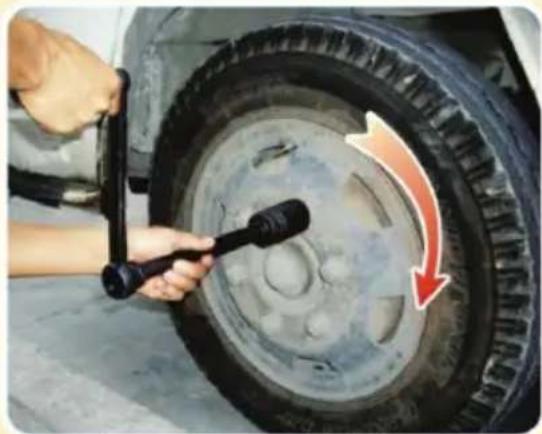

loosen it

quickly unscrew

quickly screw

fasten it

	Items Description
1	Name	Torque Multiplier
2	Model	BD-78D-C
3	Parameter	Enlarge scale1:64 MT6800N.m

	Items Description
1	Name	Torque Multiplier
2	Model	BD-64D-A
3	Parameter	Enlarge scale1:64 MT6800N.m
	Items	Description
1	Name	Torque Multiplier
2	Model	BD-58D-A
3	Parameter	Enlarge scale1:58, MT4800N.m

	Items	Description
1	Name	Torque Multiplier
2	Model	BD-58D-C
3	Parameter	Enlarge scale1:58, MT4800N.m
