60ft*1-1/5 - Drain cleaning tool Vevor - Free user manual and instructions

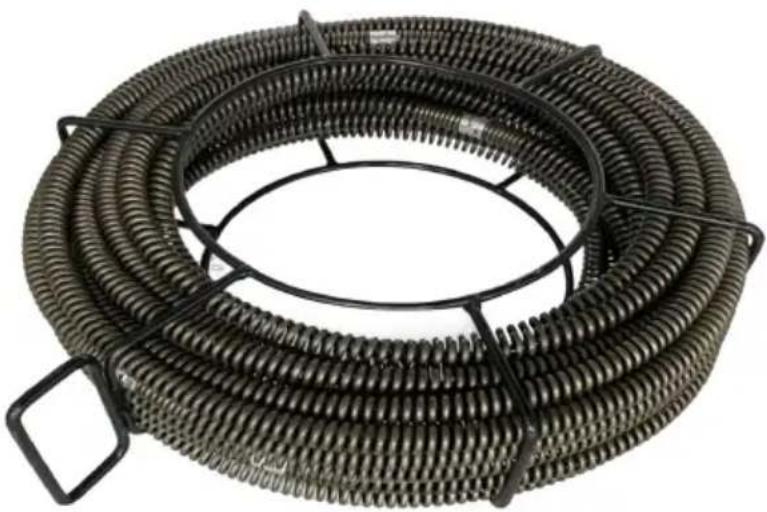

Product Type	Drain Cleaning Cable
Brand	Vevor
Model	60ft*1-1/5
Cable Length	60 feet (approx. 18.3 m)
Cable Diameter	1-1/5 inch (approx. 30.5 mm)
Compatible Pipe Diameter	50-200 mm
Cable Material	65Mn Steel
Color	Black
Accessories Included	Recycling type auger tip, olive auger point, serrated cutter, type C oil cutter, shovel cutting device, four-flute serrated cutter, flexible wrench, funnel auger, expandable cutting head, serrated cutter, straight spiral drill
Tool Fixing Method	67° slide track with locking pin
Safety Recommendations	Wear safety glasses, hearing protection, and dust mask
Usage Precautions	Do not use if tired or under influence; maintain good footing; do not wear loose clothing
Maintenance	Check condition of cable and tools after each use; clean and lubricate if necessary
Repairability	Have repaired only by a specialist workshop or the manufacturer
Warranty	Electronic warranty via www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
USA Importer	Sanven Technology Ltd., Rancho Cucamonga, CA 91730
Australia Importer	SIHAO PTY LTD., ESTWOOD NSW 2122
UK Representative	YH CONSULTING LIMITED, 60329 Frankfurt am Main

Frequently Asked Questions - 60ft*1-1/5 Vevor

What is the length of the provided cable?

The cable is 60 feet, approximately 18.3 meters.

What pipe diameter can this cable clean?

It is suitable for pipes with inner diameter of 50 to 200 mm.

How to attach the cutting tools to the cable?

Push the tool along the 67° sliding slot until the pin comes out. Check that the pin is visible in the tool hole for secure attachment.

What safety equipment should I wear?

Always wear safety glasses, hearing protection, and a dust mask during use.

Is this cable electric or manual?

The cable is designed for use with a motorized drain cleaning machine (not included). The manual includes instructions for an electric motor.

How to remove a stuck tool in the pipe?

Use the provided flexible wrench to unscrew the tool. If necessary, insert the wrench and push the shaft in the opposite direction of the T-slot to loosen it.

What if the motor heats up abnormally?

Check that no foreign substances have entered the motor, that lubricating grease is present and clean, and reduce pushing force during use.

Can I use this cable with a drill?

No, this cable is designed for use with a specific drain cleaning machine, not directly with a drill.

How to maintain the cable after use?

Clean the cable and tools with clean water, dry them, then apply a light coat of anti-rust oil. Store in a dry place.

Where can I find the warranty?

The electronic warranty certificate is available at www.vevor.com/support. Keep the manual and receipt.

USER MANUAL 60ft*1-1/5 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Drain Cleaning Cable

Model: 66ft*5/8 100ft*5/8; 45ft*7/8; 60ft*1-1/5

We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us only repeat of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools. You are kindly reminded to verify carefully when you are placing an order that are actually saving half in comparison with the top major brands.

Model: 66ft*5/8; 100ft*5/8; 45ft*7/8; 60ft*1-1/5

Coiled black rubber spring with metal frame and handle (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

1. Save This Manual

Keep this manual for the safety warnings and precautions, assembly, operating inspection, maintenance and cleaning procedures. Write the product's serial number in the back of the manual near the assembly diagram (or month and of purchase if product has no number). Keep this manual and the receipt in and dry place for future reference.

You must abide by certain safety precautions when using the equipment. In order to prevent injuries and damages from occurring, you must always read through this operating manual carefully.

WARNING SYMBOLS AND DEFINITIONS
	This is the safety alert symbol. It is used to ale potential personal injury hazards. Obey all safety messages that follow this symbol avoid possible injury or death.
	Indicates a hazardous situation which, if not avoi will result in death or serious injury.
	Indicates a hazardous situation which, if not avoi could result in death or serious injury.
	Indicates a hazardous situation which, if not avoi could result in minor or moderate injury.
	Addresses practices not related to personal injury.

2.SPECIEICATIONS

Model No.	66ft*5/8	100ft*5/8	45ft*7/8	60ft*1-1/5
Cable length	66ft	100ft	45ft	60ft
Outside diameter	5/8"	5/8"	7/8"	1-1/5"
Pipe Size	20-100mm	20-100mm	20-150mm	50-200mm
Colour	black	black	black	black
Material quality	65Mn	65Mn	65Mn	65Mn
Application	VEVOR	VEVOR	VEVOR	VEVOR

2. Personal safety

a) Stay alert, watch what you are doing and use common sense when operate power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power to may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position bet for connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools have the switch on invites accidents.

d) Do not overreach. Keep proper footing and balance at all times. This ena better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

3. Use

Cutting Tool Accessories

There are several Cutting Tools included with each Drain Cleaner. Select the appropriate tool for the cleaning job and attach to Cable. Each is described table below.

	Recycling-type auger tip	To find soft axes broken or lost in t pipe, and dredge pipes blocked by h sanitary napkins, textiles, etc.
[C477]	Olive-type auger tip	To guide soft axes through complex pipes with more turns, and to dredge pipes blocked by hair and textiles.
	Spirical serrated cutter	Used to remove roots, debris, branch and other blockages.
	Type C oil cutter	Used to remove the grease blockage from the pipe.
	Shovel cutting device	Used to remove the grease blockage from the pipe.
	Four-flute serrated cutter	Used to dredge blockages caused by hardening and hard materials such as chemical fallout.
[X0XY]	key	Used to remove the cutting tool and shaft.
[A3A6]	Flexible olive - shaped helical drill	For pipes that are hard to drill. Good flexibility and optimal guiding function.
	Funnel Auger	Used to clear clogs caused by hair, sanitary napkins, textiles in pipes, use to find broken or lost flexible shafts pipes.
	Expanding cutter head	Used to remove common objects cling to the wall of the tube.
	Serrated cutter	Used to clear pipes that are heavily clogged with tree roots.
	Straight helical drill	For exploring the pipe of the blockag and of the position to drill, usually u the first step.

Methods of connecting and removing springs and springs/tools

Close-up of hands holding a coiled spring component (no text or symbols visible)

Connect the soft shaft with drills

Push the drill along 67°slider slot of the shaft to engage. This makes connection more reliable, easy and fast.

Caution: Observe through the hole of the drill to see the -out of the flexible shaft pin. It is only safe when the pir out.

Close-up of gloved hands holding a coiled spring (no text or symbols visible)

Remove the soft shaft

Insert the key and push the shaft with both hands in direction opposite to the T slot of the terminal to remove shaft. It saves time and manpower.

NOTICE: If the cause of the obstruction is unknown, use the Boring Bulb Cutt explore the obstruction and, if possible, retrieve a piece to inspect. Once you see the cause of the obstruction, select the appropriate tool for the job. Run smallest available tool through the blockage to allow the backed up water to and carry away the debris as the drain is cleaned.

Once the drain is flowing, more appropriate tools can be used on the rest of blockage.

Keep in mind that the largest tool used should be no bigger than the inside diameter, minus an inch.

If properly used, the Drain Cleaners and assorted Drain Cleaner Accessories not damage a drain that is in good condition and properly designed, constructed and maintained.

However, if the drain is in poor condition or has not been properly designed, drain cleaning work may damage the drain. If possible, visually inspect the dry quality before operation.

• If needed, place protective covers over the work area floor. Cleaning the clogged drain can be a messy operation.
• Make sure that the Drain Cleaner handle is locked into the upright position transport. If the Drain Cleaner needs to be lifted, use proper lifting techniques seek assistance if needed. Use caution when moving equipment up and down stairs. Wear appropriate footwear to help prevent slipping on floor.
• Set the Drain Cleaner so that the drum opening is within 2 feet of the drain access. The greater the distance from the drain access, the higher the risk of cable twisting or kinking.
• If the machine cannot be placed with the drum opening within 2' of the dra access, use appropriate-sized pipes and fittings to extend the drain access ba to within 2' of the drum opening. Improper cable support can allow the cable kink and twist and can damage the cable or injure the operator.
• If needed, set up barriers to keep bystanders away from the Drain Cleaner work area during operation.
• Select proper cutting tool. (See Cutting Tool Accessories).
• Install the tool to the end of the cable. Slide the base of the Cutter Tool the slot at the end of the cable. Fasten together using a screwdriver.
• Position the Foot Switch for easy accessibility. You must be able to hold a control the cable, control the Foot Switch, and reach the Rotation Switch.

4. CORRECTIVE ACTION IN CASE OF FAILURE

1) The operating switch is switched on, but the motor is not working.

-- Wires in the mains plug or in the socket are loose.

Have socket and plug checked or repaired.

-- The switch is faulty.

Have the switch replaced.

2) The operating switch is switched on, but unusual noises can be heard, the motor is not working or only very slowly.

-- Switch contact has failed.

Have the switch replaced.

-- Component jammed.

Have the electric tool checked or repaired.

-- Too much thrust, as a result the motor is dragging.

Use less thrust during the task.

3) Motor gets hot.

-- Foreign substances have got inside the motor.

Have the foreign substances removed.

-- Lack of or contaminated lubrication grease.

Have lubricating grease applied or replaced.

-- Pressure too high

Use less thrust during the task

4) Frequent or strong sparks on the commutator.

-- Short circuit on the armature.

Have the armature replaced.

-- Carbon brushes worn out or jammed

Have the carbon brushes checked.

-- Rough running of the commutator.

Have the surface of the commutator cleaned or ground.

For your own safety, never remove parts or accessories of the electric tool operation. In case of fault or damage have the electric tool repaired only by specialist workshop or by the manufacturer.

For your personal safety, READ and UNDERSTAND before using.

Save This Instruction For Future Reference.

Always Wear Ear Protection With This Tool.

Always Wear Eye Protection With This Tool.

Always Wear a breathing Mask With This Tool.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion Hous London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
