RC-9001C - Drain cleaning tool Vevor - Free user manual and instructions

Product Type	Electric Drain Cleaner
Brand	Vevor
Model	RC-9001C
Cable Length	30.48 m (100 ft)
Cable Diameter	19.05 mm (3/4 inch)
Adaptable Pipe Diameter	100 to 200 mm
Color	Black
Power Supply	Mains, 120 V / 60 Hz (estimated)
Weight	Approximately 30 kg
Main Functions	Drain unclogging with interchangeable cutting tools
Included Accessories	4 cutting tools: arrow cutter, boring bulb cutter, C-cutter, spade cutter
Safety	Wear goggles, hearing protection, and mask recommended; foot switch
Maintenance	Clean after use, check cable, lubricate motor if necessary
Repairability	Have repaired by a specialized workshop; parts via after-sales service
Warranty	Electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - RC-9001C Vevor

What is the cable length?

The cable is 100 feet (30.48 meters).

What cutting tools are provided?

Four tools are included: arrow cutter, boring bulb cutter, C-cutter, and spade cutter.

How to choose the right cutting tool?

For an unknown blockage, first use the boring bulb cutter to explore. Then select the appropriate tool: arrow cutter for cutting/scraping, C-cutter for grease, etc. The tool should not exceed the inner diameter of the pipe minus one inch.

What safety precautions should I take?

Always wear safety goggles, hearing protection, and a dust mask. Ensure the switch is in the off position before plugging in the tool. Avoid loose clothing and maintain a firm footing.

How to install a cutting tool on the cable?

Slide the base of the tool into the slot at the end of the cable, then secure with a screwdriver.

What if the motor does not start?

Check that the plug and socket are properly connected. If the switch is defective, have it replaced by a professional.

The motor heats up abnormally, what to do?

This may be due to excessive pressure (reduce pushing), lack of lubricating grease (have it applied), or foreign substances (have them removed).

What is the maximum distance between the drum and the drain access?

The drum opening must be within 2 feet (0.6 m) of the drain access. Otherwise, use extension hoses.

Where to find warranty and technical support?

Visit www.vevor.com/support for the electronic warranty certificate and support.

How to maintain the drain cleaner?

After use, clean the cable and tools. Check the condition of the cable. If necessary, lubricate the motor. Any repairs should be done by a specialized workshop.

USER MANUAL RC-9001C Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

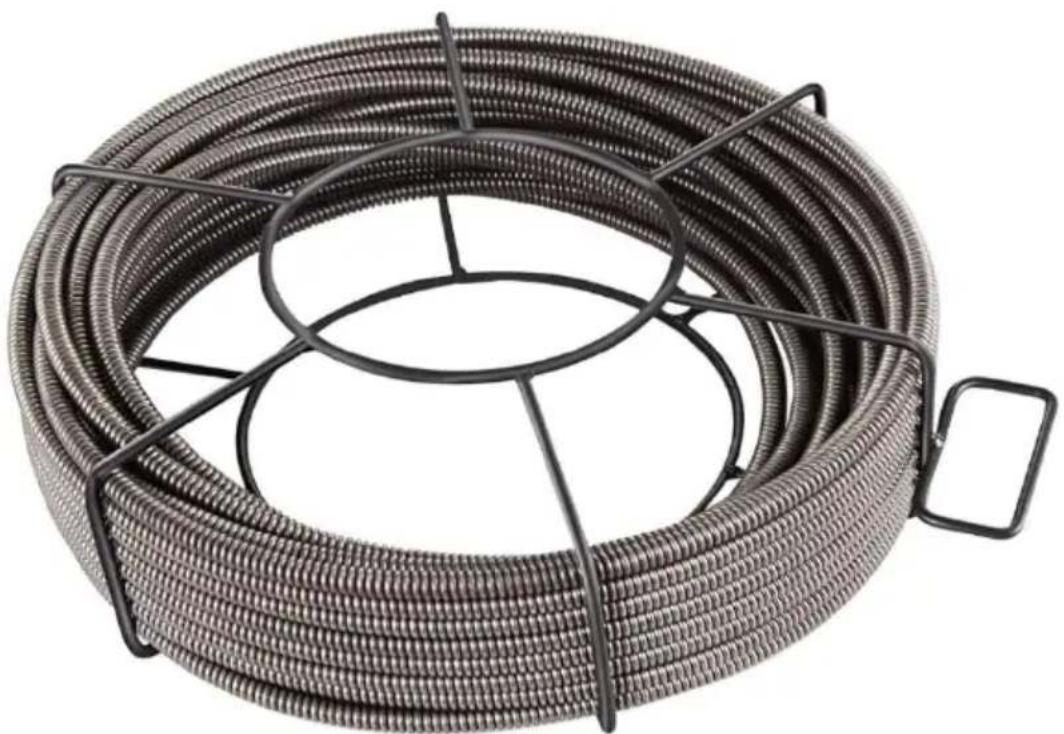

Drain Cleaning Cable

Model: RC-9001C

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to major top brands and does not necessarily mean to cover all categories of tools. You are kindly reminded to verify carefully when you are placing an order that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Drain Cleaning Cable

Model: RC-9001C

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

1. Save This Manual

Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.

You must abide by certain safety precautions when using the equipment. In order to prevent injuries and damages from occurring, you must always read through this operating manual carefully.

WARNING SYMBOLS AND DEFINITIONS
	This is the safety alert symbol. It is used to ale potential personal injury hazards. Obey all safety messages that follow this symbol avoid possible injury or death.
	Indicates a hazardous situation which, if not avoi will result in death or serious injury.
	Indicates a hazardous situation which, if not avoi could result in death or serious injury.
	Indicates a hazardous situation which, if not avoi could result in minor or moderate injury.
	Addresses practices not related to personal injury

2. SPECIFICATIONS

Model No.	RC-9001C
Cable length	100ft
Outside diameter	3/4"
Pipe Size	100-200mm
Colour	black
Material quality	65Mn
Application	VEVOR

2. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

d) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

3. Use

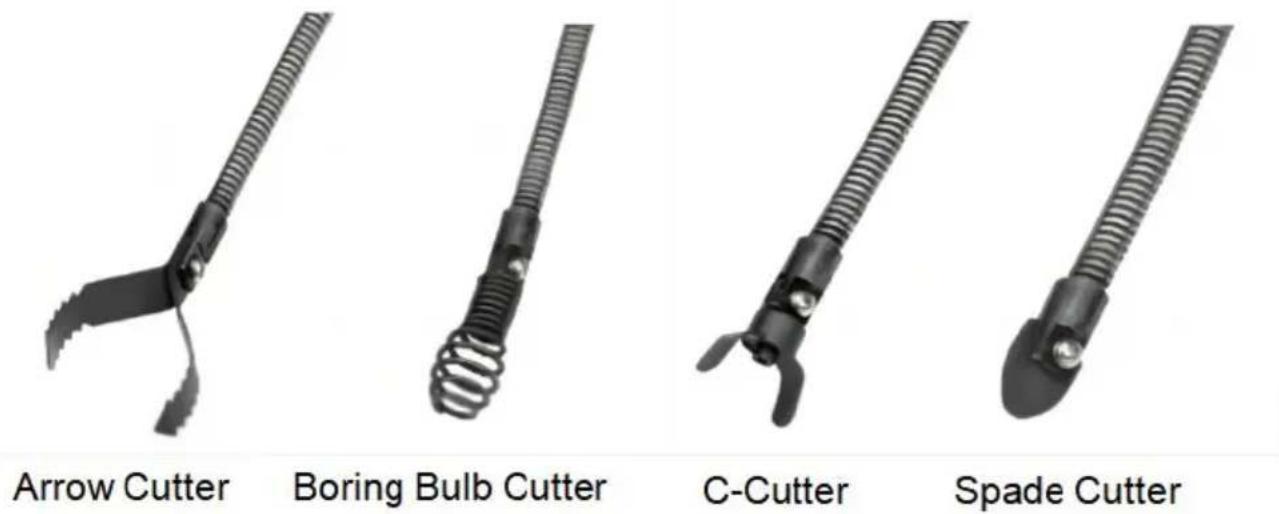

Cutting Tool Accessories

There are four Cutting Tools included with each Drain Cleaner. Select the appropriate tool for the cleaning job and attach to Cable. Each is described in the table below.

Cutter Tool	Applications
Arrow Cutter	Starting tool; ideal for cutting and scraping
Boring Bulb Cutter	Starting tool; ideal for removing loose objects
C-Cutter	Finishing tool; ideal for grease stoppages and cleaning pipe walls.
Spade Cutter	Finishing tool; used for scraping the inside edge pipes.

NOTICE: If the cause of the obstruction is unknown, use the Boring Bulb Cutter to explore the obstruction and, if possible, retrieve a piece to inspect. Once you can see the cause of the obstruction, select the appropriate tool for the job. Run the smallest available tool through the blockage to allow the backed up water to flow and carry away the debris as the drain is cleaned. Once the drain is flowing, more appropriate tools can be used on the rest of the blockage.

Keep in mind that the largest tool used should be no bigger than the drain's inside diameter, minus an inch.

If properly used, the Drain Cleaners and assorted Drain Cleaner

Accessories will not damage a drain that is in good condition and properly designed, constructed, and maintained.

However, if the drain is in poor condition or has not been properly designed, the drain cleaning work may damage the drain. If possible, visually inspect the drain's quality before operation.

- If needed, place protective covers over the work area floor. Cleaning the clogged drain can be a messy operation.

- Make sure that the Drain Cleaner handle is locked into the upright position for transport. If the Drain Cleaner needs to be lifted, use proper lifting techniques or seek assistance if needed. Use caution when moving equipment up and down stairs. Wear appropriate footwear to help prevent slipping on floors.

- Set the Drain Cleaner so that the drum opening is within 2 feet of the drain access. The greater the distance from the drain access, the higher the risk of cable twisting or kinking.

- If the machine cannot be placed with the drum opening within 2' of the drain access, use appropriate-sized pipes and fittings to extend the drain access back to within 2' of the drum opening. Improper cable support can allow the cable to kink and twist and can damage the cable or injure the operator.

- If needed, set up barriers to keep bystanders away from the Drain Cleaner and work area during operation.

- Select proper cutting tool. (See Cutting Tool Accessories).

• Install the tool to the end of the cable. Slide the base of the Cutter Tool into the slot at the end of the cable. Fasten together using a screwdriver.
• Position the Foot Switch for easy accessibility. You must be able to hold and control the cable, control the Foot Switch, and reach the Rotation Switch.

4. CORRECTIVE ACTION IN CASE OF FAILURE

1) The operating switch is switched on, but the motor is not working.

-- Wires in the mains plug or in the socket are loose.

Have socket and plug checked or repaired.

-- The switch is faulty.

Have the switch replaced.

2) The operating switch is switched on, but unusual noises can be heard, and the motor is not working or only very slowly.

-- Switch contact has failed.

Have the switch replaced.

-- Component jammed.

Have the electric tool checked or repaired.

-- Too much thrust, as a result the motor is dragging.

Use less thrust during the task.

3) Motor gets hot.

-- Foreign substances have got inside the motor.

Have the foreign substances removed.

-- Lack of or contaminated lubrication grease.

Have lubricating grease applied or replaced.

-- Pressure too high

Use less thrust during the task

4) Frequent or strong sparks on the commutator.

-- Short circuit on the armature.

Have the armature replaced.

-- Carbon brushes worn out or jammed

Have the carbon brushes checked.

-- Rough running of the commutator.

Have the surface of the commutator cleaned or ground.

For your own safety, never remove parts or accessories of the electric tool during operation. In case of fault or damage, have the electric tool repaired only by a specialist workshop or by the manufacturer.

For your personal safety, READ and UNDERSTAND before using. Save this instruction for future reference.

Always wear ear protection with this tool.

Always wear eye protection with this tool.

Always wear a breathing mask with this tool.
