BD-78D-C - Screwdriver Vevor - Free user manual and instructions

Product type	Torque multiplier (wrench)
Brand	Vevor
Model	BD-78D-C
Gear ratio	1:64
Maximum output torque	6800 N.m
Material	Heat-treated alloy steel
Approximate weight	2.5 kg
Estimated dimensions (L x W x H)	400 x 200 x 150 mm
Main use	Dismounting and mounting vehicle tires
Power supply	None (manual tool)

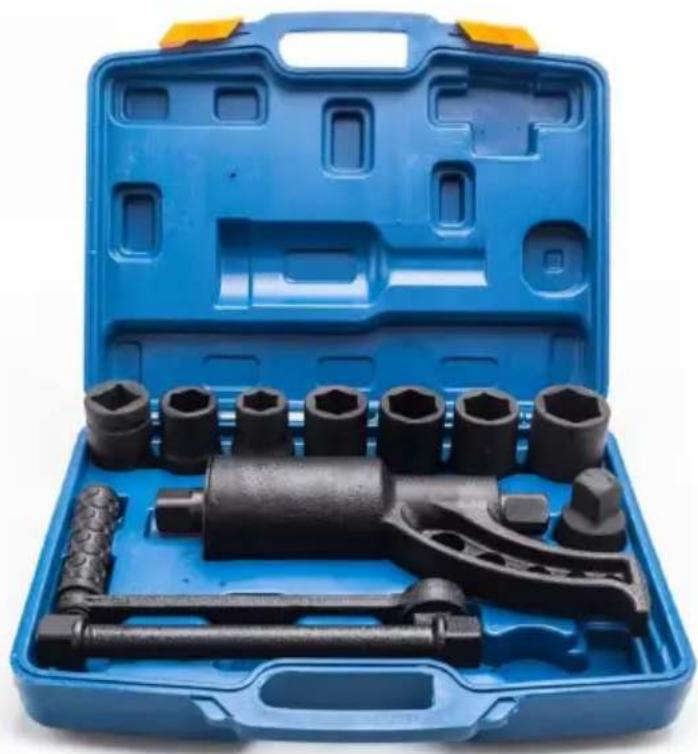

Package contents	Torque multiplier, handle, socket wrench, rocker arm
Safety instructions	Wear gloves and safety glasses; do not strike the tool; do not exceed 100 N.m during final tightening
Maintenance	Wipe after use to prevent rust; store in a dry place
Repairability	Spare parts available upon request via Vevor customer service
Warranty	Electronic warranty available at www.vevor.com/support

Frequently Asked Questions - BD-78D-C Vevor

How to use the BD-78D-C torque multiplier?

Insert the impact socket into the output end connected to the handle. Place the rocker arm on the nut and turn in the desired direction. For final tightening, do not apply a force greater than 100 N.m.

What is the gear ratio of the BD-78D-C?

The ratio is 1:64, meaning that for each turn of the handle, the output makes 1/64th of a turn, thus multiplying the applied torque.

What is the maximum torque this tool can provide?

The maximum output torque is 6800 N.m, allowing to loosen even the tightest wheel nuts.

Can this tool be used with an electric impact wrench?

No, it is designed for manual use. Do not use an impact wrench or a pinch bar on the rocker arm, as this could damage the tool.

What types of sockets can I use?

Use impact sockets suitable for the size of your vehicle's nuts. The tool accepts standard sockets.

How to maintain the torque multiplier?

After each use, wipe the tool to remove moisture and dirt. Store it in a dry place to prevent rust.

What safety precautions should be taken?

Wear gloves and safety glasses. Do not place your fingers in the jaws. Do not use the tool as a hammer.

Can I use this product to tighten nuts to a specific torque?

It is not recommended for precision tightening as it has no torque measurement function. Use a torque wrench for final tightening according to the manufacturer's specifications.

What to do if the nut does not loosen?

Check the rotation direction: turn the rocker arm in the direction that brings the handle closer to the bolt. If the force is insufficient, make sure the 1:64 ratio is being used.

Where can I find spare parts or technical support?

Go to www.vevor.com/support for technical support and electronic warranty certificate.

USER MANUAL BD-78D-C Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TORQUE MULTIPLIER

USER MANUAL

MODEL: BD-78D-C/BD-64D-A/BD-58D-A/BD-58D-C

We continue to be committed to provide you tools with competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TORQUE MULTIPLIER

MODEL: BD-78D-C/BD-64D-A/BD-58D-A/BD-58D-C

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

1. Before using this product, please read the instructions carefully and adhere to the specifications.
2. This product is not a toy. This product contains small parts. If swallowed, they pose a choking hazard. Keep these small parts away from children when assembling! Keep this product out of the reach of children.
3. When using this product, be sure to wear personal protective equipment such as protective gloves and goggles to prevent accidental injury.
4. When using this product, do not put your fingers or other objects in it to avoid injury.
5. Please don't use the torque multiplier instead of a hammer to strike.
6. Be sure to wipe dry when wet to avoid rust.
7. Be careful when opening, closing, and using to avoid accidental injury.

Product Introduction

The Labor Saving Wrench, the assistant for dismantling and assembling, is made from advanced metal alloy steel, bears precise and fine hot processing, and is of a multiple-planet tire system of combination. It has characteristics of good hand feeling, small dimension, light weight, and convenient use. It is used to dismantle and assemble all sizes of vehicles' tires. When your tire needs to be changed on your way, it can not only save your time but also your strength. It is really an ideal tool for all the way.

The Sketch Map For Operating

I. Operating Methods

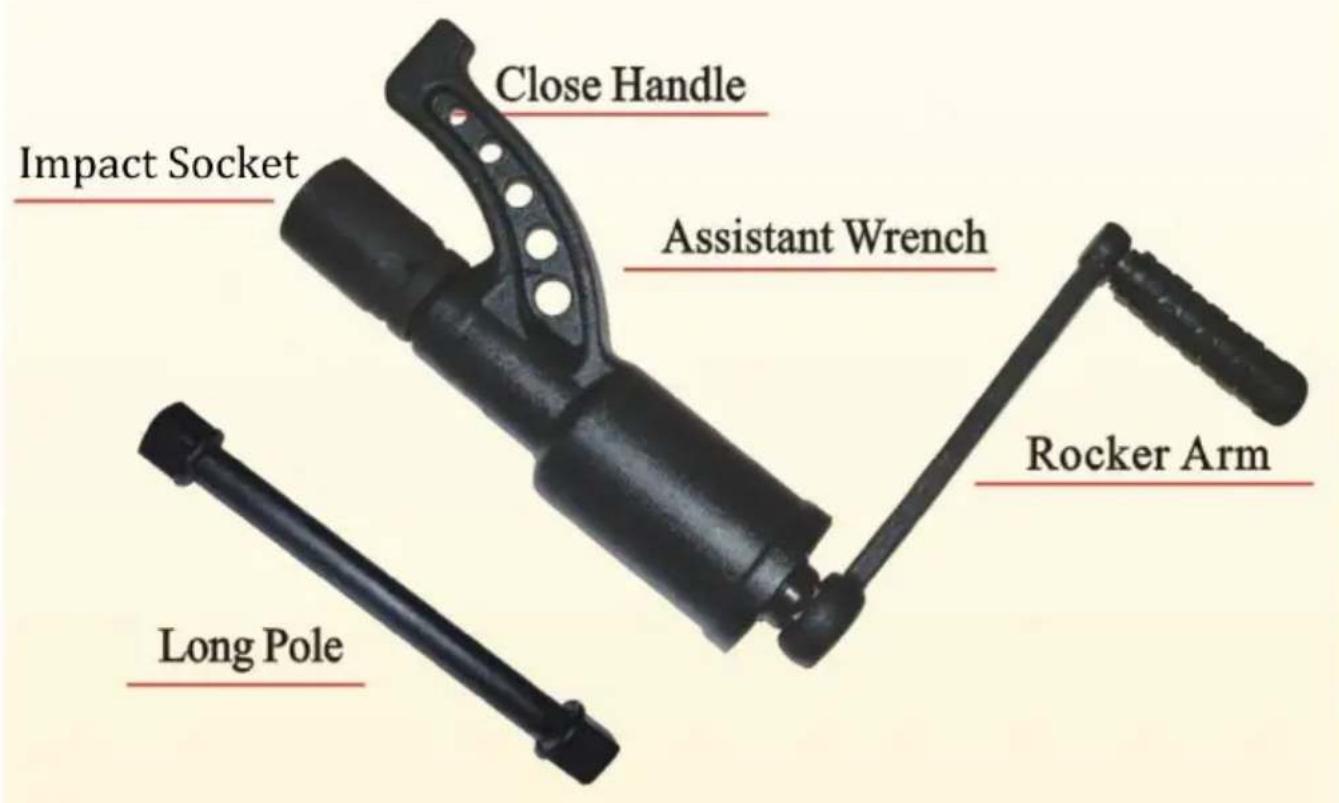

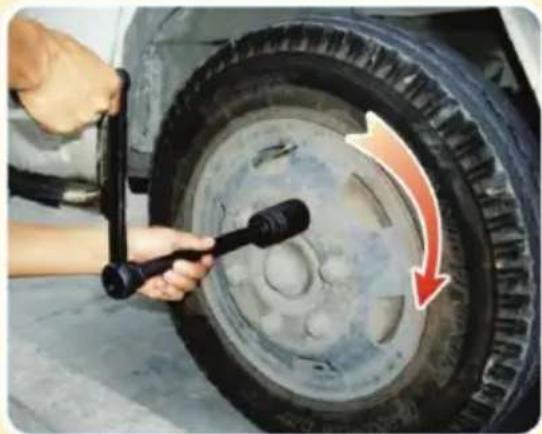

1. Pack the impact socket wrench into the output end linked to a handle end is packed by the rocker arm;
2. Pack the impact socket wrench into the screw nut, which is to dismantle or fasten; meanwhile, pay attention to your turning direction. Turn the rocker in the direction which makes the handle close to the side of another screw bolt extent that the handle is closely against the side of the screw bolt;
3. When the screw nut is loosened, replace it with a long pole, and it promptly, (when fastening, first have a quick action to turn the nut, then use this wrench to turn it tightly)

II. Regulations Need To Be Attention

1. When fastening the screw nut, don't use more than 100N·m. The arm is to rebound half circle, which means the screw fastened has been arrived at the firm point. Remember, overuse of your strength may damage the screw nut itself or even this tool.
2. Don't use it as a strike tool.
3. Don't connect a socket wrench or a pinch bar to the rocker arm to increase your strength when using it.
4. Special attention: if you have already used considerable strength but the screw nut is still tight, check the turning direction of the screw nut to see whether the rocker arm is moving in the correct direction.

loosen it

quickly unscrew

quickly screw

fasten it
