Product Type	Torque Multiplier (tire dismounting/remounting)
Brand	Vevor
Model	BD-58D-C
Material	Heat-treated alloy steel
Multiplication ratio	1:58
Maximum output torque	4800 N·m
Maximum tightening torque (setting)	100 N·m (do not exceed)
Main use	Removing and tightening wheel nuts
Weight	Approximately 2 kg (estimate)
Dimensions (L x W x H)	Approximately 350 x 80 x 80 mm (estimate)
Color	Red and black (typical Vevor)
Safety feature	Half-circle rebound indicating maximum tightening
Included accessories	Handle, rocker (lever arm)
Maintenance	Wipe after use, store dry
Rust resistance	Anti-rust treatment (regular cleaning recommended)
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support
Safety standards	Wear gloves and safety glasses during use
Repairability	Spare parts available through Vevor after-sales service
Prohibited use	Do not use as a hammer or striking tool

Frequently Asked Questions - BD-58D-C Vevor

What is the maximum torque the BD-58D-C multiplier can deliver?

The maximum output torque is 4800 N·m thanks to the 1:58 multiplication ratio. However, do not exceed an input torque of 100 N·m to avoid damaging the tool or nuts.

Can I use this torque multiplier with an impact wrench?

It is recommended to use a manual impact socket wrench. Do not connect an electric or pneumatic impact wrench, as this could exceed the torque limit and cause injury.

How do I know if the nut is tightened correctly?

When the arm (rocker) rebounds in a half-circle, this indicates that the nut has reached maximum tightening. Do not force beyond this point.

What if the nut does not loosen?

Check the rotation direction of the rocker. If you have already applied significant force without success, reverse the rotation direction (turn in the opposite direction) to loosen.

Can this tool be used for other applications besides tires?

Yes, it can be used to remove and tighten any nut or bolt requiring high torque, but always within the limit of 100 N·m input and without exceeding the maximum output torque.

How do I maintain the Vevor torque multiplier?

Wipe the tool after each use, especially if wet, to prevent rust. Store it in a dry place. Lightly grease moving parts if necessary.

What are the essential safety precautions?

Always wear gloves and safety glasses. Keep the tool out of reach of children. Never use the tool as a hammer. Ensure the jaws are clean before use.

Is the multiplier delivered with a warranty?

Yes, Vevor offers technical support and an electronic warranty certificate available at www.vevor.com/support. Keep your proof of purchase.

What is the difference between models BD-58D-C and BD-64D-A?

The BD-58D-C has a multiplication ratio of 1:58 and a max torque of 4800 N·m, while the BD-64D-A has a ratio of 1:64 for a max torque of 6800 N·m. The BD-58D-C is slightly more compact.

Can I order spare parts for this model?

Yes, contact Vevor after-sales service via their website. Parts like the rocker or handle are usually available. Provide the model BD-58D-C.

USER MANUAL BD-58D-C Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TORQUE MULTIPLIER

USER MANUAL

MODEL: BD-78D-C/BD-64D-A/BD-58D-A/BD-58D-C

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TORQUE MULTIPLIER

MODEL: BD-78D-C/BD-64D-A/BD-58D-A/BD-58D-C

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

1. Before using this product, please read the instructions carefully and use the specifications.
2. This product is not a toy. This product contains small parts. If swallowed, they pose a choking hazard. Keep these small parts away from children while assembling! Keep this product out of the reach of children.
3. When using this product, be sure to wear personal protective equipment such as protective gloves and goggles to prevent accidental injury.
4. When using this product, do not put your fingers or other objects in it to avoid injury.
5. Please don't use the torque multiplier instead of a hammer to strike.
6. Be sure to wipe dry when wet to avoid rust.
7. Be careful when opening, closing, and using to avoid accidental injury.

Product Introduction

The Labor Saving Wrench, the assistant for dismantling and assembling, is made from advanced metal alloy steel, bears precise and fine hot processing, and is of a multiple-planet tire system of combination. It has characteristics of good hand feeling, small dimension, light weight, and convenient use. It is used to dismantle and assemble all sizes of vehicles' tires when your tire needs to be changed on your way in an emergency. It can not only save your time but also your strength. It is really an ideal tool for all the way.

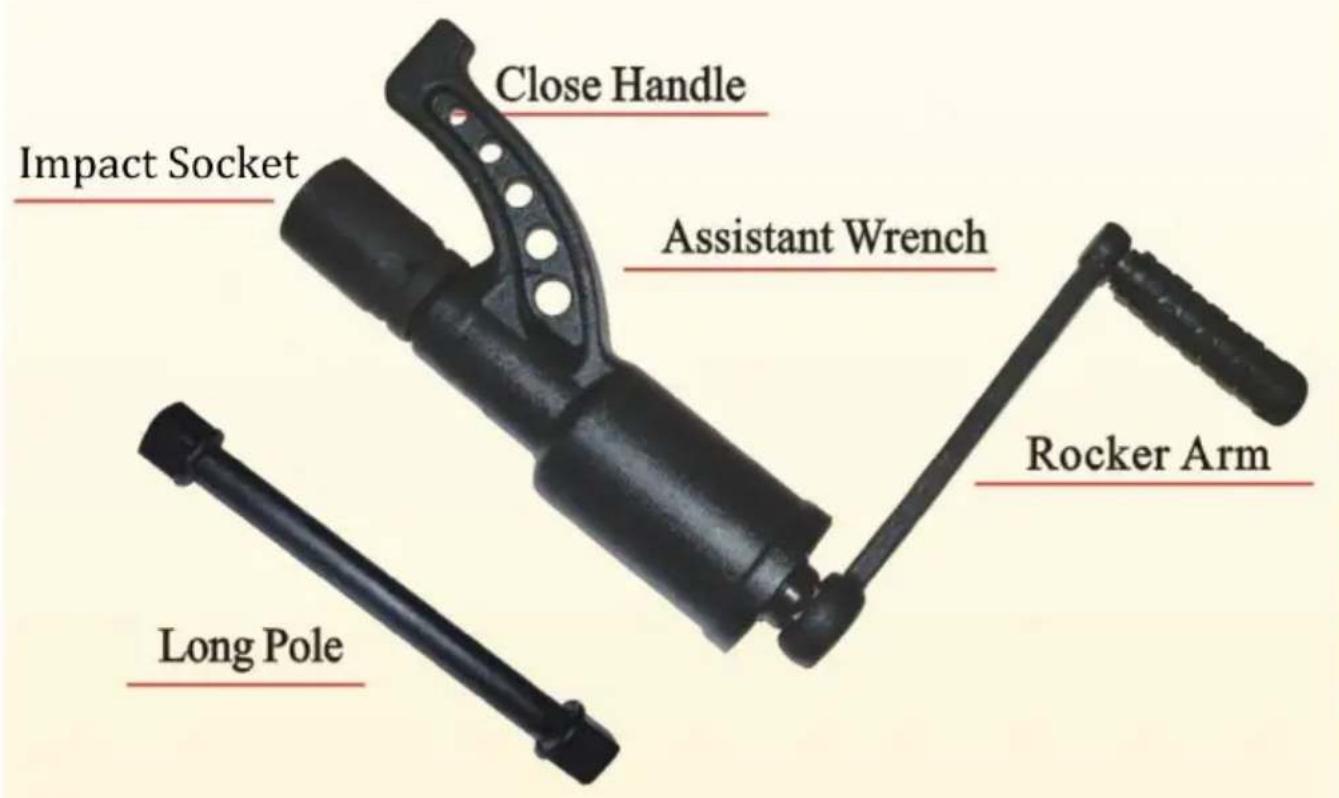

The Sketch Map For Operating

I. Operating Methods

1. Pack the impact socket wrench into the output end linked to a handle end is packed by the rocker arm; 2. Pack the impact socket wrench into the screw nut, which is to dismantle or fasten; meanwhile, pay attention to your turning direction. Turn the rocker arm in the direction which makes the handle to close the side of another screw bolt extent that the handle is closely against the side of the screw bolt; 3. When the screw nut is loosened, replace it with a long pole, and it promptly (when fastening, first have a quick action to turn the nut, then use this wrench to turn it tightly).

II. Regulations Need To Be Attention

1. When fastening the screw nut, don't use more than 100N·m. The arm is to rebound half circle, which means the screw fastened has been arrived at the firm point. Remember, overuse of your strength may damage the screw nut itself or even this tool.
2. Don't use it as a strike tool.
3. Don't connect a socket wrench or a pinch bar with the rocker arm to increase your strength when you use it. 4. Special attention: if you have already used considerable strength but cannot loosen the screw nut, this moment you should check the turning direction of the screw nut to see whether the rocker arm is beside in the correct direction.

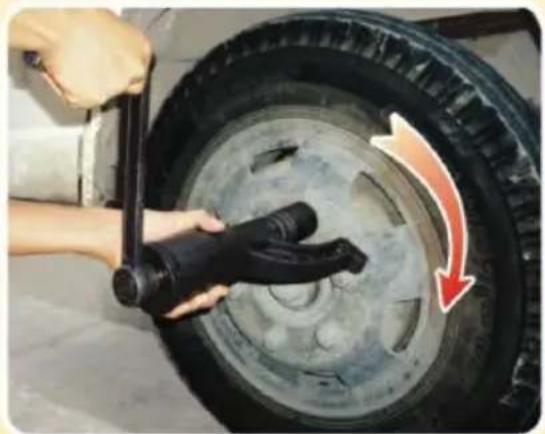

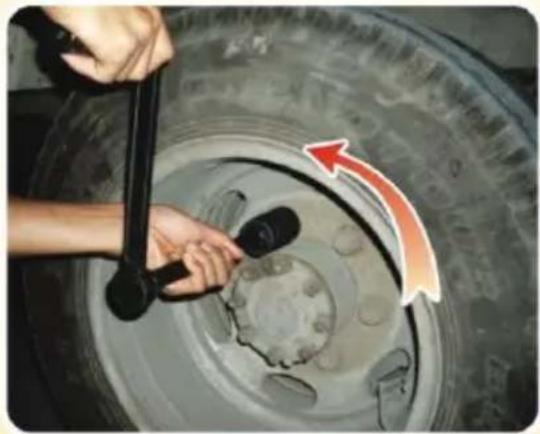

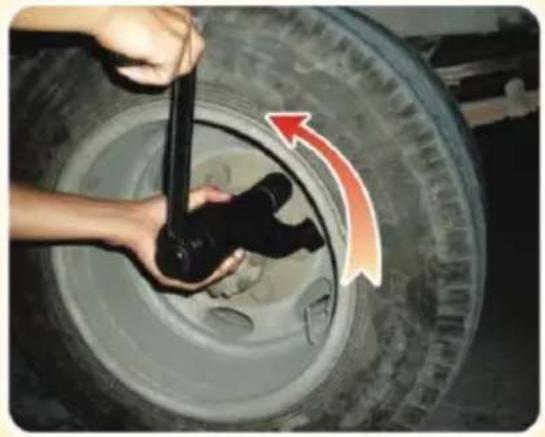

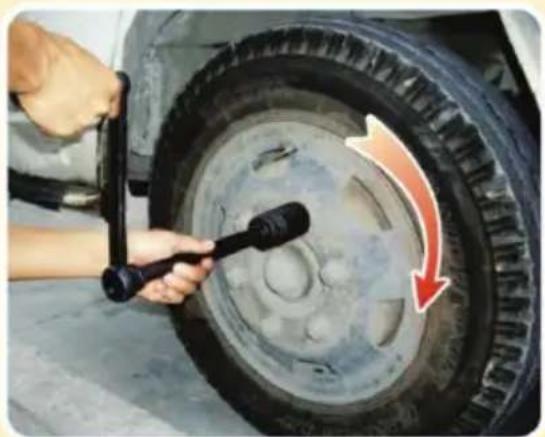

loosen it

quickly unscrew

quickly screw

fasten it

	Items	Description
1	Name	Torque Multiplier
2	Model	BD-78D-C
3	Parameter	Enlarge scale1:64 MT6800N.m

	Items Description
1	Name	Torque Multiplier
2	Model	BD-64D-A
3	Parameter	Enlarge scale1:64 MT6800N.m
	Items	Description
1	Name	Torque Multiplier
2	Model	BD-58D-A
3	Parameter	Enlarge scale1:58, MT4800N.m

	Items	Description
1	Name	Torque Multiplier
2	Model	BD-58D-C
3	Parameter	Enlarge scale1:58, MT4800N.m
