USER MANUAL 5GL Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

INSULATED BEVERAGE DISPENER

MODEL:2.5GL/5GL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

INSULATED BEVERAGE DISPENER

MODEL:2.5GL/5GL

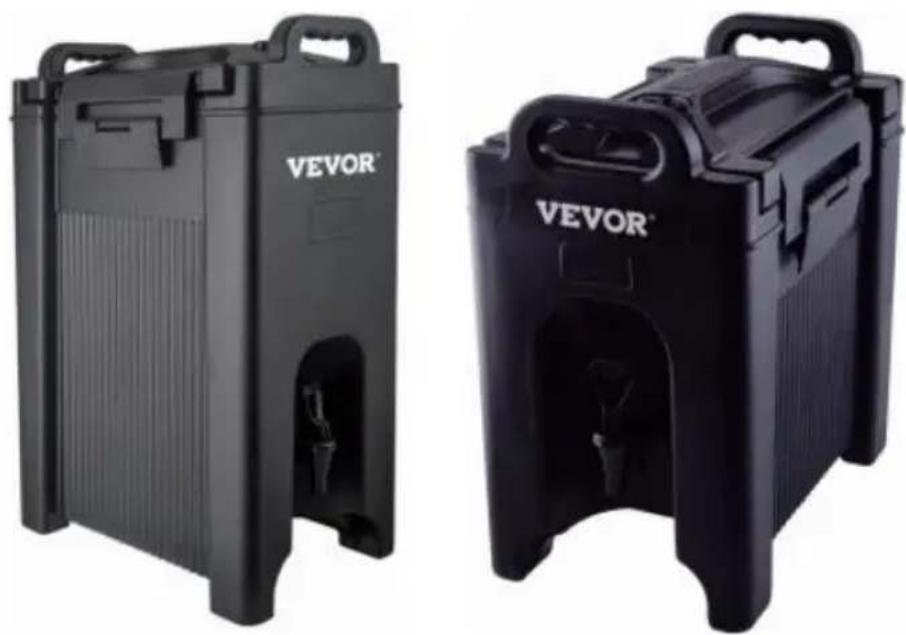

Two black VEVOR plastic water purifiers with side handles, shown from different angles (no text or symbols visible on the devices themselves)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

Read and understand this entire manual before operating and servicing this product. Failure to follow these warnings and instructions can cause death, personal injury or damage to valuat property.

Tip Over Hazard

• A child or adult can tip the insulated beverage dispenser and be ki seriously injured.
• Serious injury may occur to children and adults if not secured before installation.
• This product is not a toy. Children should not play with or around insulated beverage dispenser at any time.
• Use as intended only. Do not stand on the product.
• Do not exceed the listed weight capacity.

SAVE THESE INSTRUCTIONS

PROPER USE OF YOUR INSULATED PRODUCT

1. Wash and rinse the unit prior to its use.
2. Preheating interior with hot water will improve heat retention.
3. Pre-chilling entire unit will improve cold retention.
4. Load container to its maximum capacity. Make sure the gasket is

place. Replace lid and lock in position.

CARE AND CLEANING OF INSULATED CARRIER

1. Clean after every use. Destaining compounds approved for food or beverage contact may be used. Ask your detergent supplier for prope compound.
2. Make sure gasket is removed prior to running through a dishwasher. Also, prevent latches from getting caught in the conveyor.

BEVERAGE DISPENSER FILLING INSTRUCTIONS

CAUTION: Liquid can overflow or squirt out of the vent cap when set lid if the unit is overfilled.

TO PREVENT OVERFLOW, DO NOT FILL HIGHER THAN 11/4" FROM TOP.

CARE AND CLEANING OF THE FAUCET

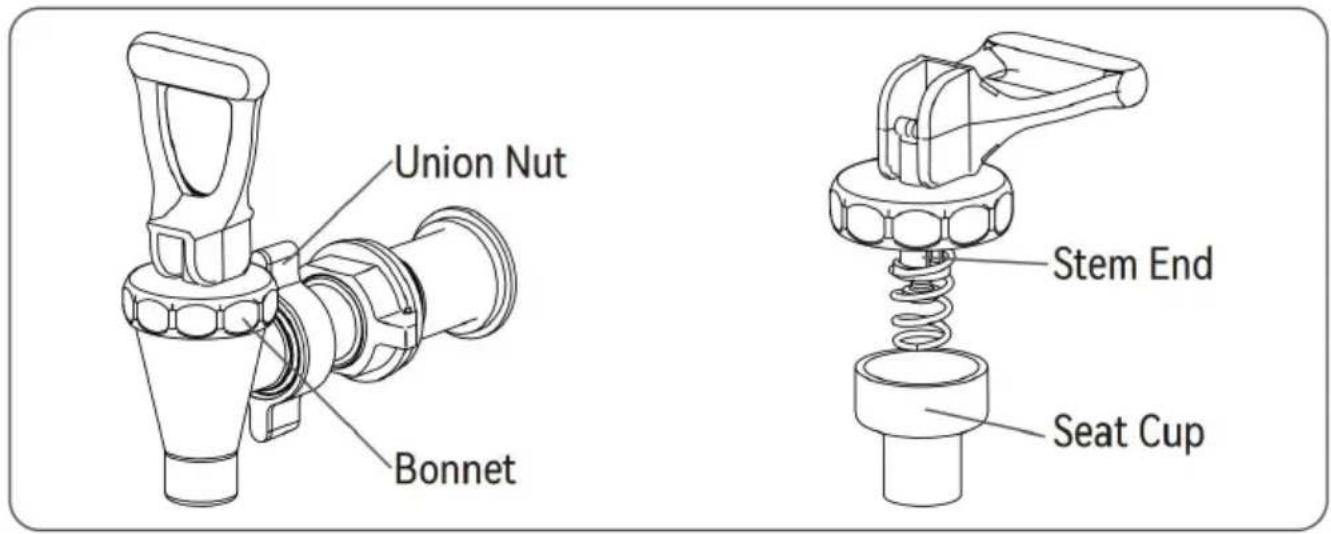

To remove faucet assembly from unit:

1. Unscrew union nut to remove faucet from unit.
2. Unscrew bonnet from faucet body to expose rubber seat cup and end. Pull down on seat cup to remove.
3. Push back union nut and remove metal "c" ring. Unscrew wing nu remove spout from unit completely. Set aside large rubber washer, sn

rubber washer and "c" ring.

1. Depress faucet lever in "locked open" position to clean top of bon thoroughly.

2. Clean all parts of faucet with a solution of hot water and urn cle a faucet brush to clean the insides of the faucet and spout.

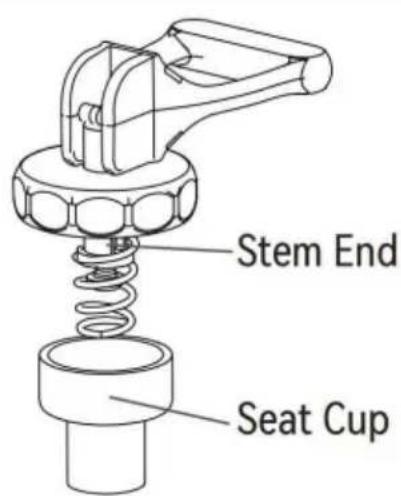

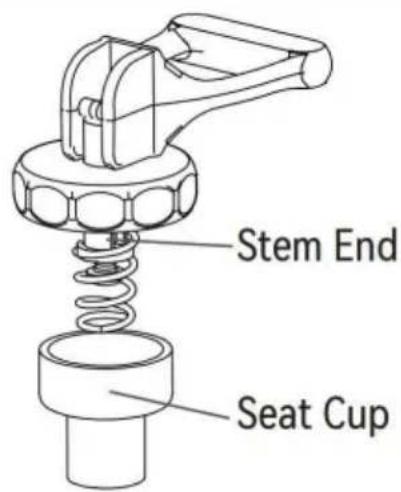

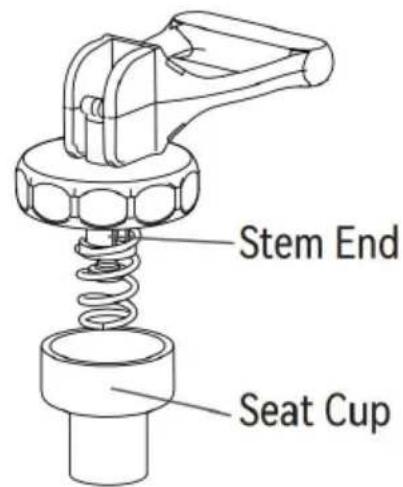

Union Nut Bonnet Stem End Seat Cup

To return faucet assembly to unit:

1. Place small rubber washer on spout first. Then place spout inside

2. Place large rubber washer on spout from outside the unit.

3. Screw wing nut on spout with circle base facing the unit. Fit union spout with inner screw side facing out. Replace metal "c" ring.

4. Replace rubber seat cut on spring and stem end of faucet. Apply pressure to secure seat cup.

5. Screw bonnet onto faucet body.

6. Screw faucet onto spout and tighten union nut.

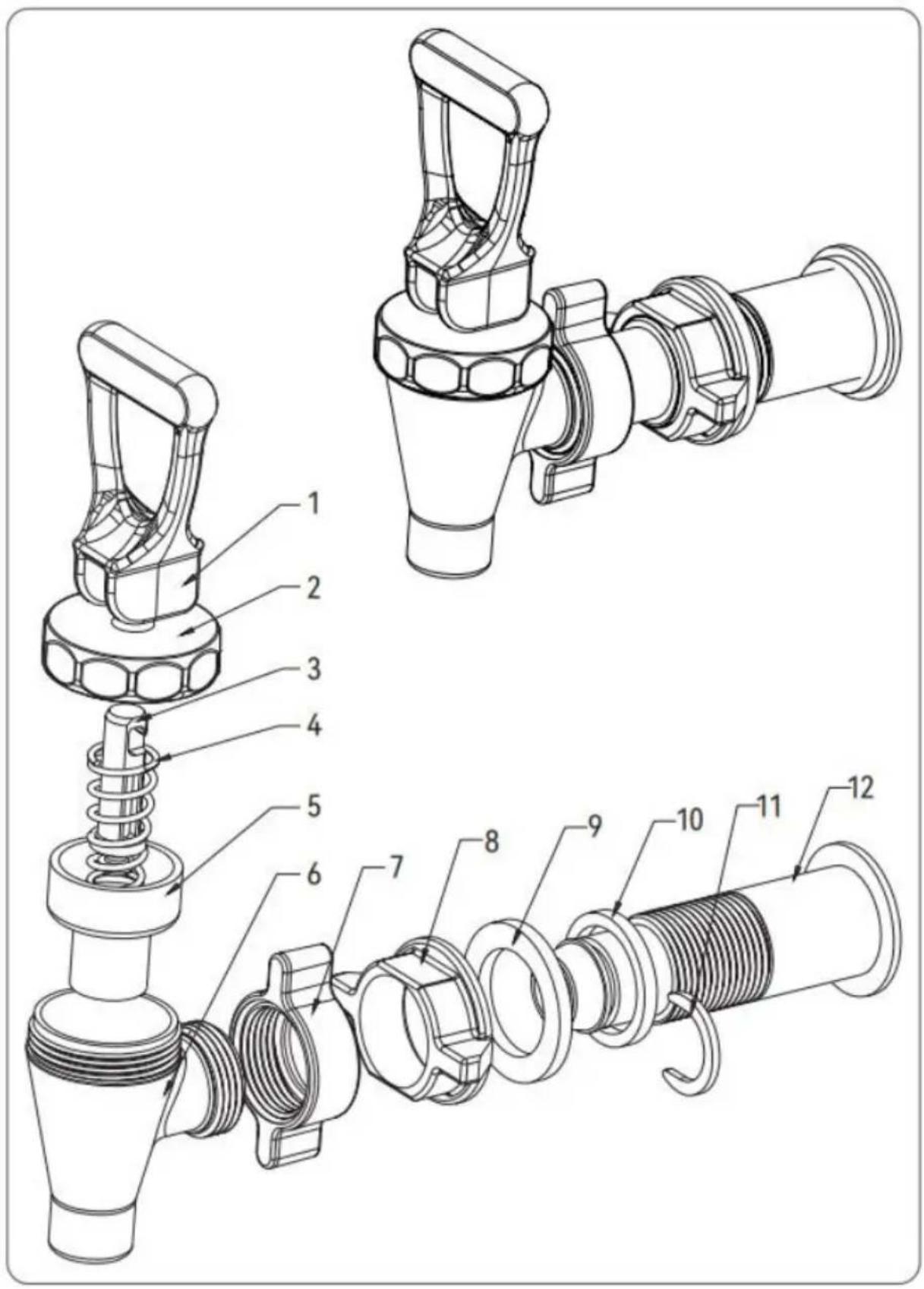

Beverage Dispenser Faucet

Technical diagram of a mechanical valve assembly with numbered parts for identification

Number	Part Name
1	Faucet Lever
2	Bonnet
3	Stem End
4	Spring
5	Rubber Seat Cup
6	Faucet Body
7	Union Nut
8	Wing Nut
9	Large Rubber Washer
10	Small Rubber Washer
11	Metal C Ring
12	Spout

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China
