Product Type	Insulated Beverage Dispenser
Brand	Vevor
Model	WNS-4
Intended Use	Dispensing hot or cold beverages
Maximum Fill Capacity	Do not fill more than 1 1/4 inches from the top
Exterior Material	Stainless steel with insulating coating
Interior Material	Stainless steel
Lid Type	Lockable lid with sealing gasket
Faucet	Removable faucet with locking lever
Spare Parts	12 identified parts (lever, cap, stem, spring, seat, body, nut, spout, washers, C-ring)
Repairability	Repairable: faucet is removable and cleanable
Maintenance	Clean after each use; wash interior with hot water and vinegar; exterior with soft cloth
Faucet Cleaning	Full disassembly, wash with hot water and cleaner, use a brush
Safety Precautions	Risk of tipping; do not climb on the unit; do not exceed capacity; do not use as a toy
Test Ambient Temperature	25°C
Preheating/Precooling Instructions	Preheat with hot water for hot; precool for cold
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate available online
Origin	Imported by Sanven Technology Ltd., USA
Manual available in	French, German, English, Italian, Dutch, Polish, Swedish

Frequently Asked Questions - WNS-4 Vevor

How to clean the dispenser faucet?

Unscrew the union nut to remove the faucet. Unscrew the cap to expose the cup and stem. Pull the cup to remove it. Remove the C-ring and wing nut to take off the spout. Clean all parts with hot water and a cleaner, use a brush for the inside of the faucet and spout. For reassembly, follow the reverse order.

What is the maximum fill capacity?

Do not fill more than 1 1/4 inches from the top of the container to avoid overflow when closing the lid.

How to improve heat or cold retention?

For hot, preheat the interior with hot water before use. For cold, precool the entire unit. Fill the container to its maximum capacity and ensure the gasket is in place and the lid is locked.

What safety risks should be known?

Risk of tipping: a child or adult may knock over the unit and be injured. Do not climb on the product. Do not exceed the weight capacity. It is not a toy; children should not play with or near it.

How to clean the inside of the dispenser?

Wash the interior with water, then put hot water (you can add a little vinegar) inside and let it sit for 30 minutes. Rinse and dry. Do not keep acidic or alkaline foods for long to avoid rust.

What to do if the faucet leaks?

Check that the sealing gasket (rubber washer) is properly in place. Disassemble the faucet according to the cleaning instructions and inspect the parts, especially the rubber seat cup. Replace worn parts if necessary.

Can I put the dispenser in the dishwasher?

Only if you remove the sealing gasket before putting it in the dishwasher. Avoid that the latches get stuck in the conveyor.

Where can I find spare parts?

Spare parts are not sold directly by Vevor, but you can contact technical support via www.vevor.com/support for information on replacement parts.

How to contact Vevor customer service?

You can contact technical support and get the electronic warranty certificate at www.vevor.com/support.

What are the exact dimensions of the dispenser?

The dimensions are not specified in the manual. Please check the product received or contact Vevor support for precise information.

USER MANUAL WNS-4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

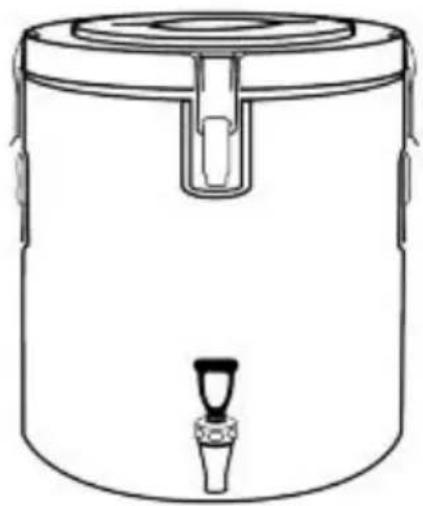

INSULATED BEVERAGE DISPENSER

MODEL: WNS-4

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

INSULATED BEVERAGE

DISPENSER

MODEL: WNS-4

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

Read and understand this entire manual before operating and servicing this product. Failure to follow these warnings and instructions can cause death, personal injury, or damage to valuable property.

Tip Over Hazard

• A child or adult can tip the insulated beverage dispenser and be killed or seriously injured.
• Serious injury may occur to children and adults if not secured before installation.
• This product is not a toy. Children should not play with or around the insulated beverage dispenser at any time.
• Use as intended only. Do not stand on the product.
• Do not exceed the listed weight capacity.

SAVE THESE INSTRUCTIONS

PROPER USE OF YOUR INSULATED PRODUCT

1. Wash and rinse the unit prior to its use.
2. Preheating the interior with hot water will improve heat retention.
3. Pre-chilling the entire unit will improve cold retention.
4. Load the container to its maximum capacity. Make sure the gasket is

CARE AND CLEANING OF INSULATED CARRIER

1. Clean after every use. Destaining compounds approved for food or beverage contact may be used. Ask your detergent supplier for the proper compound.
2. Make sure the gasket is removed prior to running through a dishwasher. Also, prevent latches from getting caught in the conveyor.

BEVERAGE DISPENSER FILLING INSTRUCTIONS

CAUTION: Liquid can overflow or squirt out of the vent cap when sealed if the unit is overfilled.

TO PREVENT OVERFLOW, DO NOT FILL HIGHER THAN 11/4" FROM TOP.

CARE AND CLEANING OF THE FAUCET

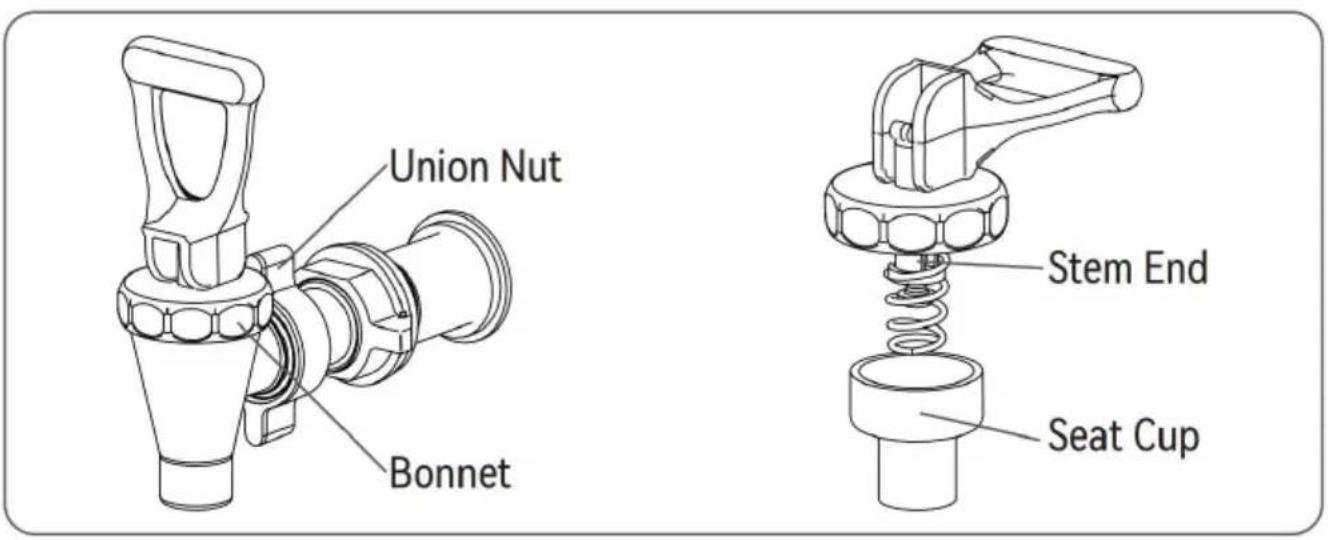

To remove faucet assembly from unit:

1. Unscrew union nut to remove faucet from unit.
2. Unscrew bonnet from faucet body to expose rubber seat cup and end. Pull down on seat cup to remove.
3. Push back union nut and remove metal "c" ring. Unscrew wing nut.

Remove spout from unit completely. Set aside large rubber washer, small rubber washer and "c" ring.

1. Depress faucet lever in "locked open" position to clean top of bonnet thoroughly.
2. Clean all parts of faucet with a solution of hot water and urn cleaner. Use a faucet brush to clean the insides of the faucet and spout.

To return faucet assembly to unit:

1. Place small rubber washer on spout first. Then place spout inside unit.
2. Place large rubber washer on spout from outside the unit.
3. Screw wing nut on spout with circle base facing the unit. Fit union nut on spout with inner screw side facing out. Replace metal "c" ring.
4. Replace rubber seat cut on spring and stem end of faucet. Apply pressure to secure seat cup.
5. Screw bonnet onto faucet body.
6. Screw faucet onto spout and tighten union nut.

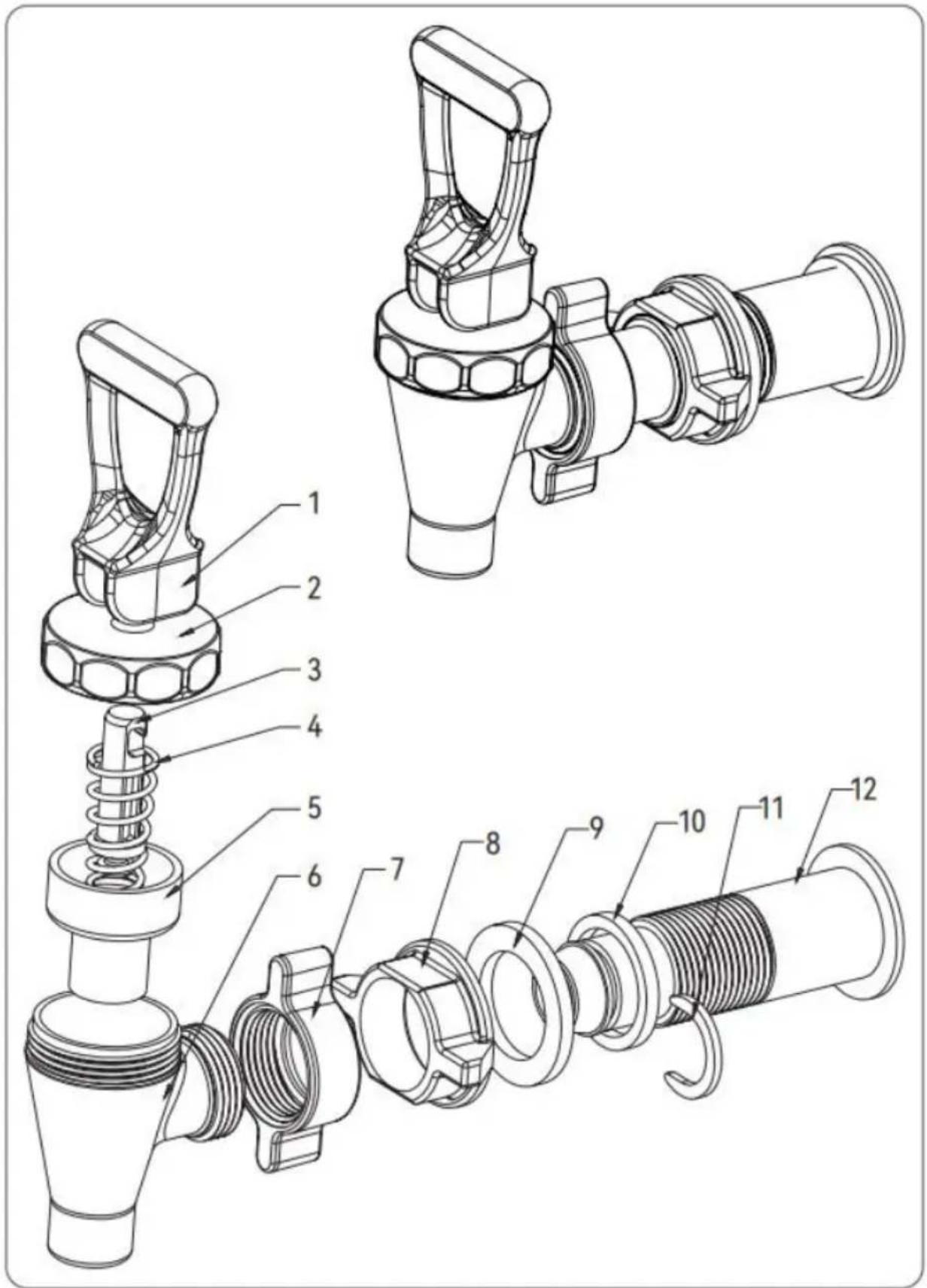

Beverage Dispenser Faucet

Number	Part Name
1	Faucet Lever
2	Bonnet
3	Stem End
4	Spring
5	Rubber Seat Cup
6	Faucet Body
7	Union Nut
8	Wing Nut
9	Large Rubber Washer
10	Small Rubber Washer
11	Metal C Ring
12	Spout

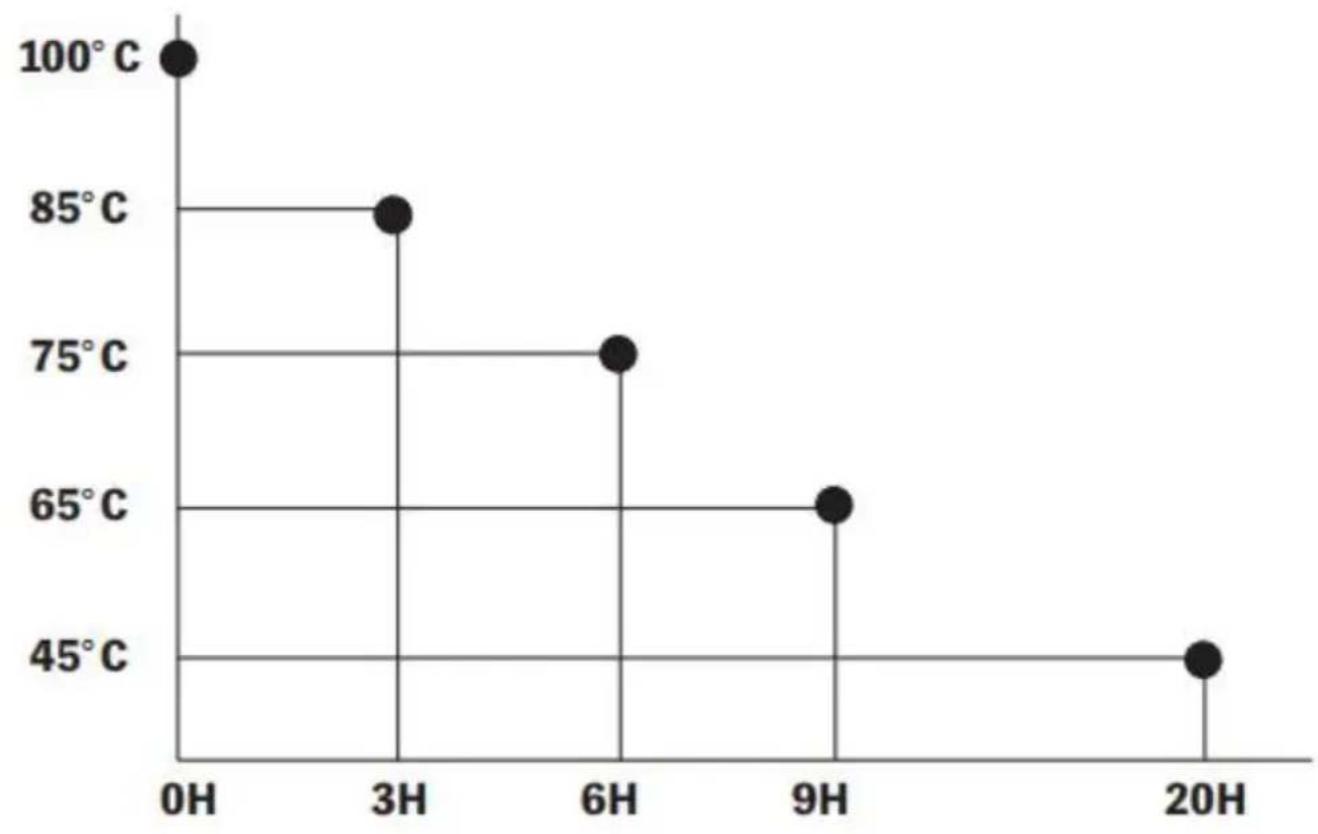

TEMPERATURE TEST At room temperature 25°C

HOW TO CLEAN

1. Please wash the inside barrel in time after finishing use and dry it.
2. Please do not put acid food or alkaline food for a long time to avoid rusting.

HOW TO USE

- How to place

Do not fill above the maximum water level

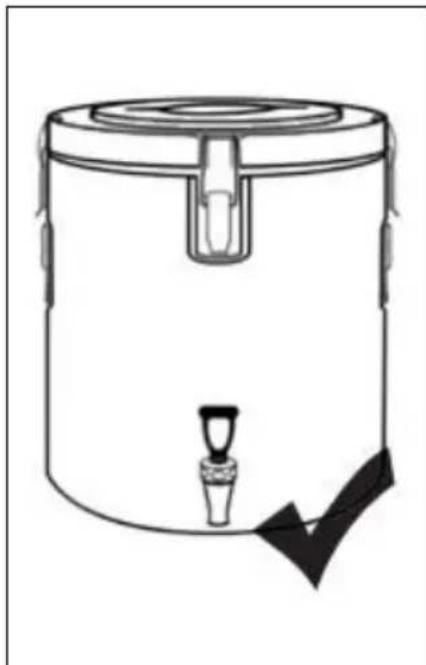

Correct placement

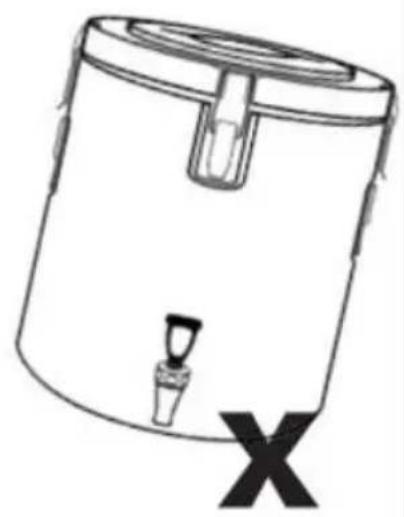

No slant

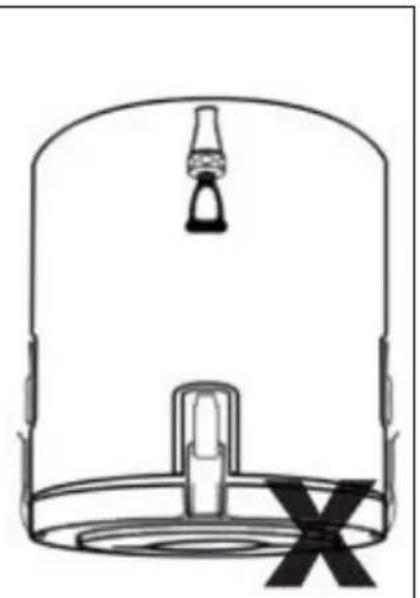

Do not turn over

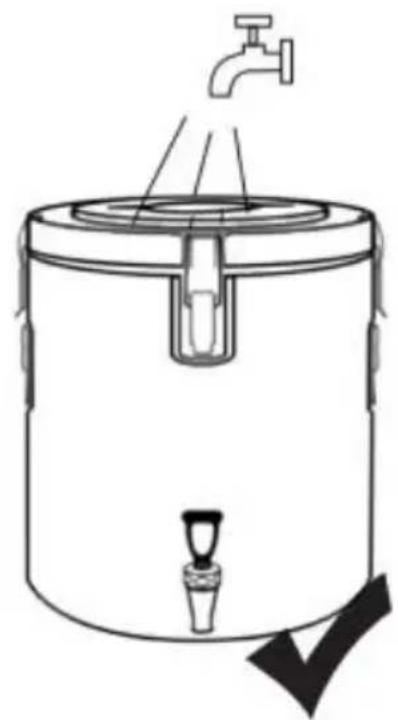

How to wash

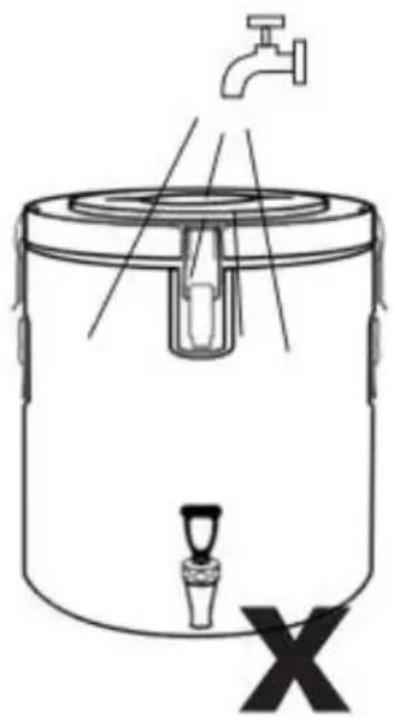

Do not soak in water. Do not flush directly.

Do wash the inner bar.

1. Please use a soft cloth to clean the outside of the barrel.
2. Please wash the inside with water, then put some hot water (can add some vinegar) inside to steep for 30 minutes. Due to the polishing technology, the inside may leave some polishing dust, so please wash it before use.
3. Please do not put water above the plastic circle position to avoid water overflow. 4. Do not fill beyond the max water level.
4. Please wash the inside barrel in time after finishing use and dry it.
5. Please do not put acid or alkaline food for a long time to avoid barrel rusting.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China
