Product Type	Insulated Beverage Dispenser
Brand	Vevor
Model	WNS-1
Main Material	Stainless Steel
Use	Keep beverages hot or cold
Recommended Preheating	Yes, improves heat retention
Recommended Precooling	Yes, improves cold retention
Insulation Performance	At room temperature 25°C: from 100°C to 45°C in 20 hours
Maximum Fill Level	Do not fill less than 3 cm from the top edge
Maintenance	Clean after each use with food-grade detergent
Dishwasher Safe	Yes, after removing the gasket
Sealing Gasket	Remove before dishwasher cleaning
Faucet	Removable for thorough cleaning (detailed procedure)
Spare Parts	List provided: lever, cover, spring, seat, body, nut, spout, gaskets
Included Accessories	Plastic tea leaf filter
Safety	Risk of tipping over - do not step on the appliance; do not use as a toy
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate on Vevor website
Country of Manufacture	China

Frequently Asked Questions - WNS-1 Vevor

What is the capacity of the Vevor WNS-1 dispenser?

The exact capacity is not specified in the manual, but it is recommended not to fill less than 3 cm from the top edge to avoid overflow.

How to clean the dispenser faucet?

Disassemble the faucet by unscrewing the union nut. Clean all parts with a hot water and urn cleaner solution. Use a faucet brush for the inside. Then reassemble in reverse order.

Can I put the dispenser in the dishwasher?

Yes, but you must remove the gasket before placing it in the dishwasher. The latches must not get caught in the conveyor.

How to improve heat or cold retention?

For hot, preheat the interior with hot water. For cold, precool the assembly. Fill to maximum capacity and ensure the gasket is properly in place.

What types of beverages can I use?

You can use hot or cold beverages. Avoid acidic or alkaline foods for extended periods to prevent rust.

Is the dispenser safe for children?

No, it is not a toy. Children should not play with or near it. Risk of tipping over: a child or adult could tip it over and be seriously injured.

How to install the tea leaf filter?

Place the plastic tea leaf filter inside the dispenser when in use. It filters tea leaves or other infusions.

What to do if the faucet leaks?

Check that the rubber gasket on the seat is in place and undamaged. Replace if necessary. Ensure the union nut is tight.

How to get spare parts?

Consult the exploded parts diagram in the manual. To order, contact technical support at www.vevor.com/support.

Can I use the dispenser for carbonated beverages?

The manual does not specifically mention carbonated beverages. It is recommended not to exceed the maximum capacity and avoid excessive pressure. Use at your own risk.

USER MANUAL WNS-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

INSULATED BEVERAGE DISPENER

MODEL:WNS-1 / WNS-2 / WNS-3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

INSULATED BEVERAGE

DISPENER

MODEL:WNS-1 / WNS-2 / WNS-3

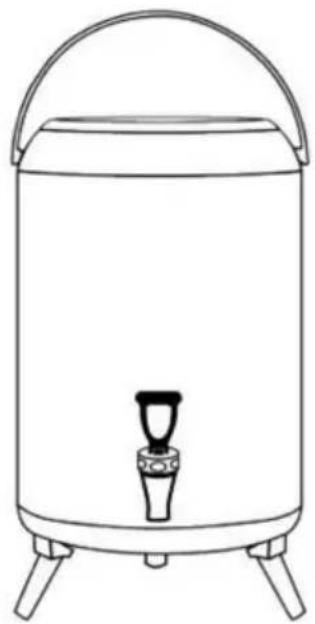

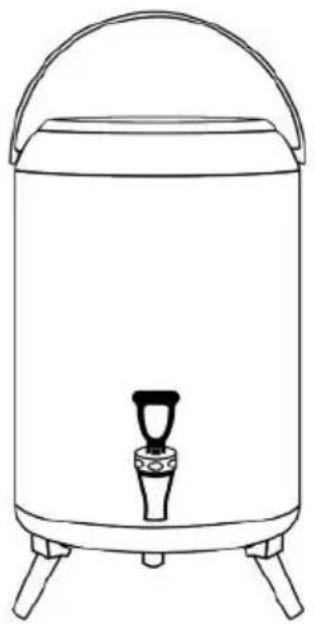

Line drawing of a simple water heater with handle and side legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

Read and understand this entire manual before operating and servicing this product. Failure to follow these warnings and instructions can cause death, personal injury or damage to valuat property.

Tip Over Hazard

• A child or adult can tip the insulated beverage dispenser and be ki seriously injured.
• Serious injury may occur to children and adults if not secured before installation.
• This product is not a toy. Children should not play with or around insulated beverage dispenser at any time.
• Use as intended only. Do not stand on the product.
• Do not exceed the listed weight capacity.

SAVE THESE INSTRUCTIONS

PROPER USE OF YOUR INSULATED PRODUCT

1. Wash and rinse the unit prior to its use.
2. Preheating interior with hot water will improve heat retention.
3. Pre-chilling entire unit will improve cold retention.
4. Load container to its maximum capacity. Make sure the gasket is place. Replace lid and lock in position.

CARE AND CLEANING OF INSULATED CARRIER

1. Clean after every use. Destaining compounds approved for food or beverage contact may be used. Ask your detergent supplier for prope compound.
2. Make sure gasket is removed prior to running through a dishwasher. Also, prevent latches from getting caught in the conveyor.

BEVERAGE DISPENSER FILLING INSTRUCTIONS

CAUTION: Liquid can overflow or squirt out of the vent cap when set lid if the unit is overfilled.

TO PREVENT OVERFLOW, DO NOT FILL HIGHER THAN 11/4" FROM TOP.

CARE AND CLEANING OF THE FAUCET

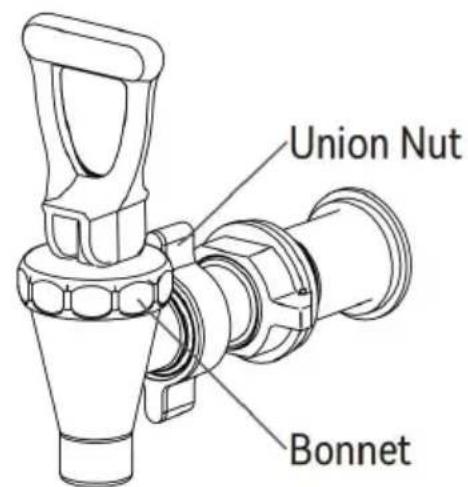

To remove faucet assembly from unit:

1. Unscrew union nut to remove faucet from unit.

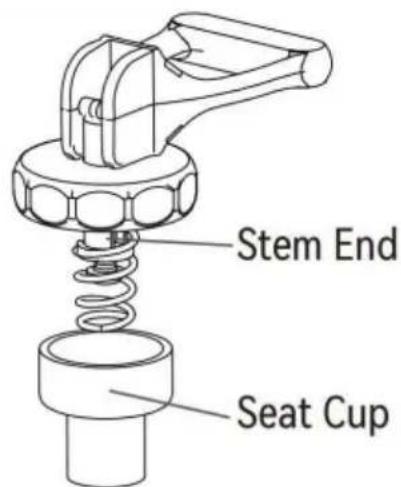

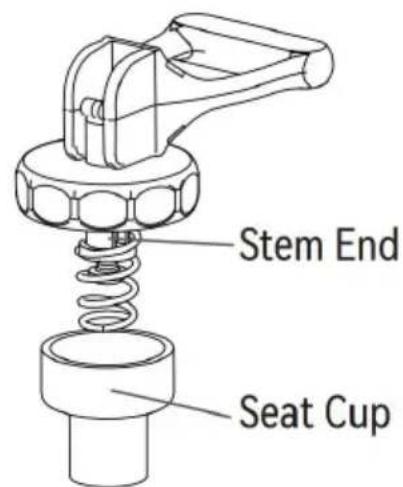

2. Unscrew bonnet from faucet body to expose rubber seat cup and end. Pull down on seat cup to remove.
3. Push back union nut and remove metal "c" ring. Unscrew wing nu remove spout from unit completely. Set aside large rubber washer, sn

rubber washer and "c" ring.

1. Depress faucet lever in "locked open" position to clean top of bon thoroughly.
2. Clean all parts of faucet with a solution of hot water and urn cle a faucet brush to clean the insides of the faucet and spout.

To return faucet assembly to unit:

1. Place small rubber washer on spout first. Then place spout inside
2. Place large rubber washer on spout from outside the unit.
3. Screw wing nut on spout with circle base facing the unit. Fit unic spout with inner screw side facing out. Replace metal "c" ring.
4. Replace rubber seat cut on spring and stem end of faucet. Apply pressure to secure seat cup.
5. Screw bonnet onto faucet body.
6. Screw faucet onto spout and tighten union nut.

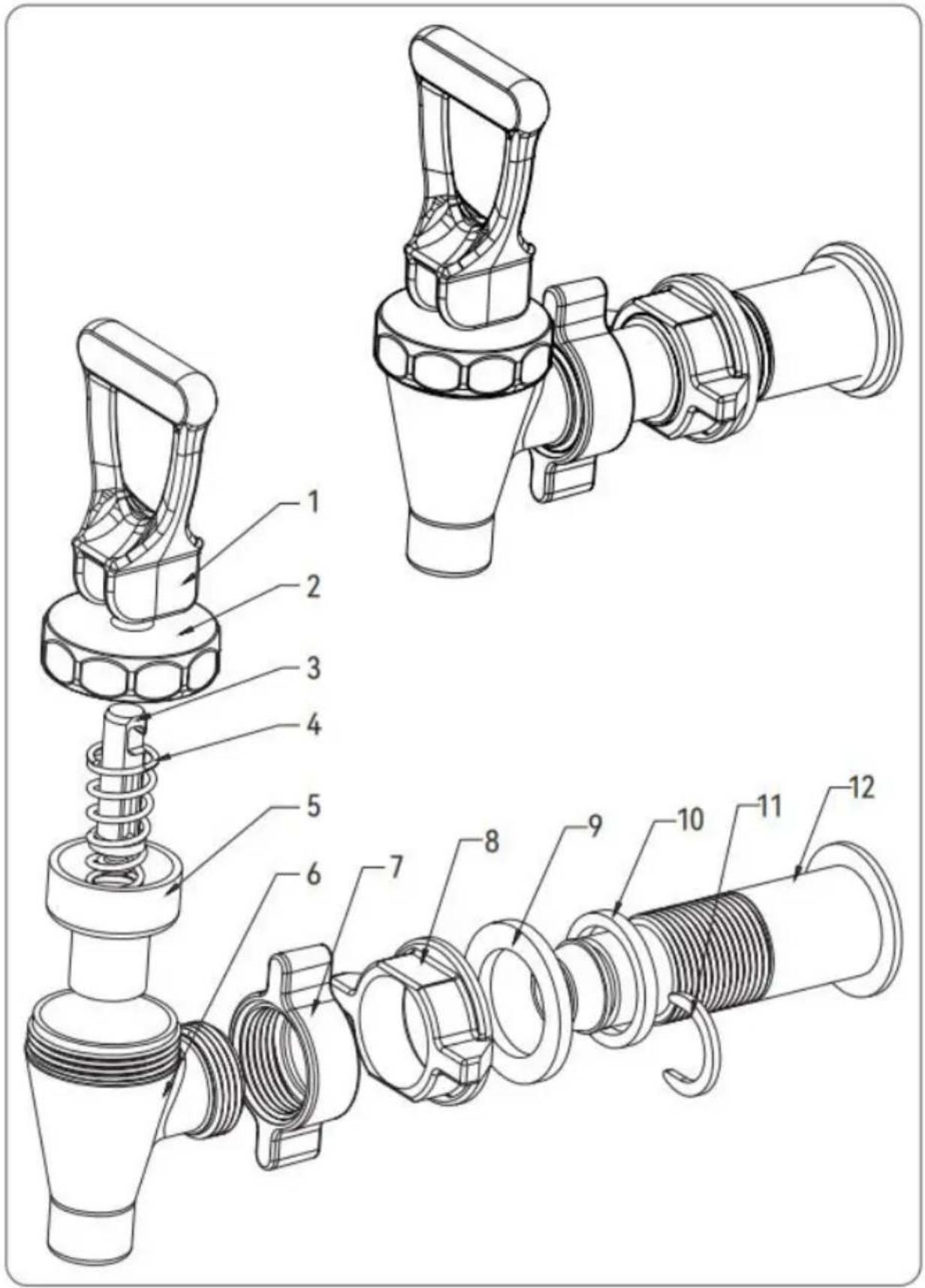

EXPLODED PARTS DIAGRAM

Beverage Dispenser Faucet

Number	Part Name
1	Faucet Lever
2	Bonnet
3	Stem End
4	Spring
5	Rubber Seat Cup
6	Faucet Body
7	Union Nut
8	Wing Nut
9	Large Rubber Washer
10	Small Rubber Washer
11	Metal C Ring
12	Spout

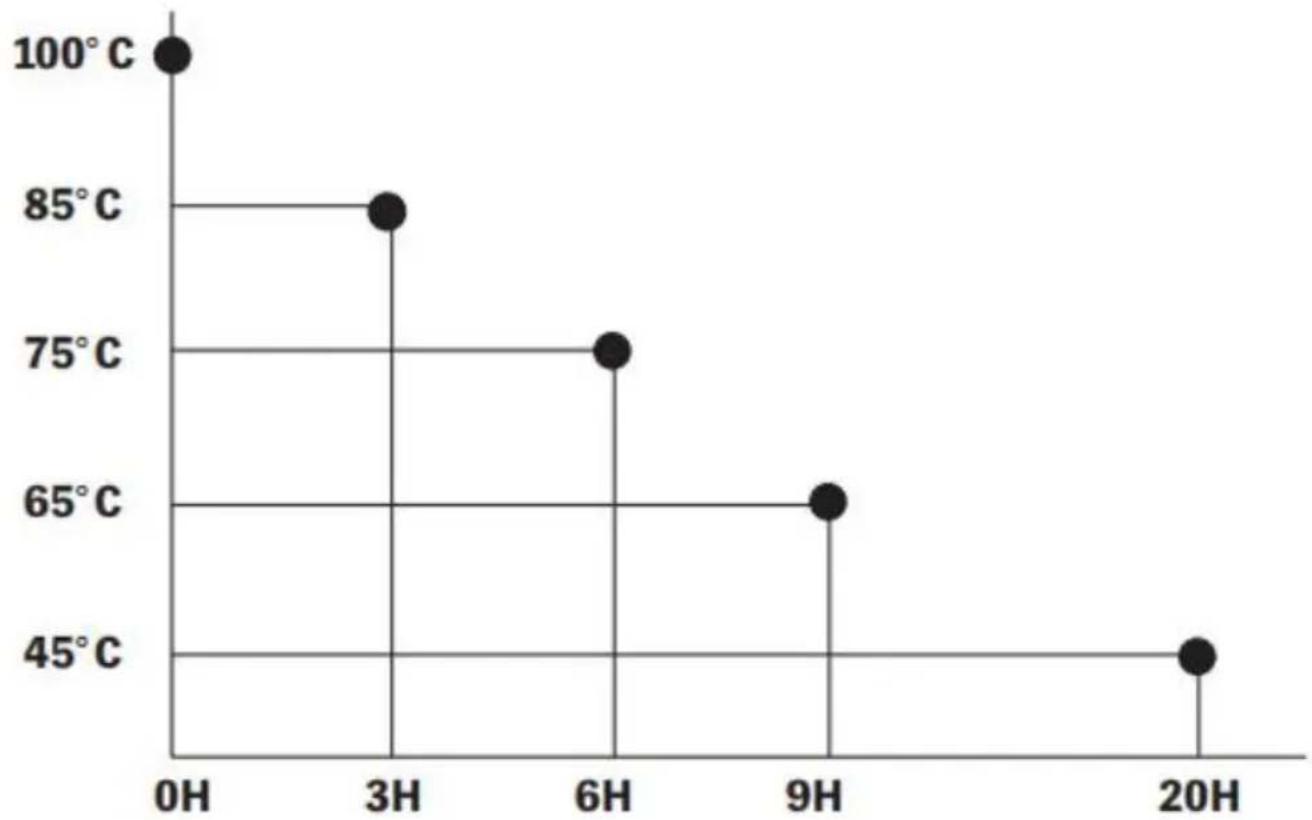

TEMPERATURE TEST

In Room Temperature 25°C

HOW TO CLEAN

1. Please wash the inside barrel in time after finish using and dry it.
2. Please do not put acid food or alkaline food for long time to avoid rusting.

HOW TO USE

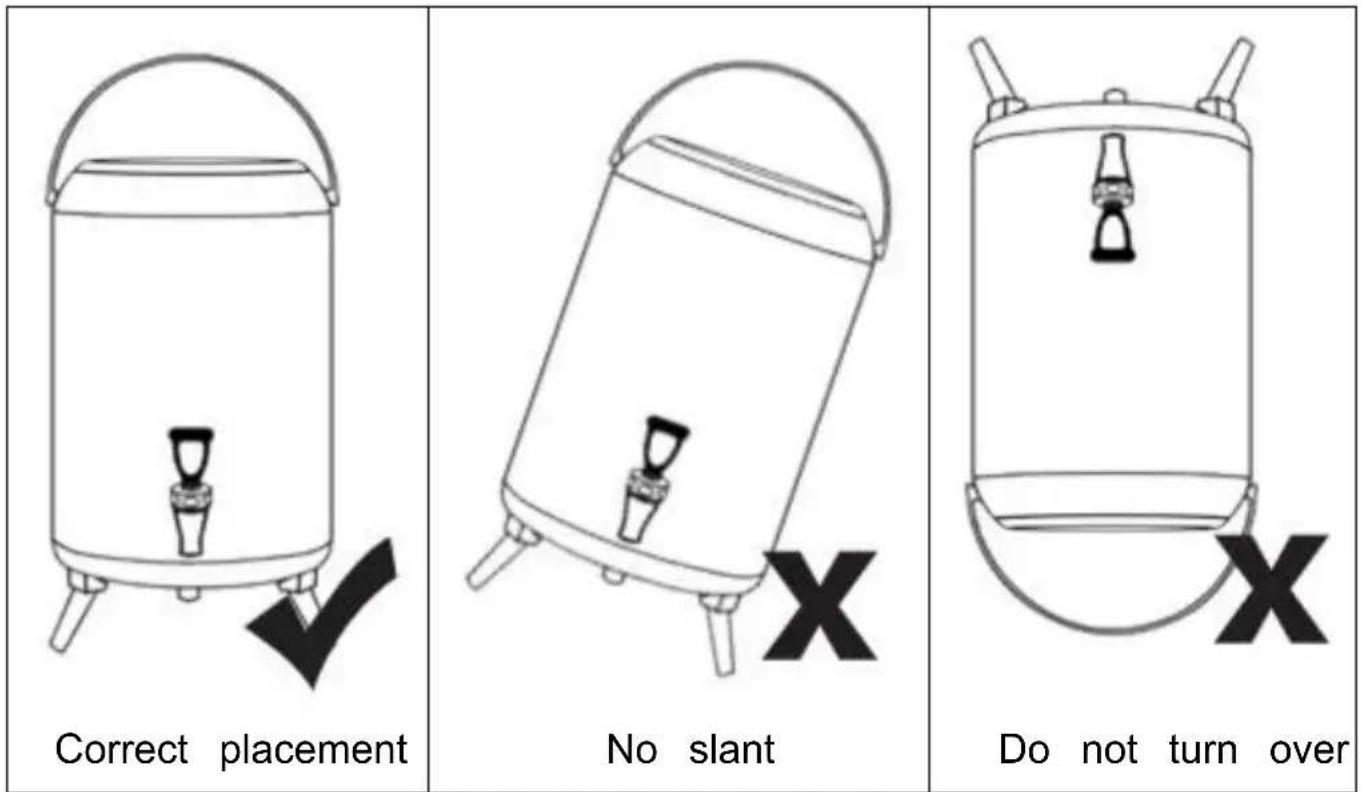

● How to place

Do not fill excess the max water level

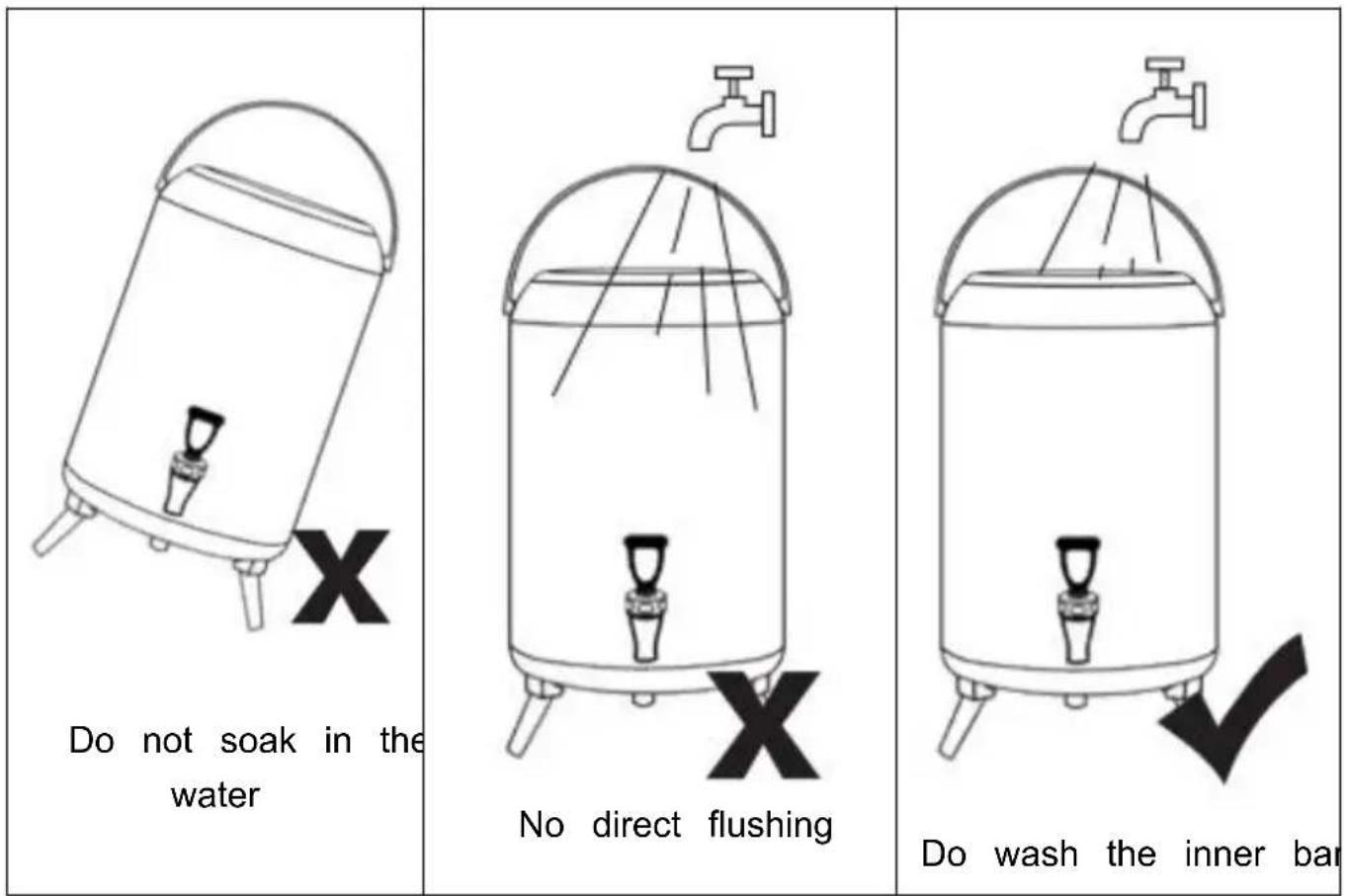

● How to wash

1. Please use soft cloth to clean the barrel outside.
2. Please wash the inside with water, then put some hot water (can add some vinegar) inside to steep for 30 minutes. Due to the polishing technology, the inside may leave some polishing dusty, so please do wash it before use.
3. Please do not put over the plastic circle position when you put the water inside to avoid water overflow.
4. Please install plastic tea leaf filter when you use the dispenser.
5. Please wash the inside barrel in time after finish using and dry it.
6. Please do not put acid food or alkaline food for long time to avoid barrel rusting.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Made In China
