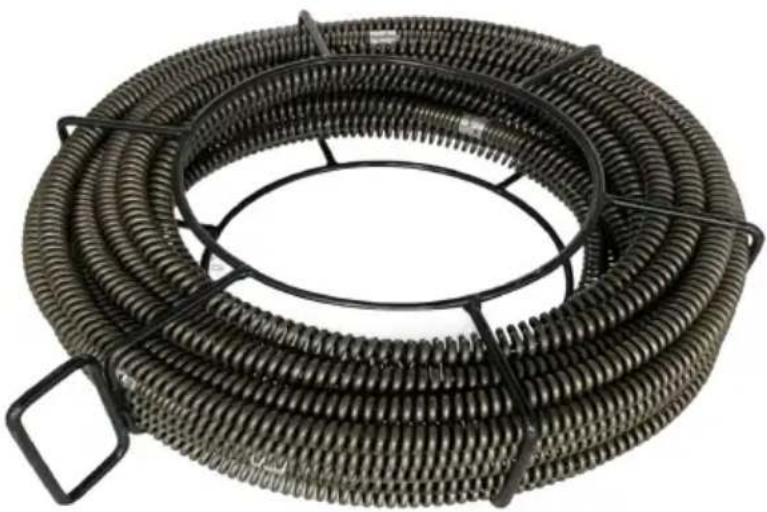

Product Type	Electric Drain Cleaning Cable
Brand	Vevor
Model	45ft*7/8
Cable Length	45 feet (13.7 m)
Cable Outer Diameter	7/8 inch (22.2 mm)
Compatible Pipe Diameter	20 to 150 mm
Cable Material	65Mn Steel
Color	Black
Power Supply	Electric Mains
Included Accessories	Auger tips (recycling, olive, serrated cutter, oil cutter, etc.)
Main Function	Cleaning clogged drains
Safety	Wear glasses, gloves, hearing protection and mask
Maintenance and Cleaning	Clean regularly and lubricate if necessary
Spare parts and repairability	Cable, cutting tools, switch, carbon brushes
Estimated Weight	Approximately 12 kg
Manufacturer	Shanghai Muxin Muye Co., Ltd.
Technical service and warranty	www.vevor.com/support

Frequently Asked Questions - 45ft*7/8 Vevor

How to use the Vevor 45ft*7/8 drain cleaning cable?

Place the machine within 2 feet of the drain access. Select the appropriate cutting tool and attach it to the cable. Push the cable into the pipe using the foot pedal to control rotation. Use moderate force to avoid twisting the cable.

What accessories are included with the 45ft*7/8 model?

Several cutting tools are included: recycling type auger tip, olive type auger point, spiral serrated cutter, type C oil cutter, spade cutting device, four-flute serrated cutter, olive-shaped flexible key, funnel auger, expandable cutting head, serrated cutter, and straight spiral drill bit.

How to connect a cutting tool to the cable?

Push the tool along the 67° sliding slot of the shaft to engage it. Ensure the pin protrudes through the drill hole for a reliable connection.

How to remove the flexible shaft from the cable?

Insert the provided key and push the shaft with both hands in the direction opposite to the T-slot of the terminal to remove it easily.

What safety precautions should I take?

Always wear safety glasses, hearing protection, and a dust mask. Do not wear loose clothing and keep hair tied back. Make sure the switch is in the off position before plugging in the tool.

What to do if the motor does not start?

Check the plug and socket connections. If the switch is defective, have it replaced. If unusual noises are heard, reduce the push or have the tool checked by a professional.

How to maintain the drain cleaner?

Clean the tool regularly and remove foreign substances. Lubricate moving parts if necessary. Check the condition of the carbon brushes and commutator.

What pipe diameter can be cleaned with this model?

The 45ft*7/8 model is suitable for pipes with an inner diameter of 20 to 150 mm. Use cutting tools smaller than the pipe diameter minus one inch.

Where can I get technical support?

Visit www.vevor.com/support to obtain an electronic warranty certificate and technical support.

How to benefit from the warranty?

Register your product at www.vevor.com/support with your serial number and receipt. Keep the manual and proof of purchase in a safe place.

USER MANUAL 45ft*7/8 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Drain Cleaning Cable

Model: 66ft*5/8 100ft*5/8; 45ft*7/8; 60ft*1-1/5

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only reflect the savings you might benefit from buying certain tools with us compared to major top brands, and does not necessarily mean to cover all categories of tools. You are kindly reminded to verify carefully when placing an order that you are actually saving half in comparison with the top major brands.

Model: 66ft*5/8; 100ft*5/8; 45ft*7/8; 60ft*1-1/5

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

1. Save This Manual

Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance, and cleaning procedures. Write the product's serial number in the back of the manual near the assembly diagram (or month and year of purchase if the product has no number). Keep this manual and the receipt in a safe and dry place for future reference.

You must abide by certain safety precautions when using the equipment. In order to prevent injuries and damages from occurring, you must always read through this operating manual carefully.

WARNING SYMBOLS AND DEFINITIONS
	This is the safety alert symbol. It is used to ale potential personal injury hazards. Obey all safety messages that follow this symbol avoid possible injury or death.
	Indicates a hazardous situation which, if not avoi will result in death or serious injury.
	Indicates a hazardous situation which, if not avoi could result in death or serious injury.
	Indicates a hazardous situation which, if not avoi could result in minor or moderate injury.
	Addresses practices not related to personal injury.

2. SPECIFICATIONS

Model No.	66ft*5/8	100ft*5/8	45ft*7/8	60ft*1-1/5
Cable length	66ft	100ft	45ft	60ft
Outside diameter	5/8"	5/8"	7/8"	1-1/5"
Pipe Size	20-100mm	20-100mm	20-150mm	50-200mm
Colour	black	black	black	black
Material quality	65Mn	65Mn	65Mn	65Mn
Application	VEVOR	VEVOR	VEVOR	VEVOR

2. Personal safety

a) Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

d) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

3. Use

Cutting Tool Accessories

There are several cutting tools included with each drain cleaner. Select the appropriate tool for the cleaning job and attach to cable. Each is described in the table below.

	Recycling-type auger tip	To find soft axes broken or lost in t pipe, and dredge pipes blocked by h sanitary napkins, textiles, etc.
[KBYA]	Olive-type auger tip	To guide soft axes through complex pipes with more turns, and to dredge pipes blocked by hair and textiles.
	Spirical serrated cutter	Used to remove roots, debris, branch and other blockages.
	Type C oil cutter	Used to remove the grease blockage from the pipe.
	Shovel cutting device	Used to remove the grease blockage from the pipe.
	Four-flute serrated cutter	Used to dredge blockages caused by hardening and hard materials such as chemical fallout.
	key	Used to remove the cutting tool and shaft.
	Flexible olive - shaped helical drill	For pipes that are hard to drill. Good flexibility and optimal guiding function.
	Funnel Auger	Used to clear clogs caused by hair, sanitary napkins, textiles in pipes, use to find broken or lost flexible shafts pipes.
	Expanding cutter head	Used to remove common objects cling to the wall of the tube.
	Serrated cutter	Used to clear pipes that are heavily clogged with tree roots.
	Straight helical drill	For exploring the pipe of the blockag and of the position to drill, usually u the first step.

Methods of connecting and removing springs and springs/tools

Connect the soft shaft with drills

Push the drill along the 67° slider slot of the shaft to engage. This makes connection more reliable, easy and fast.

Caution: Observe through the hole of the drill to see the pin of the flexible shaft. It is only safe when the pin is out.

Remove the soft shaft

Insert the key and push the shaft with both hands in direction opposite to the T slot of the terminal to remove shaft. It saves time and manpower.

NOTICE: If the cause of the obstruction is unknown, use the boring bulb cutter to explore the obstruction and, if possible, retrieve a piece to inspect. Once you see the cause of the obstruction, select the appropriate tool for the job. Run the smallest available tool through the blockage to allow the backed up water to flow and carry away the debris as the drain is cleaned.

Once the drain is flowing, more appropriate tools can be used on the rest of the blockage.

Keep in mind that the largest tool used should be no bigger than the inside diameter, minus an inch.

If properly used, the Drain Cleaners and assorted Drain Cleaner Accessories will not damage a drain that is in good condition and properly designed, constructed and maintained.

However, if the drain is in poor condition or has not been properly designed, drain cleaning work may damage the drain. If possible, visually inspect the drain quality before operation.

• If needed, place protective covers over the work area floor. Cleaning the clogged drain can be a messy operation.
• Make sure that the Drain Cleaner handle is locked into the upright position for transport. If the Drain Cleaner needs to be lifted, use proper lifting techniques and seek assistance if needed. Use caution when moving equipment up and down stairs. Wear appropriate footwear to help prevent slipping on the floor.
• Set the Drain Cleaner so that the drum opening is within 2 feet of the drain access. The greater the distance from the drain access, the higher the risk of cable twisting or kinking.
• If the machine cannot be placed with the drum opening within 2' of the drain access, use appropriate-sized pipes and fittings to extend the drain access back to within 2' of the drum opening. Improper cable support can allow the cable to kink and twist and can damage the cable or injure the operator.
• If needed, set up barriers to keep bystanders away from the Drain Cleaner work area during operation.
• Select proper cutting tool. (See Cutting Tool Accessories).
• Install the tool to the end of the cable. Slide the base of the Cutter Tool into the slot at the end of the cable. Fasten together using a screwdriver.
• Position the Foot Switch for easy accessibility. You must be able to hold and control the cable, control the Foot Switch, and reach the Rotation Switch.

4. CORRECTIVE ACTION IN CASE OF FAILURE

1) The operating switch is switched on, but the motor is not working.

-- Wires in the mains plug or in the socket are loose.

Have socket and plug checked or repaired.

-- The switch is faulty.

Have the switch replaced.

2) The operating switch is switched on, but unusual noises can be heard, the motor is not working or only very slowly.

-- Switch contact has failed.

Have the switch replaced.

-- Component jammed.

Have the electric tool checked or repaired.

-- Too much thrust, as a result the motor is dragging.

Use less thrust during the task.

3) Motor gets hot.

-- Foreign substances have got inside the motor.

Have the foreign substances removed.

-- Lack of or contaminated lubrication grease.

Have lubricating grease applied or replaced.

-- Pressure too high

Use less thrust during the task

4) Frequent or strong sparks on the commutator.

-- Short circuit on the armature.

Have the armature replaced.

-- Carbon brushes worn out or jammed

Have the carbon brushes checked.

-- Rough running of the commutator.

Have the surface of the commutator cleaned or ground.

For your own safety, never remove parts or accessories of the electric tool operation. In case of fault or damage have the electric tool repaired only by specialist workshop or by the manufacturer.
