USER MANUAL SC-TT3-7L Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Food Warmer Display

Applicable models: sc-tT2-7L sc-tt3-7I sc-tt4-7I

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order v are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Food Warmer Display

Model: sc-Tt4-7I

Industrial incubator with four circular flanges and a temperature control panel (no visible text or symbols on the equipment itself)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic but must be taken to a collection point for recycling and electronic devices

WARM PROMPT

This product is protected by a protective film on the surface of the machine to prevent scratches during transportation. Please remove all protective films before use!

1.Instructions for Use:

1. Safety grounding is mandatory before use!
2. The voltage used must match the rated voltage
3. For initial use, fill the water tank to about two-thirds capacity before connecting to the power supply; When the water tank under the machine is low on water, first cut off the power and allow cooling before replenishing, ensuring that the water level does not exceed two-thirds the tank to prevent electric shock hazards.
4. When the power supply is on and the power indicator light is lit, the temperature control heating switch to select the desired food insul temperature, which will heat the water in the tank to a specific temp and maintain it in the soup bucket.
5. After use, always turn off the power to prevent accidents during cle 6. If any abnormalities occur during use, discontinue use and have a

professional troubleshoot before continuing.

1. The product is not suitable for individuals with physical, sensory, or mental impairments or those lacking experience and knowledge, including children.
2. Avoid immersing hands or other body parts in or near the water ta High temperatures may appear on the surface for some time after operation or at the end of use; touch only when absolutely necessary avoid burns or other injuries.
3. When installing the drain faucet for the first time, ensure a seal is by wrapping tape around the threads.
4. To dismantle the drain faucet at a later time, replace the tape with new one and reapply it securely.
5. To adjust the drain valve, press the knob to adjust.

2. Precautions and maintenance:

1. The operation should be carried out by designated personnel who proficient in using the machinery and equipment.
2. Be careful when moving the machine, and if there is a malfunction should be repaired by professional personnel and should not be knocl
3. Please do not install or store this device in the following locations avoid accidental operation and malfunction:
   3.1 On an unstable table or counter.
   3.2 Places with high or low temperatures.
   3.3 Places with excessive air volume and dust.
   3.4 Places with highly unstable power supply voltage.
   3.5Places without good grounding devices.
4. Appliances must not be cleaned with water spray pipes or soaked water to prevent electrical leakage.
5. After use, use a non corrosive cleaning agent to wipe the water and food bowl clean.

6. It is strictly prohibited to use liquids that are soluble in the paint the surface of the machine

7. Special precautions:
   7.1 This product is a commercial device and is not suitable for house use
   7.2 Do not shake or tilt during use
   7.3 Cannot be disassembled, modified, or dismantled without authorization, as modification may lead to serious accidents.
   7.4 Before cleaning, it is necessary to cut off the power to prevent accidental leakage accidents
   7.5 During use, do not directly touch the cabinet with your hands due high temperatures. Use special tools and heat-resistant gloves when handling food.
   7.6 It is prohibited to use hard and sharp objects to scratch or cut machine.

3. Normal working environment conditions:

1. The ambient temperature is 5-50 °C, and the relative humidity of t is not more than 90%;
2. Power supply voltage: 110V ± 10%, frequency: 60 ± 1% HZ. (220-10%, frequency: 50 ± 1% HZ)

4. Product Introduction

1. This product has a novel and unique design, beautiful appearance, combination of square and circular shapes, multiple food boxes, easy classify and use simultaneously, sturdy and durable, and easy to maintain Equipped with steam heating function, it can uniformly increase temperature and is equipped with a large water tank to maintain food moisture. It is a specialized equipment for food display, display, insulation, moisturizing, and classification.

Symbol Description:

In this manual, symbols are used to highlight all important safety

instructions and recommendations related to the equipment. To avoid accidents, casualties, or property damage, please be particularly careful follow these instructions.

Equipotential Dangerous voltage Anti scalding label

6.Product specifications

MODEL	VOLTAGE (V)	FREQUENCY (Hz)	POWER (W)	SIZE (mm)
SC-TT2-7L	AC110-120	60	1200	580*373*310
	AC220-240	50
SC-TT3-7L	AC110-120	60	1200	850*373*310
	AC220-240	50
SC-TT4-7L	AC110-120	60	1500	643*580*310
	AC220-240	50

7.Product appearance

SC-TT2-7L	SC-TT3-7L	SC-TT4-7L

Note: The location of this electrical component is based on the design that time, and our company reserves the right to make changes to the participating design. If the design changes and the instruction manual not improved in a timely manner, we hope the customer can understand

8.Product Structure Diagram

Technical diagram of a laboratory setup with labeled components including three beakers, control panel, and control buttons.

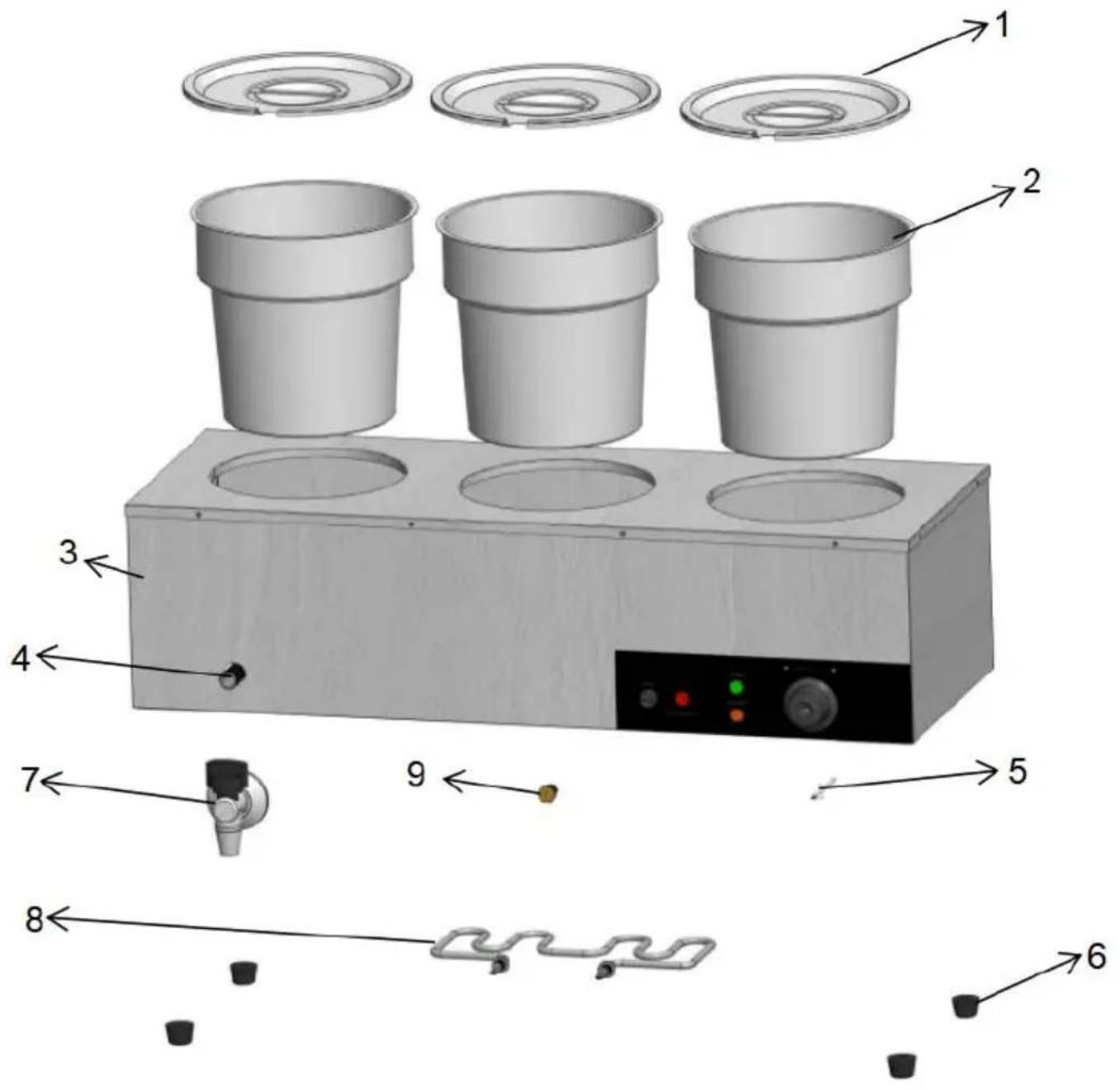

SC-TT3-7L BOOM LIST
NO.	NAME	PCS	NO.	NMAE	PCS
01	Soup bucket lid	2	06	Machine foot	4
02	7L soup bucket	3	07	Drain valve	1
03	Rack water tank	1	08	Heating tube	1
04	Drainage pipe	1	09	Sealing probe nu	1
05	Temperature limiter probe	1

SC-TT SERIES SPAREPARTS LIST

NO.	NAME	PCS	NO.	NAME	PCS
01	Drain valve	1	03	Raw material bell	1
02	Spoon	1	04	Leaky spoon	1

Attention: Please check if the accessories are complete before installation!

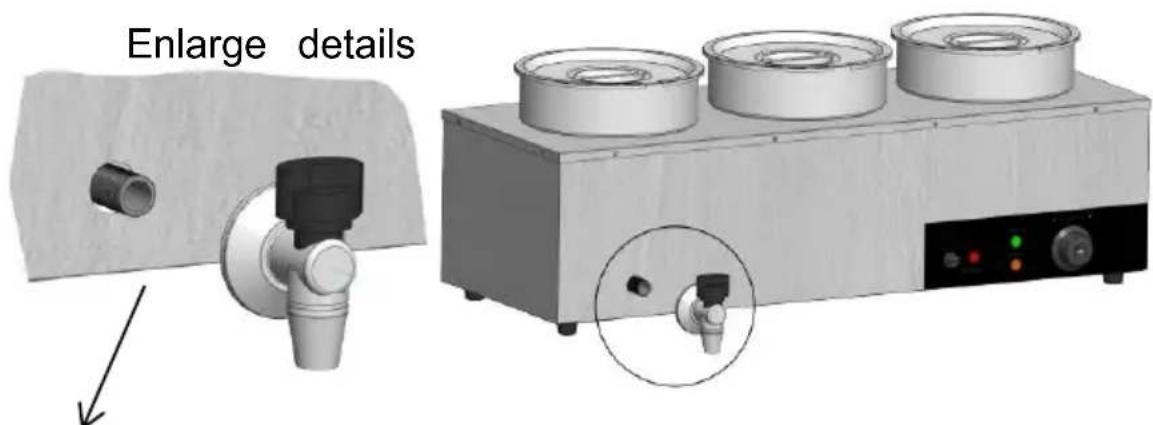

SC-TT3-7L INSTALLATION DIAGRAM

The installation methods of bathing pool series are consiste The following is the installation diagram taking SC-TT3-7L as example

Enlarge details

Wrap the thread of the drain pipe with tape for turns, then tighten the drain valve and align it perpendicular to the direction of the machine.

Attention!

1. In the future, when disassembling the drain valve, a new raw material belt n to be replaced.

2. When adjusting the drain valve, it is necessary to press the knob to adjust

Raw material belt(pcs)

Drain valve (pcs)

INSTALLATION IS COMPLETE

Reminder: It is recommended to wear gloves or other protective tools during installation to avoid scratching hands or other parts

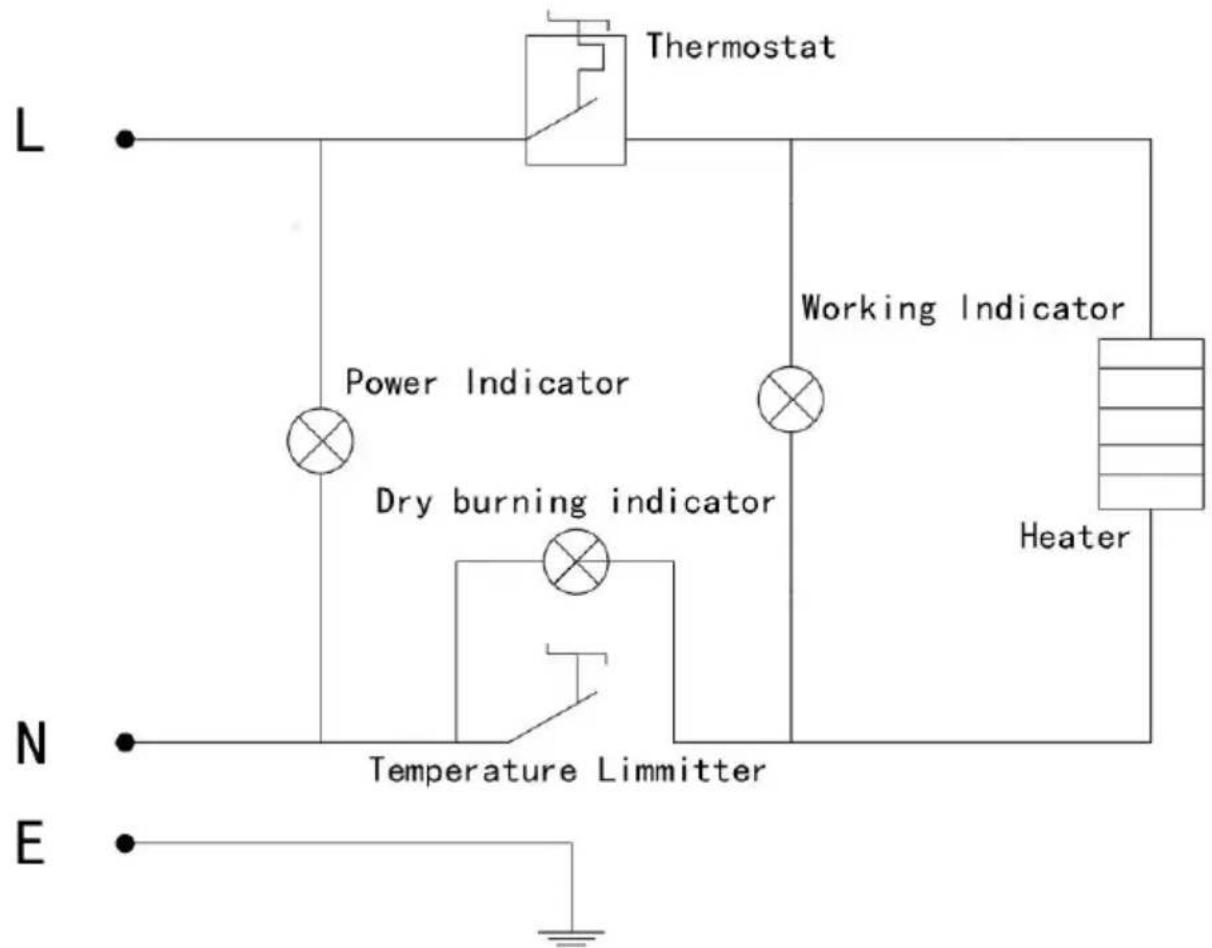

CIRCUIT DIAGRAM

L Thermostat Power Indicator Dry burning indicator Working Indicator Heater N Temperature Limmitter E

9.Fault analysis

NO.	Fault phenomenon	Reason	Exclusion method
01	The green and red indicator lights are simultaneously, and the temperature does not rise	The wiring of the electric heating tube is loose, an the electric heating tube is burnt out	1 Tighten the wiring bolts of the electric heating tube.2 Replace the electric heating tube
02	The work indicator light is on and the temperature rise cannot be controlled	Temperature controller malfunction	1 Replace the thermostat
03	The indicator light is not on, and the temperature control is normal	The indicator light is burnt out	1 Replacing indicator lights
04	Cannot automatically insulate.	Temperature controller malfunction	1 Replace the thermostat
05	The shell has electr leakage and feels numb to the hands	Insulation is damp or the inner wires come into contact with the casing.	1 Send to the maintenance department for repair.
Attention: The above issues are for analysis and reference on not handle them on your own. Relevant professionals are required investigate and repair them. In case of safety abnormalities such electric leakage, the power should be cut off in a timely manner should be stopped!

Special note:

All content in this manual is only for the design at that time. Our co

reserves the right to make changes to the participating designs. If the design changes and the manual is not improved in a timely manner, we hope the customer understands!

Please keep this manual properly
