USER MANUAL YD-301A-60G-JA Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

INSULATION BOARD

MODEL: YD-301C-Z-35+50G, YD-302C-Z-40+60G-A, YD-301A-60G-JA

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:YD-301C-Z-35+50G, YD-302C-Z-40+60G-A, YD-301A-60G-JA

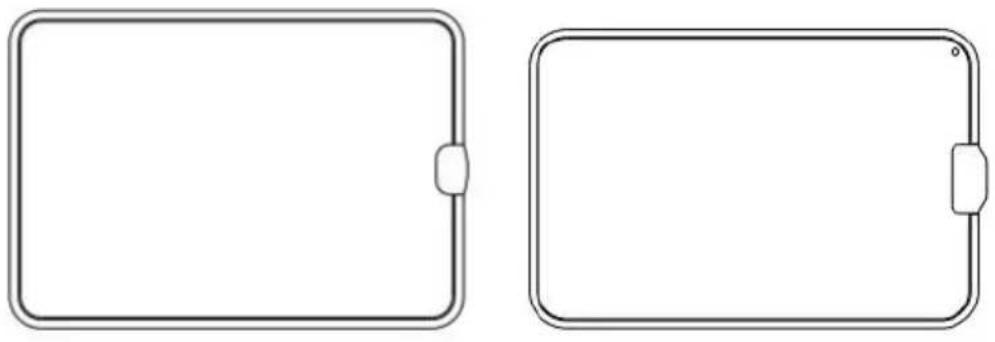

Two identical rectangular frame diagrams with rounded corners and side connectors, no text or symbols present.

Simple line drawing of a circular ring with a small rectangular cutout on the side (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

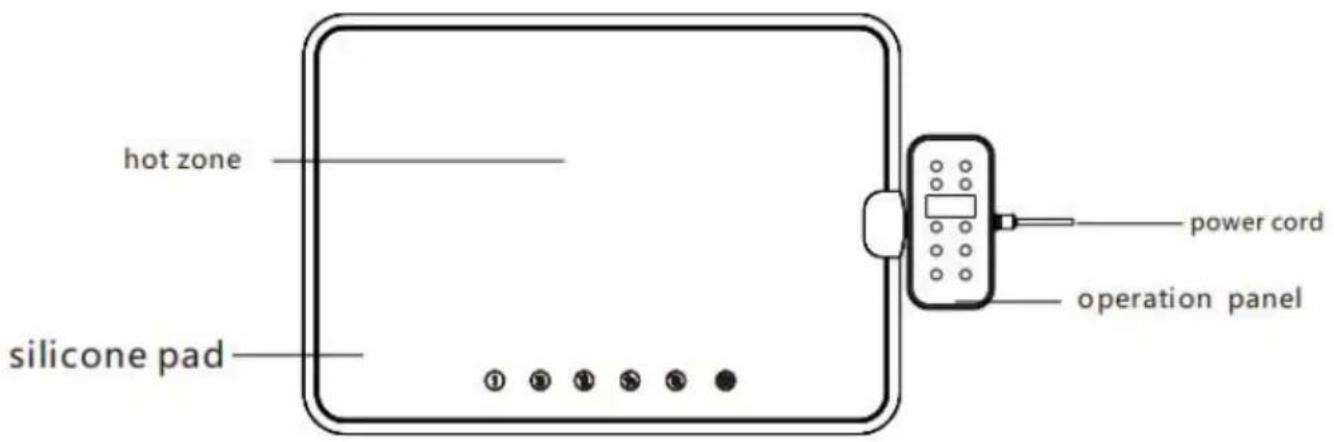

Product brief introduction

Product component

hot zone silicone pad ① ② ③ ④ ⑤ ⑥ ⑦ power cord operation panel

Product component

Simple line drawing of a closed book or notebook (no text or symbols visible)

specification

control box

Simple rectangular outline with a vertical line on the left edge (no text or symbols)

storage bag

function introduction

child lock

ON/OFF

Increase in temperature or time

modes

Timing

Decrease in temperature or time

Instructions

Insulation Procedure

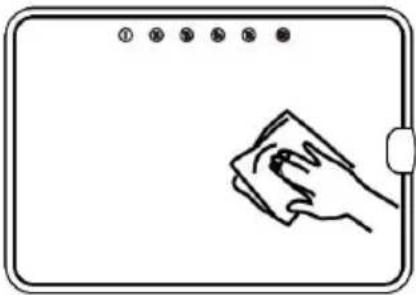

1.Clean heating appliances and panels to ensure that there is water, rice and other debris on heating surface and the bottom the heating appliance

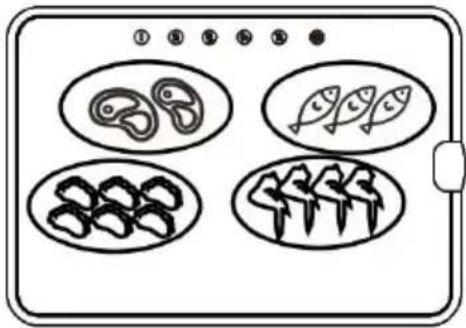

2.The heating appliance is place in the product heating area
3. please ensure that the plug well energized.
4. press the power button, start boot the mode function is open

5. press the "mode" key to adjust the function gear, and press the "mode" key in turn to adjust to the "warming, thawing heat preservation,fermentation" function cycle.
6.press the "timing" key to set 1-12 hours of heat preservation
7. press the "child lock" key to adjust the child lock close/open function
8. press "+ or "_ key to adjust the temperature or timing time
9.after the heat preservation is completed, press the power button to shut down.
1. After the use is completed, the power cord is separated from the product after the machine is cooled for 15 minutes

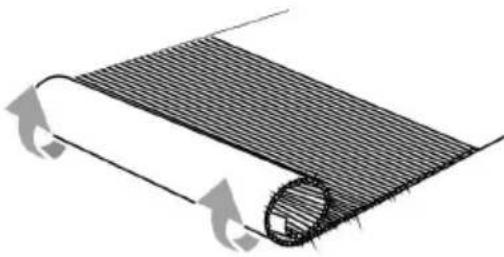

2. Roll the product along the sid the operation panel to the back.

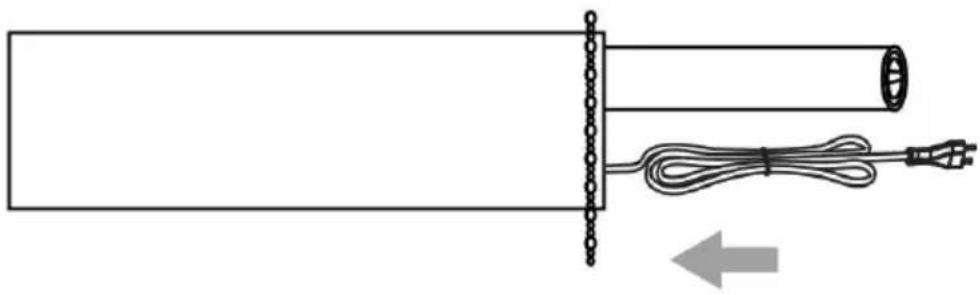

3. the product and the power cord together into the dust cloth storage.

Storage procedure

Cleaning and maintenance

1. keep in good repair Keep the body dry. If not used for alone, time please power off the machine to extend the service life of the machine.

Diagram showing a device with five labeled buttons and a crossed-out symbol, likely indicating a warning or rejection.

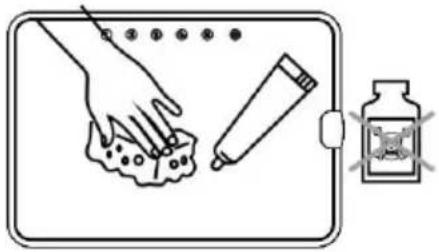

2.Keep clean

1. Make sure that the plug of the power cord is removed from the socket, and clean and maintain the product after cooling

Simple line drawing of a wall-mounted electrical outlet connected to a plug (no text or symbols)

2.If there is a small amount of on the surface of the product, use a soft wet to wipe the surface of the product and store after the surface is dry.
3.If there is oil on the surface product, use a soft wet cloth with asmall amount of toothpaste or mild detergent to wipe until is no residue.Note: Do not wipe the product bleach or corrosive liquids

safety tips

1. In order to ensure the safety of use and avoid artificial injury and damage to you or others, please be sure to follow the following safe precautions
2. Failure to comply with safety warnings can result in accidents when incorrectly
3. This product does not take into account the use of the equipment by unattended young children and disabled persons, and the situation in which young children play with the machine, which may lead to accide

[warning]Indicates a safety event that may result in death or serial

[Caution]indicates a safety event that may result in minor injury of damage

[Reminder]indicates other matters that may affect the user experie

Do not touch with wet handsDo not remove or insert the plug with wet hands to avoid electric shock or injury.
No flammable articlesIt is strictly prohibited to put the product nearflammable materials and pay attention to keep away from curtains,cloth curtains or si items when using, in order to prevent fire.
No child handlingDo not allow children to operate alone, shc kept out of reach ofinfants and young child avoid electric shock burns and other danger accidents.
No soakingPlease pay attention to waterproof body ma parts should not beimmersed in water or w
Do not modify yourselfIn addition to maintenance personnel, other people must not carry out decomposing maintenance,so as to avoid fire,electric shock,injury

During the working process of th product and after the pan body is removed i period of time, the surface temperature of heat preservation areais high. Do not touch it to prevent high temperature scalding	During the work of the produ paper, aluminum foil, cloth and other irrelevant items are prohibited on the panel.
It is forbidden to use the produ directly on a metal counter. To avoid the d of heating the product to the metal table.	Note that the surface of the product with the high temperature symbol will become hot during use.
It is forbidden to wash the prod with water, prevent water and foreign matter from entering the fuselage,and ensure that the fuselage is clean	Never place sealed containers sealed food (such as pressure cookers for cans, etc.) directly on the product for heating.To avoid thermal expansion accidents.
If the power cord is damaged, i must be replaced with a special cord oraspecial component purchased fromits manufactureror maintenance department.	Please use the power socket >10A alone.After use, remove the plug of the power cable from the socket.
When the productisin normal use oridle, please ensure that it is more than 1.5 meters away from the water source or fire.
Please do not allow the panel t bear heavy pressure and sharp knives	If the panel surface is cracked turn off the product to avoid possible electric shock
The product cannot be operated with an external timer or independent remote control syster	Metal objects such as knives, forks, spoons and LiDS should not be placed on the surface of the panel as they may become hot.
Do not wipe with diluent, toluene acid lotion, lamp oil alcohol or chemical agents to avoid discoloration	Do not cover the panel and d touch the panel for heating
The oil on the surface of this p must be cleaned to avoid discoloration and damage.	Before performing external cleaning work, turn off the power switch and unplug t power plug. Do not clean the panel directly with w until it is cooled.
Please do not allow the panel t bear heavy pressure and sharp knives.	If the surface of the panel is cracked, turn off the product to avoid possible electric shocks

Service Directory

Exception problem solution
abnormal condition	possible cause	solutions
The display light doesn't work	The power plug of product is loose	Check whether the plug and socket of the power cable are in good cont
	Circuit board fault	Disconnect the power supply and reconnect it the fault persists sendit to the maintenance station for repair
No heating in normal working condition	power failure	Please send it to the maintenance office for repair
	Heating fault
keypad failure	The control panel is dirty	Clean and use
	Circuit board fault	Disconnect the power supply and reconnect it the fault persists, sendit to the maintenance station for repair
All lights flashing, heat	Temperature sensor short circuit	Disconnect the power supply and reconnect it the fault persists, sendit to the maintenance station for repair

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODÈLE:YD-301C-Z-35+50G, YD-302C-Z-40+60G-A,YD-301A-60G-JA

MODÈLE : YD-301C-Z-35+50G, YD-302C-Z-40+60G-A, YD-301A-60G-JA

Two identical rectangular frame outlines with rounded corners and side connectors, no text or symbols present.

Simple circular diagram with concentric rings and a small rectangular connector at the top (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

hot zone silicone pad ① ② ③ ④ ⑤ ⑥ ⑦ power cord operation panel

Simple line drawing of a closed book or notebook (no text or symbols visible)

specification

Simple line drawing of a plug connected to a terminal block (no text or symbols)

control box

Simple rectangular outline with a vertical line on the left edge (no text or symbols)

storage bag

Increase in temperature or time

Decrease in temperature or time

Instructions

MODELL: YD-301C-Z-35+50G, YD-302C-Z-40+60G-A,YD-301A-60G-JA

MODELL: YD-301C-Z-35+50G, YD-302C-Z-40+60G-A, YD-301A-60G-JA

Two identical rectangular frames with rounded corners and side connectors, no text or symbols present.

Simple line drawing of a circular ring with a small rectangular cutout on the outer ring (no text or symbols)

hot zone silicone pad ① ② ③ ④ ⑤ ⑥ ⑦ power cord operation panel

Produktkomponente

Simple line drawing of a closed book or notebook (no text or symbols visible)

specification

Simple line drawing of a plug connected to a control panel (no text or symbols)

control box

Simple rectangular outline with a vertical line on the left edge (no text or symbols)

storage bag

Funktionseinführung

child lock

modes

ON/OFF

Timing

Increase in temperature or time

Decrease in temperature or time

Anweisungen

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELLO:YD-301C-Z-35+50G, YD-302C-Z-40+60G-A,YD-301A-60G-JA

MODELLO:YD-301C-Z-35+50G, YD-302C-Z-40+60G-A, YD-301A-60G-JA

Two identical rectangular frame outlines with rounded corners and side connectors, no text or symbols present.

Simple circular diagram with concentric rings and a small rectangular connector at the top (no text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

hot zone silicone pad ① ② ③ ④ ⑤ ⑥ ⑦ power cord operation panel

Simple line drawing of a closed book or notebook (no text or symbols visible)

specification

Simple line drawing of a plug connected to a terminal block (no text or symbols)

control box

Simple rectangular outline with a vertical line on the left edge (no text or symbols)

storage bag

Increase in temperature or time

Decrease in temperature or time

Istruzioni

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELO:YD-301C-Z-35+50G, YD-302C-Z-40+60G-A,YD-301A-60G-JA

MODELO:YD-301C-Z-35+50G, YD-302C-Z-40+60G-A, YD-301A-60G-JA

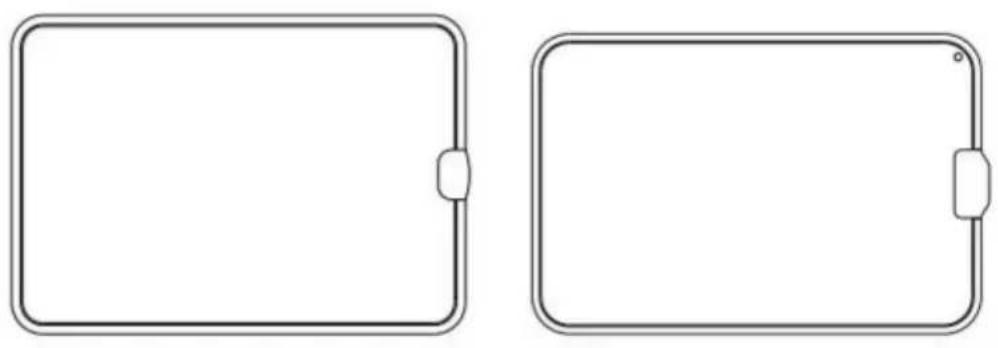

Two identical rectangular frames with rounded corners and side connectors, no text or symbols present.

Simple line drawing of a circular ring with a small rectangular cutout on the outer ring (no text or symbols)

hot zone silicone pad ① ② ③ ④ ⑤ ⑥ ⑦ power cord operation panel

Simple line drawing of a closed book or notebook (no text or symbols visible)

specification

Simple line drawing of a plug connected to a terminal block (no text or symbols)

control box

Simple rectangular outline with a vertical line on the left edge (no text or symbols)

storage bag

Increase in temperature or time

modes

Timing

Decrease in temperature or time

Instrucciones

MODEL: YD-301C-Z-35+50G, YD-302C-Z-40+60G-A,YD-301A-60G-JA

MODEL: YD-301C-Z-35+50G, YD-302C-Z-40+60G-A, YD-301A-60G-JA

Simple circular diagram with concentric rings and a small rectangular connector at the top (no text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

hot zone silicone pad ① ② ③ ④ ⑤ ⑥ ⑦ power cord operation panel

Składnik produktu

Simple line drawing of a closed book or notebook (no text or symbols visible)

specification

Simple line drawing of a plug connected to a terminal block (no text or symbols)

control box

Simple rectangular outline with a vertical line on the left edge (no text or symbols)

storage bag

Increase in temperature or time

Decrease in temperature or time

Instrukcje

Procedura izolacji

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

ISOLATIEPLAAT

MODEL:YD-301C-Z-35+50G, YD-302C-Z-40+60G-A, YD-301A-60G-JA

MODEL: YD-301C-Z-35+50G, YD-302C-Z-40+60G-A, YD-301A-60G-JA

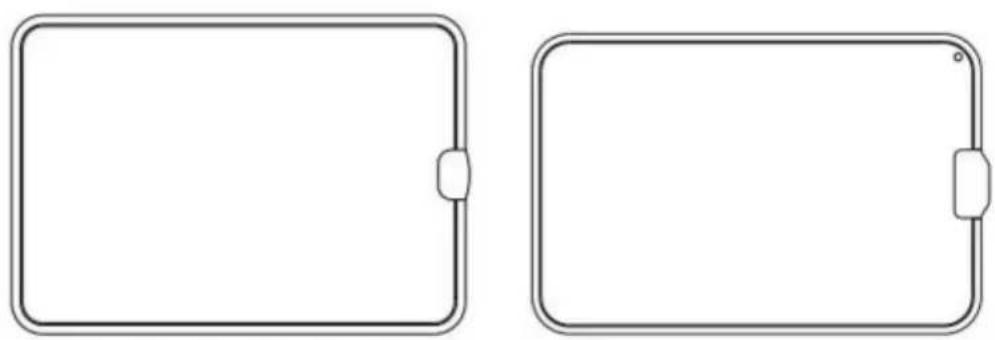

Two identical rectangular frames with rounded corners and side connectors, no text or symbols present.

Simple line drawing of a circular ring with a small rectangular cutout on the outer ring (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

hot zone silicone pad ① ② ③ ④ ⑤ ⑥ ⑦ power cord operation panel

Productcomponent

Simple line drawing of a closed book or notebook (no text or symbols visible)

specification

Simple line drawing of a plug connected to a control panel (no text or symbols)

control box

Simple rectangular outline with a vertical line on the left edge (no text or symbols)

storage bag

functie introductie

child lock

modes

ON/OFF

Timing

Increase in temperature or time

Decrease in temperature or time

Instructies

Isolatieprocedure

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL:YD-301C-Z-35+50G, YD-302C-Z-40+60G-A,YD-301A-60G-JA

MODELL: YD-301C-Z-35+50G, YD-302C-Z-40+60G-A, YD-301A-60G-JA

Two identical rectangular frames with rounded corners and side connectors, no text or symbols present.

Simple line drawing of a circular ring with a small rectangular cutout on the outer ring (no text or symbols)

BEHÖVS HJÄLP? KONTAKTA OSS!

hot zone silicone pad ① ② ③ ④ ⑤ ⑥ ⑦ power cord operation panel

Produktkomponent

Simple line drawing of a closed book or notebook (no text or symbols visible)

specification

Simple line drawing of a plug connected to a terminal block (no text or symbols)

control box

Simple rectangular outline with a vertical line on the left edge and a small dot at the top (no text or symbols)

storage bag

Increase in temperature or time

Decrease in temperature or time

Instruktioner

www.vevor.com/support
