USER MANUAL MF-STL260 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

STAINLESS STEEL

TELESCOPIC LADDER

MODEL:

MF-STL260 / MF-STL320 / MF-STL380 / MF-STL500

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:MF-STL260 / MF-STL320 / MF-STL380 / MF-STL500

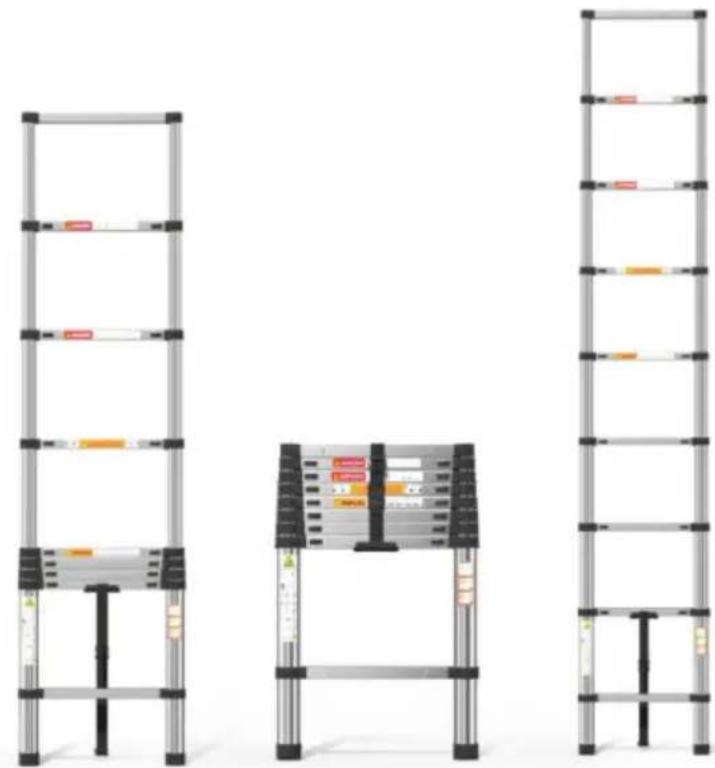

Three metal ladder structures with black and orange components, arranged vertically (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

WARNING!

TO AVOID SERIOUS INJURY OR DEATH, PLEASE READ ALL THESEINSTRUCTIONS AND OBSERVE ALL WARNING LABELS ON THE PRODUCTBEFORE USE. KEEP MANUAL WITH THE PRODUCT FOR FUTURE REFERENCE.

IMPORTANT SAFETYINFORMATION

- DANGER! METAL CONDUCTS ELECTRICITY.Do not let this ladder any of its parts contact live electrical wires.

• Maximum load for this ladder is 150kg. The weight of user plus tc materials should not exceed 150kg.

• Always ensure that the locking mechanisms due to have weight pla them are in the locked position before applying weight to the ladder. A the mechanisms should be locked if using the ladder at full extension

- The ladder must be used with regular distances between the steps.

- Do not use any attachments.components or accessories not sold or recommended by the manufacturer with this ladder.

- Inspect all parts prior to each use. Do not use if any parts of the are missing, damaged or worn in any way.

- Do not attempt to modify this ladder in any way. Doing so may res serious injury, and will void the guarantee.

- Never attempt to repair a damaged ladder. Always have a qualified person repair the damaged ladder.

- Destroy the ladder if exposed to excessive heat(such as in a hous or corrosive agents (like acid or alkali).

• Always use a firm grip and face ladder when ever possible.

• Always set up the ladder on a surface that is level, stable and drplace the ladder on a slippery surface or try to increase the height of ladder by placing anything under the feet.

- Observe extreme caution when using the ladder in windy, rainy or ic conditions, or when using on a surface such as thick carpet or rug.

may prevent the feet from gripping properly.

• Use caution when getting on or off the ladder.
• Never use the ladder while under the influence of alcohol or drugs kind. The user should be in good physical condition to use this ladder
• Never set up the ladder in front of doors. Never use the ladder as in any way.

- Do not use ladder jacks with this ladder.

- Do not use the ladder in a horizontal position such as resting on

- Do not open, close, or use the ladder upside down.

- The ladder must not be used hanging from the top rung.

• Always transport in the compacted position.

- Avoid subjecting the ladder to knocks or rough treatment.

- Avoid using in water (e.g.) as this could lead to a malfunction of telescopic tubes.

- Pushing or pulling anything while on the ladder may cause the ladder tip and you to fall. Use extreme caution if you must push or pull from a ladder.

- Never attempt to jump, walk or move ladder while on it. If you move the ladder get off it first.Move it then reposition yourself.

- To avoid losing your balance and/or tipping the ladder never overreach. Always stay balanced and keep your body centred between side rails.

- Never place yourself or allow anyone to stand or work under the I while in use.

- This ladder is not a toy and is not meant for use by or near chileave the ladder set up and unattended.

- Do not stand on the ladder while releasing the locking mechanisms

- Never stand or climb closer than 3 feet from the top rung.

• Always wear shoes that have good grip while using this ladder. Av wearing loose clothin debris and foreign materials.

- When possible to do so, it is recommended to ask a second person hold the bottom of the ladder while you stand on it.

• Always set up the ladder at approximately 75^ to the ground.

Model	MF-STL260	MF-STL320	MF-STL380	MF-STL500
Extended Height(mm)	2540	3140	3740	5030
Number of Floors	9	11	13	13
Step Distance (mm)	300	300	300	400
Max. Load (kg)	150	150	150	150

Part List
Code	Picture	Qty.
		MF-STL260	MF-STL320	MF-STL380	MF-STL500
1		1	1	1	1
2		-	-	-	2

THE LOCKING MECHANISMS

IMPORTANT! Familiarise yourself with how the ladder works before us. Each step on the ladder has a pair of locking mechanisms. These of spring-loaded steel pins that automatically lock into place as the la is extended. Each mechanism is connected to a locking lever visible or outside(see Fig.1).

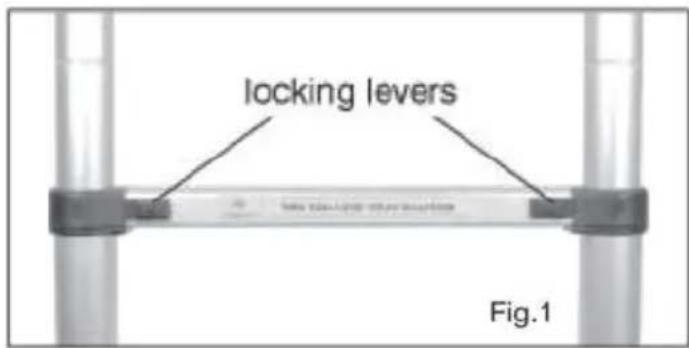

locking levers Fig.1

- The locking levers have 2 purposes. They indicate whether the mechanism is locked(or not), and they serve as buttons for releasing the pins (lowering the ladder).

- A lever that is close to the side rail indicates the mechanism is lo lever away from the side rail indicates that it is NOT locked(see Fig.

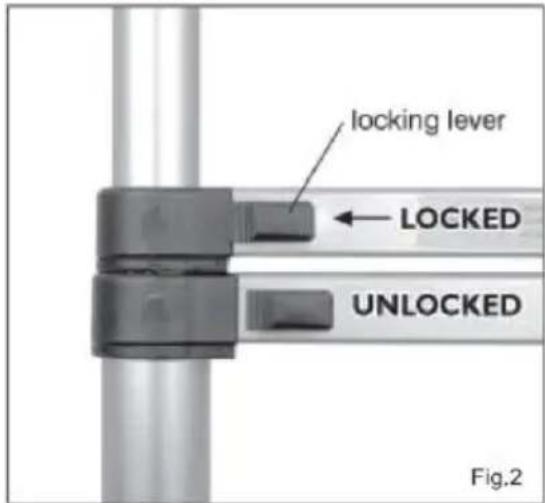

locking lever LOCKED UNLOCKED Fig.2

CAUTION! The locking mechanisms may appear to audibly 'click' shut, always visually check that the levers appear locked

EXTENDING TO THE FULL HEIGHT

1) With one foot on the bottom rung, grip the top rung(see Fig.3) and

upwards extending this section fully.

2) Then extend the next section, and so on until the ladder is fully e Ensure that each section to be extended is extended fully (locking in place).

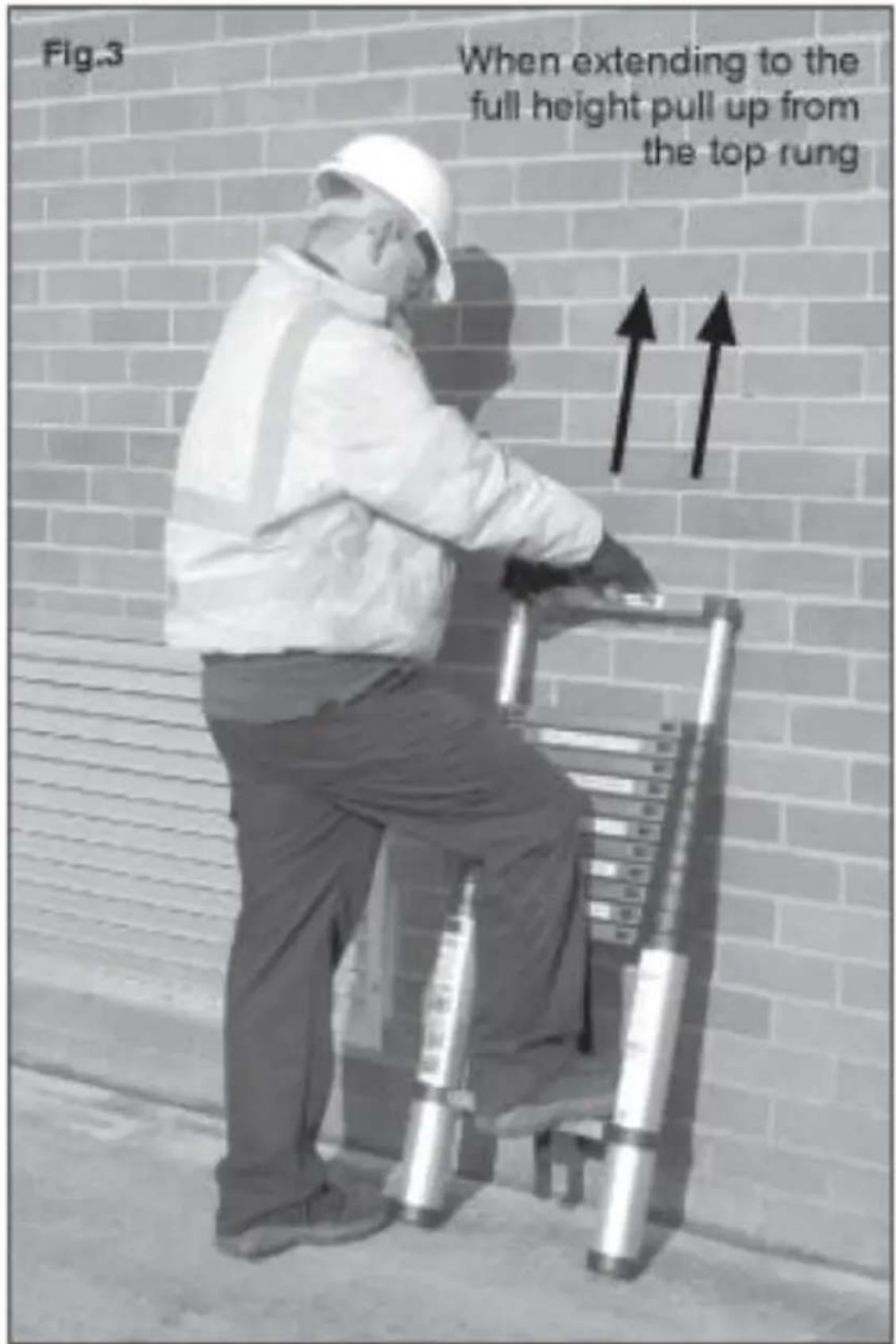

Fig.3 When extending to the full height pull up from the top rung

EXTENDING TO MEDIUM HEIGHT

1) The ladder does not have to be used at full extension. In this case one foot on the bottom rung, grip the third rung from the bottom, are extend this section fully by pulling upwards.
2) Continue lifting one section at a time (from the bottom) until the last extended to the desired length. Ensure that each section to be extended fully (locking into place).

ONCE AT THE DESIRED EXTENSION

1) Once extended to the desired height, ensure that the ladder is at an approximate angle of 75^ with the ground, and that both the feet have placement.
2) IMPORTANT! Visually check that all rungs due to have weight place them have their locking levers in the locked position.
3) Carefully step up on to the ladder and start your work. CAUTION! N stand or climb closer than 3 feet from the top rung.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support
