Brand	Vevor
Model	KMP406C
Product Type	Frame Extension Ladder
Use	Telescopic Extension
Rung Spacing	280 mm
Extension Length	6230 mm
Maximum Supported Weight	150 kg (330 lb)
Material	Aluminum (estimated)
Number of Rungs	Not specified (estimated ~20)
Locking Type	Rock Lock and Hinge Locks
Use Position	Deployed, folded or A-frame (depending on model)
Anti-slip Feet	Yes, with rubber caps
Compliance	Current safety standards
Warranty	Manufacturer warranty (electronic certificate)
Maintenance	Clean rungs and feet, check locks
Safety	Do not exceed 330 lbs, do not stand above 3rd rung, avoid electricity
Spare Parts	Foot caps, locks (contact customer service)
Repairability	Repairable by professional, parts available on request
Included Accessories	User manual
Folded Dimensions	Not provided (estimated ~1.5 m)
Weight	Not provided (estimated ~15 kg)

Frequently Asked Questions - KMP406C Vevor

How to unfold the KMP406C ladder?

To unfold, release the hinge locks to the unlocked position, then extend the sections by pulling upward. Make sure each Rock Lock is properly engaged in a rung.

What is the maximum supported weight?

The maximum weight is 150 kg (330 lb). Never exceed this limit to avoid any risk of injury.

How to fold the ladder after use?

Folding is the reverse of unfolding. Start by retracting the upper section by pressing the Rock Locks, then fold the hinges to the locked position.

What to do if the hinge locking pins do not open?

If there is pressure, slightly move one half of the ladder backward until the locks release with minimal force. Do not use tools to force.

Can the ladder be used in A-frame position?

Yes, the frame extension ladder can be configured in A position for increased stability. Follow the unfolding instructions to lock the hinges.

How to maintain my Vevor ladder?

Clean the rungs and feet regularly with a damp cloth. Check the condition of the rubber caps and replace them if worn. Lubricate the locking mechanisms if necessary.

Where to find spare parts?

Contact Vevor customer service at www.vevor.com/support to order foot caps, locks, or other spare parts.

Can I use the ladder near power lines?

No, be extremely careful. Ensure the ladder does not come into contact with electrical circuits or currents. Use a non-conductive ladder if necessary.

How many rungs does the KMP406C model have?

The exact number is not specified, but with a spacing of 280 mm and an extension of 6230 mm, it is estimated to have about 22 rungs.

Is the ladder covered by a warranty?

Yes, Vevor provides an electronic warranty certificate. Visit www.vevor.com/support for more details.

USER MANUAL KMP406C Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

A Frame Extension Ladder

MODEL: KMP403C / KMP403D / KMP404C / KMP404D

KMP405C / KMP405D / KMP406C

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: KMP403C / KMP403D / KMP404C / KMP404D

KMP405C / KMP405D / KMP406C

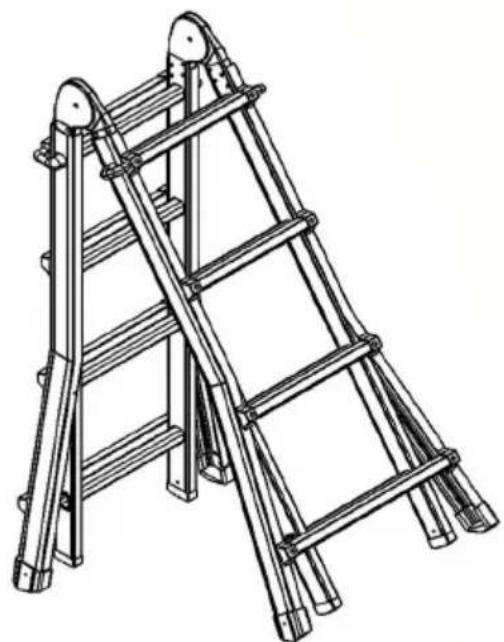

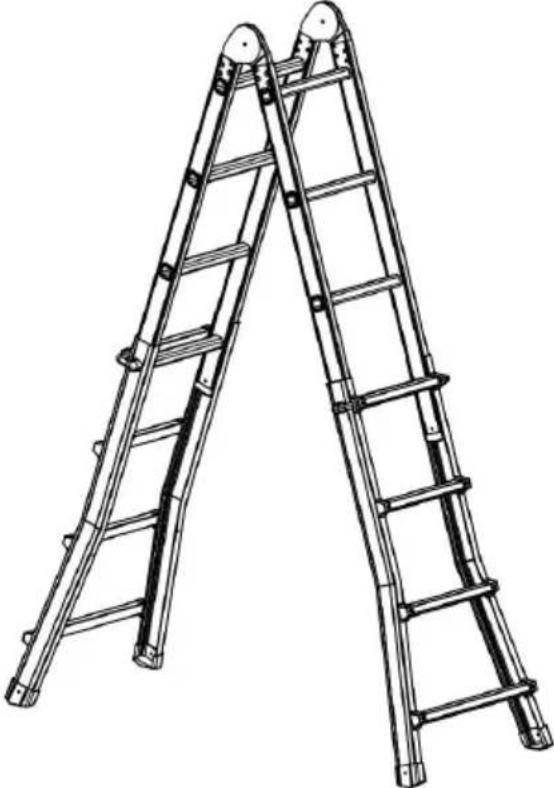

Line drawing of a metal ladder structure with multiple supports (no text or symbols)

(Note: The picture only shows KMP404C.)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

Safety Instructions

1. Do not force the hinges in or out using any tools. You may cause permanent damage to the hinge mechanism.
2. If there is pressure on the hinge lock pins, they may not open properly. Relieve the pressure by moving one half of the ladder back forth until the hinge locks move with minimal force.
3. Make sure each Rock Lock is fully engaged into the appropriate run tube before climbing on the ladder. Failure to do so may result in ir
4. For your safety, set up your ladder so the rungs are always level front to back and from side to side.
5. Keep clothing and body parts out of all moving mechanisms, including the hinge locks and Rock Locks to avoid pinching.
6. Keep clothing and body parts away from rungs when telescoping the outer ladder over the inner ladder.
7. Use caution when using the ladder around electricity. Ensure that the ladder does not come in contact with electrical circuits or currents.
8. The maximum weight is 330lbs. For your safety, do not exceed the limit.
9. Do not stand above the third rung from top.
10. Keep all ladder rungs, ladder feet, work platforms, and other stand and gripping surfaces clean and free from foreign materials.
11. Do not lean too far over the side of the ladder and keep both ferungs at all times; as a rule of thumb, keep your navel between the
12. Inspect feet for wear, replace them when necessary.
13. Read all labels on the ladder before use.

NO.	Model	Step Distance(mm)	Length Of Extension(mm)
1	KMP403C	280	2880
2	KMP403D	330	3350
3	KMP404C	280	4000
4	KMP404D	330	4670
5	KMP405C	280	5120
6	KMP405D	330	5990
7	KMP406C	280	6230

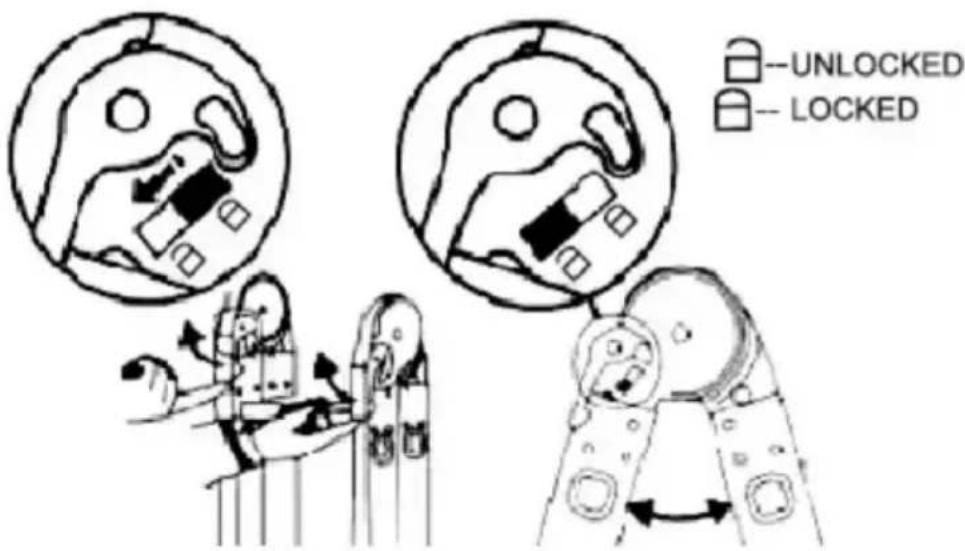

Hinge Release Method

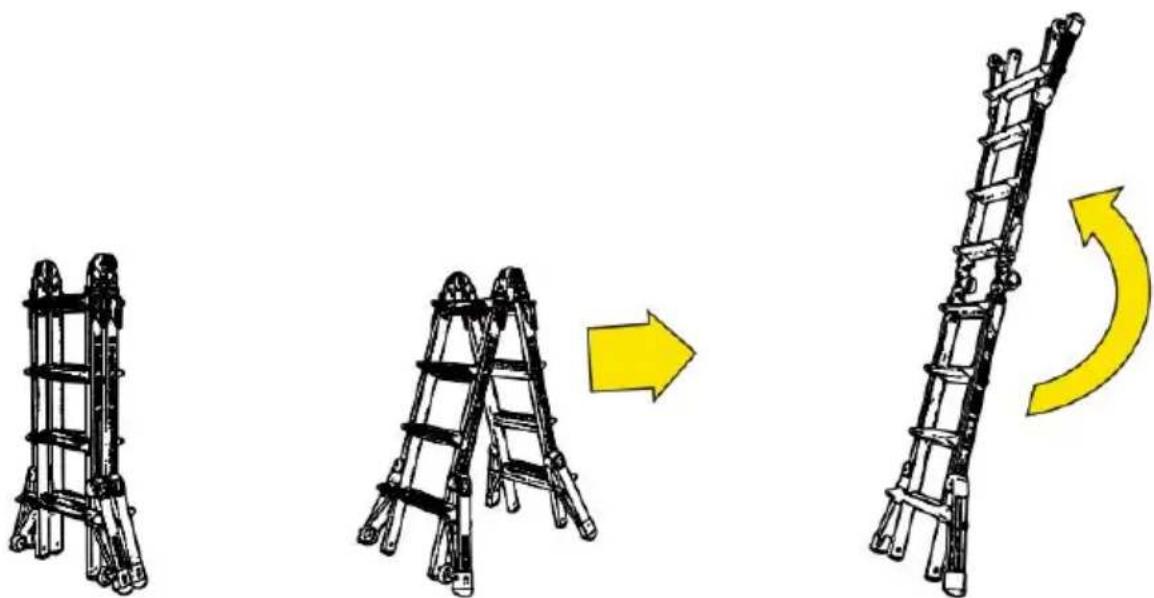

Unfold

Illustration of three different ladders with a yellow arrow indicating rotation (no text or symbols)

(TIPS:The folding process is reversed.)

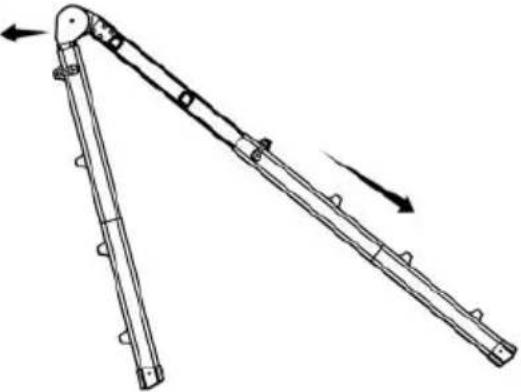

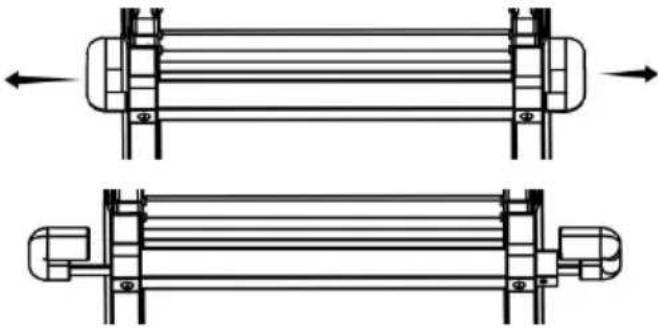

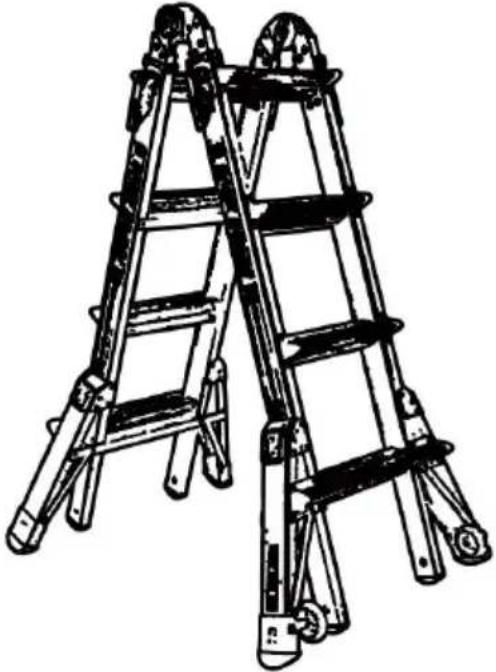

Extend

Step1	Step2
Step3	Step4

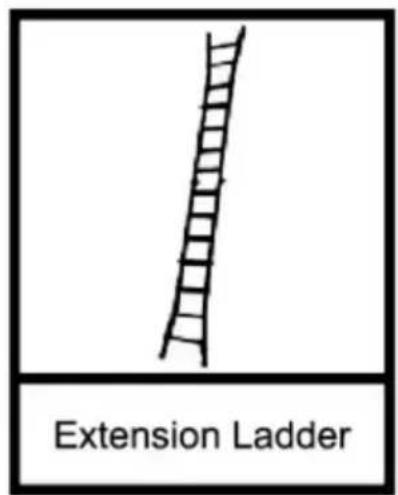

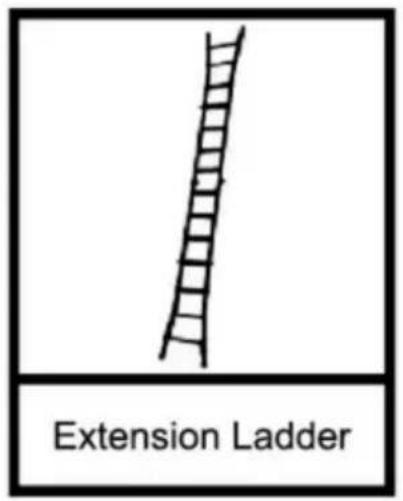

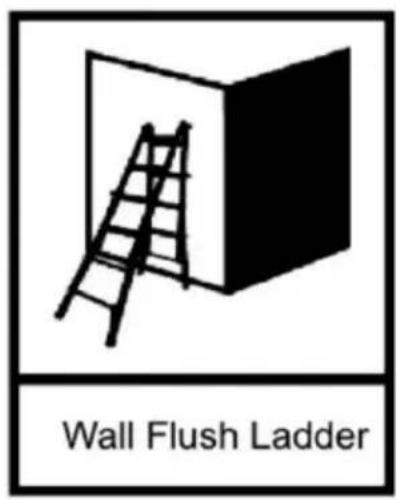

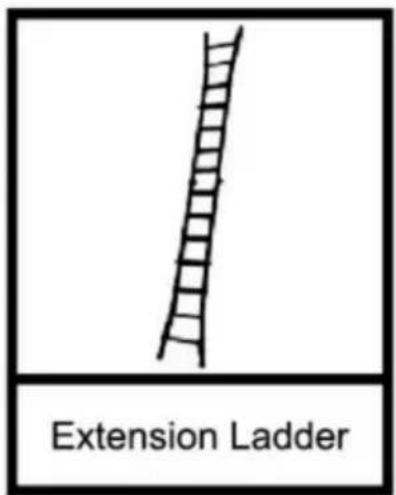

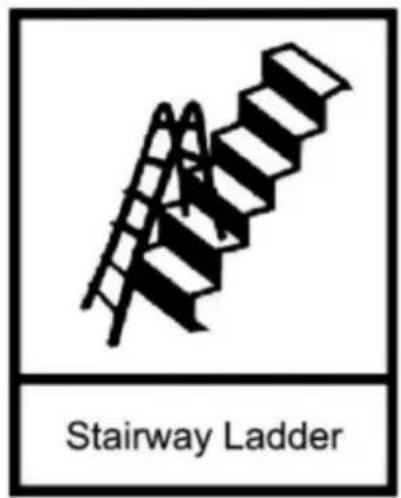

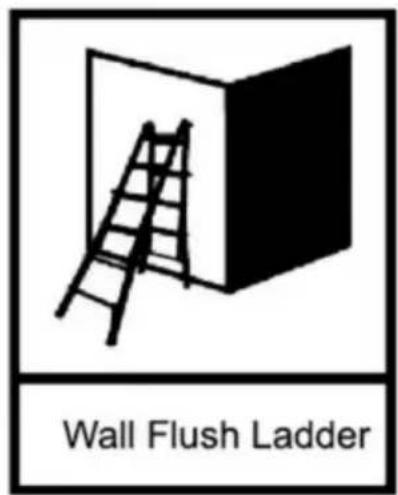

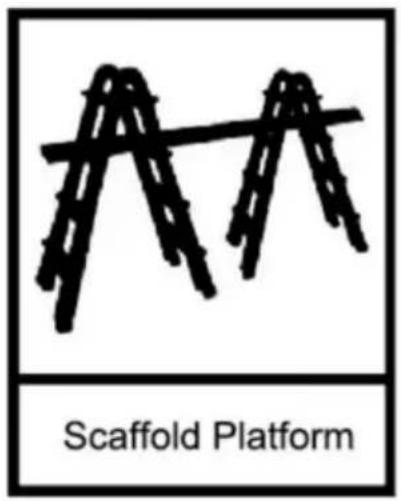

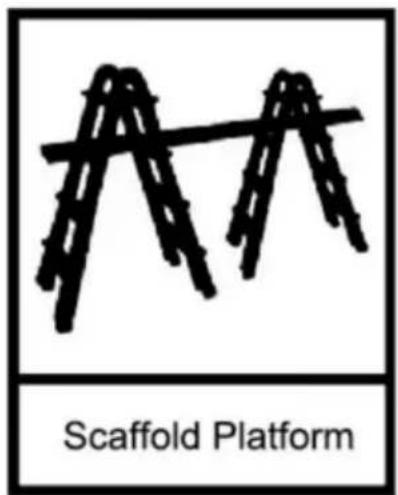

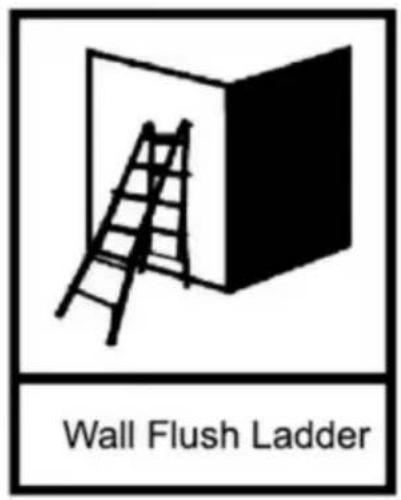

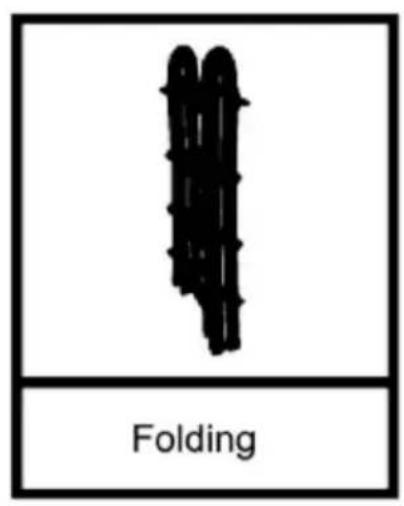

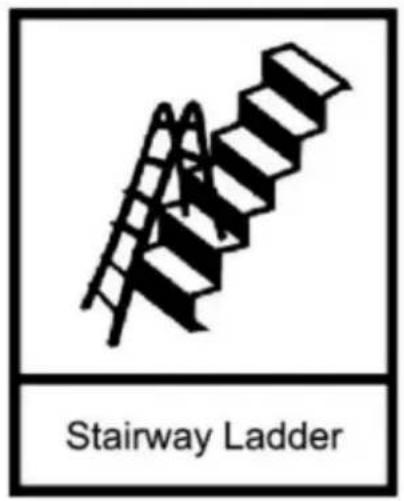

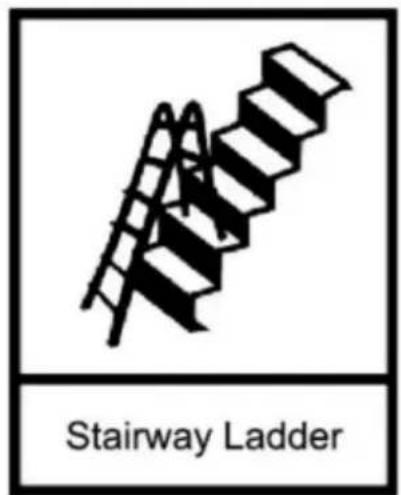

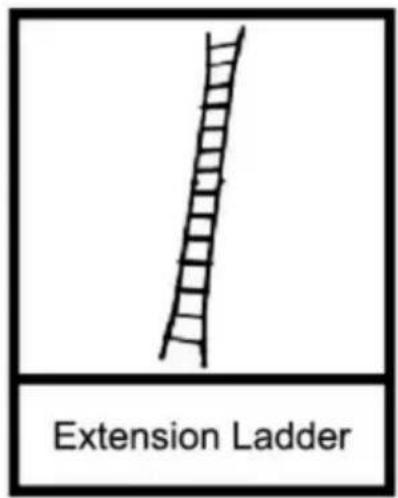

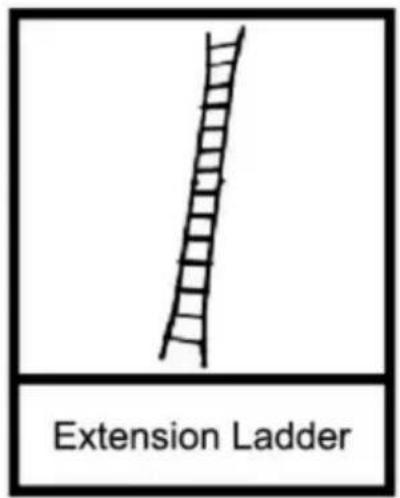

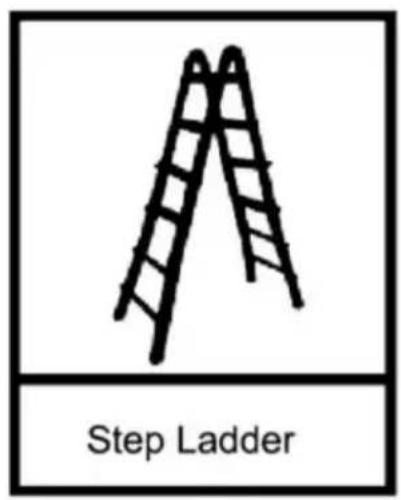

Usage Introduction

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
