HJ-RB023B - Bike rack Vevor - Free user manual and instructions

Product Type	Roof Rack
Brand	Vevor
Model	HJ-RB023B
Maximum Load Capacity	200 lbs (90.7 kg)
Material	Aluminum 6063-T6
Compatible Vehicles	Subaru Forester 2014-2021 (specific adapters for 2014-2018 and 2019-2021)
Number of Bars	2 (one longer front, one shorter rear)
Mounting Distance Between Bars	24 to 32 inches (61 to 81 cm)
Installation	Mounts on existing roof rails, requires 5 mm and 6 mm Allen keys (included)
Safety	Do not exceed 80 km/h (50 mph); use a safety net for large items; check tightness before each use
Maintenance	Inspect regularly for any damage; retighten hardware if necessary
Kit Contents	2 aluminum bars, 4 adapters (left/right front and rear), 8 M6 screws, 8 M6 washers, 4 adapter spacers, 5 mm and 6 mm Allen keys
Usage	Transport of luggage, bikes, kayaks (with wind fairing or net)
Maximum Recommended Speed	80 km/h (50 mph) when loaded
Warranty	Electronic warranty via www.vevor.com/support
Country of Manufacture	China
Assembly Instructions	See manual for detailed steps

Frequently Asked Questions - HJ-RB023B Vevor

Is this roof rack compatible with my Subaru Forester 2014-2018?

Yes, the HJ-RB023B model is compatible with Subaru Forester from 2014 to 2021. For 2014-2018 models, use the adapter spacers provided specifically for this version.

What is the maximum weight I can load on the roof rack?

The maximum load capacity is 200 lbs (90.7 kg). Never exceed this limit to avoid risk of damage or accident.

Are any additional tools needed for installation?

No, the kit includes two Allen keys (5 mm and 6 mm) required for assembly. No other tools are needed.

How fast can I drive with a loaded roof rack?

The maximum recommended speed is 80 km/h (50 mph) when the rack is loaded. For large items, use a wind fairing.

How do I maintain my roof rack?

Inspect it before and after each use to ensure no bolts are loose and there is no damage. Clean it with a damp cloth and store it in a dry place.

Can I transport kayaks or bikes on this roof rack?

Yes, but for large items like kayaks, it is mandatory to use a wind fairing or safety net to reduce wind resistance and prevent them from falling.

Are the bars adjustable in width?

Yes, the bars can be positioned with a spacing of 24 to 32 inches (61 to 81 cm) to fit your vehicle.

What should I do if an adapter breaks?

Contact Vevor customer service at [e-mail] or via www.vevor.com/support to order replacement parts.

Is the roof rack resistant to rain and snow?

Yes, the aluminum 6063-T6 material is corrosion resistant. However, it is recommended not to expose the rack to prolonged extreme conditions without protection.

Can I install the roof rack by myself?

Installation is simple and can be done by one person thanks to clear instructions. Make sure to tighten all bolts and check stability before use.

USER MANUAL HJ-RB023B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ROOF RACK

MODEL: HJ-RB023B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ROOF RACK

MODEL: HJ-RB023B

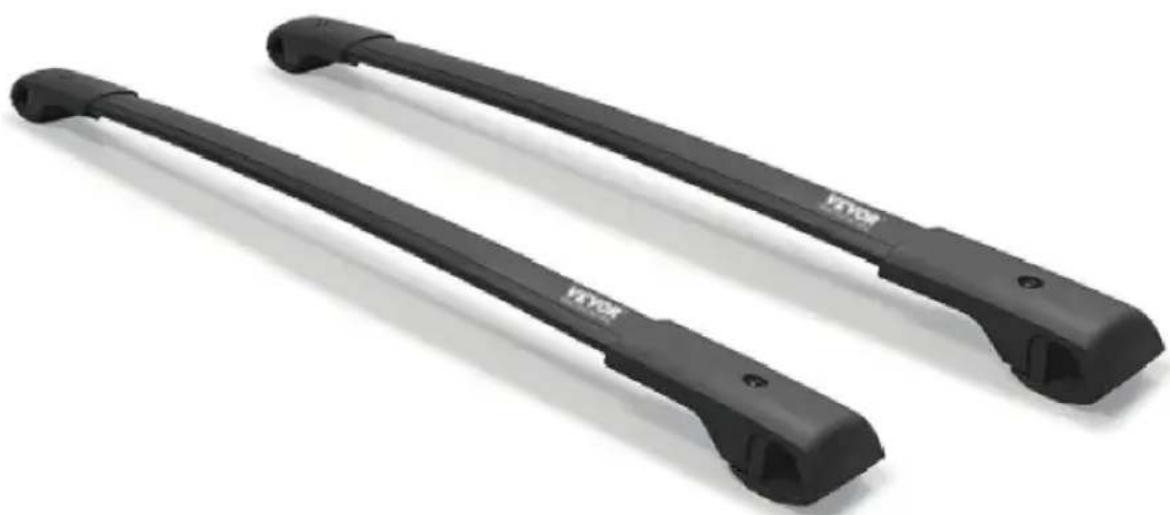

Two black YETON athletic trim bars with mounting holes, shown against white background (no text or symbols on the bars themselves)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

[e-mail]

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

PRODUCT PAREMETERS

Model	Maximum Load Capacit	Applicable Vehicle Models	Material
HJ-RB023B	200 lbs	SUBARU FORESTER2014-2021	6063-T6
Warning: When loading cargos, the speed of the car should not exceed (50 mile/h), and large items should be covered with a windproof cover o

SAFETY & WARNING

• Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury, or damage valuable property.
• Adhere to all Department of Transportation (D.O.T.) requirements when using this product. Use ropes and tie-downs to securely hold all cargo in place.
• Do not overload the Roof Rack. Never exceed the maximum weight capacity of 200 lbs.
• Before and after each use, check to make sure that all hardware is tightly secured. Regularly inspect for damage. If fraying or distortion is found, immediately discontinue use.
• Make sure the vehicle's engine is OFF, with the parking brake set, before loading or unloading the Roof Rack.
• Do not use to hold or restrain human or animal weight in any manner.
• Use common sense when working. Stay alert and concentrate when setting and using the Roof Rack. Never work while under the influence of alcohol, or medications.

• While assembling and using the Roof Rack, keep the work area clean and well-lighted. Keep spectators and children out of the work area.

• Consider the weight that the roof can bear.

• Consider the load-bearing capacity of the roof basket.
• When installing the product, the accessories must be securely installed.
• When loading cargos, please use a safety net to prevent them from falling. For bulky items like kayaks, they need to be accompanied by windproof covers other items to reduce wind resistance before they can be checked in.
• When loading cargos, the cargos cannot exceed the tested load-bearing capacity to prevent deformation or detachment of the roof rack.

ACCESSORY LIST

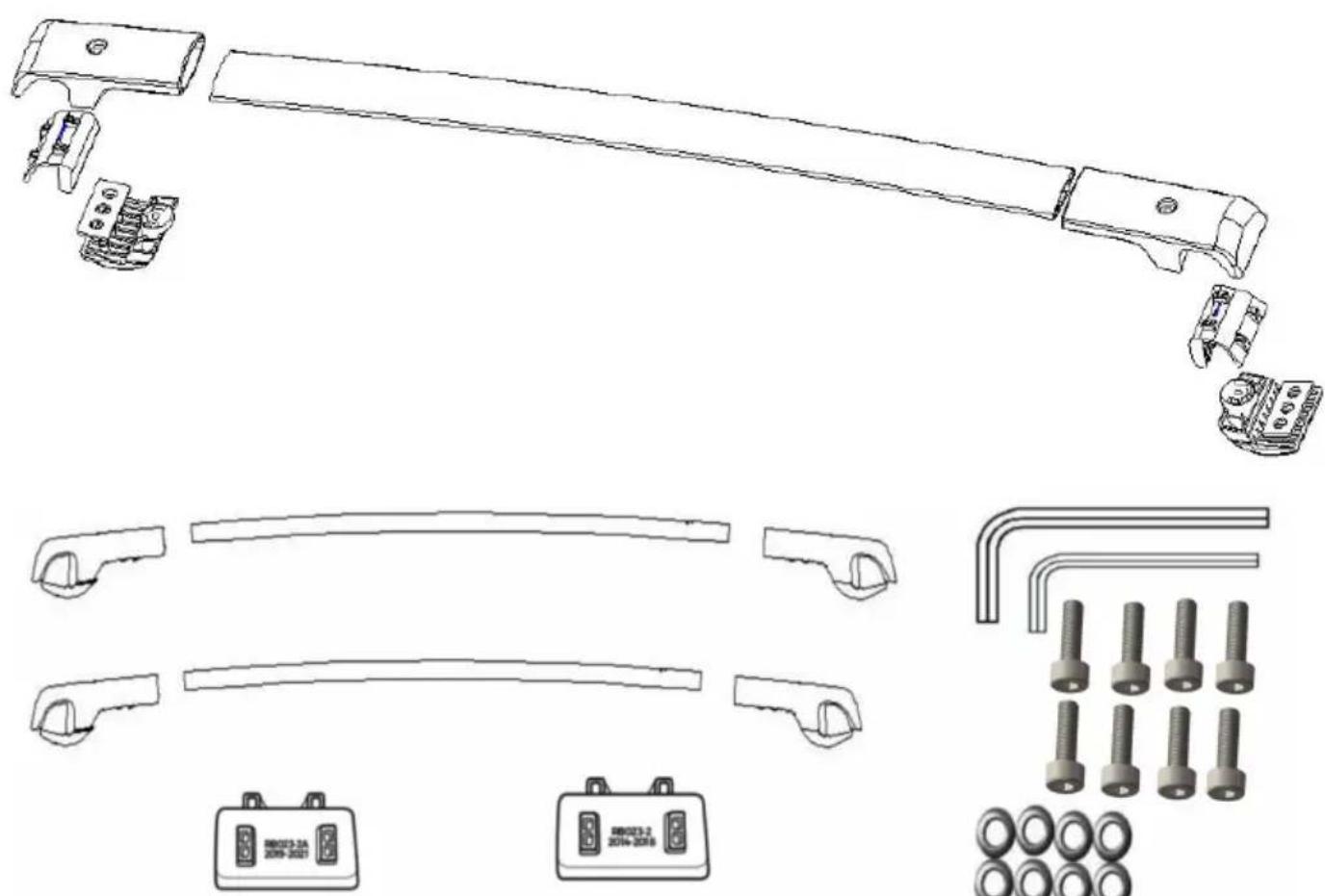

Exploded view diagram of a mechanical assembly with exploded views and component layouts (no text or labels)

NO	PICTURE	NAME	QTY	NO	PICTURE	NAME	QTY
A		Front Roof Rack (Longer	1	F		Adaptor spacer(2019-2021)	4
B		Rear Roof Rack (Shorter)	1	G		Adaptor spacer(2014-2018)	4
C		Adaptor	4	H		M6 Flat Washer	8
D		Allen Key 5mm	1	I		M6 Screw	8
E		Allen Key 6mm	1

Note :

Distinguish Front and Rear Roof Rack: The front roof rack was longer than one.

OPERATION

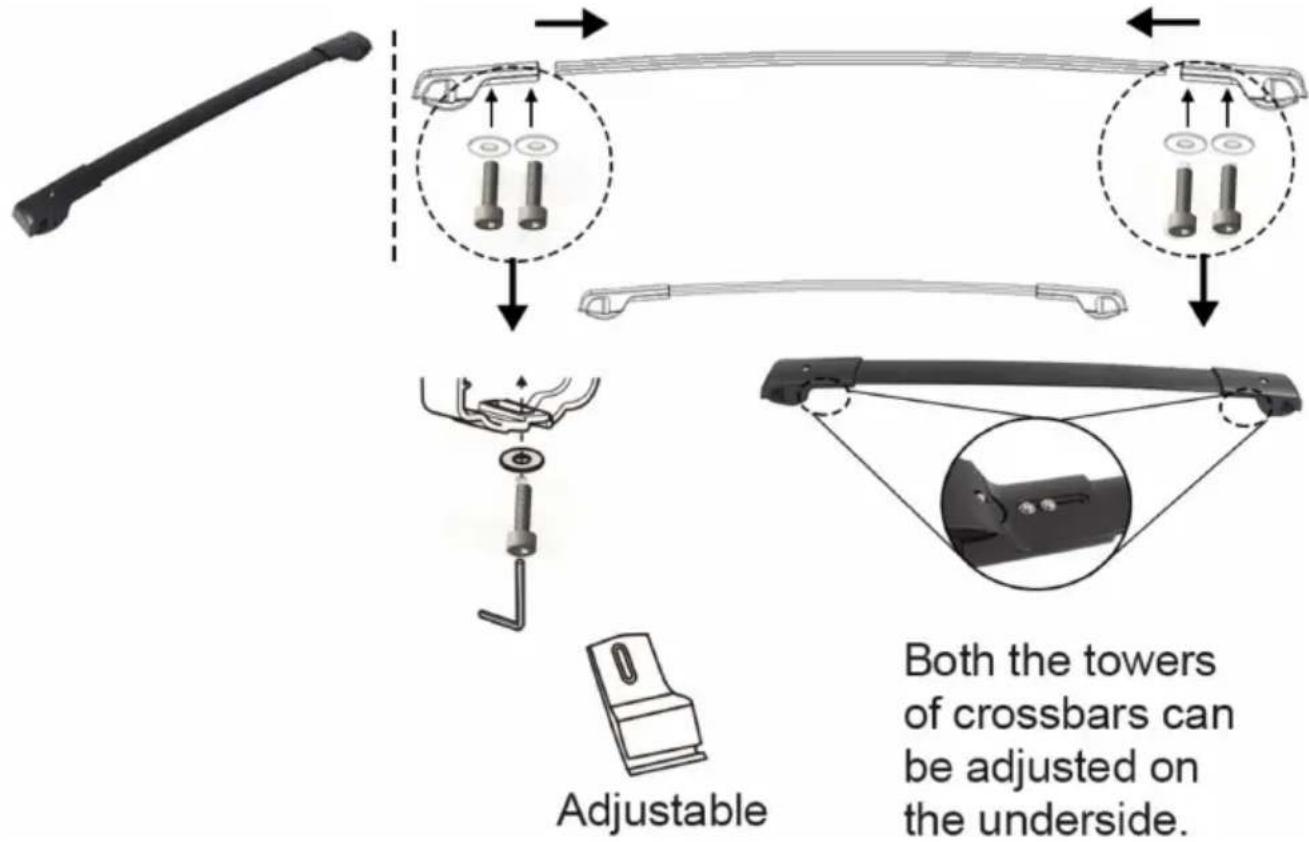

Adjustable Both the towers of crossbars can be adjusted on the underside.

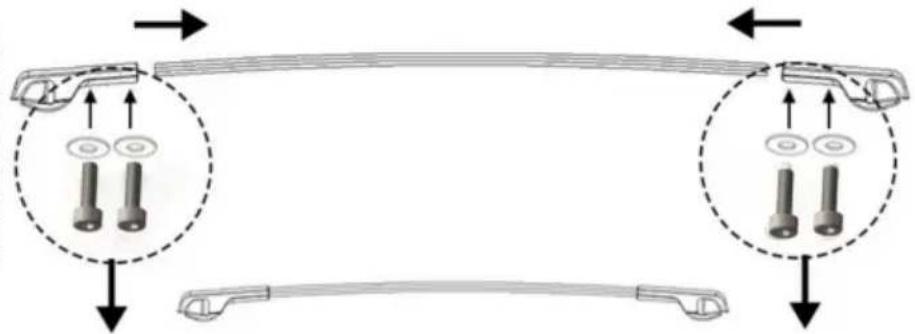

1. First, install and fix the left and right adaptor on the left and right sides of and rear aluminum tubes, respectively, and fix them with M6 screws+M6 space then install them to the roof rack as shown in the picture.

Tips: Do not tighten the hexagon socket bolts yet.

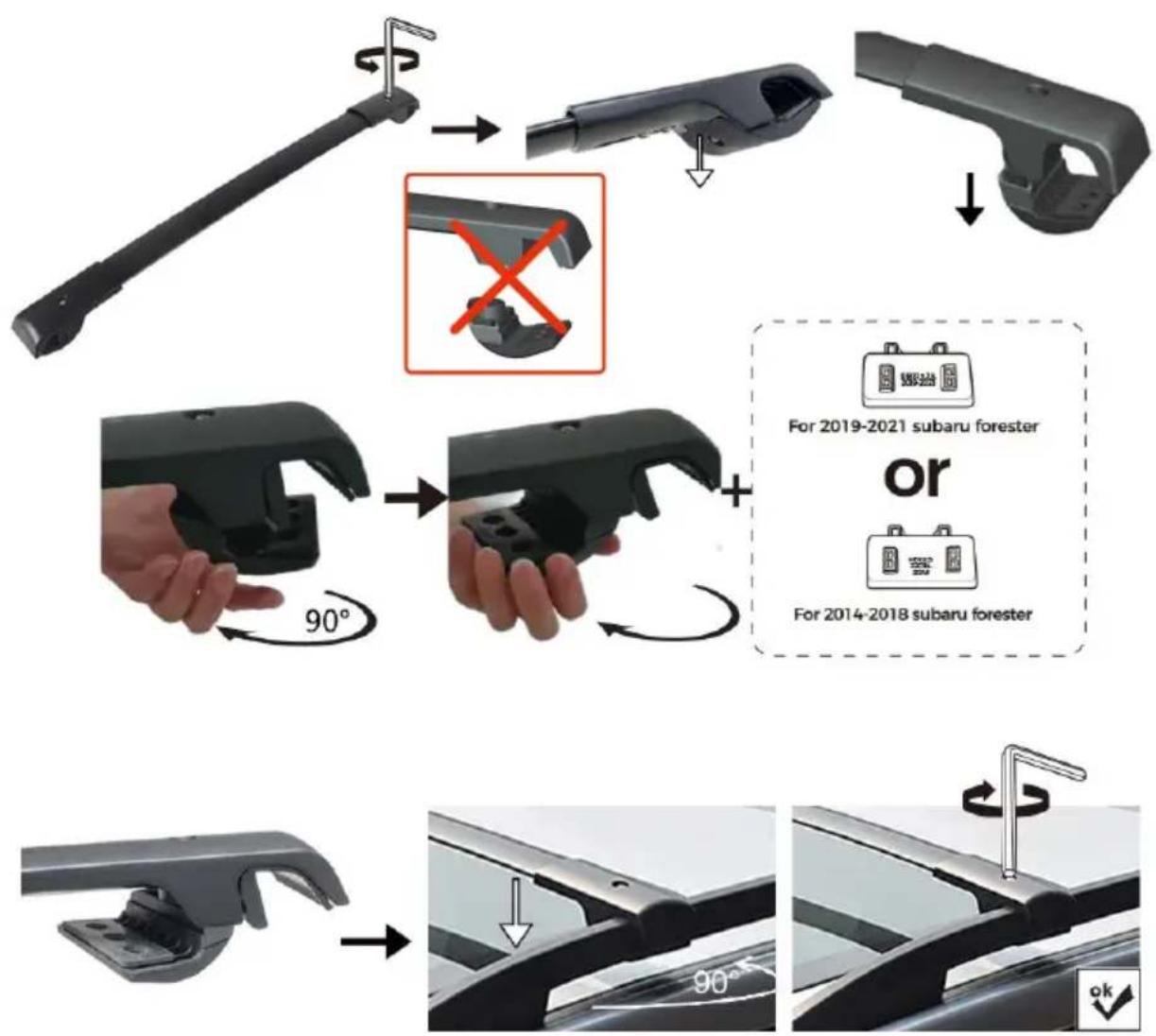

For 2019-2021 subaru forester or For 2014-2018 subaru forester

1. Loosen the Allen head bolts.

Note: The lower arm/clamp cannot be completely separated from the adapter. The degree of loosening of the upper screws of the adapter is: the lower clamp can rotate 90 degrees.

1. Rotate the lower arm 90 degrees.
2. Place the roof rack in the proper position on the roof rail, and guild the the slot.

3. Rotate the lower arm back to its original position.

4. Tighten the upper Allen bolts.

5. Tighten the lower Allen bolts.
6. Place the other roof rack 24"-32" away from the first one. Repeat steps: install.
7. Tighten and check before daily use.

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion Hou London Road, Staines-upon-Thames, Surrey, TW18 4A

EC

REP

E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

Made in China
