LIFT TABLE CART USER MANUAL

MODEL: JZ-DD150

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:JZ-DD150

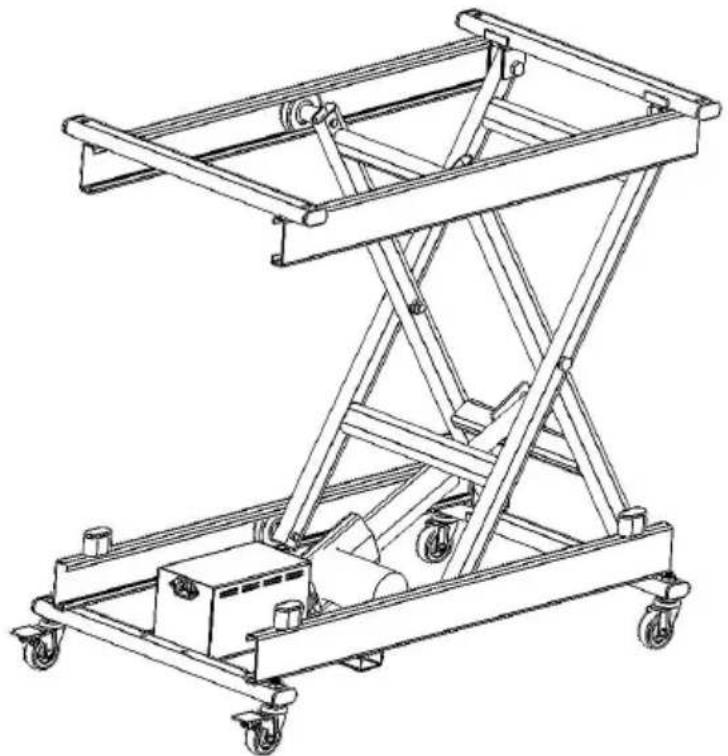

Line drawing of a multi-level metal lift platform with wheels and mounting feet (no text or symbols)

Note: The actual product you receive determines its look.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Note: Owner and Operator MUST read and understand this operat instructions before use this table truck

SPECIFICATIONS

Model	JZ-DD150
Rated Voltage	☐230V/50Hz ☐120V/60Hz
Capacity	150kg
Maximum Height(Casters not included)	710mm
Minimum Height(Casters not included)	200mm
Table Dimension	760x440mm
No-Load Speed	10mm/s
Motor Power / Voltage	72W / 24V
Colour	Black

Remark: Specifications will be changed without prior notice.

WARNING!

1. Do not touch the power plug with wet hands;
2. Do not damage the power plug and power cord;
3. Do not use it if the power plug or power cord is damaged;
4. Do not pull the power cord to unplug the power plug;
5. Do not use loose sockets;
6. Please do not disassemble the product without authorization so as avoid failure and affect the use;
7. Do not place flammable and explosive materials, such as fuel spra

8. It is necessary to use an independent power socket with a ground wire and ensure that the power circuit is reliably grounded;

9. When maintaining and cleaning the machine, the power plug must unplugged;

10. Do not allow children to operate alone: the electric lift platform may pose a safety hazard to children, so please ensure that children under adult guidance or lower the lift platform to the lowest height when leaving;
11. Avoid use in the humid environment: do not use an electric lifting platform in a humid environment to avoid electric shock or equipment failure;
12. Do not use the electric lifting platform as a toy: the electric liftin platform is not a toy; do not use it for unintended purposes so avoid equipment damage or personal injury;
13. Emergency measures: In case of equipment failure, abnormal noise and other emergency situations, please stop using immediately, disconnect the power supply, and seek professional help.

PRECAUTIONS FOR USE

1. Load limitation: the load of the electric lifting platform should be controlled within the rated range to avoid overload.
   At the same time, ensure that it is used on a flat ground to avoid load causing the equipment to tip over.
2. Smooth start and stop: The electric lifting platform should be kept stable when starting and stopping, to avoid sudden braking and sudden start. Observe the running status of the device at any time during operation. If there is an anomaly, stop the machine immediately for inspection.
3. Prevent collision: During the operation of the electric lifting platform, the surrounding environment should be ensured to avoid collision with walls, obstacles, etc. When approaching the target height, slow down advance to ensure a smooth stop.

4. Regular maintenance: After the electric lifting platform is used for period of time, regular maintenance should be carried out to check the damage of the worn parts and replace the damaged parts in time to the normal operation of the equipment.

5. Safety training: Safety training for electric lifting platform operators understand the operating principles and precautions of the equipment to master the correct operation methods.

6. Distress measures: In the event of an emergency, correct emerge measures should be taken, such as distress stop, emergency power c etc., to ensure the safety of personnel and equipment.
7. Remote battery: The remote control battery needs to be purchased itself. The applicable model is 23A/12V, and the size is 28 mm X 1

Operation introduction

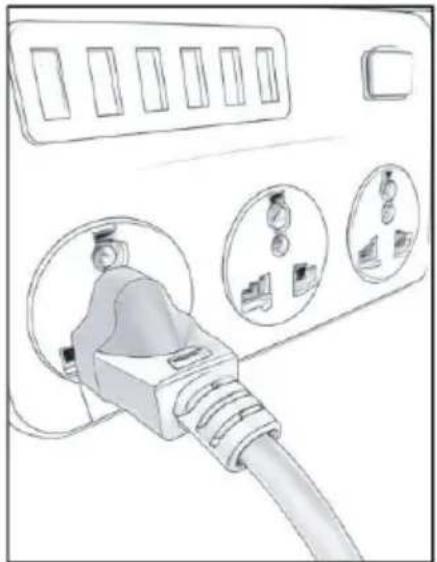

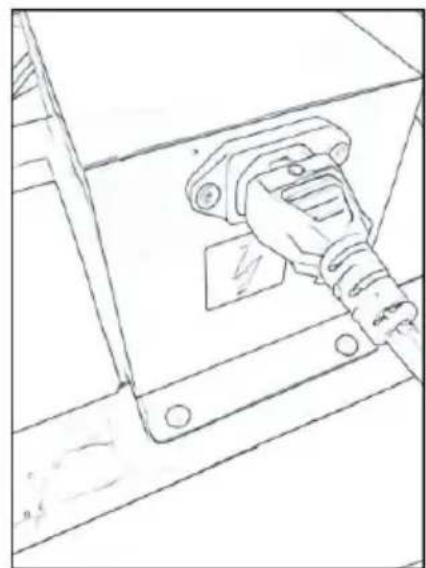

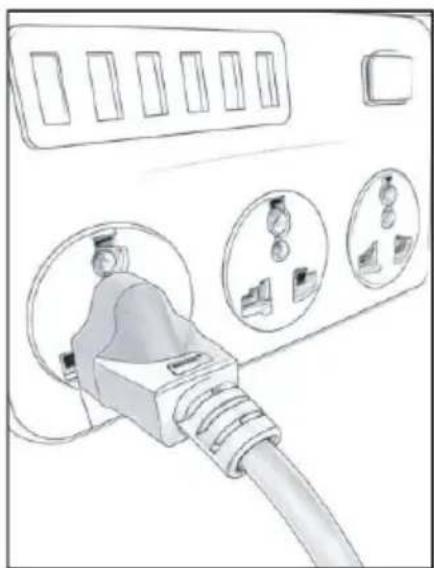

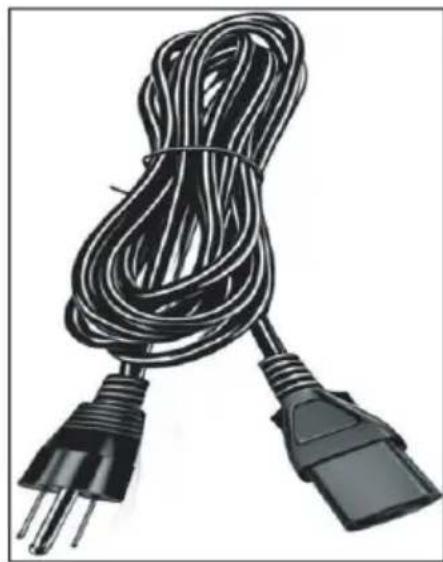

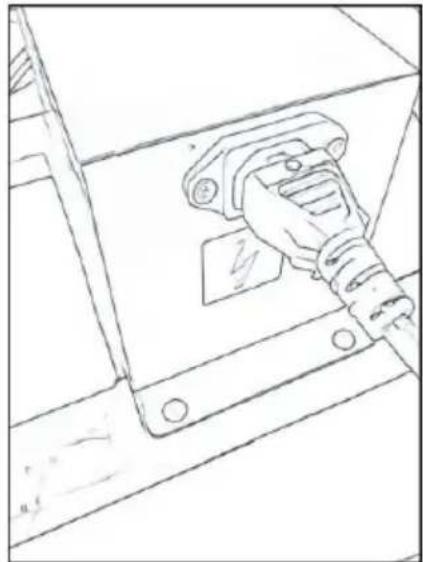

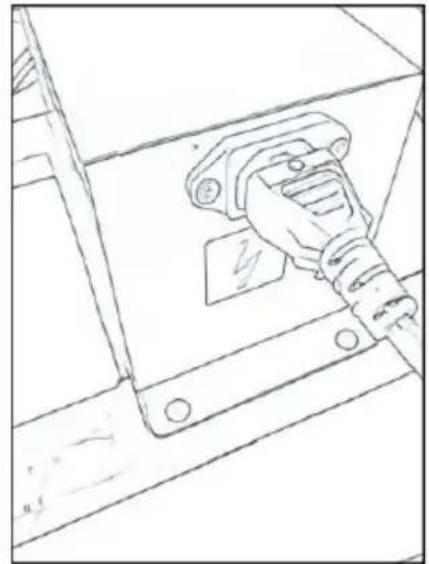

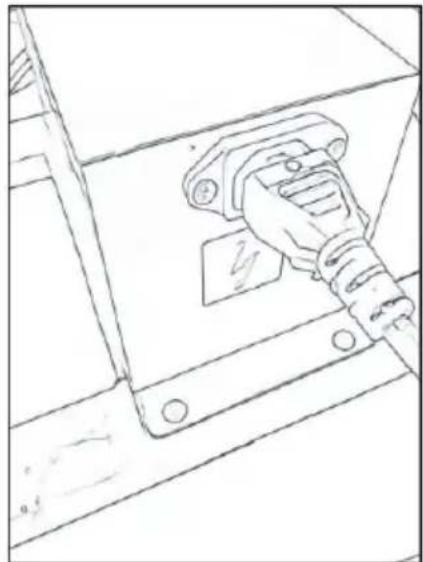

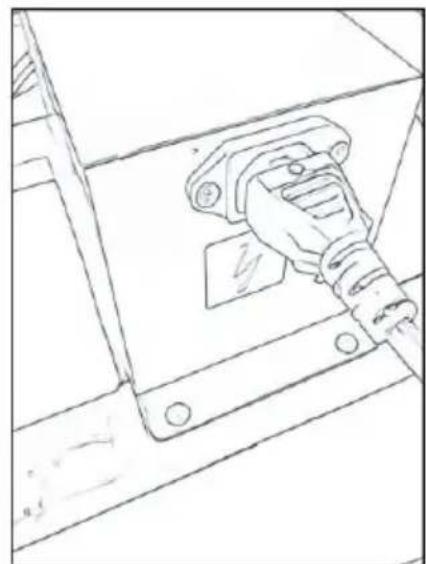

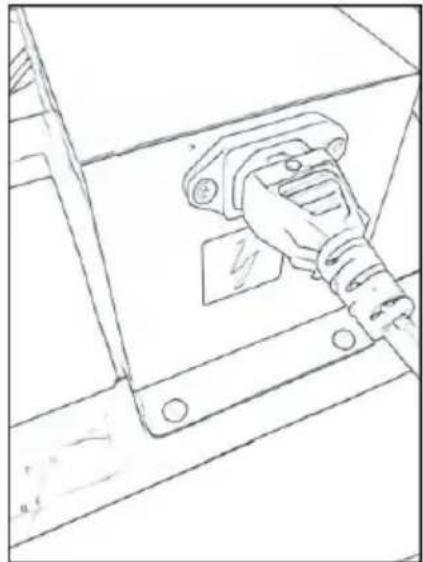

1. Connect power cables as shown in the figure

Coiled black electrical plug with two terminal connectors (no text or symbols visible)

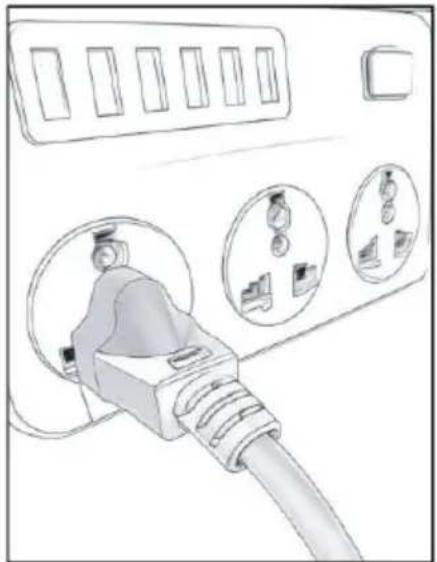

Line drawing of an electrical outlet with plug, socket, and socket (no text or symbols)

Line drawing of a plug inserted into a socket (no text or symbols)

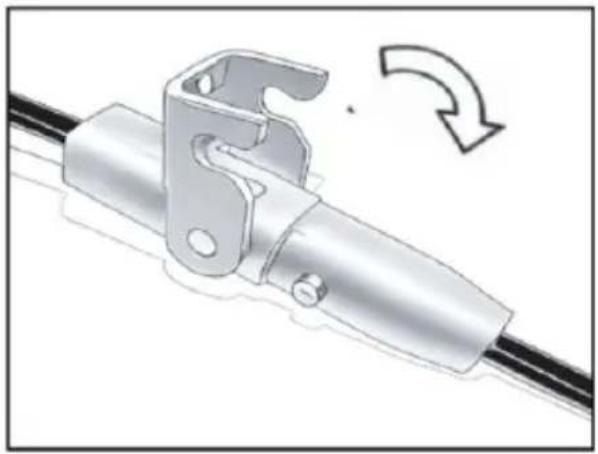

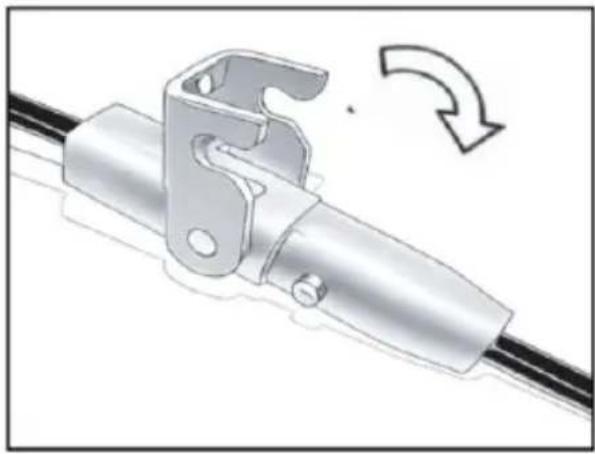

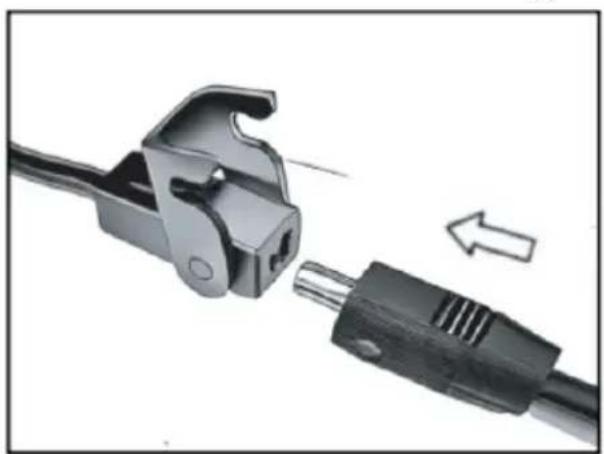

Cable remote control wiring is shown below

Close-up of a black electrical plug with a cable and connector, showing a disassembled cable with an arrow indicating compression (no text or symbols present)

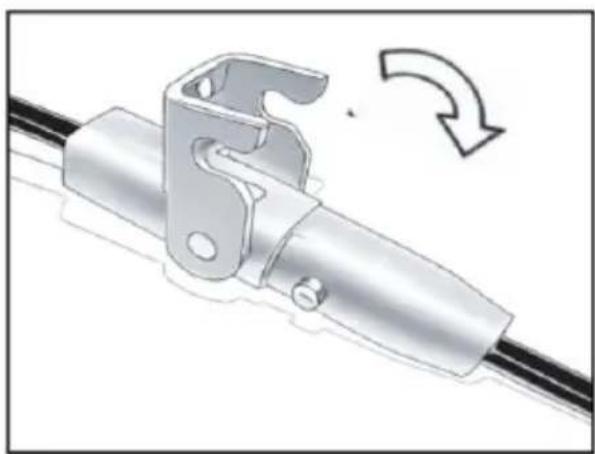

Mechanical assembly diagram showing a metal clamp and cable with rotational arrow (no text or symbols)

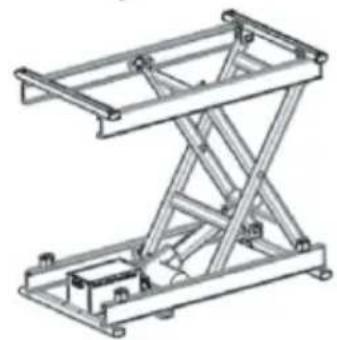

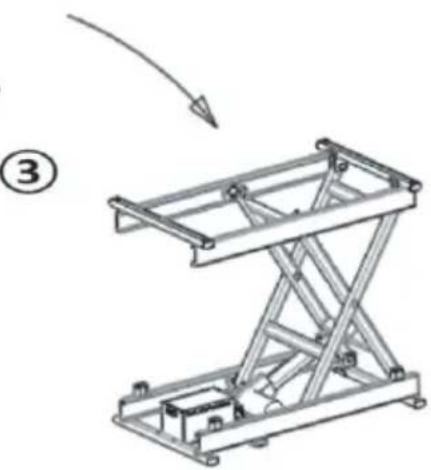

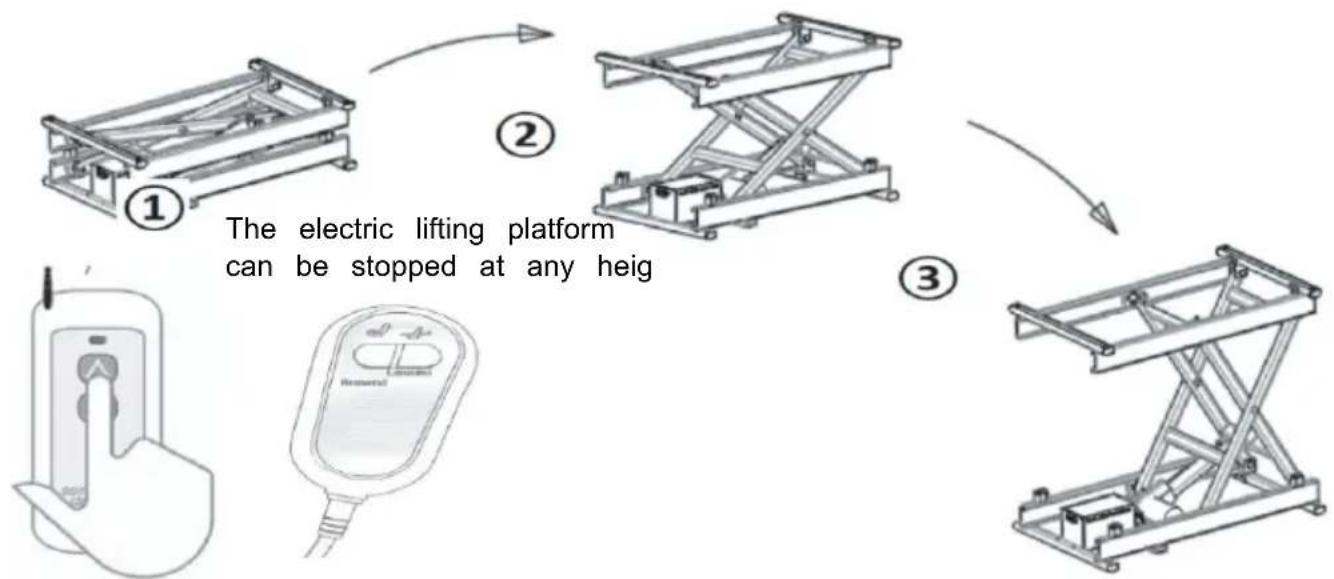

1. Press the up/down key. Electric lift platform will run

Remote control wired controller

NOTICE:

(1). Remote control has three buttons: up, down, stop, click operation (2). The wired remote control has only 2 buttons: rise and fall, press hold the motor to move, and release the motor to stop.

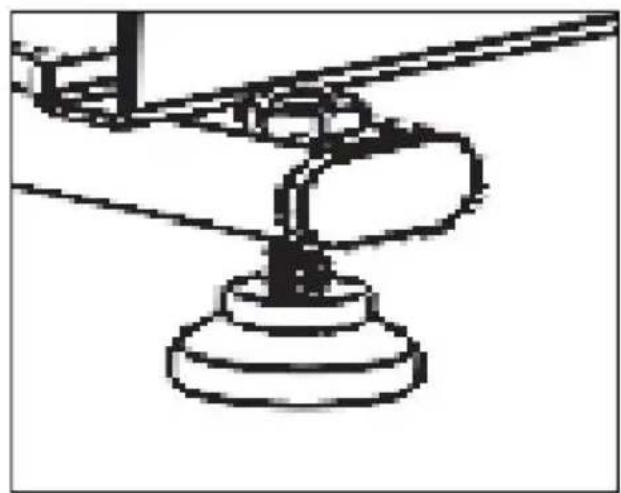

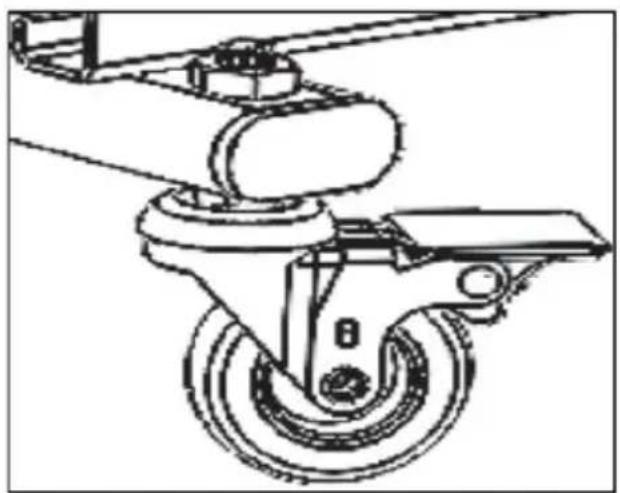

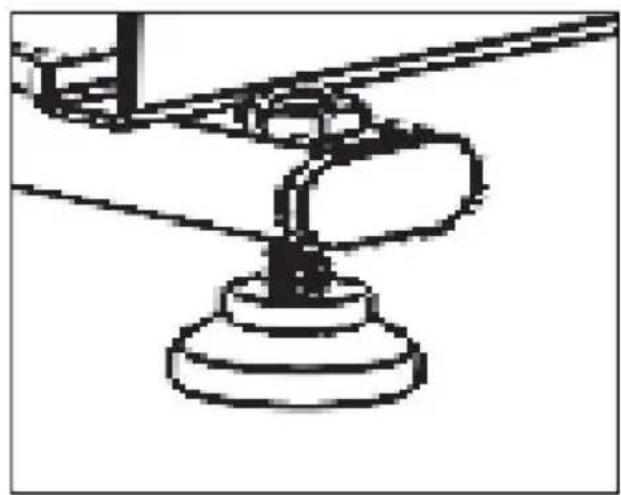

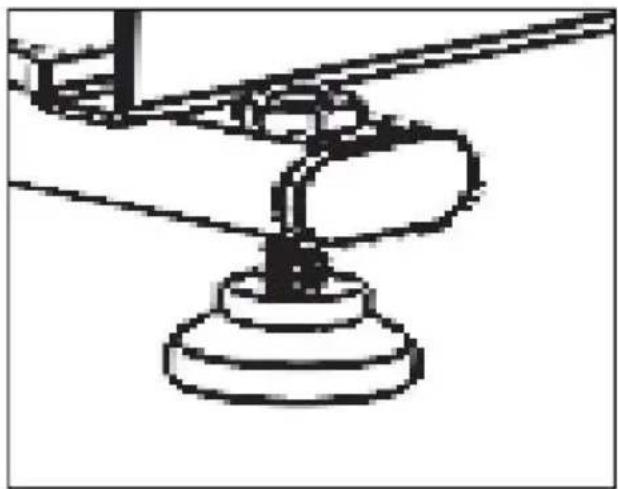

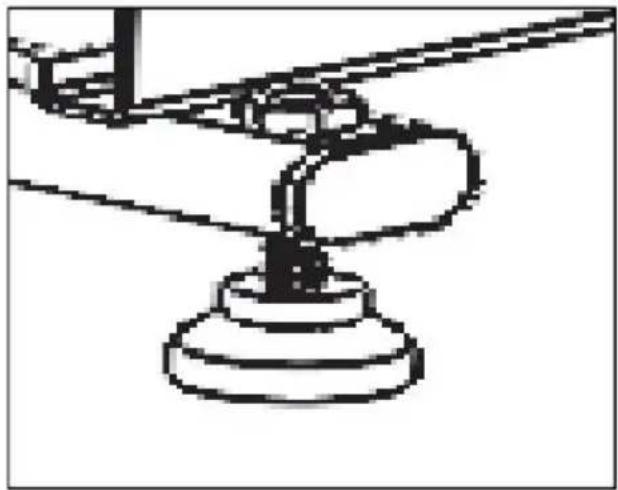

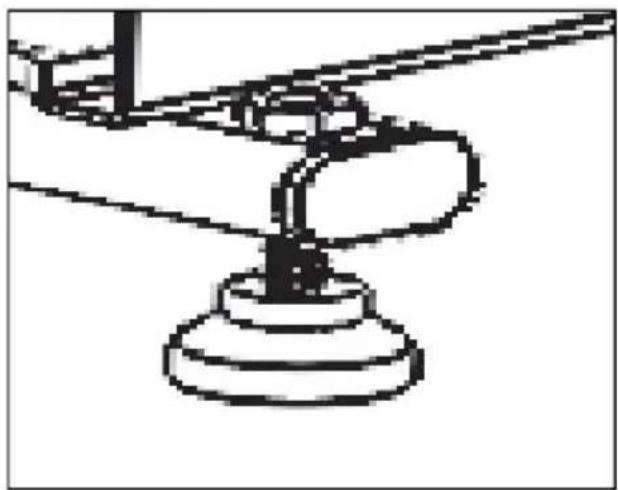

1. Accessories have two choices of casters and foot cups, as shown in figure below, and can be fixed with nuts.

Technical line drawing of a mechanical device with wheels and mounting bracket (no text or symbols)

Simple line drawing of a mechanical device with a base and lever (no text or symbols)

Product Description

parts list
Lifting platform body	1
power cord	1
Wireless remote control (without batter)	1
Wired remote control	1
castor	4
Foot pad	4
nut	4
specification	1
Battery specifications required: 23A / 12V , Number

Battery Size figure:

23A 12V ALKOLINE BAN CRU 2

28mm

ALKALINE BATTERY 23A 12V MADE W. CHINA 10mm

This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the pr and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic w must be taken to a collection point for recycling electric electronic devices

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a multi-level metal lift platform with wheels and mounting feet (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

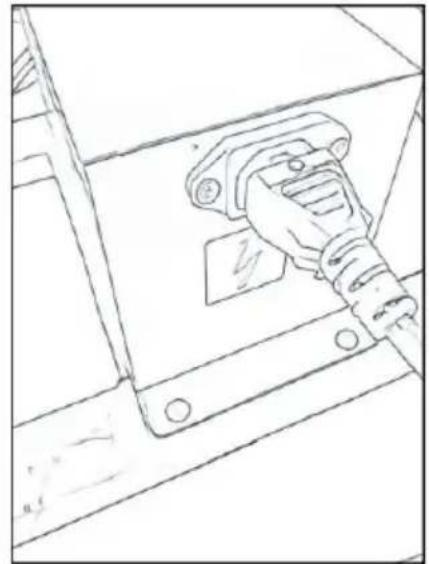

Coiled black electrical plug with two terminal connectors (no text or symbols visible)

Line drawing of an electrical outlet with a plug inserted into a socket (no text or symbols)

Line drawing of a plug inserted into a socket (no text or symbols)

Close-up of a black cable connector with a metallic plug and arrow indicating direction (no text or symbols)

Mechanical component with a 6.5° bracket and rotational arrow indicating motion (no text or symbols)

The electric lifting plate

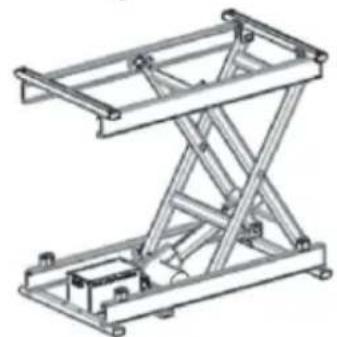

Technical line drawing of a multi-level mechanical support structure (no text or symbols)
