Product Type	Roof Bike Rack
Brand	Vevor
Model	HJ-RB021
Category	Roof Rack
Maximum Load Capacity	200 lb (approx 90 kg)
Main Material	Aluminum
Included Components	2 crossbars, 4 adapters, 4 end caps, 2 keys, 1 M5 Allen key
Main Functions	Securing bikes or other loads on vehicle roof
Recommended Use	Vehicles with existing roof rack
Safety	Check tightening before each use; do not exceed maximum load; use straps
Maintenance and Cleaning	Inspect regularly for damage; clean with a damp cloth
Spare Parts and Repairability	Contact manufacturer via www.vevor.com/support
General Information	Complies with DOT requirements; requires assembly

Frequently Asked Questions - HJ-RB021 Vevor

What is the maximum weight supported by the HJ-RB021 bike rack?

The maximum load capacity is 200 lb (approx 90 kg). Never exceed this limit.

Is this bike rack compatible with all vehicles?

It requires an existing roof rack for installation. Check the dimensions of the crossbars.

How to install the adapters on the crossbars?

Insert the four adapters into the grooves of the bars, then secure the end caps. Tighten the screws with the provided key.

Can I use this bike rack to transport electric bikes?

Yes, as long as the total weight does not exceed 200 lb. Check your bike's weight.

How to lock the crossbars?

Use the provided key to close the anti-theft cover after adjusting the adapter position.

Do I need to check the tightness regularly?

Yes, before and after each use, inspect and tighten all hardware to prevent loosening.

What maintenance is required?

Clean the bars with a damp cloth and check for damage or fraying.

Where to find spare parts?

Contact technical support via www.vevor.com/support to obtain spare parts.

Is this product guaranteed?

Yes, Vevor offers an electronic warranty. Register on their website to activate the warranty.

Can I install this bike rack alone?

It is recommended to have two people for assembly and installation to avoid injury.

USER MANUAL HJ-RB021 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ROOF RACK

SERIES: HJ-RB021

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. I are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands

VEVOR®

TOUGH TOOLS, HALF PRICE

ROOF RACK

SERIES: HJ-RB021

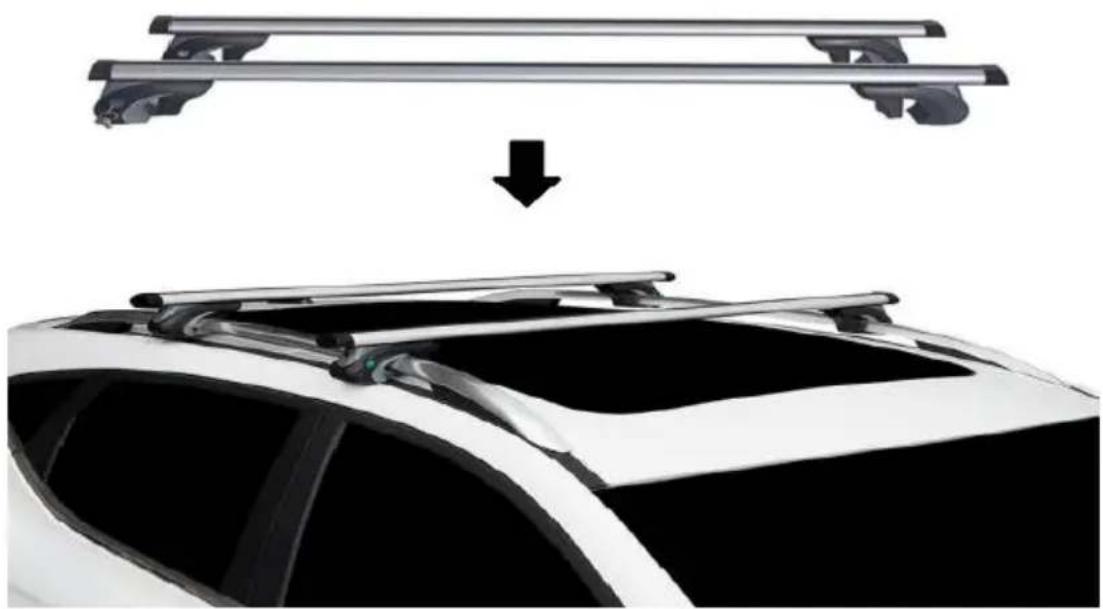

Side view of a white car roof rack with metal railings and a downward arrow indicating compression or damage (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user m appearance of the product shall be subject to the product you receive forgive us that we won't inform you again if there are any technology updates on our product.

PRODUCT PAREMETERS

Model	Maximum Load Capacity	Applicable Vehicle Models	Rack Length
HJ-RB021-120CM	200 lbs / 90kg	Empty Vertical Bar	47.2” / 1200mm
HJ-RB021-123CM	200 lbs / 90kg	Empty Vertical Bar	48.4” / 1230mm
HJ-RB021-132CM	200 lbs / 90kg	Empty Vertical Bar	52” / 1320mm
HJ-RB021-135CM	200 lbs / 90kg	Empty Vertical Bar	53” / 1350mm
HJ-RB021-54”	200 lbs / 90kg	Empty Vertical Bar	54” / 1370mm

SAFETY & WARNING

• Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury, or damage valuable property
• Adhere to all Department of Transportation (D.O.T.) requirements when using this product. Use ropes and tie-downs to securely hold all cargo in place
• Do not overload the Roof Rack. Never exceed the maximum weight capacity of 200 lbs.
• Before and after each use, check to make sure that all hardware is tightly secured. Regularly inspect for damage. If fraying or distortion is found, immediately discontinue use.
• Make sure the vehicle's engine is OFF, with the parking brake set, before loading or unloading the Roof Rack.
• Do not use to hold or restrain human or animal weight in any manner.
• Use common sense when working. Stay alert and concentrate when setting up and using the Roof Rack. Never work while under the influence of a drugs, or medications.
• While assembling and using the Roof Rack, keep the work area clean and well-lighted. Keep spectators and children out of the work area.

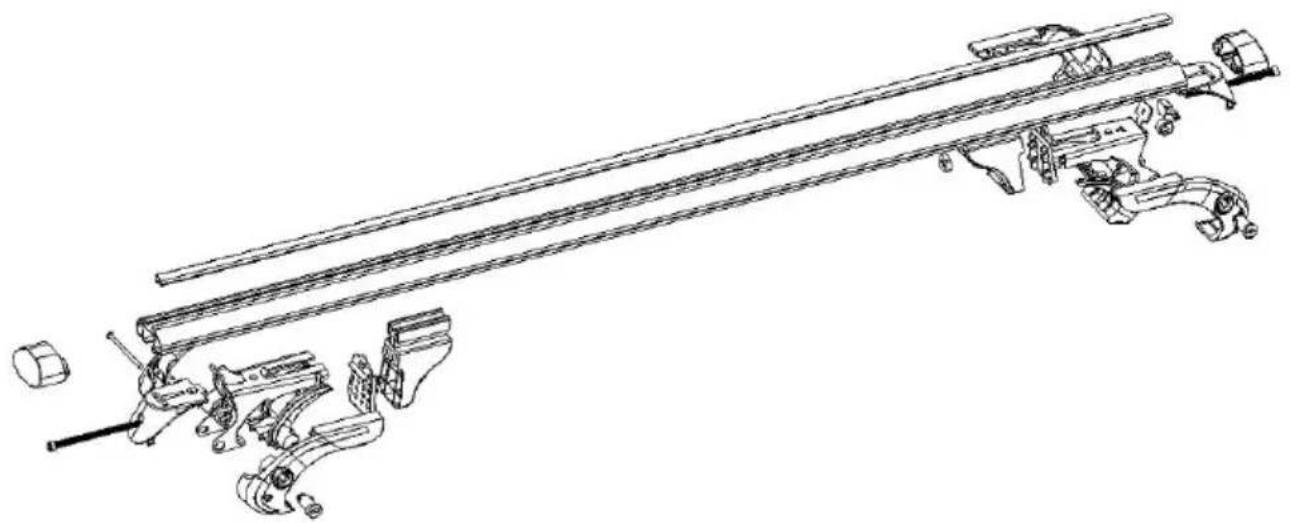

ACCESSORY LIST

Technical line drawing of a mechanical assembly with multiple rods and clamps (no text or symbols)

1	2	3	4	5
Aluminum bar X2	Adaptor X4	End cover X4	Key X2	M5 Allen key X1

OPERATION

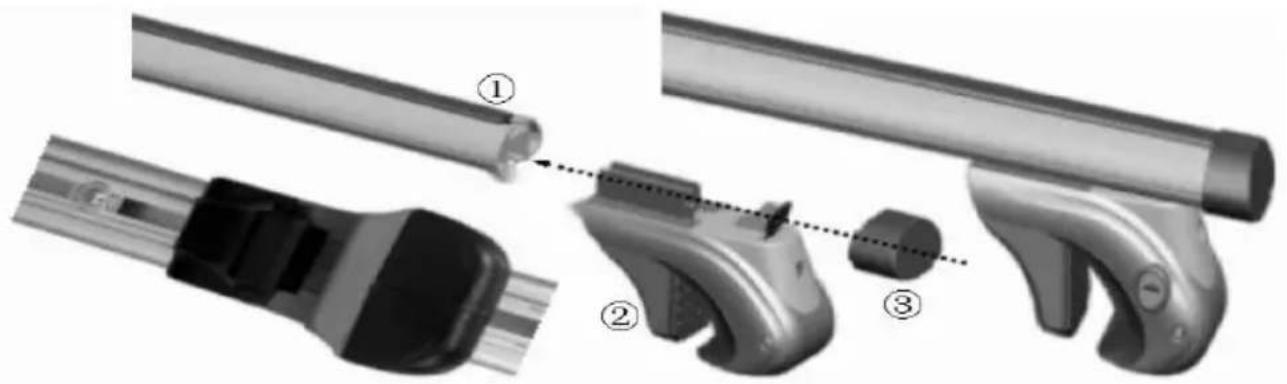

A. Installation step: 1

Technical diagram showing three labeled parts of a mechanical device, including a tool, connector, and handle assembly.

Install the four adaptors into the grooves on both sides of the cross bars, the install and fix each bar plug on the cross bar, and then install the bar plug cross bar is completely installed and fixed on the roof rack.

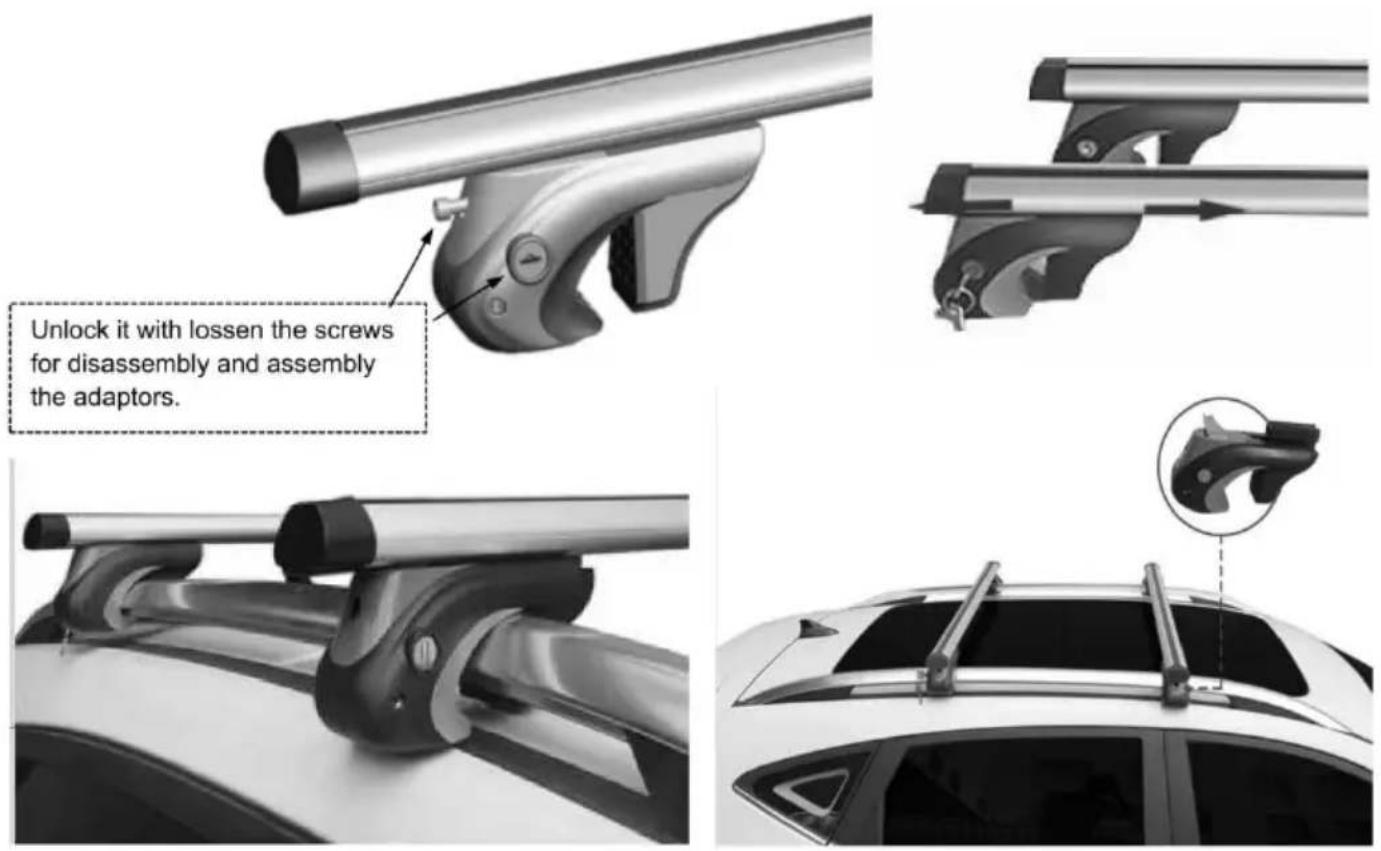

Unlock it with lossen the screws for disassembly and assembly the adaptors.

B. Installation step 2:

First, use the key to open the out anti-theft cover, then use the hexagonal I tighten the screws in the out anti-theft cover to adjust the loading position, n the adaptors left and right in the cross bar slot to the appropriate loading p and then tighten and fix the screws; Finally, close the out anti-theft lock.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centre House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Side view of a white car roof rack with metal railings and a downward arrow indicating compression or damage (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

PARAMÈTRES DU PRODUIT

Modèle	Charge maximaleCapacité	Véhicule concernéDes modèles	Longueur du rack
HJ-RB021-120CM Barre	verticale vide de 200 lb /	90 kg 47,2" / 1 200 mm
HJ-RB021-123CM Barre	verticale vide de 200 lb /	90 kg 48,4" / 1230 mm
HJ-RB021-132CM Barre	verticale vide de 200 lb /	90 kg HJ-RB021-135CM Barre	52" / 1320mm
verticale vide de 200 lb /	90 kg Barre verticale vide de 200 lb / 90 kg		53" / 1350mm
HJ-RB021-54"			54" / 1370mm

ALERTE DE SÉCURITÉ

Technical line drawing of a mechanical assembly with multiple rods and clamps (no text or symbols)

Technical diagram showing three-step assembly of a mechanical component with labeled parts (①, ②, ③)

Unlock it with lossen the screws for disassembly and assembly the adaptors.

C/O YH Consulting Limited Bureau 147, Centurion

Maison, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Side view of a white car roof rack with metal railings and a downward arrow indicating compression or damage (no text or symbols)

Technical line drawing of a mechanical assembly with multiple rods and clamps (no text or symbols)

AluminiumstangenX2 X4	Adapter	AbschlussdeckelX4	SchlüsselX2	M5-InbusschlüsselX1

BETRIEB

Technical diagram showing three-step assembly of a mechanical component with labeled parts (①, ②, ③)

Unlock it with lossen the screws for disassembly and assembly the adaptors.

Haus, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Diagram showing a car roof rack with a downward arrow indicating compression or disassembly (no text or symbols present)

HO BISOGNO DI AIUTO? CONTATTACI!

Technical line drawing of a mechanical assembly with multiple rods and clamps (no text or symbols)

Barre in alluminioX2	AdattatoreX4	Copertura terminaleX4	ChiaveX2	Chiave a brugola M5X1

OPERAZIONE

Technical diagram showing three-step assembly of a mechanical component with labeled parts (①, ②, ③)

Unlock it with lossen the screws for disassembly and assembly the adaptors.

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Ufficio 147, Centurion

Casa, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

Side view of a white car roof rack with metal railings and a downward arrow indicating compression or damage (no text or symbols)

Technical line drawing of a mechanical assembly with multiple rods and clamps (no text or symbols)

barras de aluminioX2	AdaptadorX4	Tapa finalX4	LlaveX2	llave allen m5X1

OPERACIÓN

Technical diagram showing three-step assembly of a mechanical component with labeled parts (①, ②, ③)

Unlock it with lossen the screws for disassembly and assembly the adaptors.

Casa, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Side view of a white car roof rack with metal railings and a downward arrow indicating compression or damage (no text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Technical line drawing of a mechanical assembly with multiple rods and clamps (no text or symbols)

Technical diagram showing three-step assembly of a mechanical component with labeled parts (①, ②, ③)

Unlock it with lossen the screws for disassembly and assembly the adaptors.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

IMPERIAAL

SERIE: HJ-RB021

Side view of a white car roof rack with metal railings and a downward arrow indicating compression or damage (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

VEILIGHEIDSWAARSCHUWING

Technical line drawing of a mechanical assembly with multiple rods and clamps (no text or symbols)

Aluminium stavenX2	AdapterX4	AfsluitdekselX4	SleutelX2	M5 inbussleutelX1

OPERATIE

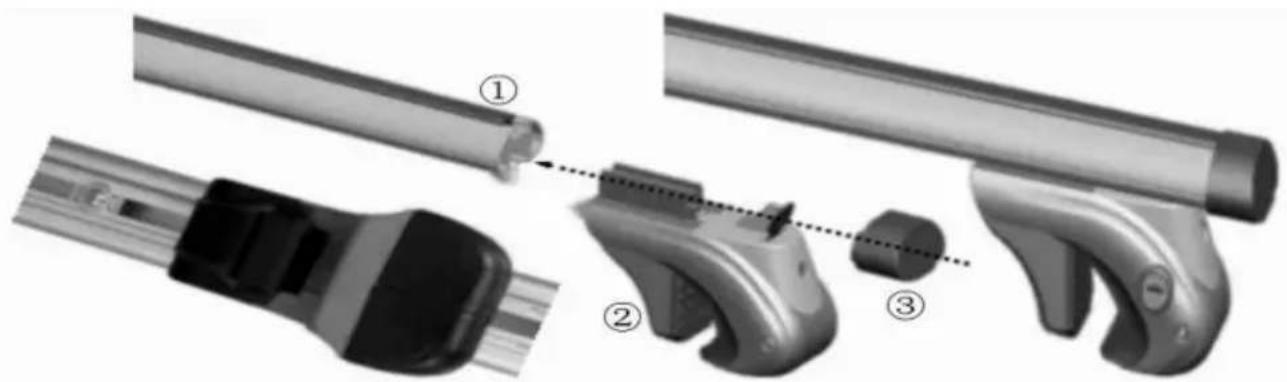

A. Installatiestap 1:
