Product Type	Frame Extension Ladder
Brand	Vevor
Model	KMP403C (and KMP403D, KMP404C, KMP404D, KMP405C, KMP405D, KMP406C)
Maximum Load Capacity	330 lb (approx. 150 kg)
Step Spacing	280 mm
Extension Length	2880 mm (for KMP403C)
Locking Mechanism	Rock Lock Locks and Hinge Locks
Number of Rungs	Not specified, but maximum use height limited to the 3rd rung from the top
Recommended Use	Do not stand above the 3rd rung from the top; keep both feet on the rungs
Material	Aluminum (common estimate for this type of ladder)
Safety	Anti-slip feet to inspect regularly; avoid contact with electricity
Maintenance and Cleaning	Clean rungs, feet, and gripping surfaces; keep free of foreign objects
Spare Parts and Repairability	Replacement ladder feet; consult manual for repair procedures
General Information	Manufacturer: Shanghaiuxinmuyeyouxianggsi; imported by SIHAO PTY LTD (Australia) and Sanven Technology Ltd (USA); support: www.vevor.com/support

Frequently Asked Questions - KMP403C Vevor

What is the maximum load supported by the ladder?

The maximum load is 330 lb (approx. 150 kg). Never exceed this limit to prevent injury.

How to properly extend the ladder?

Follow the manual steps: ensure the Rock Locks are disengaged, deploy the ladder by holding both halves, then check that each lock engages in the appropriate rung before climbing.

How to fold the ladder after use?

The folding process is the reverse of deployment. Release the hinge locks by lifting the pins, then fold the sections taking care not to pinch your fingers.

Can I use the ladder near power lines?

Be extremely careful. Ensure the ladder does not come into contact with any circuit or electrical current. Preferably use a non-conductive ladder if needed.

What to do if the hinge locks do not open easily?

Never force with tools. Slightly move the ladder half backwards to release pressure on the pins, then try again.

How to clean and maintain the ladder?

Keep all rungs, feet, and gripping surfaces clean and free of foreign objects. Use a damp cloth and mild soap, then dry thoroughly.

What is the difference between KMP403C and KMP404D models?

The models differ in extension length and step spacing. For example, the KMP403C has an extension of 2880 mm with a step of 280 mm, while the KMP404D has an extension of 4670 mm with a step of 330 mm.

Where can I find technical support or warranty?

Visit www.vevor.com/support to obtain the electronic warranty certificate and contact technical support.

Can I stand on the highest rung?

No, never stand above the third rung from the top. This could lead to loss of balance and injury.

How to replace the ladder feet?

Regularly inspect the feet for wear. If necessary, order replacement feet and replace them according to the manual instructions to maintain safety.

USER MANUAL KMP403C Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

A Frame Extension Ladder

MODEL: KMP403C / KMP403D / KMP404C / KMP404D

KMP405C / KMP405D / KMP406C

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

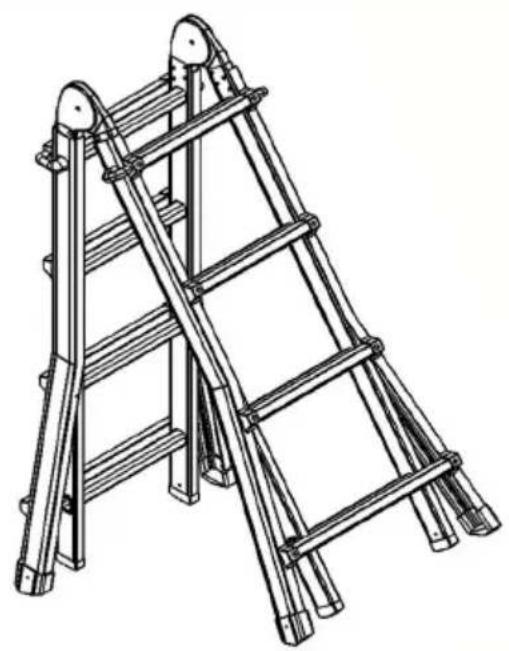

MODEL: KMP403C / KMP403D / KMP404C / KMP404D KMP405C / KMP405D / KMP406C

(Note: The picture only shows KMP404C.)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you as there are any technology or software updates on our product.

Safety Instructions

1. Do not force the hinges in or out using any tools. You may cause permanent damage to the hinge mechanism.
   2.If there is pressure on the hinge lock pins, they may not open properly. Relieve the pressure by moving one half of the ladder back forth until the hinge locks move with minimal force.
   3.Make sure each Rock Lock is fully engaged into the appropriate run tube before climbing on the ladder. Failure to do so may result in ir 4.For your safety, set up your ladder so the rungs are always level front to back and from side to side.
2. Keep clothing and body parts out of all moving mechanisms, including the hinge locks and Rock Locks to avoid pinching.
3. Keep clothing and body parts away from rungs when telescoping the outer ladder over the inner ladder.
   7.Use caution when using the ladder around electricity. Ensure that the ladder does not come in contact with electrical circuits or currents.
4. The maximum weight is 330lbs. For your safety, do not exceed the limit.
   9.Do not stand above the third rung from top.
5. Keep all ladder rungs, ladder feet, work platforms, and other stand and gripping surfaces clean and free from foreign materials.
6. Do not lean too far over the side of the ladder and keep both forerungs at all times; as a rule of thumb, keep your navel between the 12. Inspect feet for wear, replace them when necessary.
   13.Read all labels on the ladder before use.

NO.	Model	Step Distance(mm)	Length Of Extension(mm)
1	KMP403C	280	2880
2	KMP403D	330	3350
3	KMP404C	280	4000
4	KMP404D	330	4670
5	KMP405C	280	5120
6	KMP405D	330	5990
7	KMP406C	280	6230

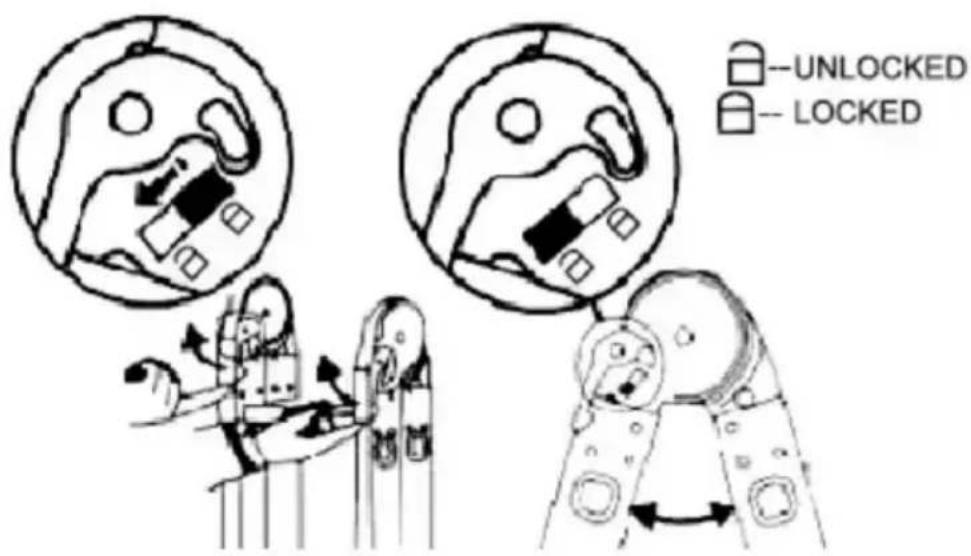

Hinge Release Method

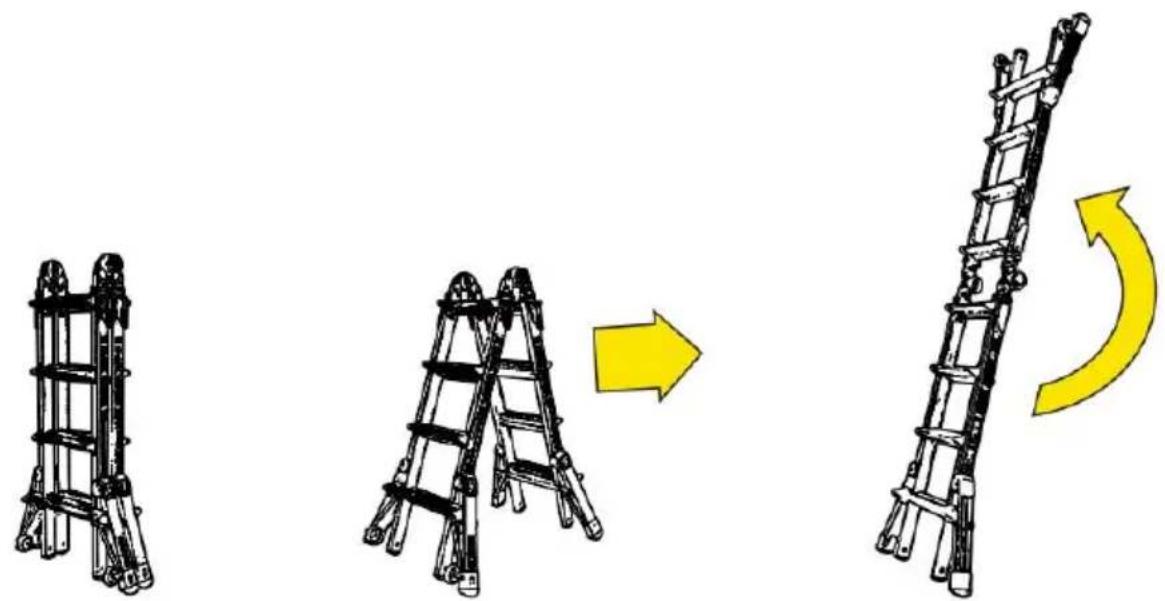

Unfold

(TIPS:The folding process is reversed.)

Extend

Step1	Step2
Step3	Step4

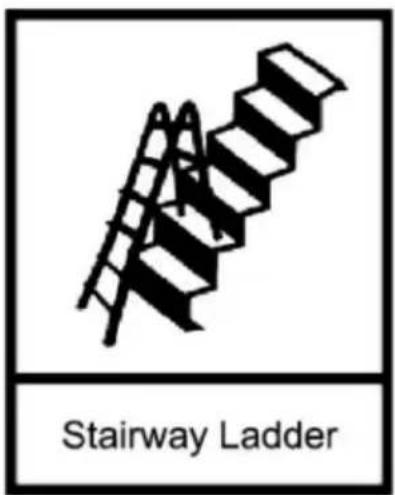

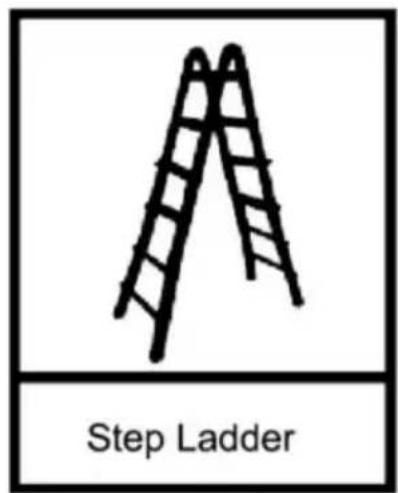

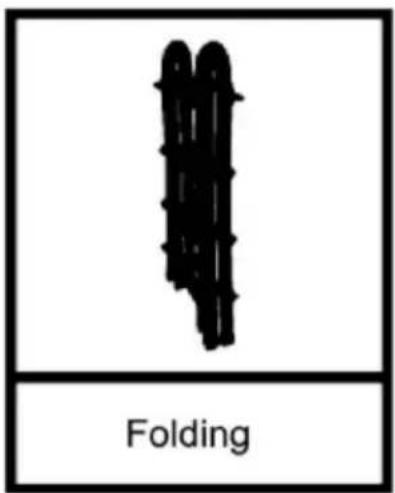

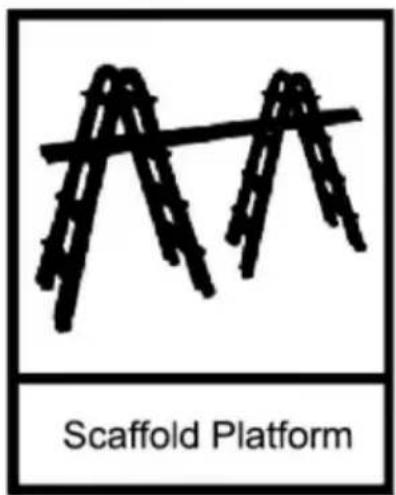

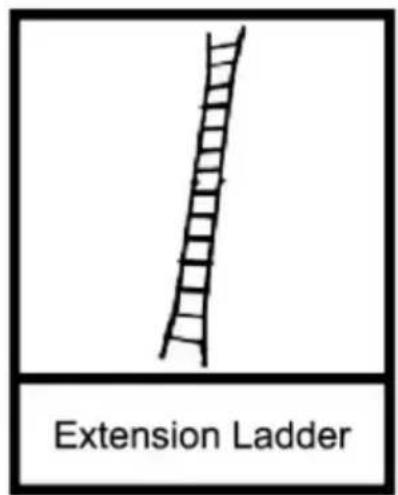

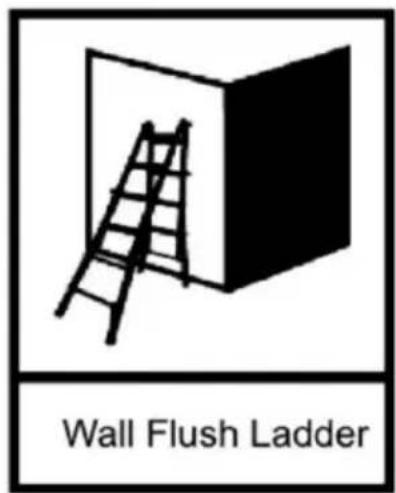

Usage Introduction
