USER MANUAL KD-TY007-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

INSTRUCTION FOR PATIO GAZEBOS

MODEL:KD-TY007-1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands

VEVOR®

TOUGH TOOLS, HALF PRICE

PATIO GAZEBOS

KD-TY007-1

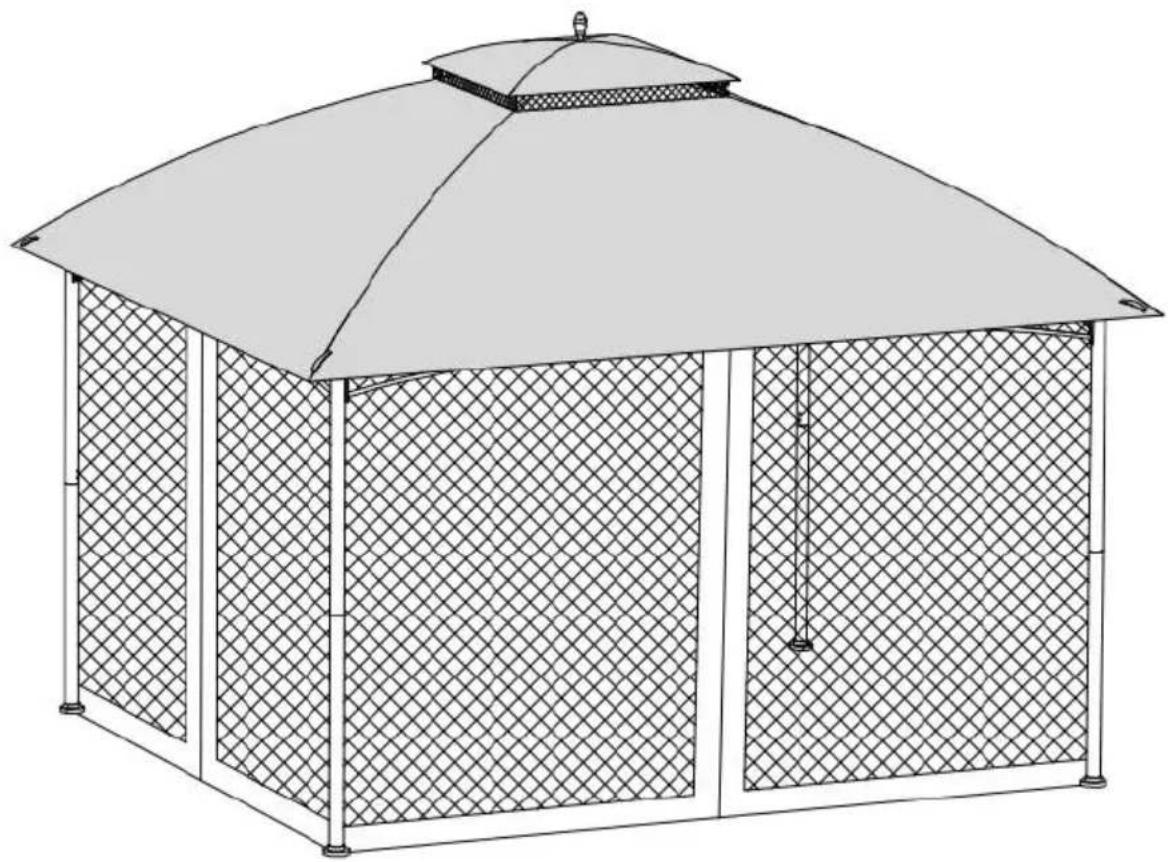

Line drawing of a simple outdoor gasket structure with mesh panels and a curved roof (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

ASSEMBLY AND SAFETY INSTRUCTIONS

Please pay close attention to the following instructions in order to reduce the of injuries, accidents or damage to the product by itself.

IMPORTANT

Please follow ALL safety instructions listed below.

Please remove the packaging material before assembling or using the product

Please make sure that all listed parts are included in the package and that not damaged.

Please read these assembly and safety instructions carefully before usage of tent and keep it for future reference.

This product should only be used in a non-commercial way.

SAFETY INFORMATION

The tent was not tested for wind and snow loads, unless that is clearly indi otherwise. Therefore, these loads are not covered by guarantee. Please watch weather forecasts to be able to properly protect or disassemble the tent befo problems appear.

Tents should only be used as temporary accommodation and should be disassembled in adverse weather conditions.

Make sure to keep sufficient distance to houses as well as gas and power avoid possible damage. Please check the area for power cables and gas line. Ask your local authority for further information if needed.

When making use of suitable heaters, keep a minimum distance of 1.2 m to material. Open fire or heaters with open flames such as patio heaters, umbrella heaters, gas heaters etc. should NOT be used inside the tent in any case.

The person taking care of the construction of the tent is responsible for adequate securing it to ensure its safety. Please check the anchoring constantly to avoid damage. A stable anchoring can extend the endurance of the tent.

In order to ensure your own safety, please make sure to wear gloves.

The metal parts could have sharp edges and could be oily because of rust prevention treatment.

Please make sure that there is no permanent snow load. It should be remov right away. The same applies to rain and other forms of load.

Warning - please keep plastic and small spare parts out of children's reach. thin film may cling to nose and mouth and prevent breathing.

ASSEMBLY & USAGE

Please reserve some more time for your first installation of the tent. The rule followed when pitching the tent are simple. Please use the illustrative instructi for each step of installation.

The screws joining the pipes with connectors must be tightened manually, using hexagon key or an automatic screw driver, set at a max. level 2, to avoid wear.

The tent should only be assembled by at least two adults. Please keep child away from the tent while assembling it to protect them.

Please make sure to find a flat and even ground base that is suitable for t assembly of the product and its intended usage.

Use only those materials provided with the tent upon delivery.

The tarps should not come into contact with any objects with sharp edges.

The tent can be used during temperatures close to zero. However, prior to s use, the tarp material must be stored at a temperature of at least 10^ C. Ple make sure that the tarp does not break when folded.

Each country has varying regulations regarding movable structures (tents) and unmovable structures. Please ask your local authorities whether a permission must be obtained to pitch the tent. In some countries, this depends on the the tent.

CARE & STORAGE INSTRUCTIONS

Any kind of damage due to acts of nature (weather damage) is not covered. The tent can be used during temperatures close to zero. However, prior to use, the tarp material must be stored at a temperature of at least 10^ C. Please make sure that the tarp does not break when folded.

Strong winds may damage the product. Please do not leave the gazebo unattended for an extensive amount of time.

Exposure to sunlight may cause the color of the tarp to fade out. This has impact on the usability of the firepit and is not considered a product defect.

Heavy or extensive rain may lead to the accumulation of water pockets on t These pockets need to be removed as soon as possible.

Please do not use aggressive chemicals to clean the tarp material. The best cleaning agent is water with a slightly alkaline reaction.

Do not make any modifications to the metal structure of the tent, such as for example, connecting and/or welding additional loads, making grooves and/or ar deformations.

Please remove the tarp if the product is not in use to avoid damage.

We advise you to dismantle the pavilion during bad weather conditions and t winter season.

The tent / tarp should only be folded, packed and stored when fully dry. Please not put any other objects on top of the tent / tarp when stored.

SPECIFICATIONS

Model	KD-TY007-1
Product Size	2970×3920×3530mm
Color	Beige/Brown/Black

TOOLS

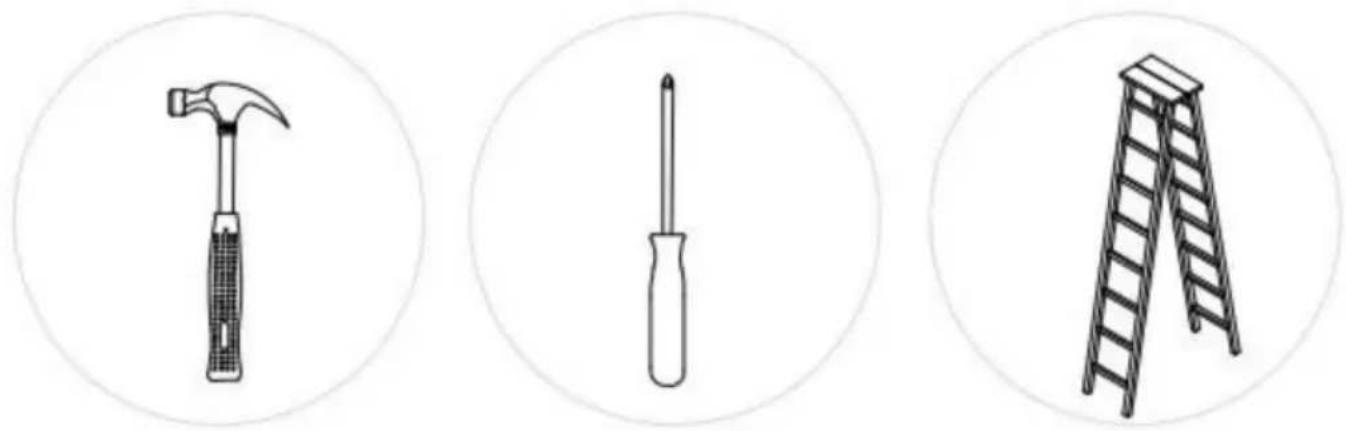

Three circular illustrations showing different types of tools: a hammer, a screwdriver, and a ladder (no text or symbols)

Line drawing of a handheld electric drill (no text or symbols)

IMPORTANT

People needed for installation work

Three human silhouettes of three plus two human figures, no text or symbols present

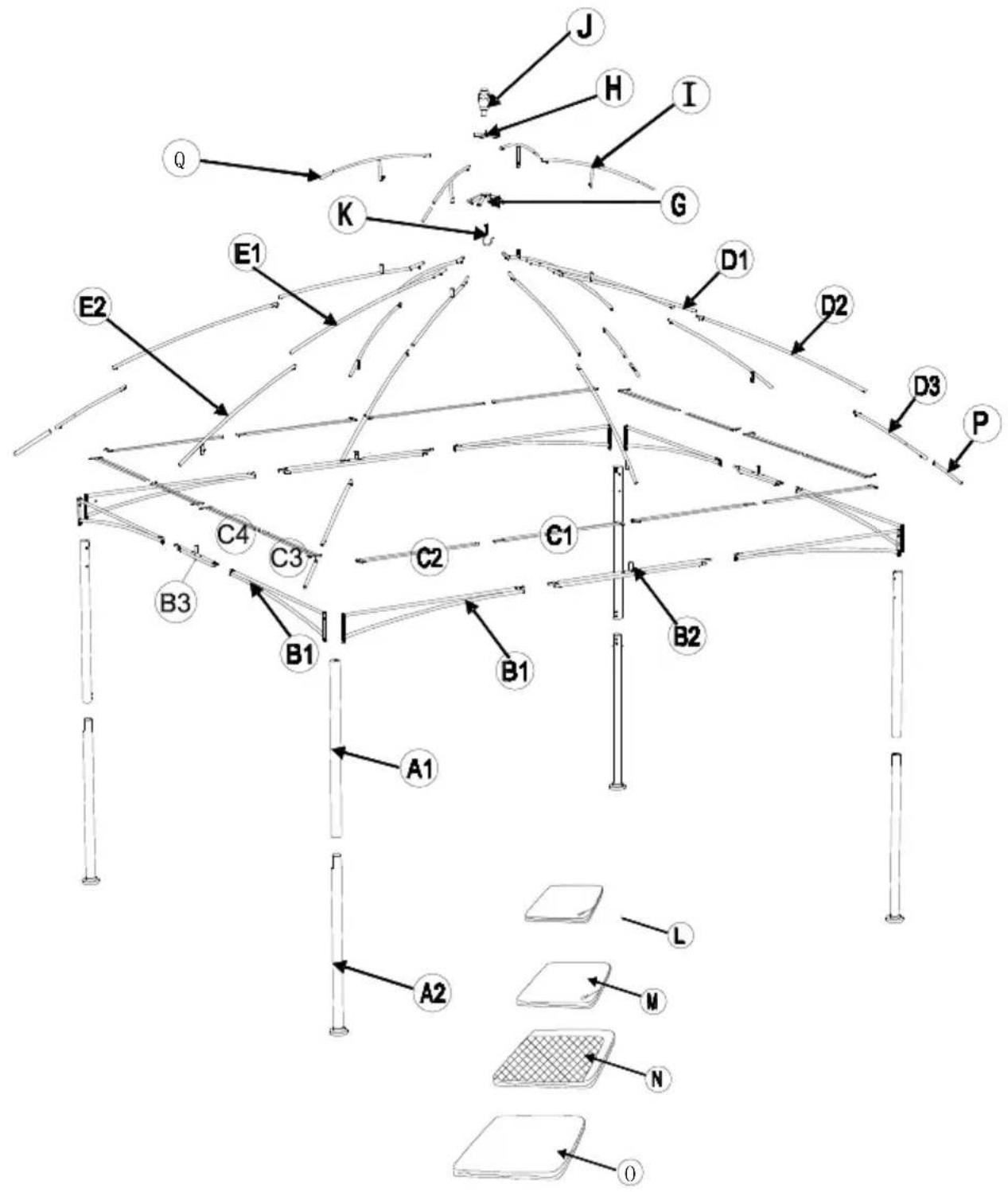

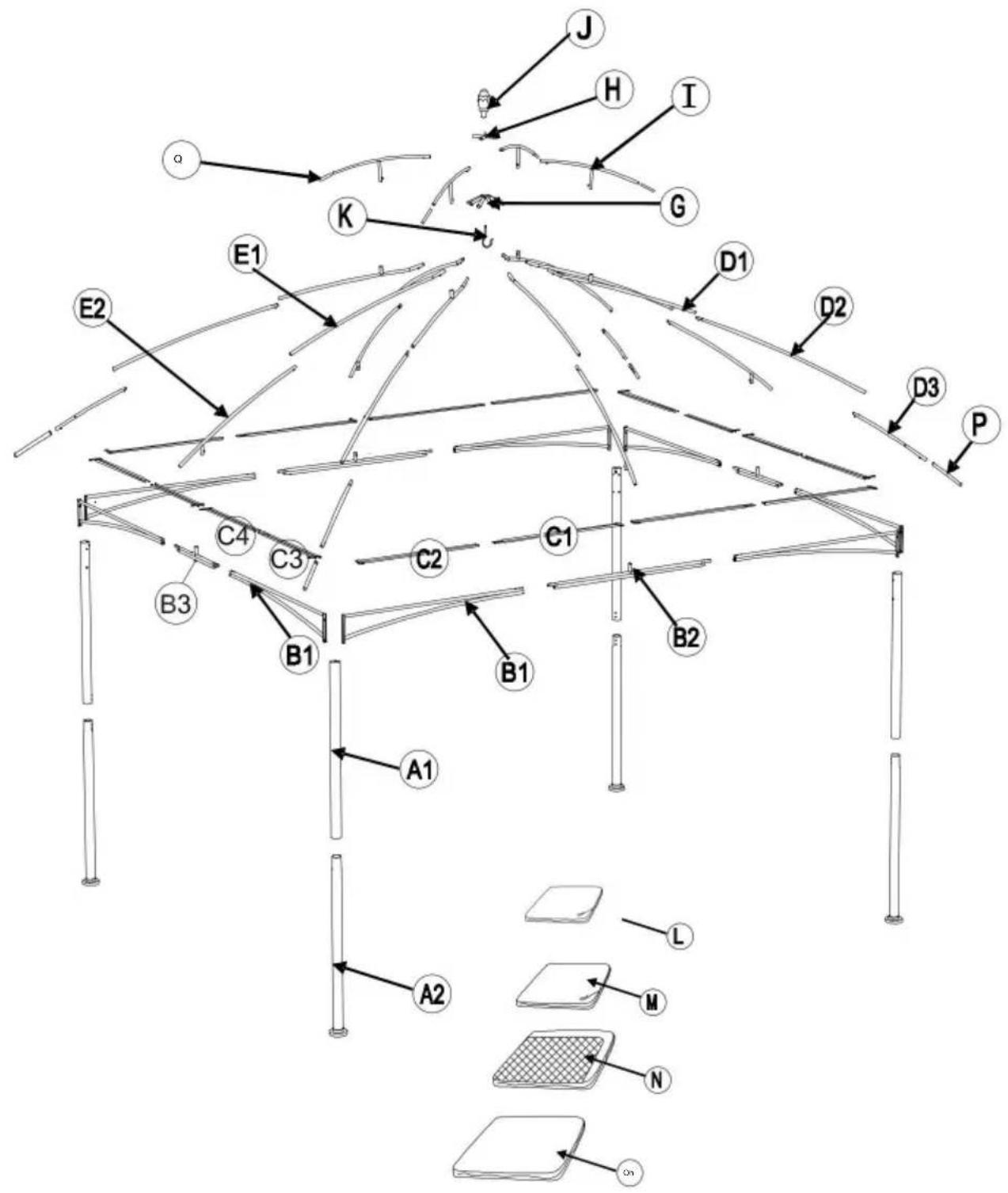

Parts List

Label	Qty	Part Image
A1	4
A2	4
B1	8
B2	2
B3	2
C1	4
C2	4
C3	4
C4	4
D1	4
D2	4
D3	4

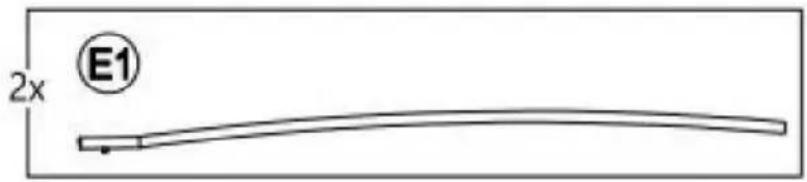

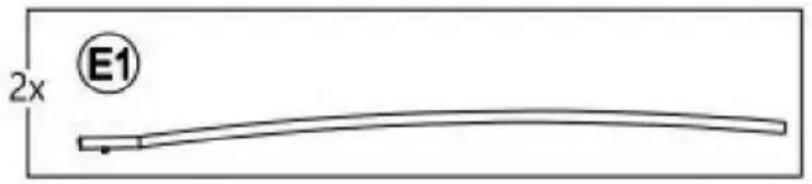

E1	2
E2	2
F1	2
F2	2
G	1
H	1
Parts list
Labe1	Qty	Parts Image
I	4
J	1
K	1
L	1
M	1
N	1
P	4
O	1
Q	4

Parts list
Labe1	Description	Qty	Add	Parts Image
AA	M5*15	24	2
BB	M6*20	40	2
CC	Φ8*180	8	0
DD	/	104	3
EE	M5/M6	1	0
FF	M6*35	4	1
GG	M6	4	1

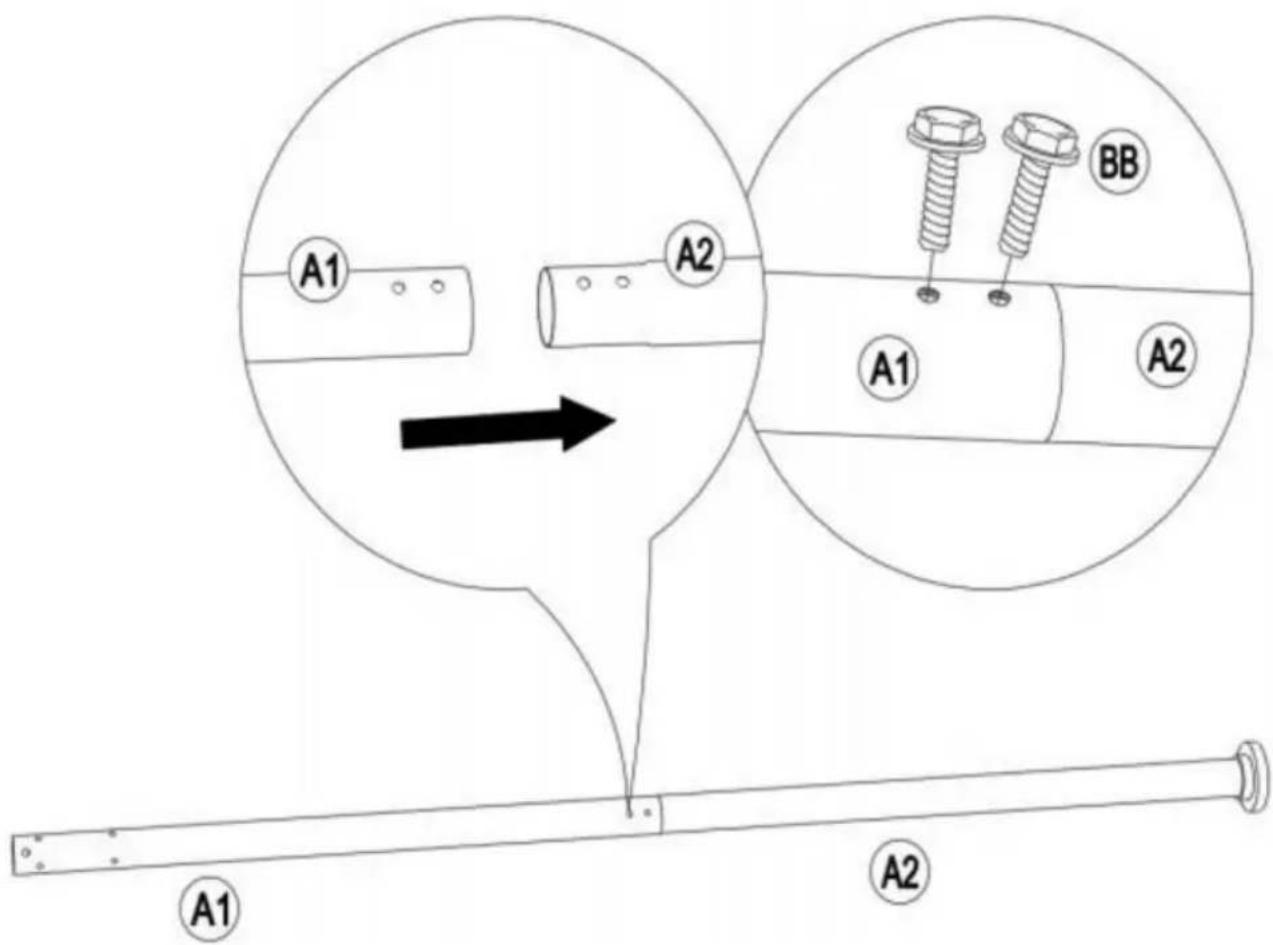

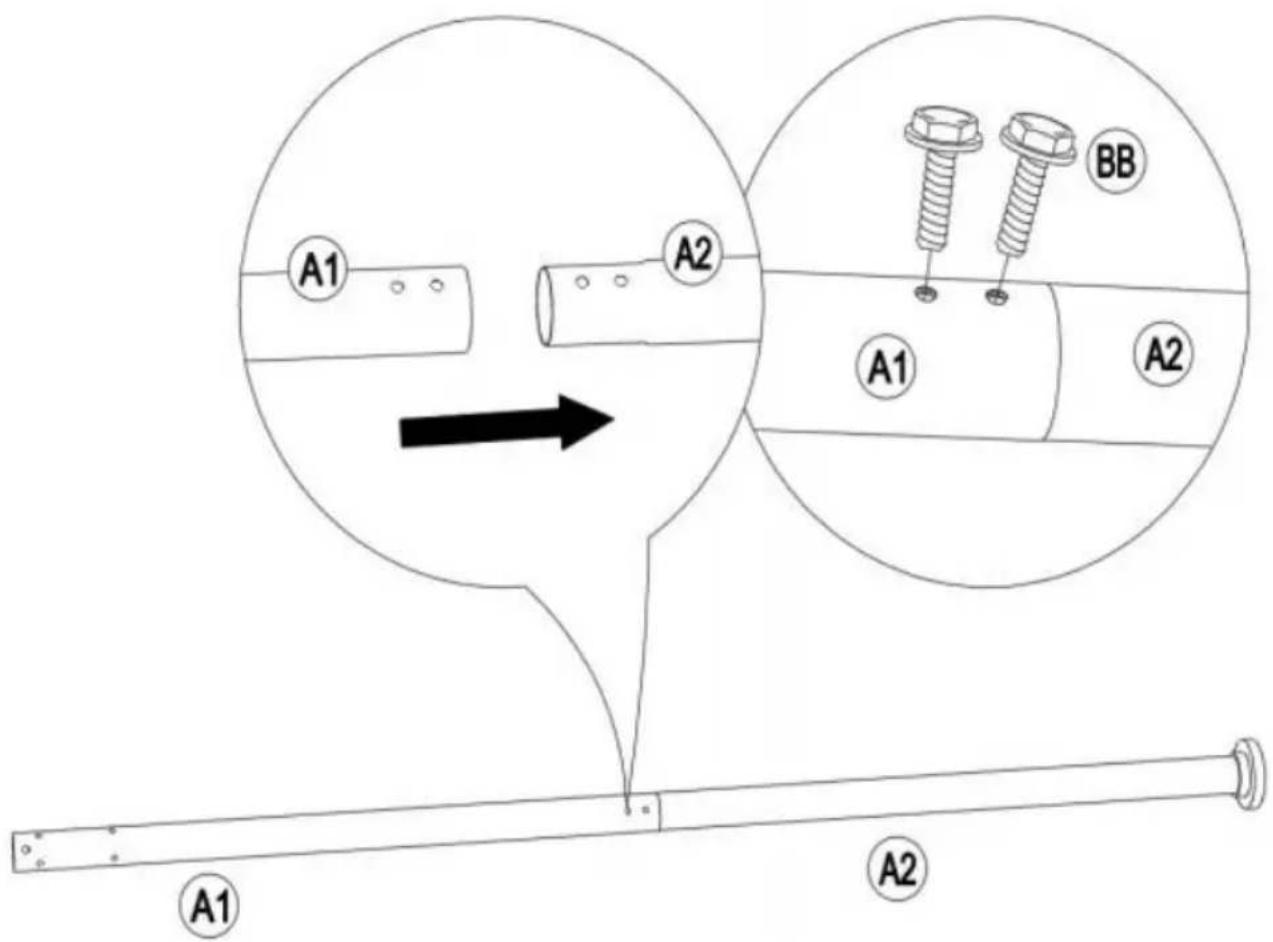

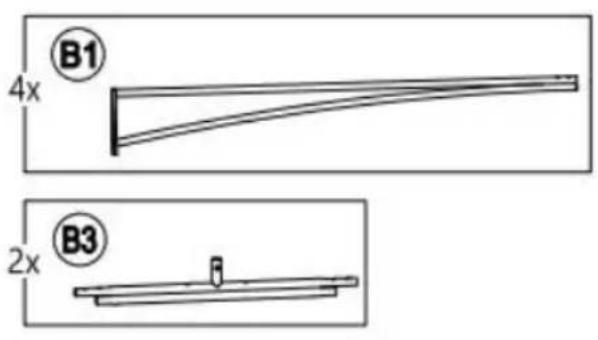

1

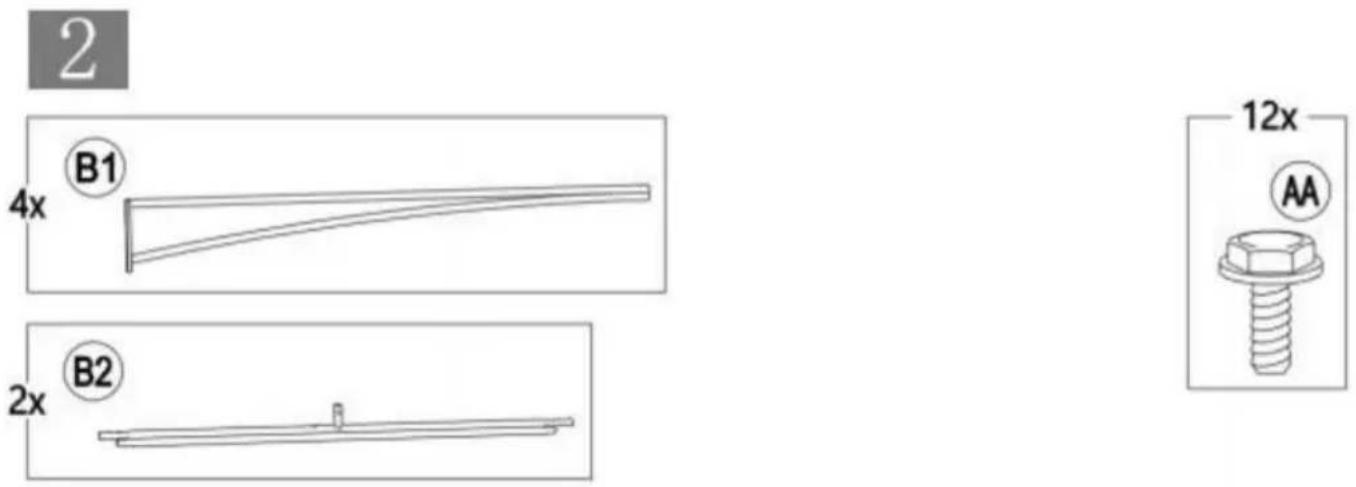

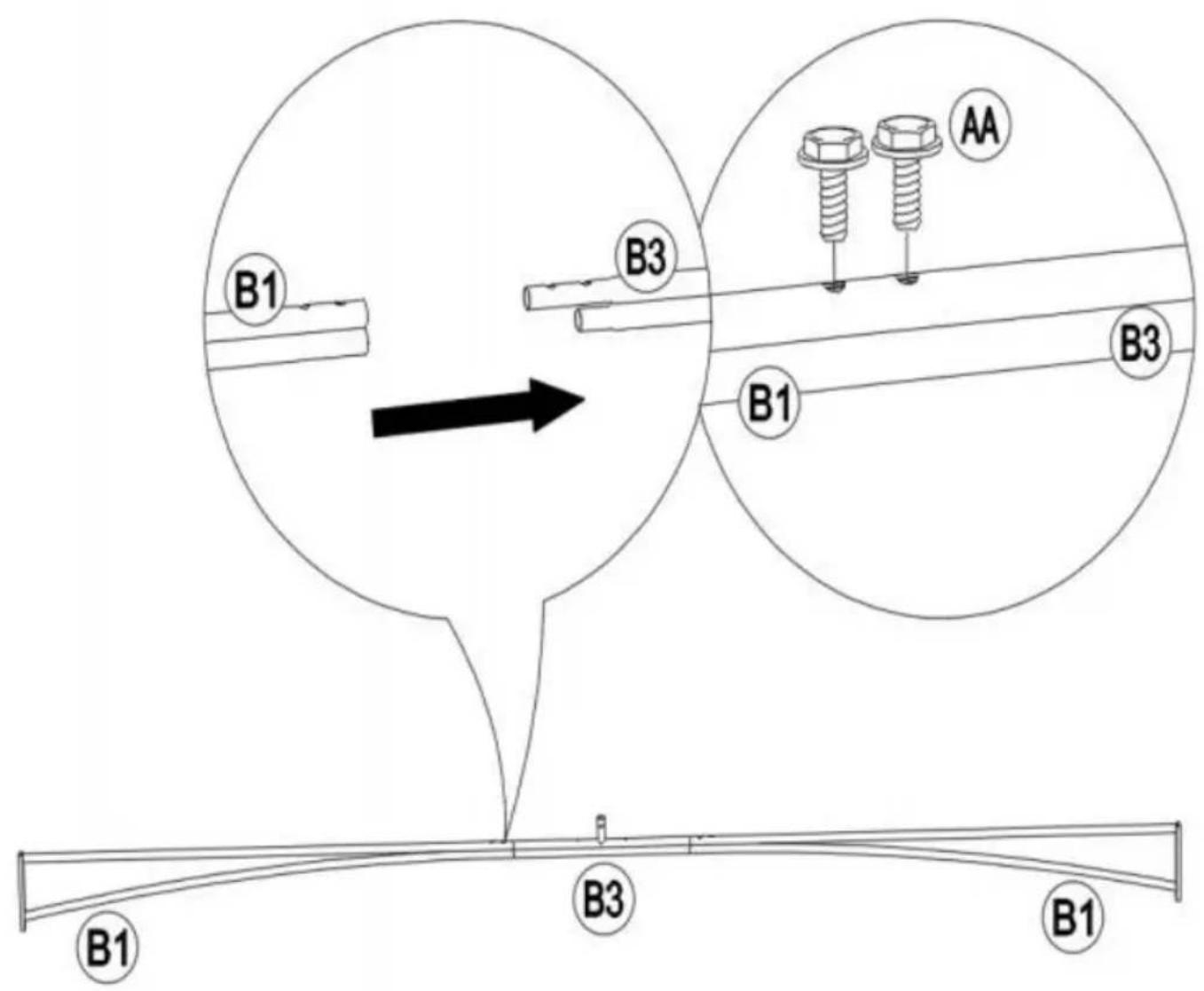

2

Simple line drawing of a 4x length rectangular structure with a circular label B1 (no text or symbols on the structure itself)

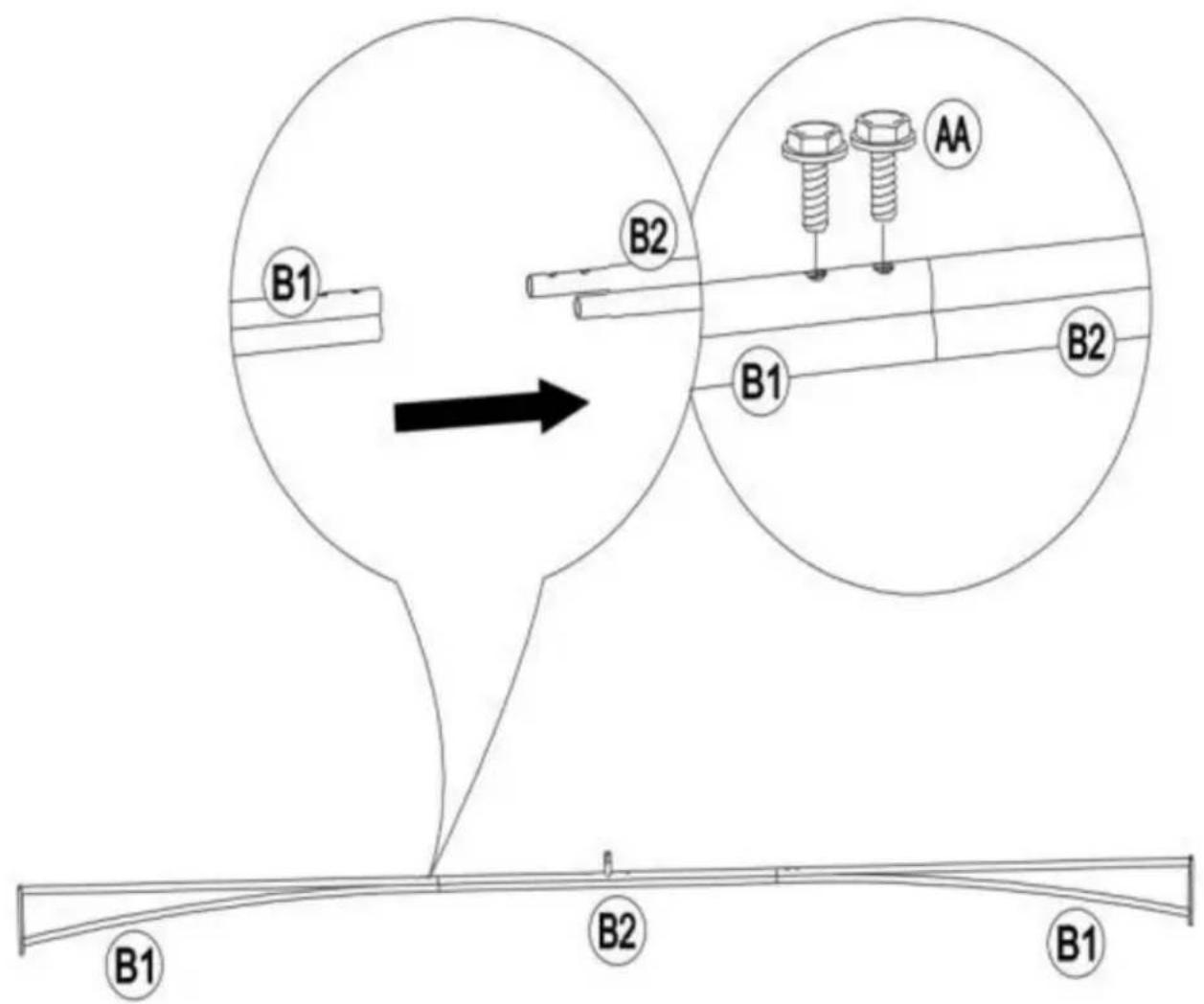

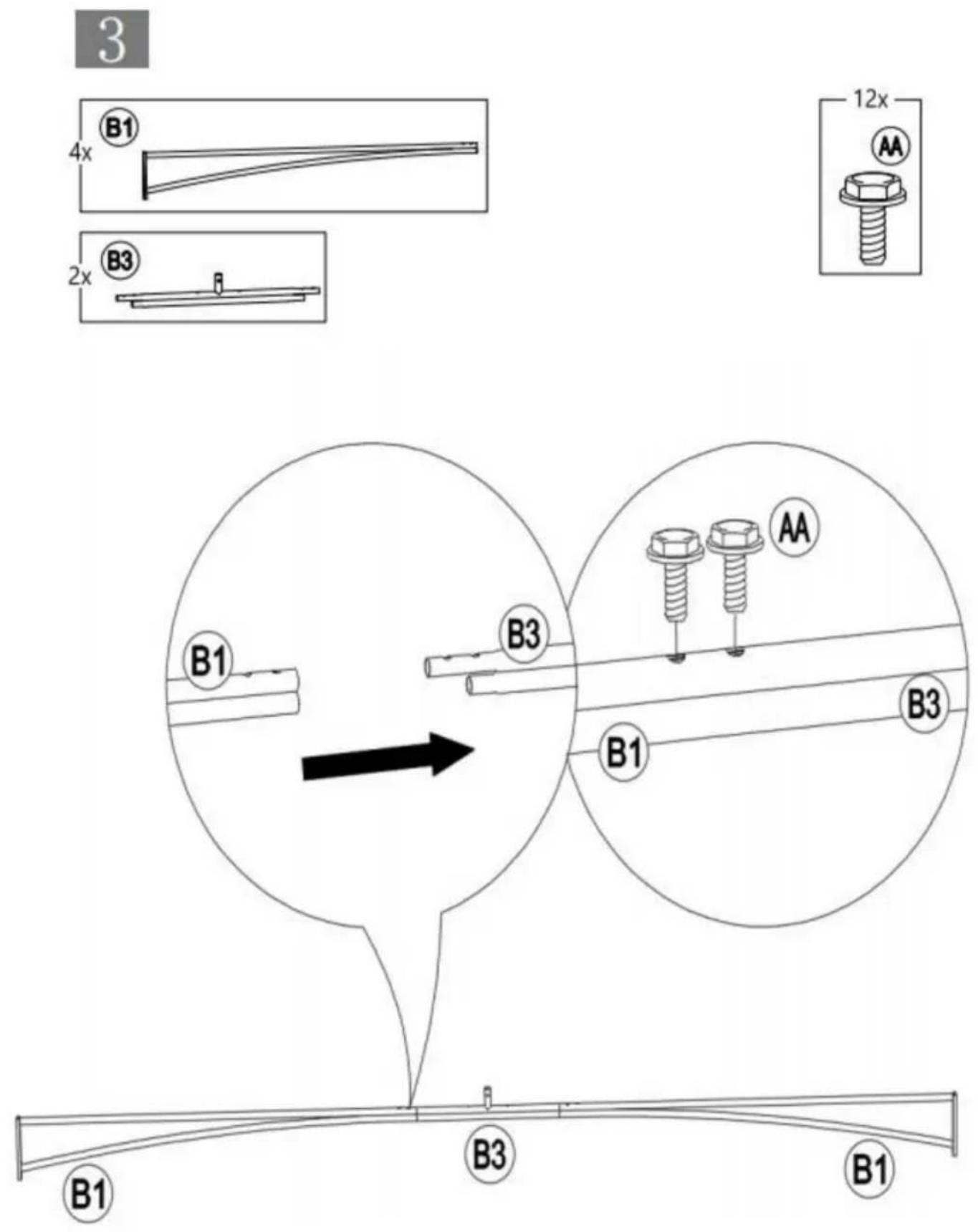

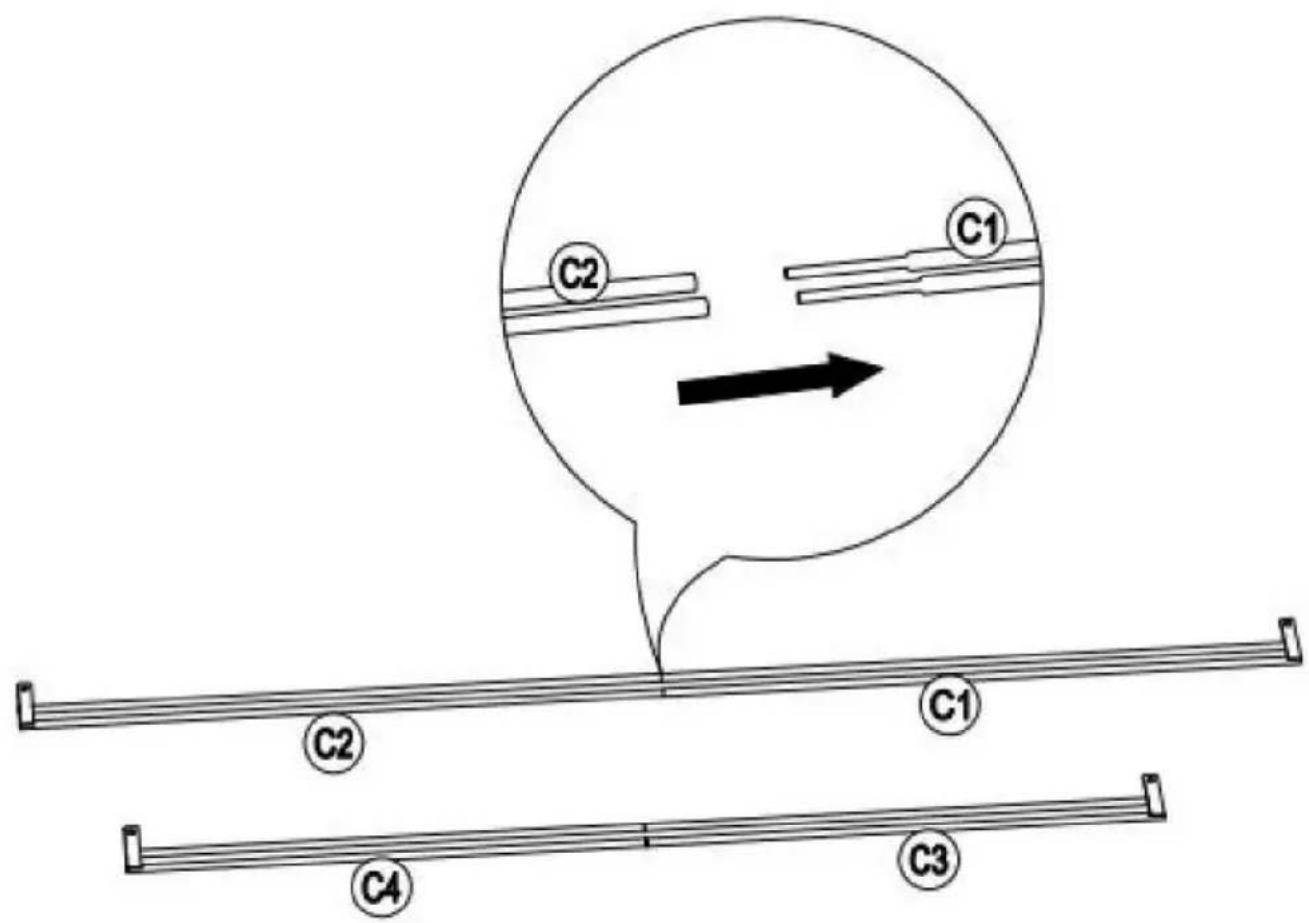

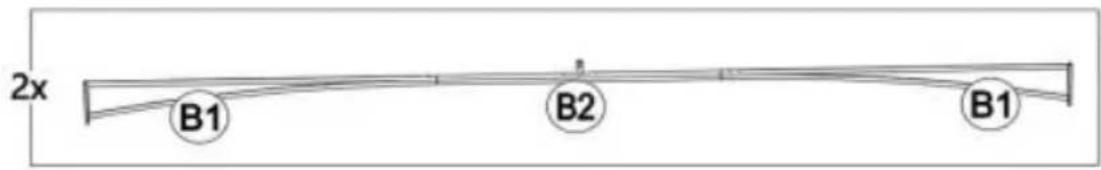

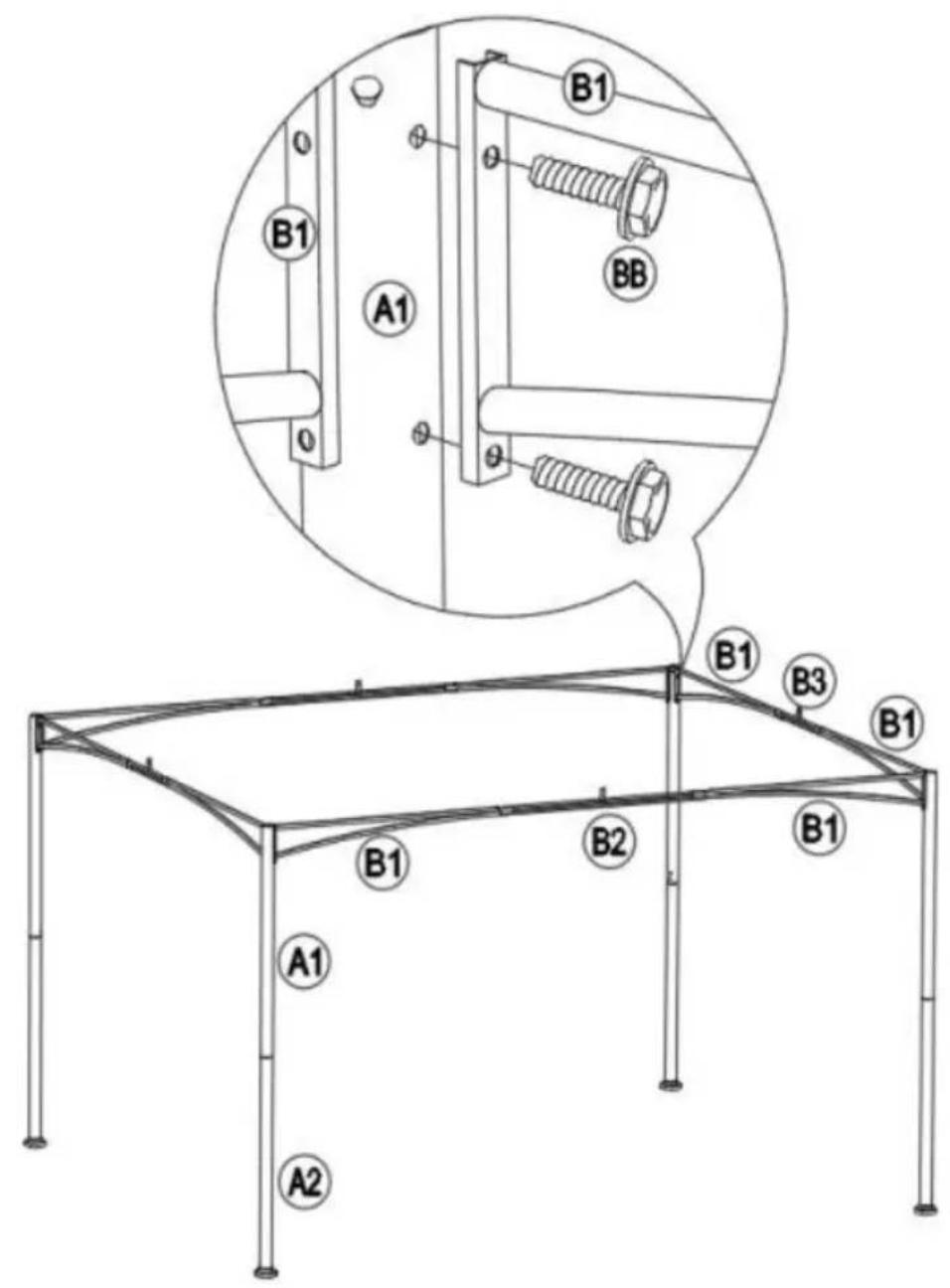

3

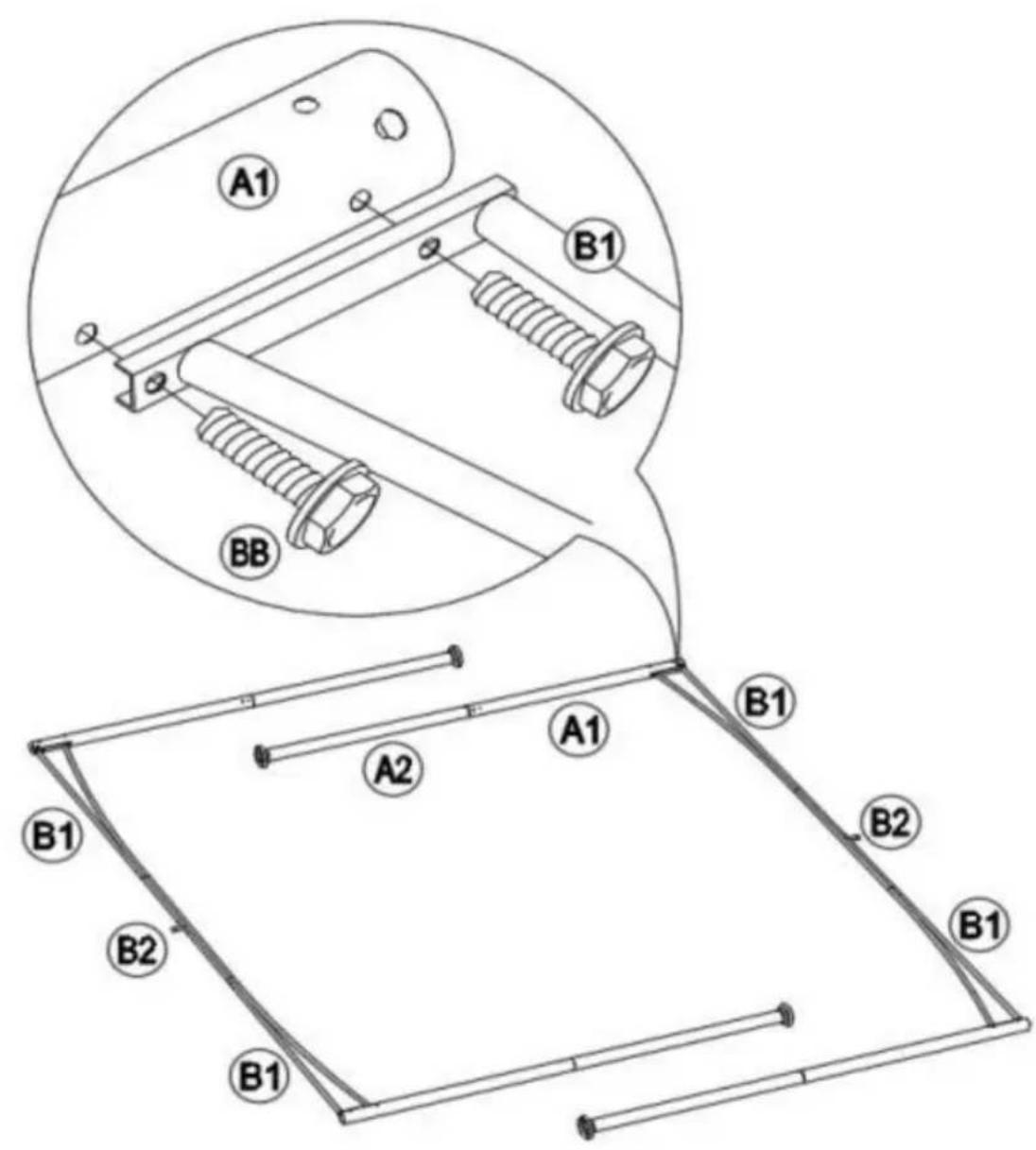

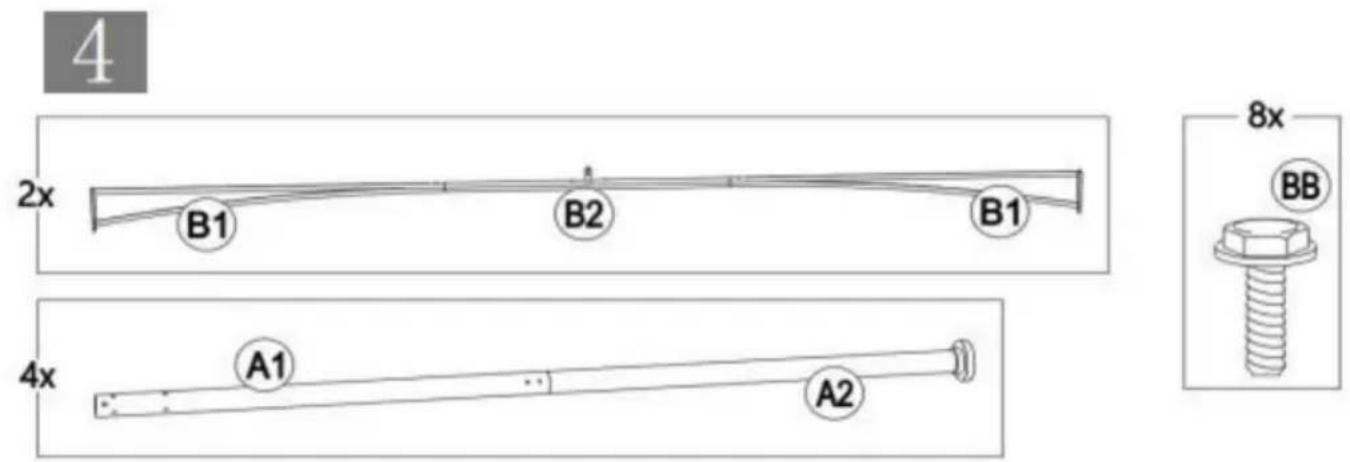

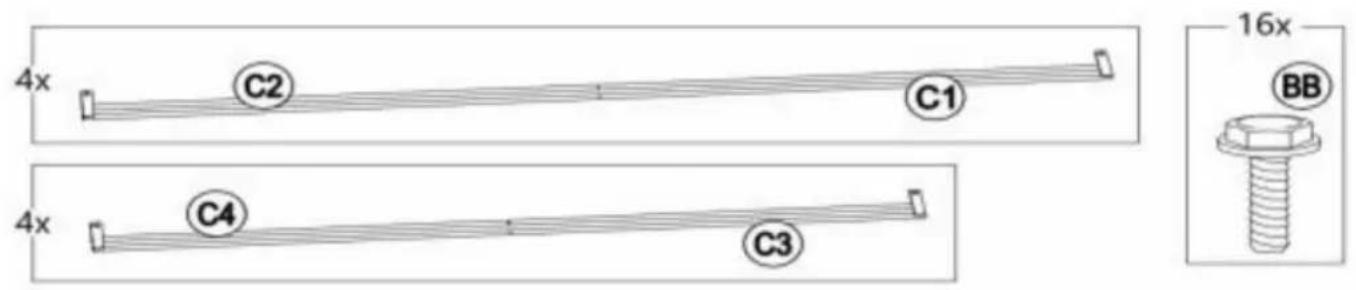

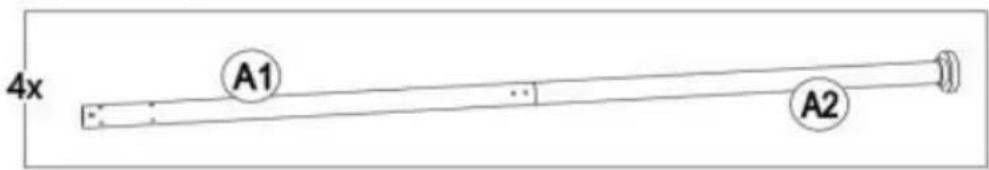

4

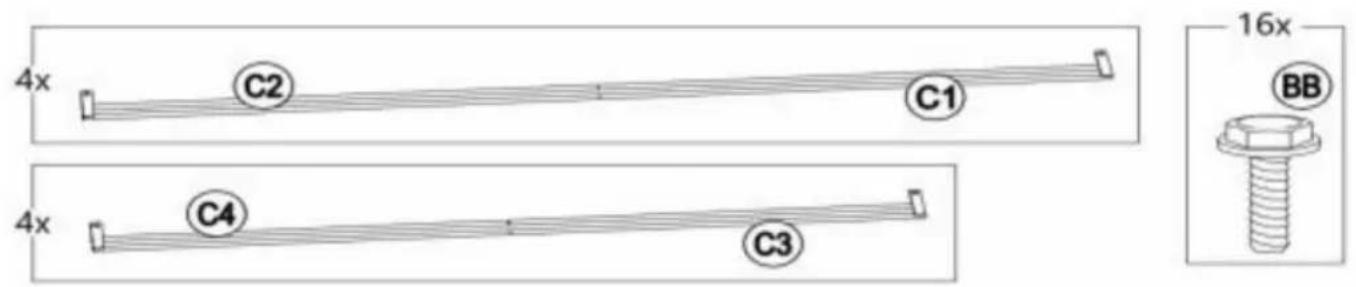

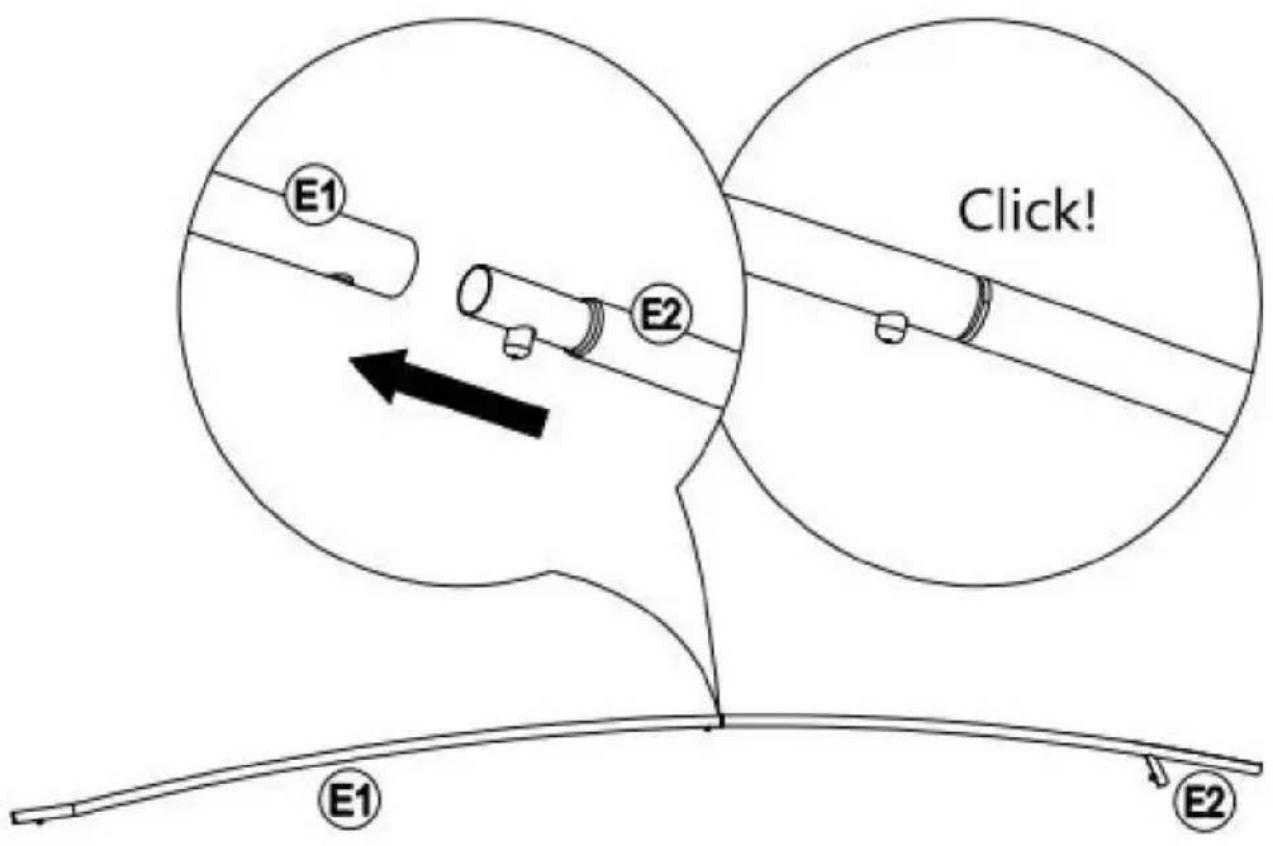

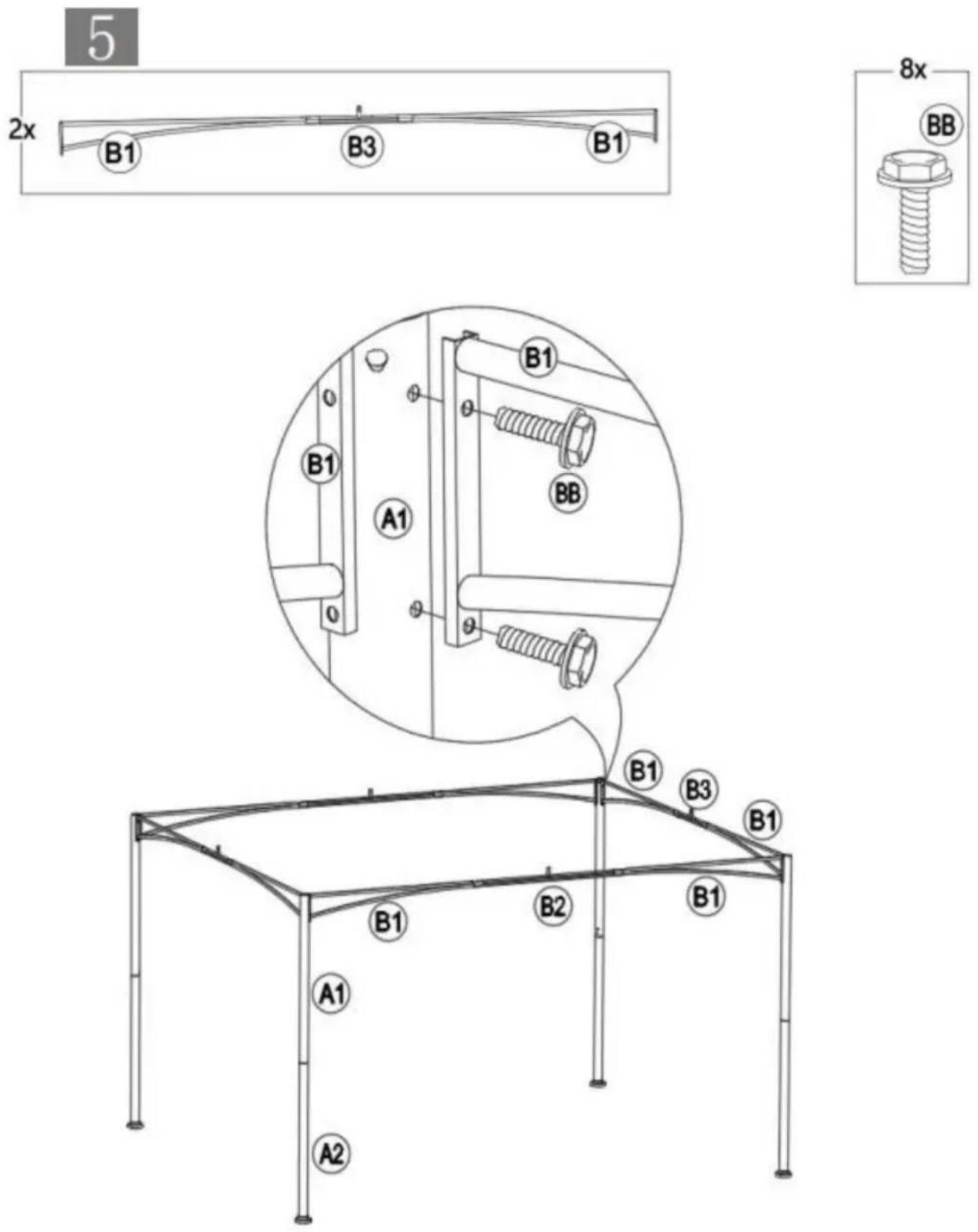

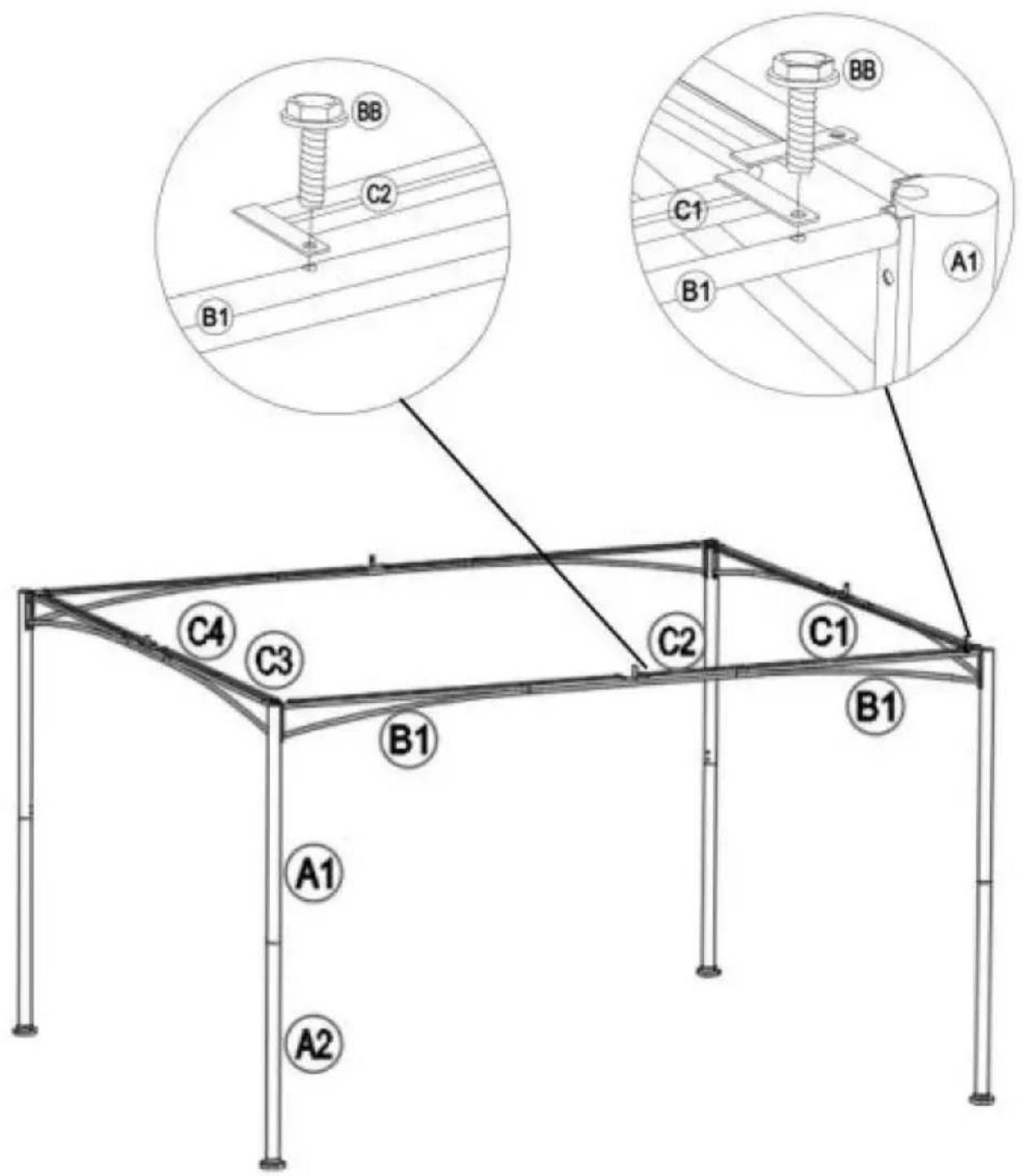

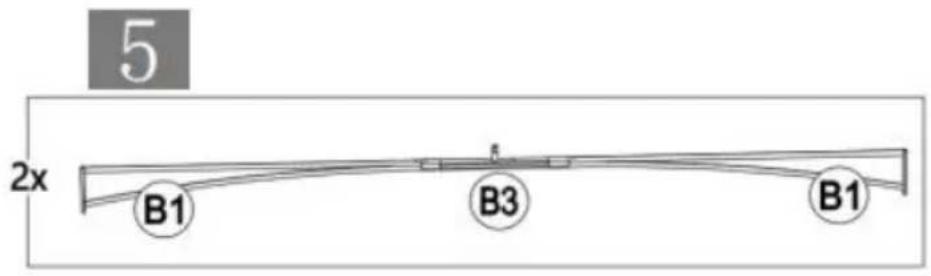

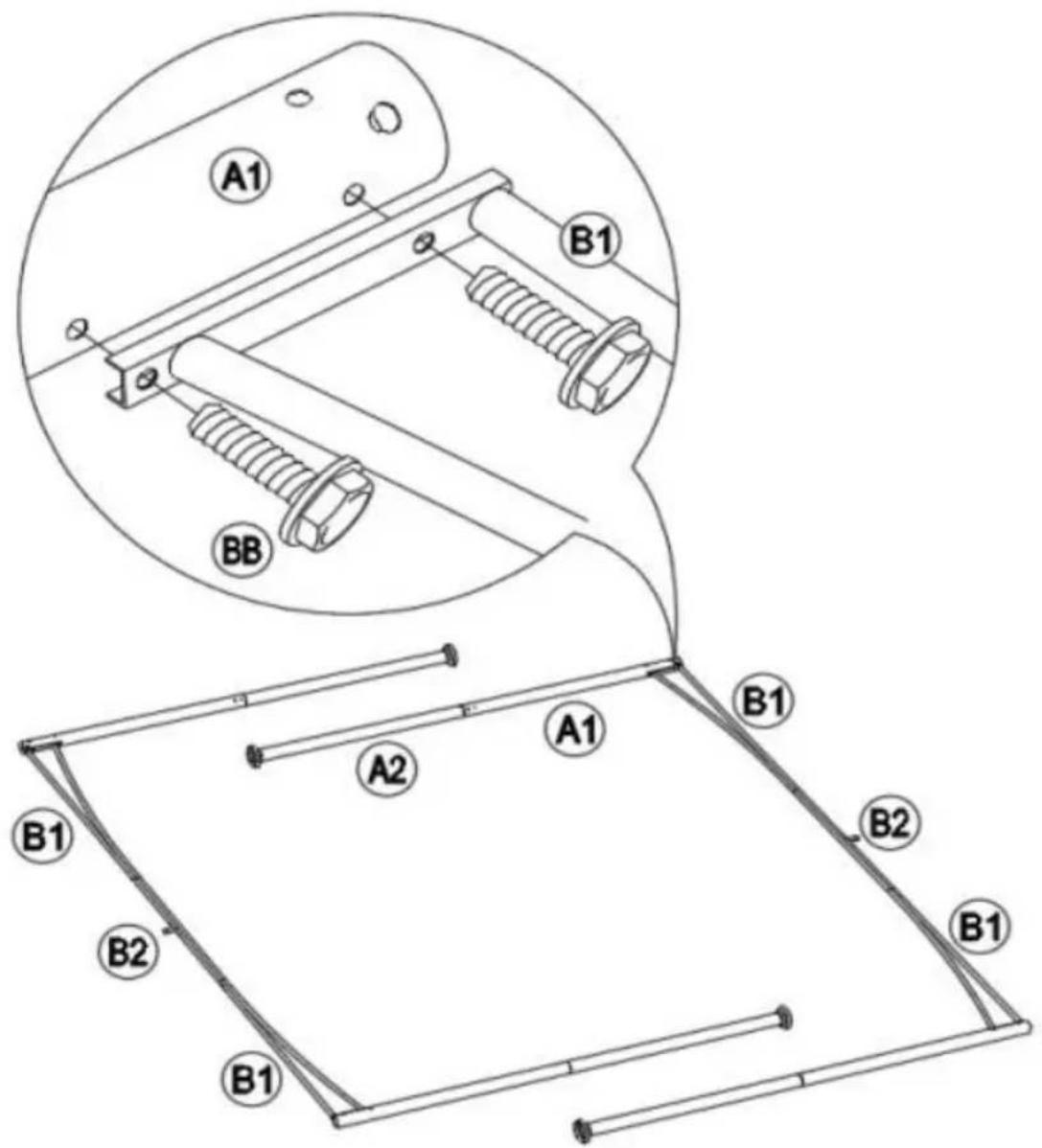

6

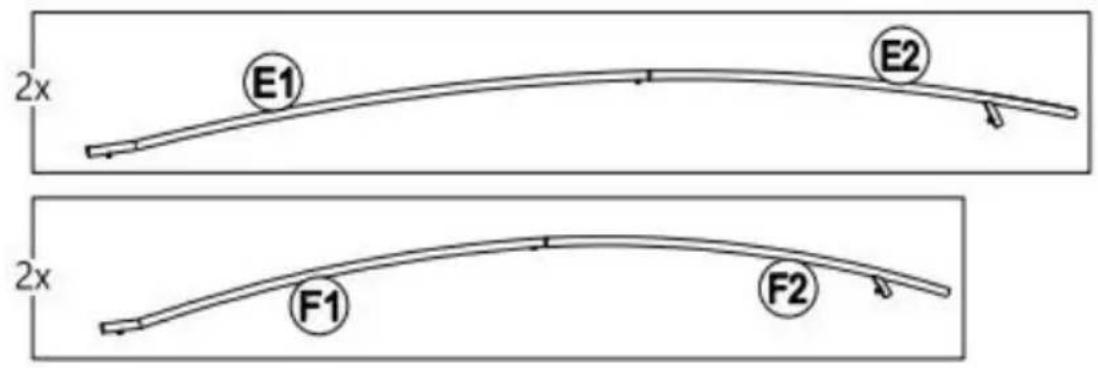

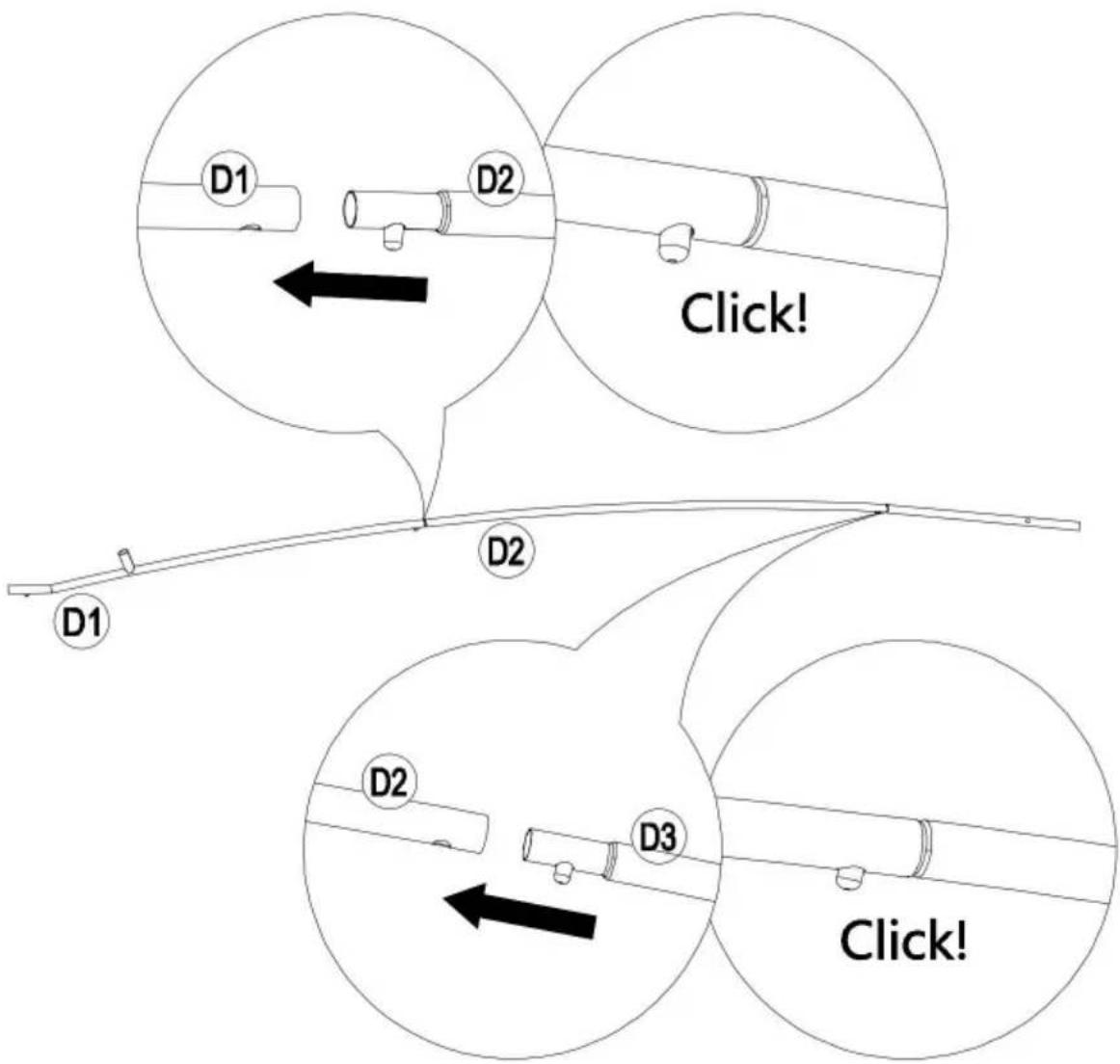

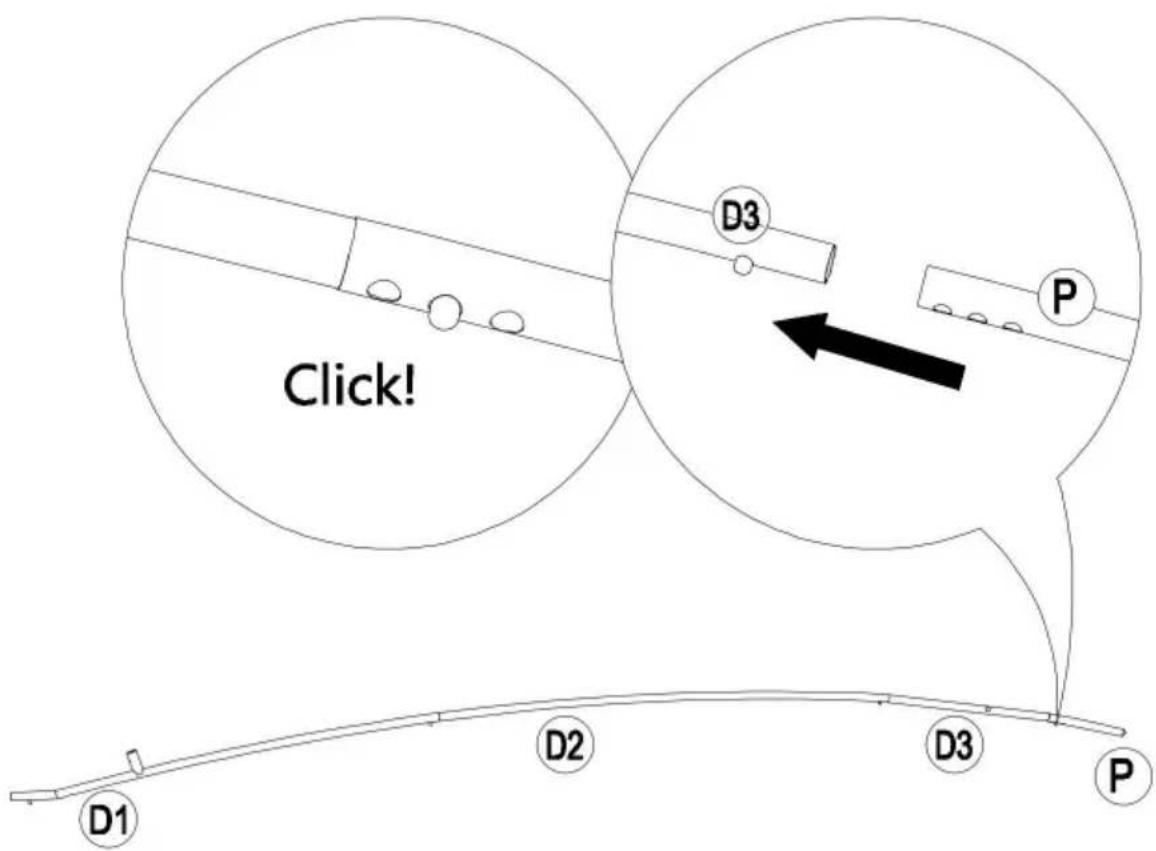

7

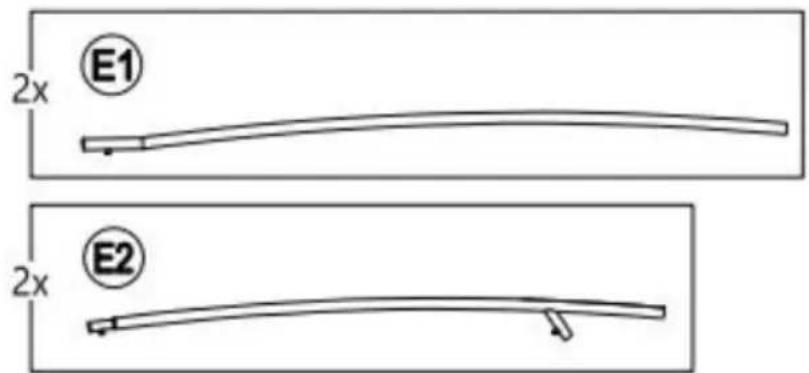

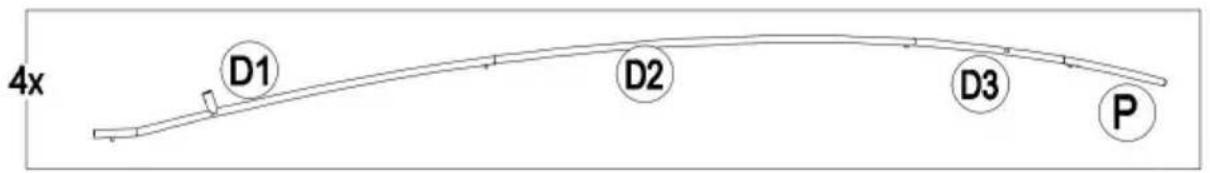

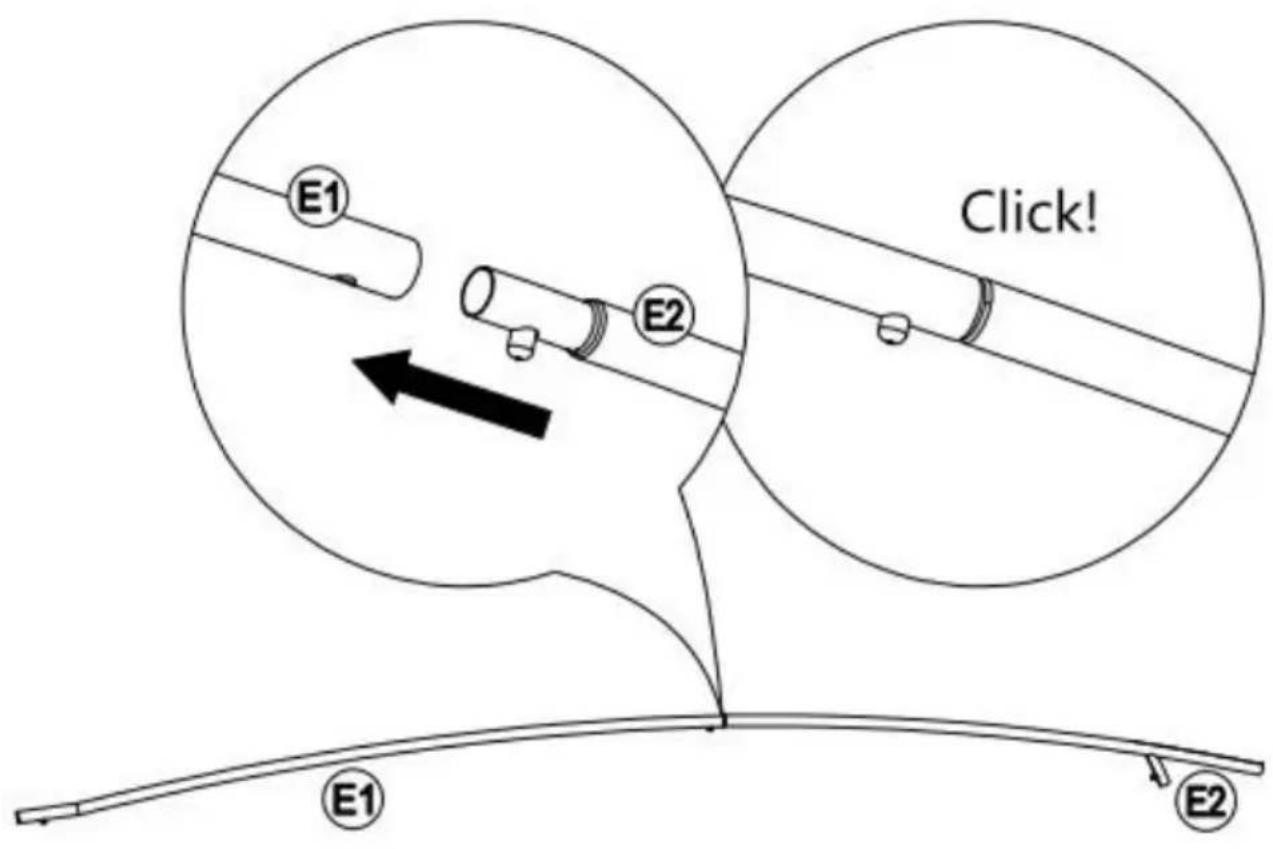

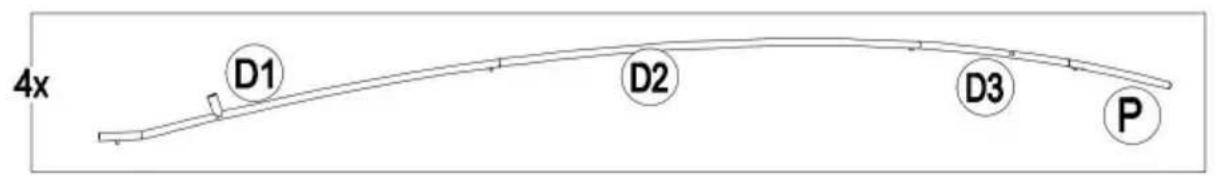

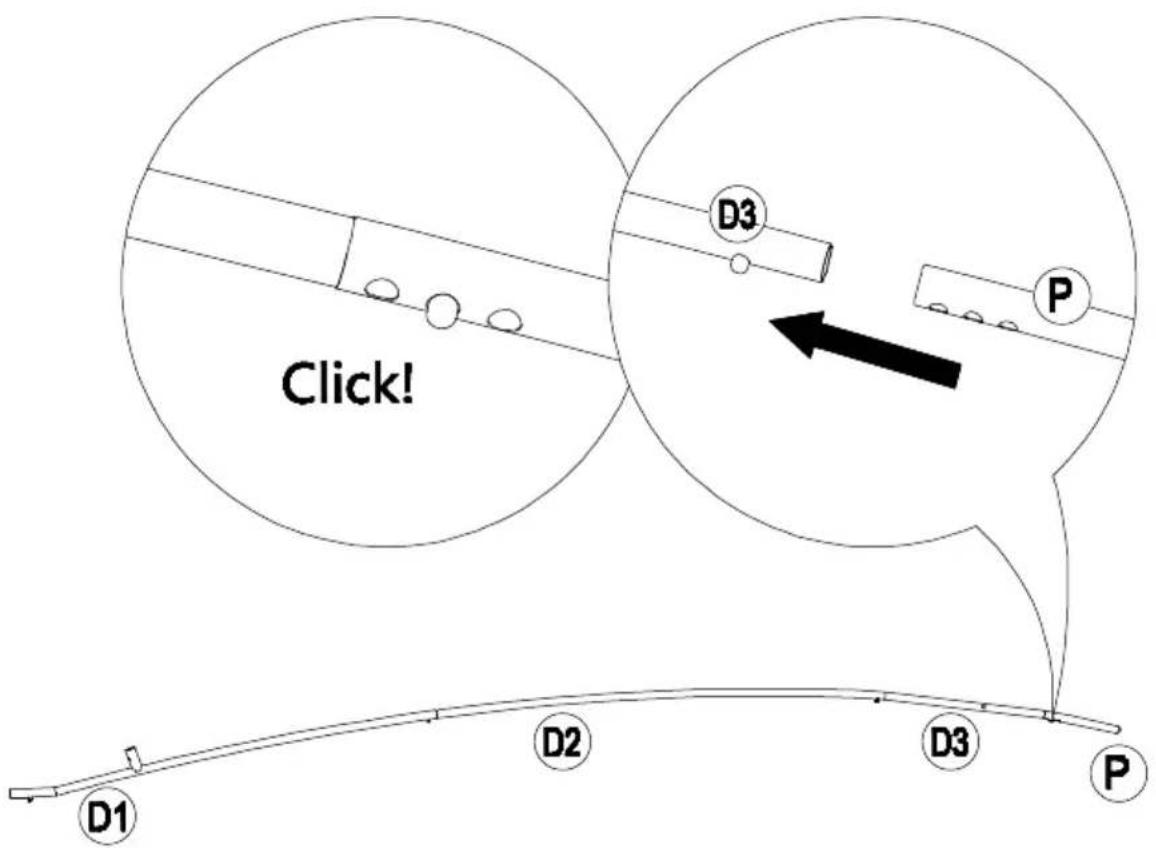

9

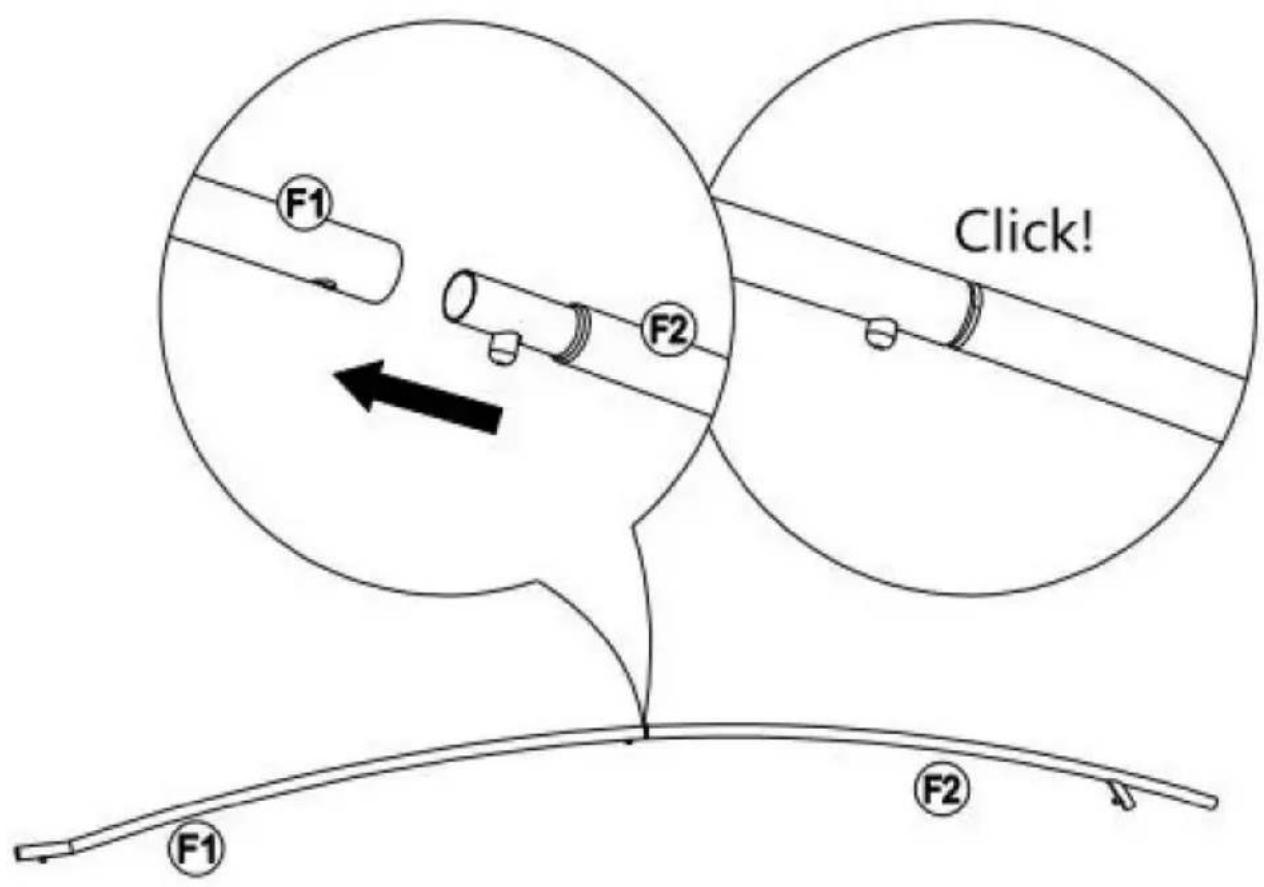

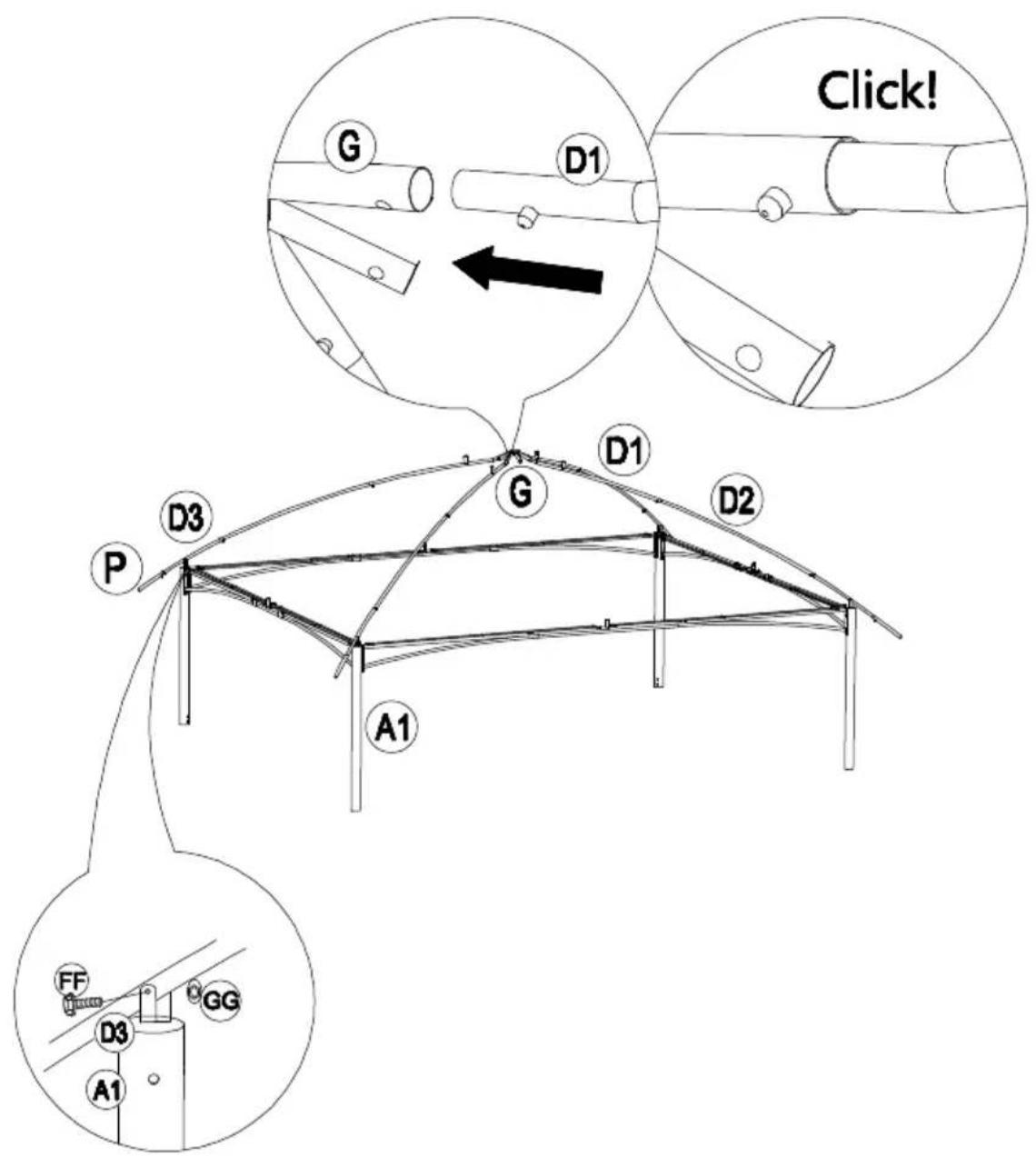

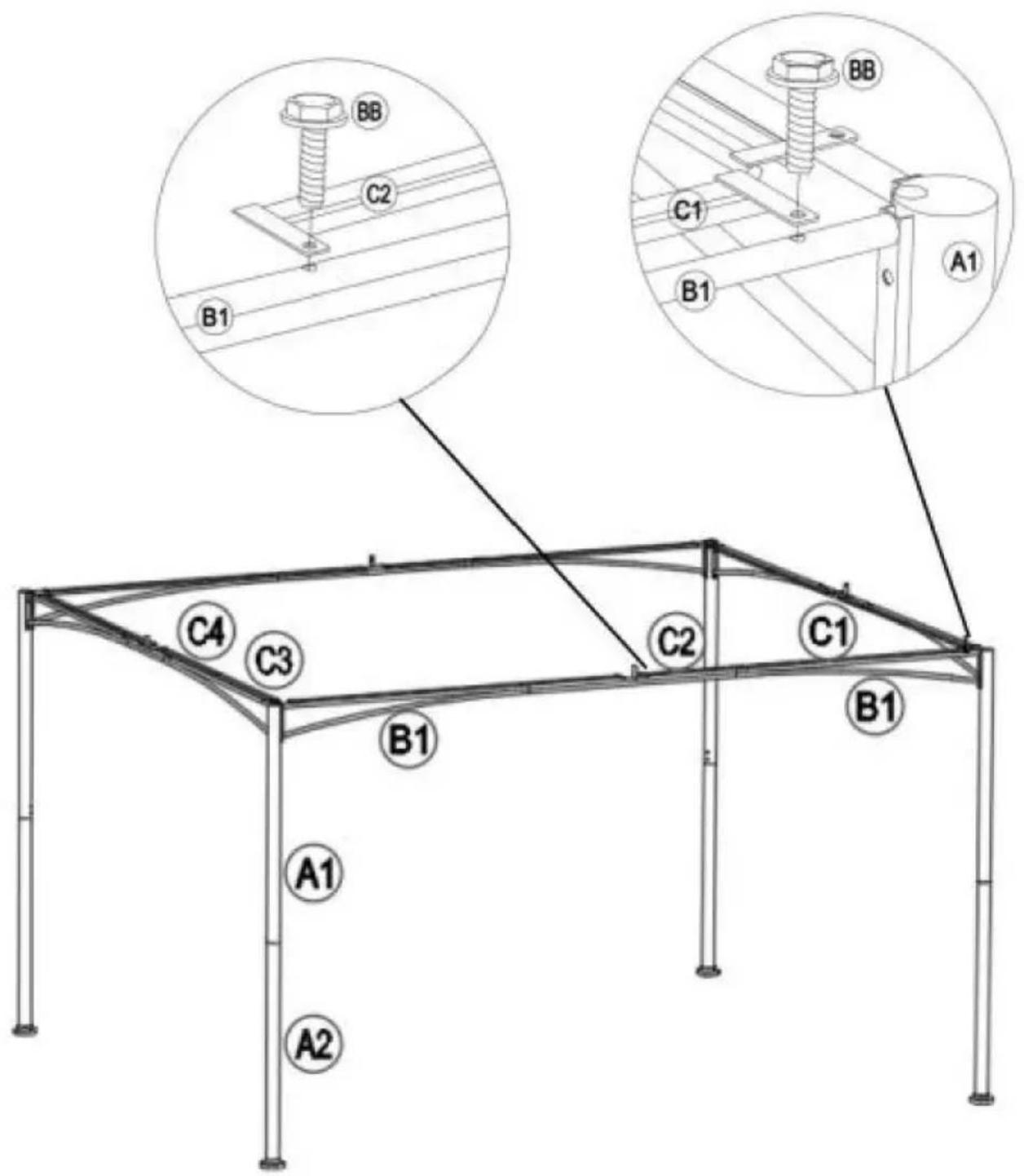

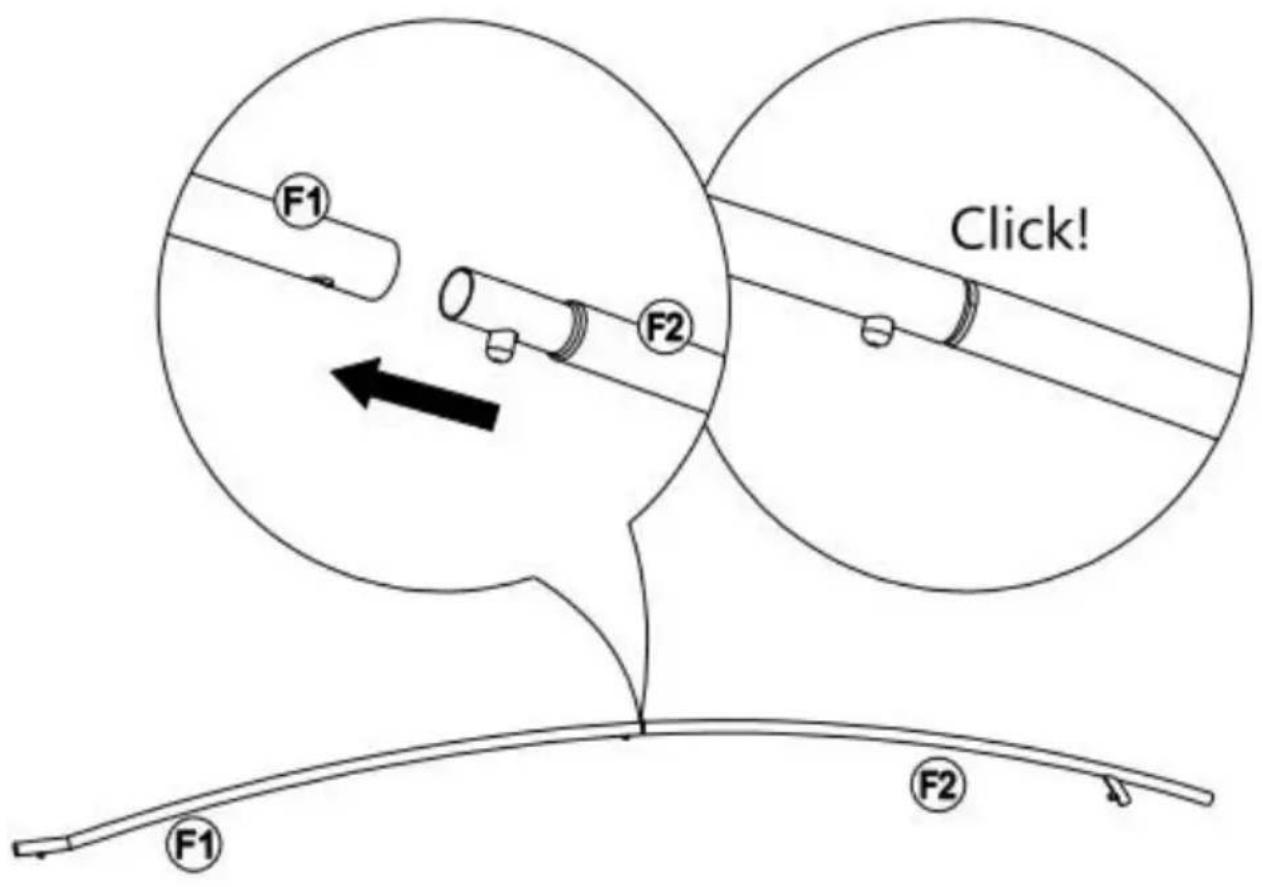

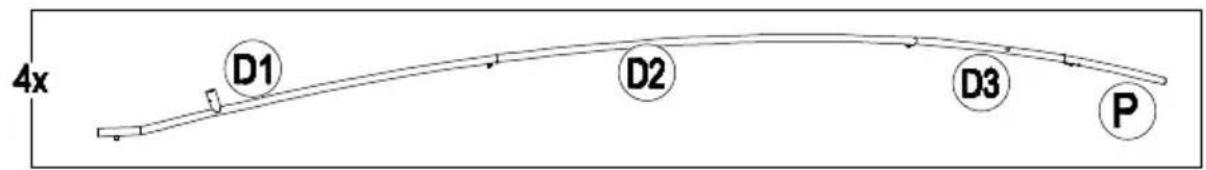

10

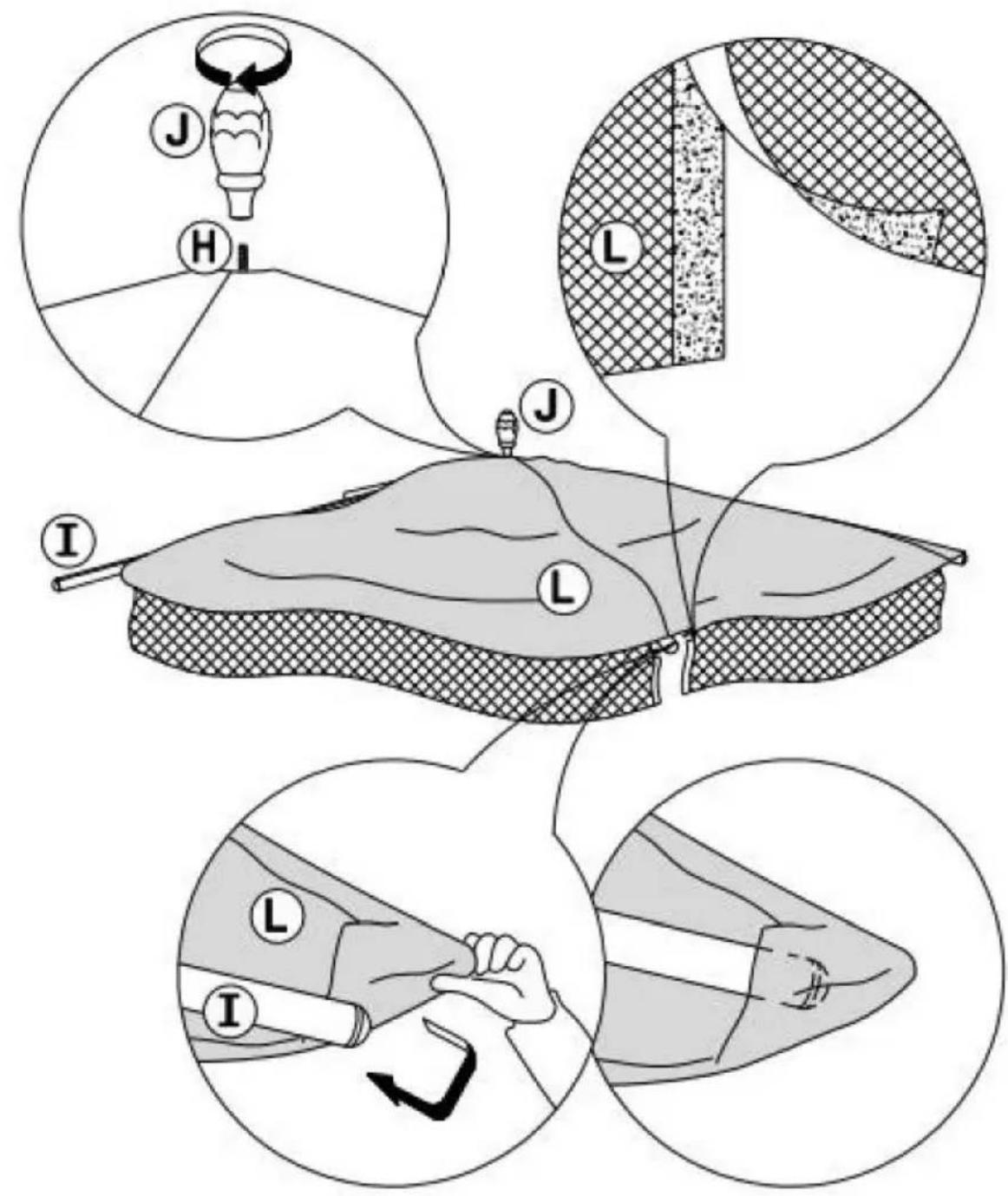

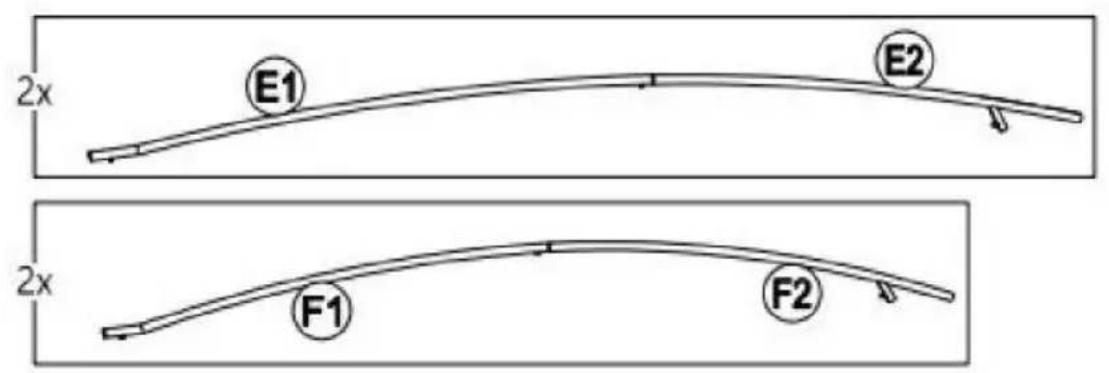

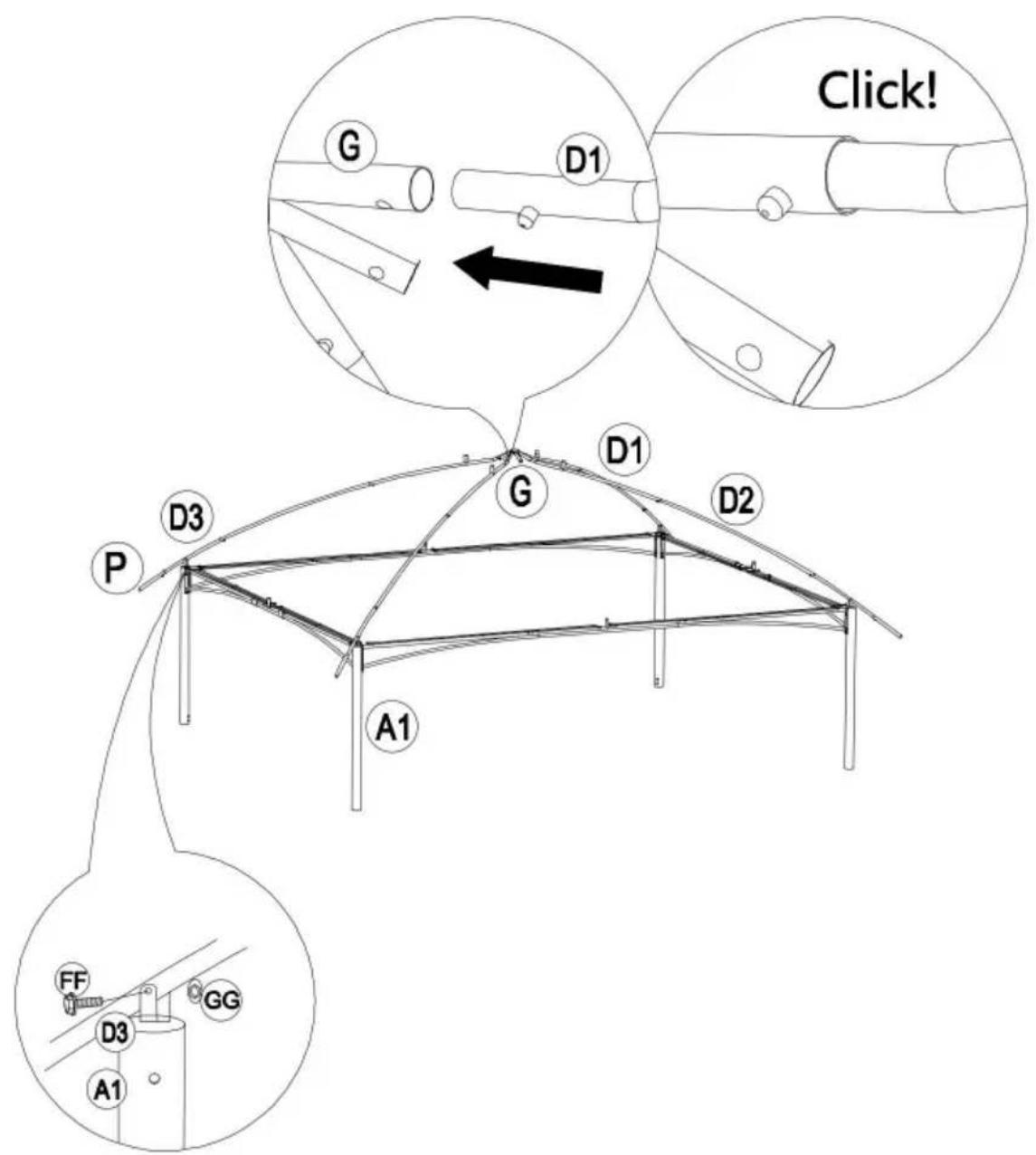

11

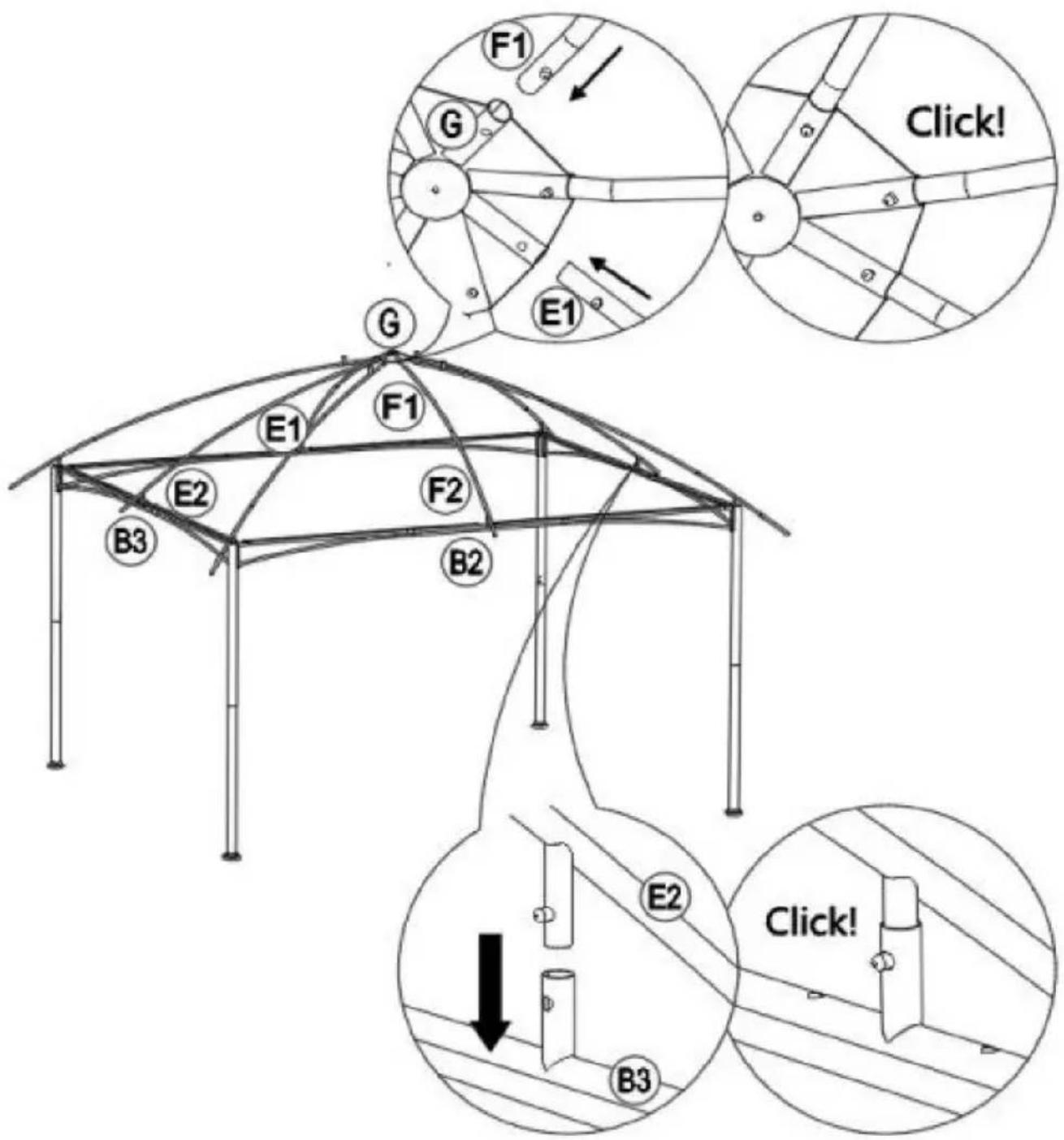

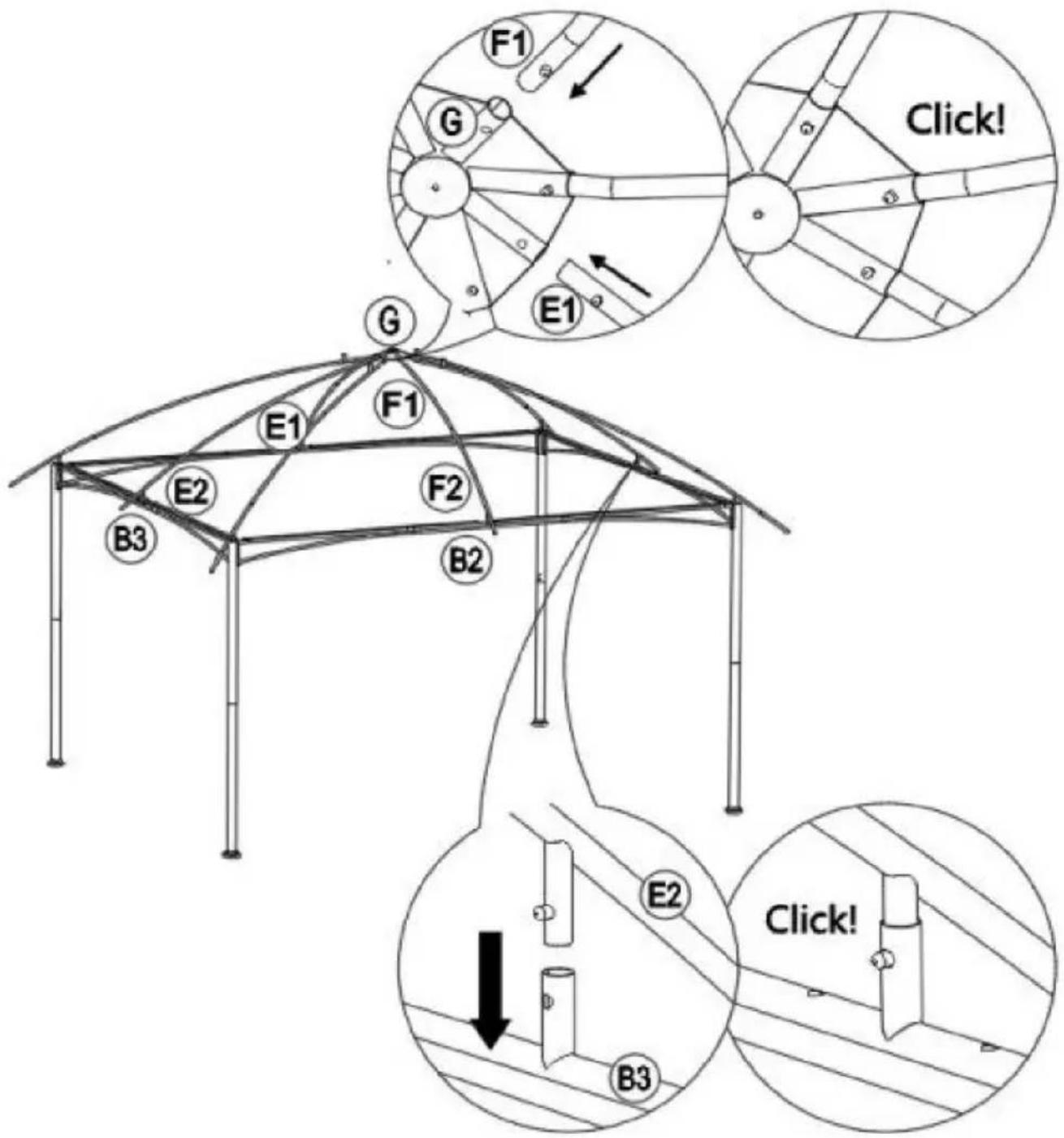

12

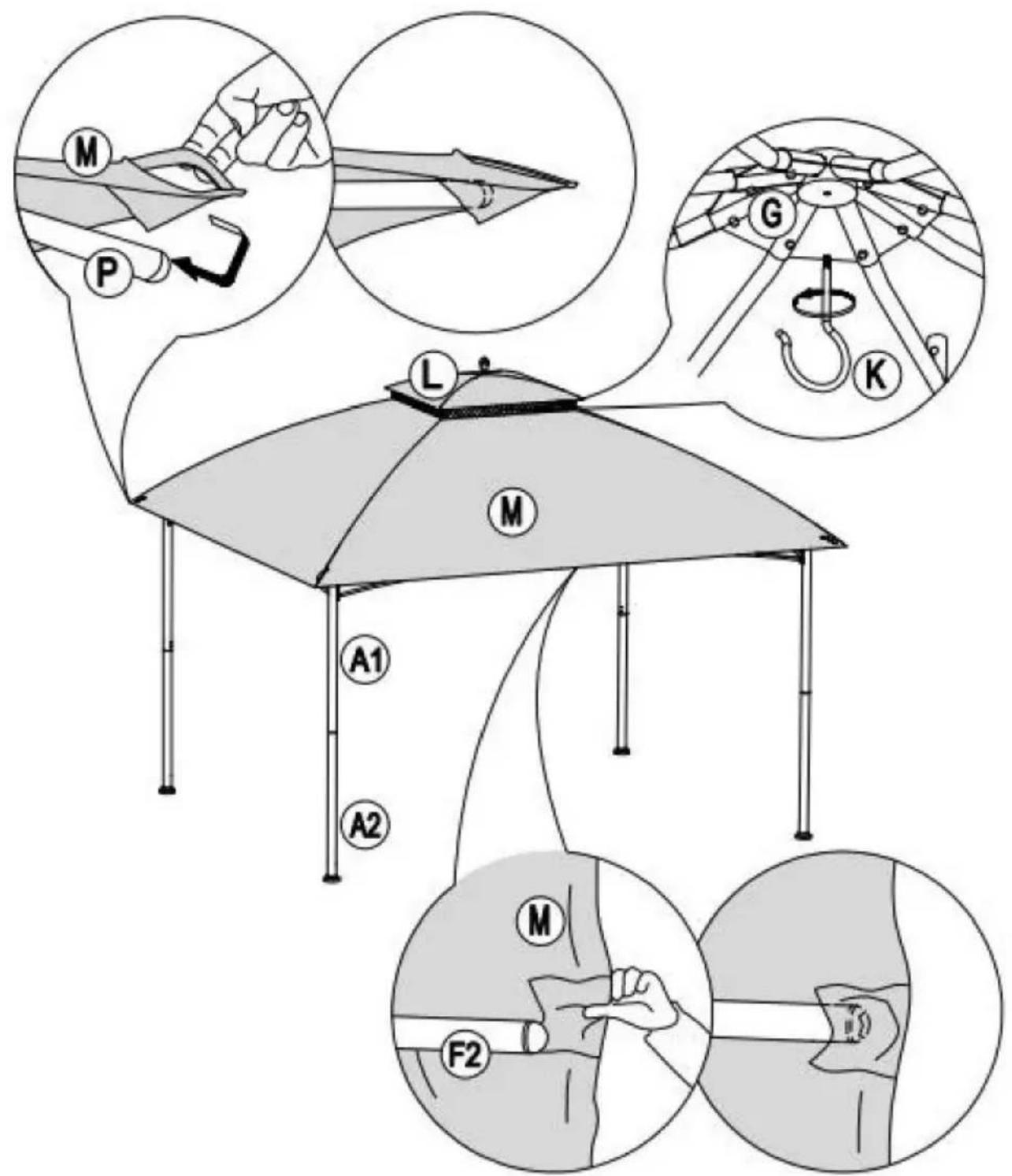

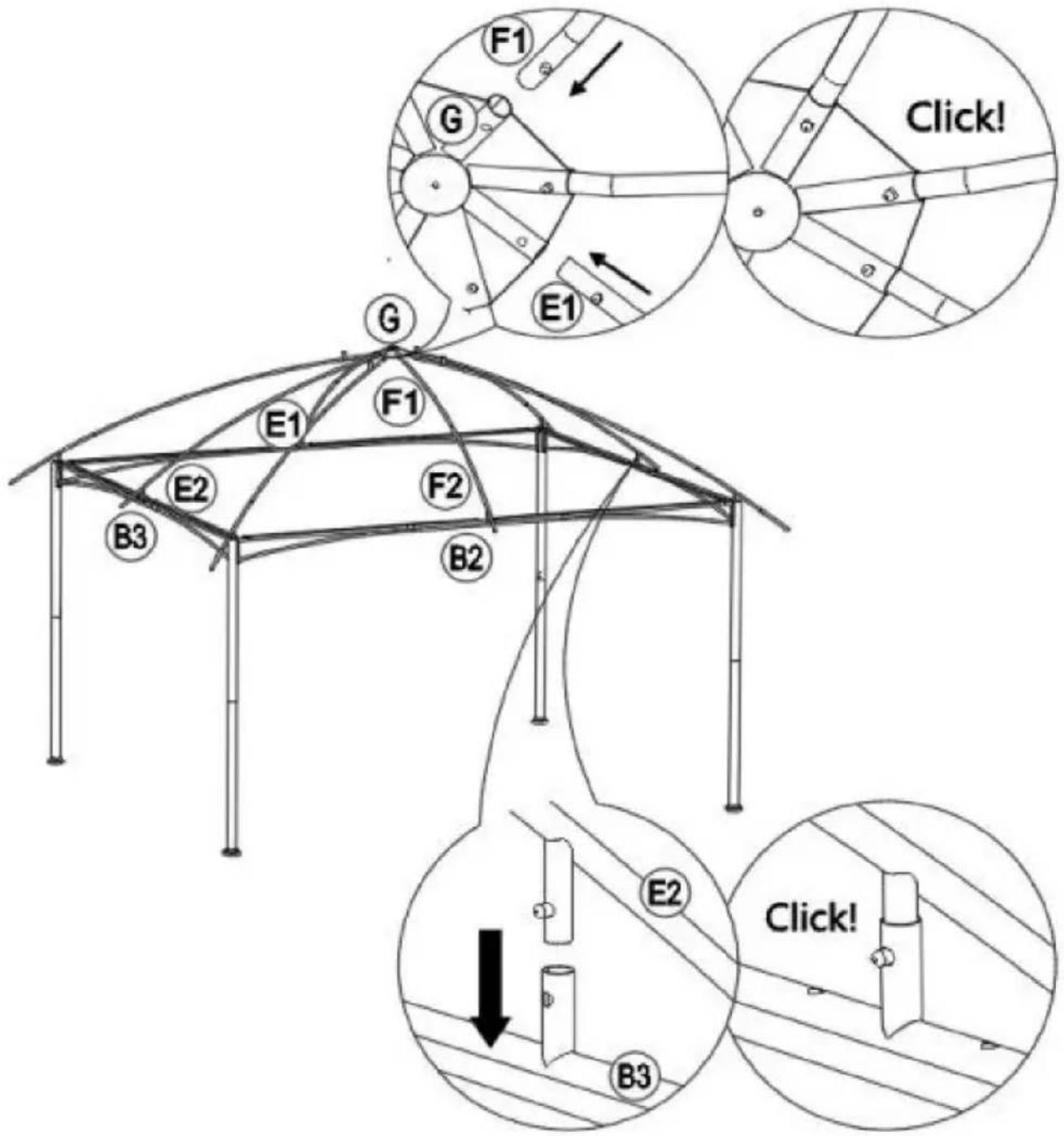

13

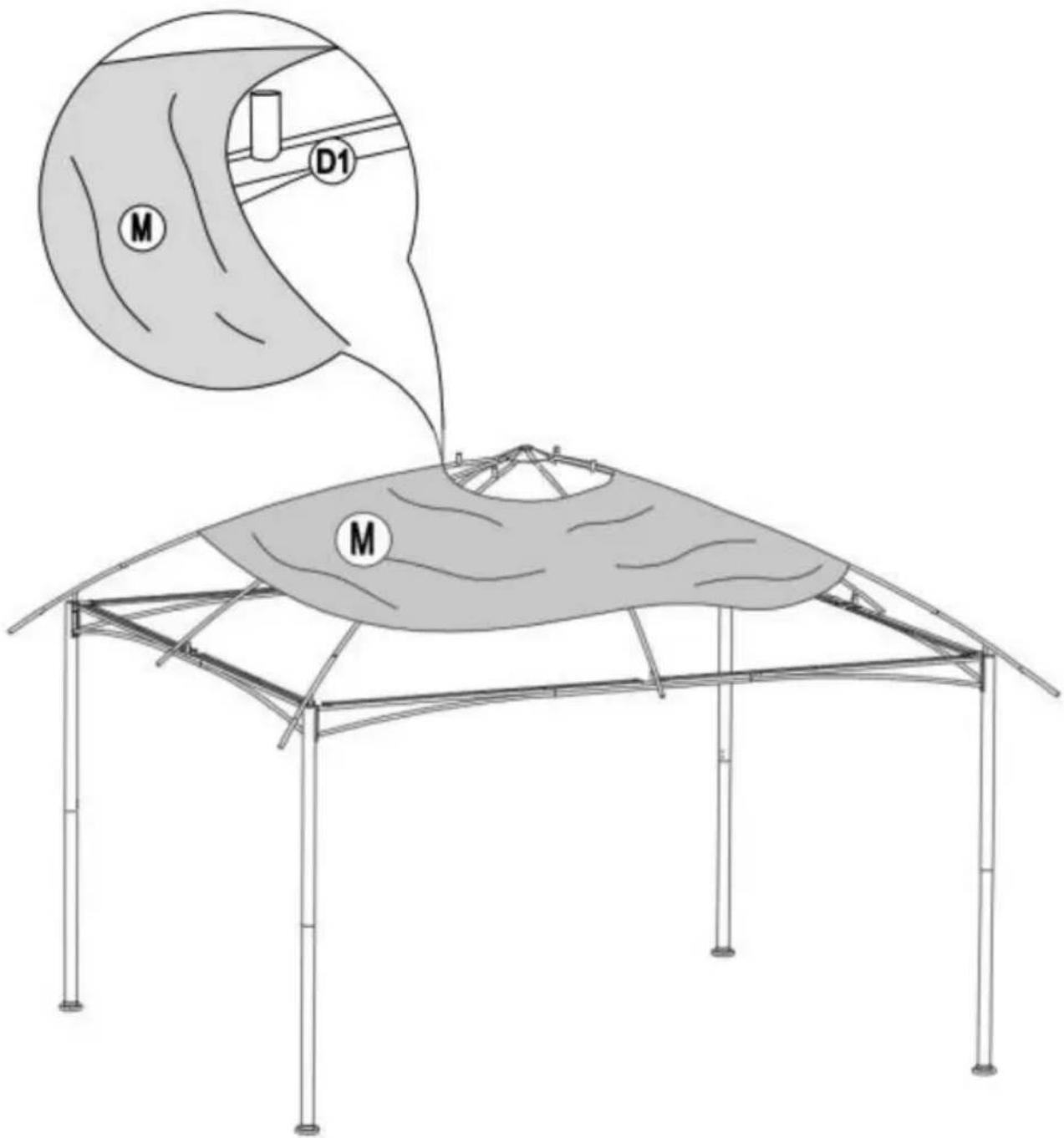

14

Simple line drawing of a closed book with a bookmark, labeled 'M' and marked with '1x' (no text or symbols on the book itself)

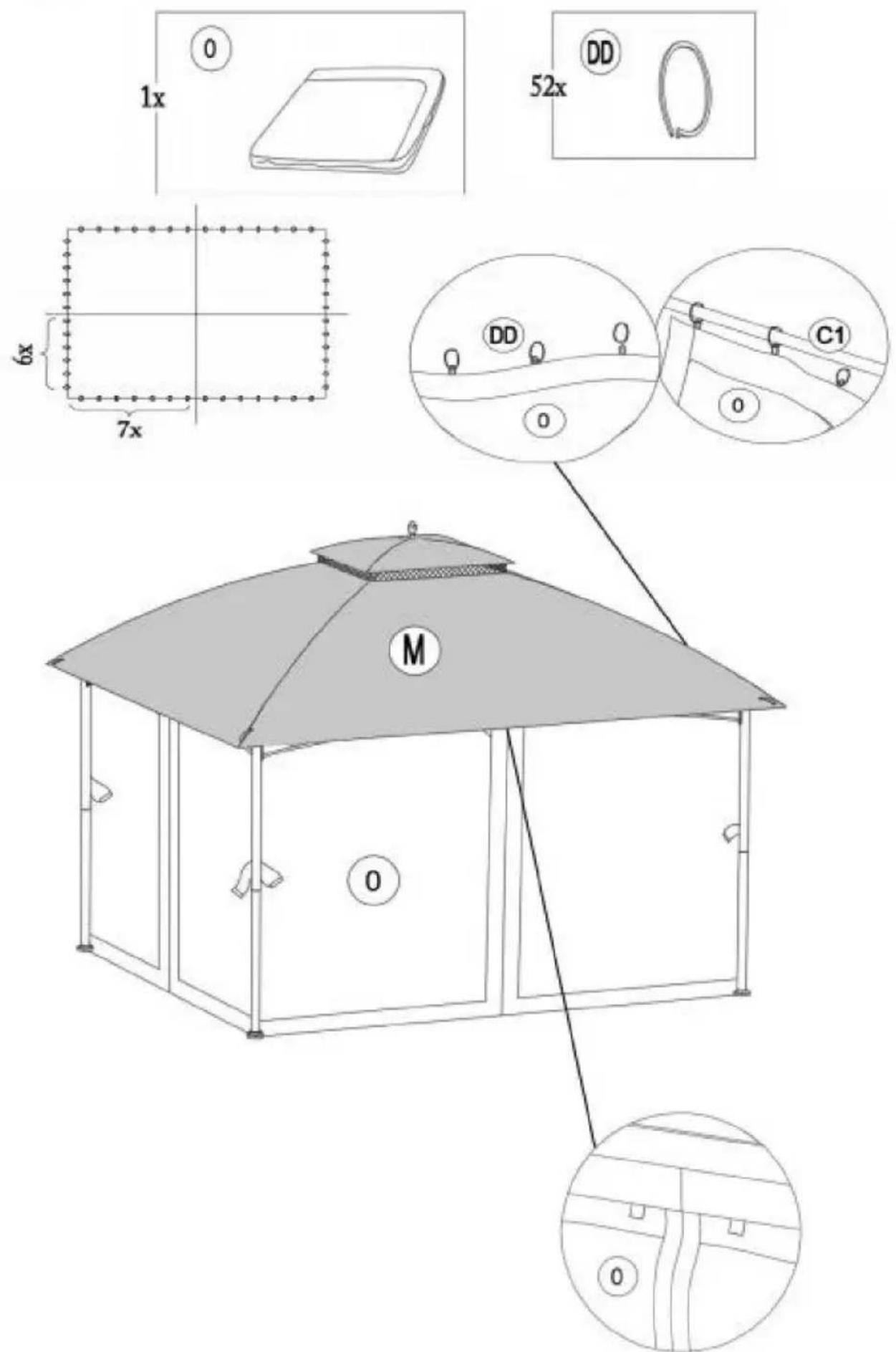

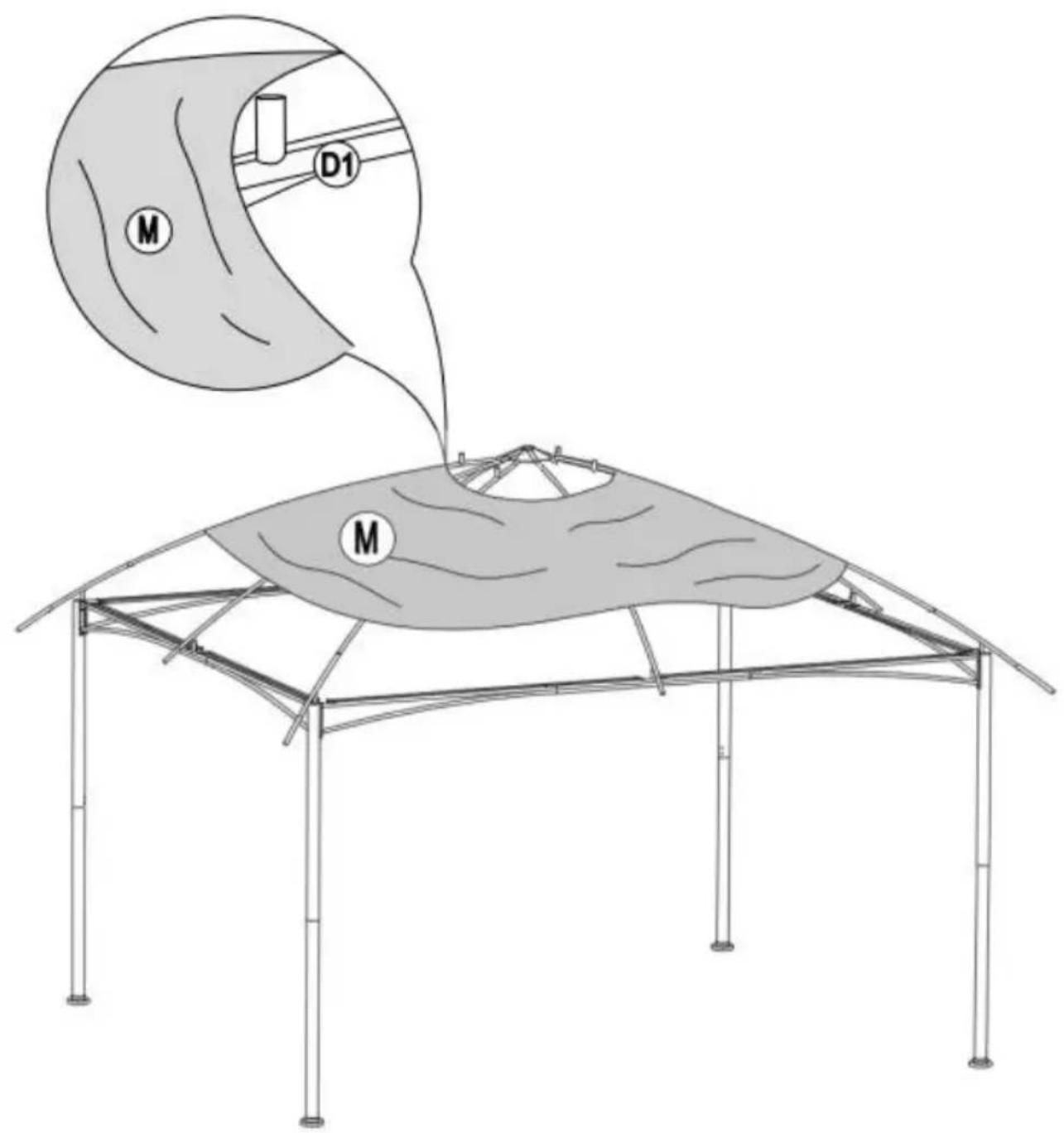

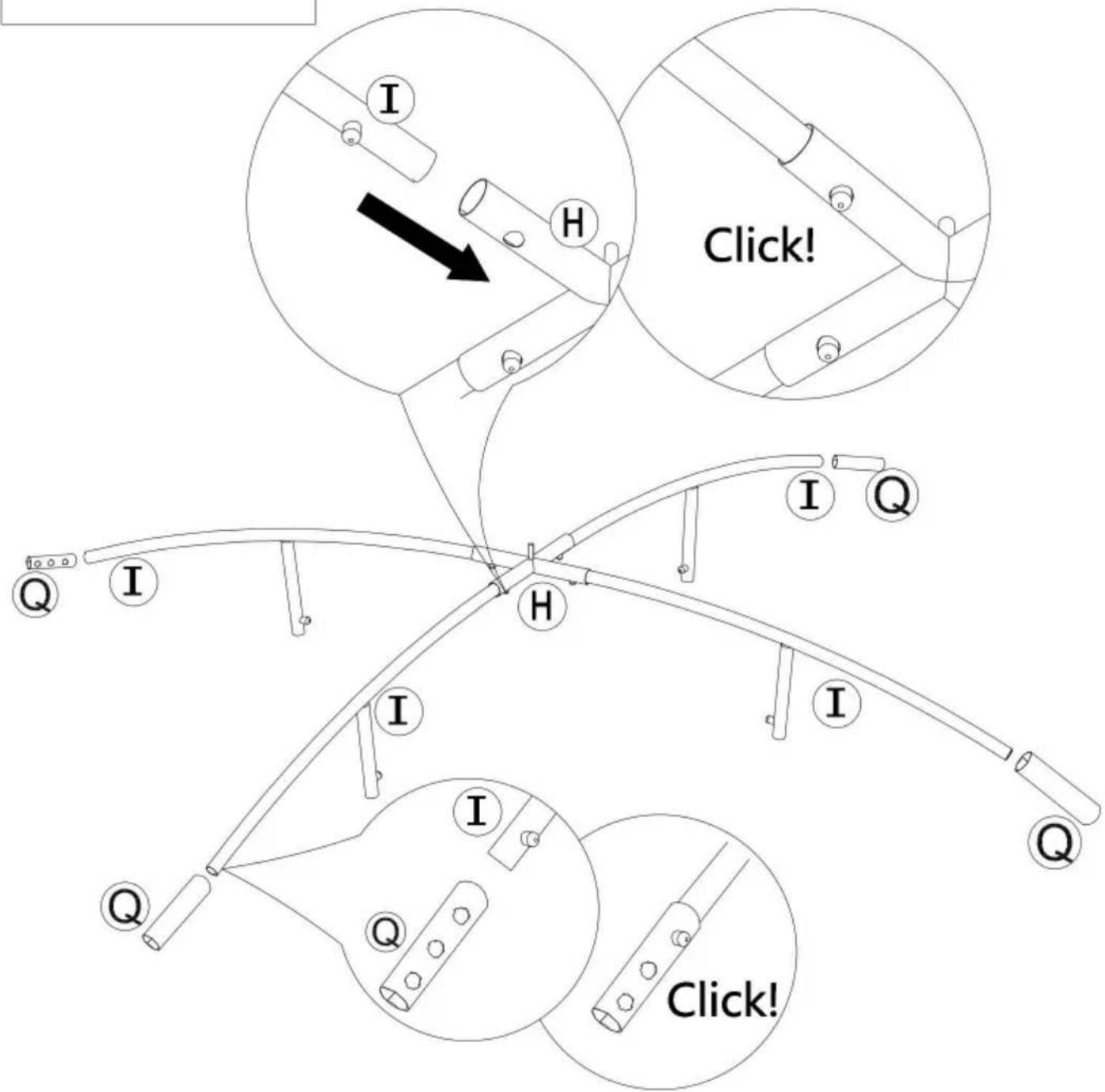

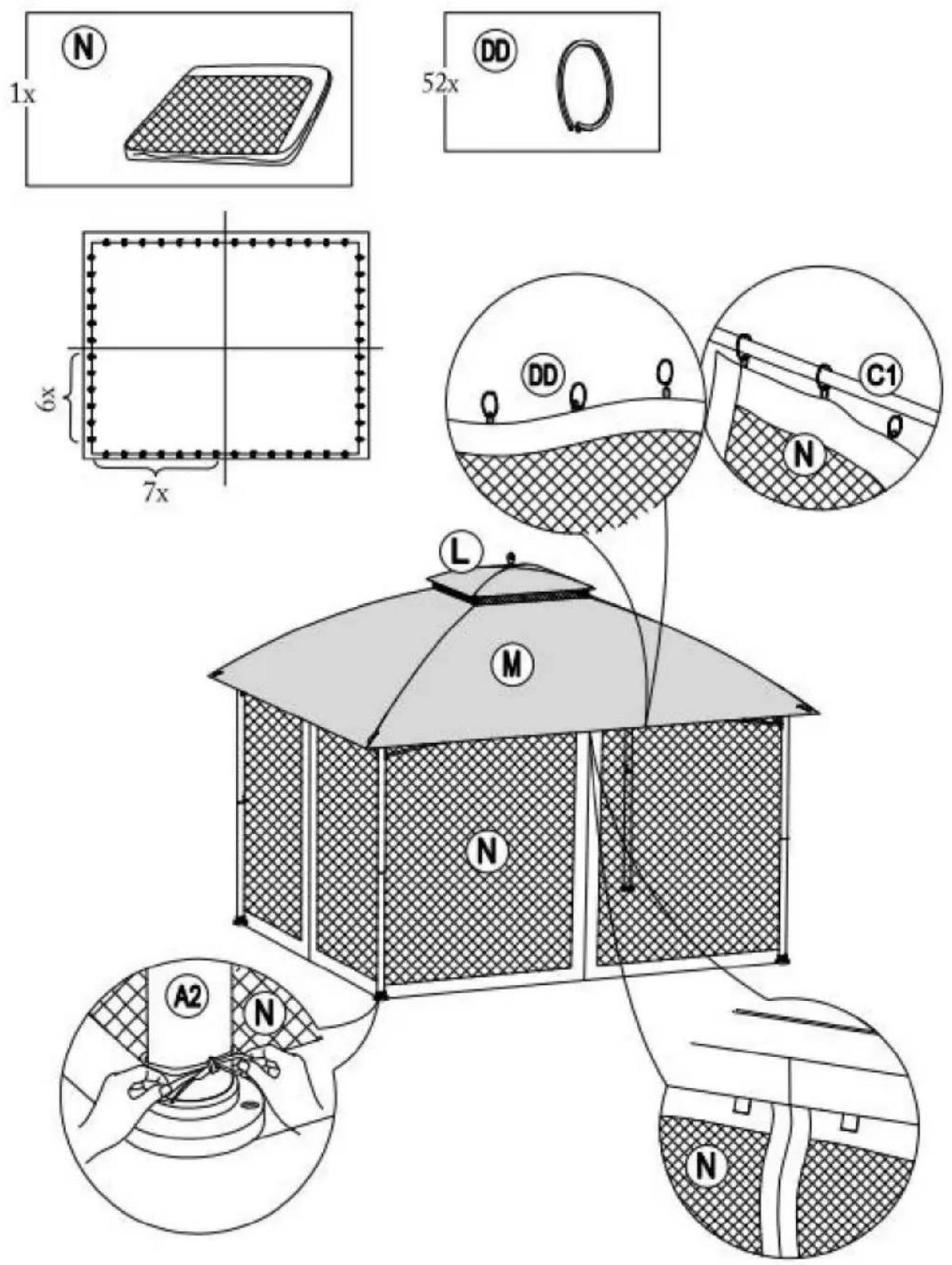

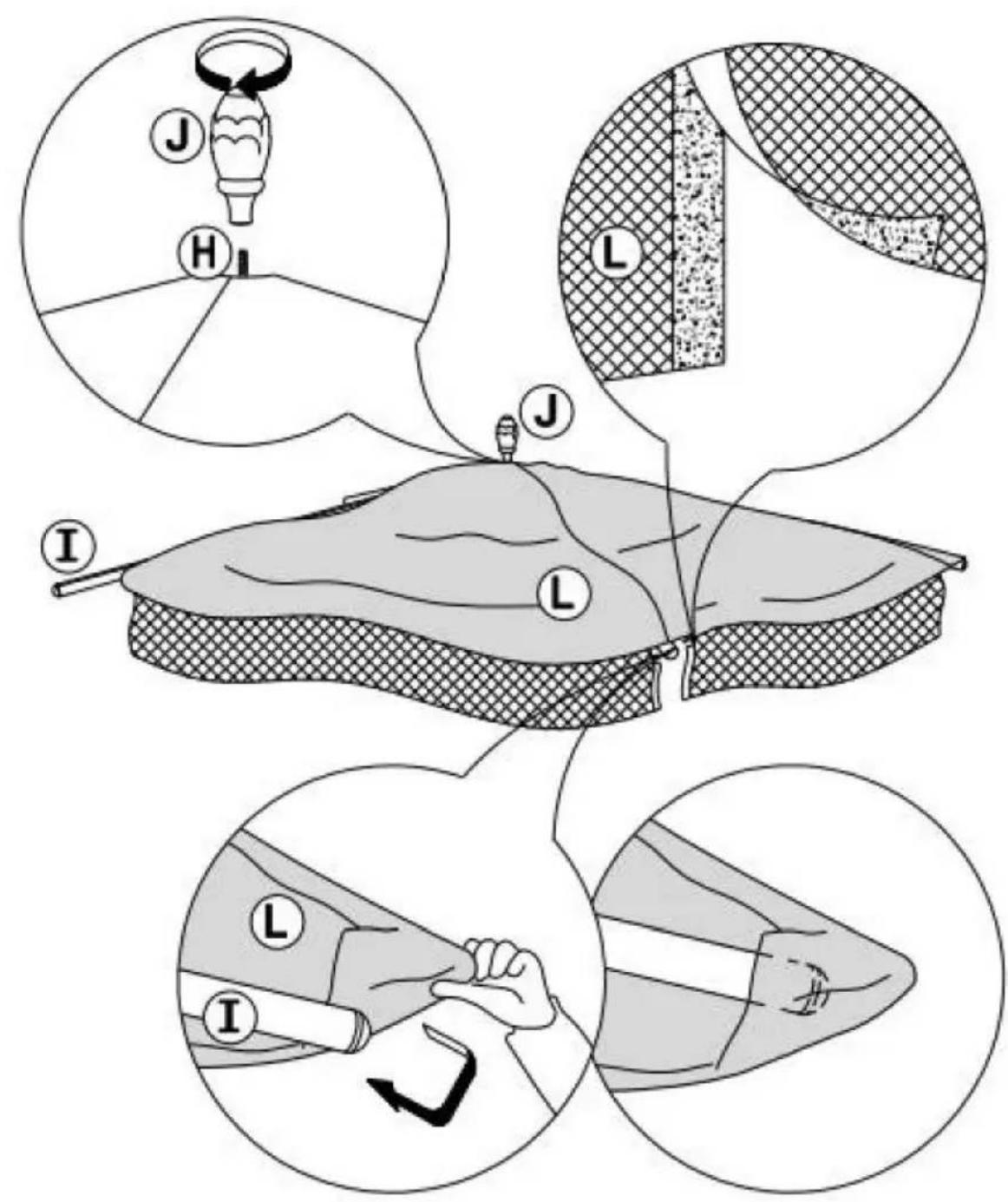

15

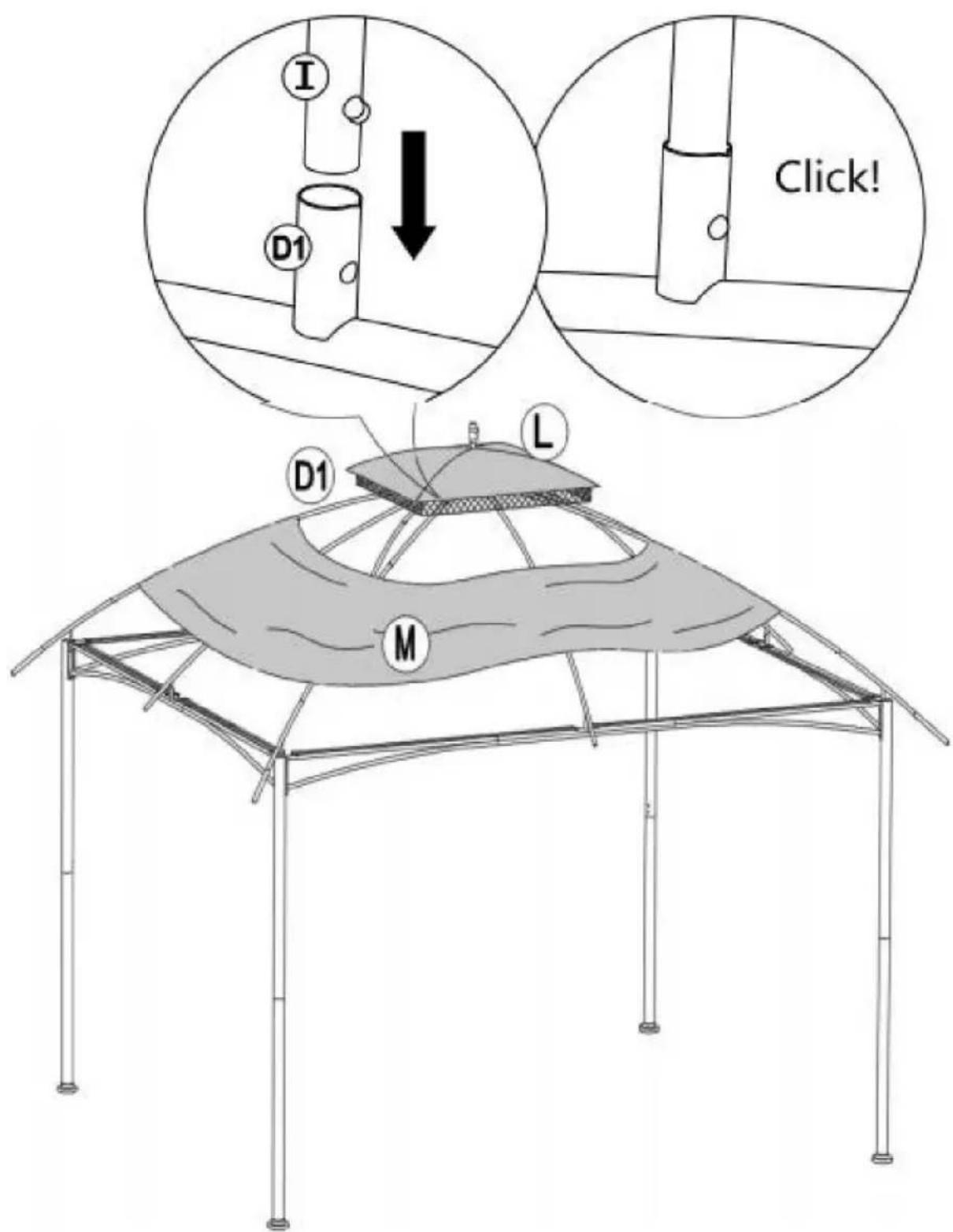

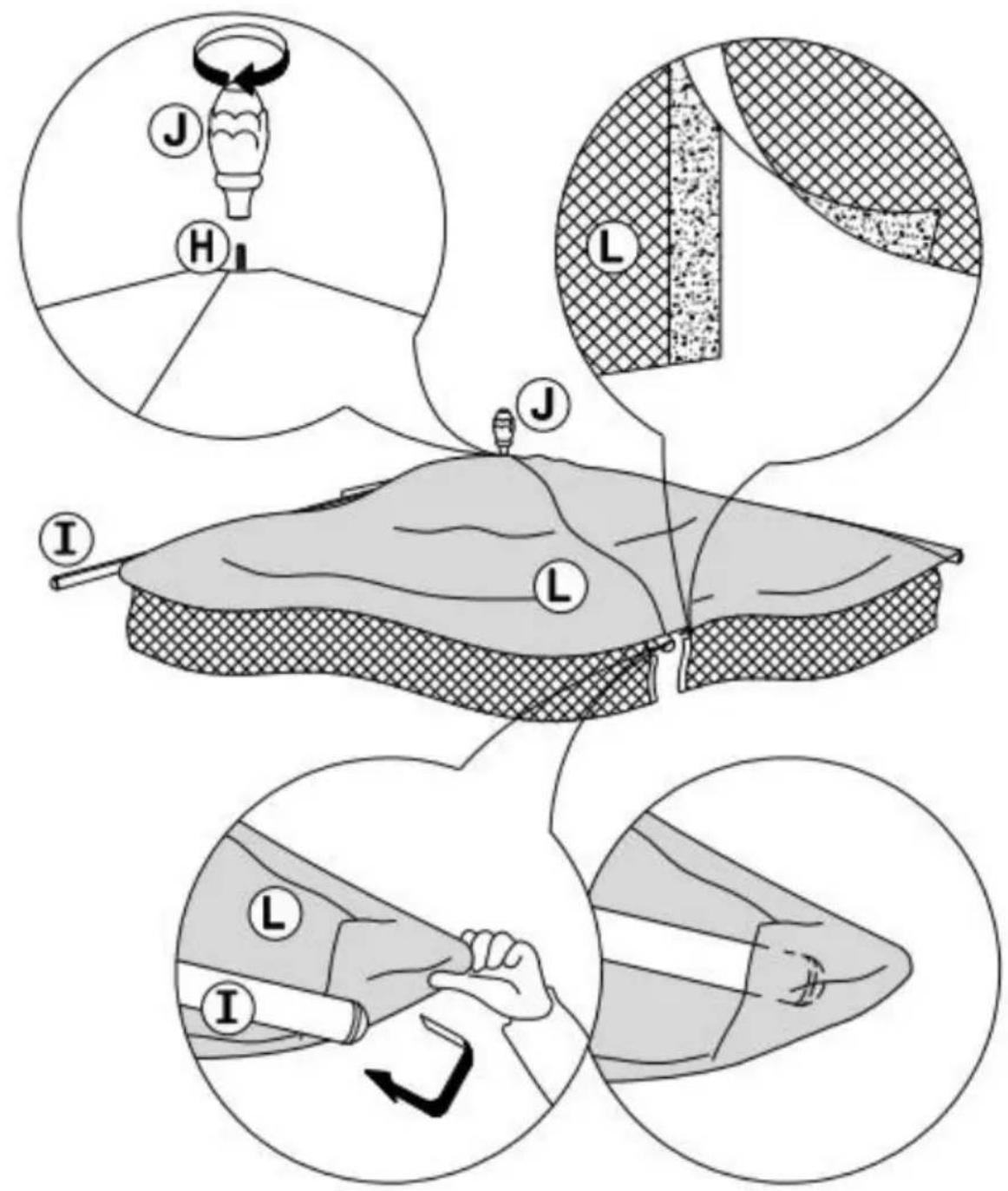

16

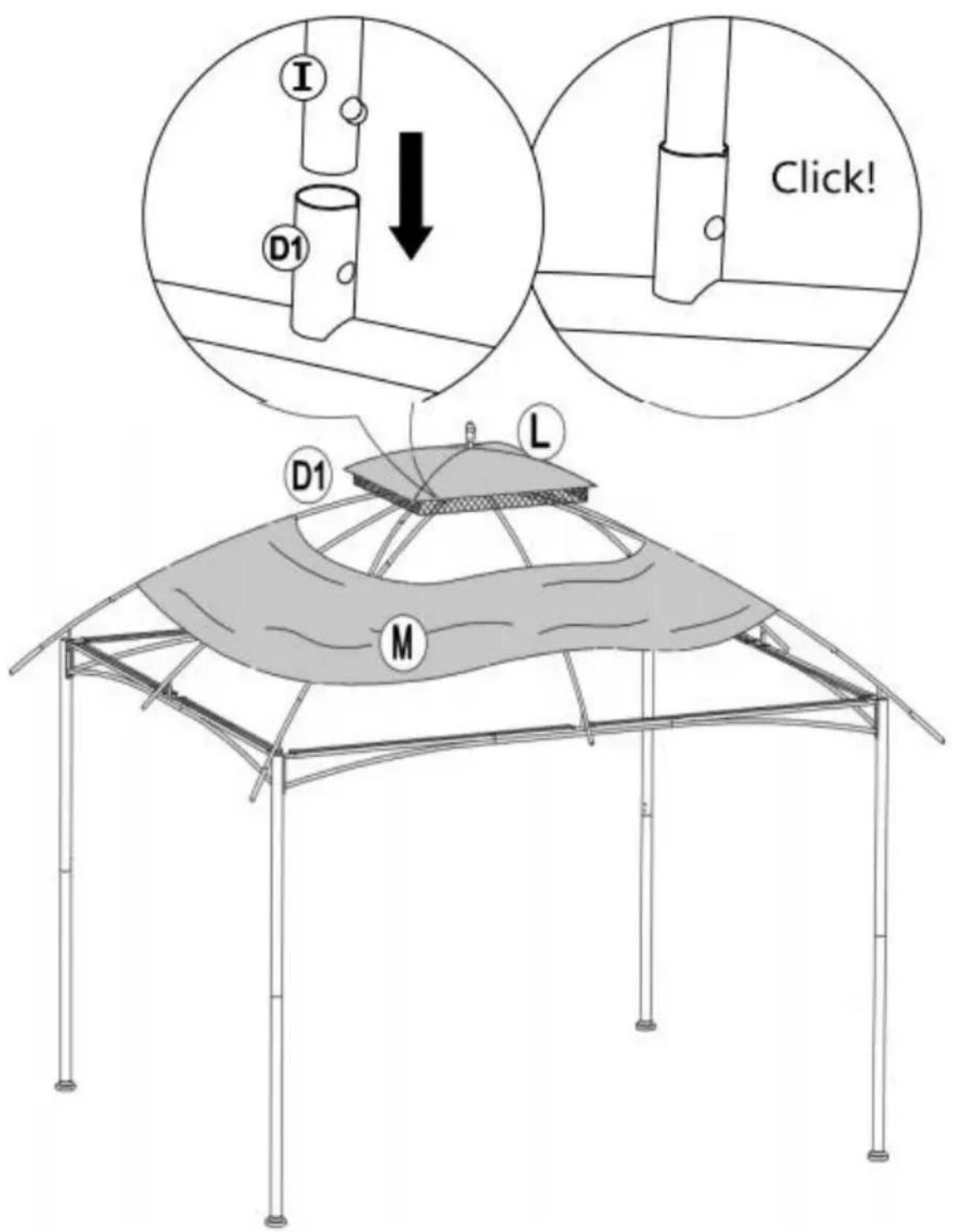

17

18

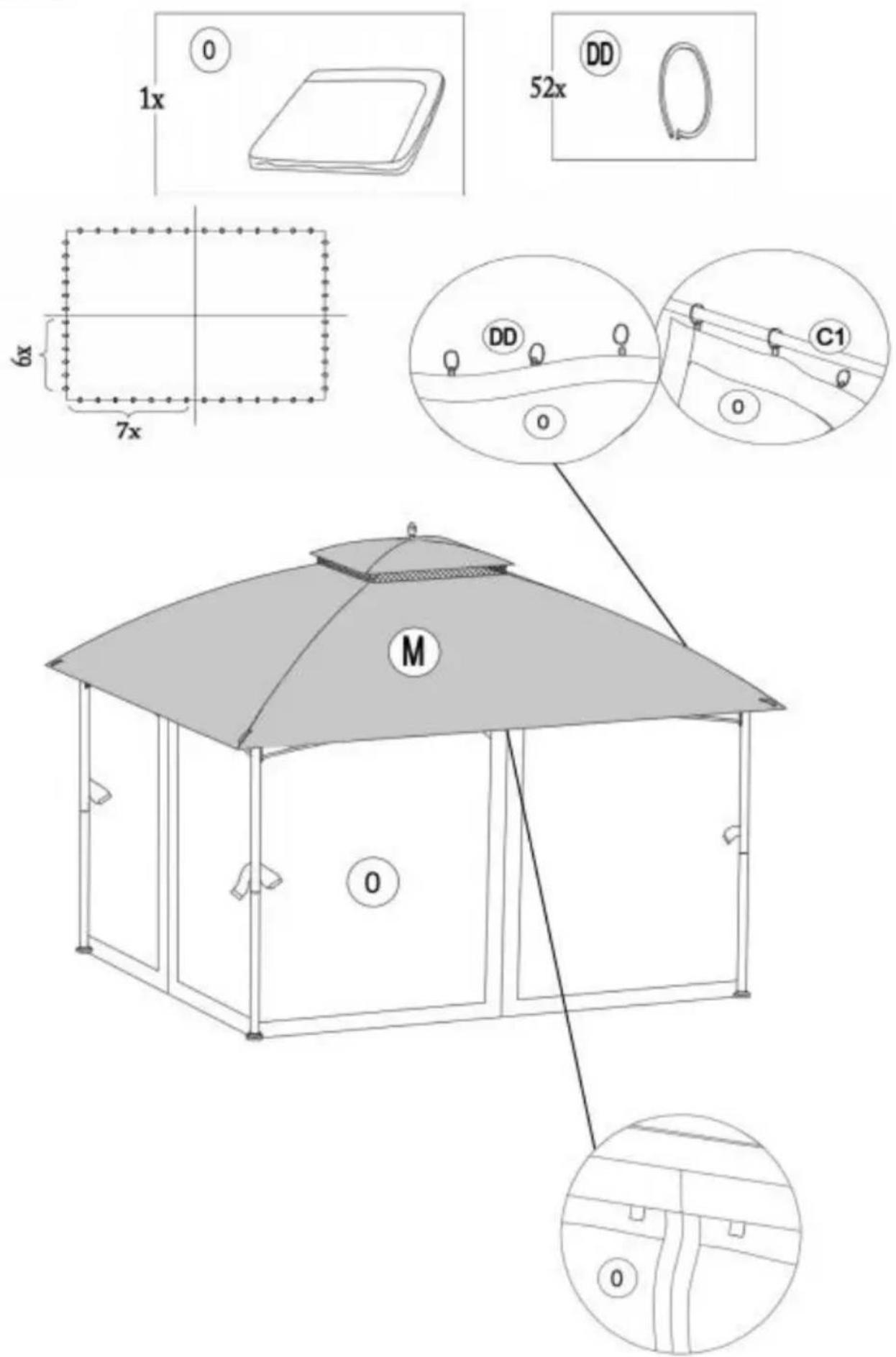

19

20

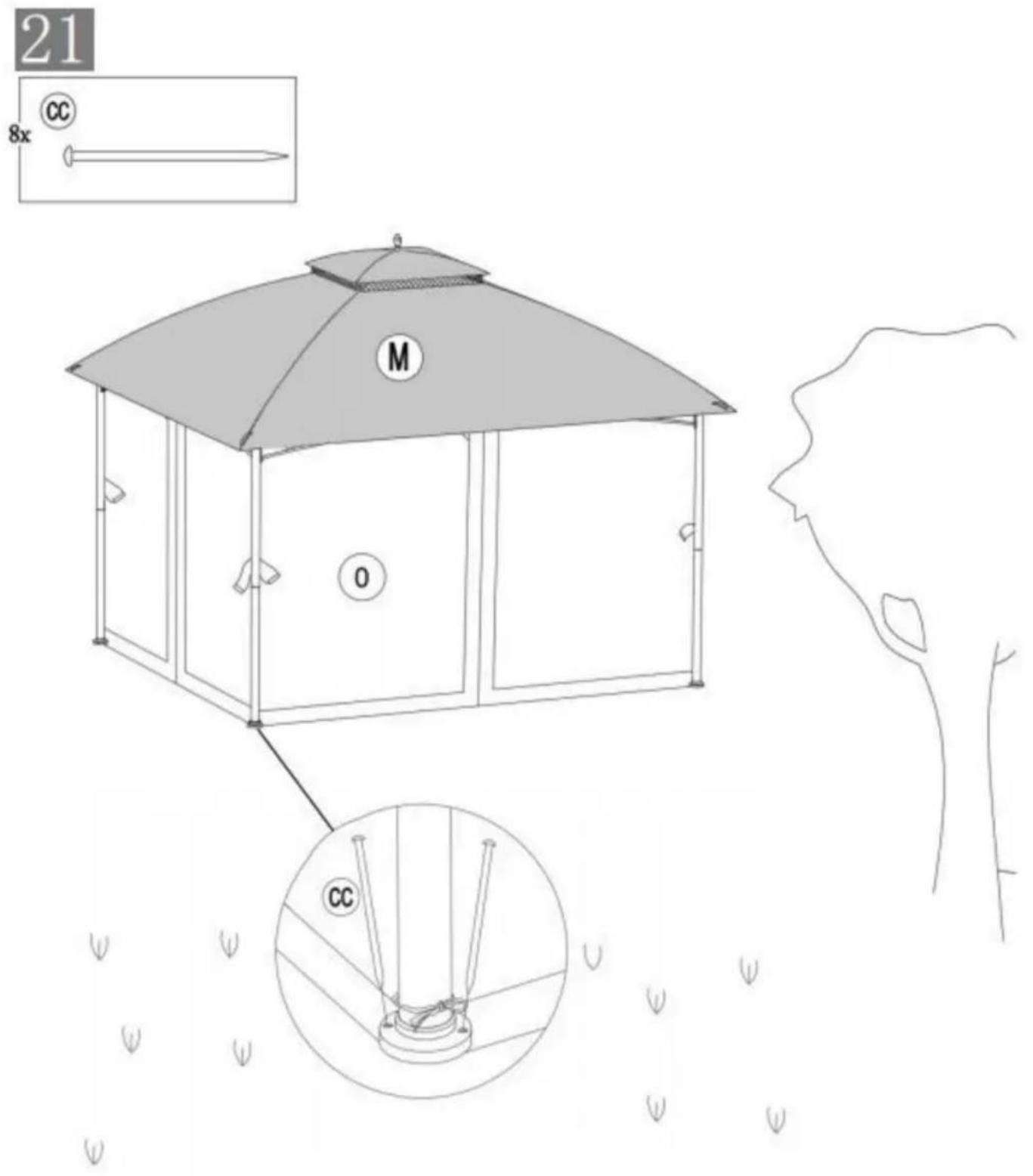

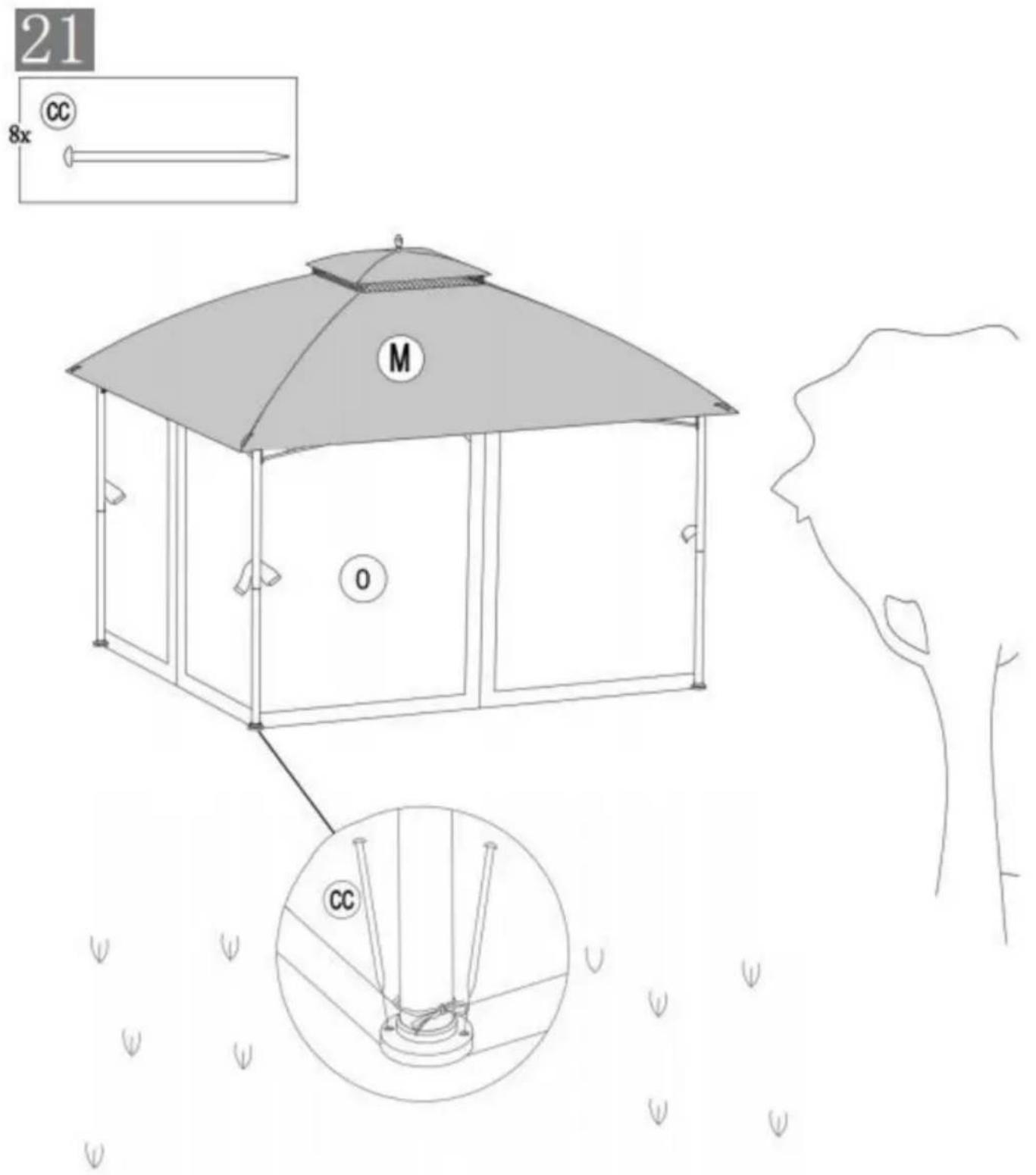

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a simple outdoor gasket structure with lattice windows and a curved roof (no text or symbols)

Model	KD-TY007-1
Product Size	2970×3920×3530mm
Color	Beige/Brown/Black

WERKZEUGE

Three circular illustrations showing different types of tools: a hammer, a screwdriver, and a ladder (no text or symbols)

Line drawing of a handheld electric drill (no text or symbols)

IMPORTANT

People needed for installation work

Three human gender symbols: three male figures plus one male figure (no text or labels)

Parts List
Label	Qty	Part Image
A1	4
A2	4
B1	8
B2	2
B3	2
C1	4
C2	4
C3	4
C4	4
D1	4
D2	4
D3	4
E1	2
E2	2
F1	2
F2	2
G	1
H	1
Parts list
Labe1	Qty	Parts Image
I	4
J	1
K	1
L	1
M	1
N	1
P	4
O	1
Q	4

Parts list
Labe1	Description	Qty	Add	Parts Image
AA	M5*15	24	2
BB	M6*20	40	2
CC	Φ8*180	8	0
DD	/	104	3
EE	M5/M6	1	0
FF	M6*35	4	1
GG	M6	4	1

1

6

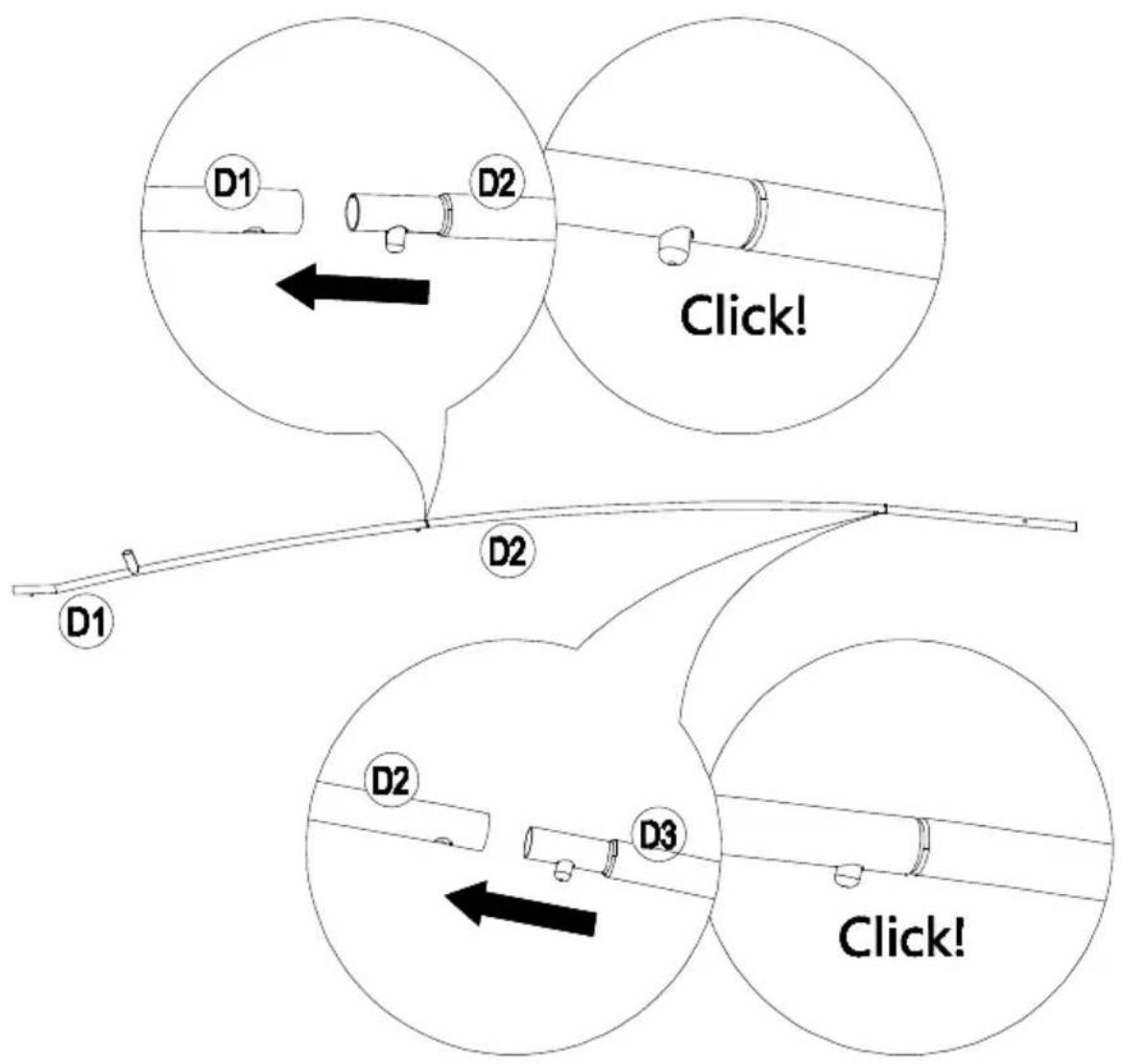

7

10

11

12

13

14

Simple line drawing of a closed book with a 1x multiplier label and a circled M (no text or symbols on the book itself)

15


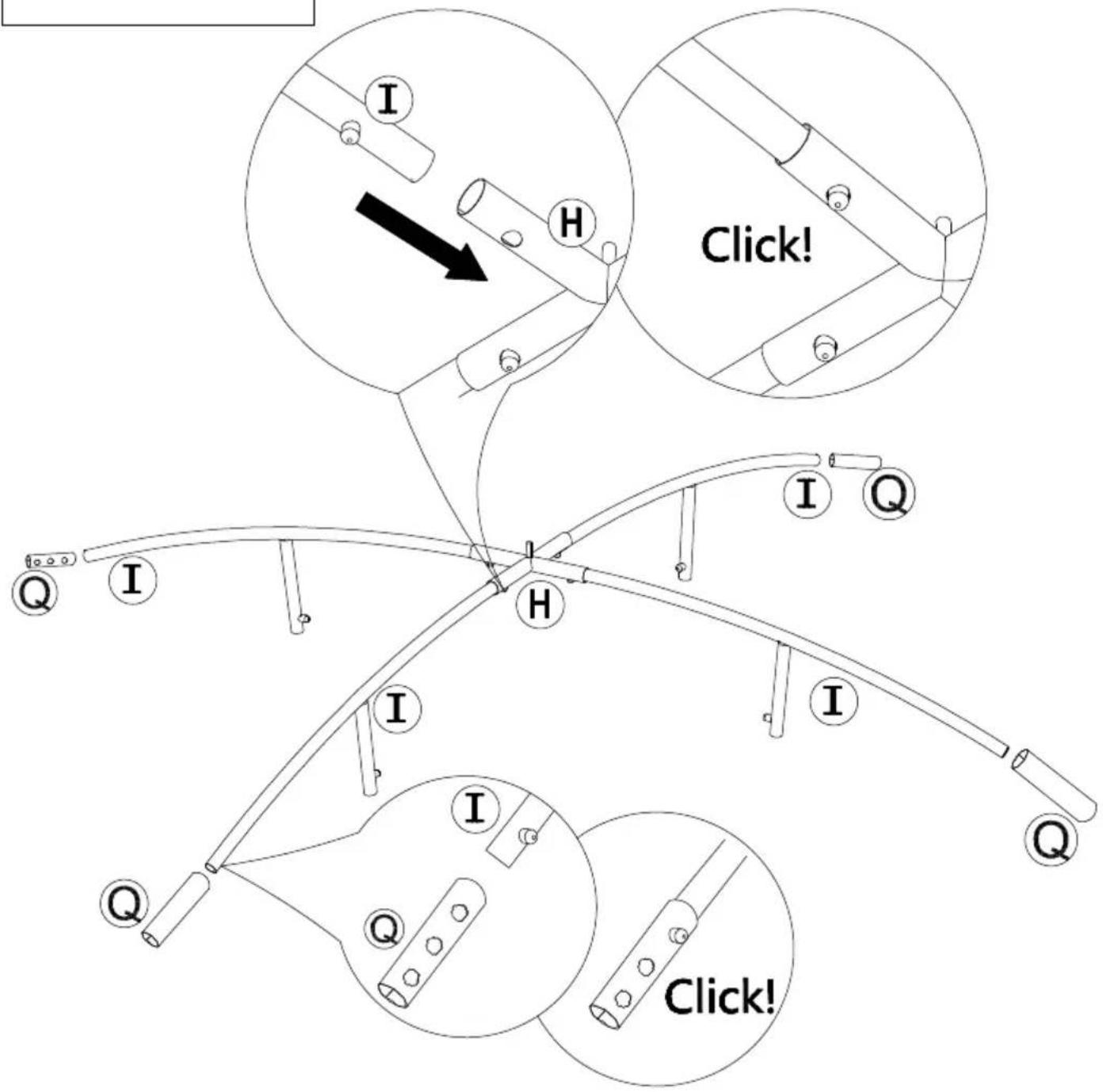

    A["Component I"] --> B["Arrow pointing to H"]
