MECHANICAL MEASURING WHEEL USER MANUAL

MODEL: QLDZ10-6

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

QLDZ10-6

Yellow and black metal detector with attached orange base (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

1.Product Introduction

Thank you for choosing our product , the mechanical measuring wheel is a suitable tool for long distance measurement , Widely used in professional surveying and mapping operations , road engineering , measurement and evaluation of pipeline laying works , wire and cable works , construction sur of garden scenery and golf course , measurement of distance location of tra accidents and the measurement of farmland construction management . It is worthy tool that adopts high-tech and humanized design , durable and convenient .

2.Parts

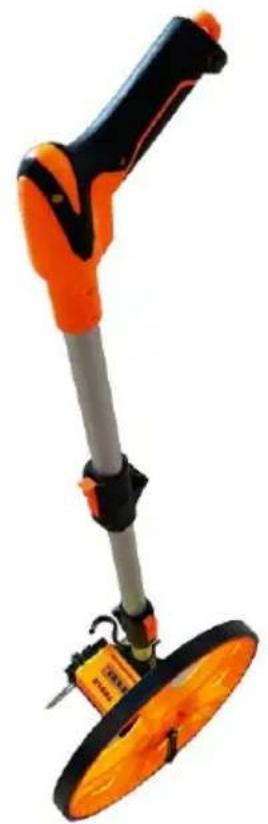

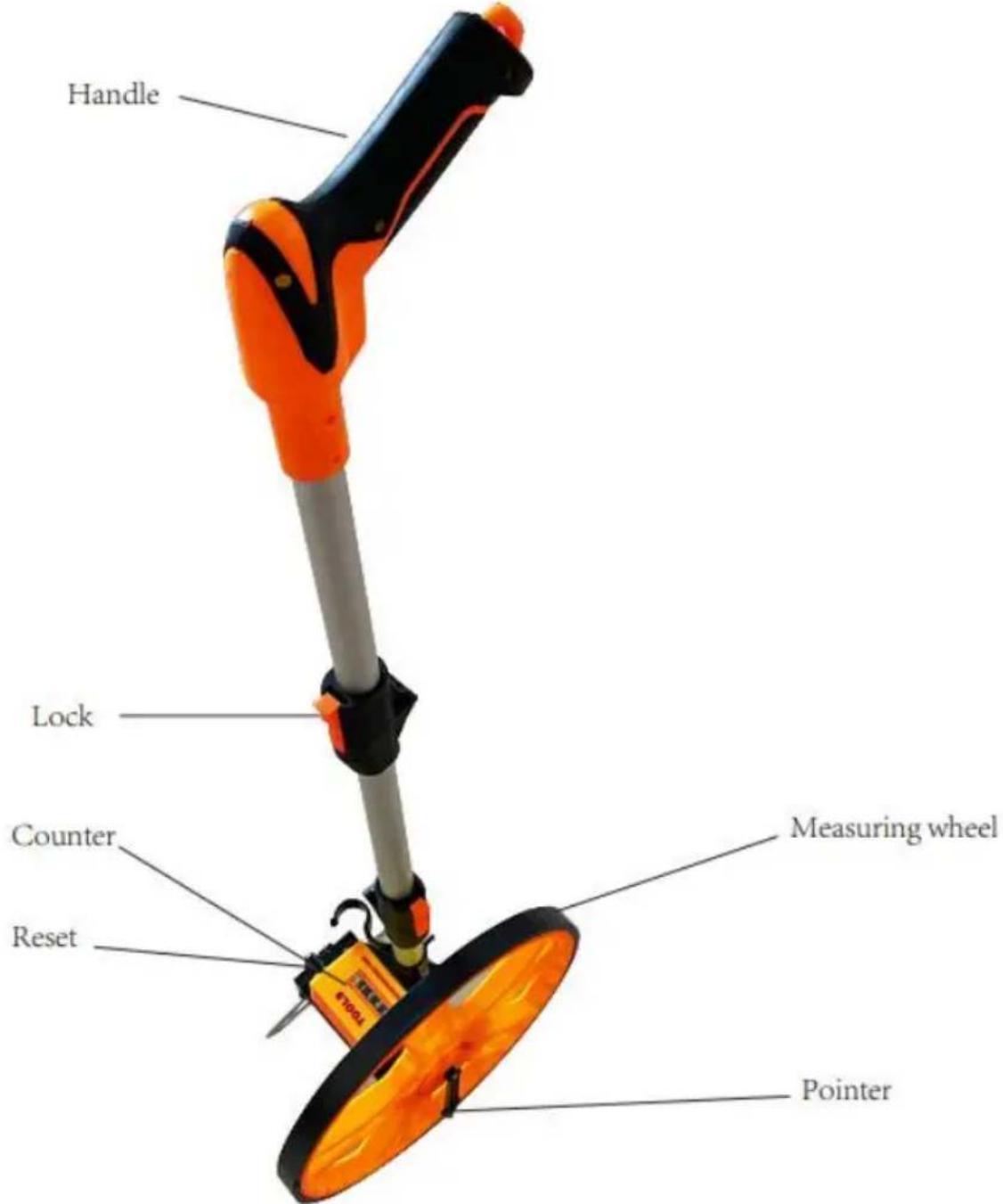

Handle Lock Counter Reset Measuring wheel Pointer

( pic 1 )

3 . Technical Data :

Max. Range : 99999 ft

Accuracy : + / -0.5%

Suitable Temperature : -10°C-45°C

Diameter of the Wheel : 318 mm / 12.5 in

4 . Features

The wheel is made of bran-new ABS plastic covered with wearable rubber, strong and durable counter driven by mechanical gear, forward to increase the measuring backward to decrease with a reset button aluminum foldable pole, with double injection grips for a more comfortable feeling, and conform to the ergonomics with stable and reliable stand.

5. Usage

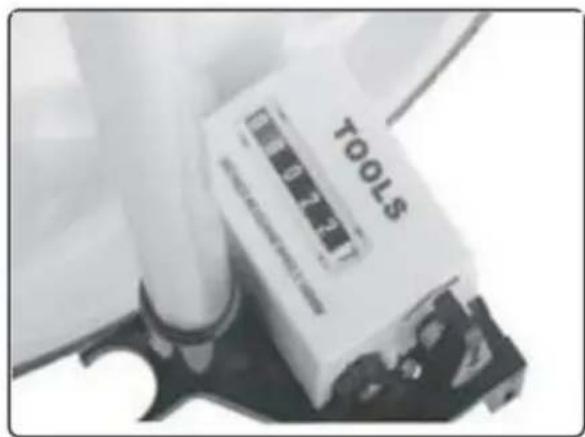

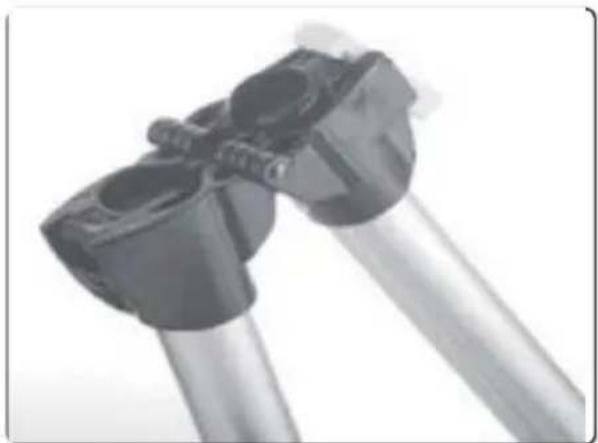

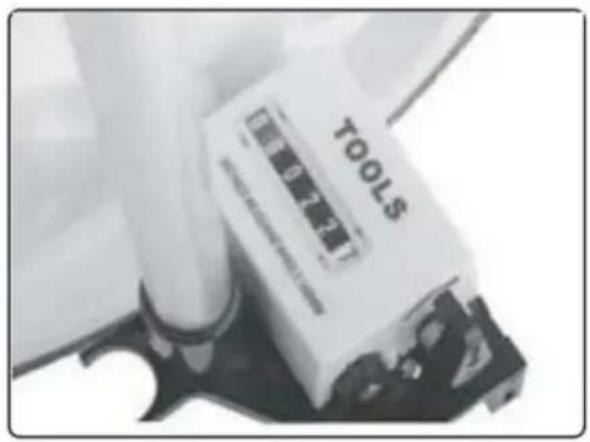

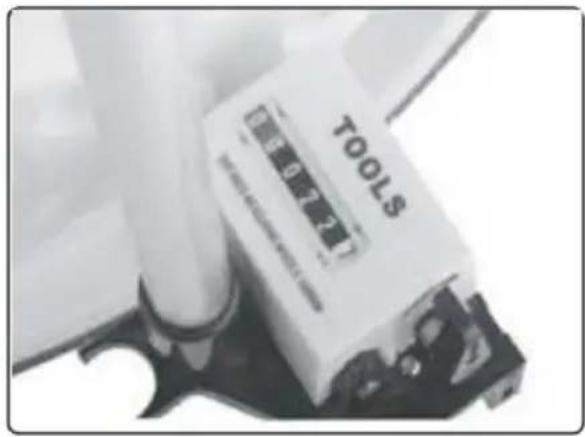

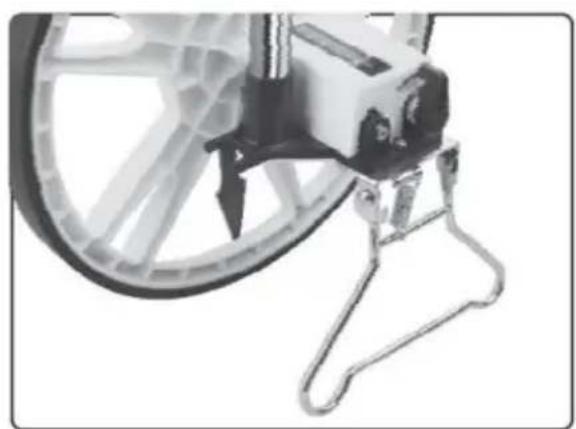

Unfold the pole , lock the connector by itself ( pic 2 ) . stretch the stand reset the counter ( pic4 ) . put the wheel at the beginning , make sure th ( arrow ) pointing at the starting position , walk until the end of the measu surface , read the counter . caution : make sure to walk as straight as pc walk over the end , just step backward to the end point.

6. Warning

Please reset the counter before use at the direction indicated. Make sure the (arrow) is pointing at the starting position. The counter shows 00000 0m. measure a straight line, walk as straightly as possible do not measure uneven surfaces. Otherwise, the accuracy cannot be guaranteed. Please do not use it in the rain for a long time. Please do not use or store it in an environment of temperature. Please do not use it as a toy to avoid unnecessary injury.
