USER MANUAL JY-150D Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PROFESSIONAL HAIR STEAMER USER MANUAL

JY-150D

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents a estimate of savings you might benefit from buying certain tools with us compared to the top brands and does not necessarily mean to cover all categories of tools offered by us are kindly reminded to verify carefully when you are placing an order with us if you actually saving half in comparison with the top major bran

VEVOR®

TOUGH TOOLS, HALF PRICE

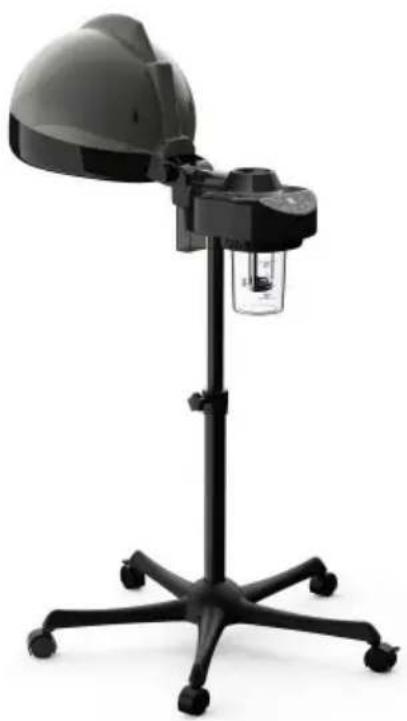

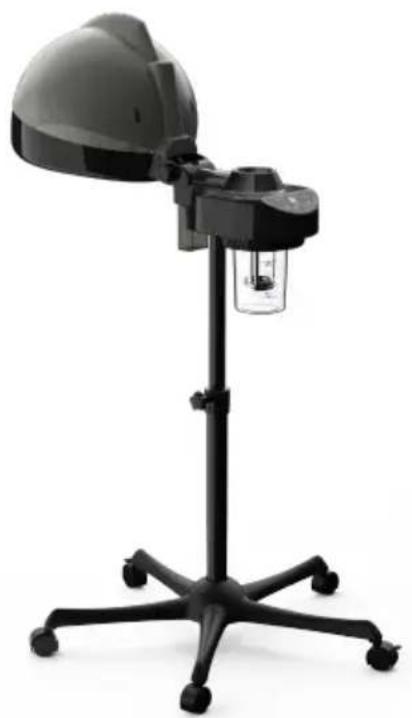

PROFESSIONAL HAIR STEAMER

Model: JY-150D

Black office lamp stand with a dome-shaped head and six legs, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instruct manual carefully.
	CORRECT DISPOSALThis product is subject to the European Directive 2012/19/EC provision. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices
	Not suitable for use in a bath or shower.

Thank you for buying our products. After opening the product packaging, check whether the product is in good condition, whether the accessories are complete and whether the power can be normally powered on after the boot

Specification Parameters

Use environment	Temperature:0-40 °C	Relative humidity:<80%
Rated Voltage	120V	220V-240V
Electric Power	650W	650W
Rated Frequency	50Hz/60Hz
Product Size (LxWxH)	880x650x1550 mm

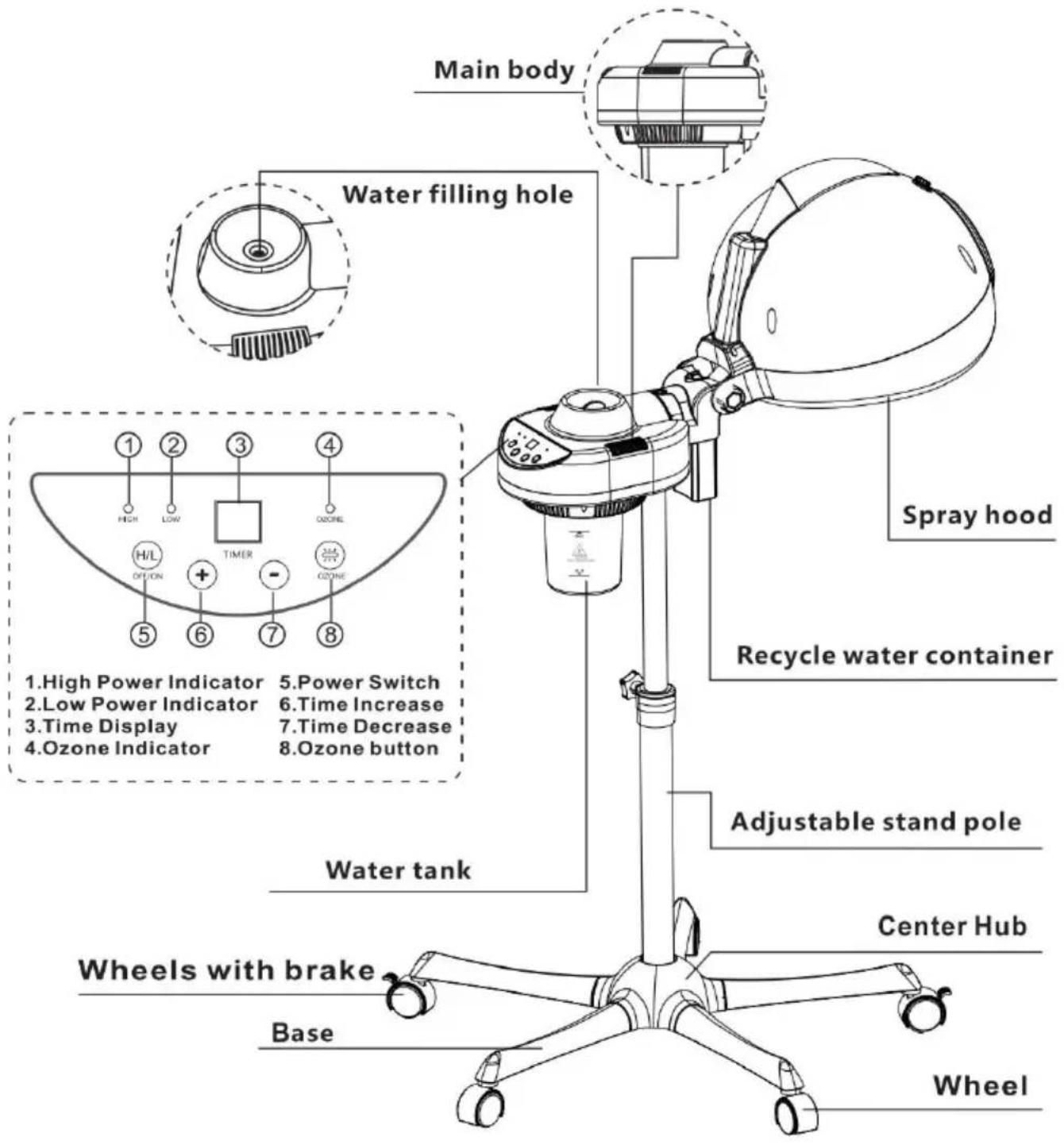

Name of Product Component

Main body Water filling hole 1 HIGH Power Indicator 2 LOW Power Indicator 3 TIME Display 4 Ozone Indicator 5 + TIMER - 6 OZONE 7 OZONE 8 Spray hood Recycle water container Water tank Adjustable stand pole Wheel with brake Base Center Hub Wheel

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, especially when children are present, basic safety precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

DANGER - To reduce the risk of electrocution:

1. Always unplug this appliance immediately after using.

2. Do not use while bathing.

3. Do not place or store appliance where it can fall or be pulled into a tub
4. Do not place in or drop into water or other liquid.
5. Do not reach for an appliance that has fallen into water. Unplug immediat

WARNING- To reduce the risk of burns, electrocution, fire, or injury to persons:

1. An appliance should never be left unattended when plugged in.
2. Close supervision is necessary when this appliance is used by, on, or ne children or individuals with certain disabilities.
3. Use this appliance only for its intended use as described in this manual. not use attachments not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is n working properly, or if it has been dropped, damaged, or dropped into water. Return the appliance to a service center for examination and repair.
5. Keep the cord away from heated surfaces. Do not wrap the cord around appliance.
6. Never block the air openings of the appliance or place it on a soft surface such as a bed or couch, where the air openings may be blocked. Keep the openings free of lint, hair, and the like.
7. Never use while sleeping.
8. Never drop or insert any object into any opening or hose.
9. Do not use outdoors or operate where aerosol (spray) products are being or where oxygen is being administered.
10. Connect this appliance to a properly grounded outlet only. See Grounding Instructions.
11. Unplug this appliance before filling. Fill (reservoir) with water only. Do no overfill.
12. Do not use an extension cord with this appliance.

WARNING:

1. TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING: TI product is not a toy. Do not allow children to play with or approach item.
2. Use as intended only. Do not stand on the product.
3. TO AVOID ELECTRICAL SHOCK, DO NOT put liquid of any kind the Main Unit Housing containing the electrical components.
4. For your safety, please do not disassemble or modify the product

WARNING:

- This device is designed for use by professionals properly trained in its use

- Do not add any chemical elements or essential oils into the water tank.

- If you have any pre-existing medical conditions, consult a doctor before use.

- Use this product for its intended use only.

- This product should never be operated by or in close proximity to children

- An appliance should never be left unattended when plugged in.

- Unplug from electrical outlet when not in use.

- Do not operate this device if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped in water.

- Keep the power cord away from heated surfaces.

- Do not use an extension cord with this product.

• Always use in a clear and an obstructed area.

- Do not use outdoors. This product is designed for indoor use only.

- Always use the device on a level surface.

- Do not tilt device while in operation.

- Do not touch any part of the device that is hot.

- Do not cover the product with any type of material while it is in operation. Excessive heating can occur and cause fire, electrical shock, or other injuries to persons.

- Do not place device where it can fall or be pulled into a tub or sink. Do place in or drop into water or other liquid, and always store in a dry place.

- Do not reach for any appliance that has fallen into water.Unplug it immedi

- Never touch the product or its cord with wet hands.

- Never attempt to disassemble or repair the product yourself.

- If the supply cord is damaged, it must be replaced by the manufacturer, i service agent or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

SAVE THESE INSTRUCTIONS

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate product.

Note: This product has been tested and found to comply with the limits for Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assista

PARTS LIST

A:Bonnet Hood	B:Main body	C:Upper pole	D:Lower pole
1PC	1PC	1 PC	1 PC
E:Leg	F:Center Hub	G:Wheels	H:Wheel locks
5 PCS	1 PC	3 PCS	2 PCS
I:Washer&Bolt and Tool	J: Recycle water container
1PCS	1 PC

Assembly Instructions

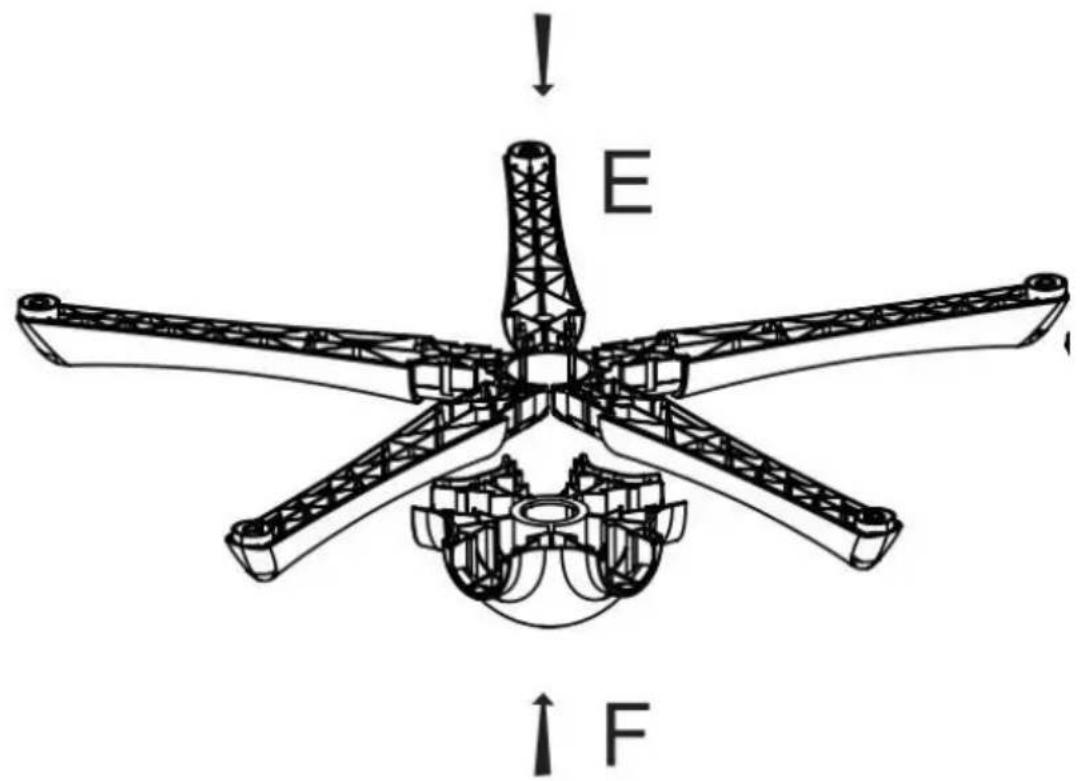

Step1:

E F

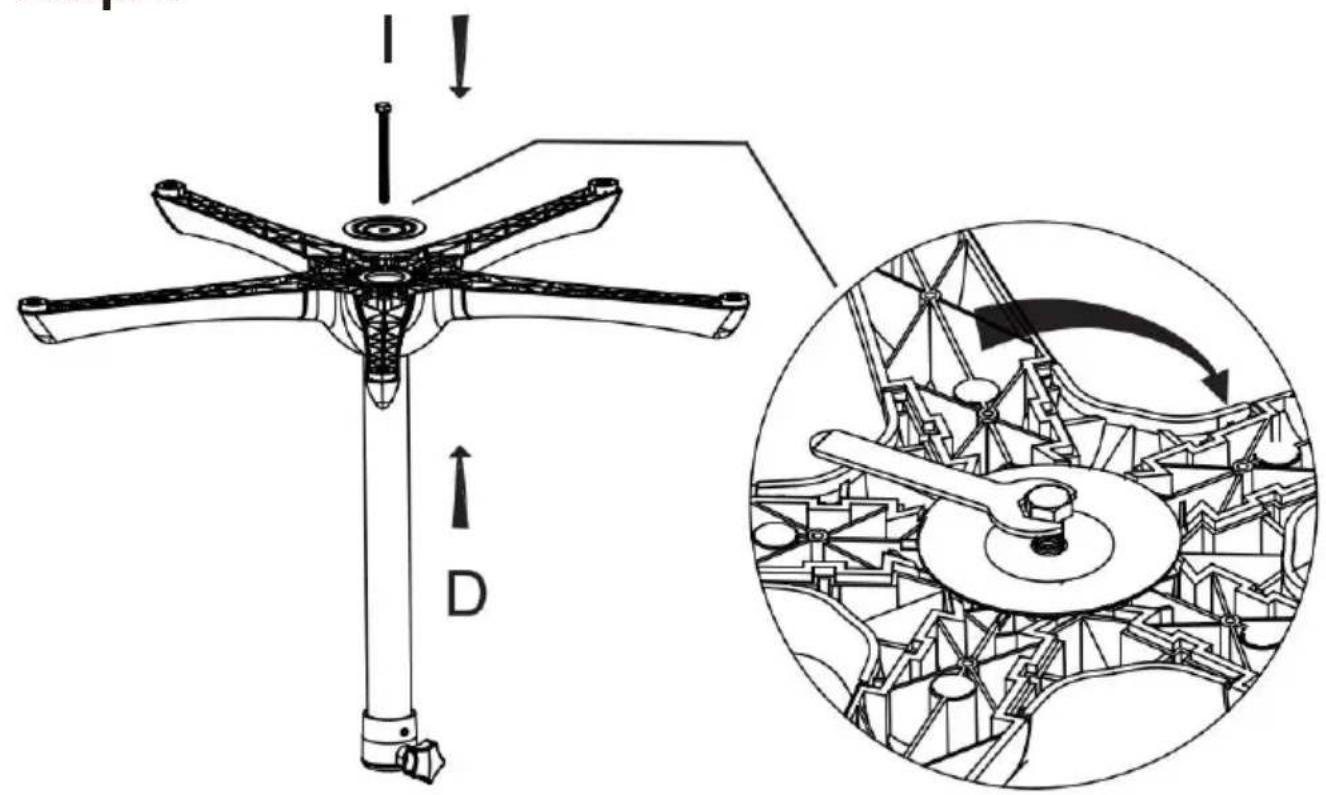

Step2:

Technical diagram of a turbine with labeled components and a magnified inset showing gear meshing mechanism.

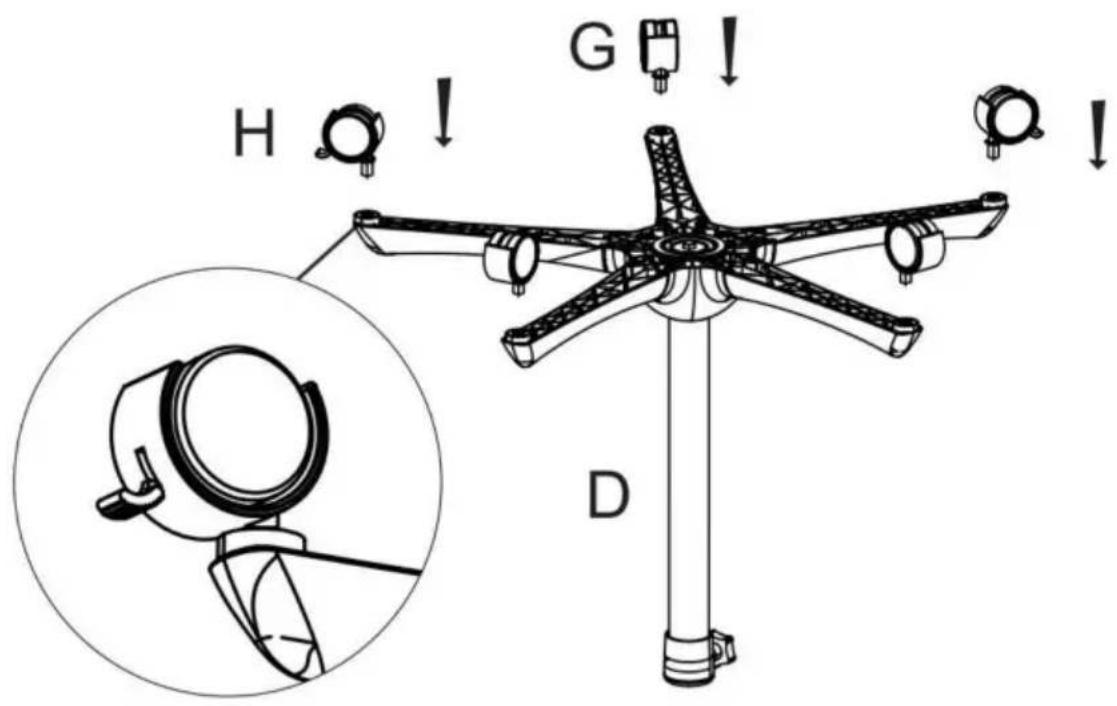

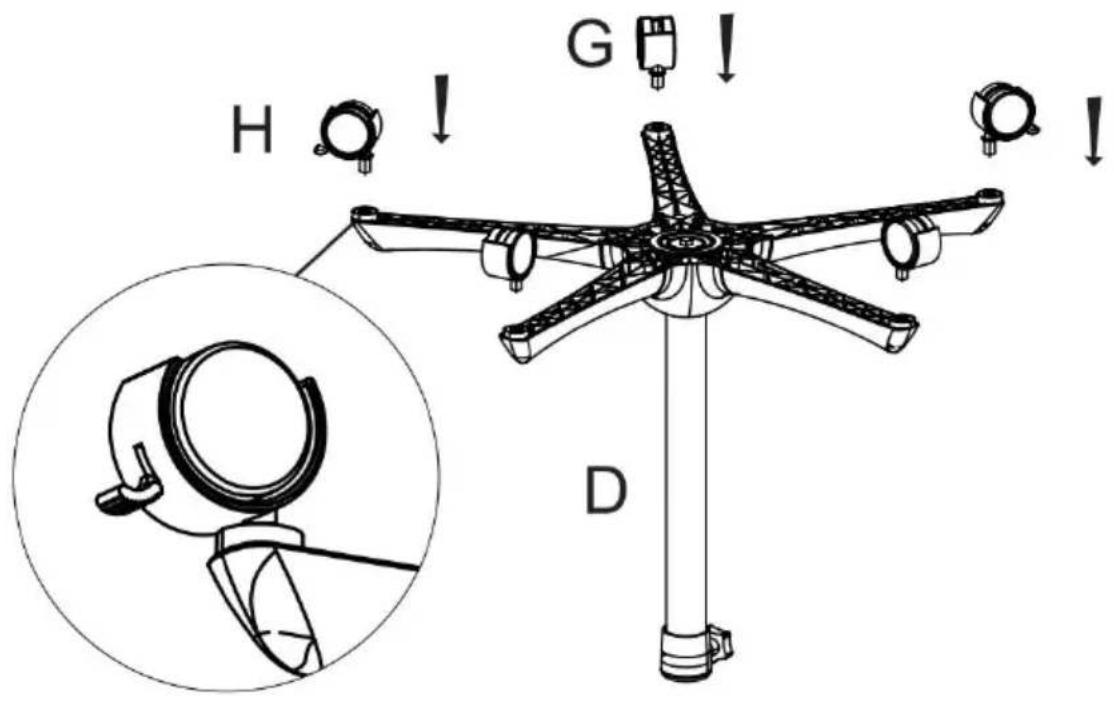

Step3:

H G D

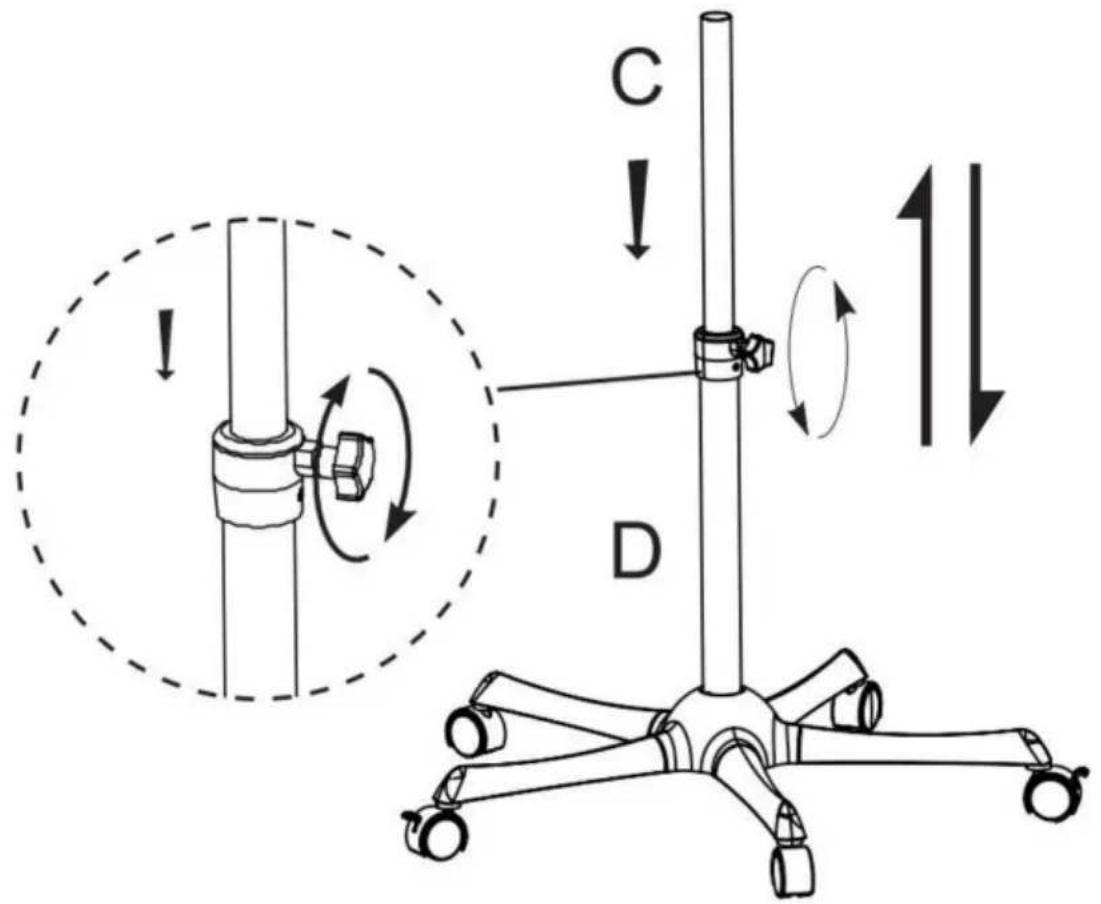

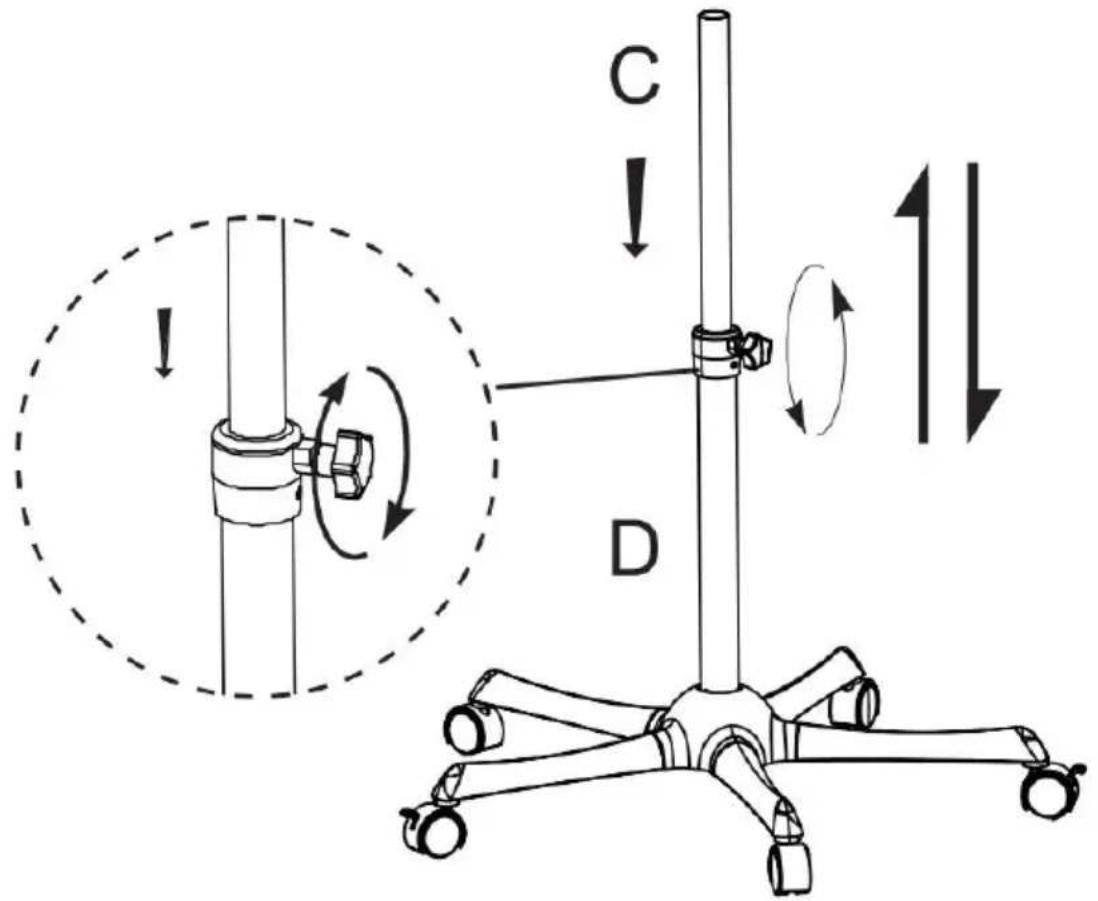

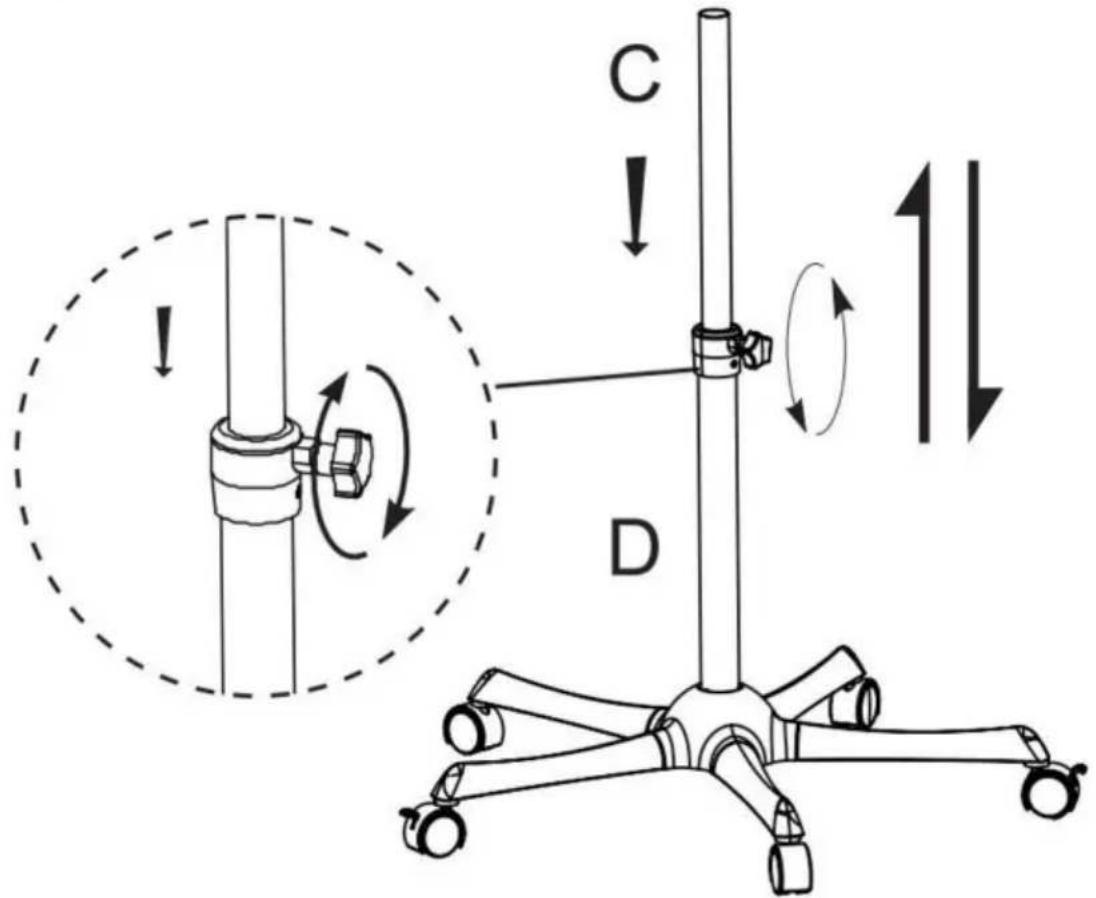

Step4:

C D

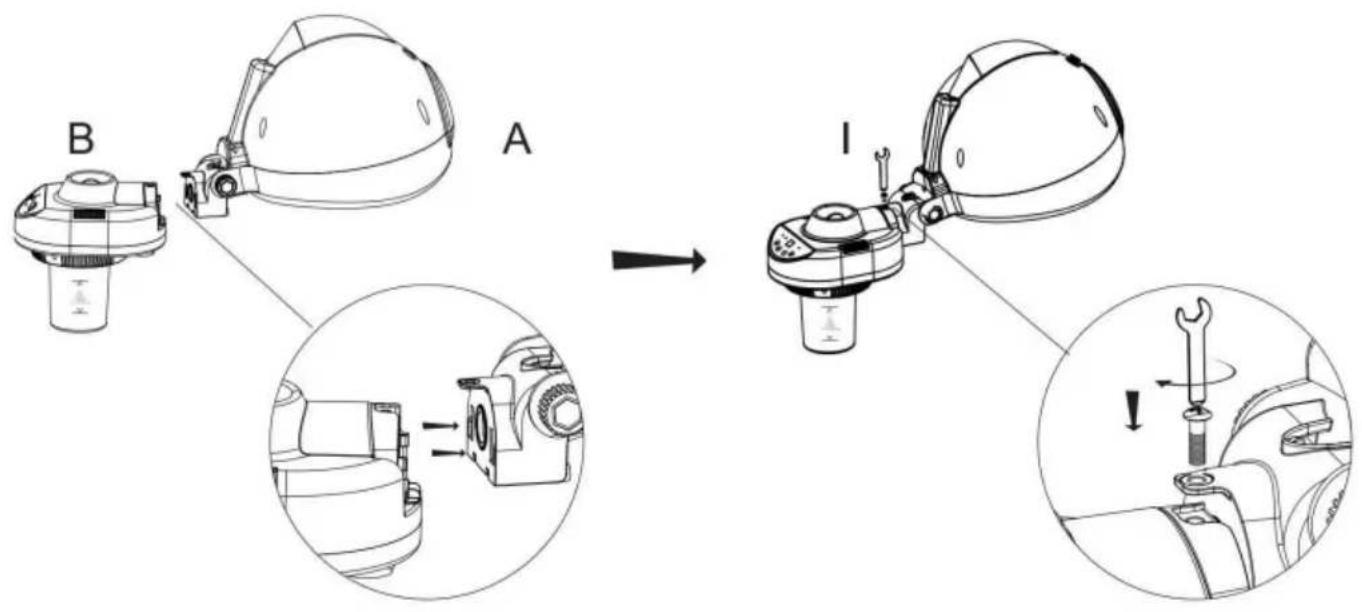

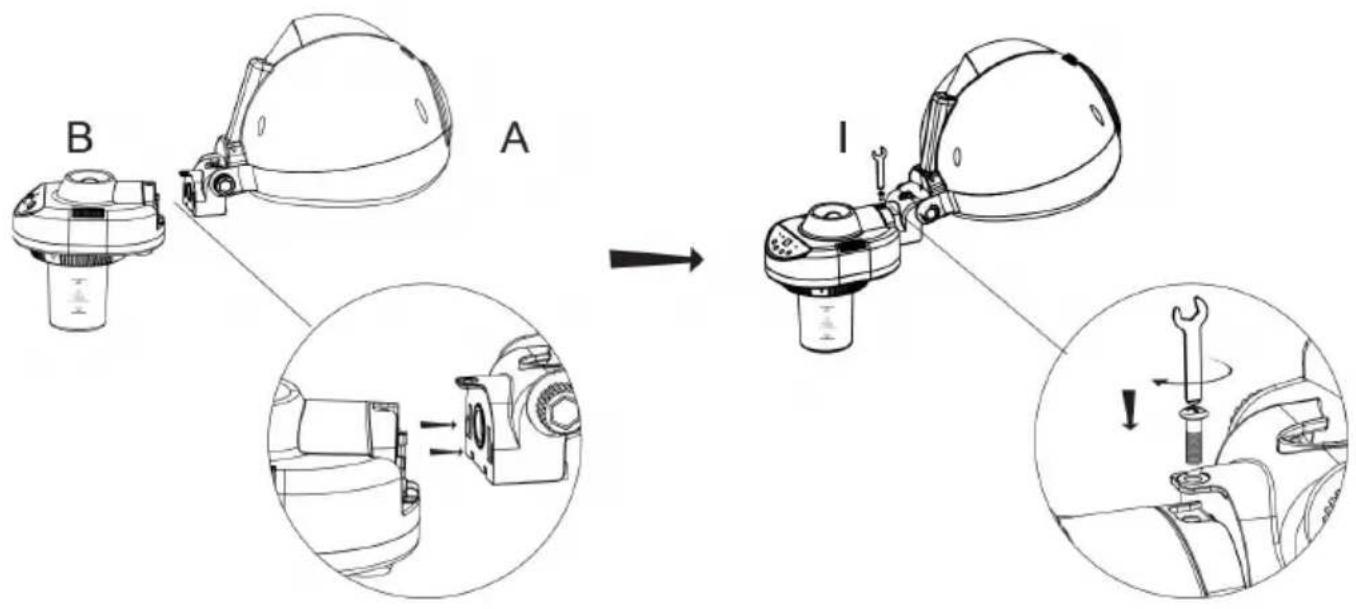

Step5:


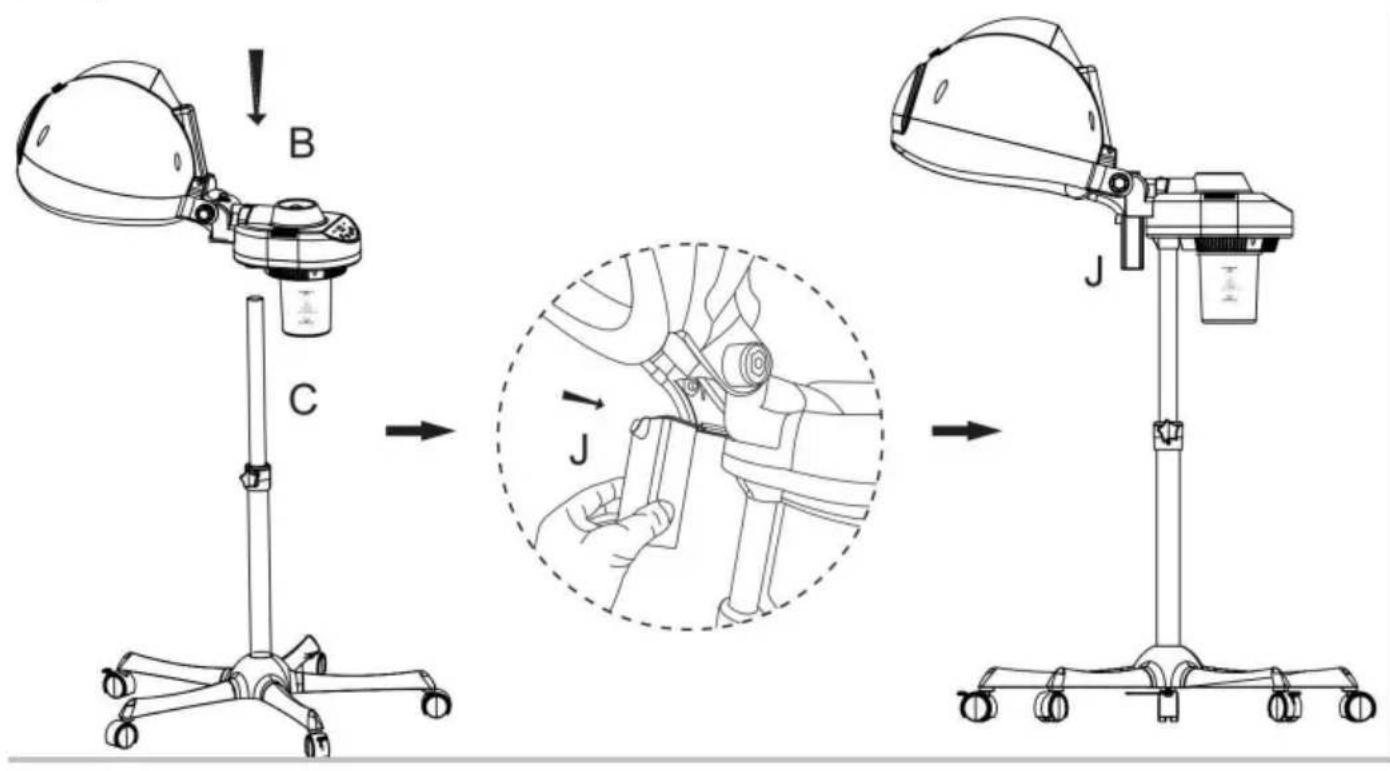

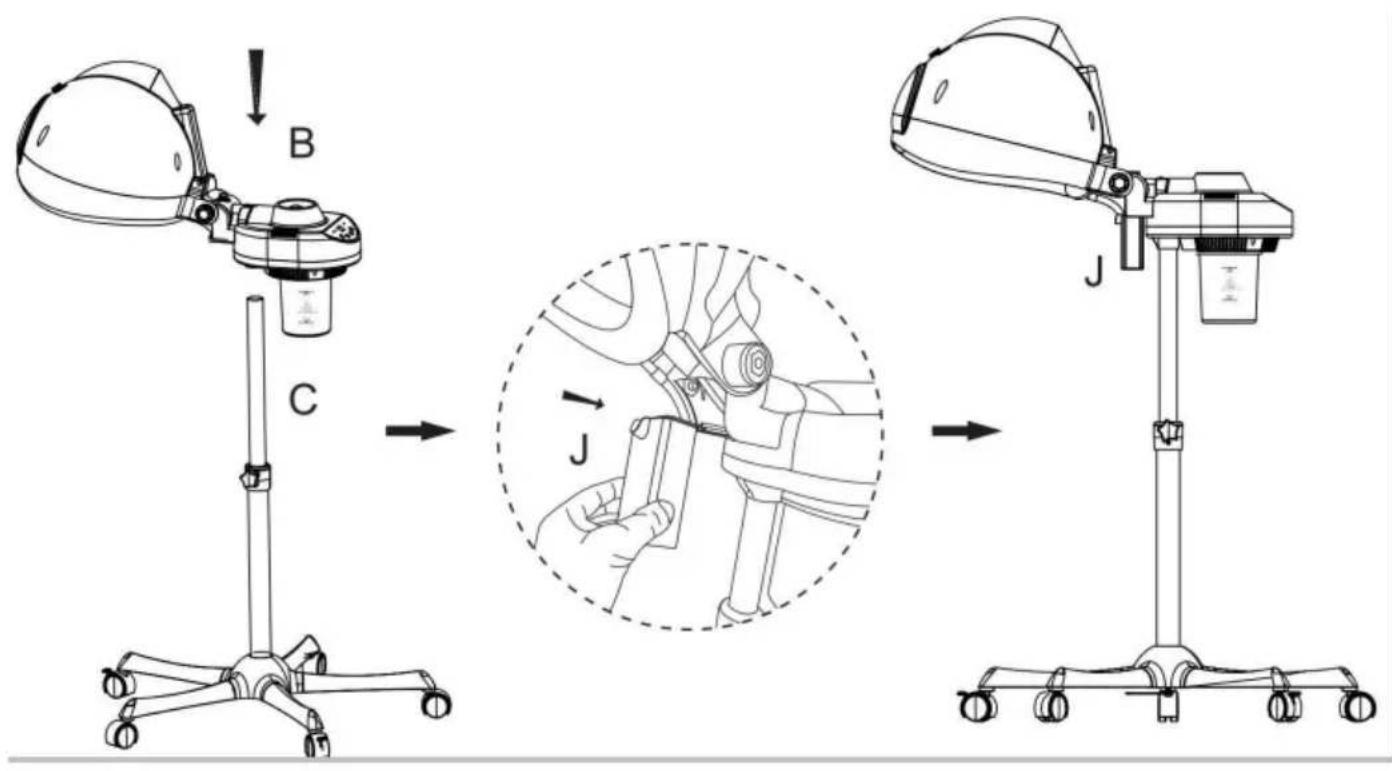

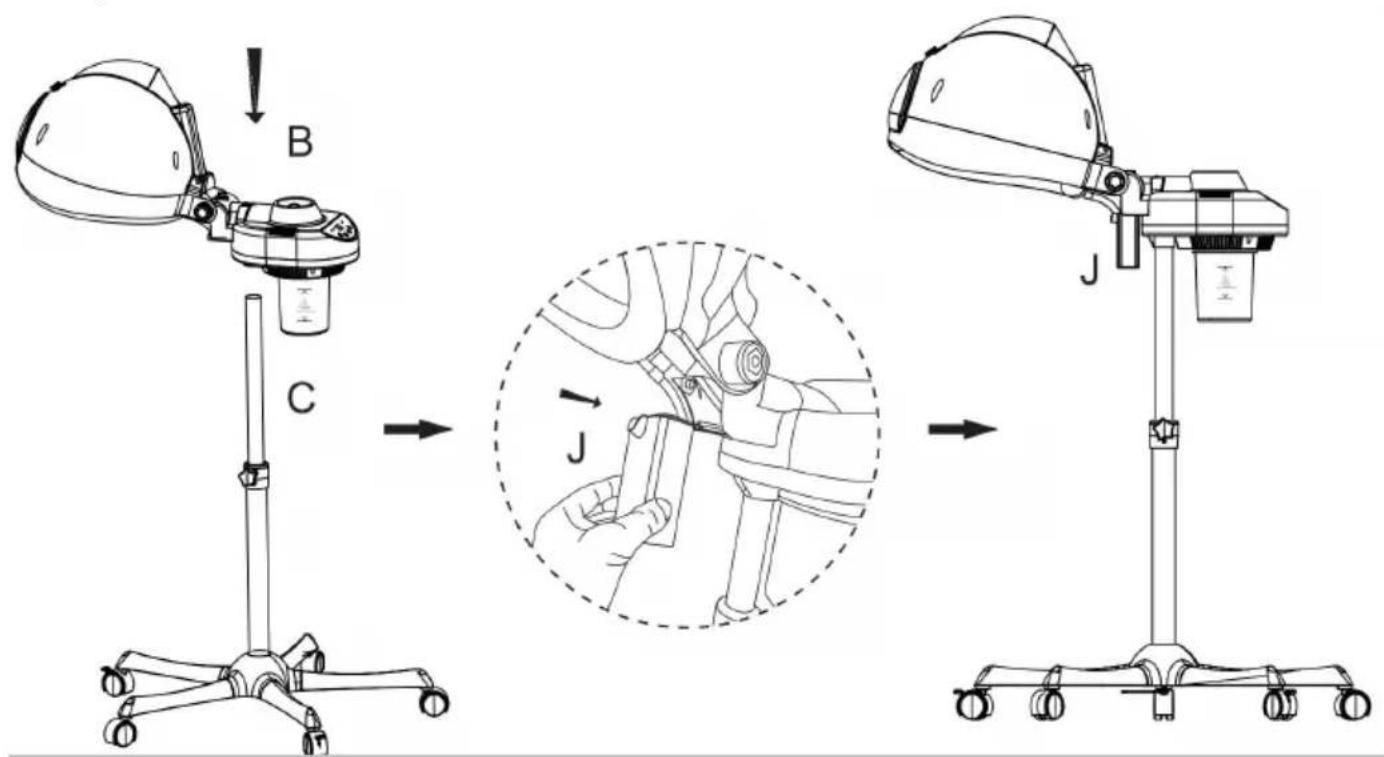

Step6:

B C J

Operation Instruction

This facial steamer works with almost all types of clean water, such as purified water, distilled water, mineral water, tap water and etc. However, for the best performance and proper maintaining of this unit, please purified water or distilled water.

WARNING :Please do not add any additives or essential oils into the water. Doing so may damage the unit or cause injure to users. Please regularly clean the heater and water sensor.

Technical diagram of a spray gun system with labeled components and safety symbols

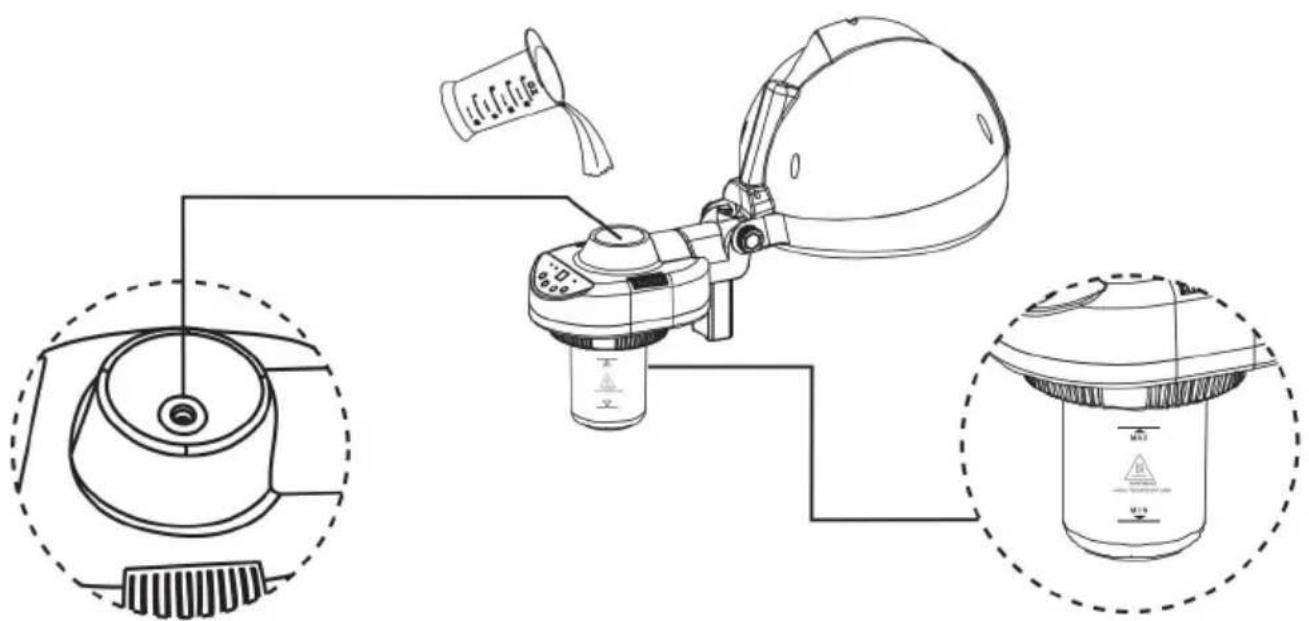

1. Fill water through the water filling hole. Make sure the water level does it exceed the "MAX" line.

2. Connect the unit to electric power and the unit will enter Standby Mode. If the water level is low, the unit will beep for 3 times. The Time Display will display "LO" and flash until water is added to proper level

3. Press the "H/L" button to enter the default "H" mode. Press again to enter "L" mode.

4. Press the "OZONE" key to turn on the ozone function.

5. The default working time is 30 minutes. Press the "+" key or "-" key to increase or reduce the desired working time

6. To turn off the machine, press the "H/L" button and hold for 2 seconds, the machine will enter standby mode.

7. When the water level is too low or too high, the unit will alarm and stop working. To continue working, please fill water or pour out excess water to proper level.

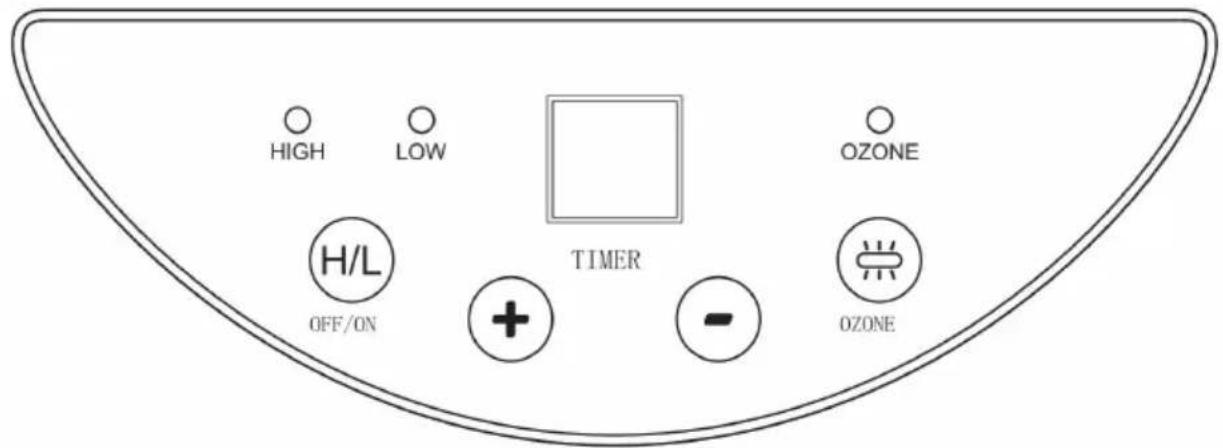

HIGH LOW OZONE H/L OFF/ON TIMER - OZONE

Cautions:

For your safety, the unit will automatically shut off when the water level is low. To restart, turn off the power and refill the water jar, then turn the unit back will resume normal operation once it reaches the proper temperature.

1. After using for a while, the recycle water container will be filled, remove it pour out the water, then return it to its place.

Technical diagram illustrating the step-by-step installation of a medical device, showing component positioning and tool path.

1. If not in use for an extended period, drain the water tank.

△Warning

- This device is designed for use by professionals properly trained in its use

- Use distilled water only. Do not add any chemical elements or essential o into the water tank.

- If you have any pre-existing medical conditions, consult a doctor before use.

- Use this product for its intended use only.

- This product should never be operated by or in close proximity to children

- An appliance should never be left unattended when plugged in.

- Unplug from electrical outlet when not in use.

- Do not operate this device if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped in water.

- Keep the power cord away from heated surfaces.

- Do not use an extension cord with this product.

• Always use in a clear and an obstructed area.

- Do not use outdoors. This product is designed for indoor use only.

- Always use the device on a level surface. Applying weight to the base, such as sandbags, will help secure the device.

- Do not tilt device while in operation.

- Do not touch any part of the device that is hot.

- Do not cover the product with any type of material while it is in operation

Excessive heating can occur and cause fire, electrical shock, or other to persons.

• Do not place device where it can fall or be pulled into a tub or sink. Do place in or drop into water or other liquid, and always store in a dry place.
• Do not reach for any appliance that has fallen into water.Unplug it immedi
• Never touch the product or its cord with wet hands.
• Never attempt to disassemble or repair the product yourself.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Made In China

WARRANTY CARD

Owner Warranty certificate

(Users save, show it to the maintenance point of repair)

Product name:

Model:

Place of origin:

Warranty period:

Invoice number:

Date of purchase:

Maintenance records

Repair date: Date of inspection:

Failure, maintenance, handling of:

Maintenance units: Repairer's signature:

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

COIFFURE PROFESSIONNELLE

BATEAU À VAPEUR

Modèle : JY-150D

Black studio hairdryer with a dome-shaped head and adjustable armrest, standing on a five-pole stand (no text or symbols visible)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Main body Water filling hole Spray hood Recycle water container Water tank Adjustable stand pole Wheel with brake Base Center Hub Wheel

CONSIGNES DE SÉCURITÉ IMPORTANTES

Technical diagram of a turbine with labeled components and a magnified inset showing gear meshing mechanism.

Étape 3:

H G D

Étape 4:

C D

Étape 5 :

A B I

Étape 6 :

B C J

Technical diagram of a spray gun with labeled components and safety warnings

Technical diagram illustrating the step-by-step installation of a spray gun, showing component positioning and tool path.

C/O YH Consulting Limited Bureau 147,

Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

Fabriqué en Chine

WARRANTY CARD

Owner Warranty certificate

(Users save, show it to the maintenance point of repair)

Product name:

Model:

Place of origin:

Warranty period:

Invoice number:

Date of purchase:

Maintenance records

Repair date: Date of inspection:

Failure, maintenance, handling of:

Maintenance units: Repairer's signature:

VEVOR®

TOUGH TOOLS, HALF PRICE

Black studio hairdryer with a dome-shaped head and adjustable armrest, standing on a five-pole stand (no text or symbols visible)

Main body Water filling hole Spray hood Recycle water container Water tank Adjustable stand pole Wheel with brake Base Center Hub Wheel

Technical diagram of a turbine with labeled components and a magnified inset showing gear meshing mechanism.

Schritt 3:

H G D

Schritt 4:

C D

Schritt 5:

A B I

Schritt 6:

B C J

Bedienungsanleitung

Technical diagram of a medical or industrial device with labeled components and safety symbols, including a bell jar, fan, and control panel.

Technical diagram illustrating the step-by-step installation of a spray gun, showing component positioning and tool path.

House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

Owner Warranty certificate

(Users save, show it to the maintenance point of repair)

Product name:

Model:

Place of origin:

Warranty period:

Invoice number:

Date of purchase:

Maintenance records

Repair date: Date of inspection:

Failure, maintenance, handling of:

Maintenance units: Repairer's signature:

VEVOR®

TOUGH TOOLS, HALF PRICE

Black studio hairdryer with a dome-shaped head and adjustable armrest, standing on a five-pole stand (no text or symbols visible)

HO BISOGNO DI AIUTO? CONTATTACI!

Main body Water filling hole Spray hood Recycle water container Water tank Adjustable stand pole Wheel with brake Base Center Hub Wheel

IMPORTANTI ISTRUZIONI DI SICUREZZA

Technical diagram of a turbine with labeled components and a magnified inset showing gear meshing mechanism.

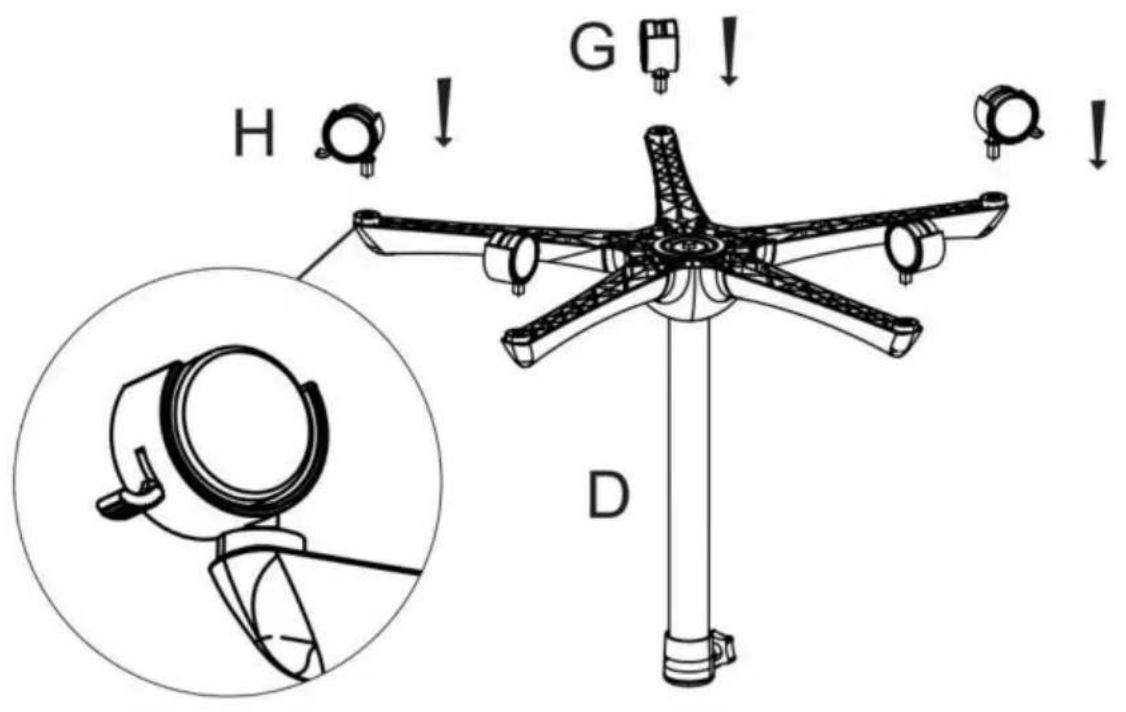

Passaggio 3:

H G D

Passaggio 4:

C D

Passaggio 5:

A B I

Passaggio 6:

B C J

Technical diagram of a medical or industrial device with labeled components and safety symbols, including a bell jar, fan, and control panel.

Technical diagram illustrating the step-by-step installation of a spray gun, showing component positioning and tool path.

ÿAvvertenza

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Made in China

WARRANTY CARD

Owner Warranty certificate

(Users save, show it to the maintenance point of repair)

Product name:

Model:

Place of origin:

Warranty period:

Invoice number:

Date of purchase:

Maintenance records

Repair date: Date of inspection:

Failure, maintenance, handling of:

Maintenance units: Repairer's signature:

VEVOR®

TOUGH TOOLS, HALF PRICE

Black studio hairdryer with a dome-shaped head and adjustable armrest, standing on a five-pole stand (no text or symbols visible)

Main body Water filling hole Spray hood Recycle water container Water tank Adjustable stand pole Wheel with brake Base Center Hub Wheel

Technical diagram of a turbine with labeled components and a magnified inset showing gear meshing mechanism.

Paso 3:

H G D

Etapa 4:

C D

Paso 5:

A B I

Paso 6:

B C J

Technical diagram of a medical or industrial device with labeled components and safety symbols, including a bell jar, fan, and control panel.

Technical diagram illustrating the step-by-step installation of a spray gun, showing component positioning and tool path.

Advertencia

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Hecho en china

WARRANTY CARD

Owner Warranty certificate

(Users save, show it to the maintenance point of repair)

Product name:

Model:

Place of origin:

Warranty period:

Invoice number:

Date of purchase:

Maintenance records

Repair date: Date of inspection:

Failure, maintenance, handling of:

Maintenance units: Repairer's signature:

VEVOR®

TOUGH TOOLS, HALF PRICE

Black studio hairdryer with a dome-shaped head and adjustable armrest, standing on a five-pole stand (no text or symbols visible)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Main body Water filling hole Spray hood Recycle water container Water tank Adjustable stand pole Wheel with brake Base Center Hub Wheel

WAŻNE INSTRUKCJE BEZPIECZEŃSTWA

Technical diagram of a turbine with labeled components and a magnified inset showing gear meshing mechanism.

Krok 3:

H G D

Krok 4:

C D

Krok 5:

A B I

Krok 6:

B C J

Instrukcja operacji

Technical diagram of a medical or industrial device with labeled components and safety symbols, including a bell jar, fan, and control panel.

Technical diagram illustrating the step-by-step installation of a spray gun, showing component positioning and tool path.

Ostrzeżenie

STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd. Suite 250, 9166

Anaheim Place, Rancho Cucamonga, Kalifornia 91730

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69, 60329

Frankfurt nad Menem.

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

Owner Warranty certificate

(Users save, show it to the maintenance point of repair)

Product name:

Model:

Place of origin:

Warranty period:

Invoice number:

Date of purchase:

Maintenance records

Repair date: Date of inspection:

Failure, maintenance, handling of:

Maintenance units: Repairer's signature:

VEVOR®

TOUGH TOOLS, HALF PRICE

Black hairdryer stand with a dome-shaped head and adjustable armrest, standing on a five-pole chair (no text or symbols visible)

HULP NODIG? NEEM CONTACT MET ONS OP!

Main body Water filling hole Spray hood Recycle water container Water tank Adjustable stand pole Wheel with brake Base Center Hub Wheel

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Technical diagram of a turbine with labeled components and a magnified inset showing gear meshing mechanism.

Stap 3:

H G D

Stap 4:

C D

Stap 5:

A B I

Stap6:

B C J

Technical diagram of a portable air purifier with labeled components and safety warnings

Technical diagram illustrating the step-by-step installation of a spray gun, showing component positioning and tool path.

ÿWaarschuwing

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Gemaakt in China

WARRANTY CARD

Owner Warranty certificate

(Users save, show it to the maintenance point of repair)

Product name:

Model:

Place of origin:

Warranty period:

Invoice number:

Date of purchase:

Maintenance records

Repair date: Date of inspection:

Failure, maintenance, handling of:

Maintenance units: Repairer's signature:

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black studio hairdryer with a dome-shaped head and adjustable armrest, standing on a five-pole stand (no text or symbols visible)

BEHÖVS HJÄLP? KONTAKTA OSS!

Main body Water filling hole Spray hood Recycle water container Water tank Adjustable stand pole Wheel with brake Base Center Hub Wheel

VIKTIGA SÄKERHETS INSTRUKTIONER

Technical diagram of a turbine with labeled components and a magnified inset showing gear meshing mechanism.

Steg 3:

H G D

Steg 4:

C D

Steg 5:

A B I

Steg 6:

B C J
