USER MANUAL QLDZ09 Vevor

Technical Support and E-Warranty Certificate https://www.vevor.com/support

MECHANICAL MEASURING WHEEL USER MANUAL

MODEL: QLDZ09

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and doses not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

QLDZ09

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

1. Product Introduction

Thank you for choosing our product , the mechanical measuring wheel is asuitable tool for long distance measurement , Widely used in professionalsurveying and mapping operations , road engineering , measurement andevaluation of pipeline laying works , wire and cable works , construction surof garden scenery and golf course , measurement of distance location of traaccidents and the measurement of farmland construction management . It isworthy tool that adopts high-tech and humanized design , durable andconvenient .

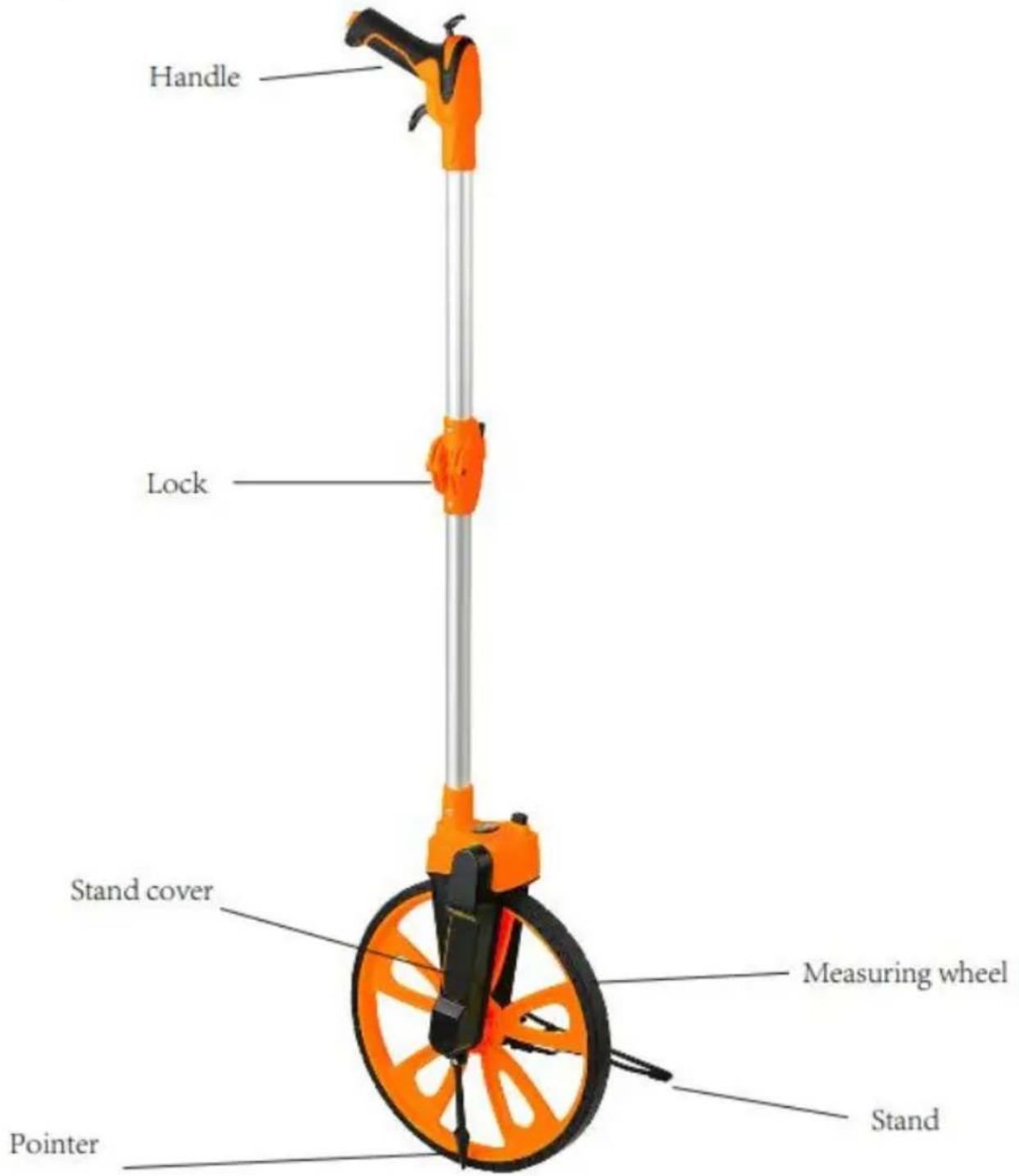

2. Parts

3 . Technical Data :

Maximum Measuring Distance : 9999 m

Measurement Accuracy : ±0 . 5%

Minimum Display Value : 0 . 1m

Suitable Use Temperature : -10°C-45°C

Wheel Diameter : 12.5 in / 318 mm

4.How to Measure

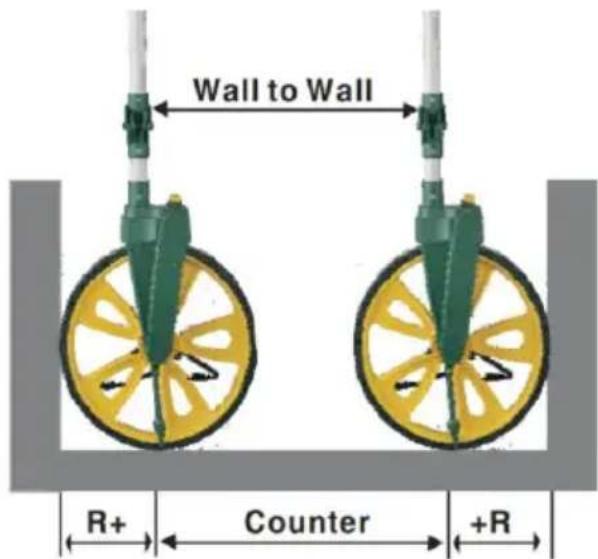

Wall to Wall Measurement

Please measure the wheel on the ground with the back of your wheel up the wall. Proceed to move in a straight line to the next wall. Stop the wheel against the wall. Record the reading on the counter. The reading must now added to the diameter of the wheel.

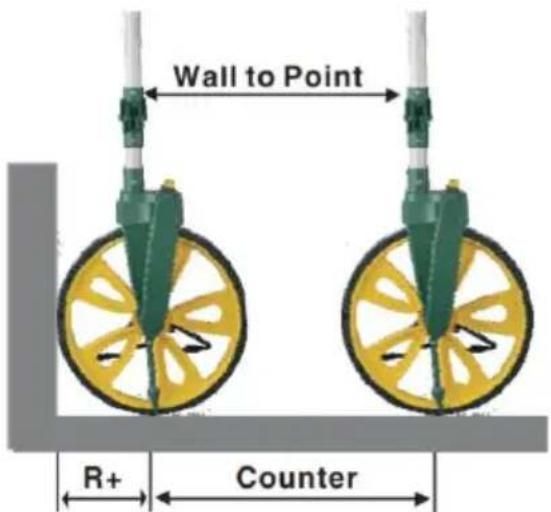

Wall To Point Measurement

Place the measuring wheel on the ground with the back of your wheel up the wall. Proceed to move in a straight line to the endpoint. Stop the whee the lowest point over the make Record the reading on the counter. The rea must now be added to the Radius of the wheel.

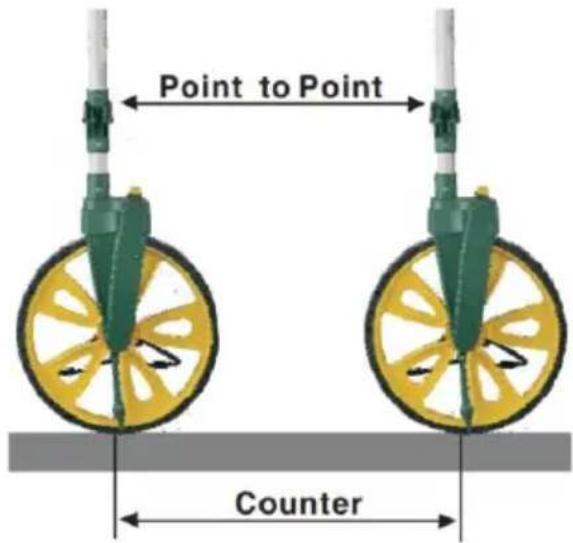

Point to Point Measurement

Place the measuring wheel on the starting point of the measurement with the lowest point of the wheel on the Proceed to the next mark at the end of measurement Record the reading on the counter. This is the final measurement between the two points.

5. Warning

1. If you measure a straight line, walk straightly.
2. Do not measure uneven surfaces. Otherwise, the accuracy cannot be guaranteed.
3. Do not use it in the rain for a long time.
   4 . Do not use it in high-temperature environments or store it.
   5 . If the display is dark and the battery sign appears, please replace the I
   6 . Do not dispose of batteries freely; please recycle them at specified place

4. If you do not use this instrument long, remove the batteries and store it dry and suitable place.

5. Do not use it as a toy to avoid extra injury.
