Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 22

Installation 24

Button Functions 28

Cleaning and Care 28

Troubleshooting 29

Product Data Sheet 30

Notes on Environmental Protection 35

Disposal Considerations 35

Manufacturer & Importer (UK) 35

TECHNICAL DATA

Item number	10046376, 10046378, 10046465, 10046466	10046377, 10048642
Version 60 cm 90 cm
Power supply 220-240 V ~ 50/60 Hz
Note: You can purchase an activated carbon filter separately for this cooker hood under item number 10032844. Please visit our website: www.klarstein.co.uk

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
  • Children under the age of 8 must not use the cooker hood.
• The appliance is not intended for commercial use, but only for household and similar environments.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
• Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
  • Prohibit putting the cooker hood by fire.
• If the appliance does not function normally, contact the manufacturer or a specialist company.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important hints on installation

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• Regulations concerning the discharge of air have to be fulfilled.

Important notes about the extraction mode

WARNING

Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.

Open flue combustion equipment (for example, gas, oil, wood or coal-fired heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction flue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
- An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.
  • Take a second person to help you during disassembly to avoid injuries.

INSTALLATION

Preparation

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, flexible pipe or inflammable material with an interior diameter of 150mm)

• Before installation, turn the unit off and unplug it from the outlet.
• The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

Diagram of airflow around a mechanical structure with directional arrows indicating movement (no text or symbols)

Installation (Vent outside)

Note: When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa ( 4 × 10^-5 Bar).

1

Screws (4 mm x 30mm)

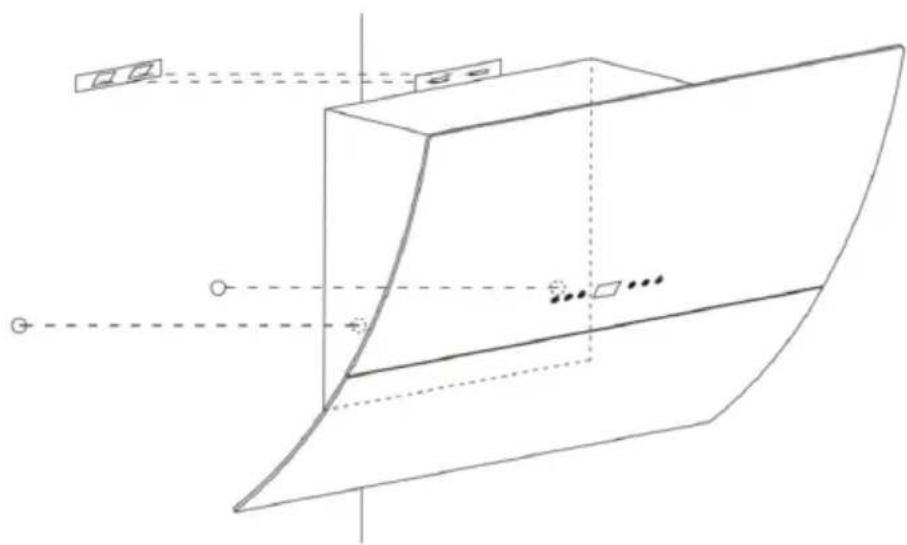

Drill 3 x 8 mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws & screw plugs provided.

2

Pure 3D geometric diagram showing a curved surface with dashed lines and control points (no text or symbols)

For inclined panel model, you need to drill 2 x 8 mm extra holes an use screw plugs and screws before installation.

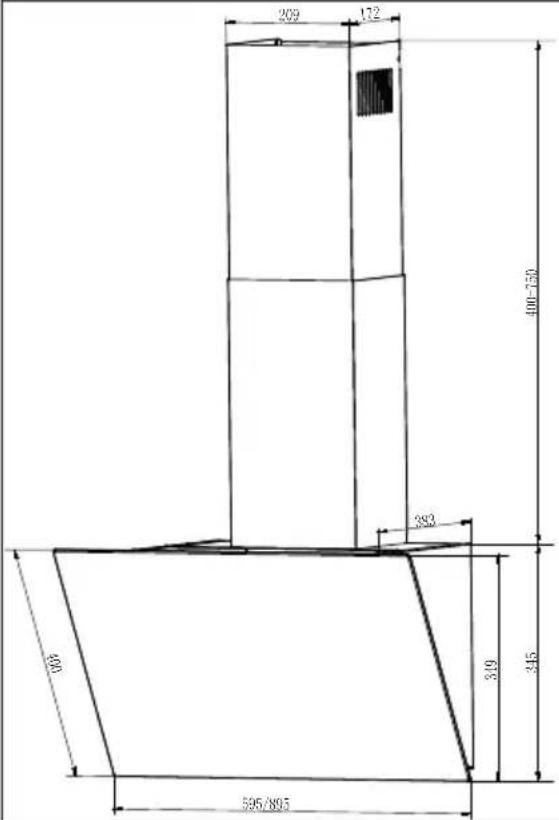

Dimensions

10046376, 10046377, 10046378, 10046465, 10046466, 10048642

209 172 400-750 383 319 345 109 596/805

3	4

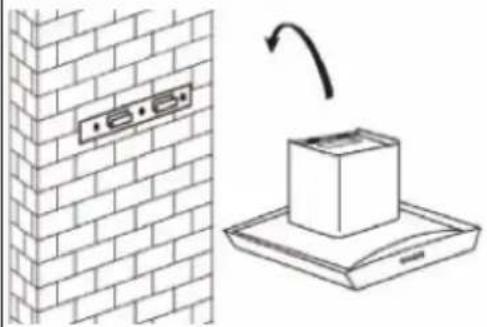

Leave up the cooker hood and hang onto the wall bracket hook.	Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve.

Chimney installation

Put the upper chimney into lower chimney. Then pulling out the upper chimney upwards. Adjust to reach the height required. Measure the appropriate height and dill 2×8 mm holes to accommodate the plate. Screw and tighten the upper wall with 2 screws provided.

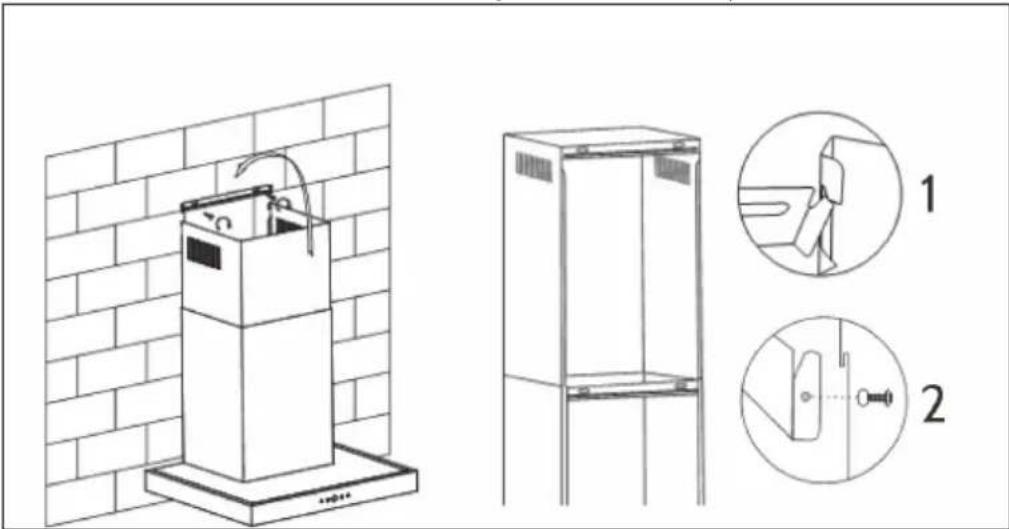

2 methods for installation of the chimney cover (see below pic for reference).

Technical diagram showing a vertical shelf with a door mechanism and its three-step assembly, labeled 1 and 2.

1. After drilled the 2 holes and fixed the hook, hang the chimney cover by matching the both side lock (Pic1).
2. After drilled the 2 holes and fixed the hook, install the chimney cover by locking with 2 screws in both side holes (Pic2).

Installation (Vent inside)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "Installation (Vent outside)".

Installing the Carbon Filter

Note: You can purchase an activated carbon filter separately for this cooker hood under item number 10032844. Please visit our website: www.klarstein.co.uk

1	2

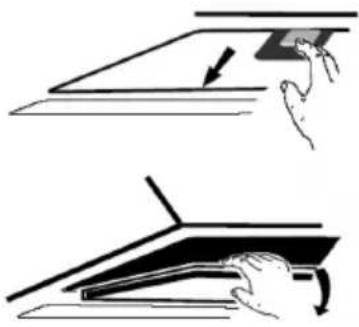

Activated carbon filter can be used to trap odours.	In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.
3

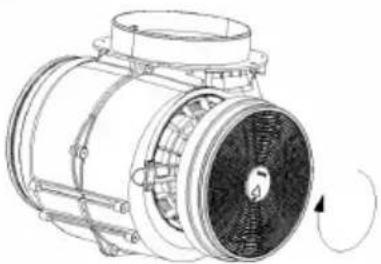

	Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side. Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon filter attached, the suction power will be lower.

BUTTON FUNCTIONS

	Digital display key: Press this key to make power on and off.
	Power down key: On working condition, press this key to decrease the power one level.
	Power up key: On working condition, press this key to increase the power one level.
	Delay key: On stand-by and working condition, press this key for 3s, the digital display blinks, we can set the delay power off time from 1 minute to 9 minutes; press the key again to save the setting. If 10s no pressing, then the setting would be saved automatically. When the motor is on and the delay setting is saved, we can still adjust the setting, and the display window all display the countdown time. When the motor is not working, can just set the delay time, does not have countdown function. The delay would turn to countdown time when the motor is working.
	Light key: Press one time for turning the light on, press another to turn the light off.

Note: On working condition, the display would off if 2 minutes without pressing, press again, the key lights on.

CLEANING AND CARE

Monthly Cleaning for Grease Filter

Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust, so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

Annual Cleaning for Activated Filter

Apply solely to unit that installed as a recirculation unit (not vented to the outside). This filter traps odours and must be replaced at least once a year depending on how frequent the cooker hood used.

Replacing Bulbs

• Switch the unit off and unplug the appliance.
• Remove the lamp cover by unscrewing the 2 screws.
• Unscrew the incandescent bulb. Replace with the same type and rated bulb.

TROUBLESHOOTING

Fault Cause Solution
Light on, but fan does not work	The fan blade is jammed.	Switch of the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	light bulb burn. Replace the	the bulb with correct rating.
	Power cord looses. Plug in	to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75 cm

PRODUCT DATA SHEET

Product fiche
Delegated Regulation (EU) 65/2014

Supplier name or trademark Klarstein
Model identifier 10046376
Annual Energy Consumption 11,8 kWh/annum
Energy Efficiency Class A++
Fluid Dynamic Efficiency 31,7
Fluid Dynamic Efficiency class A
Lighting Efficiency 28,0 Lux/W
Lighting Efficiency class A
Grease Filtering Efficiency 69,5 %
Grease Filtering Efficiency class D
Air flow (min speed normal use) 169 m^3/h
Air flow (max speed normal use) 524 m^3/h
Air flow (intensive or boost use) 578 m^3/h
Airborne acoustical A-weighted sound power emissions (min speed normal use)	35 dB
Airborne acoustical A-weighted sound power emissions (max speed normal use)	58 dB
Power consumption in off mode (W) 0,48 W

Model placed on the Union market from 01/07/2024.

EPREL registration number: 2065379

https://eprel.ec.europa.eu/qr/2065379

Supplier: Chal -Tec GmbH (Authorised representative)

Website:

Customer care service:

Name: Customer_service

Website: https://www.elektronik-star.de/lnfo/Impressum/

Email: [e-mail]

Phone: [phone]

Address:

Mühlenstraße 25

10243 Berlin

Germany

Product fiche

Delegated Regulation (EU) 65/2014
Supplier name or trademark Klarstein
Model identifier	10046377, 10048642
Annual Energy Consumption 11,8 kWh/annum
Energy Efficiency Class A++
Fluid Dynamic Efficiency 31,7
Fluid Dynamic Efficiency class A
Lighting Efficiency 25,0 Lux/W
Lighting Efficiency class B
Grease Filtering Efficiency 69,5 %
Grease Filtering Efficiency class D
Air flow (min speed normal use) 169 m3/h
Air flow (max speed normal use) 524 m3/h
Air flow (intensive or boost use) 578 m3/h
Airborne acoustical A-weighted sound power emissions(min speed normal use)	35 dB
Airborne acoustical A-weighted sound power emissions(max speed normal use)	58 dB
Power consumption in off mode (W) 0,48 W

Model placed on the Union market from 01/07/2024.

EPREL registration number: 2065433

https://eprel.ec.europa.eu/qr/2065433

Supplier: Chal -Tec GmbH (Authorised representative)

Website:

Customer care service:

Name: Customer_service

Website: https://www.elektronik-star.de/lnfo/Impressum/

Email: [e-mail]

Phone: [phone]

Address:

Mühlenstraße 25

10243 Berlin

Germany

Product fiche

Delegated Regulation (EU) 65/2014

Supplier name or trademark Klarstein

Model identifier 10046378

Annual Energy Consumption 11,8 kWh/annum

Energy Efficiency Class A++

Fluid Dynamic Efficiency 31,7

Fluid Dynamic Efficiency class A

Lighting Efficiency 28,0 Lux/W

Lighting Efficiency class A

Grease Filtering Efficiency 69,5%

Grease Filtering Efficiency class D

Air flow (min speed normal use) 169 m³/h

Air flow (max speed normal use) 524 m³/h

Air flow (intensive or boost use) 578 m³/h

Airborne acoustical A-weighted sound power emissions (min speed normal use)

35 dB

Airborne acoustical A-weighted sound power emissions (max speed normal use)

58 dB

Power consumption in off mode (W) 0,48 W

Model placed on the Union market from 01/07/2024.

EPREL registration number: 2065419

https://eprel.ec.europa.eu/qr/2065419

Supplier: Chal -Tec GmbH (Authorised representative)

Website:

Customer care service:

Name: Customer_service

Website: https://www.elektronik-star.de/lnfo/Impressum/

Email: [e-mail]

Phone: [phone]

Address:

Mühlenstraße 25

10243 Berlin

Germany

Product fiche

Delegated Regulation (EU) 65/2014
Supplier name or trademark Klarstein
Model identifier 10046465
Annual Energy Consumption 11,8 kWh/annum
Energy Efficiency Class A++
Fluid Dynamic Efficiency 31,7
Fluid Dynamic Efficiency class A
Lighting Efficiency 28,0 Lux/W
Lighting Efficiency class A
Grease Filtering Efficiency 69,5 %
Grease Filtering Efficiency class D
Air flow (min speed normal use) 169 m3/h
Air flow (max speed normal use) 524 m3/h
Air flow (intensive or boost use) 578 m3/h
Airborne acoustical A-weighted sound power emissions (min speed normal use)	35 dB
Airborne acoustical A-weighted sound power emissions (max speed normal use)	58 dB
Power consumption in off mode (W) 0,48 W

Model placed on the Union market from 01/07/2024.

EPREL registration number: 2065438

https://eprel.ec.europa.eu/qr/2065438

Supplier: Chal -Tec GmbH (Authorised representative)

Website:

Customer care service:

Name: Customer_service

Product ficheDelegated Regulation (EU) 65/2014
Supplier name or trademark Klarstein
Model identifier 10046466
Annual Energy Consumption 11,8 kWh/annum
Energy Efficiency Class A++
Fluid Dynamic Efficiency 31,7
Fluid Dynamic Efficiency class A
Lighting Efficiency 28,0 Lux/W
Lighting Efficiency class A
Grease Filtering Efficiency 69,5 %
Grease Filtering Efficiency class D
Air flow (min speed normal use) 169 m^3/h
Air flow (max speed normal use) 524 m^3/h
Air flow (intensive or boost use) 578 m^3/h
Airborne acoustical A-weighted sound power emissions (min speed normal use)	35 dB
Airborne acoustical A-weighted sound power emissions (max speed normal use)	58 dB
Power consumption in off mode (W) 0,48 W

Model placed on the Union market from 01/07/2024.

EPREL registration number: 2065442

https://eprel.ec.europa.eu/gr/2065442

Supplier: Chal -Tec GmbH (Authorised representative)

Website:

Customer care service:

Name: Customer_service

Website: https://www.elektronik-star.de/lnfo/Impressum/

Email: [e-mail]

Phone: [phone]

Address:

Mühlenstraße 25

10243 Berlin

Germany

NOTES ON ENVIRONMENTAL PROTECTION

• During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Chal-Tec GmbH, Mühlenstraße 25, 10243 Berlin, Germany.

Contact: [e-mail]

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Diagram of airflow around a mechanical structure with directional arrows indicating movement (no text or symbols)

Pure 3D geometric diagram showing a curved surface with dashed lines and control points (no text or symbols)

Technical diagram showing a cabinet with rotating arm and two close-up views of the cabinet's side view, labeled 1 and 2.

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid rectangle below (no text or labels)

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Diagram of airflow around a mechanical structure with directional arrows indicating movement (no text or symbols)

Pure 3D geometric diagram showing a curved surface with dashed lines and control points (no text or symbols)

Technical diagram showing a cabinet with directional arrows and two labeled diagrams (1 and 2) illustrating mechanical or structural components.

FICHE DE DONNÉES PRODUIT

Nom: Customer_service

Site web: https://www.elektronik-star.de/Info/Impressum/

Courriel: [e-mail]

Téléphone: [phone]

Adresse:

Mühlenstraße 25

10243 Berlin

Allemagne

Fiche de produit

Nom: Customer_service

Site web: https://www.elektronik-star.de/Info/Impressum/

Courriel: [e-mail]

Téléphone: [phone]

Adresse:

Mühlenstraße 25

10243 Berlin

Allemagne

Nom: Customer_service

Site web: https://www.elektronik-star.de/Info/Impressum/

Courriel: [e-mail]

Téléphone: [phone]

Adresse:

Mühlenstraße 25

10243 Berlin

Allemagne

Fiche de produit

Nom: Customer_service

Site web: https://www.elektronik-star.de/lnfo/Impressum/

Courriel: [e-mail]

Téléphone: [phone]

Adresse:

Mühlenstraße 25

10243 Berlin

Allemagne

Fiche de produit

Nom: Customer_service

Site web: https://www.elektronik-star.de/Info/Impressum/

Courriel: [e-mail]

Téléphone: [phone]

Adresse:

Mühlenstraße 25

10243 Berlin

Allemagne

INFORMATIONS SUR LA PROTECTION DE L'ENVIRONNEMENT

Symbol of a trash bin with crossed lines indicating no waste, above and below a solid black rectangle (no text or labels)

QR code image containing encoded data, no visible human-readable text

INDICE

Diagram of airflow around a mechanical structure with directional arrows indicating movement (no text or symbols)

Pure 3D geometric diagram showing a curved surface with dashed lines and control points (no text or symbols)

Technical diagram showing a cabinet with brick wall and two views of the cabinet, labeled 1 and 2, with mechanical components and assembly details.

Nome: Customer_service

Sito web: https://www.elektronik-star.de/lnfo/Impressum/

E-mail: [e-mail]

Nome: Customer_service

Sito web: https://www.elektronik-star.de/lnfo/Impressum/

E-mail: [e-mail]

Nome: Customer_service

Sito web: https://www.elektronik-star.de/lnfo/Impressum/

E-mail: [e-mail]

Nome: Customer_service

Sito web: https://www.elektronik-star.de/lnfo/Impressum/

E-mail: [e-mail]

Nome: Customer_service

Sito web: https://www.elektronik-star.de/lnfo/Impressum/

E-mail: [e-mail]

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

QR code image containing encoded data, no visible human-readable text

INHOUDSOPGAVE

Diagram of airflow around a mechanical structure with directional arrows indicating movement (no text or symbols)

Pure 3D geometric diagram showing a curved surface with dashed lines and control points (no text or symbols)

Technical diagram showing a cabinet with brick wall and two views of the cabinet, labeled 1 and 2, with mechanical components.

Naam: Customer_service

Website: https://www.elektronik-star.de/Info/Impressum/

E-mail: [e-mail]

Telefoon: [phone]

Adres:

Mühlenstraße 25

10243 Berlin

Duitsland

Naam: Customer_service

Website: https://www.elektronik-star.de/lnfo/Impressum/

E-mail: [e-mail]

Telefoon: [phone]

Adres:

Mühlenstraße 25

10243 Berlin

Duitsland

Productkaart

Naam: Customer_service

Website: https://www.elektronik-star.de/lnfo/Impressum/

E-mail: [e-mail]

Telefoon: [phone]

Adres:

Mühlenstraße 25

10243 Berlin

Duitsland

Naam: Customer_service

Website: https://www.elektronik-star.de/lnfo/Impressum/

E-mail: [e-mail]

Telefoon: [phone]

Adres:

Mühlenstraße 25

10243 Berlin

Duitsland

INFORMATIE OVER MILIEUBESCHERMING

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)
