Thank you for choosing our product!

By purchasing this product you receive guarantee for

• good quality originating from the usage of the finest and proven materials,
• operating security which is controlled according to German and European norms (Corresponds to the standards EN 13240),
- long life ensured by the robust structure.

In order to be able to use your new fireplace for a long time please read the following instructions manual. You will find all the necessary information in it and some additional advice.

PLEASE NOTE:

When ordering replacement parts, the Article No. and Serial No. shown on the identification plate must be quoted.

Contents

Foreword....21

Contents....23

SAFETY INSTRUCTIONS....22

1. Usage....26
   1.1 Structure of the equipment 26
   1.2 Installation....27
   1.3 Putting out of operation....28
   1.4 Heating instructions ....28
   1.5 Cleaning and maintenance ....29
   1.6 Potential problems and how to tackle them....31

2. Placing 32

2.1 Prescriptions ....32

2.2 Place of installation....32

2.3 Distances ....32

2.4 Connection of the fireplace 33

1. Technical specification....36

3.1 Dimensional drawings....36

3.2 Dimensions, Datas....37

SAFETY INSTRUCTIONS

1. The stoves are tested to EN 13240 (see identification plate).
2. For installation and for flue gas connections, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 18896, DIN 4705, EN 13384, DIN 18160, EN 1856-2 and EN 15287. In order for the stove to function correctly the chimney to which you want to connect the stove must be in good condition.
3. Before first use and before connecting to the chimney, you must read the Instructions for Use carefully and inform the local authority responsible for approving heating systems.
4. While installing the stove you are recommended to wear clean cotton gloves, in order to avoid leaving fingerprints which can be difficult to remove afterwards.
5. In the interests both of clean air, and of the safe functioning of the stove, the fuel quantities listed in the Instructions for Use should never be exceeded, and the doors of the stove must be shut during use to avoid the risk of overheating, which can lead to damage to the stove. Damage due to this cause is not covered by the guarantee.
6. The stove doors must remain shut at all times while the stove is in use.

7. Permitted fuels are:

8. Natural chopped firewood (up to 33 cm max. in length)

9. Lignite (brown coal) briquettes (see permitted fuels in the Instructions for Use)

10. Never use liquid fire starters. Use either special firelighters or wood shavings.

11. Burning rubbish, fine chips, bark, coal slack, chips from planing, damp wood or wood treated with preservative, paper, cardboard or similar is not permitted.
12. The first time the stove is heated there may be some smoke and an unpleasant smell. Make sure that the room is well ventilated (open windows and doors) and heat for at least an hour at the maximum nominal heat load. If the maximum temperature is not reached the first time the stove is heated, then there may be further unpleasant smells at a later date.
13. All controls and settings must be used as indicated in the Instructions for Use. When the stove is hot, please handle only using the implements or protective gloves provided.
14. If the stove is not working correctly, or if the chimney is not drawing properly, smoke may appear when the fire door is opened. It is very important to only open the fire door slowly, initially just a crack, then wait a few seconds before opening fully. In addition, before opening the fire door to top up the fuel, make sure that only glowing material is present: there must not be any visible flames.
15. Do not place any flammable items in the warming drawer or on the surface of the stove.
16. When in use, all surfaces and particularly the glass doors and handles and other controls can become very hot. Make children, young people, older people and animals aware of this danger, and keep them away from this source of heat when the

stove is being used. Use the protective gloves or the implements provided. Children and young people under 16 must not use the stove unless supervised by an adult who is responsible for them.

1. Make sure that the ash pan is always fully pushed in, until it touches the back. Never remove ashes while still hot (fire risk).
2. In spring and autumn the chimney may no longer draw correctly, so that gases produced by combustion are not completely removed. The fire chamber should then be filled with a small quantity of fuel, ideally with wood shavings, and lit under supervision, in order to stabilise the chimney draught. The grate must be clean.
3. After each prolonged period of use for heating, have the stove checked by a professional. The flues and pipes for the evacuation of fumes must also be thoroughly cleaned.
4. If repairs or replacements are necessary, please contact your supplier with the necessary article numbers and serial numbers in good time. Only original WAM-SLER replacement parts may be used.
5. Work such as installation, setup, commissioning and services, as well as repairs, must only be carried out by qualified personnel (heating system or space heating technicians). Intervention by non-qualified persons invalidates the warranty and guarantee.
6. As the solid fuel oven/stove draws the air required for combustion from the surrounding room, you must ensure that sufficient air can be drawn in through non-sealed windows and outside doors. It can be assumed that is this is provided by a room volume of at least 4 m^3 per kW nominal heat capacity. If the volume is less than this, then air vents can be used to provide access to further air in other rooms (min. 150 cm^2 ).
7. You must ensure that the correct safety distance is maintained from all flammable components and materials – to the side, rear and front. These distances can be found in the Instructions for Use or the identification plate.
8. The fire chamber must not be modified.
9. Connection to a chimney whose functional height is less than 4 m, or if multiple stoves are installed, 5 m, is not permitted. A maximum of two other fires can be connected to the chimney which is to be connected the stove.
10. If the chimney catches fire immediately close all doors and openings and call the fire brigade. Do not attempt to extinguish the fire yourself. Afterwards have the chimney thoroughly checked out by a professional.
11. Solid fuels naturally create soot, so it is always possible that the window glass will become dirty: this does not mean there is a malfunction.

1. Usage

1.1 Structure of the equipment

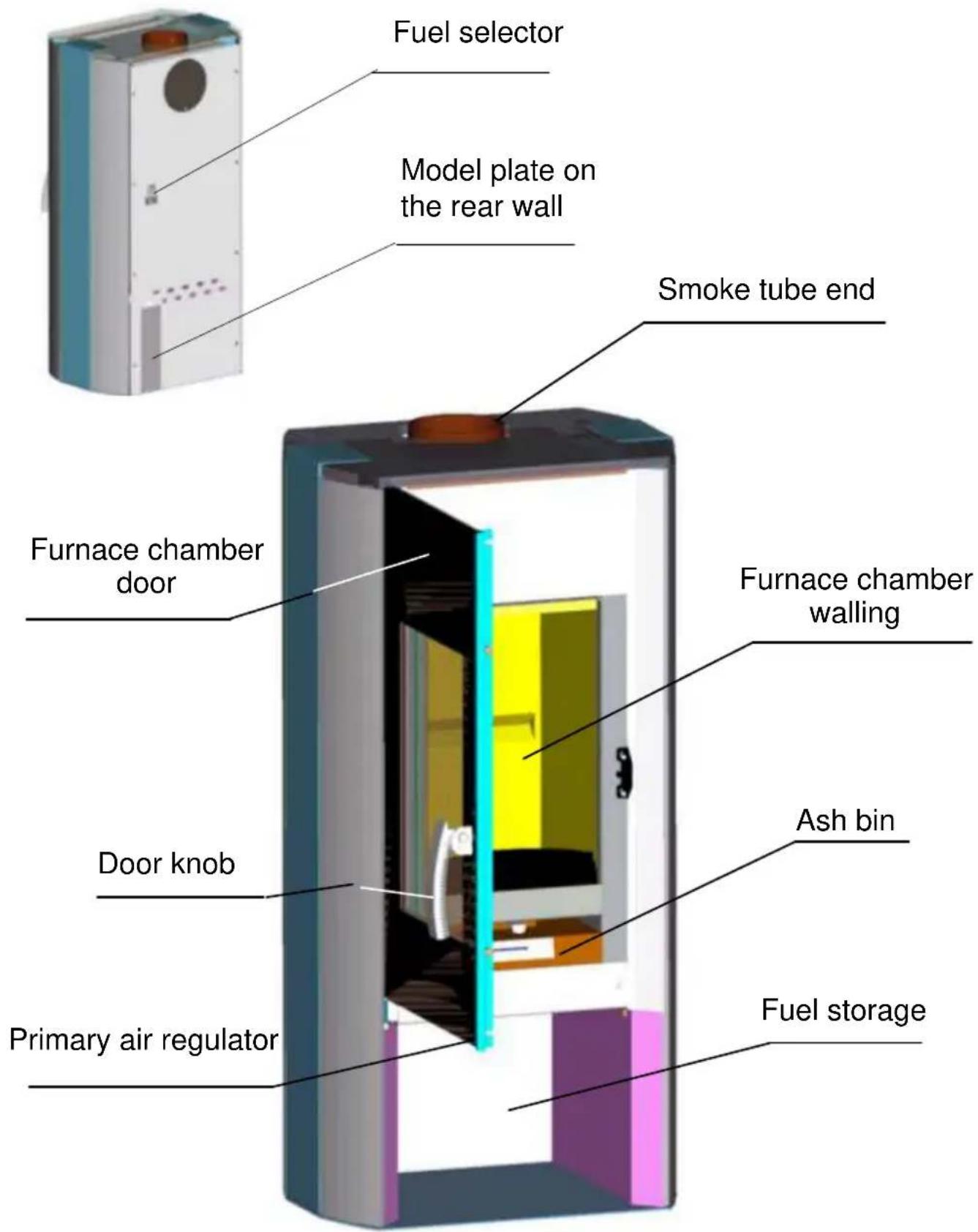

Fuel selector Model plate on the rear wall Smoke tube end Furnace chamber door Furnace chamber walling Ash bin Door knob Primary air regulator Fuel storage

1.2 Installation

Fuels

The equipment can be used with fuels detailed in the followings. This way the “low-smoke” and trouble-free operation can be secured. Use only dry wood with moisture of maximum 20%.

Types of fuels	Heating value appr. kJ/kg
Brown-coal	19.500
Hard wood	15.900
Soft wood	11.500

Table 1

Filling quantities 7 kW

-Split billet: max. length: 33 cm, max. 3 billets per filling, appr. 1,7 kg

-Lignite briquette: max. 1,7 kg

Fuel		Setting of the primary air regulator	Setting of the fuel selector
Warning up, kindling		III H
Wood	Nominal heating performance	II H
Brown-coal	Nominal heating performance	III K
Putting out of working order		I K

Table 2

IT IS NOT ALLOWED to burn waste, fine chipping, bark, wood handled with preventive chemicals, furthermore paper and cardboard. For kindling please use wood scrapings or grill starter but never use liquid auxiliaries!

The first kindling

- At the first fire set-up could be a little smoke, but is not dangerous, normal! In this time, please ventilate the room carefully!

Warning! Upon the first kindling, smoke and unpleasant smell may be generated. Always ensure the proper ventilation of the room (by opening windows and doors), and heat the fireplace at maximum rated heating performance. If with the first heating the maximum temperature is not reached, the above-mentioned effects may as well arise later on.

• Before installation pull out the delivery securer off the refractory brick through the furnace chamber (picture no. 6).

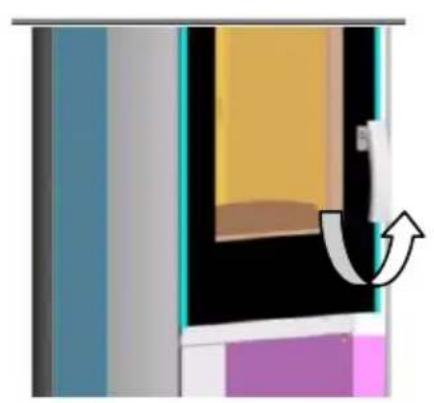

  Open the door by raising the handle (Picture 2). If the equipment is hot, you can use insulated gloves. Adjust the primary air regulator and the fuel switch (Picture 3) according to the Table 2. Put coal lighter or wood wool onto the fire grate, followed by wood chips. First insert small pieces of wood, and then larger ones, light them and close the door again. When the wood burns quickly, and leaves sufficient glowing embers, put additional fuel on the fire. Thereafter, adjust the primary air regulator and the fuel switch according to the Table 2 („Adjustment of the burning air”).
  The first kindling should be performed “finely” with little fuel only, so that the parts of the fireplace are adapted to heat. During the first kindling, the generation of smell is normal and absolutely undangerous.

1.3 Putting out of operation

• Let the glowing ember burn to ashes and the fire-place get cold.
  • Empty the furnace chamber and the ash bin.
• Close the doors and push the primary air regulator totally to the left.

1.4 Heating instructions

The fireplace should be operated only with closed furnace chamber door. Fireplaces belonging to type 1 have self-locking furnace chamber doors. These doors may be opened only for kindling, loading or when cleaning the furnace chamber (otherwise draught problems may occur with other equipment connected to the same chimney).

Warning!

When opening the furnace chamber door, any incorrect handling or insufficient draught may induce smoke. Always ensure that the furnace chamber door may be opened only slowly, first just to a small extent, and then fully after a few seconds. In addition, if you intend to put additional fuel into the fire, before the opening of the door only there may be only ember bed in the burning space, i.e. no flames may be visible.

Led into the burning space in correspondence with the existing conditions, the secondary air provides for the follow-up burning of the combustible components of in the burning space. This in fact means smoke and soot-poor burning, which contributes to the protection of the environment. If you wish to commission the fireplace in a transitional period, please, please first examine the chimney draught, as it can be especially weak at high external temperatures. Towards this end, hold a burning match in the slightly opened feeding door. If the flame is not drawn significantly by the draught, then a so-called starting fire is to be set first. Towards this end, burn wood chips/wool in the fireplace or the cleaning hole of the chimney. The fire grate is to be cleaned before every kindling to ensure the proper inflow of air for burning. The ashtray is to be emptied regularly (Figure 4). Should the equipment be extremely hot, use the gloves provided. Please, be careful not to dispose glowing materials into the waste bin.

Ensure that the ashtray should be fully pushed into the equipment.

Warning! In order to keep the air clean and safeguard the fireplace, do not exceed the specified maximum fuel quantity, otherwise overheating may occur, which potentially damage the equipment. Such damage is not covered with any guarantee. Only a single layer of fuel is allowable to be prepared in the fireplace. Try to reach lower heating performance only by decreasing the quantity of fuel, and not by cutting the primary air supply.

1.5 Cleaning and maintenance

After the heating season, it is recommended to clean the fireplace and the flue gas pipes carefully. Any dropping heating performance is almost always the consequence of the strong contamination of the flues. For cleaning, the baffle plate (Picture7) is to be pulled forward. This way, the flues can be cleaned from the inside or – after removing the flue gas pipe – from above. After cleaning, the baffle plate (Picture 7) is be pushed back fully again.

Warning!

Following every heating season you are advised to examine the fireplace thoroughly. If any repair or reconditioning is needed, please, contact your local dealer in a timely manner, and specify the model number and serial number of your equipment (as seen on the model plate). External surfaces may be maintained only after the fireplace cooled down, and following the first commissioning. Use cold water for cleaning, or soap, washing ingredient in extraordinary cases, then wipe it dry. Before its first use, clean the ROBAX inspection glass with a wet and clean cloth, and then put a few drops of glass-ceramics cleaner onto both sides of the glass, and spread them with the use of kitchen paper tissues. It provides an invisible film on the valuable surface of the Robax glass. This film helps to keep the glass clean, and facilitates regular cleaning operations. ROBAX S for slightly contaminated surfaces – a commercially available glass surface cleaning agent – may as well be used for the cleaning of the medium or strongly contaminated glass surfaces of the fireplace. Towards this end, spray small quantities of the agent to the cold surfaces, spread it, and wash it down with a wet cloth, followed by drying with a clean, soft cloth. In case there are sticky fuel deposits on these surfaces, first scale simply them with a ceramic-plate scraper held in flat angle, and then clean the surfaces as described above.

Cleaning of the ceramic surfaces dirt and grease are to be removed with soap and water.

Cleaning of the soapstone: the soapstone is a natural stone, therefore minor colour differences may occur; as it is normal, they may not serve as a basis for quality complaints! To clean the soapstone from dirt and fat with water and soap, as well as small scratches, use sand paper (grain size 240).

Warning: Under no circumstances you may use sponge, scouring, aggressive or scratching cleaning agents! If the grate is blocked so that the equipment cannot serve the intended function, the grate is to be removed for cleaning.

Diagram of a window with color-coded panels and an arrow indicating rotation (no text or symbols)

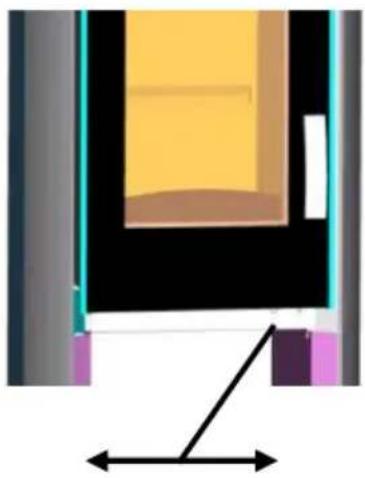

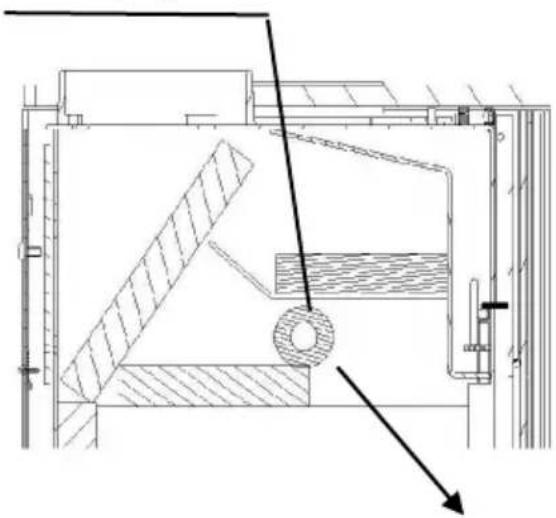

picture 2

K H

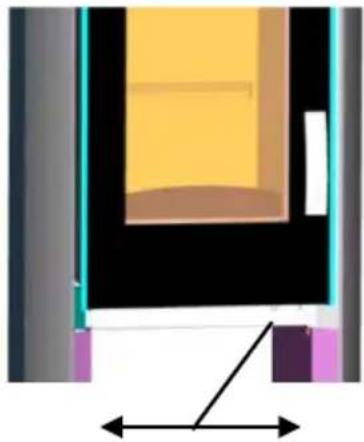

picture 3

Cross-sectional diagram of a mechanical or architectural component with layered structure and directional arrow (no text or symbols)

Diagram of a mechanical or electrical component with colored sections and directional arrows, no visible text or symbols.

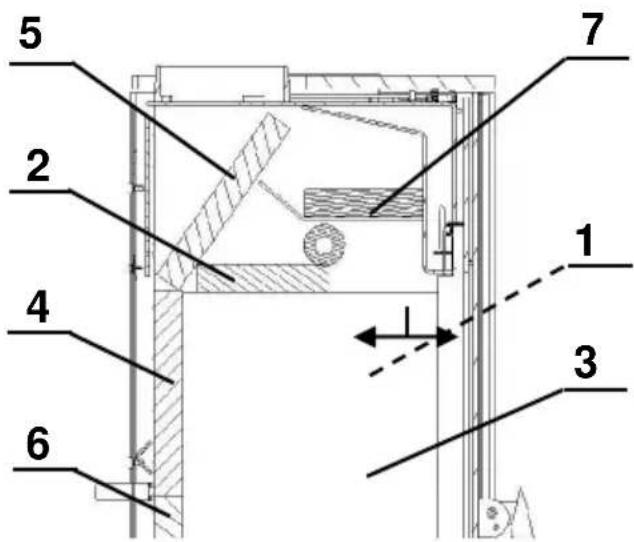

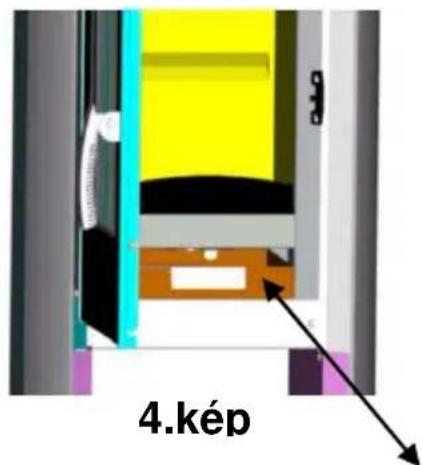

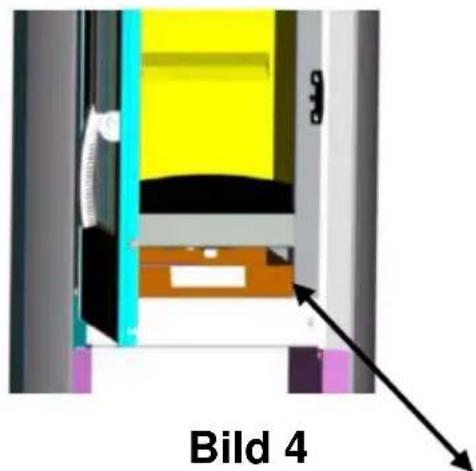

picture 4

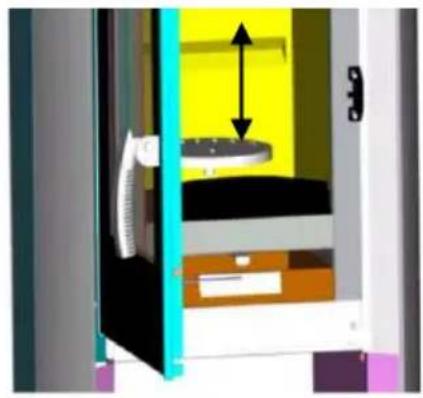

Interior view of a laboratory or testing chamber with yellow and black components, no visible text or symbols

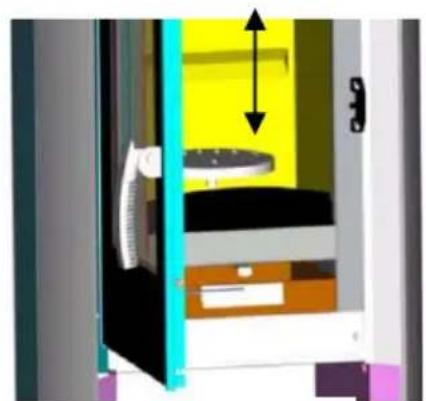

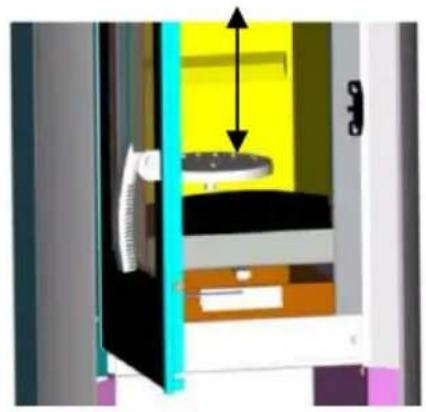

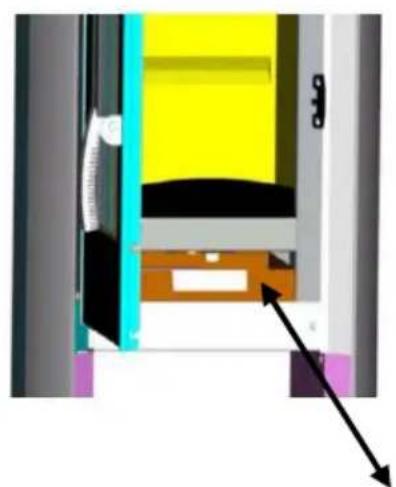

picture 5

Protection carton to delivery

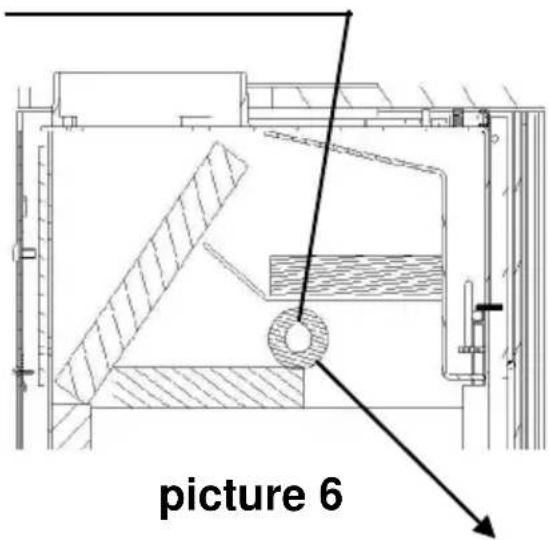

picture 6

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating movement or force.

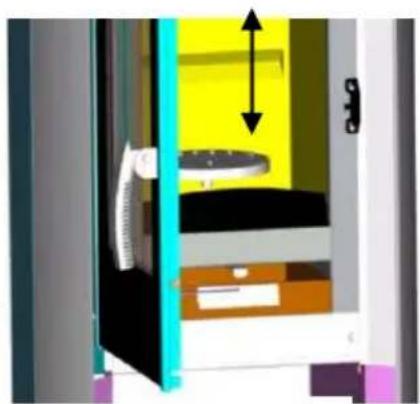

picture 7

1.6 Potential problems and how to tackle them

Kind of operating problem	Possible reasons Solution
Odour formation Curing	of the applied preventive lacquer.Steaming oil remains.	Operate the fire-place on a low heating level according to the instructions manual for a few hours. Then heat up for maximal performance for a few hours.
Too little heating performance	We chose too little performanceChimney draught is slight	Have the heating requirement of the room examined by an expertChimney draught shall be at least 12 Pa, max. for a short time 18 Pa.Check the tightness of your chimney and also that the doors of other fire-places leading to the same chimney are closed and sealed properly. Make sure that the chimney-cleaning joints are sealed properly.
	Too long and leaky smoke tube	All the smoke tube joints must be well sealed and fireproof-isolated
	Leakage at the door glass	Check the sealing, close the door properly. May have to have the tightening flap re-newed.
	Usage of wet wood. Use	well dried wood only.

Actions to be in chimney fire

Chimney fire may occur upon the improper cleaning of the chimney, the use of inappropriate fuels (e.g. excessively wet wood) or the inadequate setting of the burning air. In such cases, close the burning air at the fire, and call the fire service.

Never try to extinguish the fire with water!

2. Placing

2.1 Prescriptions

For installation and for connection of flue, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 18896, DIN 4705, EN 13384, DIN 18160, EN 1856-2 and EN 15287. In order for the stove to function correctly the chimney to which you want to connect the stove must be in good condition.

2.2 Place of installation

The stove draws the air required for burning from the surrounding room. You must ensure that sufficient air can be drawn in through non-sealed windows and outside doors. In addition you must ensure that a room volume/heat capacity ratio of at least 4 m^3 per kW nominal heat capacity is available. If the volume is less than this, then air vents can be used to provide access to further air supply in other rooms (connecting vents min. 150 cm^2 ).

2.3 Distances

All the combustible materials, furniture or e.g. decoration materials that are in the close environment of the fireplace should be protected from the heat.

Furnishing in the radiation area

Keep a minimal distance of 80 cm (A) between the front edge of the fireplace and the combustible equipment, furniture or e.g. decoration materials in the building. The security distance can be reduced to 40 cm (B) if a heat shield is placed in front of the object to be protected (see example in Picture 8).

Furnishing beyond the radiation area

The walls beside and behind the fireplace may not be made of combustible materials, and they cannot be covered with such materials if the distance on the sides is under 20 cm, or 30 cm on the rear side. Similarly, the distance to wooden and plastic furniture on the sides should be at least 20 cm (see Picture 9).

B A

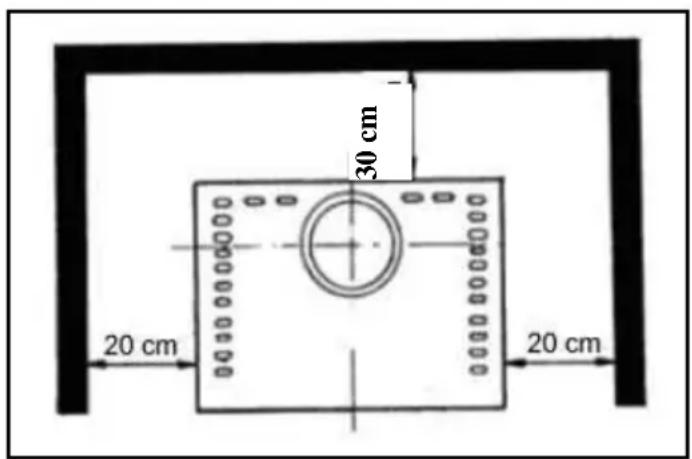

picture 8

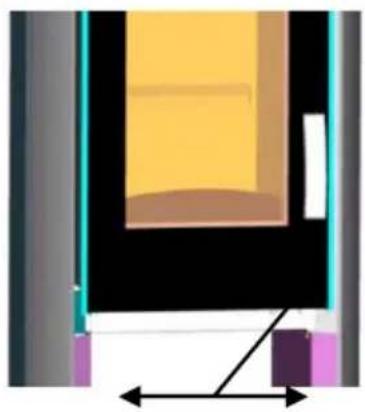

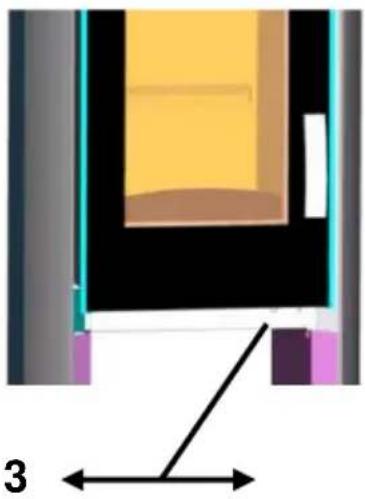

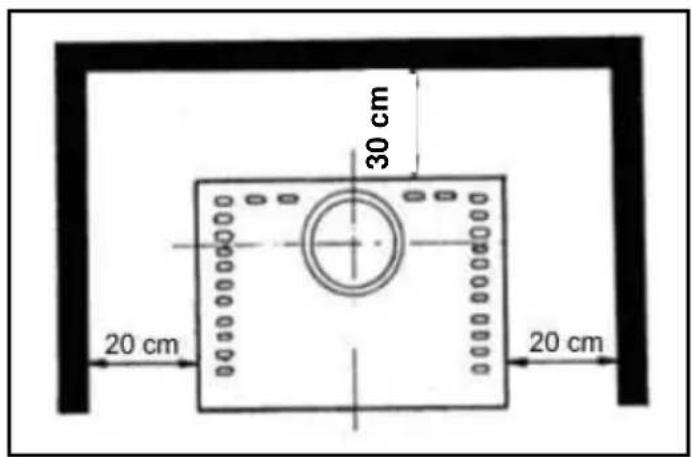

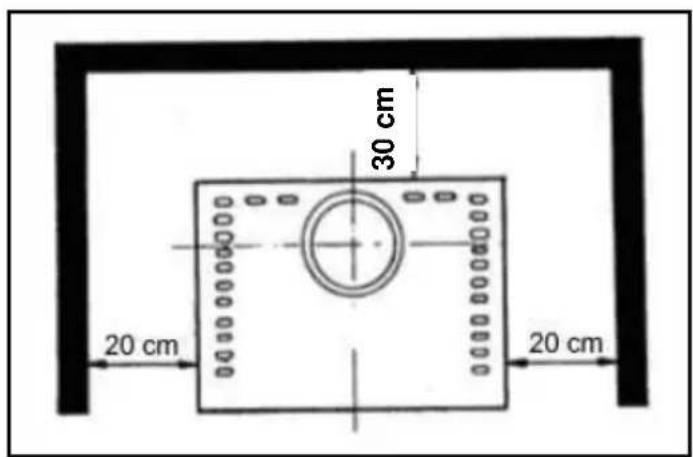

30 cm 20 cm 20 cm

picture 9

Floor in front of the fireplace

Floors made from combustible materials, such as carpets, parquet floors or cork is to be protected by a shield of non-combustible material – for example ceramics, stone, glass or steel – placed under the fireplace so that it should reach out to 50 cm in front and 30 cm besides.

2.4 Connection of the fireplace

The connection for attaching to the chimney must be able to withstand at least 400^ C.

PLEASE NOTE:

Before connecting the stove the local authority responsible for approving heating systems must be consulted!

Connection pieces must be firmly connected to the stove and to each other and must not leak. They must not project into the open diameter of the chimney. The connection piece between the stove and the chimney must have the same diameter as the pipe socket on the stove. Horizontal connection pieces of over 0.5 m must rise towards the chimney at an angle of 10 degrees. Any pipes which are not heat insulated or vertical must not be longer than 1 metre.

The requirements of the Fire Regulations (FeuVO) apply, as well as local building regulations such as for the chimney standards DIN 18896, DIN 4705, EN 13384, DIN 18160 and EN 15287. Connection pieces must be tested to EN 1856-2. Measurement X (distance from flammable construction and other materials) must be as defined by the manufacturer of the connection piece.

Simple line drawing of a vertical structure with a cylindrical component and an X-axis label (no text or symbols beyond the label)

PLEASE NOTE:

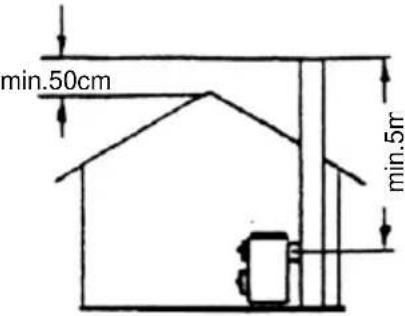

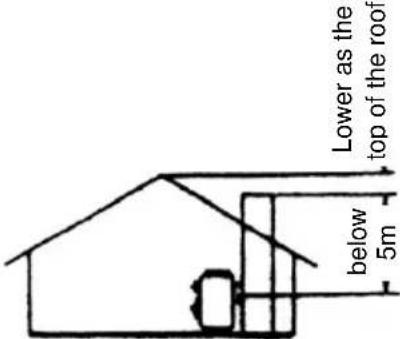

Fitting to a chimney with a functional height of less than 4 m, or if several stoves are being fitted, less than 5 m, is not permitted.

(See: Data for chimney calculations / Chapter 3.) A maximum of two other fires can be connected to the chimney to be connected to the stove.

For safety reasons it is not permitted to use a steam extractor hood to remove air when the stove is producing heat.

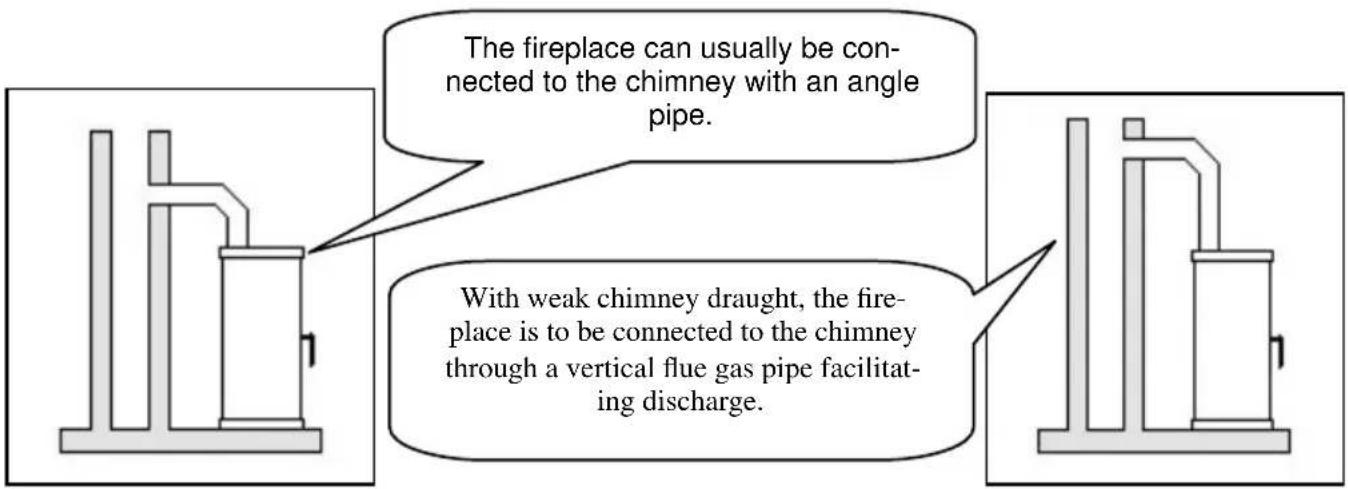

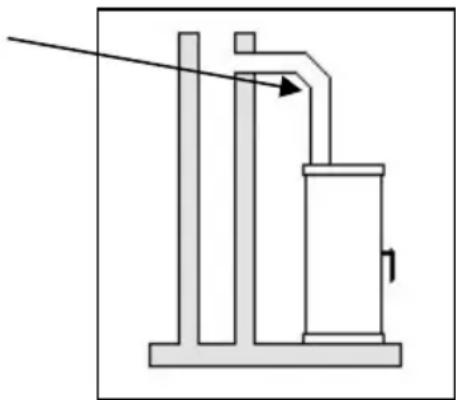

The fireplace can usually be connected to the chimney with an angle pipe. With weak chimney draught, the fireplace is to be connected to the chimney through a vertical flue gas pipe facilitating discharge.

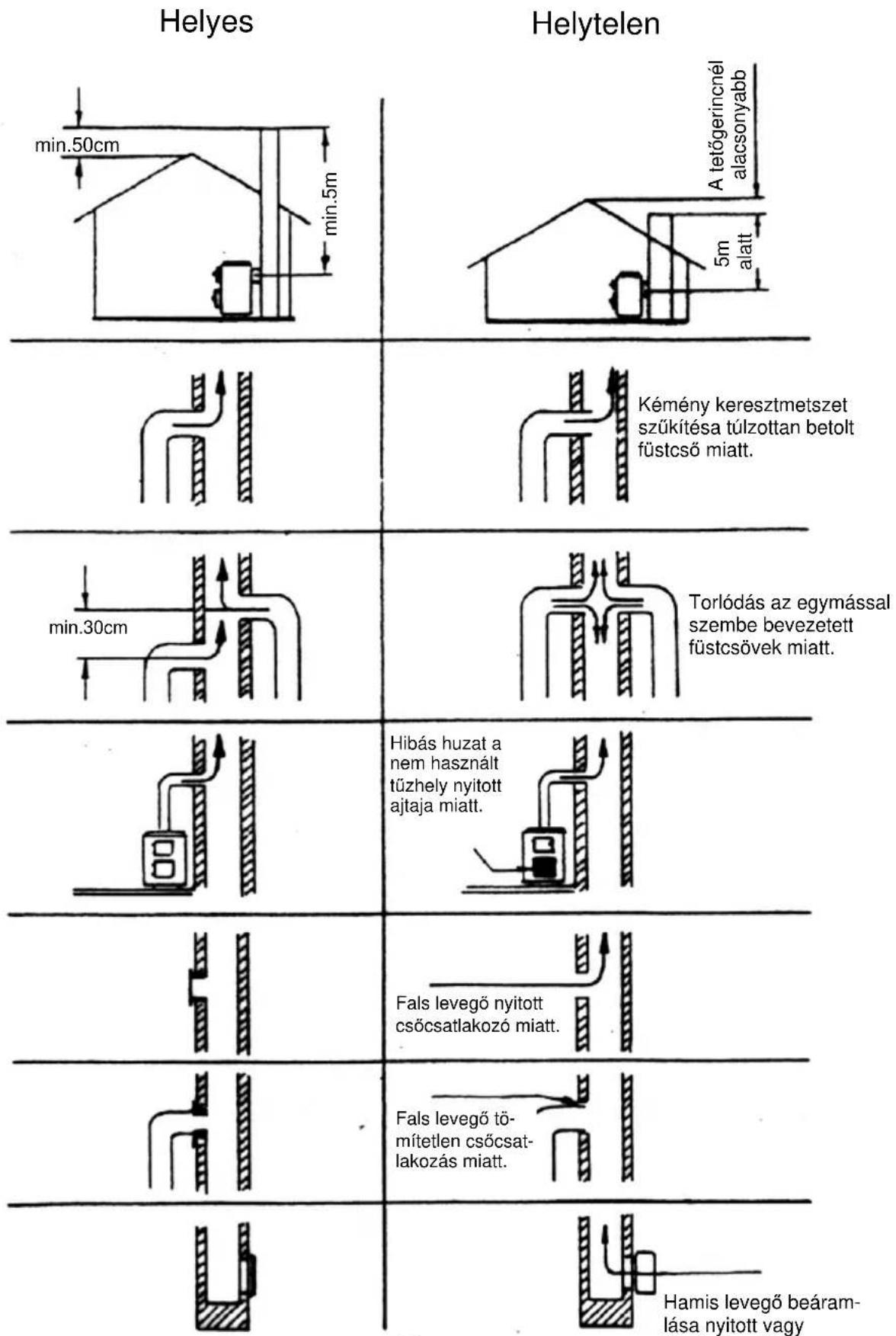

Correct	Incorrect
		Tightening cross section of the chimney because the smoke tube is pushed into the chimney too much
min		Obstruction, because the smoke tubes are led as facing each other
	[Faulty c because fire-plad door (n use) is
	Fa an
	Fal bec leaf
		False air, because a open fire-place door

3. Technical specification

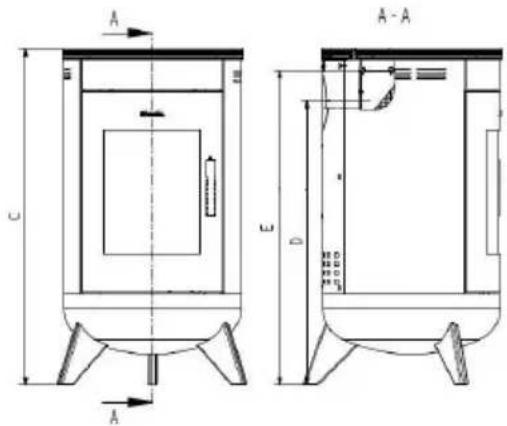

3.1 Dimensional drawings

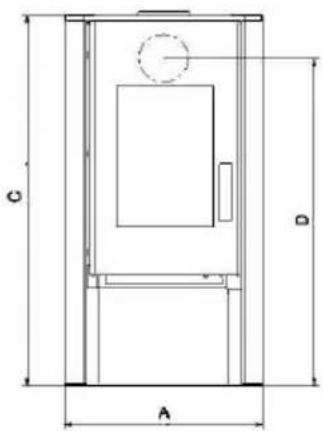

TYP 101 60 CHARISMA, BOLERO

TYP 101 61 FLAIR;

TYP 101 62 GALA, GALANT, STRADA

TYP 101 70 IMPRESSION, EL PASO, ARTE, VITA, AVANTGARD,

TYP 101 64 METROPOLITAN

A B D W

C A D

Ø150 F D

A C A A - A D

The specified dimensions and weights are approximate values, and thus have only informative purposes. We reserve the right to modify the designs as required in terms of technology or quality!

Type:	TYP 10160 CHARISMA / BOLEROTYP 10161 FLARTYP 10162 GALA / GALANT / STRADATYP 10164 METROPOLITANTYP 10170 ARTE / VITATYP 10170 IMPRESSION / EL PASOTYP 10170 AVANTGARDTYP 10170 VITUS
Nominal performance 7,0 kW
Heating capacity (m3)-under favourable-less favourable-not favourable heating circumstances according to 18893/TAB2 DIN standard	1448459
Flue gas values: fuel:Flue gas stream:Flue gas temperature:Min. blast pressure at performance:CO (relating to 13% O2)dust (relating to 13% O2)efficiency	wood / brown coal6,6 / 7,3 g/s275 / 267 °C12 Pa1081 / 770 mg/Nm30,09 / 0,06 %≤ 40 mg/Nm381 / 80,2 %

All information provided by the exhaust gas values are based on the EN 13240 under stationary laboratory conditions

WAMSLER

Illustration of a window with color blocks and an arrow indicating rotation (no text or symbols)

fig. 2.

K H

Pure diagram of a mechanical or architectural component with no visible text, numbers, or symbols

fig. 3.

Cross-sectional diagram of a mechanical or architectural component with colored layers and an arrow pointing to a specific section (no text or symbols present)

Interior view of a laboratory or testing chamber with yellow liquid, black tray, and orange base (no visible text or symbols)

fig. 5.

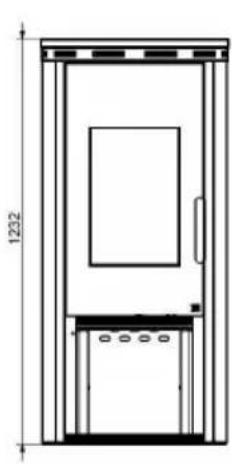

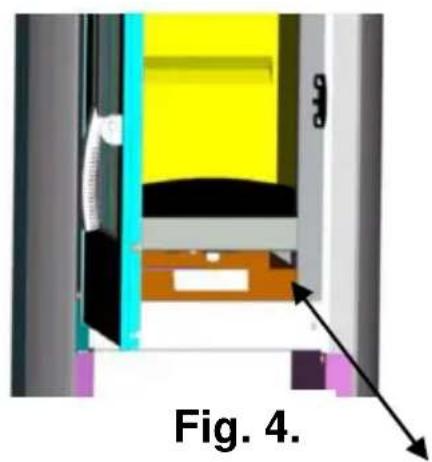

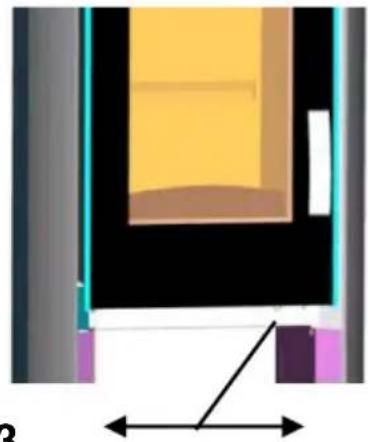

2.3 Distances minimum

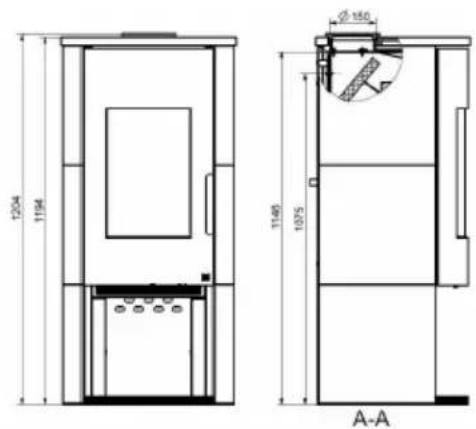

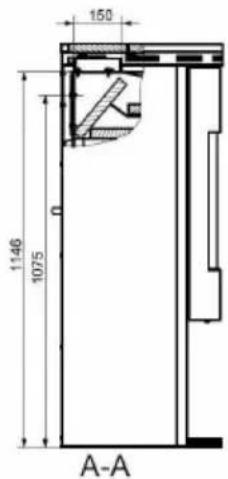

Ø579 S23.6

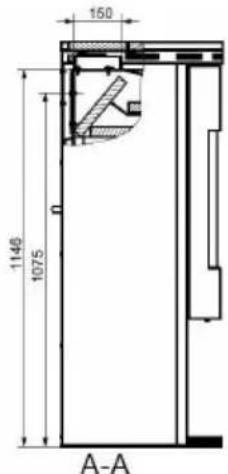

Technical line drawing of a cabinet or enclosure with height dimension labeled 1232 (no text or symbols beyond measurement)

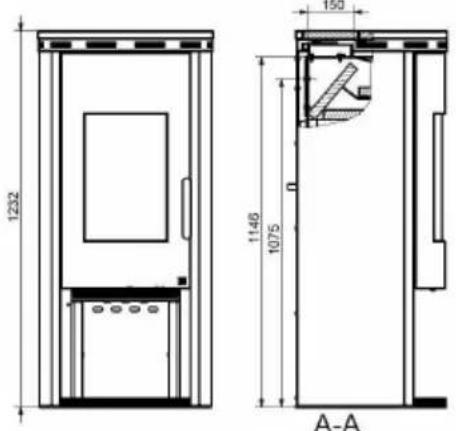

150 1146 1075 A-A

494 ØST2 114 520.6

3.2 Dimensions, Datas

	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)
TYP10160 CHARISMA 570 400 1	122 989	1095	100
TYP10170 ARTE 565 450 1161 9	90 1096	118
TYP10170 FLAIR Speckstein 581	455 1138	990	1096 118
TYP10161 FLAIR Granit 581 455	1138 990	1096	118
TYP10161 FLAIR Edelstahl 581 455	1138	990	1096 118
TYP10162 GALA 495 455 1138	990	1096	118
TYP10162 GALA Speckstein 495	455	1138	990	1096 118
TYP10162 GALA GRANIT 495 455	1138	990	1096	118
TYP10162 GALANT, STRADA 495	395	1138	995	1096 103
TYP10162 GALANT, STRADA NS	495	395	1138	995 1096	103
TYP10170 IMPRESSION 561 506	1242	897	1043	112
TYP10170 AVANTGARD 656 606	1285	950	1091	241
TYP10170 VITA	561	506	1285	897	1043	112
TYP10160 BOLERO	632	417	1255	990	1095	112
TYP10170 EL PASO	561	506	1242	897	1043	112
TYP10164 METROPOLITAN	644	668	1138	962	1065	263
TYP10170 VITUS KERAMIK	∅570	524	1	204	1075	1146	114
TYP10170 VITUS STAHL APNS	∅572	521	1	232	1075	1146	114

Diagram of a door or cabinet with colored panels and an arrow indicating rotation (no text or symbols)

Fia. 2.

K H

Pure architectural cross-section diagram without any text, numbers, or symbols

Fig. 3.

Cross-sectional diagram of a mechanical or electronic component with colored layers and an arrow pointing to a feature labeled 'Fig. 4.' (no readable text or symbols beyond label)

Interior view of a mechanical or electrical enclosure with yellow and black components, no visible text or symbols

Fig. 5.

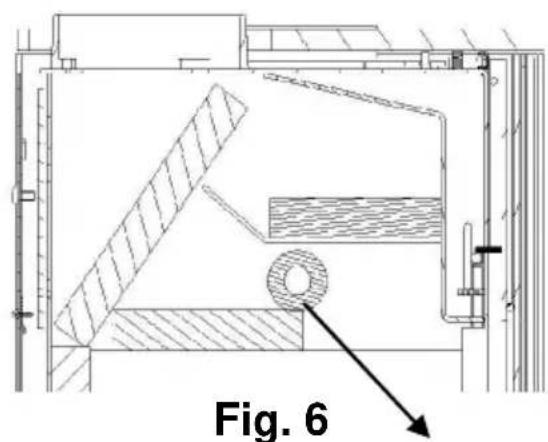

Fig. 6

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating movement or force.

Fig. 7

Technical diagram of a mechanical component with labeled sections A and B, showing cross-sectional views and centerlines.

Fig. 8

30 cm 20 cm 20 cm

Fig 9

A C A E D A - A

Φ±1.0 B F Φ±1.0 A

TYP 101 70 VITUS KERAMIK TYP 101 70 VITUS STAHL

1204 1194 Ø160 1140 1075 A-A

Ø240 500 323.6

1232 150 1146 1075 A-A

494 Ø572 114 520.6

3.2 Dimensioni

Tipo	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)
TYP10160 CHARISMA 570 400 1	122 989	1095	100
TYP10170 ARTE 565 450 1161 9	90 1096	118
TYP10170 FLAIR Speckstein 581	455 1138	990	1096 118
TYP10161 FLAIR Granit 581 455	1138 990	1096	118
TYP10161 FLAIR Edelstahl 581 45	55 1138	990	1096 118
TYP10162 GALA 495 455 1138	990 1096	118
TYP10162 GALA Speckstein 495	455 1138	990	1096 118
TYP10162 GALA GRANIT 495 45	5 1138	990	1096 118
TYP10162 GALANT, STRADA	495 395	1138	995 1096	103
TYP10162 GALANT, STRADA NS	495 395	1138	995 1096	103
TYP10170 IMPRESSION	561 506	1242	897 1043	112
TYP10170 AVANTGARD	656 606	1285	950 1091	241
TYP10170 VITA	561 506	1285	897 1043	112
TYP10160 BOLERO	632 417	1255	990 1095	112
TYP10170 EL PASO	561 600	1285	950 1043	112
TYP10164 METROPOLITAN	644 668	1138	962 1065	263
TYP10170 VITUS KERAMIK	∅570	524	1204	1075	1146 114
TYP10170 VITUS STAHL APNS ∅	572	521	1232	1075	1146 114

Illustration of a window with color-coded panels and an arrow indicating rotation (no text or symbols)

2.kép

K H

Pure diagram of a mechanical or architectural component with no visible text, numbers, or symbols

3.kép

4.kép

3D diagram of a device interior with yellow and black casing, showing internal components and directional arrows (no text or symbols)

5.kép

Technical line drawing of a mechanical assembly with no visible text or symbols

6.kép

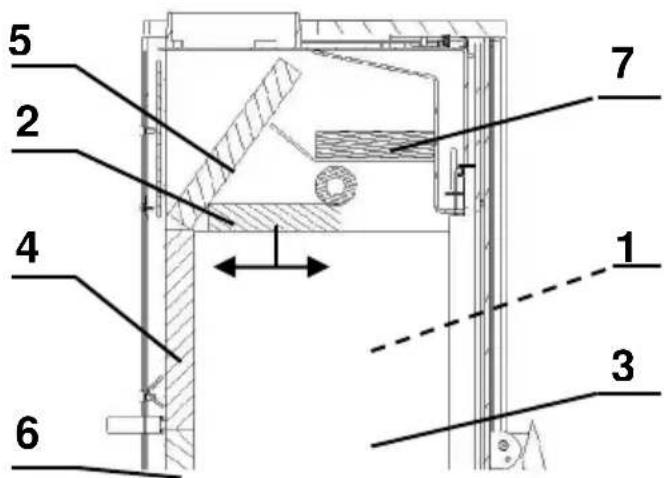

5 2 4 6 7 1 3

7.kép

Pure technical diagram of a mechanical or electrical component without any text, numbers, or symbols

KÉMÉNYBEKÖTÉSI LEHETŐSÉGEK

Simple line drawing of a vertical structure with an arrow pointing to it, no text or symbols present.

Technical line drawing of a cabinet or enclosure with dimension annotations (no text or symbols present)

Ø 190 1146 1075 A-A

Ø2370 503 521.6

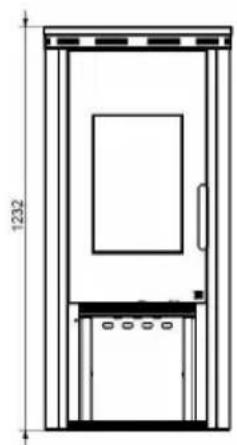

Technical line drawing of a double door with internal compartments and a height dimension labeled 1232 (no text or symbols beyond measurement)

150 1146 1075 A-A

404 Φ572 114 520.6

3.2 Méret adatok

Típusok	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)
TYP101 CHARISMA 570 400 1122 989 1095	100
TYP101 ARTE 565 450 1161 990 1096 118
TYP101 FLAIR natúrkő burkolat 581 455 1138	990 1096 118
TYP101 FLAIR rozsdamentes burkolat 581 455	1138 990 1096 118
TYP101 GALA 495 455 1138 990 1096 118
TYP101 GALA natúrkő burkolat 495 455 1138	990 1096 118
TYP101 GALA gránit 495 455 1138 990 1096 118
TYP101 GALANT, STRADA 495 395 1138 995	1096 103
TYP101 GALANT, STRADA natúrkő burkolat 495 395 1138 995	1096 1096 103
TYP101 IMPRESSION 561 506 1242 897 1043 112
TYP101 AVANTGARD 656 606 1285 950 1091 118
TYP101 VITA 561 506 1285 897 1043 112
TYP101 BOLERO 632 417 1255 990 1095 112
TYP101 EL PASO	561 506 1242	897 1043 112
TYP101 METROPOLITAN	644 668 1138	962 1065 263
TYP10170 VITUS KERAMIK	∅570	524	1204	1075	1146	114
TYP10170 VITUS STAHL APNS	∅572	521	1232	1075	1146	114
