Product Type	Solid fuel room heater (fireplace)
Brand / Model	Wamsler Thyra
Dimensions (W x D x H)	557 x 519 x 1131 mm (with APNS 20mm)
Weight (net)	146 kg (with APNS 20mm)
Nominal Heat Output	6 kW
Efficiency	80.4% (wood), 80.2% (brown coal)
Flue Gas Temperature	264 – 276 °C
Minimum Chimney Draught	12 Pa
Permitted Fuels	Natural chopped firewood (max 25 cm, humidity ≤20%) and lignite briquettes
Fuel Loading (wood, nominal)	Approx. 1.4 kg (max 2 billets per filling)
Fuel Loading (briquettes, continuous)	Max 5.8 kg
Primary Air Control	Infinitely adjustable knob on ash door
Fuel Selector	On rear wall, positions for wood and brown coal
Door Type	Self-locking, lift handle to open
Glass Cleaning	Use ROBAX glass-ceramic cleaner or ceramic scraper for deposits
Safety Distances (combustible materials)	Front: 80 cm (40 cm with heat shield); Sides: 30 cm; Rear: 20 cm
Floor Protection	Non-combustible shield extending 50 cm front, 30 cm sides
Replacement Parts	Use original Wamsler parts; quote Article No. and Serial No.
Standards	Tested to EN 13240

Frequently Asked Questions - Thyra Wamsler

What fuels can I use in the Wamsler Thyra fireplace?

Permitted fuels are natural chopped firewood (max 25 cm length, moisture ≤20%) and lignite briquettes. Do not burn rubbish, fine chips, bark, treated wood, paper, or cardboard.

Why is there smoke and smell during the first use?

During the first heating, the protective lacquer cures and oil residues evaporate, causing smoke and odor. Ventilate the room well and heat at maximum rated output for about an hour to eliminate these effects.

How do I open the door safely when the fireplace is hot?

Open the door slowly and only a crack first, wait a few seconds, then open fully. Ensure only glowing embers remain (no visible flames) before adding fuel. Use insulated gloves if needed.

What should I do in case of a chimney fire?

Close all doors and air inlets on the fireplace immediately, then call the fire brigade. Do not attempt to extinguish with water. After the fire, have the chimney inspected by a professional.

How do I clean the glass window?

For light soiling, use a glass ceramic cleaner like ROBAX S. For heavy deposits, first scrape gently with a ceramic scraper held flat, then clean with a wet cloth and dry. Do not use abrasive cleaners.

What are the minimum safety distances to combustible materials?

Front: 80 cm (reducible to 40 cm with a heat shield). Sides: 30 cm. Rear: 20 cm. The floor in front must be protected by a non-combustible shield extending 50 cm forward and 30 cm to each side.

How do I adjust the heating output?

Use the primary air regulator knob (infinitely adjustable) and the fuel selector switch according to the table in the manual. Reduce output by using less fuel, not by cutting air supply.

Can I connect the fireplace to a chimney with other appliances?

Yes, but a maximum of two other fires can be connected to the same chimney. The functional chimney height must be at least 4 m (5 m if multiple stoves).

How often should I clean the chimney and flues?

After each heating season, clean the fireplace and flue gas pipes thoroughly. Remove the baffle plate to access flues. Have the stove checked by a professional after prolonged use.

What should I do if the fireplace performance drops?

Check for dirty flues, chimney draught (should be ≥12 Pa), fuel moisture, and door seals. Use only dry wood, ensure proper air settings, and clean the grate before each use.

USER MANUAL Thyra Wamsler

GFireplace user instruction

Technical line drawing of a mechanical device with internal compartments and mounting holes (no text or symbols)

D

Vorwort

Stacked wood logs with visible grain and texture, no text or symbols present

Line drawing of a door with a handle and arrow indicating rotation (no text or symbols)

Bild 2

Line drawing of a mechanical device with no visible text or symbols

Bild 3

KH

Bild 4

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Bild 5

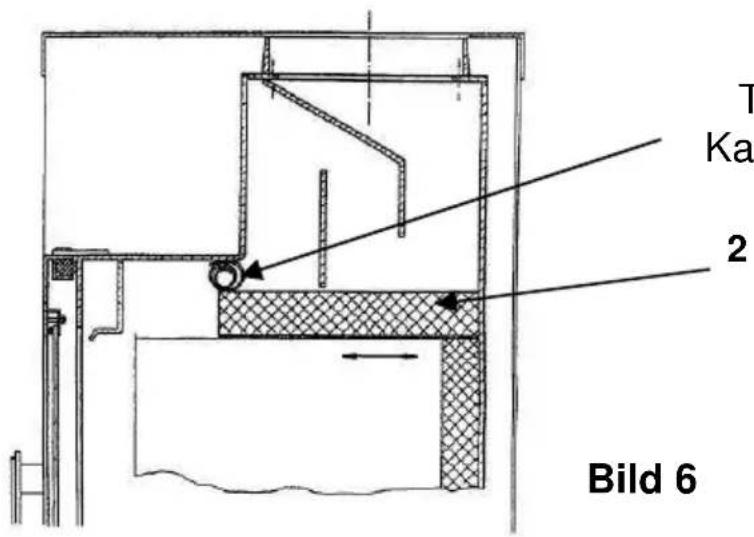

T Ka 2 Bild 6

Simple line drawing of a vertical structure with a horizontal double-headed arrow labeled 'X' pointing to a cylindrical component (no text or symbols beyond the label)

ACHTUNG:

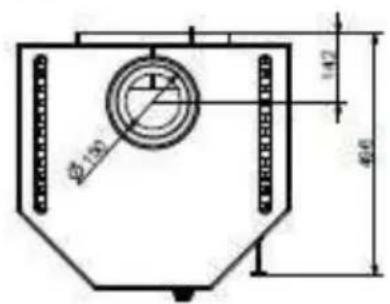

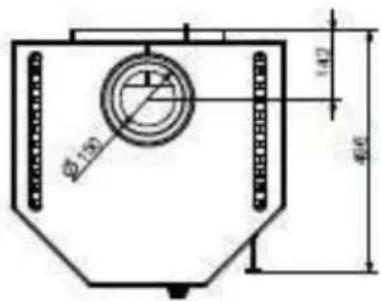

Technical line drawing of a cabinet or enclosure with dimension label '510' (no text or symbols beyond the label)

Ø130 142 46

Bank: UniCredit Bach, Hungary Zk

(1) 证明复印件或按此格式自制均有效

Managing Dividio

Island Malbese

Phone:[phone]

Fax: [phone]

特别提示

B6107928

12V 800-3000

KZ P501 Clearwater

15-1043 Bruttigestil

Dejeivés u. 11.

Name:1/28

Geprüfter Typ

Thank you for choosing our product!

By purchasing this product you receive guarantee for

• good quality originating from the usage of the finest and proven materials,
• operating security which is controlled according to German and European norms (Corresponds to the standards EN 13240)
- long life ensured by the robust structure.

In order to be able to use your new fireplace for a long time please read the following instructions manual. You will find all the necessary information in it and some additional advice.

PLEASE NOTE:

When ordering replacement parts, the Article No. and Serial No. shown on the identification plate must be quoted.

Contents

Foreword....20

Contents....20

SAFETY INSTRUCTIONS.... 21

1. Usage.... 23
   1.1 Structure of the equipment ....23
   1.2 Installation.... 24
   1.3 Putting out of operation.... 25
   1.4 Heating instructions 25
   1.5 Cleaning and maintenance 26
   1.6 Potential problems and how to tackle them.... 29
2. Placing 30
   2.1 Prescriptions 30
   2.2 Place of installation....30
   2.3 Distances 30
   2.4 Connection of the fireplace 31
3. Technical specification.... 33
   3.1 Dimensional drawings.... 33
   3.2 Dimension 33
   3.3 Datas.... 34

SAFETY INSTRUCTIONS

1. The stoves are tested to EN 13240 (see identification plate).
2. For installation and for flue gas connections, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 18896, DIN 4705, EN 13384, DIN 18160, EN 1856-2 and EN 15287. In order for the stove to function correctly the chimney to which you want to connect the stove must be in good condition.
3. Before first use and before connecting to the chimney, you must read the Instructions for Use carefully and inform the local authority responsible for approving heating systems.
4. While installing the stove you are recommended to wear clean cotton gloves, in order to avoid leaving fingerprints which can be difficult to remove afterwards.
5. In the interests both of clean air, and of the safe functioning of the stove, the fuel quantities listed in the Instructions for Use should never be exceeded, and the doors of the stove must be shut during use to avoid the risk of overheating, which can lead to damage to the stove. Damage due to this cause is not covered by the guarantee.
6. The stove doors must remain shut at all times while the stove is in use.
7. Permitted fuels are:

- Natural chopped firewood (up to 25 cm max. in length)

- Lignite (brown coal) briquettes (see permitted fuels in the Instructions for Use)

1. Never use liquid fire starters. Use either special firelighters or wood shavings.
2. Burning rubbish, fine chips, bark, coal slack, chips from planing, damp wood or wood treated with preservative, paper, cardboard or similar is not permitted.
3. The first time the stove is heated there may be some smoke and an unpleasant smell. Make sure that the room is well ventilated (open windows and doors) and heat for at least an hour at the maximum nominal heat load. If the maximum temperature is not reached the first time the stove is heated, then there may be further unpleasant smells at a later date.
4. All controls and settings must be used as indicated in the Instructions for Use. When the stove is hot, please handle only using the implements or protective gloves provided.
5. If the stove is not working correctly, or if the chimney is not drawing properly, smoke may appear when the fire door is opened. It is very important to only open the fire door slowly, initially just a crack, then wait a few seconds before opening fully. In addition, before opening the fire door to top up the fuel, make sure that only glowing material is present: there must not be any visible flames.
6. Do not place any flammable items in the warming drawer or on the surface of the stove.
7. When in use, all surfaces and particularly the glass doors and handles and other controls can become very hot. Make children, young people, older people and animals aware of this danger, and keep them away from this source of heat when the stove is being used. Use the protective gloves or the implements provided. Children

and young people under 16 must not use the stove unless supervised by an adult who is responsible for them.

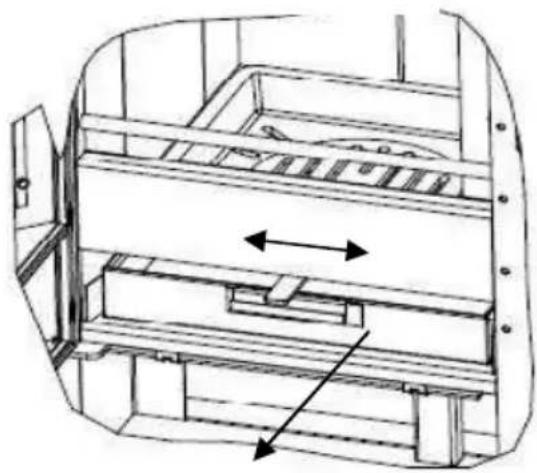

1. Make sure that the ash pan is always fully pushed in, until it touches the back. Never remove ashes while still hot (fire risk).
2. In spring and autumn the chimney may no longer draw correctly, so that gases produced by combustion are not completely removed. The fire chamber should then be filled with a small quantity of fuel, ideally with wood shavings, and lit under supervision, in order to stabilise the chimney draught. The grate must be clean.
3. After each prolonged period of use for heating, have the stove checked by a professional. The flues and pipes for the evacuation of fumes must also be thoroughly cleaned.
4. If repairs or replacements are necessary, please contact your supplier with the necessary article numbers and serial numbers in good time. Only original WAM-SLER replacement parts may be used.
5. Work such as installation, setup, commissioning and services, as well as repairs, must only be carried out by qualified personnel (heating system or space heating technicians). Intervention by non-qualified persons invalidates the warranty and guarantee.
6. As the solid fuel oven/stove draws the air required for combustion from the surrounding room, you must ensure that sufficient air can be drawn in through non-sealed windows and outside doors. It can be assumed that is this is provided by a room volume of at least 4 m^3 per kW nominal heat capacity. If the volume is less than this, then air vents can be used to provide access to further air in other rooms (min. 150 cm^2 ).
7. You must ensure that the correct safety distance is maintained from all flammable components and materials – to the side, rear and front. These distances can be found in the Instructions for Use or the identification plate.
8. The fire chamber must not be modified.
9. Connection to a chimney whose functional height is less than 4 m, or if multiple stoves are installed, 5 m, is not permitted. A maximum of two other fires can be connected to the chimney which is to be connected the stove.
10. If the chimney catches fire immediately close all doors and openings and call the fire brigade. Do not attempt to extinguish the fire yourself. Afterwards have the chimney thoroughly checked out by a professional.
11. Solid fuels naturally create soot, so it is always possible that the window glass will become dirty: this does not mean there is a malfunction.

1. Usage

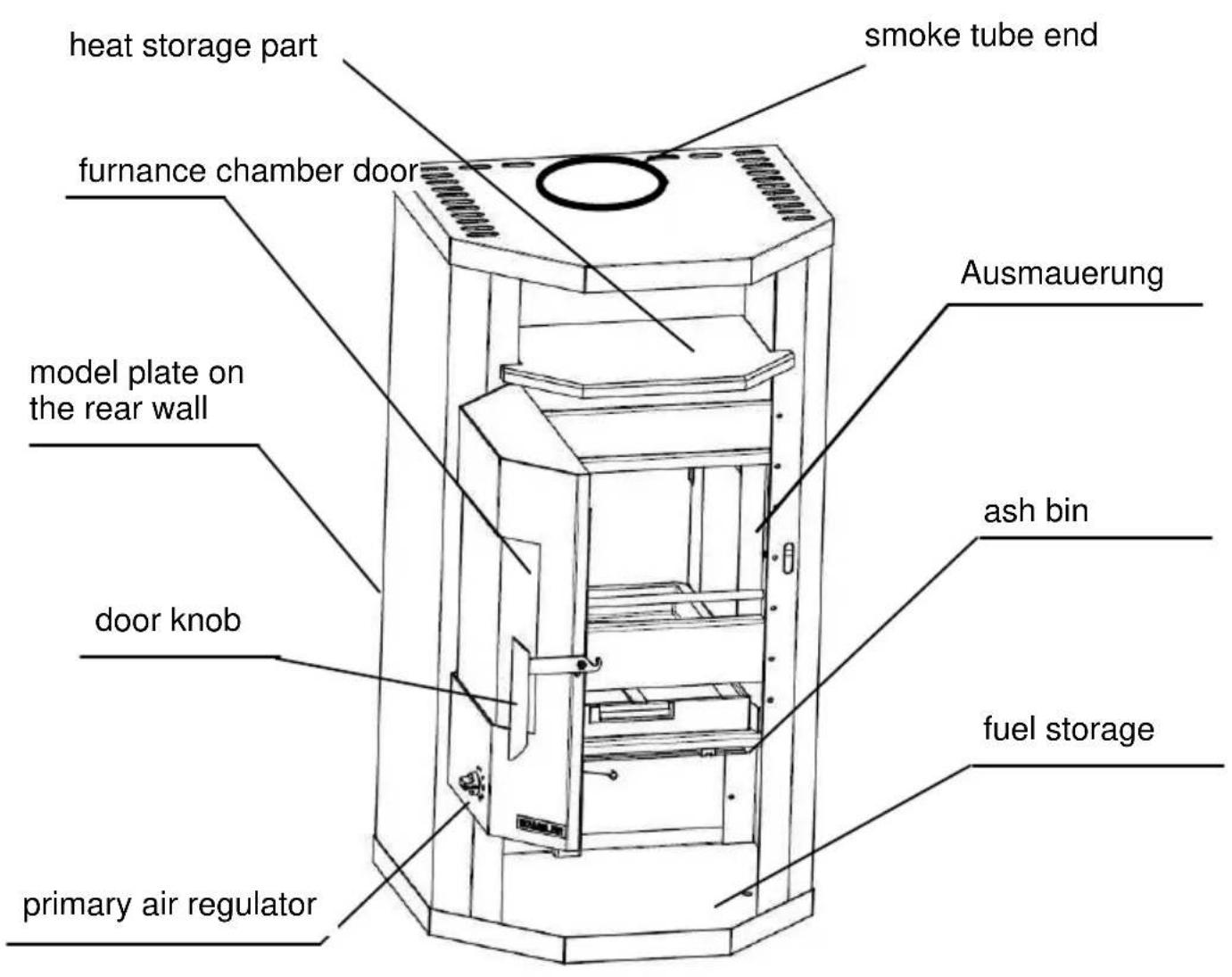

1.1 Structure of the equipment

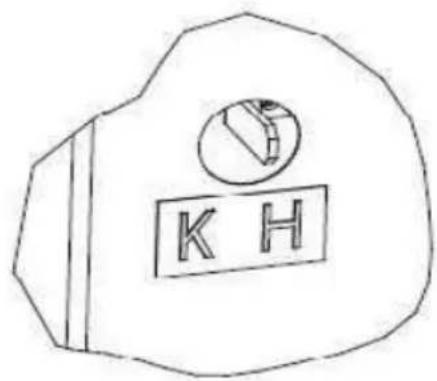

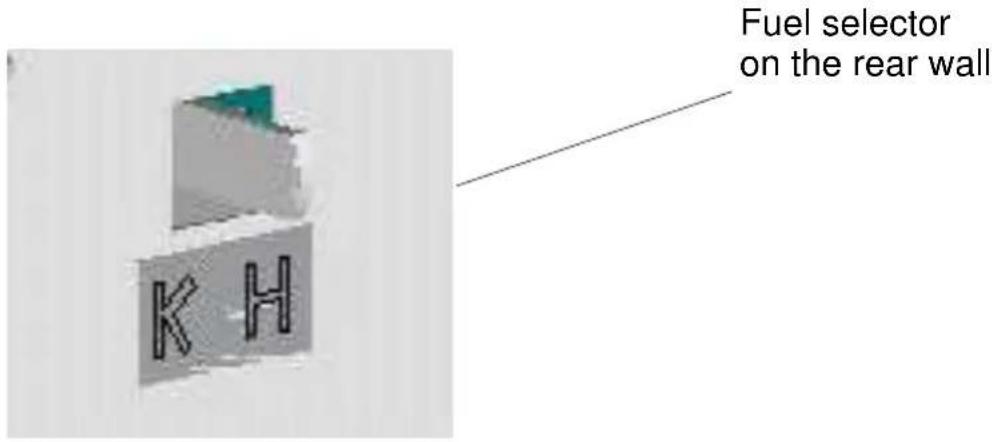

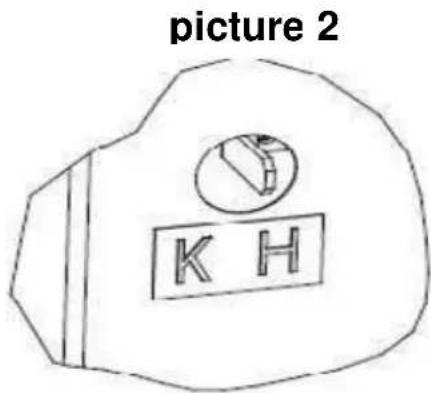

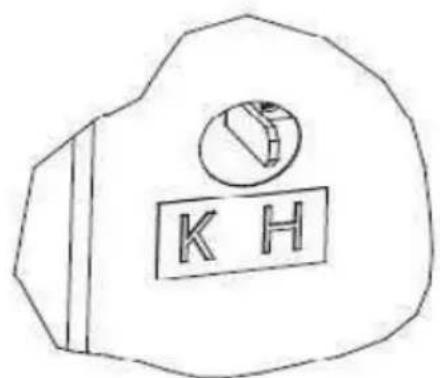

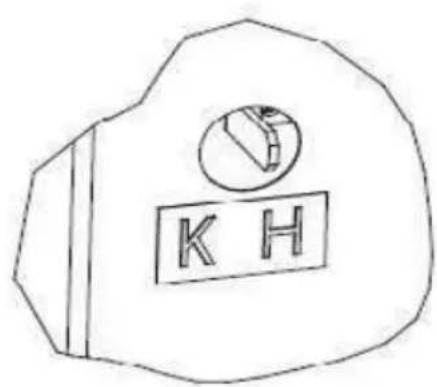

Fuel selector on the rear wall K H

heat storage part smoke tube end furnance chamber door Ausmauerung model plate on the rear wall ash bin door knob fuel storage primary air regulator

picture 1

1.2 Installation

Fuels

Low smoke, trouble-free operation of the stove and a supply of heat at the nominal level with a chimney draught of 12 Pa are only guaranteed when you use the following fuels and no others.

Only use natural, dry chopped firewood with a remaining humidity of max. 20%, and lignite (brown coal) briquettes.

Types of fuels	Heating value appr. kWh/kg
Brown-coal	5,3 – 5,5
Hard wood	4,0 – 4,2
Soft wood	4,3 – 4,5

With the primary air damper, do you adjust the rated output. There may be engaged in only the settings and fuel quantities are given that correspond to your licensed or purchased device.

Adjustment:

		Setting of the primary air regulator Fuel	Setting of the fuel selector	Burning time
		6 kW
Warning up, kindling		D H -
Wood	Nominal heating performance	B H ca. 0,75 h
Brown-coal	Nominal heating performance	D K ca. 1 h
	Continuous combustion	C K ca. 4 h
Putting out of working order		A K -

Table 2

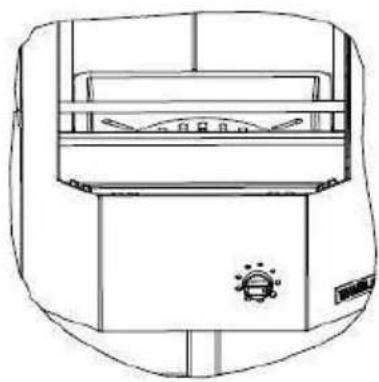

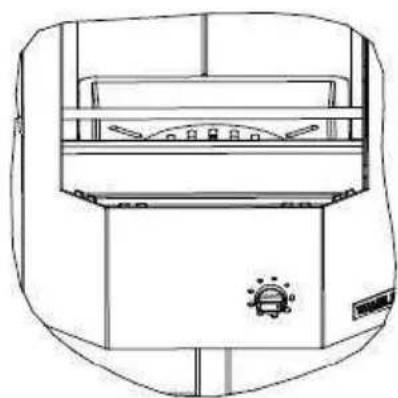

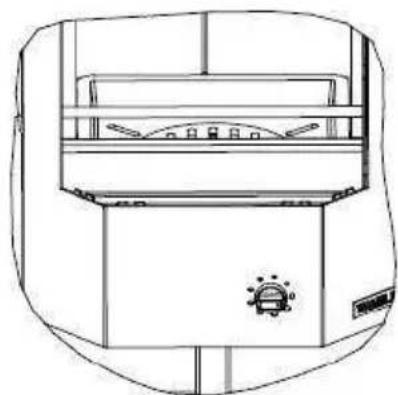

The primary regulator knob on ash door, to be set in accordance with Table 1

Pic A (min) Pic B Pic C Pic D

Between 0 and up to the mark infinitely adjustable control knob to the desired performance

Filling quantities 6 kW

• Split billet: max. length: 25 cm, max. 2 billets per filling, appr. 1,4 kg
• Liqnite briquette: max. 1,7 kg
  Filling quantities continuos combustion:
• Lignite briquette: max. 5,8 kg

IT IS NOT ALLOWED to burn waste, fine chipping, bark, wood handled with preventive chemicals, furthermore paper and cardboard. For kindling please use wood scrapings or grill starter but never use liquid auxiliaries!

The first kindling

- At the first fire set-up could be a little smoke, but is not dangerous, normal! In this time, please ventilate the room carefully!

Warning! Upon the first kindling, smoke and unpleasant smell may be generated. Always ensure the proper ventilation of the room (by opening windows and doors), and heat the fireplace at maximum rated heating performance. If with the first heating the maximum temperature is not reached, the above-mentioned effects may as well arise later on.

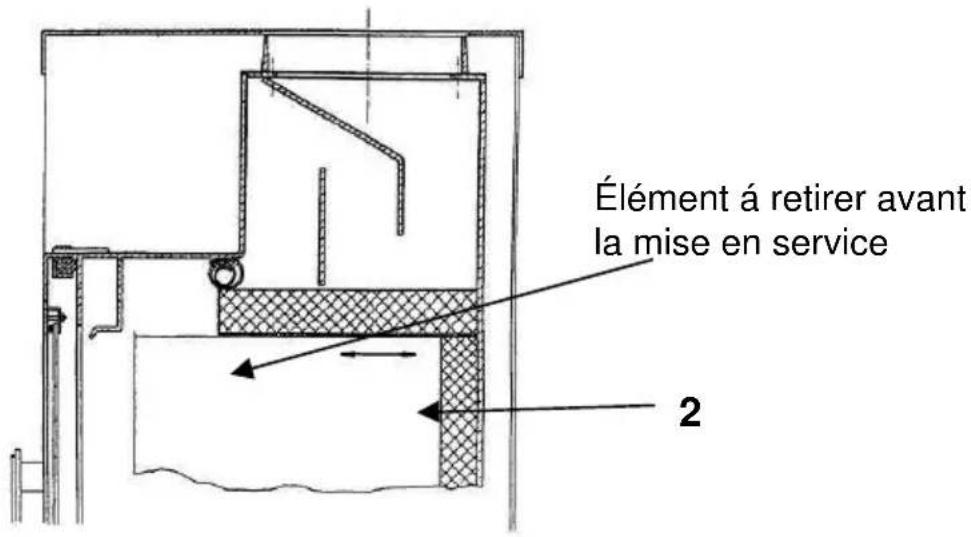

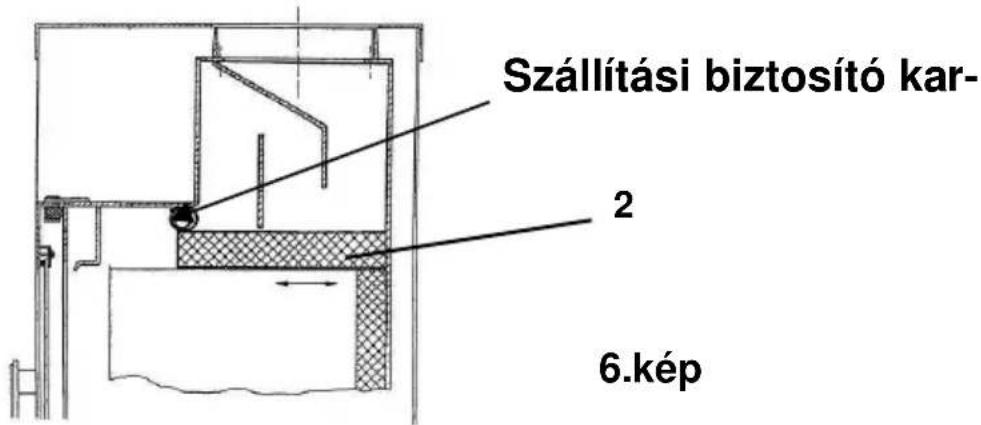

- Before installation pull out the delivery securer off the refractory brick through the furnace chamber (picture 6).

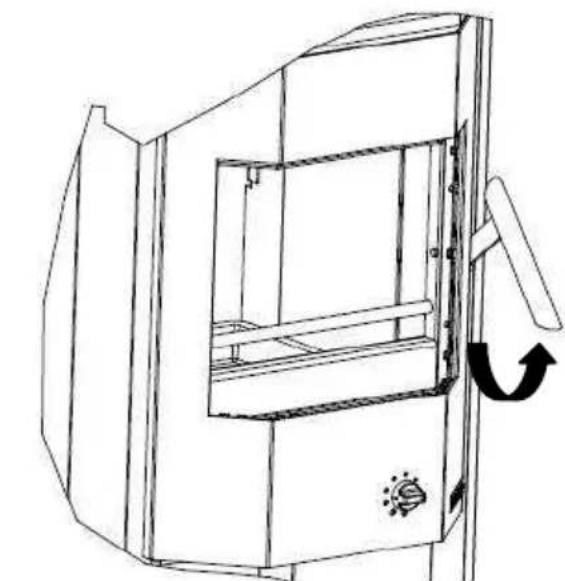

Open the door by raising the handle (picture 2). If the equipment is hot, you can use insulated gloves. Adjust the primary air regulator and the fuel switch (picture 3) according to the Table 2. Put coal lighter or wood wool onto the fire grate, followed by wood chips. First insert small pieces of wood, and then larger ones, light them and close the door again. When the wood burns quickly, and leaves sufficient glowing embers, put additional fuel on the fire. Thereafter, adjust the primary air regulator and the fuel switch according to the Table 2 („Adjustment of the burning air”). The first kindling should be performed “finely” with little fuel only, so that the parts of the fireplace are adapted to heat. During the first kindling, the generation of smell is normal and absolutely undangerous.

1.3 Putting out of operation

• Let the glowing ember burn to ashes and the fire-place get cold.
  • Empty the furnace chamber and the ash bin.
• Close the doors, and shut off the primary air regulator (position I) and the fuel switch (position K).

1.4 Heating instructions

The fireplace should be operated only with closed furnace chamber door. Fireplaces belonging to type 1 have self-locking furnace chamber doors. These doors may be opened only for kindling, loading or when cleaning the furnace chamber (otherwise draught problems may occur with other equipment connected to the same chimney).

Warning!

When opening the furnace chamber door, any incorrect handling or insufficient draught may induce smoke. Always ensure that the furnace chamber door may be opened only slowly, first just to a small extent, and then fully after a few sec-

onds. In addition, if you intend to put additional fuel into the fire, before the opening of the door only there may be only ember bed in the burning space, i.e. no flames may be visible.

Led into the burning space in correspondence with the existing conditions, the secondary air provides for the follow-up burning of the combustible components of in the burning space. This in fact means smoke and soot-poor burning, which contributes to the protection of the environment. If you wish to commission the fireplace in a transitional period, please, please first examine the chimney draught, as it can be especially weak at high external temperatures. Towards this end, hold a burning match in the slightly opened feeding door. If the flame is not drawn significantly by the draught, then a so-called starting fire is to be set first. Towards this end, burn wood chips/wool in the fireplace or the cleaning hole of the chimney. The fire grate is to be cleaned before every kindling to ensure the proper inflow of air for burning. The ashtray is to be emptied regularly (picture 5). Should the equipment be extremely hot, use the gloves provided. Please, be careful not to dispose glowing materials into the waste bin.

Ensure that the ashtray should be fully pushed into the equipment.

Warning! In order to keep the air clean and safeguard the fireplace, do not exceed the specified maximum fuel quantity, otherwise overheating may occur, which potentially damage the equipment. Such damage is not covered with any guarantee. Only a single layer of fuel is allowable to be prepared in the fireplace. Try to reach lower heating performance only by decreasing the quantity of fuel, and not by cutting the primary air supply.

1.5 Cleaning and maintenance

After the heating season, it is recommended to clean the fireplace and the flue gas pipes carefully. Any dropping heating performance is almost always the consequence of the strong contamination of the flues. For cleaning, the baffle plate (picture 6 No. 2) is to be pulled forward. This way, the flues can be cleaned from the inside or – after removing the flue gas pipe – from above. After cleaning, the baffle plate (picture 6 No. 2) is be pushed back fully again.

Warning!

Following every heating season you are advised to examine the fireplace thoroughly. If any repair or reconditioning is needed, please, contact your local dealer in a timely manner, and specify the model number and serial number of your equipment (as seen on the model plate). External surfaces may be maintained only after the fireplace cooled down, and following the first commissioning. Use cold water for cleaning, or soap, washing ingredient in extraordinary cases, then wipe it dry. Before its first use, clean the ROBAX inspection glass with a wet and clean cloth, and then put a few drops of glass-ceramics cleaner onto both sides of the glass, and spread them with the use of kitchen paper tissues. It provides an invisible film on the valuable surface of the Robax glass. This film helps to keep the glass clean, and facilitates regular cleaning operations. ROBAX S for slightly contaminated surfaces – a commercially available glass surface cleaning agent – may as well be used for the cleaning of the medium or strongly contaminated glass surfaces of the fireplace. Towards this end, spray

small quantities of the agent to the cold surfaces, spread it, and wash it down with a wet cloth, followed by drying with a clean, soft cloth. In case there are sticky fuel deposits on these surfaces, first scale simply them with a ceramic-plate scraper held in flat angle, and then clean the surfaces as described above.

Cleaning of the ceramic surfaces dirt and grease are to be removed with soap and water.

Cleaning of the soapstone: the soapstone is a natural stone, therefore minor colour differences may occur; as it is normal, they may not serve as a basis for quality complaints! To clean the soapstone from dirt and fat with water and soap, as well as small scratches, use sand paper (grain size 240).

Warning: Under no circumstances you may use sponge, scouring, aggressive or scratching cleaning agents! If the grate is blocked so that the equipment cannot serve the intended function, the grate is to be removed for cleaning.

Line drawing of a door with a handle and a scroll, showing internal structure and a curved arrow indicating rotation (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

picture 3

picture 2 KH

picture 4

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

picture 5

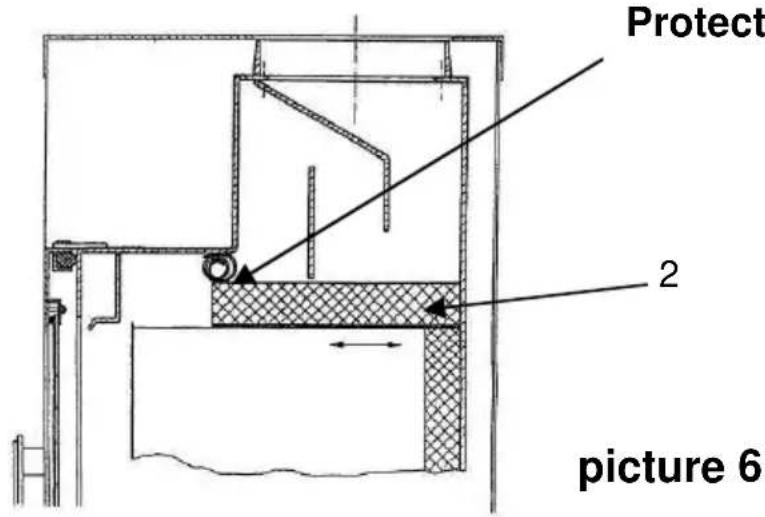

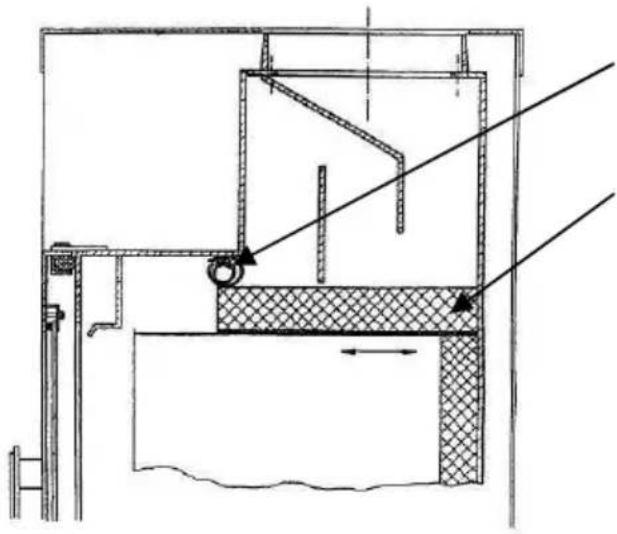

Protect 2 picture 6

Protection corrugated paper for transportation

1.6 Potential problems and how to tackle them

Kind of operating problem	Possible reasons Solution
Odour formation Curing	of the applied preventive lacquer.Steaming oil remains.	Operate the fire-place on a low heating level according to the instructions manual for a few hours. Then heat up for maximal performance for a few hours.
Too little heating performance	We chose too little performanceChimney draught is slight	Have the heating requirement of the room examined by an expertChimney draught shall be at least 12 Pa, max. for a short time 18 Pa.Check the tightness of your chimney and also that the doors of other fire-places leading to the same chimney are closed and sealed properly. Make sure that the chimney-cleaning joints are sealed properly.
	Too long and leaky smoke tube	All the smoke tube joints must be well sealed and fireproof-isolated
	Leakage at the door glass	Check the sealing, close the door properly. May have to have the tightening flap re-newed.
	Usage of wet wood. Use	well dried wood only.

Actions to be in chimney fire

Chimney fire may occur upon the improper cleaning of the chimney, the use of inappropriate fuels (e.g. excessively wet wood) or the inadequate setting of the burning air. In such cases, close the burning air at the fire, and call the fire service.

Never try to extinguish the fire with water!

2. Placing

2.1 Prescriptions

For installation and for connection of flue, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 18896, DIN 4705, EN 13384, DIN 18160, EN 1856-2 and EN 15287. In order for the stove to function correctly the chimney to which you want to connect the stove must be in good condition.

2.2 Place of installation

The stove draws the air required for burning from the surrounding room. You must ensure that sufficient air can be drawn in through non-sealed windows and outside doors. In addition you must ensure that a room volume/heat capacity ratio of at least 4 m^3 per kW nominal heat capacity is available. If the volume is less than this, then air vents can be used to provide access to further air supply in other rooms (connecting vents min. 150 cm^2 ).

2.3 Distances

All the combustible materials, furniture or e.g. decoration materials that are in the close environment of the fireplace should be protected from the heat.

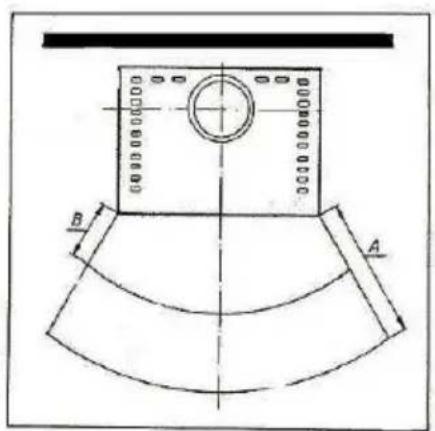

Furnishing in the radiation area

Keep a minimal distance of 80 cm (A) between the front edge of the fireplace and the combustible equipment, furniture or e.g. decoration materials in the building. The security distance can be reduced to 40 cm (B) if a heat shield is placed in front of the object to be protected (see example in Picture 8).

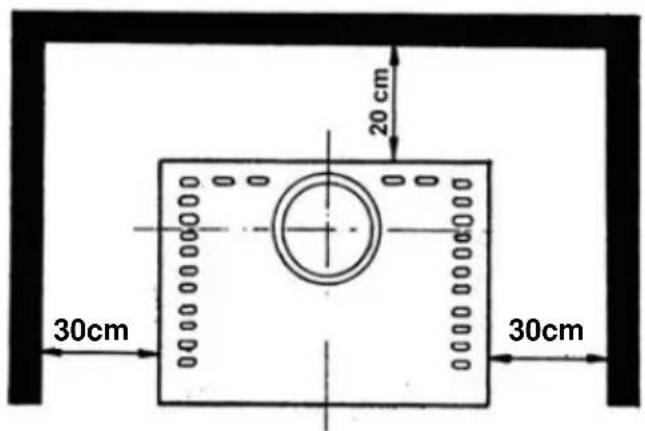

Furnishing beyond the radiation area

The walls beside and behind the fireplace may not be made of combustible materials, and they cannot be covered with such materials if the distance on the sides is under 30 cm, or 20 cm on the rear side. Similarly, the distance to wooden and plastic furniture on the sides should be at least 30 cm (see Picture 9).

B A

picture 8

20 cm 30cm 30cm

picture 9

Floor in front

Floors made from combustible materials, such as carpets, parquet floors or cork is to be protected by a shield of non-combustible material – for example ceramics, stone, glass or steel – placed under the fireplace so that it should reach out to 50 cm in front and 30 cm besides.

2.4 Connection of the fireplace

The connection for attaching to the chimney must be able to withstand at least 400^ C.

PLEASE NOTE:

Before connecting the stove the local authority responsible for approving heating systems must be consulted!

Connection pieces must be firmly connected to the stove and to each other and must not leak. They must not project into the open diameter of the chimney. The connection piece between the stove and the chimney must have the same diameter as the pipe socket on the stove. Horizontal connection pieces of over 0.5 m must rise towards the chimney at an angle of 10 degrees. Any pipes which are not heat insulated or vertical must not be longer than 1 metre.

The requirements of the Fire Regulations (FeuVO) apply, as well as local building regulations such as for the chimney standards DIN 18896, DIN 4705, EN 13384, DIN 18160 and EN 15287. Connection pieces must be tested to EN 1856-2. Measurement X (distance from flammable construction and other materials) must be as defined by the manufacturer of the connection piece.

X

PLEASE NOTE:

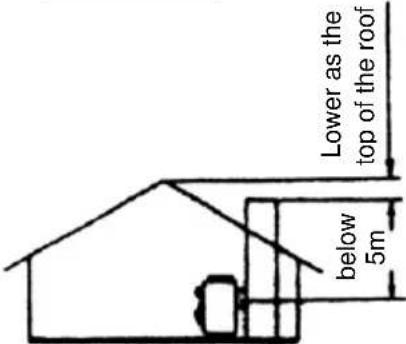

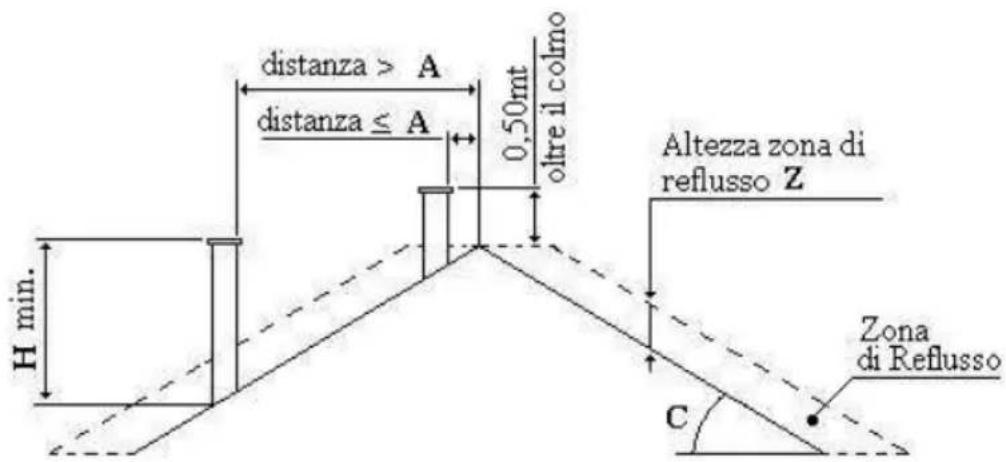

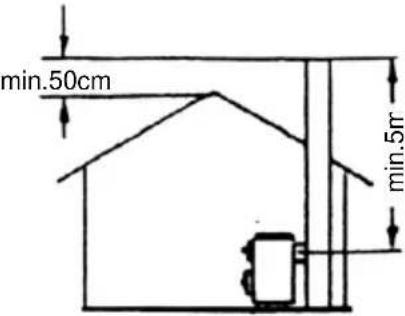

Fitting to a chimney with a functional height of less than 4 m, or if several stoves are being fitted, less than 5 m, is not permitted.

(See: Data for chimney calculations / Chapter 3.) A maximum of two other fires can be connected to the chimney to be connected to the stove.

For safety reasons it is not permitted to use a steam extractor hood to remove air when the stove is producing heat.

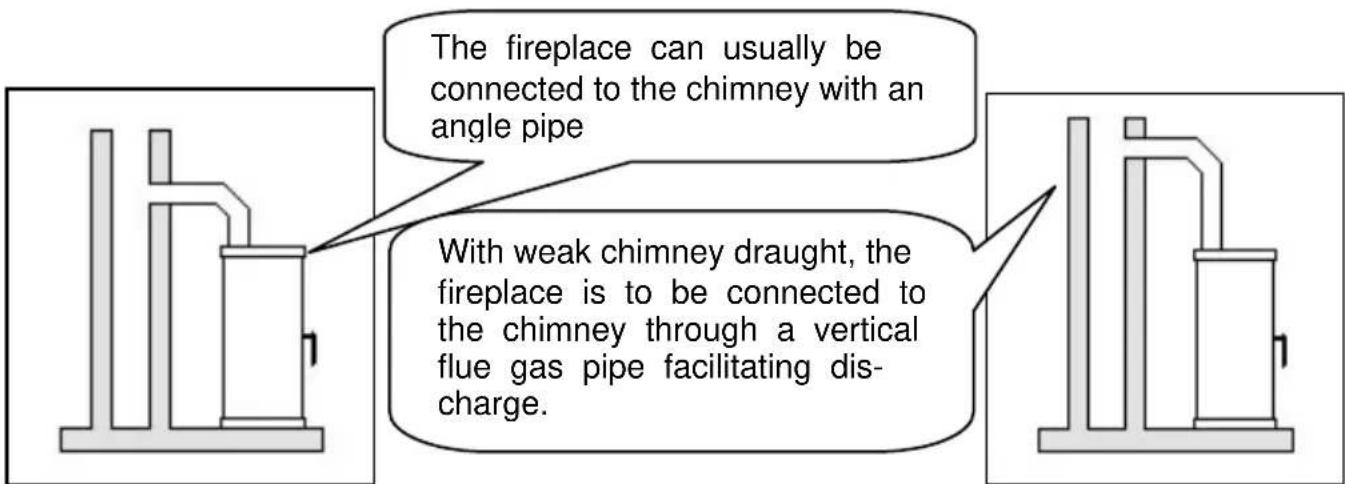

The fireplace can usually be connected to the chimney with an angle pipe With weak chimney draught, the fireplace is to be connected to the chimney through a vertical flue gas pipe facilitating discharge.

Correct	Incorrect
		Tightening cross section of the chimney because the smoke tube is pushed into the chimney too much
		Obstruction, because the smoke tubes are led as facing each other
	Faulty d because fire-plac door (nc use) is c
	Fals an c
	Fals beca leak
		False air, because a open fire-place door

3. Technical specification

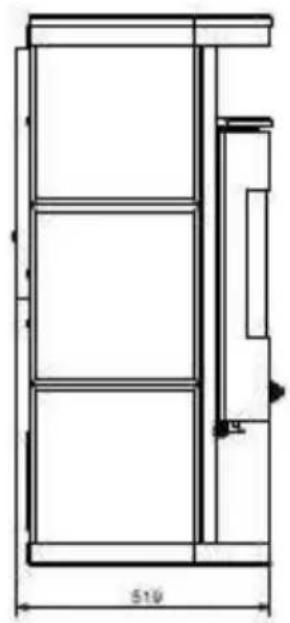

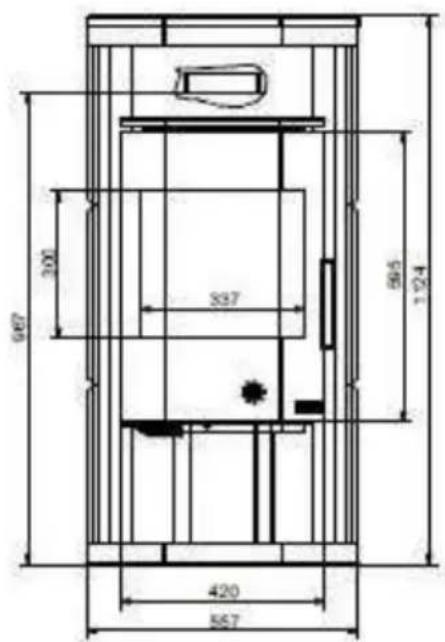

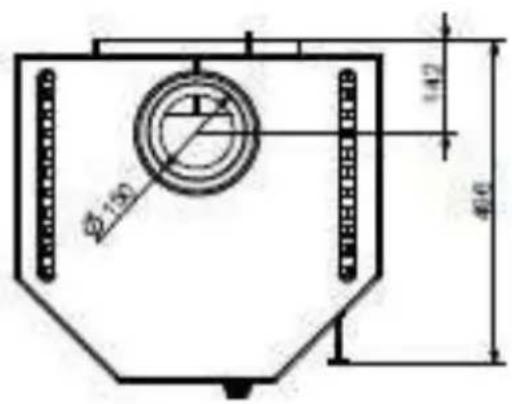

3.1 Dimensional drawings

TYP 108 49 LINZ / THYRA

301 337 995 124 420 557

Technical line drawing of a cabinet or enclosure with dimension label (510) and internal compartments (no text or symbols beyond measurement)

φ130 142 40

3.2 Dimension

Art.No.	width (mm)A	draugh (mm)B	height (mm)C	weight netto: (kg)	weight brutto: (kg)
W20001084930 557		519	1131 m. APNS 20mm	146 162
W20001084935 557		519	1111 o. APNS 20mm	94 110
W20001084910 557		519	1124 APNS 15mm	142 158
W20001084915 557	519		1124 APNS 15mm	142 158

The specified dimensions and weights are approximate values, and thus have only informative purposes. We reserve the right to modify the designs as required in terms of technology or quality!

3.3 Datas

Type 108 49
Nominal performance 6 kW
Heating capacity contin../discontin. m^3 -under favourable-less favourable-not favourable heating circumstances according to 18893/TAB2 DIN standard	165 / 11695 / 6965 / 47
Flue gas values: fuel:Flue gas stream:Flue gas temperature:Min. blast pressure at performance:CO (relating to 13% O^2 )dust (relating to 13% O^2 )efficiency	wood / brown coal7,0 / 6,2 g/s264 / 276 °C210/229 °C12 Pa0,09 / 0,06 %1138 / 753 mg/ m^3 ≤ 40 mg/ m^3 ≥ 80,4 % / 80,2 %

All information provided by the exhaust gas values are based on the EN 13240 under stationary laboratory conditions reserves the right to make changes which relate to technical advances and/or to an improvement in quality. We accept no liability for printing errors and changes which occur after printing

WAMSLER

Fig A (min) Fig B	Fig C Fig D

Line drawing of a door with an arrow indicating rotation, no text or symbols present

Fig. 2

Line drawing of a mechanical device with no visible text or symbols

Fig. 3

KH

Fig. 4 Fig. 5

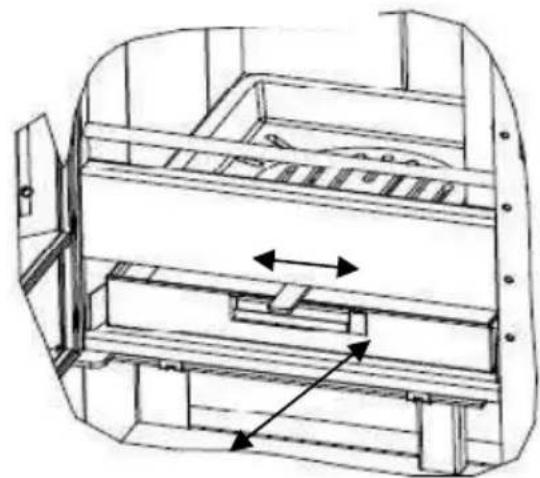

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Élément á retirer avant la mise en service 2

Fig. 6

1.6 Anomalies

2.3 Distances minimum

Technical line drawing of a cabinet or enclosure with dimension label (510) and internal compartments (no text or symbols beyond measurement)

Ø135 142 40

3.2 Dimensions

Art.No	la largeu (mm)A	la profen (mm)B	l'alti-tude (mm)C	poids netto: (kg)	poids brutto: (kg)
W20001084930 557		519	1131 ? m.APNS 20mm	146 162
W20001084935 557		519	1111 ? o.APNS 20mm	94 110
W20001084910 557		519	1124 APNS 15mm	142 158
W20001084915 557	519		1124 APNS 15mm	142 158

Fig A (min) Fig B Fig C Fig D

Line drawing of a door with a handle and directional arrow indicating rotation (no text or symbols)

Fig. 2

Line drawing of a mechanical device with no visible text or symbols

Fig. 3

KH

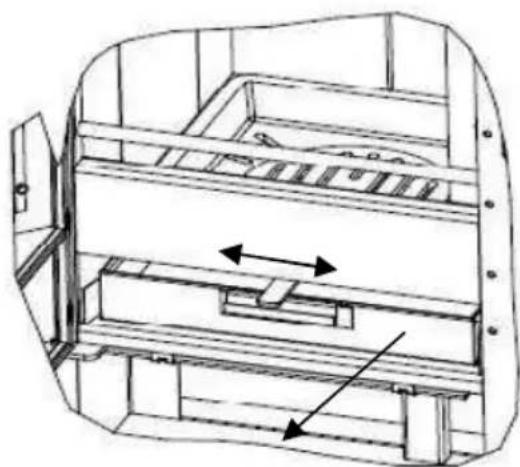

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Fig. 4
Fig. 5

Technical line drawing of a mechanical assembly with no visible text or symbols

d ≥ 5m 0,50m d ≤ 5m 0,50m

Technical line drawing of a cabinet or elevator frame with dimension标注 (no text or symbols)

φ132 142 40

3.2 Dimensioni

N° art.	Largh ezza (mm)A	Profondità (mm)B	Altezza (mm)C	Peso netto:(kg)	Peso brutto:(kg)
W20001084930 557		519	1131 m.APNS 20mm	146 162
W20001084935 557		519	1111 o.APNS 20mm	94 110
W20001084910 557		519	1124 APNS15mm	142 158
W20001084915 557 519			1124 APNS15mm	142 158

Line drawing of a door with an arrow indicating direction, showing internal structure and no text or symbols

2.kép

Line drawing of a mechanical device with no visible text or symbols

3.kép

KH

4.kép

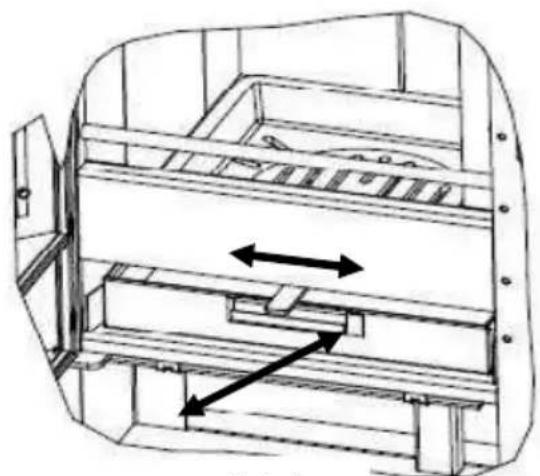

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

5.kép

Technical line drawing of a cabinet or enclosure with dimension标注 (no text or symbols)

Ø150 142 46

3.2 Méret adatok

Késztermék kód	Szél. (mm) A	Mélys. (mm) B	Mag. (mm) C	súly nettó: (kg)	súly bruttó: (kg)
W20001084930 557		519	1131 m. APNS 20mm	146 162
W20001084935 557		519	1111 o. APNS 20mm	94 110
W20001084910 557		519	1124 APNS 15mm	142 158
W20001084915 557 519			1124 APNS 15mm	142 158
