USER MANUAL Trendy RH Wamsler

Fireplace user instruction

Technical line drawing of a mechanical component with no visible text or symbols

Close-up of wooden planks with visible grain and texture, no text or symbols present

Anzünden:

RH6F 6 kW

Simple line drawing of a mechanical device with a vertical support and a cylindrical component, no text or symbols present.

ACHTUNG:

Technical diagram of a multi-level appliance with numbered components for identification

6 0 I II III

Bild 10

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Bild 11

Technical line drawing of a refrigerator interior showing open doors, shelves, and internal compartments (no text or symbols)

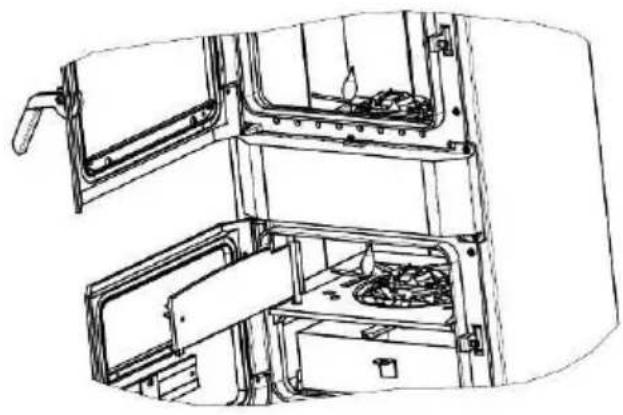

Bild 12

Technical line drawing of a mechanical or electrical enclosure with internal components and directional arrows (no text or symbols)

Bild 13

Technical line drawing of a mechanical device interior showing internal components and a directional arrow (no text or symbols)

Bild 14

Technical line drawing of a mechanical device with a central component and directional arrows indicating movement (no text or symbols)

Bild 15

Bank: UnCredit Bank Hungary Zrt

10918001-00000058-72970010

Managing Director

Gábor Maderas M.Sc.

Phone: [phone]

Fax [phone]

www.emisay.hu

ÉMIL-TÚV SÜD KR.

TÜV SÜD Group

KERMI Department

H-1043 Budapest

Dugonics u. 11.

R-400610-2

Seita 4/24

Geprüfter Typ:

RH6F und Varianten Kaminó Trendy 6, WO 109-6, WO 109-6F,

Kamino 109-6F, KS 109-6A, Stubenofen 109-6F (Raumheizer)

Vizsgált típus:

Bank: UniCredit Bank Hungary Zrl.

10918001-00000068-72970010

Managing Director

Gábor Madaras M.Sc.

Phone: [phone]

Fax: [phone]

www.omi-tuv.hu

ÉMI-TÜV SÜD KR.

TÜV SÜD Group

KERMI Department

H-1043 Budapest

Dugonics u. 11.

Geprüfter Typ:

WO 109-8 / WO 109-8F / KS 109-8 / Stubenofen / Bully (Raumheizer)

Vizsgált típus:

Tax no.: HU 10687105

Bank: UniCredit Bank Hungary Zd.

10918001-00000068-72970010

Managing Director

Gábor Madaras M.Sc.

Phone: [phone]

Farc +36/1 314 3820

www.aimiBuy.com

EMI-TUV SÜD KR

TUV SUD Group

KERMI Department

H-1043 Budapest

Dugonics v. 11..

B-623114-1

Sella 3 (23)

Geprüfter Typ:

Thank you for choosing our product!

By purchasing this product you receive guarantee for

• good quality originating from the usage of the finest and proven materials,
- operating security which is controlled according to German and European norms (Corresponds to the standards EN 13240)

- long life ensured by the robust structure.

In order to be able to use your new fireplace for a long time please read the following instructions manual. You will find all the necessary information in it and some additional advice.

PLEASE NOTE:

When ordering replacement parts, the Article No. and Serial No. shown on the identification plate must be quoted.

Contents

Foreword 235

Contents 25

1.1 SAFETY INSTRUCTIONS....26

1.2 Installation ......28

1.3 Putting out of operation ....30

1.4 Heating instructions....30

1.5 Cleaning and maintenance....31

1.6 Potential problems and how to tackle them....32

1. Placing....33

2.1 Prescriptions....33

2.2 Place of installation....33

2.3 Distances....33

2.4 Connection of the fireplace....34

1. Technical specification .... 36

3.1 Data, dimensional drawings, pictures....36

1. Usage

1.1 SAFETY INSTRUCTIONS

1. The stoves are tested to EN 13240 (see identification plate).
2. For installation and for flue gas connections, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 18896, DIN 4705, EN 13384, DIN 18160, EN 1856-2 and EN 15287. In order for the stove to function correctly the chimney to which you want to connect the stove must be in good condition.
3. Before first use and before connecting to the chimney, you must read the Instructions for Use carefully and inform the local authority responsible for approving heating systems.
4. While installing the stove you are recommended to wear clean cotton gloves, in order to avoid leaving fingerprints which can be difficult to remove afterwards.
5. In the interests both of clean air, and of the safe functioning of the stove, the fuel quantities listed in the Instructions for Use should never be exceeded, and the doors of the stove must be shut during use to avoid the risk of overheating, which can lead to damage to the stove. Damage due to this cause is not covered by the guarantee.
6. The stove doors must remain shut at all times while the stove is in use.
7. Permitted fuels are:
8. Natural chopped firewood (up to 33 cm max. in length)
9. Lignite (brown coal) briquettes (see permitted fuels in the Instructions for Use)
10. Never use liquid fire starters. Use either special firelighters or wood shavings.
11. Burning rubbish, fine chips, bark, coal slack, chips from planing, damp wood or wood treated with preservative, paper, cardboard or similar is not permitted.
12. The first time the stove is heated there may be some smoke and an unpleasant smell. Make sure that the room is well ventilated (open windows and doors) and heat for at least an hour at the maximum nominal heat load. If the maximum temperature is not reached the first time the stove is heated, then there may be further unpleasant smells at a later date.
13. All controls and settings must be used as indicated in the Instructions for Use. When the stove is hot, please handle only using the implements or protective gloves provided.
14. If the stove is not working correctly, or if the chimney is not drawing properly, smoke may appear when the fire door is opened. It is very important to only open the fire door slowly, initially just a crack, then wait a few seconds before opening fully. In addition, before opening the fire door to top up the fuel, make sure that only glowing material is present: there must not be any visible flames.
15. Do not place any flammable items in the warming drawer or on the surface of the stove.
16. When in use, all surfaces and particularly the glass doors and handles and other controls can become very hot. Make children, young people, older people and animals aware of this danger, and keep them away from this source of heat when the

stove is being used. Use the protective gloves or the implements provided. Children and young people under 16 must not use the stove unless supervised by an adult who is responsible for them.

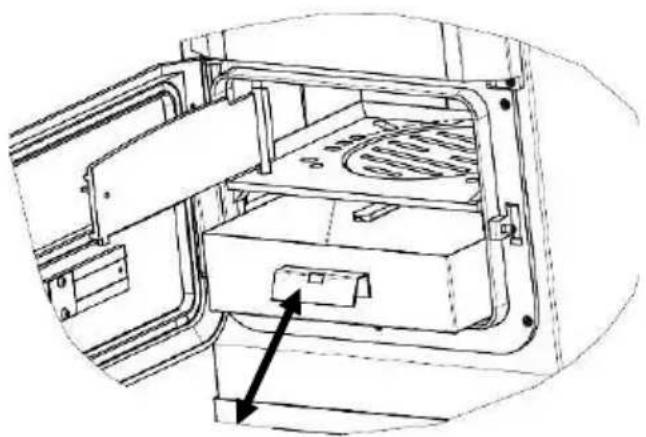

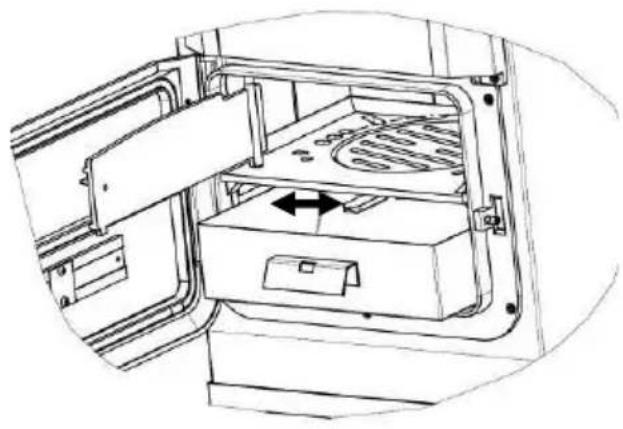

1. Make sure that the ash pan is always fully pushed in, until it touches the back. Never remove ashes while still hot (fire risk).
2. In spring and autumn the chimney may no longer draw correctly, so that gases produced by combustion are not completely removed. The fire chamber should then be filled with a small quantity of fuel, ideally with wood shavings, and lit under supervision, in order to stabilise the chimney draught. The grate must be clean.
3. After each prolonged period of use for heating, have the stove checked by a professional. The flues and pipes for the evacuation of fumes must also be thoroughly cleaned.
4. If repairs or replacements are necessary, please contact your supplier with the necessary article numbers and serial numbers in good time. Only original WAMSLER replacement parts may be used.
5. Work such as installation, setup, commissioning and services, as well as repairs, must only be carried out by qualified personnel (heating system or space heating technicians). Intervention by non-qualified persons invalidates the warranty and guarantee.
6. As the solid fuel oven/stove draws the air required for combustion from the surrounding room, you must ensure that sufficient air can be drawn in through non-sealed windows and outside doors. It can be assumed that is this is provided by a room volume of at least 4 m^3 per kW nominal heat capacity. If the volume is less than this, then air vents can be used to provide access to further air in other rooms (min. 150 cm^2 ).
7. You must ensure that the correct safety distance is maintained from all flammable components and materials – to the side, rear and front. These distances can be found in the Instructions for Use or the identification plate.
8. The fire chamber must not be modified.
9. Connection to a chimney whose functional height is less than 4 m, or if multiple stoves are installed, 5 m, is not permitted. A maximum of two other fires can be connected to the chimney which is to be connected the stove.
10. If the chimney catches fire immediately close all doors and openings and call the fire brigade. Do not attempt to extinguish the fire yourself. Afterwards have the chimney thoroughly checked out by a professional.
11. Solid fuels naturally create soot, so it is always possible that the window glass will become dirty: this does not mean there is a malfunction.

1.2 Installation

Fuels

The equipment can be used with fuels detailed in the followings. This way the “low-smoke” and trouble-free operation can be secured. Use only dry wood with moisture of maximum 20% and lignite briquette.

Types of fuels	Heating value appr. kWh/kg
Hard wood	4,0 – 4,2
Soft wood	4,3 – 4,5
Wood briquette after DIN 51731	5,0 – 5,2
Brown-coal	5,3 – 5,5

Filling quantities RH6F 6kW Filling quantities RH8F 8kW

• Split billet: max. Length: 33 cm - Split billet: max. Length: 33 cm max. two billets per filling, appr. 1.4 kg max. two billets per filling, appr. 1.9 kg
• Lignite briquette: max. 1.5 kg - Lignite briquette: max. 2.2 kg

Filling quantities RH8F Automatic 8kW

- Split billet: max. Length: 33 cm max. two billets per filling, appr. 1.9 kg NWL endurance burning, lignite briquettes max. put in 8.2 kg (15 pcs.) on glowing embers, max. 8.2 kg / 4h

Adjustment of the burning air:

Fuel		primary air regulatorRH6F/ RH8F	Setting of the fuel selectorAll types	primary air regulatorRH8F Automatic
		door down	backside	door down
Warming up, kindling		III	H	Pic. “C”
Wood	Nominal heating performance	I	H	Pic. “B”
Browncoal	Nominal heating performance	II	K	Pic. “C”
	Slow-burning	-	K	Pic. “A”
Putting out of working order		0	K	Pic. “A”
Wood	Cooking	III	H	-
Browncoal			K	-

Table 1

Device control with the automatic control RH8F Automatic

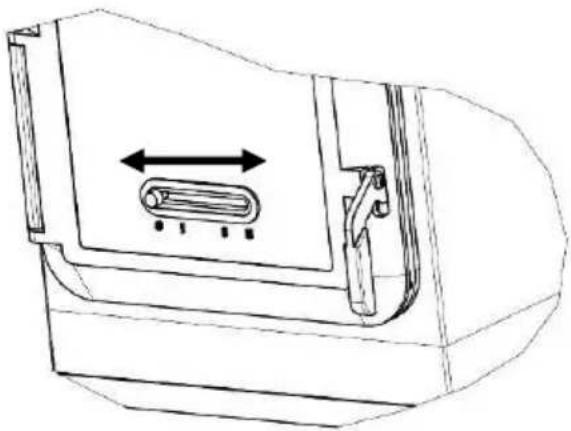

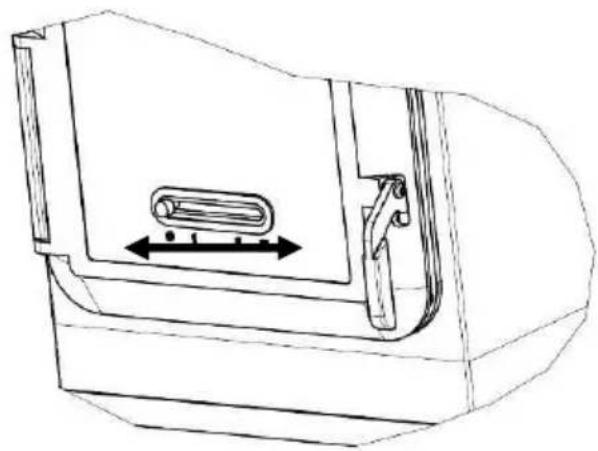

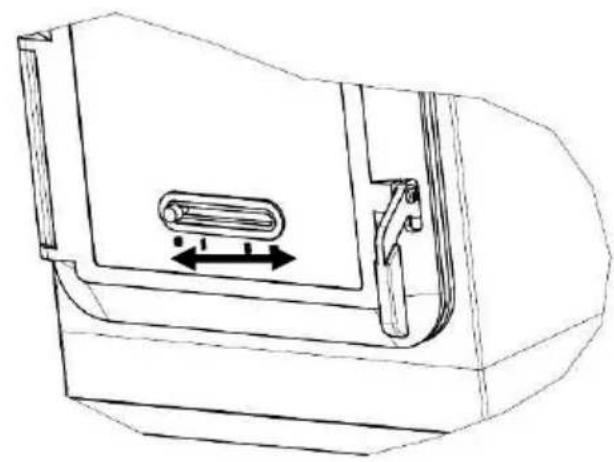

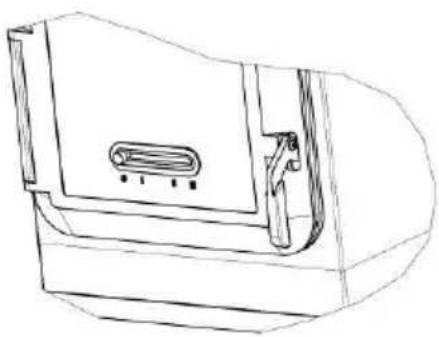

The primary regulator knob on ash door, to be set in accordance with Table 1

Pic. A (Min.)

Pic. B

Pic. C (Max.)

Between 0 and up to the mark infinitely adjustable control knob to the desired performance.

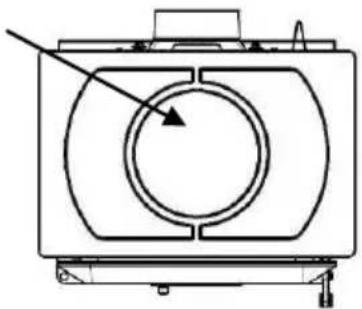

Cooking:

The device meets the test of cooking stove EN 12815. The primary air control should be set according to Table 1 for cooking "cooking" and with the maximum specified below. Amounts of fuel to operate. The pot must be set to the predetermined location of the hot plate (Fig.). Avoid overcooking and fat splashes.

Technical line drawing of a mechanical device with no visible text or symbols

IT IS NOT ALLOWED to burn waste, fine chipping, bark, wood handled with preventive chemicals, furthermore paper and cardboard. For kindling please use wood scrapings or grill starter but never use liquid auxiliaries!

The first kindling

At the first fire set-up could be a little smoke, but is not dangerous, normal! In this time, please ventilate the room carefully!

Warning! Upon the first kindling, smoke and unpleasant smell may be generated. Always ensure the proper ventilation of the room (by opening windows and doors), and heat the fireplace at maximum rated heating performance. If with the first heating the maximum temperature is not reached, the above-mentioned effects may as well arise later on.

- Before installation pull out the delivery securer off the refractory brick through the furnace chamber.

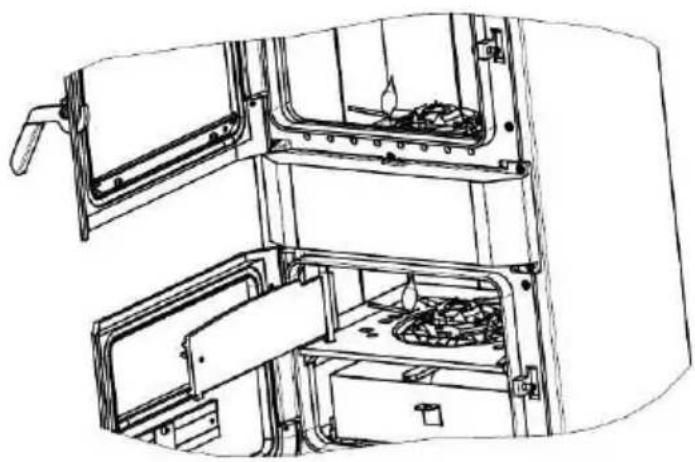

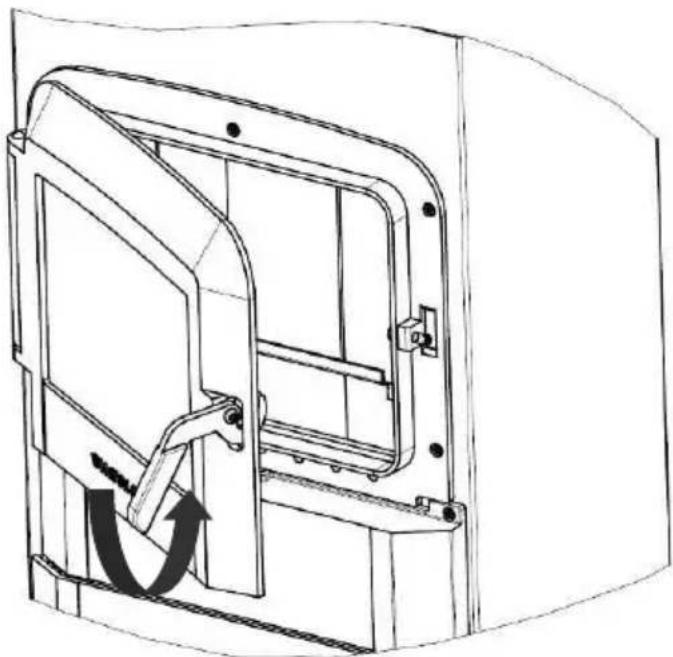

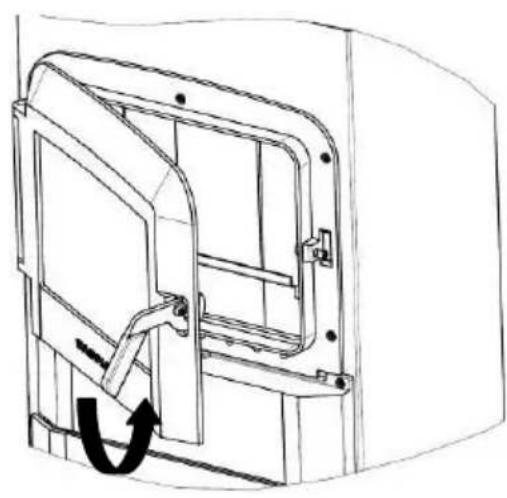

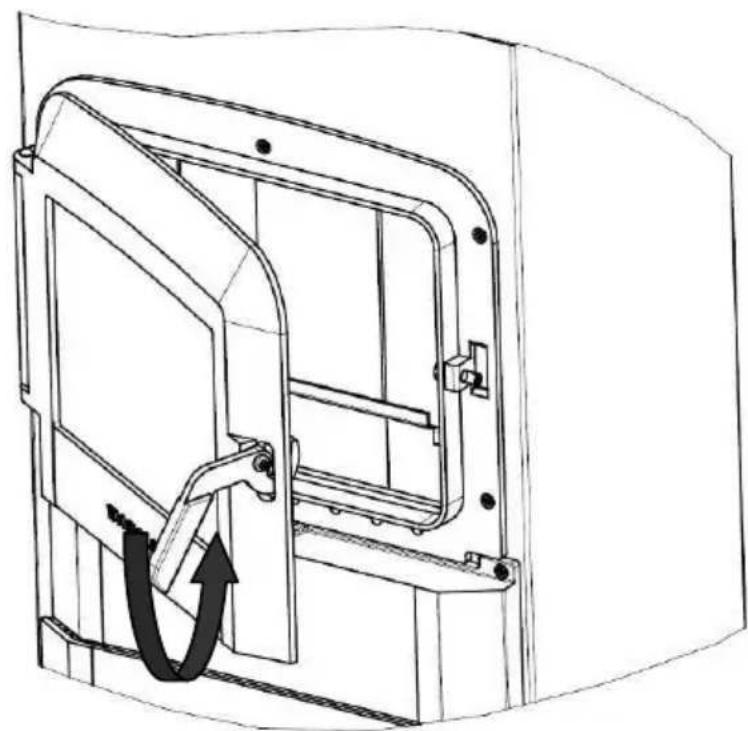

Open the door by raising the handle (Picture 11). If the equipment is hot, you can use insulated gloves. Adjust the primary air regulator (Picture 10), secondary air regulator and the fuel switch according to the Table 1. Put coal lighter or wood wool onto the fire grate, followed by wood chips. First insert small pieces of wood, and then larger ones, light them (Picture 12) and close all the doors again. When the wood burns quickly, and leaves sufficient glowing embers, put additional fuel on the fire. Thereafter, adjust the air regulators and the fuel switch according to the Table 1 („Adjustment of the burning air”). The first kindling should be performed “finely”

with little fuel only, so that the parts of the fireplace are adapted to heat. During the first kindling, the generation of smell is normal and absolutely undangerous.

1.3 Putting out of operation

• Let the glowing ember burn to ashes and the fire-place get cold.
  • Empty the furnace chamber and the ash bin.
• Close the doors, and shut off all air regulators (position 0) and the fuel switch (position K)

1.4 Heating instructions

The fireplace should be operated only with closed furnace chamber door. These doors may be opened only for kindling, loading or when cleaning the furnace chamber (otherwise draught problems may occur with other equipment connected to the same chimney).

Warning!

When opening the furnace chamber door, any incorrect handling or insufficient draught may induce smoke. Always ensure that the furnace chamber door may be opened only slowly, first just to a small extent, and then fully after a few seconds. In addition, if you intend to put additional fuel into the fire, before the opening of the door only there may be only ember bed in the burning space, i.e. no flames may be visible.

Led into the burning space in correspondence with the existing conditions, the secondary air provides for the follow-up burning of the combustible components of in the burning space. This in fact means smoke and soot-poor burning, which contributes to the protection of the environment. If you wish to commission the fireplace in a transitional period, please, please first examine the chimney draught, as it can be especially weak at high external temperatures. Towards this end, hold a burning match in the slightly opened feeding door. If the flame is not drawn significantly by the draught, then a so-called starting fire is to be set first. Towards this end, burn wood chips/wool in the fireplace or the cleaning hole of the chimney. The fire grate is to be cleaned before every kindling to ensure the proper inflow of air for burning. The ashtray is to be emptied regularly. Should the equipment be extremely hot, use the gloves provided. Please, be careful not to dispose glowing materials into the waste bin.

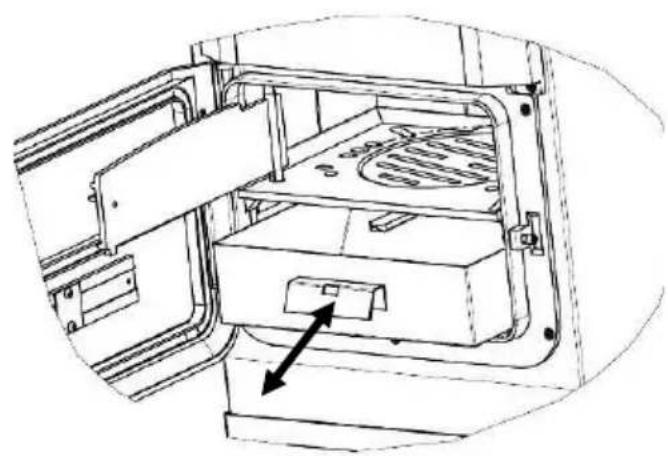

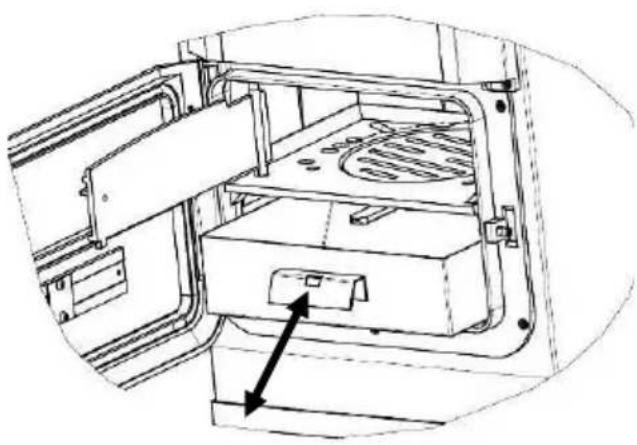

Ensure that the ashtray should be fully pushed into the equipment.

Warning! In order to keep the air clean and safeguard the fireplace, do not exceed the specified maximum fuel quantity, otherwise overheating may occur, which potentially damage the equipment. Such damage is not covered with any guarantee. Only a single layer of fuel is allowable to be prepared in the fireplace. Try to reach lower heating performance only by decreasing the quantity of fuel, and not by cutting the primary air supply.

1.5 Cleaning and maintenance

After the heating season, it is recommended to clean the fireplace and the flue gas pipes carefully. Any dropping heating performance is almost always the consequence of the strong contamination of the flues. For cleaning, the baffle plate is to be pulled forward. This way, the flues can be cleaned from the inside or – after removing the flue gas pipe – from above. After cleaning, the baffle plate is be pushed back fully again.

Warning!

Following every heating season you are advised to examine the fireplace thoroughly. If any repair or reconditioning is needed, please, contact your local dealer in a timely manner, and specify the model number and serial number of your equipment (as seen on the model plate). External surfaces may be maintained only after the fireplace cooled down, and following the first commissioning. Use cold water for cleaning, or soap, washing ingredient in extraordinary cases, then wipe it dry. Before its first use, clean the ROBAX inspection glass with a wet and clean cloth, and then put a few drops of glass—ceramics cleaner onto both sides of the glass, and spread them with the use of kitchen paper tissues. It provides an invisible film on the valuable surface of the Robax glass. This film helps to keep the glass clean, and facilitates regular cleaning operations. ROBAX S for slightly contaminated surfaces – a commercially available glass surface cleaning agent – may as well be used for the cleaning of the medium or strongly contaminated glass surfaces of the fireplace. Towards this end, spray small quantities of the agent to the cold surfaces, spread it, and wash it down with a wet cloth, followed by drying with a clean, soft cloth. In case there are sticky fuel deposits on these surfaces, first scale simply them with a ceramic-plate scraper held in flat angle, and then clean the surfaces as described above.

Cleaning of the ceramic surfaces dirt and grease are to be removed with soap and water.

Warning: Under no circumstances you may use sponge, scouring, aggressive or scratching cleaning agents! If the grate is blocked so that the equipment cannot serve the intended function, the grate is to be removed for cleaning.

1.6 Potential problems and how to tackle them

Kind of operating problem	Possible reasons	Solution
Odour formation	Curing of the applied preventive lacquer.Steaming oil remains.	Operate the fire-place on a low heating level according to the instructions manual for a few hours. Then heat up for maximal performance for a few hours.
Too little heating performance	We chose too little performanceChimney draught is slight	Have the heating requirement of the room examined by an expertChimney draught shall be at least 12 Pa, max. for a short time 18 PaCheck the tightness of your chimney and also that the doors of other fire-places leading to the same chimney are closed and sealed properly. Make sure that the chimney-cleaning joints are sealed properly.
	Too long and leaky smoke tube	All the smoke tube joints must be well sealed and fireproof-isolated
	Leakage at the door glass	Check the sealing, close the door properly. May have to have the tightening flap renewed.
	Usage of wet wood.	Use well dried wood only.

Actions to be in chimney fire

Chimney fire may occur upon the improper cleaning of the chimney, the use of inappropriate fuels (e.g. excessively wet wood) or the inadequate setting of the burning air. In such cases, close the burning air at the fire, and call the fire service.

Never try to extinguish the fire with water!

2. Placing

2.1 Prescriptions

For installation and for connection of flue, the requirements of the Fire Regulations (FeuVO in Germany) apply, as well as local building regulations such as the following technical standards DIN 18896, DIN 4705, EN 13384, DIN 18160, EN 1856-2 and EN 15287. In order for the stove to function correctly the chimney to which you want to connect the stove must be in good condition.

2.2 Place of installation

The stove draws the air required for burning from the surrounding room. You must ensure that sufficient air can be drawn in through non-sealed windows and outside doors. In addition you must ensure that a room volume/heat capacity ratio of at least 4 m^3 per kW nominal heat capacity is available. If the volume is less than this, then air vents can be used to provide access to further air supply in other rooms (connecting vents min. 150 cm^2 ).

2.3 Distances

All the combustible materials, furniture or e.g. decoration materials that are in the close environment of the fireplace should be protected from the heat.

Furnishing in the radiation area

Keep a minimal distance of 80/100 cm (table3) between the front edge of the fireplace and the combustible equipment, furniture or e.g. decoration materials in the building. The security distance can be reduced to 40/50 cm if a heat shield is placed in front of the object to be protected.

Furnishing beyond the radiation area

The walls beside and behind the fireplace may not be made of combustible materials, and they cannot be covered with such materials if the distance on the sides and back sides under the values on Table 3 is.

Safety distance to combustible material:

Typ	back	side	front
Typ 109 65 RH6F 6kW	25 cm	45 cm	100 cm
Typ 109 85 RH8F 8kW	30 cm	50 cm	100 cm
Typ 10985 RH8F Automatic 8kW	30 cm	30 cm	80 cm

Table 3

Floor in front of and under the fireplace

Floors made from combustible materials, such as carpets, parquet floors or cork is to be protected by a shield of non-combustible material – for example ceramics, stone, glass or steel – placed under the fireplace so that it should reach out to 50 cm in front and 30 cm besides.

2.4 Connection of the fireplace

The connection for attaching to the chimney must be able to withstand at least 400^ C.

PLEASE NOTE:

Before connecting the stove the local authority responsible for approving heating systems must be consulted!

Connection pieces must be firmly connected to the stove and to each other and must not leak. They must not project into the open diameter of the chimney. The connection piece between the stove and the chimney must have the same diameter as the pipe socket on the stove. Horizontal connection pieces of over 0.5 m must rise towards the chimney at an angle of 10 degrees. Any pipes which are not heat insulated or vertical must not be longer than 1 metre.

The requirements of the Fire Regulations (FeuVO) apply, as well as local building regulations such as for the chimney standards DIN 18896, DIN 4705, EN 13384, DIN 18160 and EN 15287. Connection pieces must be tested to EN 1856-2. Measurement X (distance from flammable construction and other materials) must be as defined by the manufacturer of the connection piece.

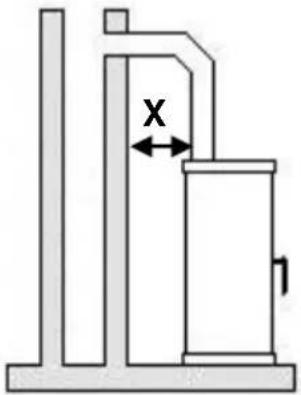

X 1

PLEASE NOTE:

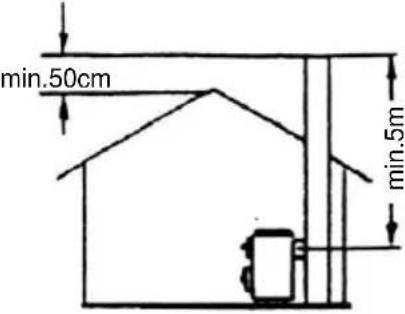

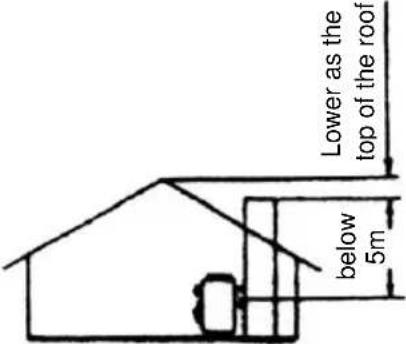

Fitting to a chimney with a functional height of less than 4 m, or if several stoves are being fitted, less than 5 m, is not permitted. (See: Data for chimney calculations / Chapter 3.) A maximum of two other fires can be connected to the chimney to be connected to the stove.

For safety reasons it is not permitted to use a steam extractor hood to remove air when the stove is producing heat.

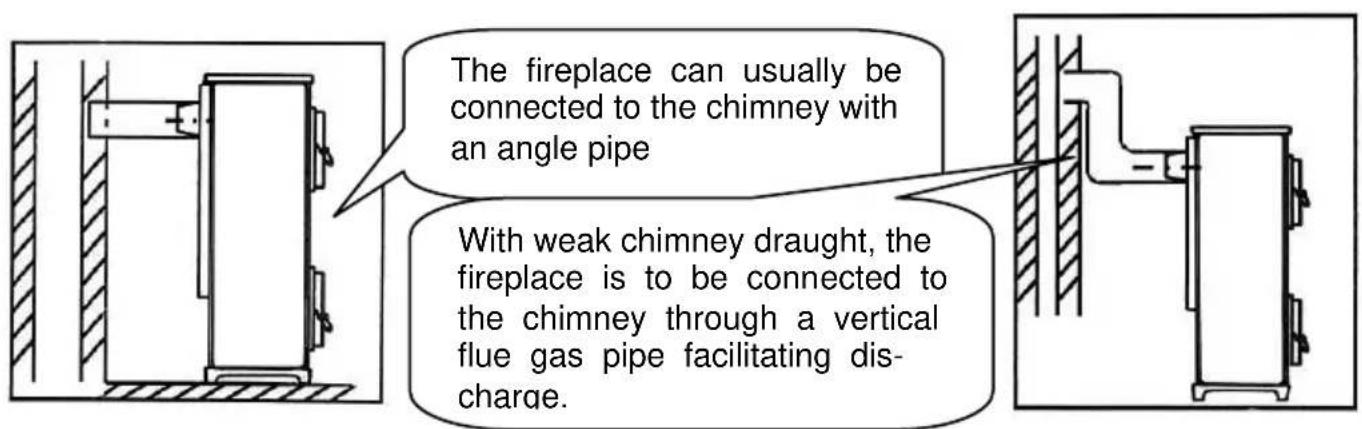

The fireplace can usually be connected to the chimney with an angle pipe With weak chimney draught, the fireplace is to be connected to the chimney through a vertical flue gas pipe facilitating discharge.

Correct	Incorrect
		Tightening cross section of the chimney because the smoke tube is pushed into the chimney too much
		Obstruction, because the smoke tubes are led as facing each other
	[Faulty d because fire-plac door (nc use) is c
	[Fals an c
	[Fals beca leak
		False air, because a open fire-place door

3. Technical specification

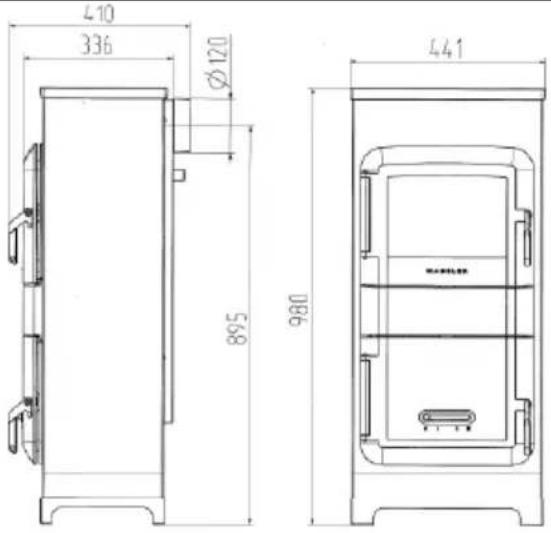

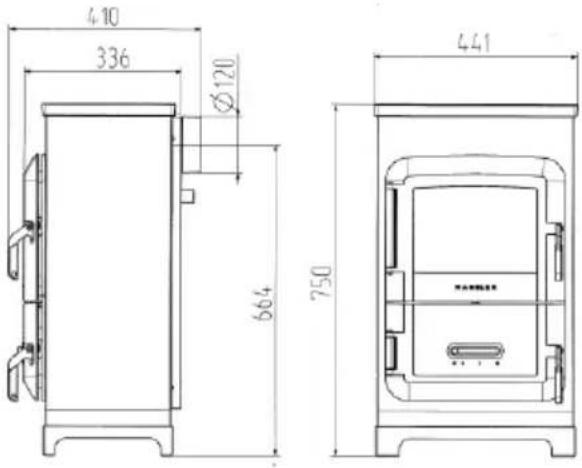

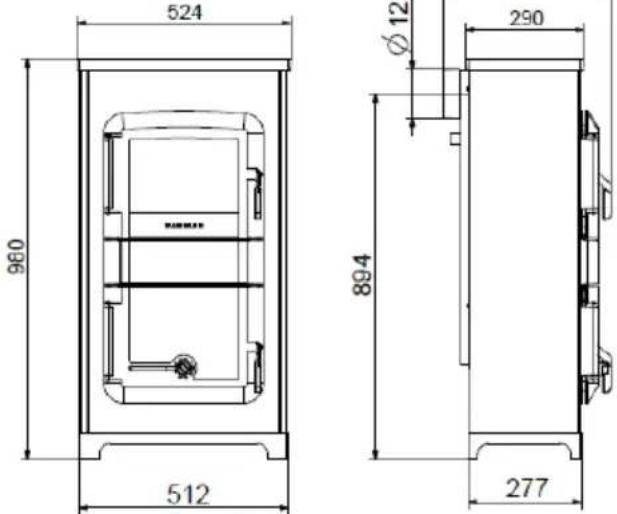

3.1 data, dimensional drawings, pictures

Typen:		109 65 RH6F	109 85 RH8F	109 85 RH8F AUTOMATIC
Nominal performance	kW	6	8	8
Flue gas connection backside	∅ mm	120
Heating capacity (m3)-under favourable-less favourable-not favourable heating circumstances according to 18893 / TAB2 DIN standard	m3	115/68/45	182/105/71
Min. blast pressure at nominal performance	Pa	12
Fuel	wood / BB 7" (brown coal)
Flue gas stream	g/s	5,4 / 6,2	6,6 / 7,2	7,3 / 5,8
Flue gas temperature	C°	363 / 384	353 / 366	317 / 330
CO (13% O2) mg/Nm3	mg/Nm3	1208 / 386	1140 / 797	1110 / 758
CO (13% O2) %	%	0,096 / 0,03	0,09 / 0,06	0,09 / 0,06
CO	mg/MJ	776 / 226	732 / 469	713 / 447
Dust (13% O2) mg/Nm3	mg/Nm3	35 / 39	31 / 29	35 / 38
Dust	mg/MJ	28 / 23	20 / 17	23 / 24
OGC	mg/MJ	14 / 7	39 / 17	17 / 33
Efficiency %	%	80,2 / 78,3	80,7 / 78,4	80,5 / 80,7
Weight	kg	85	109,5	148

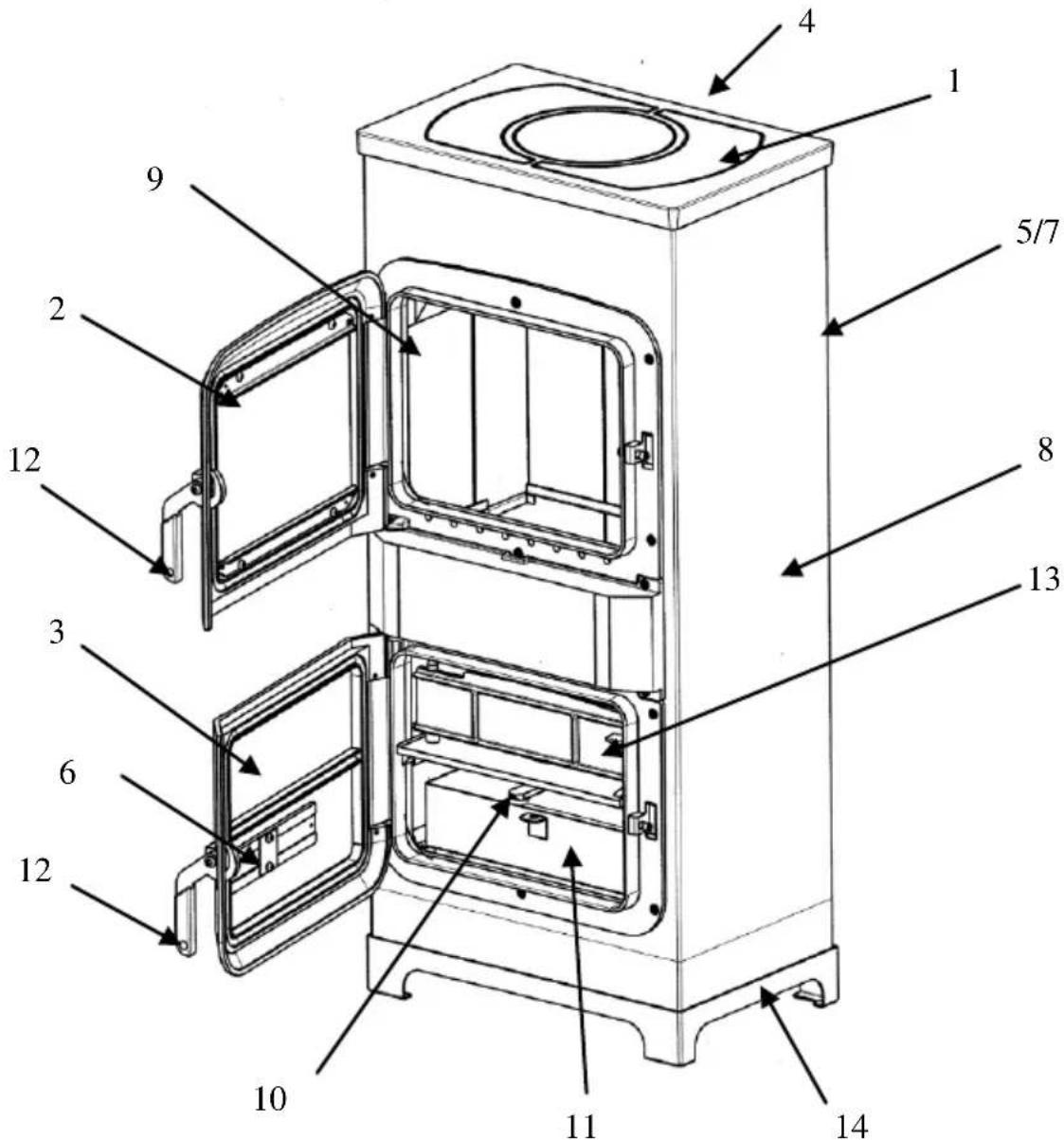

Description to the pictures

1. Iron coast plate
2. Furnace chamber door with glass
3. Ash door
4. Flue gas connection

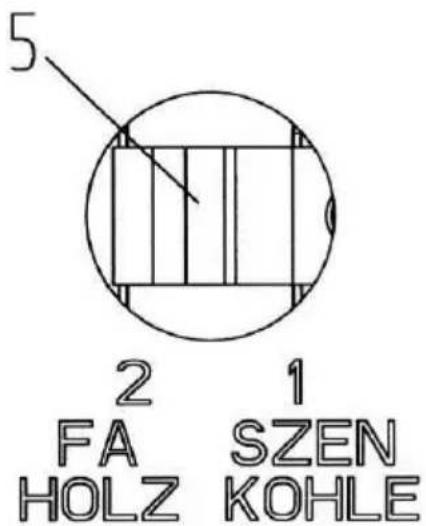

5. Fuel selector („2“ = wood, „1“ = coal) (pic. 9)

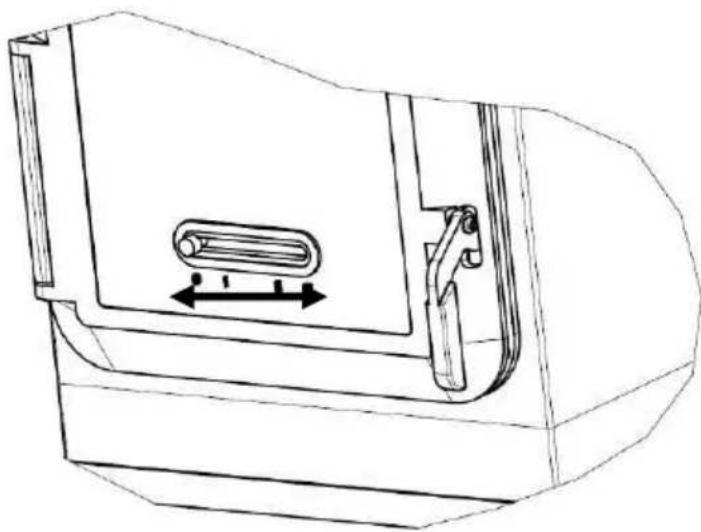

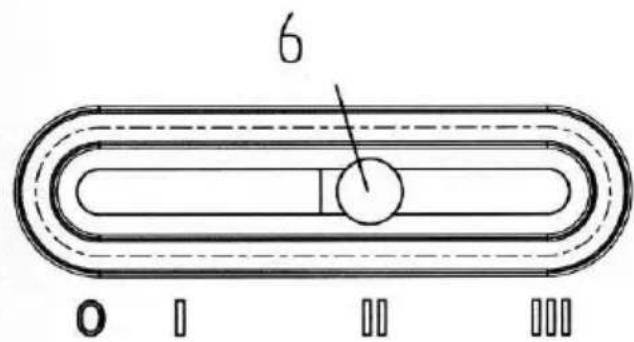

6. Primary air regulator (pic. 10)
7. Secondary air selector
8. Casing painted
9. Furnace chamber walling

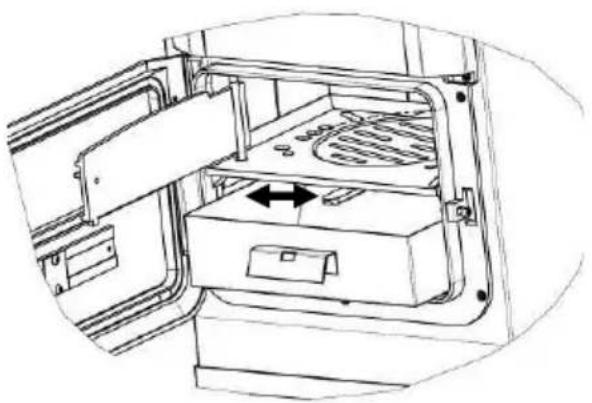

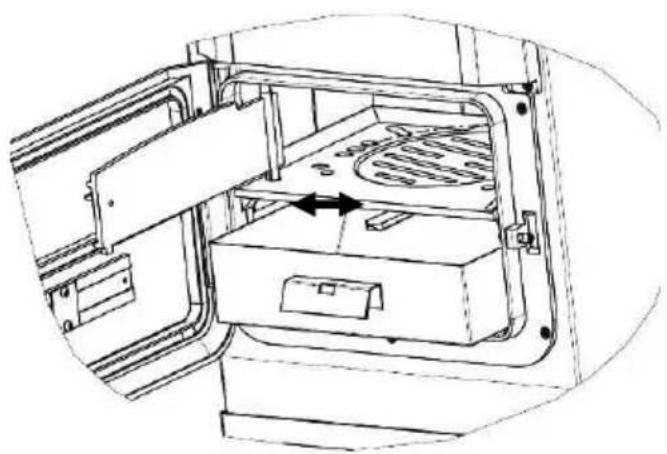

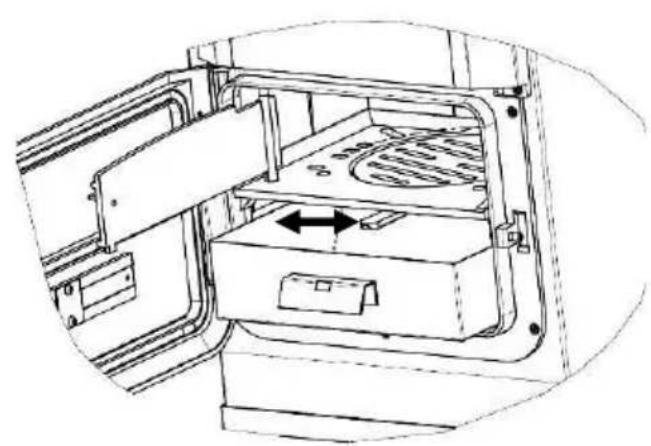

10. Riddle bar (inside) (pic. 13)
11. Ash bin
12. Door knob
13. Fire door (only 8kW version)
14. Socle

Technical diagram of a multi-level appliance with numbered components for identification

pic. 1: RH6F 6KW
pic. 2: RH8F 8KW
pic. 3: RH8F Automatic NS 8kW

RH6F 6kW	RH8F 8kW
RH8F Automatic NS
411

5 2 FA 1 SZEN HOLZ KOHLE

pic. 9

6 0 I II III

pic. 10

Technical line drawing of a mechanical device with internal components and a curved arrow indicating motion (no text or symbols)

pic. 11

Line drawing of a refrigerator interior showing open doors, grilles, and a stove (no text or symbols)

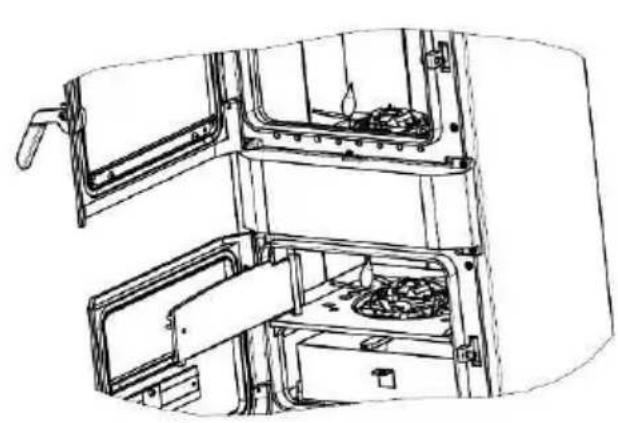

pic. 12

Technical line drawing of a mechanical device interior showing internal components and a directional arrow (no text or symbols)

pic. 13

Technical line drawing of an open industrial machine with internal components and a black arrow indicating a component (no text or symbols present)

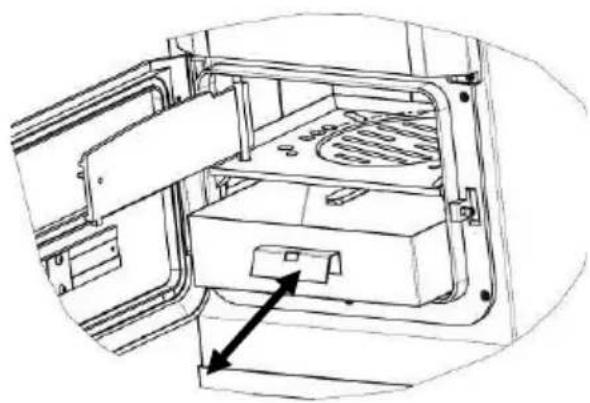

pic. 14

Technical line drawing of a mechanical component with internal components and directional arrows (no text or symbols)

pic. 15

The specified dimensions and weights are approximate values, and thus have only informative purposes.

We reserve the right to modify the designs as required in terms of technology or quality!

We reserve the right to make changes which relate to technical advances and / or to an improvement in quality. We accept no liability for printing errors and changes which occur after printing.

WAMSLER

Technical line drawing of a mechanical component with no visible text or symbols

Réglage d'air:

2.3 Distances minimum

Technical diagram of a multi-tiered industrial furnace or oven with numbered components and directional arrows indicating flow or assembly.

6 0 I II III

Fig. 10

Technical line drawing of a mechanical housing or enclosure with internal components and mounting brackets (no text or symbols)

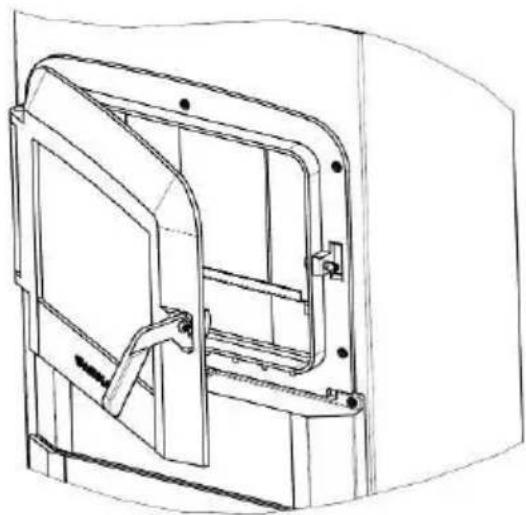

Fig. 11

Technical line drawing of a multi-level industrial machine with internal compartments and ventilation ducts (no text or symbols)

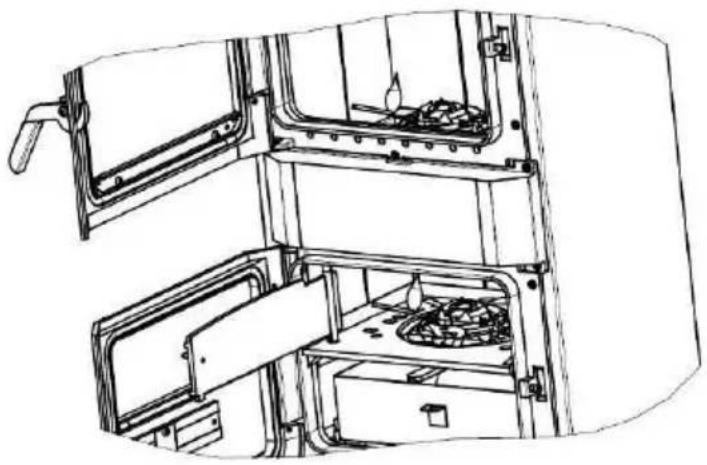

Fig. 12

Technical line drawing of a mechanical device interior showing internal components and a directional arrow (no text or symbols)

Fig. 13

Technical line drawing of a mechanical device with an open door and internal compartments (no text or symbols)

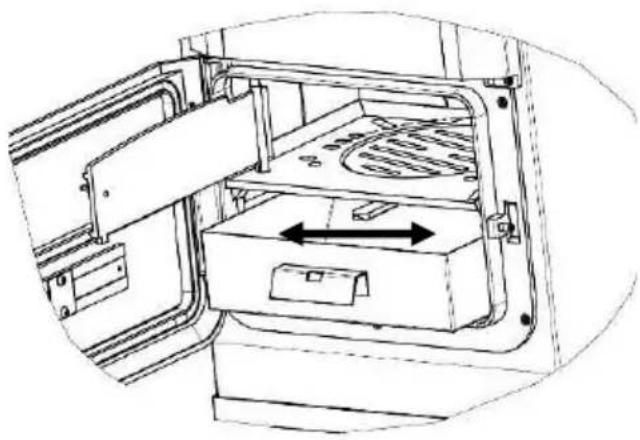

Fig. 14

Technical line drawing of a mechanical component with a central slot and directional arrow (no text or symbols)

Fig. 15

Technical line drawing of a mechanical component with no visible text or symbols

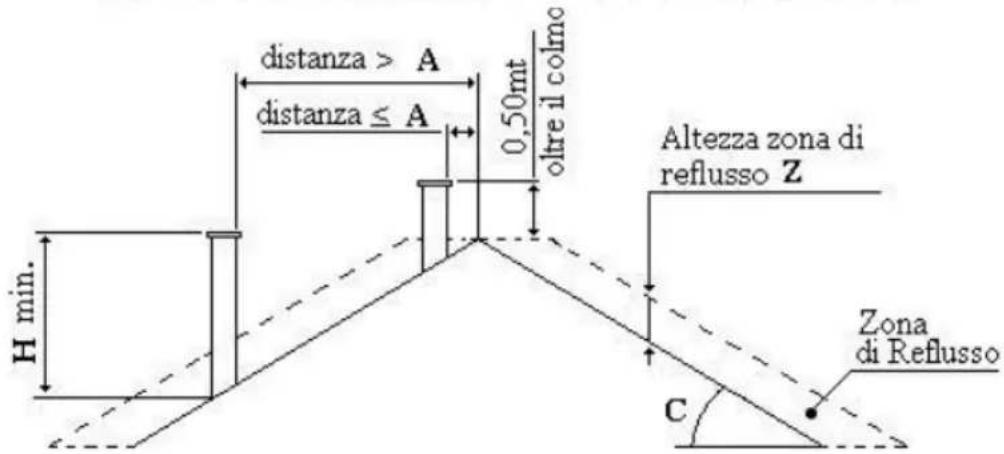

d ≥ 5m d ≤ 5m 0,50m 0,50m

Technical line drawing of a mechanical device with internal components and a curved arrow indicating motion (no text or symbols)

Technical line drawing of a multi-level industrial or laboratory device with internal compartments and no visible text or symbols

Fig. 11

Technical line drawing of an open refrigerator with a door and drawer, showing internal components and a black arrow indicating a location (no text or symbols present)

Fig. 13

Fig. 12

Technical line drawing of a door or cabinet interior showing internal components and a directional arrow (no text or symbols)

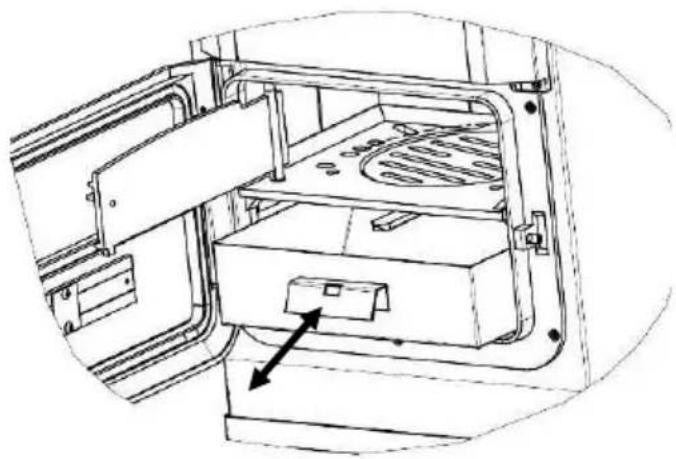

Fig. 14

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Fig 15

Technical line drawing of a mechanical device with no visible text or symbols

6, 7 0 I II III

6.kép

Technical line drawing of a door frame with an arrow indicating clockwise motion (no text or symbols)

7.kép

Technical line drawing of a multi-level industrial machine with internal components and structural elements (no text or symbols)

1. kép

Technical line drawing of an open industrial machine with internal components and a directional arrow indicating motion (no text or symbols)

9.kép

Technical line drawing of an internal appliance or housing with a highlighted component and directional arrow (no text or symbols)

10.kép

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

11.kép
