Product Type	Oil-free Fryer (Airfryer)
Brand	Tognana
Model	Iridea D2DFA10IRCH
Capacity	10 L
Power	2300 W
Supply Voltage	220-240 V ~ 50/60 Hz
Dimensions (W × D × H)	32.5 × 44.5 × 34 cm
Net Weight	6.2 kg
Temperature Range	80 to 200 °C
Timer	1 to 60 minutes
Preset Programs	12 modes: Fries, Meat, Chicken Thighs, Barbecue, Fish, Vegetables, Shrimp, Chicken Wings, Chicken, Pizza, Dehydrator, Cake
Interior Light	Yes, button control
Basket Material	Metal with non-stick coating
Cooking Grid	Included, removable
Safety	Automatic off when door opened, overheat protection
Cleaning of Basket and Grid	Dishwasher safe (max 55 °C) or hand wash with non-abrasive sponge
Exterior Cleaning	Soft cloth slightly damp
Standby Consumption	0.16 W
Time to Low Power Mode	1 minute
Included Accessories	Cooking grid, user manual
Warranty	2 years (conventional warranty)

Frequently Asked Questions - Iridea D2DFA10IRCH Tognana

Can I use oil in this Airfryer?

It is not recommended to add oil to the air fryer, as this may cause a fire hazard. The appliance uses hot air to cook food, requiring little or no oil. For some foods, you can lightly brush them with oil before cooking, but never pour oil directly into the basket.

How to clean the basket and cooking grid?

The basket and grid can be washed in the dishwasher at a temperature not exceeding 55 °C. You can also hand wash them with warm water, mild detergent, and a non-abrasive sponge to preserve the non-stick coating. Do not use chemicals, steel wool, or abrasives. The exterior can be cleaned with a soft, slightly damp cloth.

What to do if white smoke comes out of the appliance?

White smoke may appear when cooking fatty foods, which is normal. If the smoke is excessive, it may be due to grease residue in the basket. Clean the basket after each use. If the smoke does not stop, turn off the appliance and let it cool before checking.

Why are my foods not cooking evenly?

Uneven cooking may be due to overloading the basket or lack of shaking. Shake the basket halfway through cooking for small foods (fries, vegetables, etc.). Also ensure the temperature and cooking time are appropriate. Reduce the amount of food if necessary.

Can I use parchment paper or aluminum foil?

Yes, you can use parchment paper or aluminum foil of appropriate size. Be careful not to use sheets that are too large, which could touch the heating elements during operation, causing a fire hazard.

How long should I preheat the appliance?

It is not necessary to preheat the air fryer before each use. However, before first use, it is recommended to run the appliance empty at 200 °C for 10 to 15 minutes to remove manufacturing residues. This may produce smoke or odors, which is normal.

The basket does not insert properly, what to do?

If the basket does not insert, it may be due to overloading with food. Remove some food and reinsert the basket. Also ensure the grid is properly placed with the arrow pointing to the back of the appliance.

Can I bake a cake in this fryer?

Yes, the appliance has a Cake program (preset 12). Use a suitable mold (metal or silicone) placed in the basket. Do not shake the basket during cake baking. Follow the recipe book for quantities and times.

What happens if I open the door during cooking?

Opening the door automatically interrupts the cooking cycle. Once the door is closed, the appliance resumes and continues the process where it left off. This allows you to safely check cooking progress.

How to set temperature and time manually?

Press the temperature/time selection button (14) once to adjust the temperature in 5 °C increments using the + and - buttons. Press the same button again to set the cooking time in minutes (from 1 to 60) with the same buttons. Confirm by pressing the Start button (18).

USER MANUAL Iridea D2DFA10IRCH Tognana

Salsiccia fresca
- Ohio

250 gr
1 cucchiaino

thank you for choosing our air fryer for cooking and heating food for home consumption. Tognana Porcellane S.p.A. declines any liability for any damage that may arise, directly or indirectly, for persons, things and pets as a result of failure to comply with all the requirements indicated in the appropriate "Manual of use" regarding the installation, use and maintenance of the appliance.

SYMBOLS IN THE MANUAL/PRODUCT AND THEIR MEANING

This symbol indicates that you need to read this manual carefully before use. Pay particular attention to safety guidance. Keep this manual as an integral part of the product.

DANGER: the word indicates a potential imminent danger with a high level of risk that, if not avoided, has a high probability of causing serious injury or death.

WARNING: the word indicates a potential hazard with an average level of risk that, if not avoided, has a high probability of causing serious injury or death.

ATTENTION: the word indicates a potential hazard with a low level of risk that, if not avoided, could lead to minor or moderate injuries.

this symbol indicates that the protection of the appliance is not based solely on the main insulation, but requires an additional safety measure.

ATTENTION - HOT SURFACE!: The symbol indicates that the surface temperature of the area of application can reach become dangerously high and for this reason direct contact with the skin and heat sensitive fabrics/materials should be avoided.

IMPORTANT NOTICE: the words indicate useful information for the correct use of the product.

This symbol on the product or packaging indicates that the appliance at the end of its useful life must be collected separately from other waste for proper treatment and recycling.

This symbol indicates that the appliance complies with the safety requirements laid down in EU regulations/directives.

This symbol indicates that the materials and objects in contact with food (MOCA) are suitable for food contact.

IMPORTANT NOTES ON CORRECT USE

1. This appliance is intended exclusively for cooking and heating food for domestic consumption.
2. This appliance is intended for domestic use and similar applications, such as:

*kitchen areas of shop staff, offices and other working environments;
*agrotourism;

customers of hotels, guesthouses and other residential environments;
rooms like bed and breakfast.

1. This product is not a toy.
2. Do not leave the appliance unattended during operation.
3. Do not leave parts of the packaging (plastic bags, polystyrene foam, etc.) within reach of children or dependant persons, as these objects are potential sources of danger (e.g.: risk of suffocation).
4. Use the product for the sole purpose for which it was designed. The manufacturer is not liable for damage or injury caused by improper use.
5. Unauthorised repairs or modifications will invalidate the warranty.
6. Do not use outdoors.
7. Never leave the turned on appliance unattended.
8. Do not place on or near a gas or electric stove, or in a hot oven.
9. Before use, place the appliance on a solid, flat, horizontal and non-flammable surface.
10. To turn off the appliance manually, press the shutdown button.
11. Never put the appliance in the dishwasher.
12. Do not soak the appliance in water or rinse it under the tap, as it contains electronic components and heating elements.
13. Use only original or manufacturer-recommended spare parts and accessories.

DANGER

PRODUCT

1. Before connecting the appliance to the power supply, check that the voltage indicated on the appliance corresponds to the voltage

available in your home.

Connect the appliance to a power outlet equipped with efficient grounding. The manufacturer cannot be held responsible for any accidents caused by the lack of grounding of the system.

1. The appliance may be used by children of at least 8 years of age and by persons with reduced physical, sensory or mental abilities, or without experience or knowledge, provided that they are supervised or have received instructions on the safe use of the appliance and the understanding of the hazards inherent thereto. Children should not play with the appliance. Cleaning and maintenance intended to be carried out by the user shall not be carried out by children without supervision.
2. Supervise the children so that they do not play with the appliance.
3. Do not insert metal objects into the slots of the appliance.
4. Do not cover the air inlet and outlet when the appliance is in operation or when it is connected to the power outlet.
5. Do not place the product against the wall or other objects: the back of the product, the middle side and the upper side of the product must have a free space of at least 10cm . Do not place objects on top of the product.
6. Do not add oil to the air fryer as this may cause a fire hazard.
7. To avoid short circuits, do not put bulky food that can touch the resistors in the oven. In addition, do not put food wrapped in aluminum or metal tools in the oven.
8. Disconnect the appliance from the socket when moving and not in use.
9. Let the appliance cool about 30 minutes before cleaning.
10. Remove any burnt food residues.
11. Incorrect use of the product can cause damage or injury.
12. In order to avoid electric shocks, do not immerse the body of the product in water or other liquids.
13. This product does not contain repairable parts. Don't try to fix it yourself. Have maintenance performed by a qualified service centre using only identical spare parts. This will ensure that the safety of the product is maintained.
14. Do not use the appliance at high temperatures, in very humid or wet environments or in the vicinity of flammable material (curtains, tablecloths, etc.).
15. Do not use if the appliance has fallen or has been damaged in any

way. Do not attempt repairs yourself. Contact your dealer for repair/replacement, if under warranty, or customer support.

1. If the product emits black smoke, disconnect the power supply immediately. Wait until the product has stopped emitting smoke before you remove the basket from the fryer.

DANGER OF SCALDING!

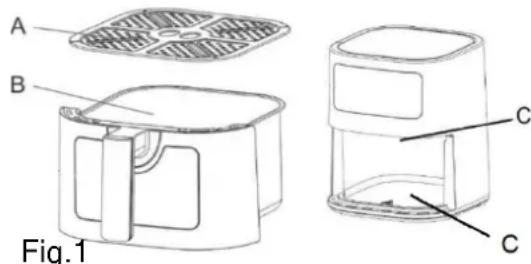

1. Do not touch the hot parts of the appliance to avoid burns (See A, B, C on Fig. 1). Use handles, tongs or suitable protective equipment to remove food from the basket.

1. This appliance can release heat, steam or condensation during and after operation. Hands and face should be kept safe from steam and air intakes. Also pay attention to hot steam and heat when removing accessories to prevent the risk of burns, scalds or other injuries, as well as property damage.
2. When the appliance is in operation and for a few minutes after the end of operation, the temperature of the outside surface and air outlet can be very high. Do not touch or move the appliance to avoid danger of burns.
3. For the air fryer you can use baking paper or aluminum/tin film of suitable size. Do not use too large sheets to prevent them from touching the heating elements during operation.

CABLE AND PLUG

1. The power cord must be connected to an AC electrical outlet (standard household current). Do not use other electrical outlets.
2. In case of incompatibility between the socket and the plug of the appliance, have the socket replaced by another suitable type by qualified personnel. The use of adapters, multiple sockets, and/or extensions is not recommended. Should their use be necessary, use only simple or multiple adapters and extensions complying with the current safety standards, taking care not to exceed the power

limit marked on the adapter and/or extension.

1. Do not use the power cord if damaged.
2. Use only the power cord supplied in the package.
3. In order to avoid electric shock, do not immerse the power cord in water or other liquids.
4. The power cord should be used in a dry and clean place. Use in wet or dirty environments may lead to risks of fire, electric shock or electrocution.
5. Do not touch the cable or power plug with wet hands.
6. Do not let the cable dangle or fall down from a countertop.
7. Be careful not to pull or trip over the power cord. Keep the cable away from sources of heat, hot objects or open flames.
8. Disconnect the cable from the power outlet before cleaning and when the appliance is not in use. To disconnect, turn off the appliance, then remove the plug from the wall outlet. Don't pull the cable but grab the plug.
9. Always connect the plug to the appliance first, then connect the cable to the wall outlet. Make sure the cable is fully extended.
10. The cable should not be twisted or wrapped around the appliance.
11. Do not use the appliance if the power cord is damaged. Do not attempt repairs yourself. Contact your dealer for repair/replacement, if under warranty, or customer support.
12. Do not use extension cables or timer devices.

CONFORMITY OF THE PRODUCT

The manufacturer Tognana Porcellane S.p.A. declares that the product Air fryer 10L Mod. Iridea complies with Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.

The manufacturer Tognana Porcellane S.p.A. declares that the product Air fryer 10L Mod. Iridea complies with Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment intended for use within certain voltage limits.

The manufacturer Tognana Porcellane S.p.A. declares that the product Air fryer 10L Mod. Iridea complies with Directive 2009/125/EU of the European Parliament and of the Council of 21 October 2009 on the establishment of a framework for the development of specifications for the ecodesign of energy-related products

The manufacturer Tognana Porcellane S.p.A. declares that the product Air fryer 10L Mod. Iridea complies with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 and subsequent Commission Delegated Directive 2015/863 on restriction the use of certain hazardous substances in electrical and electronic equipment.

TECHNICAL DATA

Power: 2300 W
Capacity: 10L
- Input voltage: 220-240 Vac 50-60 Hz
- Dimensions: 32.5 × 44.5 × 34 cm
Net weight: 6200 g

ENERGY CONSUMPTION

Product information for energy consumption and maximum time to reach the applicable low power mode.

Standby mode	0.16 W
Maximum time required for the appliance to automatically reach the applicable low power mode or condition.	1 minute

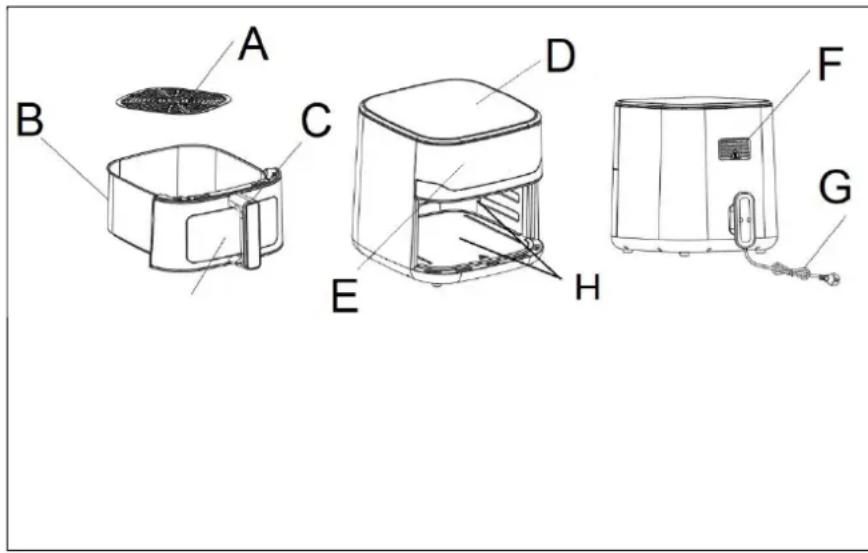

COMPONENTS

A. Cooking grill in SPCC steel coated with Teflon, with silicone feet
B. Basket in SPCC steel coated with Teflon, with glass window
C. Handle made of PP (Polypropylene) plastic and stainless steel
D. Upper lid made of PP (Polypropylene) plastic
E. Digital touch control panel
F. Air outlet grid
G. Power cord
H. Heating element

BEFORE FIRST USE

1. Remove the different components from the packaging, check that they are complete and intact, carefully remove any protections and labels. The package contains:

No.1 Air fryer
No.1 Cooking grill
No.1 User Manual

1. Make sure that all parts are assembled correctly and in place before use.
2. If you are using the fryer for the first time, it is recommended that you wash all removable parts that will come into contact with food following the instructions in the section "CLEANING AND MAINTENANCE".
3. Operate the empty appliance at 200^ without food for 10 - 15 minutes. The appliance may emit smoke and odours due to the residues of the manufacturing process. This is normal and does not indicate any defect or danger.

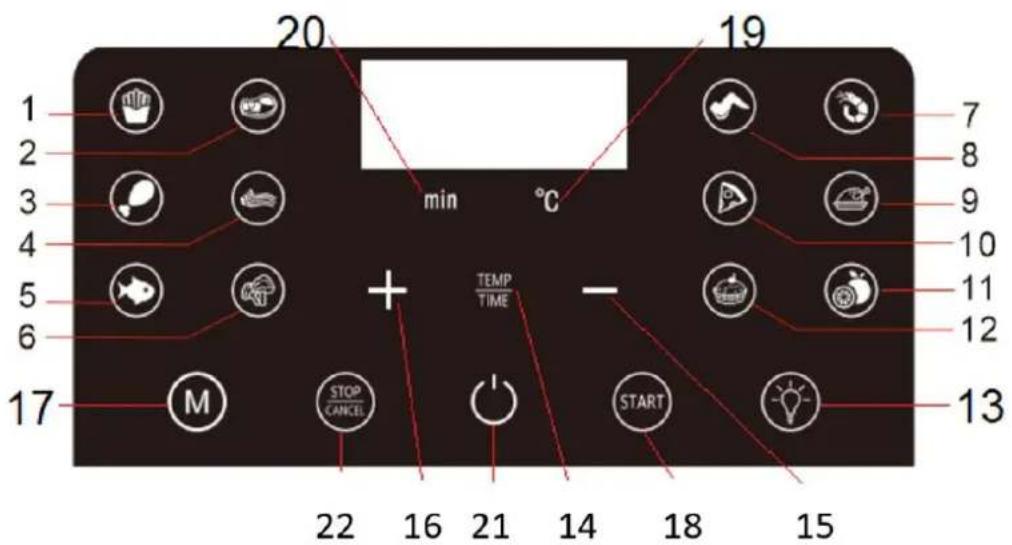

1. "French Fries" Program
2. "Meat" Program
3. "Chicken Thighs" Program
4. "Barbecue" Program
5. "Fish" Program
6. "Vegetables" Program
7. "Shrimp" Program
8. "Chicken Wings" Program
9. "Chicken" Program
10. "Pizza" Program
11. "Dehydrator" Program
12. "Cake" Program
13. Internal Light On/Off Button
14. Temperature/Time Selection Button
15. Temperature/Time Adjustment Button -
16. Temperature/Time Adjustment Button +
17. Pre-set Menu Selection Button
    18.Start Button
18. Set Temperature Indicator (^)
19. Set Time Indicator (min)
20. On/Off Button
21. Pause/Stop Button STOP/CANCEL

13. Internal light on/off button

Pressing this button allows you to monitor the cooking progress while the appliance is in operation. Opening the door during the cooking process will pause the appliance.

14. Temperature/time selection button

This button allows you to adjust the cooking temperature or time.

Press the button once Temp Time display will indicate the preset temperature. Press the - / + buttons (15,16) to adjust the desired temperature in 5^ interv

Press the button again Temp Time display will show the preset time.

Press the - / + buttons (15,16) to adjust the desired cooking time per minute, from 1 to 60 minutes in all modes.

17. Pre-set menu selection button M

Select the desired menu by pressing this button; the indicator for the selected program will flash, and the display will show the default time and temperature. These values can be changed by pressing the

temperature and time adjust buttons (15,16). Confirm the program by pressing the start button

18.Start button

Confirm the setting by pressing this button, and the appliance will start operating.

21. On/off button

Once the appliance is plugged into the power outlet, the indicator light for the power on/off button will illuminate. Press the button, and the entire control panel will light up.

22. Stop/Cancel Button

Press this button to pause the function during the cooking cycle. The fan will stop for 30 seconds, and if no further actions are taken for 5 minutes, the appliance will return to standby mode. Press the stop/cancel

button second time to return directly to standby mode.

INSTRUCTIONS FOR USE

1. Place the appliance on a flat, stable, heat-resistant, and dry surface.
2. Insert the power plug into a grounded wall outlet; an audible signal will be emitted, indicating that the

air fryer-oven is in standby mode, and the display will show the power on/off button indicator (21) flashing. If no operation is performed, it returns to standby mode after 1 minute.

1. Take out the basket and insert the grill properly, making sure the arrow points towards the back of the fryer.
2. Place food in the basket.

3. Insert the basket properly into its compartment.

4. Press the on/off button (21), and the temperature and time will be displayed alternately on the

screen, and the on/off buttons (21) and the Start button (18) with flash.

1. At this point, you can manually adjust the time and temperature using the time and temperature adjustment buttons - / + (15,16) or select one of the menu functions by pressing the pre-set menu

selection button (17)

1. Press the start button (18) to start cooking. The light will become solid and all remaining programs will turn off.
2. At the end of the cooking cycle, the display will turn off, the word END will appear and an acoustic signal will sound. The appliance will go into stand-by and it will be possible to open the basket.

PRESET MENU TABLE

Menu		Suggested weight (g)	Set time (min)	Set temperature (°C)	NOTES
1	French Fries	100-600	20-25	200	Shake during cooking
2	Meat	100-600	10-15	200	Can be turned during cooking
3	Chicken Thighs	100-500	25-30	190	Can be turned during cooking
4	Barbecue	100-500	10-15	180	Can be turned during cooking
5	Fish	100-500	20-25	190	Can be turned during cooking
6	Vegetables	100-500	18-23	200	Shake during cooking
7	Shrimp	100-500	15-20	180	Can be turned during cooking
8	Chicken Wings	100-500	15-20	180	Can be turned during cooking
9	Chicken	100-500	40-45	200	Can be turned during cooking
10	Pizza	500-1000	10-15	180	Can be turned during cooking
11	Dehydrator	100-500	2H	50	Can be turned during cooking
12	Cake	100-500	30-35	160	Do not shake during cooking

The table "Preset menu" is suggestive, the cooking time and temperature depend on the type, consistency and quantity of the food. Therefore, the pre-set values are to be understood only as a reference.

NOTES:

• We advise you never to use the basket without the grill in it.
• Avoid overturning the basket with the tray still inserted, as any excess oil accumulated at the bottom of the basket may drip onto the ingredients.
  The temperature adjustment range is between 80 and 200^
  The time adjustment range is between 1 and 60 minutes.
• The appliance automatically shuts off when the door is opened. Once the door is closed, the appliance restarts and continues the cooking process.
• During use, steam may escape from the appliance. This is normal and does not indicate any defect or danger.
• At the end of cooking, the motor may continue to run for about 1 minute, then the appliance will start to cool down and enter standby mode.
• The cooking time in the air fryer is different from that of a traditional oven.
• Smaller foods and smaller quantities of food require slightly shorter preparation times than larger ones.
• For optimal results, it is recommended to use pre-cooked French fries (the ideal quantity is 500g ). If you want to prepare homemade French fries, follow the steps outlined in the recipe book.
• Do not prepare very fatty food in the appliance.
  To bake a cake/quiche or fry delicate or filled foods, place a baking tray or dish in the basket.
• If the food is not yet ready, simply reinsert the basket into the appliance and cook for a few more minutes.

USEFUL SUGGESTIONS:

• During use, you can adjust the cooking time and temperature at any time.
• It may be necessary to check and shake some foods during the cooking cycle. Shaking small-sized foods optimizes the final result and prevents uneven cooking. Remove the basket from the main unit and shake it lightly. Reinsert the basket into the main unit to continue the cooking process.

ATTENTION: The basket can be very hot. We recommend that always hold the basket by its handle.

COOKING TIPS

Food	Quantity (gr) min-max	Cooking time (min)	Temperature (°C)	Shake	Notes
Potatoes and fries
Thin frozen fries	300-700	12-16	200	yes
Thick frozen fries	300-700	12-20	200	yes
Homemade French fries (8x8 mm)	300-800	18-26	200	yes	Add 1/2 tablespoon of oil
Homemade potato wedges	300-800	18-22	180	yes	Add 1/2 tablespoon of oil
Homemade potato cubes	300-750	12-18	200	yes	Add 1/2 tablespoon of oil
Potato gratin	500	18-22	180	-
Meat and poultry
Steak	100-500	8-12	180	yes
Pork ribs	100-500	10-14	180	yes
Hamburger	100-500	7-14	180	yes
Sausage	100-500	13-15	200	yes
Chicken nuggets	100-500	18-22	180	yes
Chicken breast	100-500	10-15	180	yes
Bacon	100-500	10-12	180	yes
Snacks
Spring rolls	100-400	8-10	200	-
Frozen chicken nuggets	100-500	6-10	200	yes
Frozen fish sticks	100-400	6-10	200	-
Frozen cheese snacks	100-400	8-10	180	-
Stuffed vegetables	100-400	1-10	160	-
Cakes
Cakes	300	20-25	160	-	Use a suitable container
Quiche	400	20-22	180	-	Use a suitable container
Muffins	300	15-18	200	-	Use a suitable container
Sweet snacks	400	1-20	160	-	Use a suitable container

Notes:

Cooking time and temperature depend on the type, consistency and quantity of the food. Therefore, the values indicated are intended as a reference only.
- Add a maximum of 12 tablespoons of oil. Exceeding quantities may compromise the integrity of the appliance.

CLEANING AND MAINTENANCE

Before proceeding with the cleaning, always disconnect the plate from the power outlet and let it cool completely for at least 30 minutes

Remove the cooking basket to expedite cooling of the appliance.

The appliance should be cleaned after each use.

1. CLEANING

Cleaning the outside of the air fryer oven

Clean the outside of the oven with a soft cloth or a slightly moistened sponge and dry with a cloth.

DANGER! DO NOT PUT IN THE DISHWASHER OR SOAK IN BUDS.

Clean the basket and the cooking grill

Clean the basket and cooking grill by using warm water, mild dish detergent, and a non-abrasive sponge. Otherwise, the non-stick coating will be damaged.

The grill and basket are dishwasher safe at temperatures not exceeding 55^

IMPORTANT NOTE: Do not use chemical detergents, steel wool or abrasive cleaners for cleaning.

Cleaning the heating element

Clean with a brush to remove any food residues.

2. STORING

Allow the appliance to cool completely before storing it or wrapping the supply cable around it.

Check that there are no food residues inside the appliance.

Make sure all parts are clean and dry before storing them.

Never store the appliance when it is still wet.

It is recommended to store the appliance in a dry place, clean and away from moisture and dust.

TROUBLESHOOTING

Problem	Possible cause	Solution
The appliance is not working	The plug has not been inserted correctly	Connect the plug into the power outlet
	The cooking basket has not been inserted	Insert the cooking basket properly
	The cooking time and temperature were not selected	Set the time and the desired cooking temperature
	Protection against overheating has been activated	Turn off the appliance and wait for it to cool completely before turning it back on
The food is not well cooked	The amount of food is excessive	Reduce the amount of food
	The temperature set is too low	Set an higher temperature
	The cooking time set is too short	Set a longer cooking time
The food is not cooked evenly	The food should be shaken halfway through the cooking process	Shake the food and check if it is done
The snacks are not crispy	Ensure that snacks suitable for air frying have been used	Use oven-ready snacks or brush some oil on the snacks
The cooking basket does not fit correctly in the main unit	Too much food in the basket	Do not overfill the basket
From the appliance white smoke comes out and the outside of the appliance is warmer than usual	Greasy foods are being cooked.	Normal phenomenon that does not affect the appliance or the result of cooking
	The cooking basket contains grease from previous cooking	Clean the container after each use
Fresh fries are unevenly cooked or are not crispy	The potato sticks were not rinsed and dried properly before cooking	Rinse the potato sticks well to remove starch and dry thoroughly
	The potato sticks are too large	Cut the sticks into smaller pieces
	Insufficient oil	Add a bit more oil
The problem is not solved		Contact your dealer or customer service.

COOKBOOK

1. French fries with fresh potatoes

Ingredients:

Potatoes

500g

Oil

2 teaspoons

Salt

to taste

Pepper

to taste

a. Peel the potatoes and cut them into sticks.

b. Soak the potato sticks in salted water for at least 20 minutes and boil for 2 minutes, then dry the sticks with kitchen paper.

c. Pour 1/2 tablespoon olive oil into a bowl, pour in the sticks and stir until they are coated with oil.

d. Remove the sticks from the bowl with your fingers or a kitchen utensil so that excess oil remains in the bowl.

e. Arrange the potato sticks evenly on the grill inside the basket, insert the basket into the appliance, and set the 'French fries' program, or adjust the time and temperature according to the size and quantity of the fries, or until they become golden brown.

f. At the end of cooking, place the potatoes in a bowl, add salt and pepper to taste, and serve.

TIP: for better results, shake the basket with the fries halfway through cooking.

2. Fried chicken wings

Ingredients:

• Chicken wings 350 g
• Garlic 2 cloves
• Oil 2 teaspoons
• Salt 1 teaspoon
• Pepper 1 teaspoon

a. Mix the wings with oil, garlic, salt, and pepper, and let marinate for 20 minutes.
b. Arrange the chicken wings evenly in the cooking basket on the grill inside the basket, insert the basket into the appliance, and set the 'Chicken Thighs' program or set the time and temperature according to the size and quantity of the wings or until the wings become golden brown.
c. At the end of cooking, place the wings in a bowl and serve.

TIP: for best results, shake the basket with the wings halfway through cooking.

3. Beef steak

Ingredients:

Beef steak 350g Garlic powder 1 teaspoon Oil 2 teaspoons Salt 1/2 teaspoon Pepper 1 teaspoon Soy sauce to taste

a. Mix the steak with oil, garlic, soy sauce, salt, and pepper, and let marinate for 20 minutes.
b. Place the steak on the grill inside the basket, insert the basket into the appliance, and set the "Meat" program or adjust the time and temperature according to the size and quantity of the steaks until they become golden brown.
c. Halfway through cooking, turn the steak, reduce the temperature to 150^ , and cook for another 4 minutes or until golden brown.

TIP: for best results, flip the steak halfway through cooking.

4. Grilled sausage

Ingredients:

• Fresh sausage 250 g
• Oil 1 teaspoon

a. Mix the sausages with the oil.

b. Arrange the sausages evenly on the grill inside the basket, insert the basket into the appliance, and set the program to "Meat" or adjust the time and temperature according to the size and quantity of sausages until they become golden brown.
c. At the end of cooking, place the sausages in a bowl and serve.

TIP: for best results, shake the basket with the sausages halfway through cooking.

5. Fried shrimps

Ingredients:

• Fresh shrimps 300 g
• Oil 1 teaspoon
• Semolina flour as needed
  Salt as needed

a. Clean the shrimps, wash them and dry them very well with paper towels.
b. Take a bowl and put the shrimps into the bowl.
c. Season with a little oil and coat with semolina flour.
d. Sprinkle some oil over the shrimps.
e. Arrange the shrimp evenly on the grill inside the basket, place the basket in the appliance, and set the "Shrimps" program or adjust the time and temperature according to the size and quantity of the shrimp, or until they become golden brown

f. At the end of cooking, place the shrimps in a bowl, add salt, and serve.

TIP: for best results, shake the shrimps halfway through the cooking process.

INFORMATION ON THE DISPOSAL OF THE PRODUCT

PRODUCT

Pursuant to art. 26 of Legislative Decree No. 49 of 14 March 2014 "Implementation of Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)", the presence of the wheeled bin symbol indicates that this product is not to be considered urban waste: Non-separate disposal can be a potential harm to the environment and health. This product may be returned to the distributor upon purchase of a new

apppliance.

Improper disposal of the product constitutes fraudulent conduct and is subject to sanctions by the Public Safety Authority. For more information, please contact the local environmental authority.

PACKAGING

For information on how to properly dispose of the packaging that protects this product and its parts and/or accessories, follow the instructions in the packaging.

"TOGNANA" SMALL APPLIANCES WARRANTY

The Company Tognana Porcellane S.p.A. thanks its Customers for their choice and guarantees that its appliances are the result of the latest technologies and research.

This warranty applies only to small appliances marked with the "Tognana" brand and is valid as a conventional warranty pursuant to Article 135-quinques of the Italian Consumer Code (Legislative Decree 206 of 6 September 2005). This warranty does not in any way affect the rights expressly provided for in favour of the consumer by the regulations on the sale of consumer movable goods, whether Italian or of the

consumer's country of residence: the consumer can therefore always assert his rights against the retailer from which he purchased the appliance, under the conditions and within the terms provided for by these regulations.

Under this warranty, the appliance is covered by the conventional warranty for a period of two years from the date of purchase by the first user.

It is up to the consumer - through a delivery document issued by the retailer (or by Tognana Porcellane S.p.A. itself, in the case of a purchase made by the consumer directly in the online shop of the latter) or by another evidentiary document (for example, tax receipt, cash receipt or similar, purchase order, etc.), which shows the name of the retailer and the date on which the sale was made - to demonstrate that this warranty is still valid at the time of filing the complaint of defect of the appliance.

In the event of a defect in the appliance, pursuant to this warranty, the consumer may highlight this defect by contacting the appliance dealer or by contacting Tognana Porcellane S.p.A. directly at the e-mail [e-mail], or at the telephone number [phone].

Tognana Porcellane S.p.A. guarantees the free repair or replacement of the appliance and/or its components that have defects due to ascertained causes of manufacture and/or malfunctions, directly or through affiliated service centres (check any contacts on the Tognana Porcellane S.p.A. website:

www.tognana.com). Tognana Porcellane S.p.A. reserves the right to completely replace the appliance, if repairability is impossible or too expensive, with another identical or similar appliance (or one that has functional and aesthetic characteristics similar to those of the purchased appliance), without the consumer being able, in this second hypothesis, to contest the choice made by Tognana Porcellane S.p.A.

The consumer, in the presentation of the complaint, in addition to specifying the defect found, also providing photographic documentation, if indispensable for the purpose of ascertaining the defect of the appliance, must communicate their personal data - name and surname, residence address, email and telephone number - for each subsequent contact. For the successful replacement or repair of the appliance, the consumer will in any case be required to follow the instructions provided in this regard by the employees of Tognana Porcellane S.p.A. or the service centre in charge.

All costs of repair and delivery of the replacement appliance or defect-free components will be entirely borne by Tognana Porcellane S.p.A., which will also bear the costs of returning the defective appliance or component, if expressly requested by the consumer.

It should be noted that, following the replacement or repair of the appliance, the effective date of this warranty remains that of the first purchase: therefore, the service performed under the warranty does not extend the period of its validity.

For the purposes of the effectiveness of this warranty, it is specified that: the appliance has been designed and built for exclusively domestic use, consequently terminating this warranty for any other different use. In addition, the appliance can never be considered defective if it has to be adapted or modified to comply with national or local safety and/or technical standards, in force in the consumer's country, if outside the European Union.

In any case, this warranty does not cover:

• parts subject to wear and tear, nor those that require periodic replacement and/or maintenance;

• negligence or carelessness in the use of the appliance (e.g. failure to comply with the operating instructions of the appliance);

• professional use of the appliance;

• defects due to incorrect installation, configuration, updating of software/BIOS/firmware not performed by authorized personnel Tognana Porcellane S.p.A;

• repairs or interventions carried out by personnel not authorised by Tognana Porcellane S.p.A.;

• manipulations of components of the appliance or, where applicable, of the software;

• other circumstances that, in any case, cannot be traced back to manufacturing defects in the appliance.

Tognana Porcellane S.p.A. declines all responsibility for any damage that may, directly or indirectly, result to people, property and pets as a result of failure to comply with all the requirements indicated in the specific instruction booklet and concerning especially the warnings regarding installation, use and maintenance of the device.

Further claims, in particular if they relate to claims, are excluded, unless the liability arises from express provision of law. At the end of the period of validity of this warranty, or for goods that are not covered by it, Tognana Porcellane S.p.A. remains available to the customer for any questions or information. Further information is available on the website: www.tognana.com.

Cher client,

CONFORMITE DU PRODUIT

CONFORMIDAD DEL PRODUCTO

KONFORMITÄT DES PRODUKTS

Pooblaščeni serviser:

PSC PREŠEREN D.O.O Litijska cesta 12A 1000 Ljubljana - SLO 01-540-10-00,031-807-407 [e-mail] od PON do PET med 7:00 in 17:00

PSC PREŠEREN D.O.O. PE MB Ptujské cesta 9 2000 Maribor - SLO 02-331-64-00, 031-620-900, [e-mail] od PON do PET med 7:00 in 16:00

Dragi klijenti,

hvala vam što ste odabrali naš air fryer za kuvanje i grijanje hrane za kućnu upotrebu. Tognana Porcellane S.p.A. neće biti odgovorna za bilo kakvu štetu koja moze nastati, direktno ili indirectktno, za osobe, imovinu i kućneljubimce kao rezultat nepridržavanja svih uslova utvrdenih u relevantnom „Uputstvu za upotrebu“ u vezi sa instalacijom, korisćenjem i održavanjem aparata.

SIMPOLI NAVEDENI U UPUTSTVIMA/ NA UREDAJU I NJIHOVO

ZNACENJE

	Ovaj simbol označava da je potrebno pozorno pročitati ova uputstva prije upotrebe. Oblatite posebnu pozornost na sigurnosne informaciye. Čuvajte ova uputstva na sigurnom mjectu jer su ona sastavni dio samog proizvoda.
	OPASNOST: riječ označava potencijalnu neizbježnu opasnost s visokim nivoom rizika koja, aka se ne izbjegne, ima veliku mogućnost da izazove ozbiljne ozljede ili smrt.
	UPOZORENJE: riječ označava potencijalnu neizbježnu opasnost sa srednjim nivoom rizika koja, aka se ne izbjegne, ima veliku mogućnost da izazove ozbiljne ozljede ili smrt
	OPREZ: riječ označava potencijalnu opasnost s niskim nivoom rizika koja, aka se ne izbjegne, mogla bi da dovede do manjih ili srednjih ozljeda.
	ovaj simbol označava da se zašita opreme nezasniva samo na osnovnoj izolaciji, već zahtijeva dodatne sigurnosne mjere.
	POZORNOST - VRUĆA POVRŠINA!: Simbol ukazuje na to da temperatura površine može postati opasno visoka i stoga treba izbjegavati direktan kontakt sa kožom i tkaninama/materijalima osjetljivim na toplotu.
	VAŽNA NAPOMENA: ove riječi označavaju korisne informacije za upotrebu proizvoda.
	Ovaj simbol na proizvodu ili ambalaži označava da se urežaj na kraju svojega vijeka trajanja mora zbrinuti odvojeno od drugog OTPada zbog pravilne obrade i recikliranja.
CE	Ovaj simbolPokazuje da je urežaj usklaügen sa sigurnosnim zahtjevima kojeg previdaju urede/bdirektive Evropske zajednice.

Ovaj simbol označava da su materijali i predmeti u kontaktu s hranom (MOCA) prikladni za kontakt s hranom.

SIGURNOST PROIZVODA

VAŽNE NAPOMENE O ISPRAVNOJ UPOTREBI
