USER MANUAL 99404 TREBS

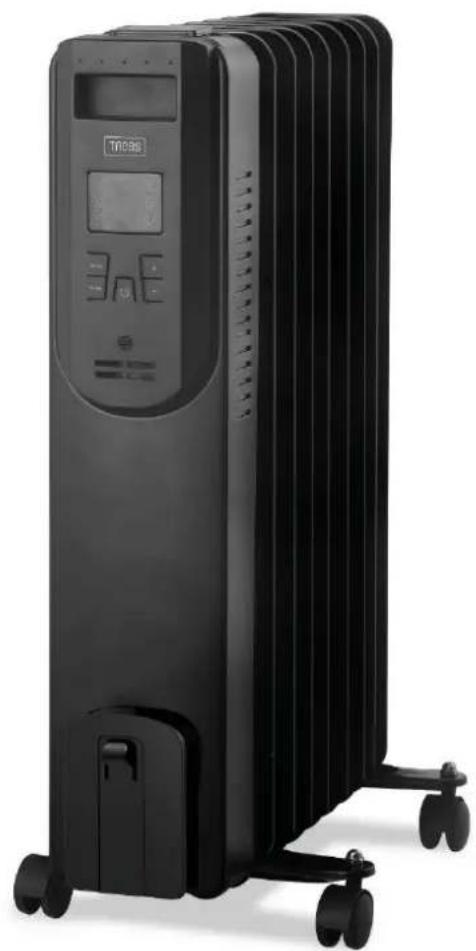

Digital oil filled radiator with wheels

Model: 99404

Black rectangular electronic heater with digital display and wheels, no visible text or symbols on the device itself.

Manual digital oil filled radiato with wheels

Index

Nederlands 3

Français.... 10

Deutsch....18

English....26

Diagram of a water heater with numbered parts labeled 1 to 5

1. LED display screen
2. Power switch
3. Cord storage
4. Radiant fins
5. Castor

EN	NL
1. LED display screen	1. Led-display
2. Power switch	2. Aan/uit-schakelaar
3. Cord storage	3. Snoeropslag
4. Radiant fins	4. Stralingsvinnen
5. Castor	5. Wiel

Diagram illustrating four stages of hairpin insertion and hairpin positioning, labeled 1 to 4.

Four-step diagram illustrating a mechanical or robotic device with labeled components and motion sequence

Diagram of a water heater with labeled components including control panel, fan, and wheels

1. LED display screen
2. Power switch
3. Cord storage
4. Radiant fins
5. Castor

EN	FR
1. LED display screen	1. Affichage LED
2. Power switch	2. Interrupteur
3. Cord storage	3. Rangement du cordon
4. Radiant fins	4. Ailettes rayonnantes
5. Castor	5. Roulette

Diagram illustrating four stages of hairpin insertion and hairpin positioning, labeled 1 to 4.

Four-panel line drawing showing a vehicle with wheels and a handle, illustrating different motion scenarios (no text or symbols)

Diagram of a water heater with labeled components including control panel, fan, and wheels

1. LED display screen
2. Power switch
3. Cord storage
4. Radiant fins
5. Castor

Diagram illustrating four stages of hairpin insertion and hairpin positioning, labeled 1 to 4 with corresponding illustrations.

Four-panel line drawing showing a robotic arm with a handle and control panel, no text or symbols present

3. Gerät verwenden

[e-mail]

1. Important safety regulations

Read this user manual carefully before using the appliance and save it for future use. Only install this device if it complies with local/national laws, regulations and standards. This product is intended to be used as a mobile heater in residential homes and is only suitable for use in normal domestic conditions, indoors. This device is only suitable for earthed sockets, connection voltage 220V-240V \~50 Hz.

1. Make sure the voltage is the same as that indicated on the rating plate of the appliance.
2. Do not operate this appliance if the cable or plug becomes damaged.
3. Keep the appliance and cable away from sources of heat, sharp objects or anything that may cause damage.
4. If the cord is damaged, it must be replaced by the professional service people, in order to avoid a hazard, please don't repair it yourself.
5. Ensure the appliance is switched off before connecting to the mains power supply.
6. Switch off the power supply and disconnect from mains supply when not in use, before cleaning or other maintenance.
7. Do not operate it in areas where gasoline, paint or other flammable liquids are used or stored.
8. In order to avoid overheating, do not cover the heater.
9. To prevent a possible fire, do not block air intakes or exhaust in any manner.
10. Don't touch the hot surfaces.
11. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance.
12. Always ensure that hands are dry before operating or adjusting any switch on the product or touching the plug and socket-outlet.
13. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
14. Children should be supervised to ensure that they do not play with the appliance.
15. Do not leave this appliance unattended when it's in use.
16. The most common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by disconnect the appliance and vacuum cleaning air vents and grilles.
17. Do not place the heater on a carpet, don't place the cable under carpets. Arrange cord away from traffic areas so that it will not be tripped over.
18. Don't use this heater in the immediate surroundings of a bath, a shower or a swimming pool. Never locate the heater where it may fall into a bathtub or other water container. It is life danger!

19. If you want to use it to warm up the bathroom before shower/bath, special attention should be paid: make sure it is far away enough from the liquid sprays and remove it from the bathroom before having a shower or a bath to avoid the moisture. Make sure it is far away from the soft things like clothes, cushions or blankets which are easy to be burned in case of overheating.

20. When heating up and cooling down the heater, you may hear a ticking sound. This is normal.

21. There may be a paint smell when using your heater for the first time. This will disappear after several hours of using the heater.
22. Do not store away the heater until the heater is cool down. Store the heater in a cool dry location when not in use.
23. When in use, keep the distance between window(wall) at least 50cm.

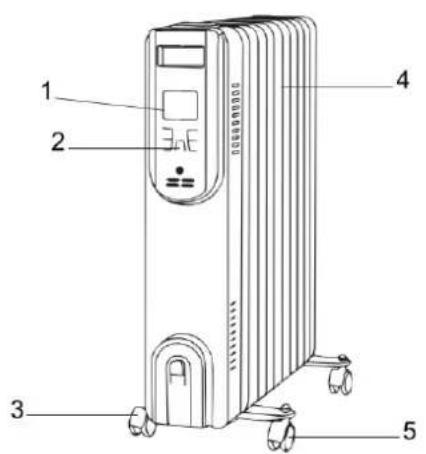

2. The device

Diagram of a water heater with labeled components including control panel, fan, and wheels

1. LED display screen
2. Power switch
3. Cord storage
4. Radiant fins
5. Castor

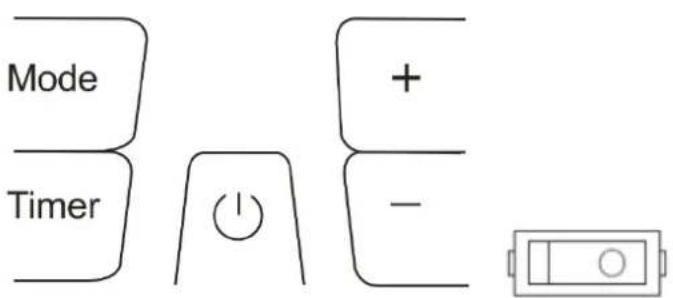

2.1 Control Panel:

Mode Timer + - +

Fig.1

Master Power Button

Plug in, push master power button once to connect main power. The buzzer beeps, the power light is always on and the appliance enters the standby state. Push the master power button once again to turn main power off.

1. Press the button: the appliance is turned on. The temperature °C light is on, the screen displays "25", the high heat light is on and the appliance starts high heat

working. Press button again to turn off the appliance and the device will enter in the standby state.

1. When the power is "on": press the "+" and "-" button to set the temperature. The range is from 15°C to 35°C.

2. Press the "TIMER" button one time: "00" displays and flashes. Repeatedly press the timer button for the timing. The range is from "00" hour to "12" hours for cyclic timing. During the timing operation, the hour light is on. If the timing function is not operating within 5 seconds, the timing will end, the timing icon will light up and it will return to the previous working state.

If the timer function is performed in the power-on state, it means that the power-off is scheduled; If the timer function is performed in the standby state, it means that the scheduled start-up is scheduled.

1. In the power-on state, press the "Mode" button, and the appliance will cyclically switch between high-heat (2500W), mid-heat (1500W) and low-heat (1000W).

2. If the appliance is overturned in the power-on state, it will stop working. The screen will display "E3", and an alarm will sound. When the appliance is upright, the alarm will end and enter the standby state. If the appliance is overturned in the standby mode, the screen will display "E3" and an alarm will sound.

NOTICE: To improve the operation, DO NOT press the buttons too quickly. Give the unit time to respond on each command.

2.2 Infrared Remote Control:

ON/OFF TIMER MODE DOWN UP TRB0S

Fig.2

RELEASE PULL

Fig.3

CR2025 RELEASE CR2025 OPEN PUSH

Fig.4

The remote control requires one 3V CR2025 Lithium Cell Battery(included). Remove the protective sheet between the battery and the contacts in order to operate. (see Fig.3 and Fig.4).

When the remote control stops operating or its range seems reduced, please use new batteries.

NOTE:

1. The battery compartment is located on the back end of the remote.
2. Press and slide the battery door open and remove the old battery.
3. Insert a CR2025 battery, checking that the "+" and "-" terminals of the battery matches the inside of the battery compartment.
4. Replace the battery compartment door.

DO NOT mix old and new batteries.

DO NOT use rechargeable silver oxide cell batteries with remote control unit.

DO NOT mix alkaline. Standard (Carbon-zine). Or rechargeable (Nickle - Cadmium) batteries.

DO NOT dispose of batteries in fire. Improper disposal may cause batteries to leak or explode.

2.3 Assembly instructions:

The heater is packaged with the feet unattached. You must attach them before operating the heater.

WARNING: Do not operate without the feet attached. Do operate the heater only in upright position (feet on the bottom, controls on the top), any other position could create a hazardous situation.

Diagram illustrating four stages of a medical procedure involving ear and neck functions, labeled 1 to 4.

1. Place the radiator body upside-down on a scratch-free location and make sure it is stable and cannot fall.
2. Screw off the wing nuts from the U-shaped bolt provided, attach the U-shaped bolt to the U-facing flange between first and second fins (near the front cover).
3. To attach the castor mounting plate to the radiator body you should insert the threaded ends of the U bolt in the holes on the castor mounting plate.
4. Screw the wing nuts back to the U bolt and fasten the wing nut properly.

Note: do not over tighten, which may cause the damage of radiator flange.

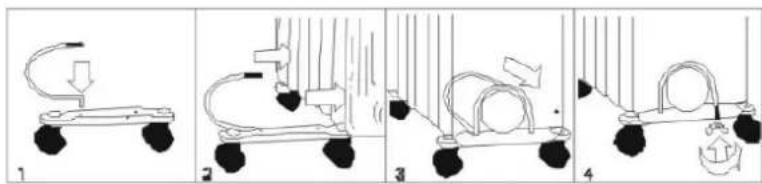

1. Screw off spherical nut from the castor, align the shaft to the hole of the castor mounting plate, insert in, and screw on the spherical nut.
2. Repeat 2, 3, 4 and 5 on the rear of the radiator for mounting of the rear castors.

Note: the rear castors must be mounted between the end two fins

Four-panel diagram illustrating a robotic arm movement sequence with labeled steps 1 to 4.

3. Using the device

1. Before using the heater, make sure that it is on a flat and stable surface, damage may occur if it is placed on an incline or decline.
2. This heater includes an overheat protection system that shuts off the heater when parts of the heater are getting excessively hot.
3. To completely shut the heater off, remove the plug from the socket-outlet.

4. Maintenance and storing

1. Always disconnect the appliance and let it completely cool down before any maintenance or storing.

2. Use a vacuum cleaner to remove dust on grilles.

3. Clean the outside of the unit with a damp cloth and then dry it with a dry cloth. Never immerse the unit in water, nor let water drip into the unit. Avoid using detergents to clean the heater. Never let any water get inside cause this can be hazardous.

4. If you do not use the device for a long period, put back the unit and the instruction manual to the original carton and store in a dry and ventilated place.
5. Do not place any heavy items on top of carton during storing as this may damage the appliance.

5. Recycling (Disposal of the product at the end of its life)

Old electric and electronic devices often contain valuable materials. However, they also contain harmful substances that were necessary for their functionality and safety. If these are placed with the non-recyclable waste or disposed of incorrectly, they can be harmful to human health and the environment. Never place your device with the non-recyclable

waste.

Remark: Use the collection points available in your community and recycle old electric and electronic devices. Contact your town hall, the local waste disposal company or your dealer for more information. Make sure that your old device, until it's picked up, is safely stored out of reach of children.

6. Warranty

We provide a warranty of 24 months for this product. The warranty starts on the date of purchase and is intended for faults due to production or the used materials. Your statutory warranty rights in accordance with § 439 ff. BGB-E will remain unaffected by this.

The warranty does not apply to damages as a result of improper handling or use, nor to malfunctions that only have a minor effect on the functionality or value of the product. Normal wear and tear, transport damage, to the extent that we are not responsible for this, as well as damages caused by repairs not performed by us, are also excluded from the warrant.

This device is designed for household use and has the right performance levels.

Any use in commercial situations is only covered by the warranty if the device is not put under a heavier strain that in a household situation. The device is not intended for additional commercial use. In the case of well-founded complaints, we will repair the defective device at our discretion or replace it with a device that shows no problems.

All possible manufacturing faults must be reported within 14 days of delivery. All further claims are excluded. When invoking the warranty, please contact us first before sending us the product (you must always provide us with proof of purchase).

7. Technical Specifications:

Model	99404
Rated Voltage	220V - 240V~
Rated Frequency	50 Hz
Rated Power	2000W

8. Service

If you have any further questions regarding the product after having read the user's manual, please contact the Trebs customer service on www.trebsshop.com

9. CE regulations

Products with the CE marking comply with the EMC Directive (2014/30/EU) and the Low Voltage Directive (2014/35/EU) issued by the Commission of the European Community.

Hereby, Commaxx BV, Wiebachstraat 37, 6466 NG Kerkrade, The

Netherlands, declares that this product is in compliance with the essential requirements. The declaration of conformity may be consulted on [e-mail]
