USER MANUAL MX FUEL MXF500 MILWAUKEE

Technical line drawings of two industrial machines with visible gears and mounting brackets (no text or symbols)

⚠WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

WORK AREA SAFETY

- Keep work area clean and well lit. Cluttered or dark areas invite accidents.

- Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

- Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

- Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock

- If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock.

PERSONAL SAFETY

- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

- Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

- Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

- Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. - Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. - If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. - Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

- Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

- Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. - Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

- Store Idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. - Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

- Use the power tool, accessories and tool bits etc. In accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

- Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

- Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause bums or a fi re.

- Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. - Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fl re, explosion or risk of injury. - Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265^ (130^) may cause explosion. - Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

SERVICE

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

- Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SPECIFIC SAFETY RULES FOR SEWER MACHINES

- Only grasp the rotating cable with gloves recommended by the manufacturer. Lafex or loose fi tting gloves or rags can become wrapped around the cable and may result in serious personal injury. - Do not allow the cutter to stop turning while the cable is turning. This can overstress the cable and may cause twisting, kinking or breaking of the cable and may result in serious personal injury. - One person must control both the cable and the switch. If the cutter stops rotating, the operator must be able to turn the tool off to prevent the cable from twisting, kinking and breaking.

- Use latex or rubber gloves inside the gloves recommended by the manufacturer, goggles, face shields, protective clothing, and respirator when chemicals, bacteria or other toxic or infectious substances are suspected to be in a drain line. Drains may contain chemicals, bacteria and other substances that may cause burns, be toxic or infectious or may result in other serious personal injury. - Practice good hygiene. Do not eat or smoke while handling or operating the tool. After handling or operating drain cleaning equipment, use hot, soapy water to wash hands and other body parts exposed to drain contents. This will help reduce the risk of health hazards due to exposure to toxic or infectious material.

- Only use the drain cleaner for the recommended drain sizes. Using the wrong size drain cleaner can lead to twisting, kinking or breaking of the cable and may result in personal injury. - Inspect cable for wear and damage before use. Replace a worn or damaged cable before using the drain cleaner.

- Do not twist, kink or over bend cables. Breaking of the cable may result in serious personal injury. - Inspect the drain to be cleaned before use. If possible, determine the access point(s) to the drain, the size(s) and length(s) of the drain, distance to mainlines, the nature of the blockage, presence of drain cleaning chemicals or other chemicals, etc. If

chemicals are present in the drain, it is important to understand the specific safety measures required to work around those chemicals. Contact the chemical manufacturer for required information. • If needed, place protective covers in the work area. The drain cleaning process can be messy. • Make sure cable is fully retracted inside of the drain cleaner. This will prevent whipping at start up. • Place the drain cleaner at a distance no greater than two feet from drain opening. If the drain cleaner cannot be placed within two feet from the drain opening, the drain opening will need to be extended using a similar size pipe and fittings. Greater distances can cause control problems leading to twisting, kinking, breaking or whipping of the cable. • Do not operate the drain cleaner in reverse rotation except as described in this manual. Running the tool in reverse for extended periods can cause damage to the cable and accessories.

- Always wear leather gloves to avoid entanglement and snagging on the moving cable. - Keep bystanders away when using the MXF501 POWERTREDZ™ lift assist. Loss of control could cause injury. Using lift assist is a one-person operation. - Use two people whenever it is necessary to lift or carry the machine. Machine is heavy. Lift with legs, not back.

- Always clear the area of obstructions before transporting. - Keep tires properly inflated at all times to maintain control and stability.

- Do not use cart to transport other loads or add additional product. For use with recommended cable size/lengths only.

- Close and latch drum cover before operating. Moving parts can cause injury. - Disassembly of the Internal drum when a cable is installed will cause the cable to unwind quickly and could whip around uncontrollably, which may result in injury. Remove cable before disassembling drum. - Always secure the tool and any accessories when operating on uneven or raised surfaces. - Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact Milwaukee Tool or a trained professional for additional information or training. - Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: - lead from lead-based paint - crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

SYMBOLGY

n, MAXXonin Revolutions per Minute (RPM)

▲CAUTION Risk of Electric Shock

Read operator's manual.

Always wear leather gloves over latex/rubber gloves.

ys wear eye protection. Use appropriate hearing and respiratory protection.

person lift

Lift assist

Drain cleaning

Ascend

Descend

Forward/OFF/Reverse drum control

Ull. Listing for Canada and U.S.

SPECIFICATIONS

Battery Type	MX FUELTM
Charger Type	MX FUELTM
Drain Drive RPM	200
Module/FCC ID	BLE113/QOQBLE113
Recommended Ambient Operating Temperature	0°F to 125°F
Tire Air Pressure	30 psi
Cable Size	5/8" & 3/4"
Recommended Pipe Diameter	3"-8"
Foot Pedal Cat. No	14-02-0000
Cat. No	MXF500
Weight (without cable)	110 lbs
Cat. No	MXF501
Weight (without cable)	120 lbs

FUNCTIONAL DESCRIPTION

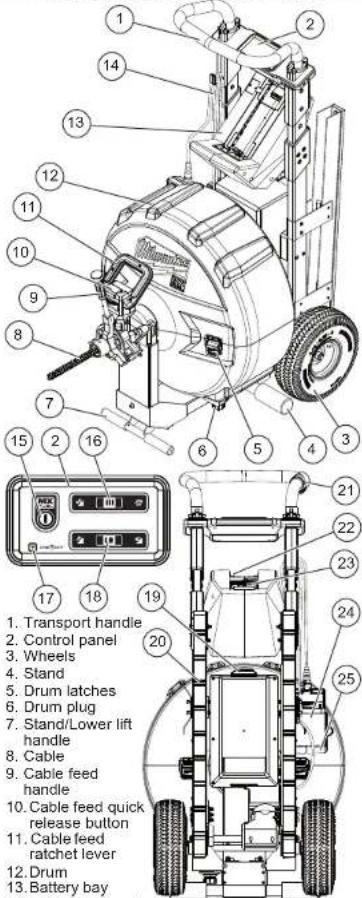

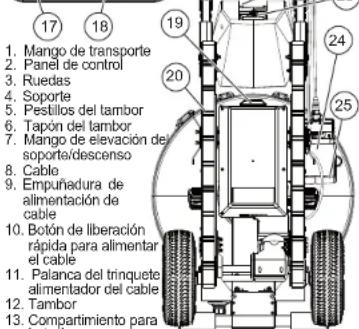

1. Transport handle 2. Control panel 3. Wheels 4. Stand 5. Drum latches 6. Drum plug 7. Stand/Lower lift handle 8. Cable 9. Cable feed handle 10. Cable feed quick release button 11. Cable feed ratchet lever 12. Drum 13. Battery bay

1. Foot pedal cord wrap

2. Arm button

3. Mode selector **

4. ONE-KEYTM

5. ONE-KEY indicator

6. Ascend/Descend

selector **

1. Forward/OFF/

Reverse switch

1. POWERTREDZ™ lift

assist **

1. POWERTREDZ™ lift

assist trigger **

1. Battery latch lock

2. Battery latch lever

3. Foot pedal

4. Foot pedal storage

** Indicates MXF501 only

ASSEMBLY

WARNING Recharge only with the charger specified for the battery. For specific charging instructions, read the operator's manual supplied with your charger and battery.

Removing/Inserting the Battery

Toremove the battery, push the battery latch to the side and squeeze the battery latch lever. Pull the battery pack away from the machine.

⚠ WARNING Always remove battery pack before changing or removing accessories. Toinsert the battery, slide the pack into the body of the machine. Make sure it latches securely into place.

⚠WARNING Only use accessories specifi cally recommended for this machine. Others may be hazardous.

Selecting the Proper Cable

Cat. No.	Description
48-53-2325	5/8" x 25' Inner Core Drum Cable
48-53-2350	5/8" x 50' Inner Core Drum Cable
48-53-2310	5/8" x 100' Inner Core Drum Cable
48-53-2425	3/4" x 25' Inner Core Drum Cable
48-53-2450	3/4" x 50' Inner Core Drum Cable
48-53-2410	3/4" x 100' Inner Core Drum Cable
48-53-2905	3/4" Anchor Cable
48-53-2902	3/4" x 2' Leader Cable
48-53-2802	5/8" x 2' Leader Cable

Cable Attachments for 5/8" and 3/4" Cables

Cat. No.	Description
48-53-2830	Straight Auger
48-53-2831	Funnel Auger
48-53-2832	3" Root Cutter
48-53-2833	4" Root Cutter
48-53-2834	5" Root Cutter
48-53-2835	Small Opening Tool
48-53-2836	Medium Opening Tool
48-53-2837	3" Grease Cutter
48-53-2838	4" Grease Cutter
48-53-2840	9 pc Head Attachment Kit

CAUTION To prevent damage to the cable and attachments, only use in recommended pipe size.

Cable Installation

WARNING To reduce the risk of injury, always wear proper eye protection marked to comply with ANSI Z87.1. Always wear leather gloves over latex/rubber gloves to avoid entanglement. Cable tip may be sharp. Never feed more than 100^ of cable into the machine to avoid overloading. Remove the cable for cleaning after each use. Different size and types of cables are available for different applications. The instructions below detail how to remove/install the cable manually. NOTE: The cable feed can also be used to advance/ retrieve the cable during installation (see "Using the Cable Feed" in the Operation section).

To manually remove the cable: 1. Move the Forward/OFF/Reverse switch to OFF O and remove the battery pack. Ensure the cable feed is disengaged by pressing down on the ratchet release button. 2. Pull the cable out through the nose of the drum until the anchor cable shows. 3. Remove the cable from the anchor cable by inserting the pin key into the coupling hole and pulling the cable away.

1. To clean or maintain cable, follow the cleaning instructions under "Maintenance".

To manually install the cable:
1. Move the Forward/OFF/Reverse switch to OFF O. Ensure the cable feed is disengaged by pressing down on the cable feed quick release button.
2. Attach the cable to the anchor cable by snapping the attachment coupler into the cable coupler.
3. Move the Forward/OFF/Reverse switch to Forward ↑.

1. Use the foot pedal to start the drum.
2. Manually feed the cable into the drum. WARNING! Always wear leather gloves over latex/rubber gloves to avoid entanglement.

Cable Attachment Installation

To install the attachment:
Snap the attachment coupler into the cable coupler. Test the cable before inserting into the drain to make sure the attachment does not fall off during use.
To remove the attachment:
Insert the pin key into the coupling hole and pull attachment off of cable.

Transportation

⚠ WARNING Use two people whenever it is necessary to lift or carry the machine. Machine is heavy. Lift with

legs, not back.

Keep tires properly inflated at all times to maintain control and stability.

Do not use cart to transport other loads or add additional product. For use with recommended cable size/lengths only.

Always unarm the machine before transporting. Ensure the foot pedal cord is properly wrapped and the pedal is stored before transporting.

Always clear the area of obstructions before transporting.

To roll cart from place to place, grasp the transport handle and tilt the machine back onto the tires. Push, don't pull, the machine.

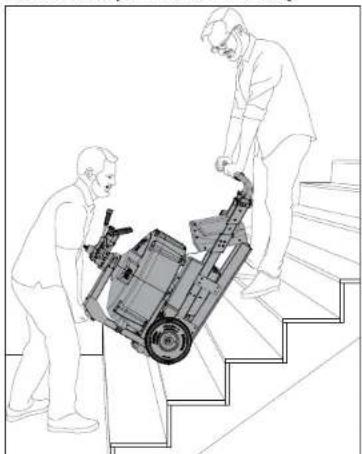

Always use a two person lift when necessary. To lift, grasp the transport handle and tilt the machine back onto the tires. Have a second person grasp the lower lift handle. Always maintain a firm footing.

Line drawing of two men assembling a wheeled device on stairs (no text or symbols)

NOTE: Accessory Loading Wheel Cat. No. 47-53-5002 can be used for a single-person lift into a van or truck bed.

POWERTREDZ™ Lift Assist

(MXF501 only)

WARNING Keep bystanders away when using the MXF501 POWERTREDZ™ lift assist. Always clear the area of obstructions before use. Loss of control could cause injury. Using lift assist is one person operation. Use the POWERTREDZ™ lift assist to move the machine up and down stairs, into or out of a work vehicle, etc. NOTE: The POWERTREDZ™ lift assist will not engage if there is insufficient battery life left to ascend/descend a standard flight of stairs.

1. Tilt machine back onto the wheels and roll to steps, curb, vehicle, etc. NOTE: Only use POWERTREDZ™ lift assist to climb to a max 22" in one lift (i.e., the back of a service vehicle or onto a platform no higher than 22")

2. Arm the machine.

3. Slide the mode selector to Lift Assist

4. Slide the direction selector to Ascend or Descend

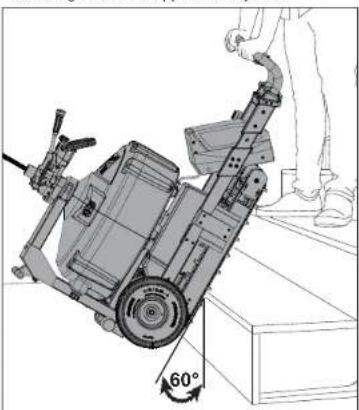

5. Tilt the machine back so the treads contact the climbing surface at approximately 60°.

Technical line drawing of a mechanical device with a 60-degree angle indicator (no text or symbols present)

1. Grasp the handle in the center with the left hand, and near the trigger with the right hand for best control. Always use two hands.

2. Slowly pull the trigger and ease the treads onto the inclined surface. The farther the trigger is pulled, the faster the treads will move.

3. Engage as many of the treads with the climbing surface as possible for best control. On stairs, try to contact two steps during the lift.

1. When ascending or descending, pull up the incline and push the handle down into the surface. Allow the lift assist to help move the machine. Guide the treads using the transport handle. Maintain downward pressure.

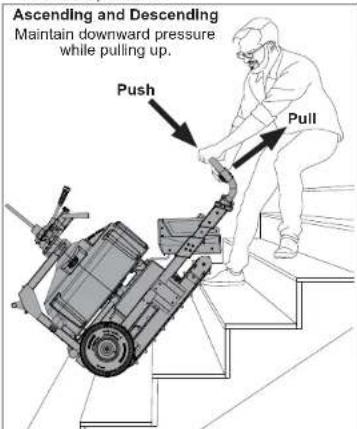

Ascending and Descending Maintain downward pressure while pulling up. Push Pull

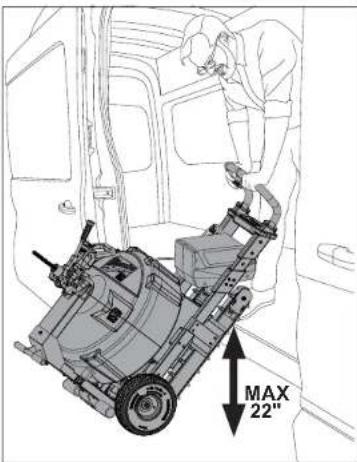

MAX 22"

1. Once a landing is reached, pull up on the machine to engage the wheels.

2. When descending, roll the wheels out past the edge to engage the treads. pull up the incline and push the handle down into the surface. Allow the lift assist to help move the machine. Guide the treads using the transport handle. Maintain downward pressure. Allow the POWERTREDZ ^™ lift assist to pull itself down.

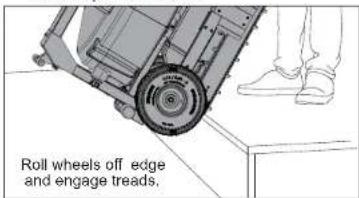

Roll wheels off edge and engage treads,

1. Unarm the machine before storing

2. For additional instruction, please visit the product page at milwaukeetool.com.

Hoisting

If it becomes necessary to hoist the machine, use the center of the transport handle as the anchor point. Ensure the hoisting strap will not slip or contact other parts, such as the POWERTREDZ™ lift assist trigger.

Drain Cleaning Setup

1. Place the sewer drum machine no further than 2' from the drain. WARNING! Greater distance can cause twisting, kinking, breaking or whipping of the cable.

2. Remove the foot pedal from storage and unwrap the cord and place to the side, ensuring the cord will not tangle with the cable.

ONE-KEY™

To learn more about the ONE-KEY™ functionality for this machine, please reference the Quick Start guide included with this machine or go to milwaukeeool.com/One-Key. To download the ONE-KEY™ app, visit the App Store or Google Play from your smart device.

ONE-KEYTM Indicator

Solid Blue Wireless mode is active and ready to be configured via the ONE-KEYTM app.

Blinking Blue Machine is actively communicating with the ONE-KEYTM app.

Blinking Red Machine is in security lockout and can be unlocked by the owner via the ONE-KEYTM app.

OPERATION

WARNING To reduce the risk of injury, always wear proper eye protection marked to comply with ANSI Z87.1.

Always wear leather gloves over latex/rubber gloves to avoid entanglement.

Arming the Machine

The MX FUEL ^™ machines must be armed prior to use. Even with the battery pack inserted, the trigger and machine functions will not operate until the machine is armed.

To arm the machine:

1. Insert the battery pack.

2. Press and hold the arm button for about 2 seconds. The MX FUEL™ icon will light, and the trigger and LEDs are now operational.

3. After 15 minutes of inactivity, the machine will enter sleep mode. The MX FUEL™ icon will go off and the trigger and LEDs are un-operational.

4. Press and hold the arm button for 1 second to reactivate the machine.

5. Press and hold the arm button for 1 second to unarm (turn off) the machine. The MX FUEL™ icon will go off.

Using Forward/OFF/Reverse Switch

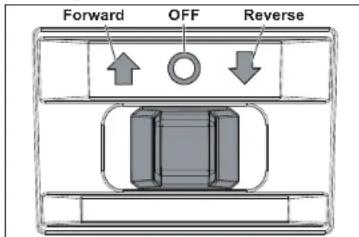

Forward OFF Reverse

1. For Forward (clockwise) rotation, move the Forward/OFF/Reverse switch to the arrow pointing towards the nose of the drum Check the direction of rotation before use. NOTE: Use Forward to both feed and retract the cable.

2. For Reverse (counterclockwise) rotation, turn the Forward/OFF/Reverse switch to the arrow pointing away from the nose of the drum. Check the direction of rotation before use. NOTE: Only use Reverse to clear jammed cable. Do not use Reverse to retract the cable.

3. To turn the rotation OFF and lock the switch, turn the Forward/OFF/Reverse switch to the center position O. The foot pedal will not work while the Forward/OFF/Reverse switch is in the center locked position. Always lock the switch or remove the battery pack before performing maintenance, changing accessories, storing the machine and any time the machine is not in use.

Starting and Stopping Speed

1. To start the machine, push the Forward/OFF/Reverse switch to Forward ↑ and step or kneel on the foot pedal.

2. To stop the machine, release pressure on the pedal. Then, push the Forward/OFF/Reverse switch to the center position O.

Using the Cable Feed

The cable feed can be used to assist in advancing and retrieving the cable.

To use the cable feed:

1. Insert the battery pack

2. Insert the battery

3. Arm the machine

4. Move the Forward/OFF/Reverse switch to Forward

1

1. Use the foot pedal to start the drum

2. To engage the cable feed, press the cable feed ratchet lever down.

1. Transport and set the machine up according to these instructions.
2. Ensure the cable feed is disengaged
3. Grasp the cable close to the machine and feed at least 2' of cable into the drain by hand. WARNING! Always wear leather gloves over latex/rubber gloves to avoid entanglement.
4. Move the Forward/OFF/Reverse switch to Forward and press the foot pedal to begin rotating the cable
5. Feed the cable into the drain. Use the cable feed in "advance" if desired. Continue until the obstruction is reached.

NOTE: If more cable is needed to reach the clog, disconnect the original cable from the anchor cable. Then, either load additional cable into the machine and connect the two cables together, or connect the original cable to the cable in another machine. WARNING! Never feed more than 100' of cable into the machine to avoid overloading.

1. When the clog is reached, disengage the auto feed. Manually move the cable in a back and forth motion until the obstruction is cleared. If the machine binds, release pressure from the foot pedal immediately. Repeat until the drain is clear.

To Unbind Cable in the Drain

To relieve torque (twisting) on the cable:
1. Disengage the cable feed.
2. Move the Forward/OFF/Reverse switch to Reverse and pulse the foot pedal once to begin rotating the cable. Do not hold down the foot pedal.
3. Pull the cable back out from the drain a few inches to free the cable.
4. After the cable is freed from the obstruction and the machine has come to a complete stop, switch back to Forward and continue working the obstruction.

CAUTION Running the machine in Reverse for extended periods can cause damage to the cable and accessories.

Removing Cable From Drain

1. Move the Forward/OFF/Reverse switch to Forward and press the foot pedal to begin rotating the cable.
2. Pull the cable away from the drain and feed it into the drum. Use the cable feed in "retract" if desired.
3. As the working end of the cable is neared, feed the last 5' of cable into the machine by hand. Do not use cable feed. WARNING! Never feed more than 100' of cable into the machine to avoid overloading.
4. Remove the drum plug and drain into a suitable location.
5. Before storing the machine, wash the cable and drum (see "Cleaning Cables and Drum" in Maintenance).

MAINTENANCE

⚠ WARNING To reduce the risk of injury, always unplug the charger and remove the battery pack from the charger or machine before performing any maintenance. Never disassemble the machine, battery pack or charger. Contact a MILWAUKEE service facility for ALL repairs.

Maintaining Machine

Keep your machine, battery pack and charger in good repair by adopting a regular maintenance program. Inspect your machine for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may affect the machine operation. Return the machine, battery pack, and charger to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the machine, battery pack and charger to a MILWAUKEE service facility for inspection. If the machine does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the machine still does not work properly, return the machine, charger and battery pack, to a MILWAUKEE service facility for repairs.

ONE-KEY™

AWARNING Chemical Burn Hazard.

This device contains a

lithium button/coin cell battery. A new

or used battery can cause severe in-

ternal burns and lead to death in as little as 2 hours if swallowed or enter

little as 2 hours if swallowed or enters the body. Always secure the battery cover. If it does not close securely, stop using the device, remove the batteries, and keep it away from children. If you think batteries may have been swallowed or entered the body, seek immediate medical attention.

Internal Battery

An internal battery is used to facilitate full ONE-KEY™ functionality.

If the Bluetooth® communication stops working, remove and reinsert the coin cell battery to reset. Replace the battery if the problem continues. To replace the battery:

1. Remove the battery pack

2. Remove the screw(s) and open the battery door.

3. Remove the old battery. Take note of the positive/negative orientation. WARNING! Keep battery away from children, and dispose of it properly.

4. Insert the new battery (3V CR2032) in the proper positive/negative orientation.

5. Close the battery door and tighten the screw(s) securely.

⚠ WARNING To reduce the risk of personal injury, electric shock and damage, never immerse your machine in liquid or allow a liquid to flow inside it.

Cleaning

Clean dust and debris from vents. Keep handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use fl ammable or combustible solvents around machines.

Greasing the Cable Feed

Apply grease to the cable feed after each use.

1. Unarm the machine.

2. Press the quick release button.

3. Push the cable feed handle to the left side of the machine.
4. Apply MILWAUKEE Grease Type T (49-08-4290) to the upper Zerk fitting, sufficiently covering the fitting.
5. Press the cable feed ratchet lever down.
6. Push the cable feed handle to the right side of the machine.
7. Apply MILWAUKEE Grease Type T (49-08-4290) to the two lower Zerk fittings, sufficiently covering the fittings.

Greasing the Ball Screws

If the feed handle movement begins to stick, apply grease to the three (3) ball screws where they contact the cavity. 1. Unrawn the machine

1. Upharm the machine.
2. Apply a dab of MILWAUKEE Grease Type T (49-08-4290) to both sides of cavity in all three locations around the cable feed handle.

Oiling the Cable Feed Bearings

Keep all exposed, moving, and rotating parts cleaned properly oiled after each use.
propeny oiled after each use. 1. Unarm the machine
2. Press the quick release button.
3. Use a hose to clean out the cable feed with clean water to remove contaminants. Drain the drum completely.
4. Move the cable feed handle to the left and apply a penetrating oil, like WD-40 ^ , into the nose of t onto all three bearings. So bearing seals.
5. Move the cable feed handle to the right and repeat. 6. Press the ratchet lever down and then feed and retract the cable 1-2 feet multiple times to work the oil around.
7. Repeat after each use.

Cleaning Cables and Drums

The cable and drum should be thoroughly flushed with water after every use to prevent damaging effects of sediment and drain cleaning compounds. WARNING! Always wear leather gloves over latex/rubber gloves to avoid entanglement. After washing, dry the cable and drum completely. Then, wipe cable with an oiled rag before returning it to the drum according to the instructions in "Cable Installation".

Bound or Knotted Cable

If the cable cannot be pulled from the nose of the machine, it may be bound or knotted in the drum. To correct this, the drum may need to be disassembled.

⚠WARNING Disassembly of the internal drum when a cable is installed will cause the cable to unwind quickly and could whip around uncontrollably, which may result in injury.

Disassembly should only be performed by properly trained personnel. Contact Milwaukee for assistance.

Replacing the Anchor Cable

Due to the precise torque fastener requirements, MILWAUKEE recommends contacting a MILWAUKEE service facility for anchor cable replacement. If fi eld replacement is necessary:

To replace the anchor cable:
1. Remove all cable from the drum and disengage it from the anchor cable. WARNING! Do not open drum with cable installed. 2. Remove the battery rack

1. Remove the battery

2. Open the drum latches and remove the drum cover.

3. Remove the 10 M5 screws holding the front internal drum to the rear internal drum.

4. Remove the 1/4"-20 nut and bolt holding the anchor cable into the drum.

5. Pull the anchor cable out through the nose of the cable feed by hand. Do not turn on the machine.

6. Feed the new anchor cable in through the nose of the cable feed by hand. Do not turn on the machine.

7. Ensure the cable is following the curve of the feed tube when lying in the drum.

8. Align the anchor cable with the stop and insert the 1/4"-20 bolt. Thread the 1/4"-20 nut onto the bolt and tighten securely.

9. Realign the front and rear internal drums.

10. Install the 10 M5 screws. Tighten each screw to 21-23 in-lbs.

WARNING! Overtightening screws can lead to stripping bosses and early drum failure.

1. Replace the drum cover and latch securely.

Cleaning the Battery and Battery Bay

Keep battery connections and surfaces between the machine and battery free of debris and materials. Failure to keep surfaces clean may result in misalignment and/or damage to the battery connection.

Repairs

For repairs, return the machine to the nearest authorized service center.

ACCESSORIES

⚠ WARNING Use only recommended accessories. Others may be hazardous.

For a complete listing of accessories, go online to www.milwaukeeetool.com or contact a distributor.

WIRELESS COMMUNICATION

For products provided with wireless communication features, including ONE-KEY™:

Pursuant to part 15.21 of the FCC Rules, do not modify this product. Modifi cation could void your authority to operate the product. This device complies with part 15 of the FCC Rules and ISED-Canada's license exempt RSS standards. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878)

Monday-Friday, 7:00 AM - 6:30 PM CST

or visit www.milwaukeeetool.com

Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions.

Email: [e-mail]

Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notifications regarding your tool purchases.

SERVICE - CANADA

Milwaukee Tool (Canada) Ltd 1.800.268.4015

Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeeetool.ca

LIMITED WARRANTY

USA & CANADA

Every MILWAUKEE MX FUEL ^10 Product, battery pack, and charger is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace a MX FUEL ^11 product, battery pack, or charger. The product shall not be reproduced directly from any of the following five times in material or workmanship for a period of two (2) years after the date of purchase. Return of the MX FUEL ^12 product, battery pack, or charger to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. For the proper shipping procedure of battery packs, contact with the manufacturer's license or warranty, the company is responsible for sale of the product. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personal, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents. The product shall not be reproduced directly from any of its repair products and services to achieve best performance. This warranty does not cover repair when normal use has exhausted the life of a part including, but not limited to, assist & drive belts, pulleys, blade flanges, vacuum gaskets, tool free handles, set pins, skis, drive couplers, rubber boots, auto feed, stabilize blocks, wheels, carrier wheels, cords, o-rings, car washes, platters, pistons, strikers, lifters, stool holders and bumper cover washers.

Warranty Registration is not necessary to obtain the applicable warranty on a MX FUEL™ product, battery pack, or charger. ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT OF THE CONTRACT FOR ANY INFORMATION. THIS CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES OR FOR ANY COSTS, ATTORNEY FEES, OTHER THAN ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, ANY OTHERS, THE PROCEDURE OF ANY DAMAGE TO FAILURE OF OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES; SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT ALLOW THE WARRANTY OF ANY WARRANTY OF ANY WARRANTY OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL, TO THE EXTENT PERMITTED BY LAW. MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS WITHOUT LIMITATION OR FITNESS WITHOUT WARRANTY OR DISCLAIMER IS NOT PERMITTED BY LAW. SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS; SO THE ABOVE LIMITATION MAY NOT APPLY TO ANY WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

This warranty applies to product sold in the U.S.A. and Canada only. Please consult the 'Service Center Search' in the Parts & Service section of MILWAUKEE's website www.milwaukeebool.com or call 1.800.SAWDUST (1,600,729,3878) to locate your nearest service facility for warranty and non-warranty service on a MX FUEL™ product, battery pack or charger.

RÈGLES DE SÉCURITÉ GÉNÉRALES RELATIVES AUX OUTILS ÉLECTRIQUES

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a vehicle chassis with numbered components for identification

1. Gâchette de

Gachette de levage auxili

levage auxiliaire POWERTREDZ

POWERTREDZ™

1. Verrou de loquet de

batterie

1. Levier de loquet de

batterie

1. Pédale

2. Compartment de la

nédale

pada

Line drawing of two men working on a staircase with a mechanical device (no text or symbols visible)

Technical line drawing of a mechanical device with a 60-degree angle标注 (no text or symbols beyond the angle marker)

MAX 56 cm (22")

Milwaukee Tool (Canada) Ltd 1.800.268.4015

Monday-Friday, 7:00 AM - 4:30 PM CST www.milwaukeetool.ca

GARANTIE LIMITÉE

AUX ÉTATS-UNIS ET AU CANADA

200 mm (5) Pedal Cat. No 14-02-0000 Cat. No. MXF500

Read operator's manual.

Technical diagram of a mechanical device with numbered components for identification

Cat. No. Description

Line drawing of two men working on a staircase with a mechanical device (no text or symbols)

Technical line drawing of a mechanical device with a 60-degree angle indicator (no text or symbols present)

MAX 56 cm (22")

Lunes a Viernes (9am a 6pm)

01/21 Printed in USA
