Explore 22880-56 - Centrifuge RUSSELL HOBBS - Free user manual and instructions

Product type	Electric juicer
Brand	Russell Hobbs
Model	Explore 22880-56
Intended use	Domestic
Main function	Juice extraction by centrifugation with pulp separation
Included parts	Motor base, separator, strainer, lid with latches, pulp container, pusher
Safety - Locking	Cover locking latches: do not open until the strainer has stopped
Safety - Continuous use	Do not operate for more than 2 minutes at a time; allow to cool for at least 2 minutes
Safety - Integrity	Do not use if the strainer or lid is cracked or damaged
Power supply	Electric (mains, approx. 220-240 V~ 50/60 Hz)
Maintenance - General	Removable parts dishwasher safe (high temperature possible)
Maintenance - Strainer	Clean with a small nylon brush to unclog the mesh
Maintenance - Motor base	Wipe with a damp cloth only
Approximate weight	Approximately 2.5 kg
Approximate dimensions	30 x 25 x 35 cm (height with pulp container)

Frequently Asked Questions - Explore 22880-56 RUSSELL HOBBS

How to assemble the juicer correctly?

Attach the separator onto the motor block, place the strainer into the separator by pushing it onto the drive shaft, then put the lid on. Lock the two side latches firmly. Finally, attach the pulp container starting with the right edge, then push the lower part inward.

How long can I use the juicer continuously?

Do not exceed 2 minutes of continuous use. If you need more time, turn off and let the appliance cool for at least 2 minutes.

Can I wash the removable parts in the dishwasher?

Yes, the pulp container, strainer, lid, pusher, and separator can go in the dishwasher. However, dishwashing may affect the external appearance but not the function.

What to do if the strainer is clogged?

Rinse the strainer under water and use a small nylon brush to gently clean the mesh. Do not push the bristles through the mesh as this could break them.

Should I peel fruits and vegetables before juicing?

For non-organic produce, it is recommended to remove leaves and peels. Also remove cores, pits, and large seeds. Small seeds (raspberries, strawberries, kiwi) are not a problem. Peel oranges, grapefruits, tangerines, pineapples, and watermelons if you prefer a less 'green' taste.

Why does my juicer stop during use?

The appliance may stop automatically in case of overheating or if the strainer is blocked. Make sure not to exceed 2 minutes of continuous use. Let it cool for 2 minutes before reusing. Also check that the strainer is not clogged.

Can I make banana juice?

No, banana pulp can clog the strainer. Avoid bananas in this juicer.

What to do with the leftover pulp?

The pulp can be used to thicken soups, stews, stuffings or added to compost. Don't throw it away without reusing it!

How to clean the motor base?

Simply wipe the motor base with a damp cloth. Never immerse it in water or put it in the dishwasher.

What safety precautions are essential?

Keep the appliance out of reach of children. Do not use it near a water source. Unplug it before assembly/disassembly/cleaning. Only use the provided pusher to push food. Do not operate the appliance unsupervised.

USER MANUAL Explore 22880-56 RUSSELL HOBBS

Exterior view of a modern stainless steel coffee maker with a digital display and control panel (no visible text or symbols on the device body)

A

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Check the sieve for damage every time you use the appliance. Do not use the appliance if the rotating sieve is damaged.

Always disconnect the appliance from the mains supply socket if it is left unattended and before assembling, disassembling or cleaning.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Don't use fingers or cutlery to push food down the tube – only the pusher.
• Don't open the latches till the sieve has come to a complete stop.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't use accessories or attachments other than those we supply.
• Don't operate the appliance if it's damaged or malfunctions.

HOUSEHOLD USE ONLY

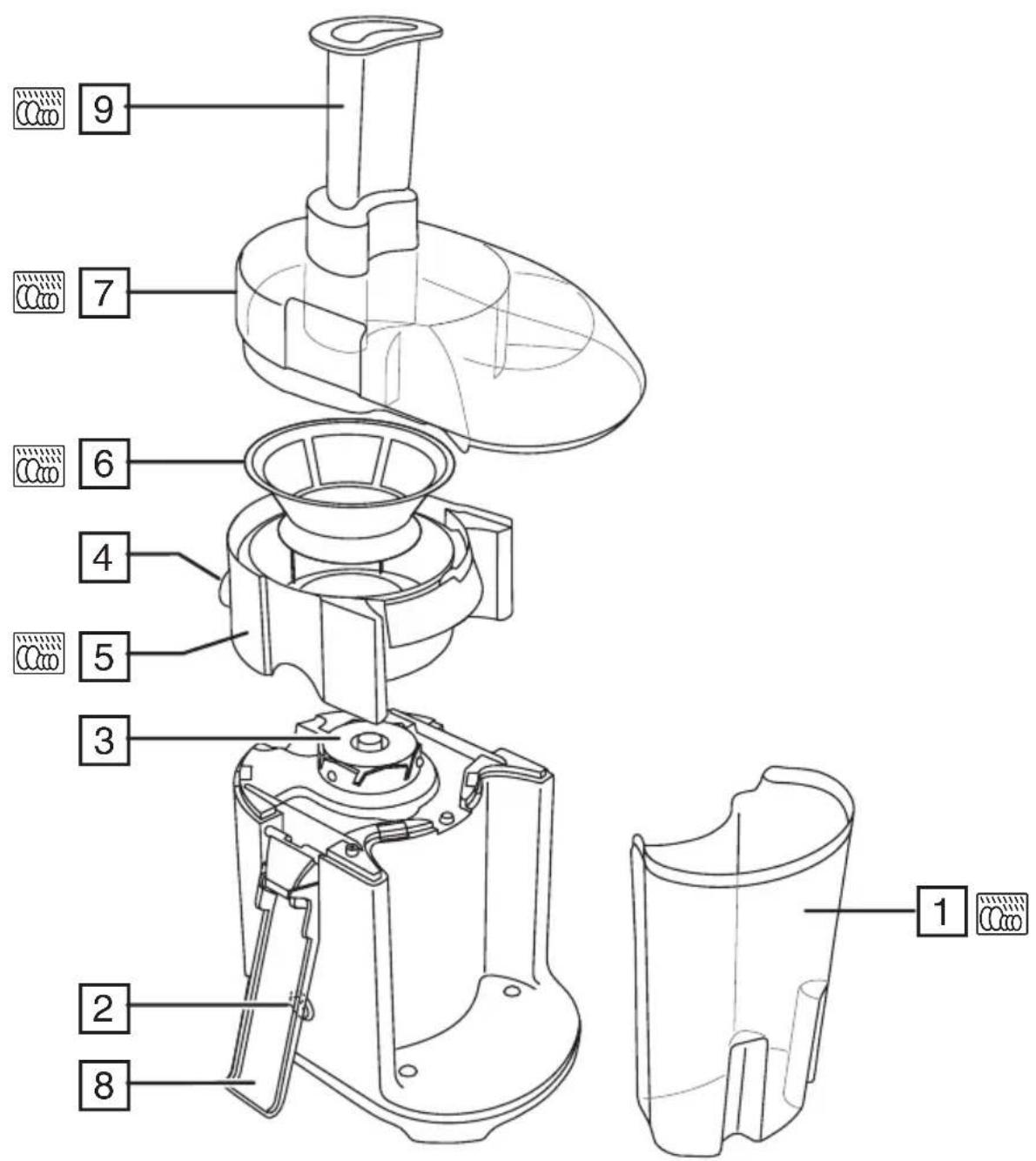

PARTS

1. Pulp container
2. On/off switch
3. Drive shaft
4. Spout

5. Separator

6. Sieve

7. Lid

8. Latch

9. Pusher

Diswasher safe

BEFORE USING FOR THE FIRST TIME

• Remove any packaging material and labels.
• Wash the pulp container, sieve, lid, food pusher and separator and in warm, soapy water. Rinse and dry.
• Wipe the motor base with a damp cloth.
• Place the appliance on a dry, firm, level surface, near a power socket.

ASSEMBLY

1. Fit the separator onto the motor unit.
2. Put the sieve into the separator and press it down onto the drive shaft.
3. Fit the lid over the separator.

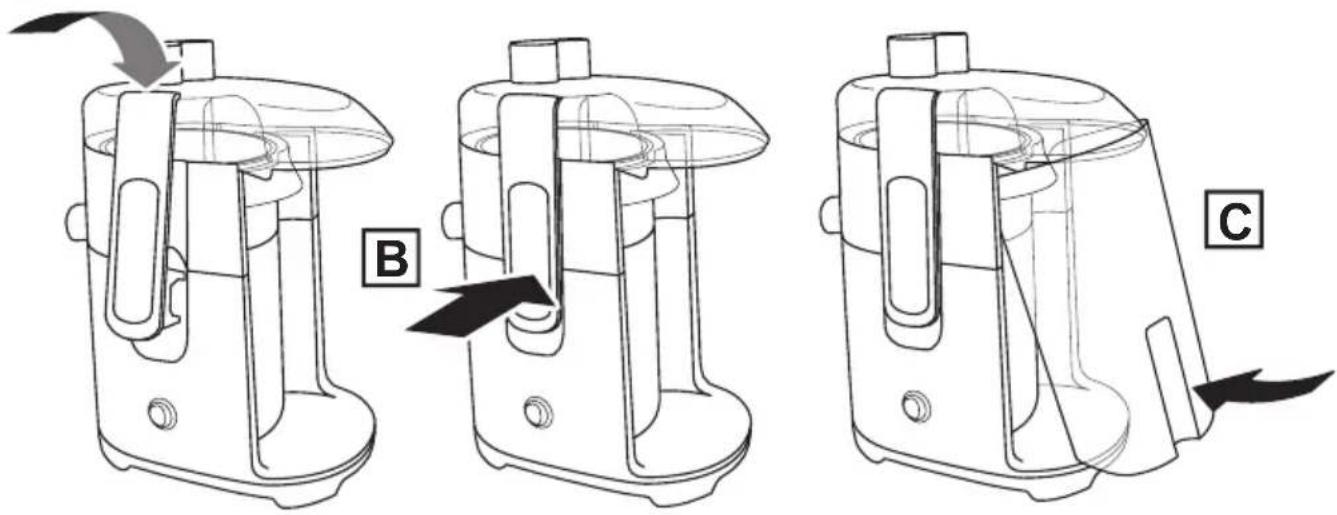

4. Fit the latches on each side over the rim of the lid (Fig A)

5. Press the latches inwards until they lock (Fig B).

6. Fit the pulp container over the right hand edge of the lid then push the bottom inwards (Fig C).
7. Fit the pusher into the tube.

USING YOUR JUICER

1. Check that the appliance is switched off (O).
2. Put the plug into the power socket.
3. Put a jug under the spout to collect the juice.
4. Turn your juicer on (I).
5. Remove the pusher and drop the ingredients down the tube.
6. Replace the pusher and use it to push the ingredients gently down the tube.
7. Once finished, turn off your juicer (O).

Don't run the motor continuously for more than 2 minutes, it may overheat. After 2 minutes switch off and allow the appliance to rest for at least 2 minutes.

TIPS

• Buy organically grown produce whenever you can.
• Use good quality, fresh, ripe fruit and vegetables. Soft vegetables or overripe fruit can make the juice thick and cloudy.
• Wash all fruit and vegetables. Use a brush on the harder ones. Remove the outer leaves on non-organic produce. Peel any non-organic or waxed fruit or vegetables. Cut out and discard bruises and blemishes as these may affect the taste of the juice.
• Don't juice anything strong or pungent, like onions or garlic. No matter how well you clean your juicer, you'll never get rid of the taste.
• Trim fruit and vegetables so they'll go through the tube. Use the pusher to push down the last bits of fruit, and to push down carrots, celery and other long fruit and vegetables.
• Bunch up leafy greens, parsley, wheat grass and beansprouts into a small tight ball and push it down the tube with the pusher.

WARNING! RHUBARB LEAVES ARE POISONOUS, THEY CONTAIN OXALIC ACID. THEY MUSTN'T BE JUICED OR EATEN.

STALKS AND LEAVES

Remove stalks, stems and leaves.

STONES/SEEDS

Remove and discard stones, peach pits and other big seeds. Pomegranate seeds, melon seeds, and small seeds in raspberries, Kiwi fruit and strawberries can be left in.

BANANAS

Don't try to juice bananas – the residue will clog the sieve.

ORANGES, GRAPEFRUIT AND TANGERINES

Peel oranges, grapefruit and tangerines.

PINEAPPLE

Top, tail, and peel pineapples.

POMEGRANATES

Remove the skin and pith.

WATERMELON

Watermelon rind can be left on, but some people dislike the taste. However, the rind contains many nutrients so why not try it first.

PULP

When you've finished juicing, don't just throw the pulp in the bin. It may still contain a great deal of goodness. Before you throw it away, think of things like thickening for soups or stews, pie-fillings, or even the compost heap.

CLEANING

1. Switch the appliance off (O) and unplug it.
2. Unclip both side latches.
3. Lift off the lid.
4. Lift off the separator and sieve.
5. Turn the separator upside down and tip out the sieve.
6. Wipe the outside of the motor unit with a clean damp cloth.
7. Wash the removable parts in warm soapy water, rinse well, drain, and air dry.

If the sieve is clogged, hold it under a running tap and brush along the surface of the mesh with a nylon washing up brush. Don't try to poke the bristles through the mesh – you'll break it.

You may wash these parts in a dishwasher.

If you use a dishwasher, the harsh environment inside the dishwasher will affect the surface finishes.

Damage should be cosmetic only, and should not affect the operation of the appliance.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

RECIPES

SPARKLING EYE POTION

In order to maintain healthy, shiny eyes our bodies require plenty of B vitamins, as well as vitamins C and E and beta-carotene. Try this juice drink now and again as a refreshing and tasty vitamin enriched drink.

• 3 carrots
• 2 green, sharp apples
• 12 broccoli
• 12 red pepper

APPLE AND STRAWBERRY WHIZZ

• 250g strawberries
  • 3 green, sharp apples
  • 1 small piece ginger, peeled
• Serve over ice.

ENERGY DRINK

Fruit and vegetables have natural sweetness and make excellent energy drinks.

• 2 carrots
  • 3 apricots, stone removed
• 2 apples
• 50ml milk
• 5g wheatgerm
• 5ml honey

Juice the fruit and vegetables. Stir in the milk, wheat germ, and honey.

VITAMIN DRINK

This drink is high in B group vitamins, vitamin C, and the mineral calcium.

• 1 parsnip
• 12 green pepper
  • 1 broccoli
• 2 carrots
• 1 sweet potato
• 1 stick celery

For a sweeter taste, add more carrot or parsnip.

SAVOURY COCKTAIL

• 2 carrots
• 1 handful watercress
• 3 tomato
  • 1 bunch coriander or basil leaves
• 1 stick celery
• 12 red pepper
• A few drops of Tabasco or Worcestershire sauce (optional)

SUMMER DRINK

• 3 tomatoes
• 12 cucumber
• 1 stick celery
• 1 / 8 lime

CARROT AND PARSLEY

• 6 carrots
• 5 sprigs parsley

CABBAGE, CELERY AND CARROT

• 1 / 2 green cabbage
• 2 stick celery
• 3 carrots

VEGETABLE TONIC

• 1 handful spinach
• 4 sprigs parsley
• 4-6 carrots

SUNSHINE COCKTAIL

• 2 apples
• 100g strawberries

PASSION COCKTAIL

• 50g strawberries
• 14 pineapple
  • 1 bunch black grapes

PINEAPPLE AND GRAPEFRUIT

• 12 grapefruit
• 14 pineapple

LEMONADE

• 4 apples
• 14 lemon
• Serve over ice.

PINEAPPLE, STRAWBERRY AND APPLE

• 1 apple
• 14 pineapple
• 100g strawberries

PEAR AND APPLE

• 2 apples
• 2 pears
• 14 lemon

APENAS PARA USO DOMÉSTICO

ESQUEMAS

Retire o topo, a base e descasque os ananases.

ROMÃS

COUVE, AIPO E CENOURA

• 12 couve verde
• 2 talos de aipo
• 3 cenouras

TÓNICO VEGETAL

• 1 punhado de espinafres
• 4 raminhos de salsa
• 4-6 cenouras

COCKTAIL RAIOS DE SOL

SKINNENDE ∅JNE ELIKSIR

POMARANČE, GRAPEFRUITY A MANDARÍNKY

Pomaranče, grapefruity a mandarínky ošípte.

ANANÁS

POMARAŃCZE, GREJPFRUTY I MANDARYNKI

NARANČE, GREJPOVI I MANDARINE

Ogulite naranče, grejpove i mandarine.

ANANAS

KREMA OD JABUKA I JAGODA

• 250g jagoda
  • 3 zelene, kiselkaste jabuke
  • 1 mali komad oguljenog dumbira
• Služiti preko leda.

ENERGETSKI NAPITAK

POTIUNE PENTRU OCHI AGERI
