Two silver Canon CoolRx Laos digital camera units, no visible text or symbols on the device body.COOLPIX L2/L3


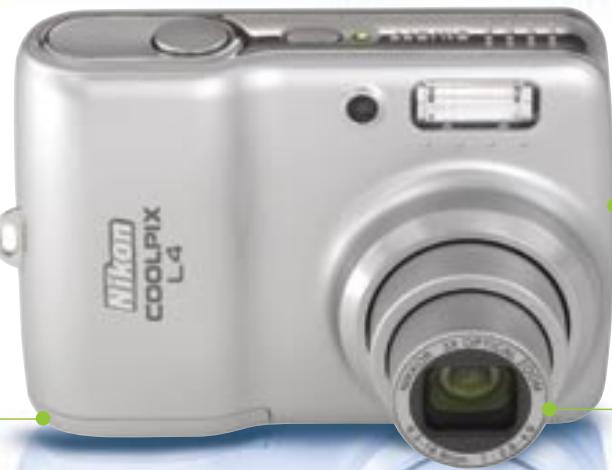

Exterior view of a modern digital camera (no visible text or symbols)COOLPIX L4
Smooth, elegantly finished flat design. Simplified operation that lets anyone take a better class of picture.
Innovative in-camera Nikon technologies mean optimized pictures, direct from your camera
D-Lighting
With D-Lighting
Without D-Lighting
D-Lighting rescues underexposed images by improving brightness and detail where needed, while leaving correctly exposed areas just as they are.
Face-priority AF\*
The Face-priority AF feature automatically detects and then focuses in on people's faces – regardless of where they are in the frame – ensuring superb crisp-focus portraits. *Face-recognition capability may be limited in some shooting conditions.
In-Camera Red-Eye Fix
Nikon's exclusive In-Camera Red-Eye Fix analyzes each image and automatically finds and corrects any accidental red-eye, which sometimes occurs in flash photography, to produce more natural-looking portraits.


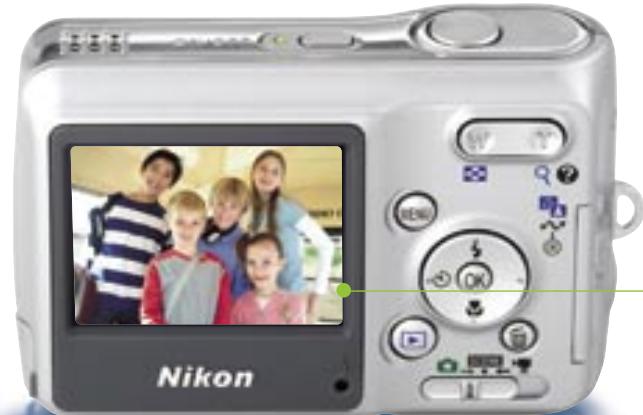

Silver Nikon digital camera with a family photo displayed on screen (no visible text or symbols on device body)
Simple, effective and fun
Ready
Shoot
Enjoy
Sophisticated features that preserve the moment
2.0-inch
LCD
The bright 2.0-inch LCD avoids the inconvenience of optical viewfinders and simplifies composition and playback, leaving you free to enjoy the moment.
3X
zoom
A precision 3x Zoom-Nikkor lens covers the key photographic range of 38 to 116mm (114mm for the COOLPIX L4)*, putting everything from group portraits to expansive landscapes within easy reach. *35mm equivalent
COOLPIX
L2/L3
megapixel clarity
Generous in megapixel resolution, the cameras deliver instantly recognizable quality to ensure pictures stay sharp, even when significantly enlarged.
Scene modes
15 different Scene modes – 4 with Scene assist – improve your results by automatically providing optimized settings for everything from party portraits to fireworks at night.
User-friendly operation
Camera operation is made easy with on-screen menus and icons, presented in an easy-to-read format. Functions may be chosen
by icon or name and the new color scheme makes operation easier on the eyes.
AA-size battery compatibility
Despite their compact dimensions, the COOLPIX L2, L3, and L4 are compatible with AA-size batteries, one of the most widely available
battery sizes in the world. A battery life of approximately 180 shots* greatly increases their compact convenience.
*Approx. 180 shots (COOLPIX L2)/ Approx. 200 shots (L3)/ Approx. 250 shots (L4) when using two AA-size (LR6) alkaline batteries.
Movie recording
The capacity to record movies* in three sizes – TV movie size (640) for viewing on TV or computers, convenient Small size (320), and Smaller size (160) for extended recording or Internet usage – lets you capture so much more of the moment. *COOLPIX L4 without sound
PictBridge
The ability to connect directly to any PictBridge-compatible printer means that you can make great prints without the need for a computer to process the job.
PictureProject
Provided as a complimentary accessory, PictureProject software greatly simplifies the importing, editing and organizing of your images, and includes other options that add to the fun of photography.
Gray
COOLPIX L3
Silver
Black
COOLPIX L4
Silver
Type:
Effective pixels:
CCD:
Image modes:
Lens:
Focus range (approx.):
LCD monitor:
Storage media:
Shooting modes:
Movie:
Capture modes:
Number of frames (w/ internal memory):
Built-in flash:
Interface: Supported languages:
Power requirements:
Battery life (approx.):
Dimensions (WxHxD):
Weight (approx.):
Supplied accessories*:
Optional accessories:
Compact digital camera
L2: 6.0 million L3: 5.1 million L4: 4.0 million
L2: 1/2.5-inch type (6.18 million total pixels) L3: 1/2.5-inch type (5.25 million total pixels) L4: 1/2.5-inch type (4.23 million total pixels)
L2: High (2816 ^* ), Normal (2816), Normal (2048), PC (1024), TV (640)
L3: High (2592 ^* ), Normal (2592), Normal (2048), PC (1024), TV (640)
L4: High (2272*), Normal (2272), Normal (1600), PC (1024), TV (640)
L2 and L3: 3x Zoom-Nikkor; 6.3-19.2mm (35mm [135] format equivalent to approx. 38-116mm); f/3.2-5.3; 5 elements in 5 groups; Digital zoom: up to 4x L4: 3x Zoom-Nikkor; 6.3-18.9mm (35mm [135] format equivalent to approx. 38-114mm); f/2.8-4.9; 7 elements in 6 groups; Digital zoom: up to 4x
L2 and L3: 30cm (1 ft.) to infinity ( ), 10cm (3.9 in.) to infinity ( ) in Macro mode L4: 30cm (1 ft.) to infinity ( ), 4cm (1.6 in.) to infinity ( ) in Macro mode L2 and L3: 2.0-inch type, 86,000-dot TFT LCD monitor with brightness adjustment
L4: 2.0-inch type, 115,000-dot TFT LCD monitor with brightness adjustment
L2 and L3: Internal memory (approx. 23MB), SD memory card
L4: Internal memory (approx. 10MB), SD memory card
Auto, 4 modes with Scene assist (Portrait, Landscape, Sports, Night Portrait), 11 Scene modes (Party/Indoor, Beach/Snow, Sunset, Dusk/Dawn, Night Landscape, Close Up, Museum, Fireworks Show, Copy, Back Light, Panorama Assist), Voice Recording (L2 and L3), BSS (Best Shot Selector), Color options, Blur Warning, Date Imprint, Self-timer (10 sec.)
L2 and L3: With sound: TV movie (640) at 30fps/15fps, Small size (320) at 30fps/15fps, Smaller size (160) at 15fps L4: Without sound: TV movie (640) at 15fps, Small size (320) at 15fps, Smaller size (160) at 15fps
L2 and L3: 1) Single 2) Continuous (approx. 1.7fps) 3) Multi-shot 16
L4: 1) Single 2) Multi-shot 16
L2: 6M: High (2816*) approx. 8, Normal (2816) approx. 16, 3M: Normal (2048) approx. 29 L3: 5M: High (2592*) approx. 9, Normal (2592) approx. 18, 3M: Normal (2048) approx. 29 L4: 4M: High (2272*) approx. 3, Normal (2272) approx. 7, 2M: Normal (1600) approx. 15
Range: L2 and L3: Approx. 0.3-3.0m/1 ft. - 9 ft. 10 in. (W), Approx. 0.3-1.75m/1 ft. - 5 ft. 9 in. (T) L4: Approx. 0.4-3.0m/1 ft. 4 in. - 9 ft. 10 in. (W), Approx. 0.4-1.7m/1 ft. 4 in. - 5 ft. 7 in. (T); Flash modes: Auto, Auto with Red-eye Reduction (In-Camera Red-Eye Fix), Flash Cancel, Anytime Flash and Slow sync.
L2 and L3: USB, Audio Video output L4: USB, Video output
Total of 12 languages: German/English/Spanish/French/Italian/Dutch/Russian/Swedish/Japanese/Simplified Chinese/Traditional Chinese/Korean selectable in menu display
Rechargeable Ni-MH Battery EN-MH1 x 2, AA-size battery (LR6 alkaline, ZR6 oxyride, or lithium) x 2, AC Adapter EH-65A (optional)
L2: 180 shots with alkaline, 600 shots with lithium, or 320 shots with EN-MH1 L3: 200 shots with alkaline, 630 shots with lithium, or 330 shots with EN-MH1 L4: 250 shots with alkaline, 600 shots with lithium, or 450 shots with EN-MH1 (based on CIPA standard)
L2 and L3: Approx. 91 x 60.5 x 26mm (3.6 x 2.4 x 1.0 in.)
L4: Approx. 86.5 x 60.5 x 34.5mm (3.4 x 2.4 x 1.4 in.)
L2 and L3: 120g (4.2 oz.) without battery and SD memory card
L4: 115g (4.1 oz.) without battery and SD memory card
Rechargeable Ni-MH Battery EN-MH1 x 2, Battery Charger MH-71, USB Cable UC-E6, Audio Video Cable EG-CP14 (L2 and L3)/Video Cable EG-CP11(L4), Strap, PictureProject CD-ROM
Battery Charger MH-71, Rechargeable Ni-MH Battery EN-MH1 (EN-MH1-B2), AC Adapter EH-65A
* Supplied accessories may differ by country or area.
PictureProject System Requirements
| OS | Macintosh: Mac® OS X version 10.1.5 or later (version 10.2.8 or later required for Burn Disc option) / Windows: Windows® XP Home Edition/Professional, Windows® 2000 Professional, Windows® Me, Windows® 98SE pre-installed models |
| RAM | Macintosh: 64MB or more recommended/ Windows: 64MB or more recommended (128MB with muvee option) |
| Hard disk | 60MB required for installation |
| Display | 800 x 600 or more with 16-bit color (full color recommended) |
| Others | CD-ROM drive required for installationOnly built-in USB ports are supported |
