MIKAN AJC-4000 - Juicer AIWA - Free user manual and instructions

Product Type	Electric Citrus Juicer
Brand	Aiwa
Model	MIKAN AJC-4000
Power Supply	220-240 V ~ 50/60 Hz
Carafe Capacity	0.5 L
Operating Cycle	15 seconds on, 15 seconds off; after 10 cycles, 30 minutes of cooling
Maximum Cycle Duration	1.5 minutes
Provided Parts	Top lid (A), small cone (B), large cone (C), strainer (D), adjustable strainer (E), carafe (F), motor block (G)
Parts Material	Plastic (cones, strainer, carafe)
Cleaning	Hand wash in warm soapy water; do not put in dishwasher
Maintenance	Wipe the rotating axis with a soft damp cloth; do not immerse the base
Safety	Do not use if the switch is defective; do not move the appliance when running; respect the maximum fill level
Repairability	Do not disassemble yourself; contact an authorized service center
Ecological Information	Compliant with EU directives (low voltage, electromagnetic compatibility, WEEE, ecodesign); recycle via appropriate collection points
Usage	Domestic use only
Pulp Regulator	Adjustable strainer to adjust the amount of pulp

Frequently Asked Questions - MIKAN AJC-4000 AIWA

How to assemble the Aiwa MIKAN AJC-4000 juicer?

First assemble the two strainers (D and E) into one unit, then the two cones (B and C). Place the carafe (F) on the motor block (G) until it clicks, put the strainer on the carafe, then insert the cone into the strainer by pressing until it locks.

What is the maximum capacity of the carafe?

The carafe has a maximum capacity of 0.5 liters. Do not exceed this level to avoid overflow.

How long can I use the appliance continuously?

The operating cycle is a maximum of 15 seconds, followed by 15 seconds of rest. After 10 consecutive cycles, let the appliance cool for 30 minutes.

How to clean the parts of the juicer?

Unplug the appliance and wait for it to cool. Wash the removable parts (cones, strainers, carafe) in warm soapy water. Rinse and wipe dry. Do not put them in the dishwasher. Clean the motor base with a damp cloth, without immersing it.

Can I juice all types of citrus fruits?

Yes, the appliance is suitable for all citrus fruits (oranges, lemons, grapefruits, etc.). Use the large cone for large fruits and the small one for small ones.

What to do if the motor seems blocked?

Never apply excessive force on the cone. If the motor blocks, unplug the appliance and remove the accumulated pulp from the strainer. Clean the parts before using again.

How to adjust the amount of pulp in the juice?

Turn the adjustable strainer (D & E) to change the filtration fineness. The more you close it, the less pulp there will be.

Can the appliance be used unattended?

No, never leave the appliance unattended while it is running. Unplug it after each use.

What to do in case of malfunction?

Do not attempt to repair the appliance yourself. Contact an authorized service center for any repairs.

How to store the power cord?

After use, unplug the appliance and store the cord in its compartment under the base.

USER MANUAL MIKAN AJC-4000 AIWA

Line drawing of a simple kitchen kettle with lid and side panel (no text or symbols)

MIKAN AJC-4000 220-240V\~ | 50-60Hz | 0,5L | 30W

(EN) Citrus Juicer - Instruction Manual

(ES) Exprimidor De Cítricos - Manual De Instrucciones

Power	30 W
System	Traditional
Filter	Adjustable
BPA free

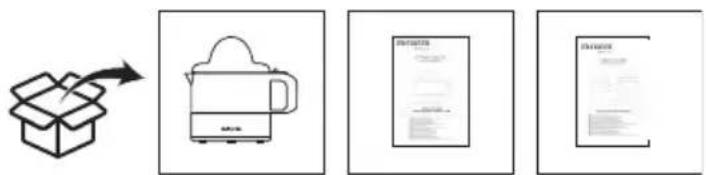

CONTENT

Contenido, Contenuto, Contenu, Inhalt, Conteúdo, Inhoud, Съдържание, Периєхо́ме́во, Zawartość, Obsah, Continut, Tartalom, Садржај, Іçerik, Содержание

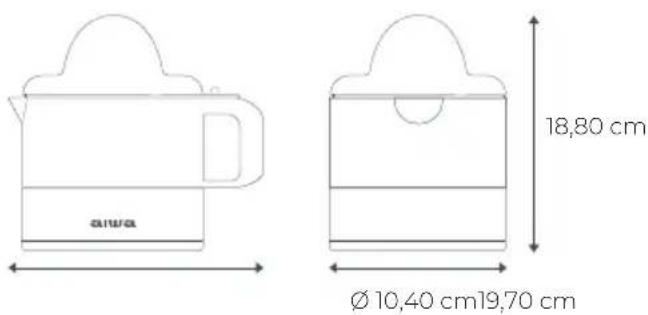

MESURES

Measurements, Medidas, Misure, Mesures, Maße, Medidas, Afmetingen, Merki, Μετρήσεις, Wymiary, Merania, Măsurători, Méretek, Mepe, Ölçümler, Измерения

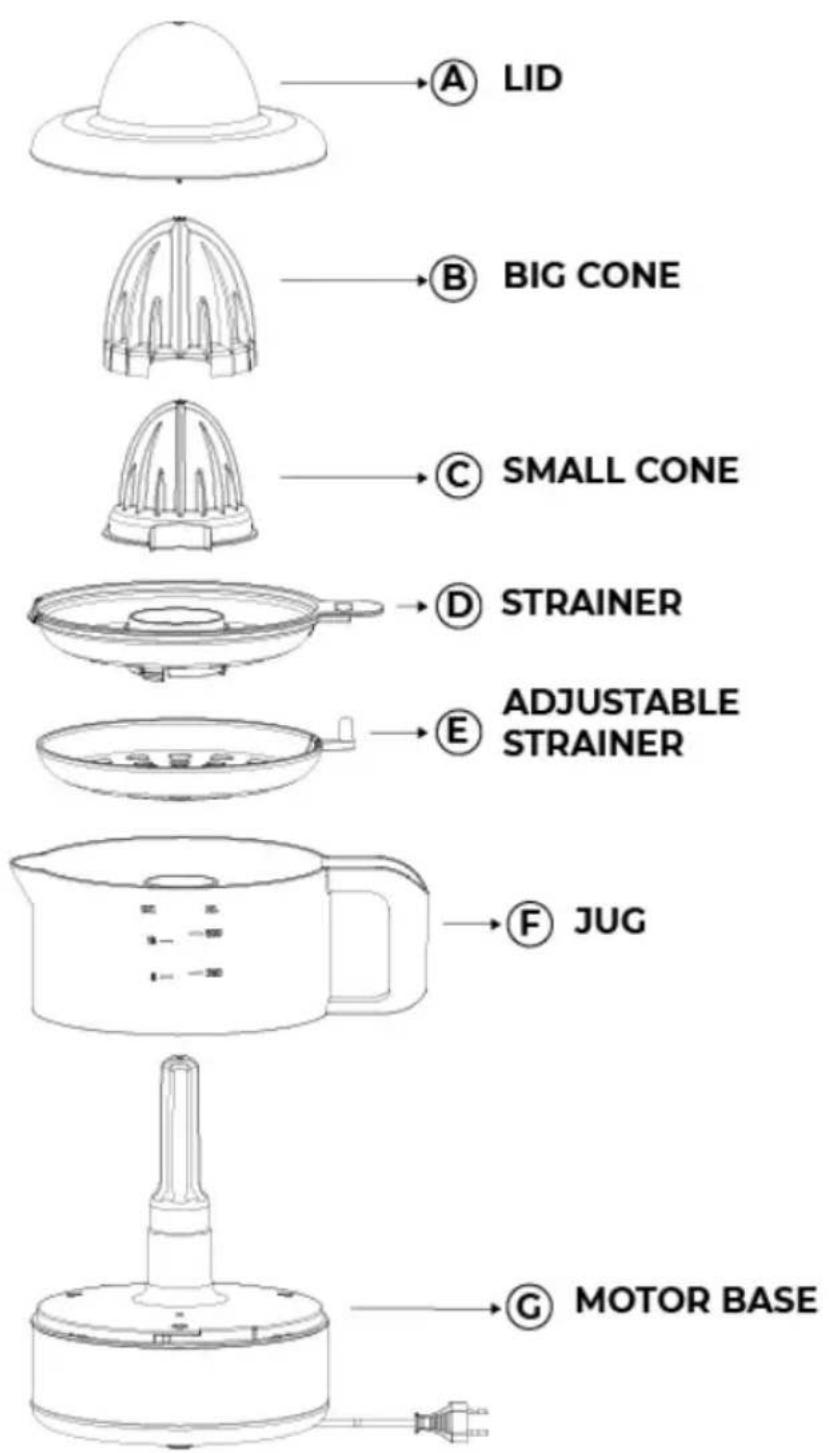

LID

BIG CONE

SMALL CONE

STRAINER

ADJUSTABLE STRAINER

JUG

MOTOR BASE

(ES) Conoce tu exprimidor de cítricos. A. Tapa, B. Cono Grande, C. Cono Pequeño, D. Colador, E. Colador Ajustable, F. Jarra, G. Base Del Motor
(IT) Conosci il tuo spremiagrumi di agrumi. A. Coperchio, B. Grande Cono, C. Piccolo Cono, D. Colatore, E. Colatore Regolabile, F. Caraffa, G. Base Motore
(FR) Connaître votre presse-agrumes. A. Couvercle, B. Grand Cône, C. Petit Cône, D. Passoire, E. Passoire Ajustable, F. Pichet, G. Base Du Moteur
(DE) Kenne deinen Zitruspresse. A. Deckel, B. Grosser Kegel, C. Kleiner Kegel, D. Sieb, E. Einstellbares Sieb, F. Kanne, G. Motorbasis
(ВС) Познайте своя цитрусов преса. А. Капак, В. Голям Конус, С. Малък Конус, Д. Цедка, Е. Регулируема Цедка, F. Кана, G. Основа На Мотора
(EL) Γνωρίστε τον αποχυμωτή σας για κίτρου. Α. Καπακι, Β. Μεγαλο Κωνο, Κ. Μικρο Κωνο, Ο. Φιλτρο, Ε. Ρυθμιζομενο Φιλτρο, Τ. Κανα, Ο. Βαση Κινητηρα
(PL) Poznaj swój wyciskarkę do cytrusów. A. Pokrywa, B. Duża Trojka, C. Mała Trojka, D. Sitko, E. Regulowane Sitko, F. Dzban, G. Podstawa Silnika
(PT) Conheça o seu espremedor de citrinos. A. Tampa, B. Cone Grande, C. Cone Pequeno, D. Coador, E. Coador Ajustável, F. Jarra, G. Base Do Motor
(RO) Cunoaște-ți storcătorul de citrice. A. Capac, B. Con Conic Mare, C. Con Conic Mic, D. Sită, E. Sită Reglabilă, F. Cana, G. Baza Motorului
(SL) Poznajte svoj citrusový lis. A. Viečko, B. Vel'ký Kôň, C. Malý Kôň, D. Sitko, E. Nastavitelné Sitko, F. Kanvica, G. Základňa Motora
(HU) Ismerje meg citrusprését. A. Fedél, B. Nagy Kúp, C. Kis Kúp, D. Szűrő, E. Állítható Szűrő, F. Kanál, G. Motor Alapja
(TR) Narenciye sıkacağını tanıyın. A. Kapak, B. Büyük Koni, C. Küçük Koni, D. Süzgeç, E. Ayarlanabilir Süzgeç, F. Sürahi, G. Motor Taban
(RU) Узнайте свой цитрусовый соковыжималку. А. Крышка, В. Большой Конус, С. Маленький Конус, Д. Сито, Е. Регулируемое Сито, F. Кана, G. Основа Мотора

FIGURE 1

ENGLISH

USE AND MAINTENANCE:

• Always fully extend the appliance's power cord before use.
• Do not use the appliance with improperly attached accessories.
• Do not use the appliance if it's on/off switch is malfunctioning.
• Avoid moving the appliance while it is in operation.
• Do not use the appliance in a tipped or overturned position.
• Do not overturn the appliance while it is operating or connected to power.
• Adhere to the maximum fill level indicator.
• This appliance is intended solely for domestic, not commercial, or industrial, use.
• Store the appliance out of reach of children and individuals with disabilities.
• Ignoring usage instructions or misuse of the appliance voids any warranty and manufacturer liability.
• Limit operation to cycles no longer than 1.5 minutes, with at least 15 seconds of rest between cycles. The appliance should not be operated longer than necessary.

USING YOUR JUICER

• Before the first use, make sure that all the product's packaging has been removed.
• Clean top Lid (A), Small and big cone (B & C), strainer and the adjustable stainer (D & E) and jug (F) with warm water.

PULP QUANTITY REGULATOR

• This appliance features an adjustable pulp control mechanism.
• You can adjust the amount of pulp by rotating the adjustable strainer (D & E)

USE:

• Ensure the power cord is fully extended before connecting it to a power source.
• Assembly the 2 strainer (D & E) in 1 unit.
• Assembly the big cone (B) and small cone (C) in 1 unit

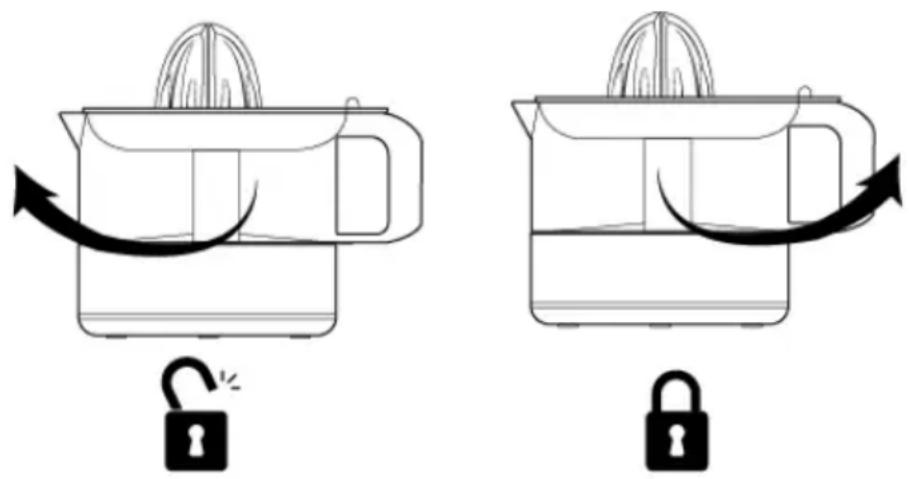

• Position the jug (F) on top of the motor unit (G) until it clicks into place, then place the assembled strainer (D & E) on the jar, and finally, insert the assembled cone (B & C) into the strainer, pressing down until it locks in place. (Figure 1)
• Plug the device into an electrical outlet.
• Slice the citrus fruits you wish to juice into halves.
• Activate the juicer by pressing the halved fruit onto the juicing cone.

ENGLISH

• Cease juicing by releasing pressure from the cone.
• To empty the jug, first remove the cone (B & C) and strainer (D & E).
• Pour the juice from the pitcher into your chosen serving container.
• Reminder: When juicing in bulk, periodically clean the filter and clear away the accumulated pulp.

Caution: Never exert excessive force when pressing the fruit to prevent from blocking and damaging motor.

Caution: The appliance shall be on 15s, off 15s, and after 10 consecutive cycles, the appliance must be cooled down for 30 minutes.

Note: The max capacity of the cup is 0.5L. Make sure do not overfill the cup.

AFTER USING THE APPLIANCE:

• Disconnect the appliance from the power source.
• Store the cord in its designated compartment.
• Proceed with cleaning the appliance.

CLEANING AND MAINTENANCE

-Unplug the appliance and wait it completely cool down before clean.

-Strainer and the adjustable strainer (D & E), Big and small cone (B & C), jug (F). Clean them in hot, sudsy water. Then rinse under running water and wipe dry.

Caution:

• Never use metal polish for cleaning and do not put into dishwasher to clean.
• Wipe the rotating axis with a soft, damp cloth, never immersed the power base in water or other liquid.
• Assemble all parts together.

TROUBLESHOOTING AND MAINTENANCE

- If the appliance experiences any malfunctions, please seek help from an authorized service center. Avoid attempting to disassemble or fix it on your own, as it could pose a risk.

FOR EU PRODUCT VERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY: ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorized waste agent for the selective collection of waste electrical and electronic equipment (WEEE) This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65 EU on the restrictions of the use of certain hazardous

substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products

USO Y MANTENIMIENTO:

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

www.aiwa-industries.com

All Pictures shown are for illustration purpose only.

All Rights Reserved. All other trademarks are property of their respective owners.

All specifications are subject to change without prior notice.

Aiwa Europe S.L., Av. Siglo XXI, 34, ES-08840.

REV. 02/02/2024 VI
