USER MANUAL MUG-26 MPM
EN We wish you satisfaction from using the product and invite you to check a wide range of other MPMs
INCALZI OR TLRASA CUN RAROSU
DE ULDILNINGSANLLITUNG 10
EE KASJTJSJUHEND 17
EL EFXEPIANO XPHETH 23
EN USER MANUAL 30
SK POLIŽ VA FISKÁ PRÍRUCKA 106
UA ПОСІБНИК КОРИСТУВАНА 113
BEZPEČNOSTNÍ POKYNY PŘI POUŽÍVÁNÍ
-Read the instructions carefully before use.
-Take special care when children are near the appliance.
-Do not immerse the appliance, cable or charger in water or other liquids.
-Do not hang the mains cable on sharp edges or allow it to come into contact with hot surfaces.
-Always remove the plug from the mains socket when not in use or before cleaning.
- Never use a damaged appliance, including one with a damaged cord or plug, in which case have it repaired at an authorised service centre. Particular attention should be paid to the safety grille – its failure can result in temperature rise, failure, malfunction or deformation and discolouration of the cover due to overheating of the body.
-Use of accessories not recommended by the manufacturer may cause damage to the appliance, fire or personal injury.
-Do not touch the appliance with wet hands.
-Use the device on a smooth and stable surface.
-Children under the age of 3 should not be allowed near the device unless under constant supervision.
-This equipment may be used by children of at least 8 years of age and by persons of diminished physical, mental capacity and lack of experience and knowledge of the equipment if supervision or instruction is provided regarding the safe use of the equipment so that the hazards involved are understood. Unsupervised children should not perform cleaning and maintenance of the equipment. -The device is not a toy and should not be used as such by children.
-The device is intended for domestic use only.
-Do not install or use the device in vehicles.
-Keep the appliance away from water!
-Take special care when children and people with disabilities and pets are in the vicinity of the unit!
-It is absolutely forbidden to insert foreign objects into the appliance while it is in operation – pay special attention to children!
-If the device accidentally falls into water before removal, unplug it from the mains socket immediately!
- Never leave the device switched on unattended.
-Do not place the unit on hot, unstable or uneven surfaces!
-The appliance should be connected to a mains socket outlet with a grounding pin!
-Do not place the appliance near flammable agents and other electrical appliances, burners, cookers, ovens, etc.
-Staring at the device's lamp for long periods of time may damage your eyesight. Avoid looking at the lamp while the device is switched on.
-Do not let the power cord come into contact with hot surfaces.
-The protective grille becomes hot during heating – do not touch!
-Do not carry a hot device.
-CAUTION! The device blows out hot air. Be careful not to burn yourself.
-Do not wind the power cord around the device!
-To avoid overheating, the power cord should be unwound to its full length.
- Do not use the device for any other purpose than it was intended.
-Do not use the device near water in bath-tubs, bowls or other vessels, or in wet rooms, showers or swimming pools.
- Do not use the device with a programmer, timer switch or other device that switches on the device automatically.
-Do not pull the plug out of the power socket by pulling the cord.
-Do not connect the plug to the power socket with wet hands.
Keep the device and its cord out of reach of children under 8 years of age.
-For the safety of children, please do not leave freely accessible parts of the packaging (plastic bags, cardboard boxes, polystyrene, etc.).
-WARNING! Do not allow children to play with the film. Danger of suffocation!
-CAUTION! The device has components that heat up to a high temperature during operation – touching them poses a risk of burns! Be particularly careful when the device is in use near children or disabled persons.
Remember to always switch off the device first before removing the plug from the mains socket.
- Do not place the appliance directly under a plug socket.
- Do not place the unit near walls, furniture, etc. -The appliance should always be operated in the upright position!
-The appliance must be placed on a flat, dry and stable surface at least 90 cm away from walls, furniture, household appliances, etc. The appliance must also be kept at least 1 m clearance above the appliance! – You should also keep at least 1 m free space above the appliance!
-Do not use the appliance to dry clothes, curtains, curtains, towels, etc.!
WARNING! Do not cover the device. Fire hazard.

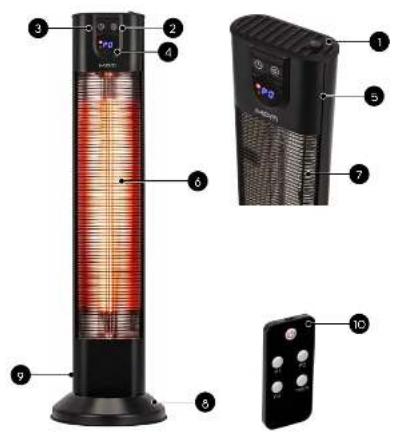

DESCRIPTION OF THE APPLIANCE
- Power button
- ON/OFF button / heating power control
- Operating time selection button
- LED display
- Housing
- Carbon fibre lamp
- Lamp safety grille
- Device base
- Mains cable
- Remote control
BEFORE FIRST USE
- Remove the device from the box; remove all stickers, transport protectors, bags and fillers.
- Check the device for damage that may have occurred during transportation. If you have any doubts contact the seller.
- Place the device on a flat, dry, level, and horizontal surface.
- Install a CR2025 battery in the remote (see chapter: CLEANING AND MAINTENANCE)
- Make sure that the parameters of your mains supply correspond to the data on the appliance's rating plate.
CAUTION! The battery is not included with MUG-26.

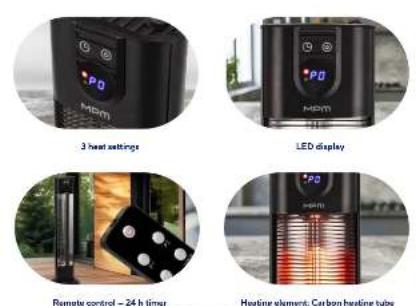

USING THE DEVICE
- Connect the infrared radiator to the power supply and press the power button (1). When the device is turned on, it will emit an audible signal and a red indicator light will illuminate on the display (4).
- Press the ON/OFF button (2). The display (4) will show "PO", which means that the lamp is off. Pressing this button repeatedly changes the heating power level, which is shown on the display and indicated by an audible signal. Three adjustment levels are available:
▶ P1 – low heating level (650 W)
▶ P2 – moderate heating level (1350 W)
▶ P3 – high heating level (2000 W)
-
The operating time selection button (3) can be used to set the time after which the device will automatically switch off. The selection of the appropriate time is shown on the display and signalled by an audible signal. Available time can be selected from 1 to 24 hours.
-
After finishing work, turn off the device using the power button (1) and disconnect it from the power supply.
CAUTION! The infrared radiator is equipped with an automatic shut-off system in case of tilting or tipping over.
- All functions can also be controlled using the remote control (10), which has buttons that perform the same functions as those on the device.
CLEANING AND MAINTENANCE
CAUTION! Unplug the device from the mains and wait until it has cooled completely before cleaning.
CAUTION! Do not immerse the device in water or other liquids.
- Solvents, insecticides and other strong substances must not be used for cleaning. This could cause damage to the unit's housing or electrical failure.
- The device housing should be cleaned with a damp cloth and detergent, then wiped with a dry cloth.
- The lamp guard should be cleaned periodically with a brush to remove accumulated dust.
- Although the radiator is approved for outdoor use (on balconies and terraces), for your own safety, DO NOT immerse it in water. Wait until the device is completely dry before use.
- The remote control is powered by a CR 2025 battery. To access the batteries, open the container located at the bottom of the remote control. When replacing the battery, make sure it is correctly installed, paying attention to the polarity.
TECHNICAL DATA
| Model MUG-26 | |
| Power supply | 220 – 240 V ~ 50/60 Hz |
| Power | 2000W |
| Water resistance class | IP34 |
| Length of mains cable 1.58m |
CE
CAUTION! MPM agd S.A. reserves the right to technical changes.
Proper removal of product (batteries and/or accumulators)
The icon with a crossed out trash can indicate that accumulators/batteries are subject to selective collection and recycling. Pursuant to Directive 2006/66/WE, batteries and/or accumulators must not be thrown away together with other waste coming from households after their service life comes to an end. To prevent possible damage to the environment or human health resulting from uncontrolled waste disposal, accumulators/batteries should be collected, disposed of or recycled in accordance with applicable laws. A used battery should be placed in a special container at separate collection points for this type of waste.
Proper disposal of the product (waste electrical and electronic equipment)
Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health.
Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.
