Product type	Illuminated magnifier
Brand	Dörr
Model	LL-90
Main lens magnification	2.5x (diameter 90 mm)
Secondary lens magnification	5x (diameter 20 mm)
Lighting	2 integrated LEDs (non-replaceable)
Switch	Slide on/off
Lens material	Acrylic
Body material	ABS plastic with soft-touch coating
Power supply	2 AAA batteries (not included)
Dimensions (L x W x H)	230 x 90 x 30 mm
Weight (without batteries)	70 g
Package contents	Magnifier, hard case, cleaning cloth, user manual
Care and cleaning	Clean with a slightly damp microfiber cloth; avoid aggressive products
Safety	Do not expose to sunlight (risk of fire); do not look directly at the sun or the LED; keep out of reach of children
Spare parts and repairability	LEDs are not replaceable; the device must not be opened or repaired by the user
Compliance	CE and RoHS directives

Frequently Asked Questions - LL-90 Dörr

What type of batteries should I use for the LL-90 magnifier?

Use two AAA batteries, preferably high-quality. Insert them respecting the polarity (+/-) indicated in the compartment.

How to turn the LED light on and off?

Slide the on/off switch (mark 4) on the side of the magnifier. The same switch turns both LEDs on and off.

Can I replace the LEDs if they stop working?

No, the LED bulbs are permanently integrated and cannot be replaced. If the lighting fails, the device must be replaced.

How to clean the magnifier and lenses?

Use a lint-free microfiber cloth slightly dampened with water. Do not use gasoline, solvents, or harsh cleaning products that could damage the surfaces.

What are the risks of exposure to sunlight?

The lens can concentrate sunlight like a burning glass and cause a fire. Always protect the magnifier from direct sunlight and never look at the sun through the lens.

Can I use the magnifier for extended periods?

Yes, but remove the batteries if you do not plan to use the device for a long time to avoid leakage. The device is lightweight (70 g) and easy to handle.

Is the magnifier suitable for children?

This device is not a toy. It should be kept out of reach of children, as the lenses and lighting can pose risks (especially eye risks).

What to do in case of battery leakage?

Immediately remove leaking batteries, rinse the contacts with water and dry them before inserting new batteries. Avoid contact with the acid; if contact occurs, rinse thoroughly with water and consult a doctor.

Is the LL-90 magnifier compliant with European standards?

Yes, it complies with CE and RoHS directives (restriction of hazardous substances) and bears the CE marking.

How to dispose of the magnifier at end of life?

Do not dispose of it with household waste. Take it to a WEEE collection point or return it to the store. Used batteries must also be recycled separately.

USER MANUAL LL-90 Dörr

Line drawing of a stylized human head with arms and legs, no text or symbols present

THANK YOU for choosing this DÖRR quality product.

Please read the instruction manual and safety hints carefully before first use. Keep this instruction manual together with the device for future use. If other people use this device, make this instruction manual available. This instruction manual is part of the device and must be supplied with the device in case of sale.

DÖRR is not liable for damages caused by improper use or the failure to observe the instruction manual and safety hints.

SAFETY HINTS

- Protect against sun rays. The lens of magnifi er can act like a burning glass - risk of fi re!

· Never look through the magnifier in the sun!

- Do not look directly into the LED light.

- Protect the device from rain, moisture, direct sunlight and extreme temperatures.

- Do not operate or touch the device with wet hands.

- People with physical or cognitive disabilities should use the device with supervision.

- Make sure to use the device only with appropriate batteries. Please remove batteries when device is not in use for a longer period.

- Protect the device against impacts. Do not use the device if it has been dropped. In this case a qualified electrician should inspect the device before you use it again.

- Do not attempt to repair the device by yourself. When service or repair is required, contact qualified service personnel.

- Protect the device against dirt. Never use aggressive cleansing agents or benzine to clean the device. We recommend a soft microfiber cloth to clean the outer parts of the device.

- Store the device in a dust-free, dry and cool place.

- The device is not a toy - keep it out of reach of children.

- Keep away from pets.

- LED bulbs cannot be replaced.

- If the device is defective or without any further use, dispose of the device according to the Waste Electrical and Electronic Equipment Directive WEEE. For further information, please contact your local authorities.

SAFETY HINTS FOR BATTERIES/ACCUMULATORS

Only use high-quality batteries/accumulators of popular brands. When inserting the batteries/eaccumulators, please respect the correct polarity (+/-). Do not insert batteries of different types and always replace all batteries at the same time. Do not combine used batteries with fresh batteries. Please remove batteries/accumulators when device is not in use for a longer period.

Do not throw the batteries/accumulators into fi re, do not short-circuit and do not disassemble them! Never charge non-rechargeable batteries - risk of explosion! Remove empty batteries immediately from the device to avoid the leaking of battery acid. Remove leaking batteries from the device immediately. Clean the contacts before inserting fresh batteries. Risk of battery acid burn! In case of contact with battery acid, rinse the affected area immediately with water and contact a doctor. Batteries can be dangerous to life if swallowed. Keep batteries/accumulators away from small children and pets. Do not dispose of batteries in household waste (see also capture „Disposal of Batteries/Accumulators“).

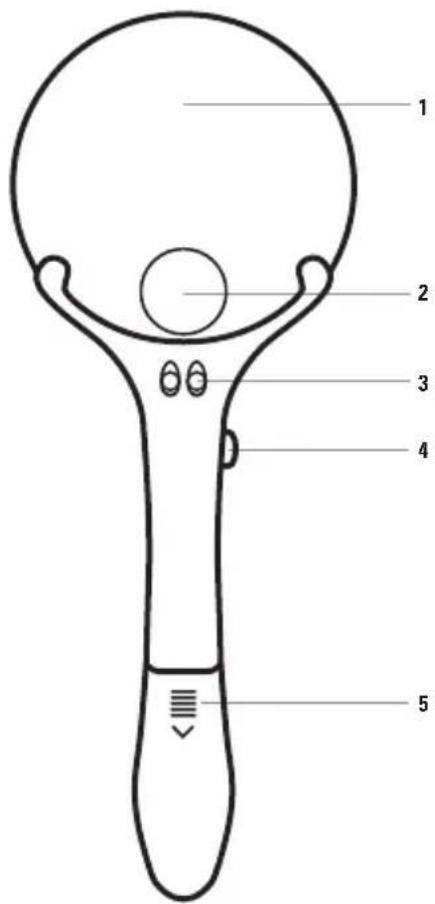

NOMENCLATURE

1 Main Lens
2 Additional Lens
3 LED illumination
4 On/Off button
5 Battery compartment /Battery compartment cover

INSERTING THE BATTERIES

Slide open the battery compartment cover (5) in the direction of arrow. Insert 2 pieces of AAA batteries (optional) according to the polarity markings +/- in the battery compartment. Close the battery compartment cover. Please remove batteries when magnifi er is not in use for a longer period.

ILLUMINATION

To turn on the LED illumination (3) press the On/Off button (4).

SPECIFICATIONS

Main Lens Magnifi cation 2,5x Diameter 90 mm

Additional Lens Magnifi cation 5x Diameter 20 mm

Illumination 2 LEDs

Material of lens Acrylic

Material of handle ABS plastic "Soft-Touch"

Power source 2x AAA batteries(optional)

Dimensions 230 x 90 x 30 mm

Weight 70 g (w/o batteries)

CONTENT

Magnifier, hard case, cleaning cloth, instruction manual

DISPOSAL OF BATTERIES/ACCUMULATORS

Batteries are marked with the symbol of a crossed out bin. This symbol indicates that empty batteries or accumulators which can no longer be charged should not be disposed of with household waste. Waste batteries may contain harmful substances that can cause damage to health and to the environment. Please use the return and collection systems available in your country for the disposal of the waste batteries.

WEEE INFORMATION

The Waste Electrical and Electronic Equipment Directive (WEEE Directive) is the European community directive on waste electrical and electronic equipment, which became European law in February 2003. The main purpose of this directive is to prevent electronic waste. Recycling and other forms of waste recovery should be encouraged to reduce waste. The symbol (trash can) on the product and on the packing means that used electrical and electronic products should not be disposed of with general household waste. It is your responsibility to dispose of all your electronic or electrical waste at designated collection points. Disposing of this product correctly will help to save valuable resources and it is a significant contribution to protect our environment as well as human health. For more information about the correct disposal of electrical and electronic equipment, recycling and collection points please contact your local authorities, waste management companies, your retailer or the manufacturer of this device.

ROHS CONFORMITY

This product is compliant with the European directive 2011/65/EU of June 08, 2011 for the restriction of use of certain hazardous substances in electrical and electronic equipment (RoHS) and its amendments.

CE MARKING

The CE marking complies with the European directives.
