USER MANUAL BS H9N3B-S CANDY

Simple line drawing of a smartphone with a cross symbol on the screen (no text or labels)

Simple line drawing of a washing machine with a black checkmark on its side (no text or symbols)

Illustration of a hand holding a small mechanical component with an arrow indicating rotational motion (no text or symbols)

Warning sign depicting a flame symbol in yellow and black on white background

ATTENZIONE

Technical line drawing of a mechanical device with internal components and close-up views (no text or symbols)

Illustration of hands installing or adjusting a mechanical component inside a circular frame (no text or symbols visible)

③

Technical diagram of a mechanical assembly with labeled components A, B, and C (no readable text or symbols)

④

Technical line drawing of a mechanical assembly inside a housing, showing internal components and a close-up view of a tool (no text or symbols)

5

Technical line drawing of a mechanical assembly inside a circular frame (no text or symbols)

⑥

3. VASCHETTA DELL'ACQUA

Diagram showing airflow or fluid flow through a mechanical component with numbered annotations ① and ②

Diagram showing a blue liquid being poured into a container with a tool, no text or symbols present

Technical line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

ATTENZIONE

Two-step diagram showing hands connecting a cable to a washing machine (no text or symbols present)

1. Aprire i filtri.

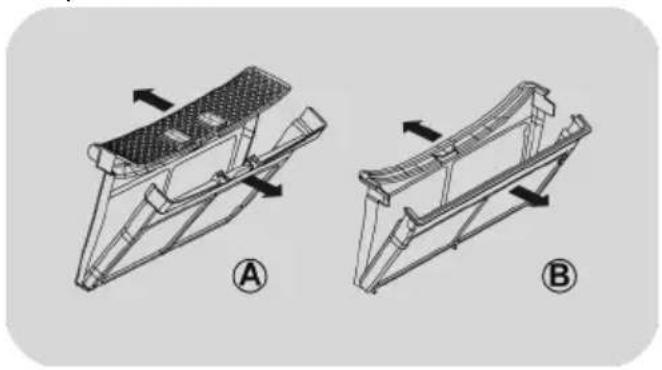

Technical line drawings of two mechanical components labeled A and B, showing internal structure with arrows indicating motion (no text or symbols beyond labels)

Illustration showing six different steps (A and B) of a mechanical device or tool, with labeled diagrams indicating assembly or processing stages.

Technical diagram showing four steps of a mechanical device with labeled components (A, B, C) and directional arrows indicating motion.

ATTENZIONE

Diagram showing two mechanical components with arrows indicating assembly or movement, no text or symbols present

Diagram of a battery pack with internal compartments and directional arrows indicating rotation (no text or symbols)

Diagram illustrating two steps of a door handle replacement, labeled ⑦ and ⑧ with arrows indicating rotation and adjustment.

ATTENZIONE

Download the
hOn App

Registrazione

METTERE LA MACCHINA IN PAUSA

Diagram illustrating a step-by-step cooking process for toilet, showing steps from raw material to finished product.

Mechanical device diagram showing a lever mechanism with arrows indicating motion (no text or symbols)

Technical diagram showing a structural assembly with an inset close-up of a component being inserted (no text or symbols present)

Mechanical device diagram showing a flat plate with supports and directional arrows (no text or symbols)

Diagram showing a hand inserting cables into a socket with a downward arrow indicating direction, labeled with number ⑤.

10. RISOLUZIONE PROBLEMI E GARANZIA

Simple line drawing of a smartphone with a cross symbol on the screen (no text or labels)

Simple line drawing of a washing machine with a black checkmark and circular dial (no text or symbols)

Illustration of a hand holding a small mechanical component with an arrow indicating rotational motion (no text or symbols)

Warning sign depicting a flame symbol in yellow and black on white background

WARNUNG

Technical line drawing of a mechanical device showing internal components and structural details (no text or symbols)

Illustration of hands assembling or repairing a mechanical component inside a circular frame (no text or symbols visible)

③

Technical diagram of a mechanical assembly with labeled components A, B, and C (no readable text or symbols)

④

Technical line drawing of a mechanical device inside a circular frame, showing internal components and a tool (no text or symbols)

⑤

Technical line drawing of a mechanical assembly inside a circular frame, showing structural components and a tool interacting with a component (no text or symbols present)

⑥

3. WASSERBEHÄLTER

Diagram showing airflow or fluid flow through a mechanical component with numbered arrows indicating direction and flow direction.

Diagram of a medical procedure showing a blue liquid being poured into a container (no text or symbols present)

Technical line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

DE

WARNING

Two identical diagrams (A and B) showing hands connecting a cable to a device with a handle, no text or symbols present.

Technical line drawings of two mechanical components labeled A and B, showing internal structure with arrows indicating motion (no text or symbols beyond labels)

Illustration showing six sequential steps of a mechanical device with labeled components A and B, likely illustrating a turning or assembly process.

Technical diagram showing four steps of a mechanical device with labeled components A and B, including directional arrows and component positioning.

WARNING

go.haier-europe.com/download-app

Download the hOn App

Gerätekopplung

https://careplusprotect.com/country-select/.

Diagram illustrating a step-by-step assembly of toilet and container components, showing transformation from one to two states with directional arrows.

DE

Mechanical device diagram showing a folding frame with directional arrows indicating movement (no text or symbols)

Technical diagram showing a structural assembly with an arrow indicating direction and a magnified inset of a container being inserted.

Technical diagram of a folding table frame with directional arrows indicating movement (no text or symbols)

Diagram showing cable installation process with labeled step number ⑤ and directional arrow indicating direction

Thank you for choosing this product.

We are proud to offer the ideal product for you and the best complete range of home appliances for your daily routine.

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine. Keep all documentation in a safe place for future reference or for any future owners.

Please check that the following items are delivered with the appliance:

• Instruction manual
• Guarantee card
• Energy label

Check that no damage has occurred to the machine during transit. If it as, call for service by Customer Service Centre. Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse or by incorrect installation.

To contact the Service, ensure that you have the unique 16-character code available, also called the "serial number". This code is a unique code for your product, printed on the sticker that can be found inside the door opening.

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

● WEEE should not be treated as household waste;
● WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Contents

1. GENERAL SAFETY RULES
2. DRAIN HOSE KIT

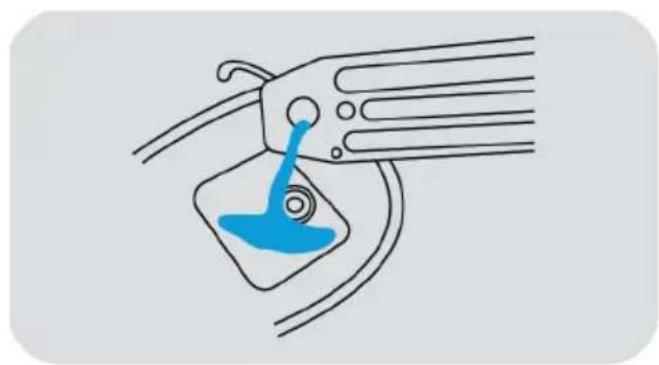

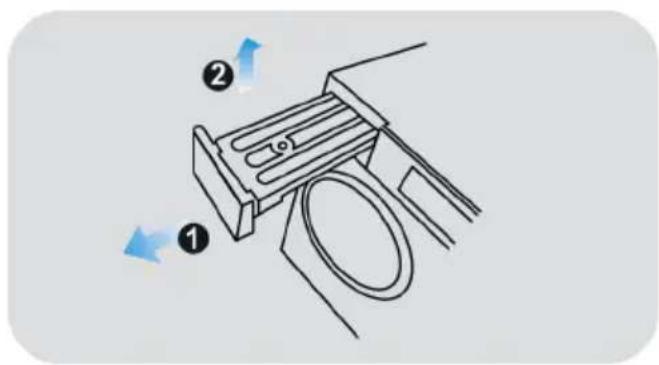

3. WATER CONTAINER
4. DOOR AND FILTERS
5. PRACTICAL HINTS
6. REMOTE CONTROL (hOn)
7. QUICK USER GUIDE

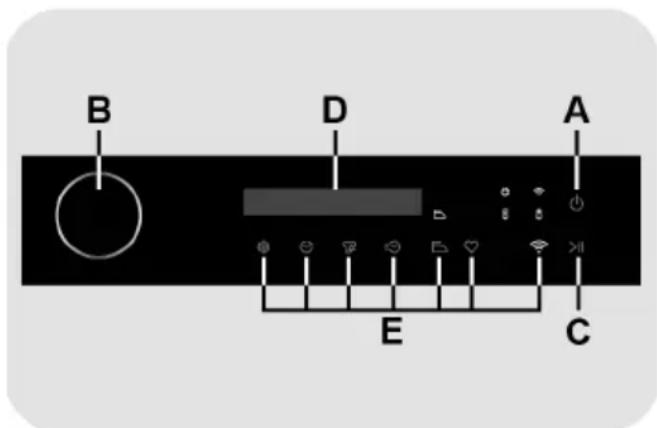

8. CONTROLS AND PROGRAMMES
9. ACCESSORIES
10. TROUBLESHOOTING AND WARRANTY

Environmental conditions

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

1. GENERAL SAFETY RULES

- This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses;

- By clients in hotels, motels and other residential type environments;

- Bed and breakfast type environments. A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications. If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
  ● Children of less than 3 years should be kept away unless continuously supervised.

WARNING

Misuse of a tumble dryer may create a fire hazard.

• This machine is solely for domestic use, i.e. to dry household textiles and garments.
• Ensure that the instructions for installation and use are fully understood before operating the appliance.
• Do not touch the appliance when hands or feet are damp or wet.
• Do not lean on the door when loading the machine or use the door to lift or move the machine.
• Do not continue to use this machine if it appears to be faulty.

- The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

items are left at a temperature that ensures that the items will not be damaged.

WARNING

Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.

- Lint and fluff must not be allowed to collect on the floor around the outside of the machine.

WARNING

Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.

● Always remove the plug before cleaning the appliance.
- The drum inside may be very hot. Always allow the dryer to complete the cool down period before removing the laundry.
- The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the

WARNING

Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

WARNING

During transport ensure that the dryer is in an upright position, if it's necessary you can only flip in the side shown.

Simple line drawing of a smartphone with a circular screen and X-shaped cross symbol (no text or labels)

Simple line drawing of a washing machine with a checkmark and globe icon (no text or symbols)

If the product is in different side, wait at least 4 hours before switching on so that the oil can flow back into the compressor. Failure to do this could result in damage to the compressor.

Installation

• Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between 5-35°C. Please note that operating in cold condition (between +2 and +5°C) might simply some water condensation and water drops on floor.
• In cases where the dryer is installed on top of a washing machine, a stacking kit must be used. Not every washing machine is suitable for this purpose. The stacking kit shall be obtainable from Customer Service. The instructions for installation and any fixing attachments, are provided with the stacking kit.
• NEVER install the dryer up near curtains.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to

that of the tumble dryer, in such way that a full opening of the tumble dryer door is restricted.

• For your safety, the appliance must be correctly installed. If there is any doubt about installation, call Customer Service for advice.
• Once the machine is in place the feet should be adjusted to ensure that the machine is level.

Illustration of a hand holding a small mechanical component with an arrow indicating rotational motion (no text or symbols)

Reversing the door

• Before you start, unplug the dryer from the socket.
• Handle parts carefully to avoid scratching paint.
• Provide a non-scratching work surface for the doors.
• Tools you will need: TORX-T20-head screwdriver.
• Once you begin, do not move the cabinet until door reversal is completed.

- These instructions are for changing the hinges from the right side to the left side. If you want to switch them back to the right side, follow these same instructions and reverse all references from left to right.

1. Remove the door assembly Open the door. Remove the two screws holding the hinge/door assembly to the dryer.

2. Remove and rotate the inner door

Remove the three stickers and screws near the hinge. Afterwards, remove the eight stickers and screws securing the inner door to the outer door.

Disassemble the inner door and rotate it 180^ .

Remove the screw under the touch pole and reposition it in the opposite side (180°). Tight the screw in order to secure the touch pole.

1. Rotate and replace the plastic transparent middle door.

Remove the plastic transparent middle door and rotate it 180°.

1. Reassembly the inner door

Reinstall the inner door into the outer door using the same eight screws and stickers.

1. Remove, rotate and replace the door lock & strike plate

Remove the two screws holding the strike plate, and then remove one screw of the door lock, push down and take out the lock, rotate 180° and install it on the opposite side using the same 3 screws.

1. Rotate and replace the hinge/door assembly

Rotate the hinge/door assembly and screw it on the dryer.

Electrical connections and safety instructions

• The technical details (supply voltage and power input) are indicated on the product rating plate.
• Make sure that the electrical system is earthed, complies with all applicable law and that the (electricity) socket is compatible with the plug of the appliance. Otherwise, seek qualified professional assistance.

WARNING

The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

• Do not use adapters, multiple connectors and/or extensions.
• The plug should be accessible for disconnection after the appliance has been installed.
• Do not plug the machine in and switch it on at the mains until the installation is completed.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Ventilation

• Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.
  ● Install the rear of the appliance close to a wall or vertical surface.
• There should be a gap of at least 12 mm between the machine and any obstructions. The inlet and outlet air should be kept clear of obstruction.

• Make sure carpets or rugs do not obstruct the base or any of the ventilation openings.

• Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet.
  ● Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

• Check regularly that the air flowing around the dryer is not restricted, avoiding accumulation of dust and lint.
• Check frequently the fluff filter after use, and clean, if necessary.

The Laundry

● Always refer to the laundry care labels for directions on suitability for drying.
- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
- Do not dry unwashed items in the tumble dryer.
- Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer.
- Clothes that are dripping wet should not be put into the dryer.

WARNING

Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.

- Remove all objects from pockets such as lighters and matches.

● Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.

● Maximum load drying weight: see rating plate.

- To consult the product technical specification please refer to the manufacturer website.

WARNING

Do not tumble dry fabrics treated with dry cleaning fluids.

● Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

Warning sign depicting a flame symbol in yellow and black on white background

WARNING

Fire hazard / Flammable materials.

● The appliance contains R290, an eco-sustainable refrigerating gas that is flammable. Keep open flames and sources of ignition away from the appliance.
- Check there is no visible damage on the appliance. Do not use the appliance if it is damaged.
- Should there be any kind of problem, please contact your specialised retailer or one of our customer support centres.

WARNING

Ensure that the openings on the appliance and the openings of the compartment the appliance is fitted in (for built-in models) are clear of obstructions.

WARNING

Do not damage the refrigerating circuit.

• Any repairs or interventions on the appliance must be carried out only by an authorised assistance service.
• Disposing of the device incorrectly could cause fires or poisoning.
• Dispose of the device correctly and do not damage the pipes used for the circulation of the refrigerating fluid.

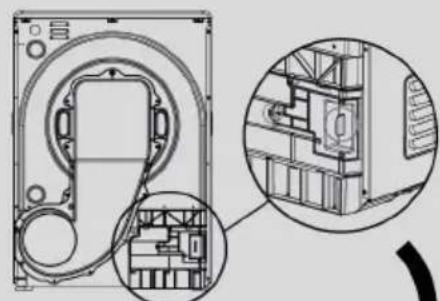

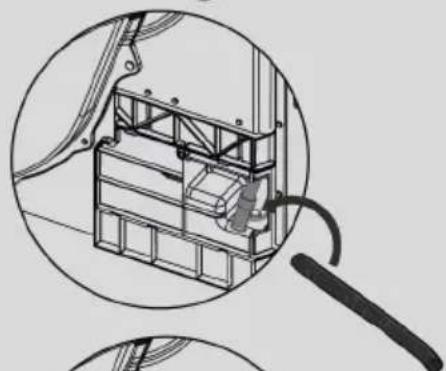

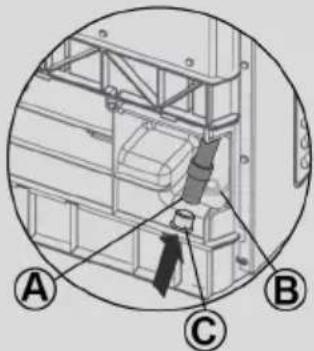

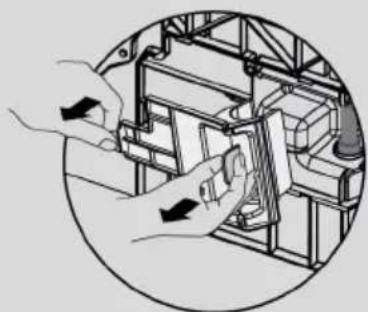

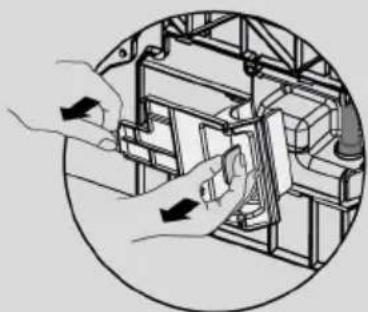

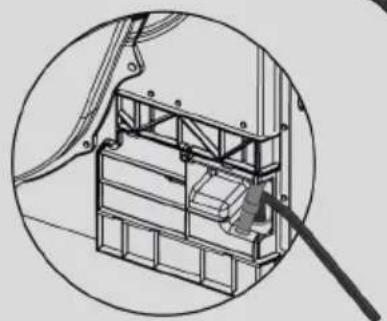

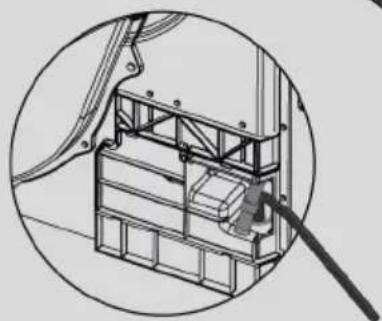

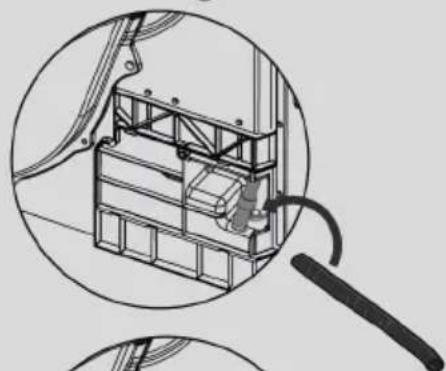

2. DRAIN HOSE KIT

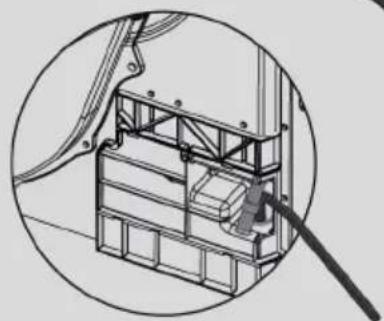

In order to avoid to empty the water container after each drying cycle, the water can be discharged directly to a waste water drain pipe. Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe should be located adjacent to the tumble dryer.

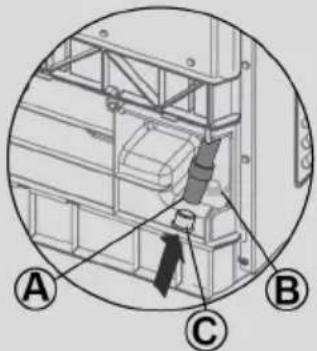

The kit consists of: 1 hose and 1 bung.

WARNING

Switch off and remove the tumble dryer plug from the electricity supply before carrying out any work.

The hose must be connected to a drain system with a maximum height of 85 cm compared to the base of the dryer (figure 1).

Fitting the drain hose

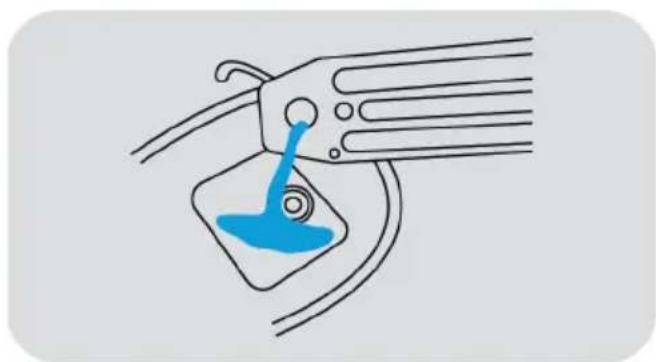

1. The water drainage system is located at the back of the machine on the lower right side (figure 2).
2. Remove the cover (figure 3).
3. Disconnect the hose (A) from the fitting (B) by pulling it upwards. Close the extracted tube with the cap (C) supplied with the kit (figure 4).
4. Connect the hose into the fitting (B) making sure it is inserted securely (figures 5-6).

Once the machine is in place, check to ensure that the new hose does not kink when pushing the tumble dryer into position.

①

max 85 cm

②

Technical line drawing of a mechanical device with internal components and close-up views (no text or symbols)

③

Illustration of hands installing or adjusting a mechanical component inside a frame structure (no text or symbols visible)

④

Technical diagram of a mechanical assembly with labeled components A, B, and C (no readable text or symbols)

⑤

Technical diagram of a mechanical assembly inside a housing, showing internal components and a tool (no text or labels)

⑥

Technical line drawing of a mechanical assembly inside a circular frame, showing internal components and a tool interacting with a component (no text or symbols present)

3. WATER CONTAINER

The water removed from the laundry during the drying cycle is collected in a container. When the container is full, an indicator light will advise you that it MUST be emptied (however, we recommend to empty it after each drying cycle).

Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

Empty the water tank

During operation, steam is condensed into water and collected in the water tank. Empty the water tank after each drying cycle.

1. Pull out the water tank from its housing.

Diagram showing airflow or fluid flow through a mechanical component with numbered annotations ① and ② indicating directional movement.

1. Empty the water tank.

Diagram showing a blue liquid being poured into a container with a tool (no text or symbols)

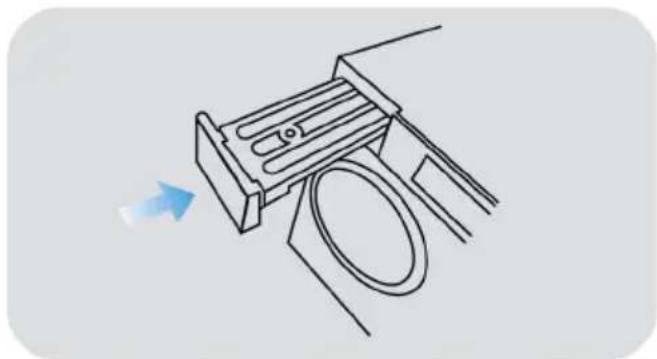

1. Reinstall the water tank to the tumble dryer.

Technical line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

WARNING

Do not use the water for any kind of drinking or food processing.

ONLY FOR MODELS WITH DRAIN HOSE KIT

If you have the option of drainage near to the dryer you can use the discharge kit to provide a permanent drainage for the water collected in the container of the dryer. This means that you don't have to empty the water container.

4. DOOR AND FILTERS

Door

• Pull on handle to open the door.
  ● To restart the appliance, close the door and press the programme start button.

Drum interior light

When the appliance is switched on, the drum light will keep on when the door is open.

WARNING

When the tumble dryer is in use the drum and door may be VERY HOT.

Filters

Clogged filters could increase the drying time and cause damages and expensive cleaning operation.

In order to have the maximum effectiveness of the machine, checking the cleanliness of all filters before each drying cycle is essential.

WARNING

Do not use the tumble dryer without the filters.

Lint filters and sponge filter cleaning indicator light

The indicator light illuminates in fixed mode to signal the need of cleaning the lint filters and in blinking mode to signal the need of cleaning the sponge filter.

If the laundry is not drying check that the filters are not clogged.

WARNING

When cleaning the filters, the lint and fluff should be thrown in the garbage bin and not washed through the drain in order to avoid spreading microplastics in the used water system.

After removing lint and fluff from the filters, if you clean filters under water, remember to dry them.

To clean the lint filters

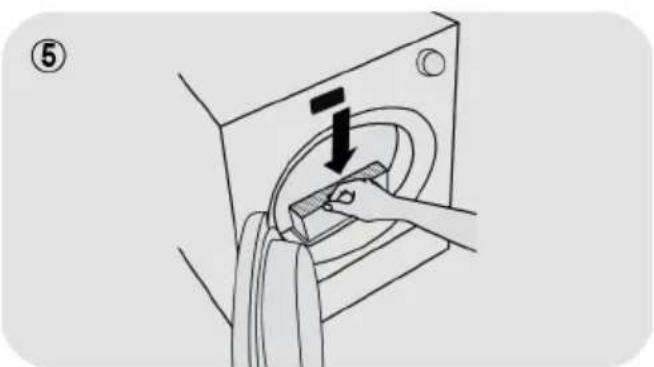

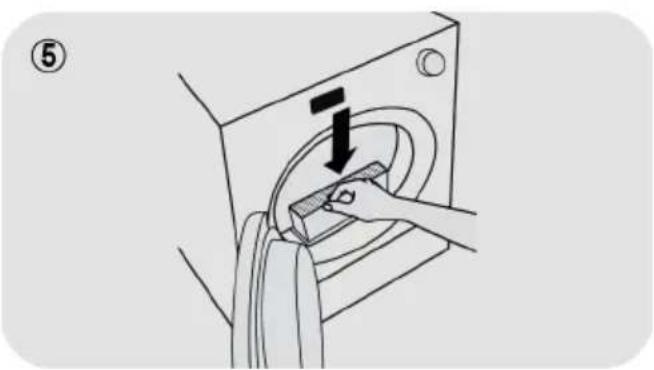

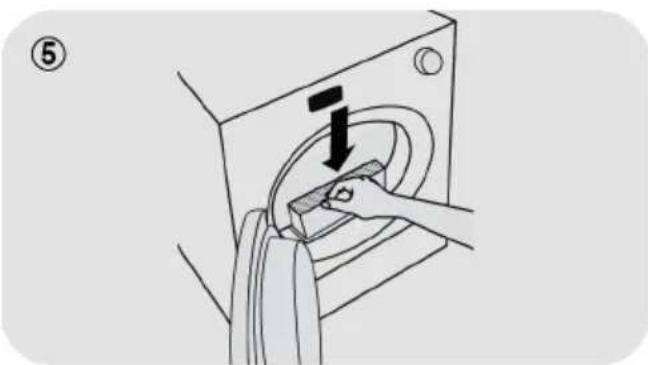

1. Extract the two filters A and B in sequence pulling them upwards, as shown in the figure.

Diagram of a hand inserting cables into a device (no text or symbols visible)

Illustration of hands inserting a cable into a washing machine (no text or symbols)

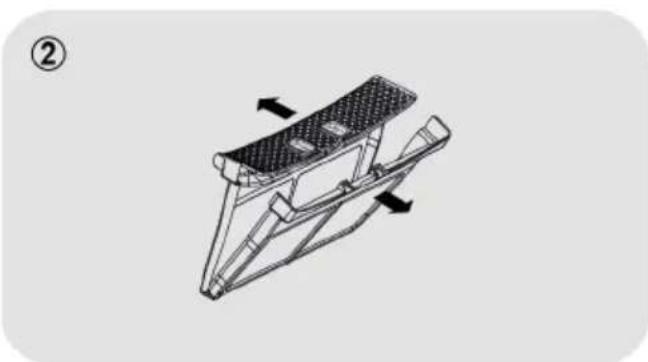

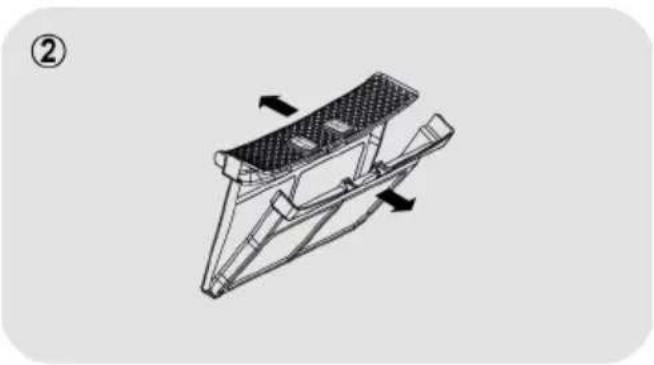

1. Open the filters.

Technical line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Technical line drawing of a structural frame with directional arrows indicating movement (no text or symbols)

1. Gently remove lint from both filters using your fingertips or a soft brush or with a cloth.

Illustration of a hand holding a tray with a U-shaped object, labeled with circled number A (no text or symbols on the diagram itself)

Illustration of a hand using a tool to cut or spread a rectangular object, labeled with circled number A (no text or symbols on the object itself)

Line drawing of a hand using a tool to cut or install a grid-like structure, no text or symbols present

Illustration of a hand using a tool to interact with a tray (no text or symbols)

Line drawing of a hand holding a tool over a mechanical component (no text or symbols)

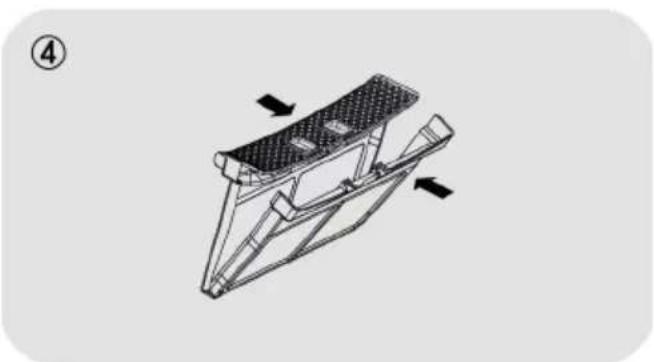

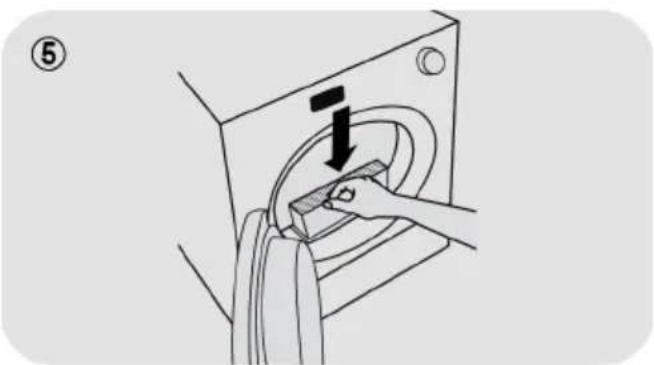

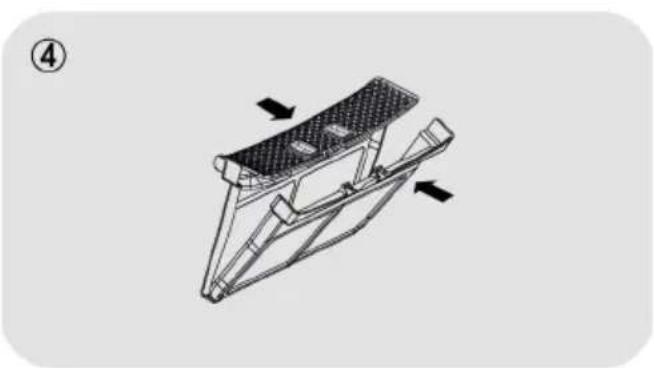

1. Close both filters by repositioning them inside the door, making sure they are positioned correctly in place.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a structural frame with directional arrows indicating movement (no text or symbols)

Illustration of a hand inserting cables into a washing machine (no text or symbols)

Illustration of a hand inserting cables into a device (no text or symbols visible)

WARNING

Before reinserting the filters, make sure there is no lint residue inside the compartment; if not, remove it with a vacuum cleaner.

! WARNING

Clean the lint filters before every cycle.

To clean the sponge filter

1. Remove the kickplate.
2. Turn the handle anti-clockwise and pull out the front cover.

Diagram showing hands holding a rectangular object with curved arrows indicating rotation (no text or symbols)

Diagram showing a device with a circular component and directional arrows, labeled with number 2 (no text or symbols on the diagram itself)

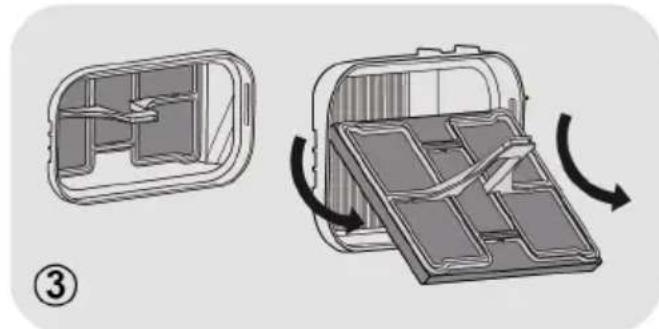

1. Gently remove the sponge filter frame.

Diagram showing two views of a battery pack with internal compartments and internal structure, labeled with number ③ (no text or symbols on the diagram itself)

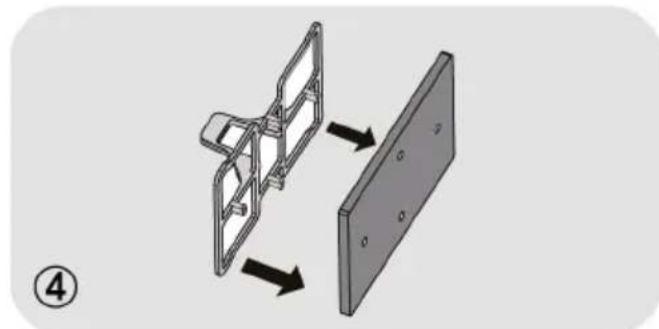

1. Gently remove the sponge from the frame.

Diagram showing a mechanical assembly with two components and directional arrows indicating motion (no text or symbols)

1. Clean the sponge by removing any dust or fluff. It is possible to use a vacuum cleaner. Refit the sponge carefully on the frame.

Diagram showing two mechanical components with arrows indicating movement, no text or symbols present

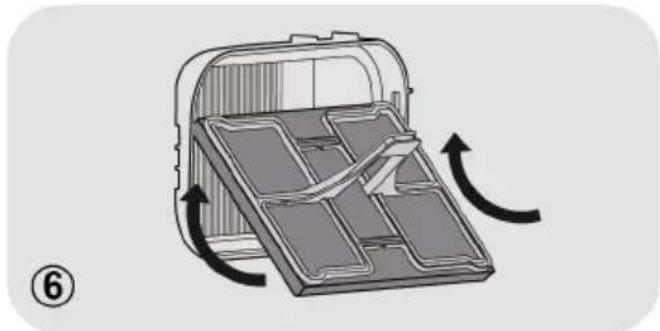

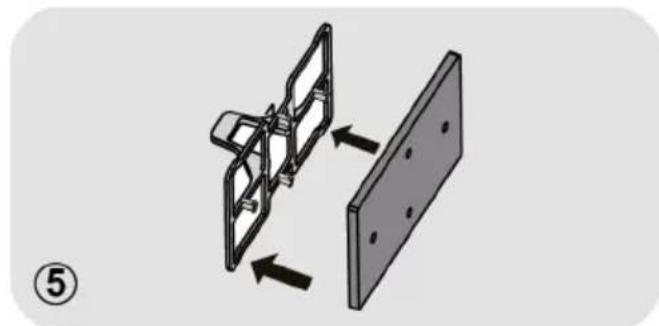

1. Refit the sponge filter frame ensuring that it is in the correct position.

Diagram of a battery pack with internal compartments and directional arrows indicating motion (no text or symbols)

1. Refit the front cover ensuring it is in the right position. Turn the handle clockwise to lock the front cover.
2. Refit the kickplate.

Diagram showing a device with a circular button labeled '1' and an arrow pointing to it, marked with circled number 7.

Illustration of hands holding a rectangular object with an arrow indicating rotation (no text or symbols)

WARNING

Do not touch the fins behind the sponge filter frame with hands in order to avoid injury.

WARNING

Clean the sponge filter every six months or when the filters cleaning indicator light blinks.

5. PRACTICAL HINTS

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly.
• Remove all items packed inside drum.
  ● Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Before each use

Ensure that there are no foreign objects inside the drum and, if found, remove them.

Clothes preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item. Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do not tumble dry

Silk, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings.

WARNING

Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Energy saving

- Loading the machine to the maximum capacity indicated in the programme table for the respective programmes will contribute to energy SAVING.

- Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

- Check that the filters are clean before every drying cycle.

NEVER

- Put dripping wet items into the tumble dryer, this may damage the appliance.

Sort the load as follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

● By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

● By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

WARNING

Do not overload the drum, large items when wet exceed the maximum admissible clothes load (for example: sleeping bags, duvets).

Cleaning the dryer

● Clean the lint filters after every drying cycle.

- In models equipped with a water collection tray, the tray should be emptied after every drying cycle.

● After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.

● Wipe the outside of the machine and the door with a soft cloth.

● DO NOT use abrasive pads or cleaning agents.

● To prevent the door sticking or the buildup of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING

The drum, door and load may be very hot.

WARNING

Always switch off and remove the plug from the electricity supply before cleaning this appliance.

WARNING

For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

6. REMOTE CONTROL (hOn)

This appliance is equipped with Wi-Fi technology for remote control via the hOn App.

WARNING

Follow the safety precautions indicated in this manual even when using the appliance through the App. Adhering to these instructions is essential for safe use.

Requirements

• Wi-Fi Network: a router compatible with 802.11b/g/n and 2.4 GHz band is required. Networks operating at 5 GHz and public networks are not supported. The network name (SSID) must be between 1 and 31 characters, and the password between 8 and 64 characters. Encryption options include open, WPA-PSK, and WPA2-PSK.
• Compatible devices: the App is available for Android, iOS, and Huawei devices, on both tablets and smartphones.
• Positioning: install the appliance in an area with a strong Wi-Fi signal.

Download and installation of the hOn App

Download the hOn App on your device by scanning the following QR code or visiting: go.haier-europe.com/download-app

Download the hOn App

Registration

Creating a profile (sign up) is only required on first use or if the account has been deleted/disabled. For future uses, simply log in with your mail and password. Check the DEMO mode in the App to explore the Wi-Fi features.

Appliance pairing

The home network must be set to 2.4 GHz; networks operating at 5 GHz are not supported. Ensure your smartphone is connected to the same 2.4 GHz Wi-Fi network you want to use to configure the appliance.

1. Open the hOn App, create a new profile (or log in if you already have one).
2. Tap "Add Appliance" and follow the on-screen instructions on your smartphone to complete the setup.

Remote Control activation

1. Ensure the router is powered on and connected to the Internet.
2. Load the laundry and close the door.
3. Turn on the appliance.
4. Short press the Remote Control button
5. Start the cycle through the App.
6. Remote Control can also be activated during the cycle by short pressing the Remote Control button.

Remote Control Expiration

You can send a command from the App up to 24 hours after Remote Control is enabled.

Remote Control deactivation

• During a cycle, you can deactivate Remote Control by short pressing the Remote Control button; the cycle will continue. You can view the cycle status in the App but won't be able to send commands (e.g., stop/pause).
• To resume Remote Control through the App, make sure the door is closed, then short press the Remote Control button again.

End of cycle with Remote Control

• At the end of the cycle, Remote Control is deactivated.
  ● After 2 minutes, the appliance will automatically power off.

Turning Off Wi-Fi Module and Clearing Network Credentials

To delete the saved Wi-Fi network information and turn off the Wi-Fi module:

1. Power on the appliance.

2. Without starting any cycle, press and hold the Remote Control button 📤 for 5 seconds until reset message appears.

3. Press the "Delay Start" button to confirm.

4. The configuration information will be deleted. Select a program or turn off the appliance to exit.

5. To reconfigure, remove the appliance from the hOn App and start a new pairing procedure.

Use this procedure only if you intend to sell the appliance.

7. QUICK USER GUIDE

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.
2. Gently close the door pushing it slowly until you hear the door 'click' shut.
3. Turn ON the appliance by pressing the On/Off button.
4. Select the desired drying programme by turning the programme selector.
5. Press the programme start button. The dryer will start automatically.
6. If the door is opened during the programme to check the laundry, it is necessary to press programme start to recommence drying after the door has been closed.
7. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.
8. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

Do not open the door during the automatic programmes in order to obtain a proper drying.

Technical data

Power input / Power current fuse amp/

Supply voltage: see rating plate.

Maximum load: see energy label.

Energy class: see energy label.

8. CONTROLS AND PROGRAMMES

B D A E C

A On/Off button
B Programme selector (knob)
C Start/Pause button
D Display
E Function buttons

WARNING

Don't touch the buttons while inserting the plug because the machines calibrates the systems during the first seconds: touching the buttons, the machine couldn't work property. In this case, remove the plug and repeat the operation.

On/Off button

To switch on or switch off the appliance, please press this button for about 2 seconds (remember to unplug the appliance when turning off the machine).

Programme selector

After switching on the appliance, turn the programme selector (in both directions) to select any of the 16 available programmes. The name and duration of the chosen programme will be shown on the display screen.

First starting

- Language setting

● After connecting the machine to the network and turning it on, rotate the programme selector to see on the display the available languages. English is always the first language shown.
● After selecting the desired language, press the Start/Pause button to confirm the choice.

- Voice ON/Voice OFF setting

• Rotate the programme selector to activate (Voice On) or deactivate (Voice Off) the sounds of the appliance.
• Confirm the choice by pressing the Start/Pause button.

Start/Pause button >||

Close the porthole BEFORE pressing the Start/Pause button.

• To start the selected cycle with the preset parameters, press Start/Pause. When the programme is running, the display will show the time to elapse.
• Moreover, if you want to modify the chosen programme, press the desired options buttons, modify the default parameters and then press the Start/Pause button to start the cycle.

Only the options compatible with the set programme can be selected.

● After Start/Pause button pressing, wait a few seconds for the programme to start running.

PROGRAMME DURATION

• When a programme is selected the display automatically shows the cycle duration, which can vary depending on the options selected.
• Once the programme has started you will be kept informed constantly of the time remaining to the end of the drying cycle.
  ● The appliance calculates the time to the end of the selected programme based upon a standard loading, during the cycle, the appliance corrects the time to the humidity level of the load.

PROGRAMME END

"End" will appear in the display and it will stay fix for about 5 minutes at the end of the programme. After that the machine will turn off automatically.

PAUSING THE MACHINE

• Keep the Start/Pause button pressed for about 1 second (the display will show alternatively the writing "Pause" and the running cycle screen).
• Press the Start/Pause button again to re-start the programme from the point it had been paused at.

CANCELLING THE SET PROGRAMME

To cancel the programme you should switch off the appliance.

If there is a break in the power supply whilst the machine is operating, the running programme will be cancelled, and it will be necessary to switch on the machine and reset the desired programme.

Display

The display shows the programme name, the remaining time for drying, the postponed time in case of delayed start selection, any programme settings selected via the function buttons, the pause and the end information, the child lock activation icon and the alarm information.

In the setting selection the display shows the languages available, the sounds activation/deactivation and the return icon.

Function buttons

Setting button

Press this button to enter the setting screen that is displayed after about 2 seconds. It is possible to choose the desired language and to activate or deactivate the sound (Voice On/Voice Off).

- Change the language

• If you want to change the setting language, after pressing the Setting button, rotate the programme selector to choose the language icon 📂 and then press the Start/Pause button.

- Rotate the programme selector again to choose the desired language and then press the Start/Pause button to confirm.

Press the Setting button (or select the "Return" icon and then the Start/Pause button) to return to the main screen.

- Change the Voice ON/Voice OFF setting

• If you want to change the Voice On/Voice Off setting, after pressing the Setting button, rotate the programme selector to choose the Voice On/Voice Off icon and then press the Start/Pause button.

- Rotate the programme selector again to activate (Voice On) or deactivate (Voice Off) the sounds and then press the Start/Pause button to confirm.

Press the Setting button (or select the "Return" icon and then the Start/Pause button) to return to the main screen.

The Voice Off option disables all machine sounds, including the one that signals the incompatibility of an option with a programme.

Remote control button

- First configuration:

To start the pairing procedure, please follow the App instructions.

- Daily usage:

Shortly press this button to activate/deactivate the Remote Control of the appliance via the hOn App.

For more information, please see the dedicated "REMOTE CONTROL (hOn)" chapter.

The following function buttons enable additional options in the selected programme before it starts.

If a button allows multiple options, the desired one can be selected by pressing the button multiple times in sequence.

Delay Start button

- Press this button to access the delayed start selection.

• By turning the programme selector, it is possible to delay the start of the programme from 30 minutes to 24 hours in 30 minutes intervals.
• Press the Start/Pause button to confirm the selected delay time that will be shown on the display.
• Press the Start/Pause button again to start the countdown. The time shown decreases minute by minute. When the countdown has finished, the programme will start automatically.

If you want to cancel the delayed start during the countdown, switch off the machine.

Opening of the porthole with delayed start set, after re-closing the porthole, the countdown will not be stopped.

Drying level button

• This button allows to set the desired dryness level editable option up to 3 minutes after the starting of the cycle.
• According to the chosen drying level, the display will show the updated time remaining.
  ● Each pressure of the button identifies one of the following drying level:

L1 = Ready to Iron: it leaves the garments slightly wet to facilitate ironing.
L2 = Dry Hanger: to get garment ready to be hang.
L3 = Dry wardrobe: for laundry that can be directly stored.
L4 = Extra-dry: to get completely dry garments, ideal for full load.
- The drying level and the related time remaining are displayed for about 2 seconds each time the dry level button is pressed, after which it returns to the programme selection with the remaining time updated.

In case of incompatibility of this function with the chosen programme, when the drying level button is pressed, there will be an audible feedback and the display will not change.

Time selection button

• With this button it's possible to modify a cycle from automatic to programmed, up to 3 minutes after the start of the cycle.
• The progressive pressure of this button increases the time remaining of the selected cycle in 10-minute intervals. After this selection, to reset the automatic drying functioning, is necessary to switch off the dryer.

In case of incompatibility of this function with the chosen programme, when the button is pressed, there will be an audible feedback and the display will not change.

Easy iron button

• This option automatically sets the drying level to "Ready to Iron". Moreover this option activate an anti-creases movement of the drum pre cycle in case of activation of the delay and at the end of drying cycle. It is activated every 10 minutes, up to 6 hours after the end of the drying cycle.
  ● To stop the movements is necessary to switch off the dryer.
• Useful when it's not possible to remove immediately the laundry.

When the function is available in the selected programme, the related indicator will illuminate at low brightness; once selected, the light will become bright. If the button is pressed when the function is not available, the indicator will blink 3 times and then switch off. There will be an audible feedback, and the display will not change.

Memo button

This button allows you to store the options set on a cycle.

- Memory:

select the programme and the desired options, then press the button Memo for 3 seconds (before starting the cycle). The writing Memo appears for 2 seconds into the display and the options connected to the cycle selected will be set.

- Recall:

after the selection of the cycle with the settings pre-stored, press the Memo button to recall the stored options.

The delay start function can't be memorized.

If no parameters have been stored on the selected cycle, when the Memo button is pressed, there will be an audible feedback and the display will not change.

Child lock

• After starting the cycle, pressing simultaneously the buttons 📄 and ♥ for about 5 seconds, the machine allows you to lock the keys. In this way, you can avoid making accidental or unwanted changes if a button on the display is pressed accidentally during a cycle.

- The key lock can be simply cancelled by pressing the two buttons simultaneously again.

- In case of opening of porthole with activated Child lock, the machine pauses, but the lock is kept: to restart the cycle, you must remove the lock and press Start/Pause again.

● The Child lock can be modified at any time of the cycle.

Indicator lights

Easy iron indicator light

It lights up at low brightness when the related function is available and at high brightness when the function is selected.

Water tank indicator light

It lights up when it's necessary to empty the condensate water tank.

Empty the water tank after each drying cycle.

Filters cleaning indicator light

It lights up to remind to clean the filters before using the machine: the indicator light illuminates in fixed mode to signal the need of cleaning the lint filters and in blinking mode to signal the need of cleaning the sponge filter.

Wi-Fi indicator light

Remote Control indicator light

These indicator lights show the status of the Wi-Fi connection and Remote Control according to the following table:

		STATUS
OFF OFF	NOT paired
ON OFF		Remote Control off
OFF ON		Remote Control on
Slow flashing	ON or OFF	NO Wi-Fi connection
Fast flashing	OFF	Pairing

Drying Guide

The Eco programme is suitable to dry wet cotton laundry and is the most efficient in terms of energy consumption for drying these fabrics.

Maximum Drying Weight
Eco	Max. capacity declared
Synthetics Max. 4 kg

Information for Test Laboratory

EN 61121 - Programme To Use

• STANDARD DRY COTTON Eco
• IRON DRY COTTON (Whites - L1 = Ready to Iron)
• EASY-CARE TEXTILE (Synthetics - L2 = Dry Hanger)

WARNING

Clean the lint filters before every cycle.

WARNING

Clean the sponge filter every six months or when the filters cleaning indicator light blinks.

WARNING

The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

WARNING

Drain the condensed water externally, connecting the drain hose (according to the instruction in the dedicate chapter) when drying a full load using the Eco programme.

Table of programmes

PROGRAMME	Selectable Options					[3HT]	[23K] [70C]
Eco***						load*	###
Whites						lo [2KZC]*	###
Darks & coloured						†
Synthetics						†
XXL						HX4C] Max 22
Shirts						*
Jeans		[806D]				†
Woolmark						70'	[222Z]
Warm Dry Pro / Gentle Dry Pro						†
Save & dry						Hal ad	[2578]
Small						†
Relax			[KBWG]	[3TBW]		12'
Refresh						20'
Special 30'						30'
Special 45'						15'
Genius						59'	[DSAX]

* The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.
** 8/9/10/11 kg depending on model (see rating plate).
*** EN 61121 test program setting, we recommend that you drain the condensed water externally through the drain hose when drying a full load using the Eco program (Dry Hanger). This will avoid to empty the water tank during the programme.

Description of programmes

To dry different types of fabrics and colors, the tumble dryer has specific programs to meet every need of drying (see table of programmes).

Eco

The Eco programme (Dry Hanger) is suitable to dry wet cotton laundry and is used to assess the compliance with the EU Ecodesign legislation (environmentally friendly products design). This programme is the most efficient in terms of energy consumption for drying wet cotton laundry.

Whites

The right cycle to dry cottons, sponges and towels.

Darks & coloured

A delicate and specific cycle to dry dark and coloured cotton or synthetics garments.

Synthetics

To dry synthetic fabrics that need an accurate and specific treatment.

XXL

Specific cycle dedicated to dry large linens e.g. curtains sheets and tablecloths. Thanks to a specifics movement of the drum the linens will be dry minimizing tangles and folds.

Shirts

This specifics cycle has been conceived to dry shirts minimizing tangles and folds thanks specific movements of the drum. It's recommended to take out the linens immediately after drying cycle.

Jeans

Dedicated to dry uniformly fabrics like jeans or denim. It's recommended flip over the garments before drying.

Woolmark

Woolen clothes: the program can be used to dry up to 1 kg of laundry (around 3 jumpers). It is recommended to reverse all clothes before drying. Timing can change due to dimensions and thickness of load and to spinning chosen during washing. At the end of the cycle, clothes are ready to be worn, but if they are heavier, edges can be a bit wet: it is suggested to dry them naturally. It is recommended to unload clothes at the very end of the cycle.

Attention: felting process of wool is irreversible; please dry exclusively with symbol "ok tumble" on the garment label. This programme is not indicated for acrylic clothes.

WOOLMARK WOOL CARE

The wool drying cycle of this machine has been tested and approved by "The Woolmark Company" for the drying of machine washable wool products provided that the products are washed and dried according to the instructions on the garment label and those issued by the manufacturer of this machine. M1530.

The Woolmark symbol is a Certification mark in many countries.

Warm Dry Pro / Gentle Dry Pro

This cycle is designed to gently dry the most delicate garments. With low heat, this programme protects sensitive fabrics, preserving fiber quality and ensuring even drying. Perfect for small loads, it provides careful and safe care for the most delicate clothing. The programme can automatically detect when the laundry is dry, ensuring the utmost care for fabrics.

It is recommended to wait at least 15 minutes after the end of a previous cycle before starting this programme again. If an error appears on the display, it is advised to wait an additional 10 minutes.

Save & dry

Half load program, ideal for cotton garments: designed to provide optimal drying results with reduced energy consumption, offering a highly efficient performance.

Small

Dedicated to get an even drying for extremely small loads.

Relax

This is a warm cycle that in only 12 minutes helps to relax folds and creases.

Refresh

The perfect cycle to remove the smells from the linens smoothing creases.

Special 30'

Timed rapid program for small load that assure maximum saving in time and energy. It's recommended to spin at high speed before drying.

Special 45'

Timed rapid program for daily clothes. It's recommended to spin at high speed before drying.

Genius

This rapid programme for medium loads ensures the best drying performance. It is a programme that can detect humidity inside the drum and automatically adjust the time required. The maximum duration is 59 minutes.

9. ACCESSORIES

Active Scent System

The tumble dryer is equipped with a dedicated container specially designed to store CARE+PROTECT's solid scents, so that they can release a fragrance on your garments during the drying cycles. The compartment is located inside the envelope containing the documentation related to the machine.

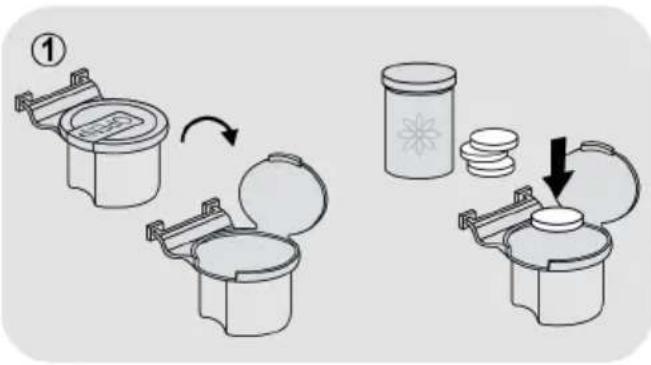

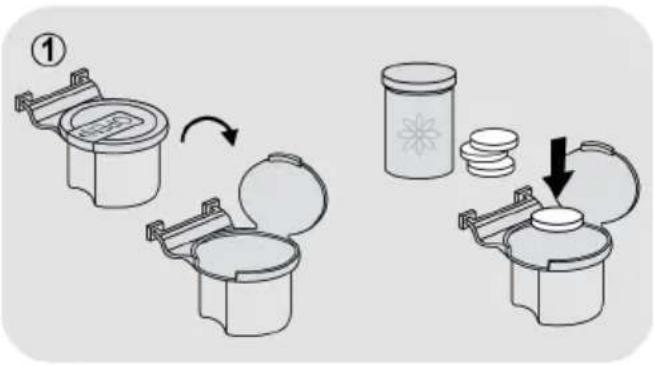

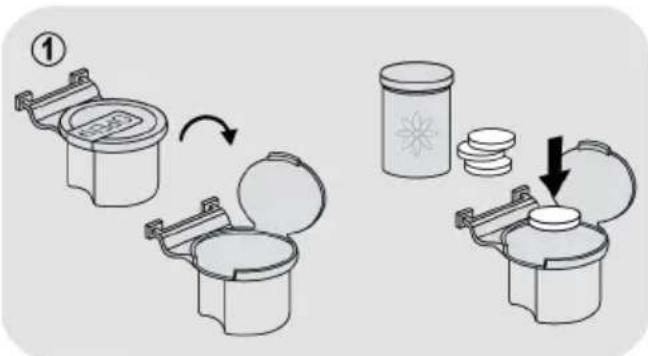

1. Open the container, insert the solid perfume horizontally inside, and close it (Figure 1).
2. Open the tumble dryer door, extract the filter and open it (Figure 2).

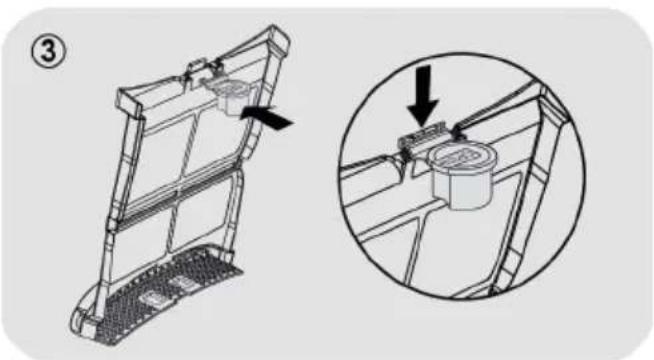

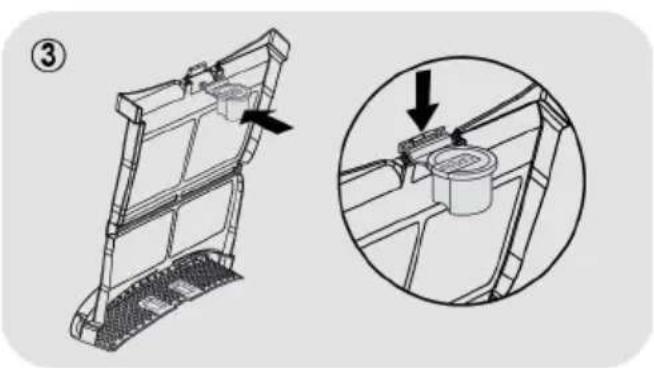

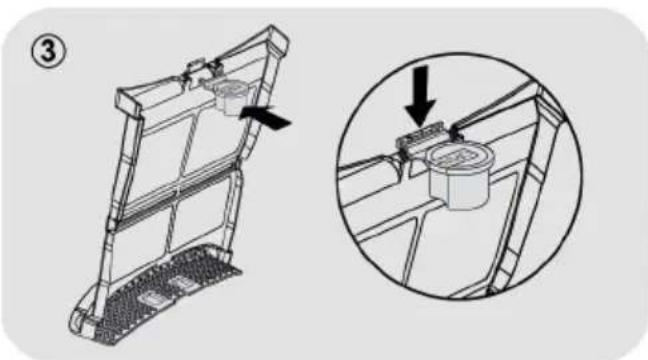

3. Insert the container as shown in Figure 3.
4. Close the filter and place it back inside the tumble dryer (Figures 4-5).

Active Scent System can be used with all available drying cycles. Once the fragrance is used up, remove the solid perfume from the container and dispose of it as directed on its packaging. The solid perfume can be purchased through the following link: https://careplusprotect.com/country-select/.

Diagram illustrating a step-by-step cooking process with labeled steps and a magnified view of the container.

Mechanical device diagram showing a folding frame with directional arrows indicating motion (no text or symbols)

Technical diagram showing a structural assembly with an inset close-up of a component (no text or symbols present)

Technical line drawing of a mechanical device with directional arrows indicating movement (no text or symbols)

Illustration of a hand inserting cable into a socket with a black arrow indicating direction (no text or symbols)

10. TROUBLESHOOTING AND WARRANTY

If you believe the machine is not working correctly, consult the table below.

Indicator light on/Error shown	Possible causes Solutions
Water tank indicator light on	Water tank full. Empty the tank.
Filters cleaning indicator light on	Filters clogged.
Error 5	Thermal sensor error.
Error 10	Abnormal communication error.
Error 12	Drain pump error.
Error 13	Compressor temperature sensor error.
Error 14	Rear temperature sensor error.
Error 15	EEPROM error.
Error 22	Relay error.

What might be the cause of...

Defects you can remedy yourself

Before calling Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

● Have you selected the correct drying time/programme?
● Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
- Do the lint filters need cleaning?
- Does the sponge filter need cleaning?
● Is the dryer overloaded?

The dryer does not operate...

- Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.

- Is the plug properly connected to the mains supply?

- Is there a power failure?

● Has the fuse blown?

● Is the door fully closed?

- Is the dryer switched on, both at the mains supply and at the machine?

● Has the drying time or the programme been selected?
● Has the machine been switched on again after opening the door?
- Has the machine stopped working because the water container is full and must be emptied?

The dryer is noisy...

- Switch off the dryer and contact Service for advice.

The filters cleaning indicator light is on...

- Do the lint filters or the sponge filter need cleaning?

The water container indicator light is on...

- Does the water container need emptying?

Customer Service

Should there still be a problem with your dryer after completing all the recommended checks, please call Service for advice. They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

● Is found to be in working order.
- Has not been installed in accordance with the installation instructions.
● Has been used incorrectly.

Except for the list of spare parts available on our website, under no circumstances should you repair or attempt to repair the appliance yourself or have the appliance repaired by inexperienced and / or unqualified persons. Repairs carried out by inexperienced and / or unqualified persons can cause injury or serious malfunction of the equipment and damage to property. It is advisable to contact our Authorized Technical Assistance Centres.

We recommend that you always use original spare parts, which can be obtained from our customer service for a period of at least 10 years from the moment the appliance is put into circulation within the European Economic Area.

Warranty

The product is guaranteed under the terms and conditions stated on the certificate included with the product. The certificate has to be stored so as to be shown to the Authorized Customer Service Centre in case of need. You can also check the warranty conditions on our web site. To obtain assistance, please fill in the form on-line or contact us at the number indicated on the support page of our web site.

Our service contacts (telephone numbers and web addresses) detailed by country are available on the warranty certificate included with the product.

WARNING

The manufacturer cannot be held responsible for any damage to things and people and / or for safety issues resulting from repairs not carried out by an Authorized Technical Assistance Centre or by a service provider authorised by the manufacturer in accordance with company guidelines relating to the repair and maintenance of its products. Any damage caused to the product by unauthorized personnel during a repair attempt will not be covered by the conventional warranty.

From 1 March 2021, energy and environmental information relating to the energy labelling of household appliances and the specifications for their eco-design are visible in Europe in the product database (EPREL) at the following link https://eprel.ec.europa.eu/.

It will be asked to enter the model identifier that can be found on the rating label applied to the appliance (door area).

Alternatively, you can directly access to the model information through the QR code located on the energy label.

By placing the CE mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

The manufacturer declines all responsibility for any printing errors in the booklet included with this product. Moreover, it also reserves the right to make any changes deemed useful to its products without changing their essential characteristics.

Simple line drawing of a device with a cross mark and circular body, no text or symbols present.

Simple line drawing of a washing machine with a checkmark and circular dial (no text or symbols)

Illustration of a hand holding a small mechanical component with an arrow indicating rotational motion (no text or symbols)

Warning sign depicting a flame symbol in yellow and black on white background

ATENCIÓN

Technical line drawing of a mechanical device showing internal components and structural details (no text or symbols)

Illustration of hands assembling or repairing a mechanical component (no text or symbols visible)

③

Technical diagram of a mechanical assembly with labeled components A, B, and C (no readable text or symbols)

④

Technical line drawing of a mechanical assembly inside a circular frame, showing internal components and a tool (no text or symbols)

⑤

Technical line drawing of a mechanical assembly inside a circular frame (no text or symbols)

⑥

3. DEPÓSITO DE AGUA

Diagram showing airflow or heat transfer process with numbered arrows and directional arrows indicating flow direction

Diagram showing a hand pouring liquid into a container with a blue droplet (no text or symbols)

Technical line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

ATENCIÓN

Two-step diagram showing hands connecting a device into a washing machine, labeled A and B (no text or symbols on the devices themselves)

1. Abra los filtros.

Two technical diagrams labeled A and B showing mechanical assembly with arrows indicating motion (no text or symbols beyond labels)

Illustration showing six different steps (A and B) of a mechanical device or tool, with hand positions indicating movement.

Technical diagram showing four steps of a device operation with labeled arrows and components

! ATENCIÓN

Illustration of hands holding a rectangular object with curved arrows indicating rotation (no text or symbols)

Diagram showing a device with a circular component and directional arrows, labeled with number 2 (no text or symbols on the diagram itself)

Diagram showing two views of a battery pack with internal compartments and internal structure, labeled with number ③ (no text or symbols on the diagram itself)

Mechanical assembly diagram showing a bracket and plate assembly with directional arrows (no text or symbols)

Diagram showing a mechanical assembly with two components and directional arrows, no text or symbols present

Diagram of a battery pack with internal compartments and directional arrows indicating motion (no text or symbols)

Illustration of hands holding a rectangular object with directional arrows indicating rotation (no text or symbols)

! ATENCIÓN

Download the hOn App

https://careplusprotect.com/country-select/.

Diagram illustrating a step-by-step assembly of toilet and container components, showing transformation from one to two states with directional arrows.

Mechanical device diagram showing a folding frame with directional arrows indicating motion (no text or symbols)

Technical diagram showing a structural assembly with an inset close-up of a component being inserted (no text or symbols present)

Technical diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Diagram showing a hand inserting cable into a socket with a directional arrow indicating force or direction.

10. DIAGNÓSTICO DE AVERÍAS Y GARANTÍA

Simple line drawing of a device with a cross symbol on its screen (no text or labels)

Simple line drawing of a washing machine with a black checkmark overlay (no text or symbols)

Illustration of a hand holding a small mechanical component with an arrow indicating rotational motion (no text or symbols)

Warning sign depicting a flame symbol in yellow and black on white background

ATTENTION

Technical line drawing of a mechanical device with internal components and close-up views (no text or symbols)

Illustration of hands installing or adjusting a mechanical component inside a frame structure (no text or symbols visible)

③

Technical diagram of a mechanical assembly with labeled components A, B, and C (no text or symbols beyond labels)

④

Technical line drawing of a mechanical assembly inside a housing, showing internal components and a close-up view (no text or symbols)

⑤

Technical line drawing of a mechanical assembly inside a circular frame (no text or symbols)

⑥

3. BAC D'EAU

Diagram showing airflow direction of a mechanical component with numbered arrows and directional arrows indicating motion.

1. Videz le bac d'eau.

Diagram showing a blue liquid being poured into a container with a tool, no text or symbols present

Technical line drawing of a mechanical component with a blue arrow indicating direction (no text or symbols)

ATTENTION

Two-step diagram showing hands inserting a cable into a washing machine (labeled A and B), no text or symbols present.

1. Ouvrez les filtres.

Two technical diagrams of a folding chair or folding frame, labeled A and B, showing internal movement with arrows indicating direction (no text or symbols beyond labels)

Illustration showing six different steps (A and B) of a mechanical device or tool, with hand positions indicating movement.

Technical diagram showing four steps of a device mounting or installation, labeled A and B with directional arrows indicating movement.

ATTENTION

Illustration of hands holding a rectangular object with curved arrows indicating rotation (no text or symbols)

Diagram showing a device with a circular component and directional arrows, labeled with number 2 (no text or symbols on the diagram itself)

Diagram showing two views of a battery pack with internal compartments and internal compartments, labeled with number ③ (no text or symbols on the diagram itself)

Diagram showing a mechanical assembly with two components and directional arrows indicating motion (no text or symbols)

Diagram showing two mechanical components with arrows indicating assembly or movement, no text or symbols present

Diagram of a battery pack with internal compartments and directional arrows indicating rotation (no text or symbols)

Diagram showing a device with a circular component and directional arrow, labeled with number 7

Illustration of hands holding a rectangular object with directional arrows indicating motion (no text or symbols)

! ATTENTION

Download the hOn App

ANNULATION DU PROGRAMME CONFIGURE

https://careplusprotect.com/country-select/.

Diagram illustrating a step-by-step assembly of toilet and container components with labeled parts and directional arrows.

Mechanical device diagram showing a folding frame with directional arrows indicating motion (no text or symbols)

Technical diagram showing a structural assembly with an arrow indicating direction, alongside a magnified inset of a container (no text or symbols present)

Technical diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

Diagram showing a hand inserting cable into a device with a directional arrow indicating force or direction.

10. DÉPANNAGE ET GARANTIES
