USER MANUAL MFE36MIR SABA

CONFORAMA France 80 Boulevard du Mandinet LOGNES 77432 Marne la Vallée Cedex 2 FRANCE

CISINE SABA

MFE36MIR

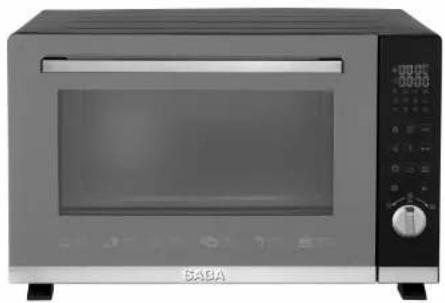

Exterior view of a modern SAGA microwave oven with control panel and display (no visible text or symbols)

CONFORAMA France

Labeled diagram of a microwave oven with numbered parts for identification and assembly reference.

Control panel interface with icons for battery, print, stop, and thermal management functions

ÉCRAN

Thank you for choosing SABA quality. This product has been developed by our team of professional and according to European regulations. In order to get the most out of your new appliance, we recommend that you read this instruction manual carefully and keep it for future reference.

TABLE OF CONTENTS

GBG

Safety instructions 23

Components 25

For the user's attention. 26

Safety Instructions 26

Technical Data 30

Save these instructions.... 30

Special cord set instructions 30

Preparing for use 31

Operating Instructions 32

Use maintenance instructions 37

Method of cleaning 38

To store 39

Disposal of old electrical appliances 39

Safety instructions

• Read these safety instructions carefully before using your appliance and keep them safe for future reference.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• This appliance is intended to be used in household and similar applications such as:
  —staff kitchen areas in shops, offices and other working environments,
• farm houses,

– by clients in hotels, motels and other residential type environments,

— bed and breakfast type environments.

- Accessible surfaces may become very hot when the appliance is in use.

• Surfaces are likely to become hot during use.

- The door or outer surface of the microwave may become hot while it is on.

• The back of the oven must be placed against a wall.

- Refer to the «METHOD OF CLEANING» section for detailed information on how to clean surfaces in contact with foodstuffs.

- Do not place the appliance close to or on top of a gas cooker or hob, and do not place on an oven or mini-oven.

- During use, the appliance will become hot. You must not touch the heating elements of the oven.

- CAUTION: This appliance and its accessible parts become hot during use.

- You must not touch the heating elements.

• Children younger than 8 years old should be kept away unless continuously supervised.

• The power socket must remain easily accessible.

- The appliance is to be connected to a socket-outlet having an earthing contact.

Components

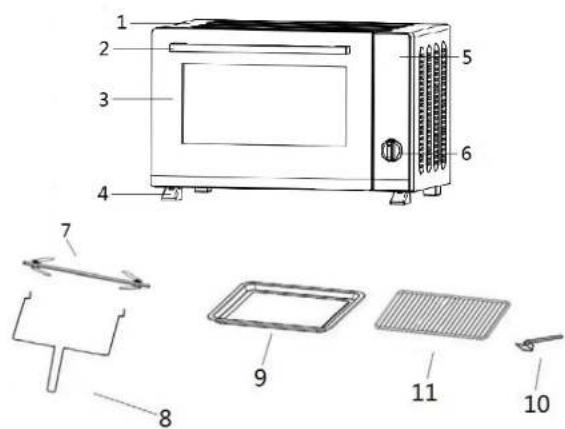

Labeled diagram of a microwave oven with numbered parts and exploded view showing internal components

1. Outer Housing

2. Door handle

3. Double glass door

4. Oven feet

5. Control panel

6. Switch knob

7. Rotisserie forks and shaft

8. Rotisserie handle

9. Bake tray

10. Tray handle

11. Wire rack

For the user's attention

Keep these instructions with your machine. If you sell this machine to another person second-hand, make sure you give the new owner these instructions. Please read these instructions before installing and using your machine. They are written for your safety and that of others.

Safety Instructions

Installation

1. T his machine is only intended for domestic use for cooking and reheating food. It may only be used in a covered, enclosed and heated environment such as a kitchen or any other room meeting the same specifications.
2. Before using this machine, place it on a flat, dry surface that is resistant to heat such as a kitchen worktop. Leave a space of at least 10 cm on each side of the machine to ensure good air circulation.
3. Keep the appliance and its cord out of reach of children less than 8 years.
4. T he appliances are not intended to be operated by means of an external timer or separate remote-control system.

5. N ever pull the lead but disconnect the machine by holding the plug.

6. If this machine is covered or in contact with a flammable material including curtains, drapes and similar items, there is a fire risk when it is working.

7. Children must not play with the machine.
8. The outer surface may get hot when the appliance is operating.
9. The appliance shall be placed against a wall.

Use

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
2. The accessible parts of this machine may become hot when it is operating.
3. Young children must be kept away or continually supervised.
4. Do not touch the hot surfaces of this machine when it is working.
5. Do not place anything on the machine when it is working.
6. Do not cover any part of the oven with aluminium foil. This may cause malfunctions and a fire risk.
7. Do not allow the power cable come into contact with hot surfaces.

8. Do not put any of the following materials in the oven: cardboard, plastic, paper or similar materials that are sensitive to heat.

9. Make sure that utensils and food that is too big is not put in the oven. Utensils and food must not come into contact with the heating elements.

10. This machine is not intended for any use other than cooking or reheating food. Drying of food, towels, reheating wet towels or any other similar use may cause a fire risk or injuries.
11. Handling accessories with a dish on them is dangerous is dangerous. In order to avoid the accessories (racks or trays) tipping forward and so that you are not injured, routinely remove the dish from the oven and always use the tongs when you put the accessories in or take them out.
12. The use of accessories not recommended by the manufacturer of the machine may cause danger or injuries.

Maintenance

• Cleaning and maintenance of the machine should not be carried out by children unless they are older than 8 and are supervised. Unplug the machine when you are not using it or before cleaning. Wait until the machine cools before putting objects in the oven or taking them out, or before cleaning it.
• d protect yourself from the risk of electric shock, never immerse any part of the oven in water or other liquids.
• D not clean the machine with an abrasive sponge or a metal scraper.

• Fie power cable cannot be replaced. If the cable is damaged the machine should be discarded. However, this product is guaranteed by your distributor. For more details please refer to the guarantee conditions provided by your distributor.

• flis machine is fitted with a toughened glass door which will not crack but will break into minuscule pieces which will not cut. Avoid scratching the glass or distorting the door frame. If the door has scratches or impacts on it, contact customer service before using the oven.

• The light must only be used for the oven lighting. It must not be used in light fittings to provide lighting for the premises.
• For cleaning surfaces in contact with food please refer to the «Cleaning Instructions» section.

Non-compliant use

• The manufacturer denies all responsibility in the event of non-compliant use.
• This machine is exclusively intended for domestic use in private dwellings.
• The use of this product in communal or professional premises such as rooms for breaks in offices or workshops, camping or hotel premises, does not represent compliant use as defined by the manufacturer.

- The surfaces of the machine are hot during use Always wear insulated oven gloves when you touch an oven, dishes or hot food, or when you insert or remove the racks or oven dishes.

Technical Data

Model MFE36MIR
Power supply 230V~ 50-60Hz
Power consume 1800W

Save these instructions

Caution: TO REDUCE THE RISK OF FIRE OR SHOCK, DO NOT OPERATE UNIT UNLESS THE REMOVABLE TOP TRAY IS IN PLACE.

Please read and keep these instructions handy. These instructions will help you to use your Electric Oven to its fullest so that you will achieve consistent, professional results.

Special cord set instructions

A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

Longer extension cords are available and may be used if care is exercised in their use.

1. The electric rating of the extension cord should be at least as great as the electrical rating of the appliance.

2. An extension cord with the power cord must be arranged so that it will not drape over the countertop or table top where they can be pulled on by children or tripped over accidentally.

3. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent, or a similarly qualified person in order to avoid a hazard.

Preparing for use

1. Unpack the unit.
2. Check the contents against the accessories list.
3. Select a suitable position for the unit on a flat surface close to a power socket but away from a heat producing appliance or areas where cooking grease or water may splatter onto it.
4. Plug into a suitable power outlet.

We recommend that you run it at MAX temperature for approximately 15 minutes to eliminate any packing oil that may remain after shipping.

Operating Instructions

CONTROL PANEL

Control panel interface with icons for power, battery, stop, and thermal management functions

DISPLAY WINDOW

Shows set time or temperature and oven function.

1. Pre this button the oven start to work.
2. Please this button can show different cooking operation on display window. This button will blink when in standby mode, press it to wake up the product.
3. Pre Stop is button for two seconds, the oven will stop working.
4. p his Dytomode, to start convection function; if pots w convection, then press this button again.
5. Pr ess this button the inner light will start work; then press again the inner light will stop work.

6. In DIY mode, press this button to start rotisserie function; if want stop rotisserie, then press this button again.

7. In DIY mode, press this button the upper heating element start work, if press it again, then upper heating element stop work.

8. In DIY mode, press this button the lower heating element start work, if press it again, then lower heating element stop work
9. Press this button to select preheat function.
10. In DIY mode, press this button, then rotate the switch can control the timer (1---480minutes)
11. In DIY mode, press this button, then rotate the switch can control the temperature (40---230°C)

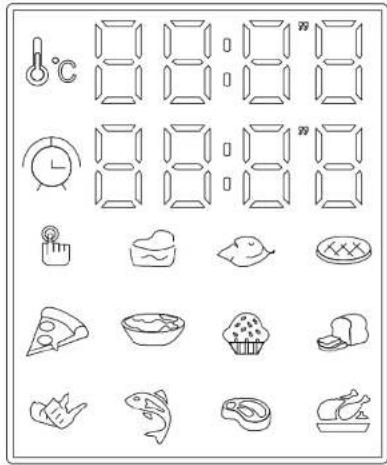

OPERATION INSTRUCTIONS (show on DISPLAY WINDOW)

8:00:00 8:00:00 8:00:00 8:00:00 8:00:00 8:00:00 8:00:00 8:00:00 8:00:00 8:00:00 8:00:00 8:00:00 8:00:00 8:05:00 8:15:00 8:25:00 8:35:00 8:45:00 8:55:00 8:65:00 8:75:00 8:85:00 8:95:00 9:05:00 9:15:00 9:25:00 9:35:00 9:45:00 9:55:00 9:65:00 9:75:00 9:85:00 9:95:00

	1. Temperature display, from 40°C-- -230°C
	2. Timer display, from 0---480 minutes
	3. It's DIY mode. Press this button oven start work at upper + lower heating, 20 mins timer and 220°C temperature. Can adjust the timer, temper ature, upper or lower heating according actual need.

	4. This function means keep warm function, if press this button, then oven will start work at 50 mins timer, 40°C temperature and upper + lower heating. Can't adjust temperature, timer, upper or lower heating.
	5. For potato function, press this button, then oven start work at upper + lower heating, 50 mins timer and 200°C temperature. Can't adjust temperature, timer, upper or lower heating.
	6. For cookie function, press this button, then oven start work at upper + lower heating, 15 mins timer and 160°C temperature. Can't adjust temperature, timer, upper or lower heating.
	7. For pizza function, press this button, then oven start work at upper + lower heating, 20 mins timer and 180°C temperature. Can't adjust temperature, timer, upper or lower heating.
	8. For tart function, press this button, then oven start work at upper + lower heating, 20 mins timer and 190°C temperature. Can't adjust temperature, timer, upper or lower heating.
	9. For cupcake function, press this button, then oven start work at upper + lower heating, 25 mins timer and 160°C temperature. Can't adjust temperature, timer, upper or lower heating.
	10. For bread function, press this button, then oven start work at upper + lower heating, 8 mins timer and 170°C temperature. Can't adjust temperature, timer, upper or lower heating.
	11. For wing function, press this button, then oven start work at upper + lower heating, 20 mins timer and 210°C temperature. Can't adjust temperature, timer, upper or lower heating.

	12. For fish function, press this button, then oven start work at upper + lower heating, 30 mins timer and 210°C temperature. Can't adjust temperature, timer, upper or lower heating.
	13. For meat function, press this button, then oven start work at upper + lower heating, 30 mins timer and 210°C temperature. Can't adjust temperature, timer, upper or lower heating.
	14. F or chicken function, press this button, then oven start work at upper + lower heating, 50 mins timer and 220°C temperature. Can't adjust temperature, timer, upper or lower heating.

Use maintenance instructions

• Always unplug oven and allow cooling before cleaning.
- If desired, wipe walls with damp sponge, cloth or nylon scouring pad, and mild detergent. Do not use steel, wool scouring pads or abrasive cleaners or scrape walls with metal utensils, as this may damage the interior.

• Wash all accessories in hot sudsy water or in a dishwasher. Wipe the door clean with a damp sponge and wipe dry with a paper or cloth towel. Clean exterior with damp sponge. Do not use an abrasive cleaner. As it may damage the exterior finish.
• Do not use an abrasive cleaner or steel wool scouring pad on drip pan, as it may damage the finish.
• Dry all parts and surfaces thoroughly prior to plugging oven in and using.
• This appliance requires little maintenance. It contains no user serviceable parts. Do not try to repair it yourself. Contact a qualified appliance repair technician if the product requires servicing.

Method of cleaning

1. Always unplug and allow to cool completely before cleaning or moving.
2. Clean the Food Pan, Wire Rack, Food Pan handle after each use.
3. Clean the interior of Electric Oven and all removable parts with a mild non-abrasive cleaner and a plastic scouring pad after each use. Rinse and dry thoroughly. Do not rub too hard as the interior surface of the oven can be scratched.
4. Clean the Glass Oven Door and Electric Oven exterior with glass cleaner or mild detergent and a damp cloth or plastic scouring pad. Do not use an abrasive cleaner or pad as they might scratch the finish.
5. Rinse and dry thoroughly with a clean cloth. Allow to dry before closing Glass Door.

To store

Unplug unit, allow to cool, and clean before storing. Store Electric Oven in its box in a clean, dry place. Never store appliance white it is hot or still plugged in. Never wrap cord tightly around the appliance. Do not put any stress on the cord where it enters the unit, as it could cause the cord to fray and break.

This instruction book is also available on our website: www.conforama.fr

Disposal of old electrical appliances

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.
