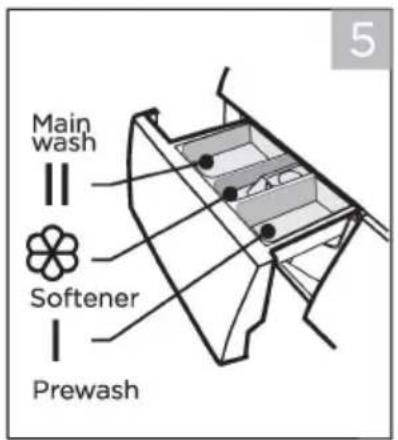

Lavage principal Adoucissant Prélavage

Simple diagram showing a black circle with two curved arrows pointing inward, surrounded by horizontal lines (no text or symbols)

Line drawing of a hand pressing a circular button (no text or symbols)

Hand pointing at three circular buttons on a plain background (no text or symbols)

FONCTIONNEMENT

Diagram illustrating the use of a key to switch from a box to a bag, with arrows indicating direction and numbered label '1' in corner.

Diagram illustrating three steps of hairpin application: opening, cutting, and pulling a cable with a spring.

Illustration of a fish inside a container with a handle, no text or symbols present

Technical diagram of a boat hull with labeled components and symbols

Avertir!

Line drawing of a washing machine with a hand cleaning it (no text or symbols)

Avertir!

Line drawing of a hand holding a curved object, possibly a tool or device (no text or symbols present)

ENTRETIEN

Diagram of a faucet being twisted with arrows indicating rotational motion (no text or symbols)

Line drawing of a hand holding a tool with a probe inserted (no text or symbols)

Illustration of a hand using a switch to adjust a device, showing a mechanical component with rotational arrows (no text or symbols)

1. Dévissez l'eau

Line drawing of a hand using a tool to adjust or install a component, with no visible text or symbols.

Technical diagram of a mechanical component with an arrow indicating direction, no visible text or symbols

Line drawing of a hand holding a walking stick above a tray with compartments (no text or symbols)

Line drawing of a hand using a tool to inspect or inspect a component, no text or symbols present

Diagram of a mechanical device with internal compartments and a directional arrow (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

Hand holding a compass tool with an arrow indicating rotation (no text or symbols)

Diagram showing a device with a circular component and three separate parts, labeled with number 3.

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

https://sav-client.conforama.fr

09 69 32 05 05

Thank you to have chosen the FAR quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

TABLE OF CONTENTS

SAFETY INSTRUCTIONS GB-3

INSTALLATION GB-12

OPERATION GB-17

MAINTENANCE GB-29

TECHNICAL SPECIFICATION GB-35

PRODUCT FICHE GB-36

DISPOSAL OF OLD ELECTRICAL APPLIANCES...... GB-38

Read all instructions and explanations before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the appliance is sold or passed on then ensure that the new owner always receives these operation instructions.

Explanation of symbols

Danger

This symbol indicates that there are dangers to the life and health of persons due to extremely fammable gas.

Warning of electrical voltage

This symbol indicates that there is a danger to life and health of persons due to voltage.

Warning

The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.

Caution

The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.

Notice

The signal word indicates important information (e.g. damage to property), but not danger.

Observe instructions

Notes with this symbol indicate that you should read the operating instructions carefully.

Observe instructions

This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

SAFETY INSTRUCTIONS

The appliance shall be connected to the water mains using newhose-sets supplied with the appliance, old hose-sets should not be reused.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Regarding the information pertaining to the installation, handling, servicing and disposal of the appliance, thanks to refer to the below paragraph of the manual.

Before putting your clothes or other articles in the washing machine, please carefully read the corresponding care label to know under what conditions and maximum temperature it can be washed.

INTENDED USE

The product is intended only for home use and for textiles in household amounts suitable for washing. This appliance is for indoor use only and not intended for built in use. Only use according to these instructions. The appliance is not intended for commercial use.

Any other use is considered as improper use. The producer is not responsible for any damage or injuries that may result of it.

• This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses;

- By clients in hotels, motels and other residential type environments;

- Bed and breakfast type environments;

- Areas for communal use in blocks of flats.

The capacity of this washing machine is 5 kg.

SAFETY INSTRUCTIONS

■ 1.1 Safety Instructions

Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty.

Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

- Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.

- Regarding the instructions for cleaning and maintenance, thanks to refer to the below paragraph of the manual.

Warning!

ELECTRIC SHOCK HAZARD

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.

- Risk of electric shock!

- The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised that they do not play with the appliance.

• Children 3 years and under shall be kept away from the appliance or continuously supervised.

• Animals and children may climb into the machine. Check the machine before every operation.

- Do not climb or sit on the appliance.

- All washing and additional substances are to be kept in a safe place out of the reach of children.

- Do not install the machine on a carpet floor.

• The obstruction of the openings by a carpet can damage the machine.

- Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts to corrode.

- Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air.

- The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washing machine.

- Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see “Maintenance - Cleaning of drain pump filter”) to avoid damages caused by frost.

- Never use flammable sprays or substances in the immediate proximity of the appliance.

INSTALLATION

• Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result.
• This appliance is equipped with a single inlet valve and can be connected to the cold water supply only.
• Mains plug must be accessible after installation.
• Before washing clothes for the first time, the product shall be operated once throughout all the procedures without any clothes inside. Before using the washing machine, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or heating devices.
  • The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.

ELECTRICAL CONNECTION

• Make sure the supply cable is not trapped by the machine, it can get damaged.
• Connect the product to a grounded outlet protected by a fuse complying with the values in the “Technical specifications” table. The grounding installation has to be made by a qualified electrician. Ensure that the machine is installed in accordance with the local

SAFETY INSTRUCTIONS

regulations.

- Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

Warning!

• Don't use multiple plugs or extension cords.
  • The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas around.
• Never pull out power plug with wet hands.
  •Always pull at the plug, not at the cable.
  •Always unplug the appliance if it is not being used.

WATER CONNECTIONS

• Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak, close the water tap and get it repaired.
• Do not use the appliance before the pipes and hoses are installed properly by qualified persons.
  • Glass door may become very hot during the operation. Keep children and pets far away from the machine while it is operating.
  The water inlet and outlet hoses have to be safely installed and remain undamaged.
• Otherwise, water leakage can occur.

SAFETY INSTRUCTIONS

- Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.

- Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing.

- Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.

- Remove all objects from pockets such as lighters and matches before use the appliance. Thoroughly rinse items that have been washed by hand.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.

- Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be washed in the machine.

- Fabric softeners or similar products should be used are recommended in their instructions. Never try to open the door forcefully.

SAFETY INSTRUCTIONS

• The door will unlock shortly after the end of a cycle.
- Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.
• Always unplug the appliance and close the
• water tap before cleaning and maintenance and after each use.
- Never pour water over the appliance for cleaning purpose. Risk of electric shock!
• Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- The producer will not be responsible for damages caused by the intervention of not authorized persons.

TRANSPORT

• Before Transport:

-Bolts shall be reinstalled to the machine by a specialized person;

-Accumulated water shall be drained out of the machine.

•This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door can not be used as a handle.

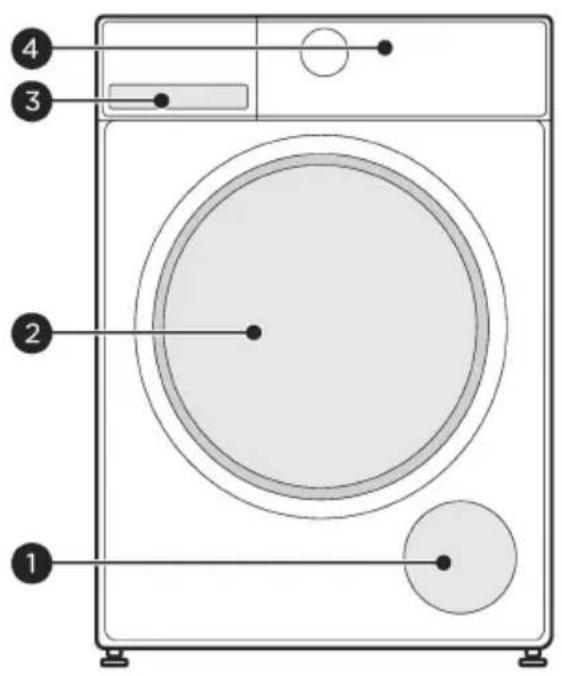

■ 2.1 Product Description

1 2 3 4

Technical diagram of a device casing with labeled parts 5 and 6, showing internal cable routing and mounting points.

1 Service flap
2 Door

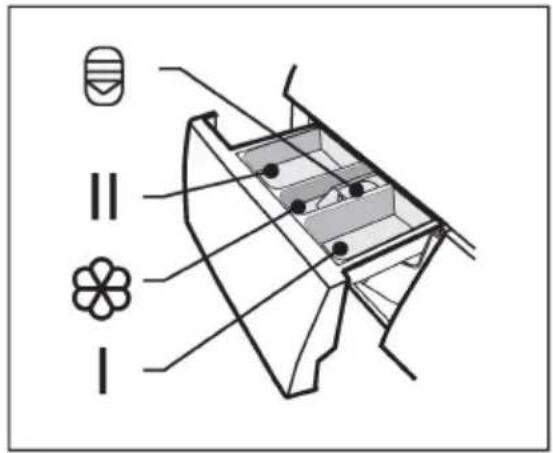

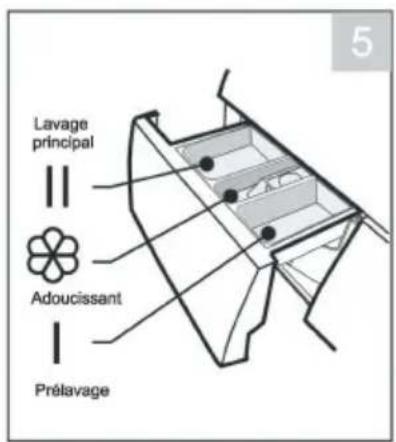

3 Detergent dispenser

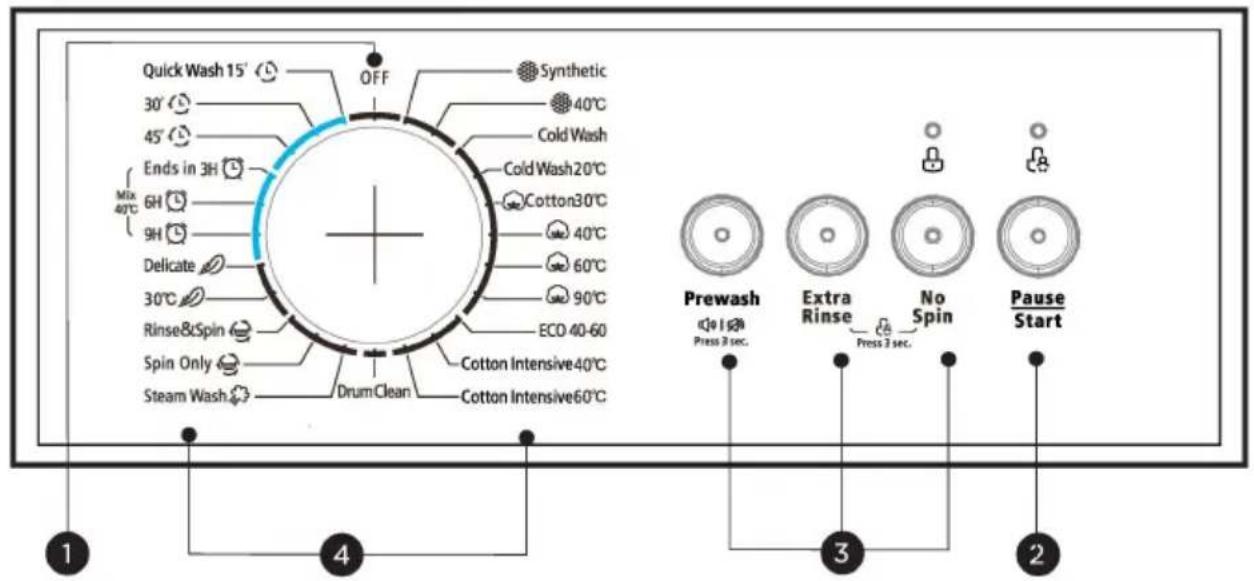

4 Control panel

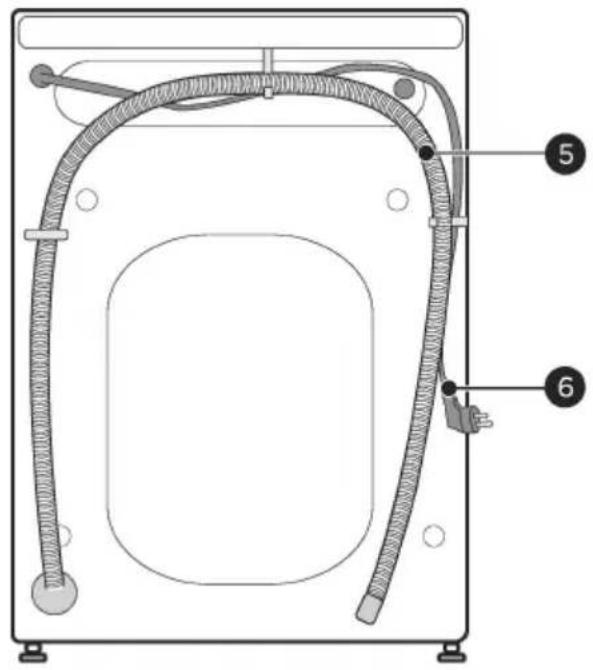

5 Drain hose
6 Power supply cord

Note!

- The product picture is for illustration only, please refer to real product as reference.

Accessories

4 x Cover caps

1 x Supply hose cold water

1 x Owner's manual

Acoustic sponge (optional)

2.2 Installation

Tools Needed If Installation By Yourself (not include)

Installation area

Warning!

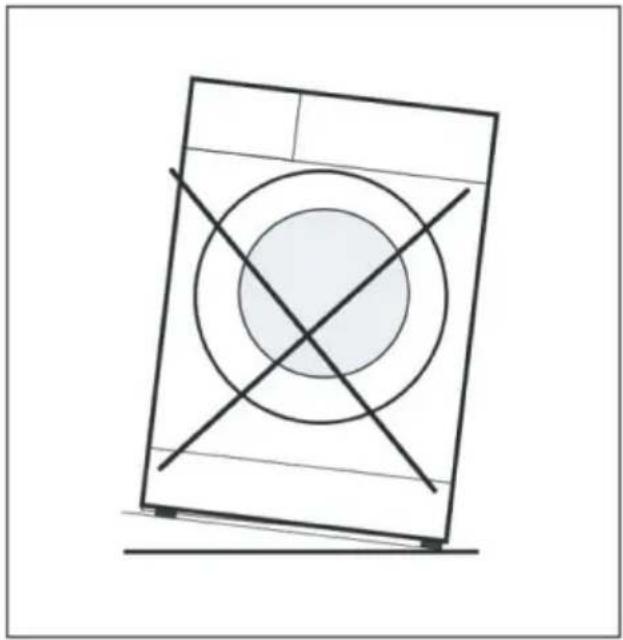

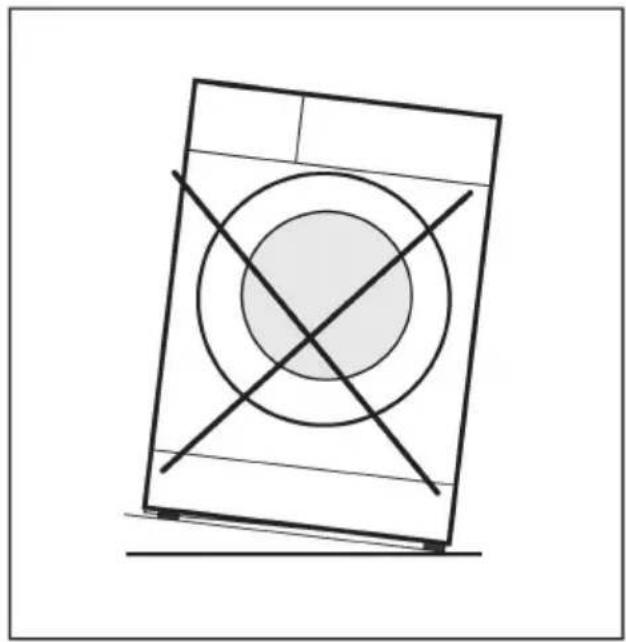

• Stability is important to prevent the product from wandering!
• Make sure the machine is standing leveled and stable.
• Make sure that the product does not stand onto the power cord.

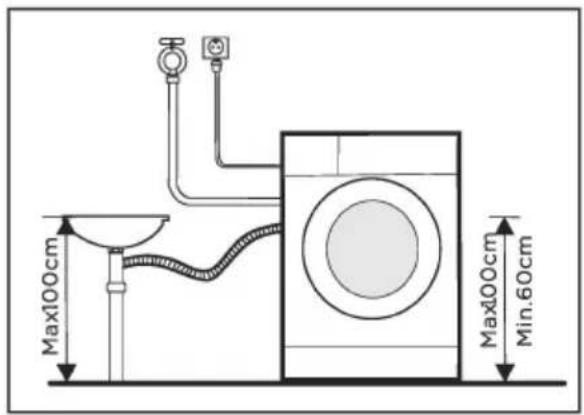

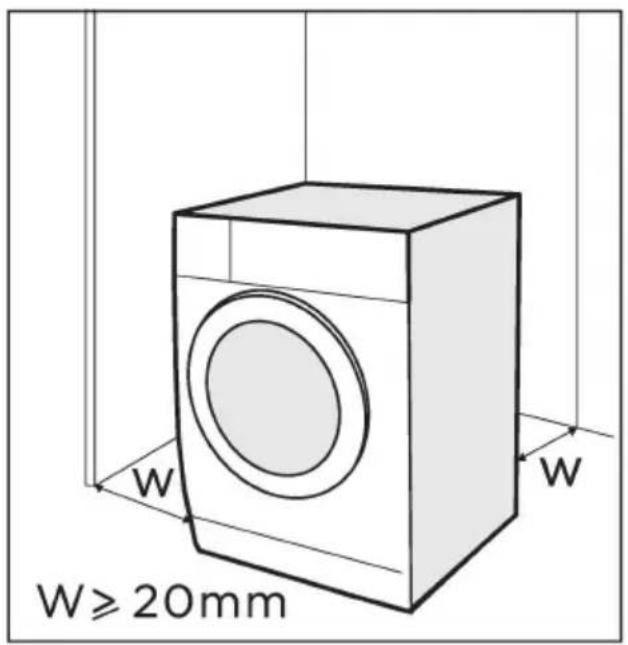

- Make sure to maintain the minimum distances from the walls as shown in the picture.

W W W≥ 20mm

Simple line drawing of a rectangular frame with concentric circles and intersecting diagonal lines (no text or symbols)

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface.
2. Avoid direct sunlight.
3. Sufficient ventilation.
   4.Room temperature is above 5°C.
4. Keep far away from the heat sources such as coal or gas burning appliances.

Unpacking the machine

Diagram showing a 3D box being inserted into a base, with an inset close-up of a mechanical component labeled 'a' (no text or symbols on the diagram itself)

Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.

• There is a risk of suffocation! Keep all packaging well away from children.

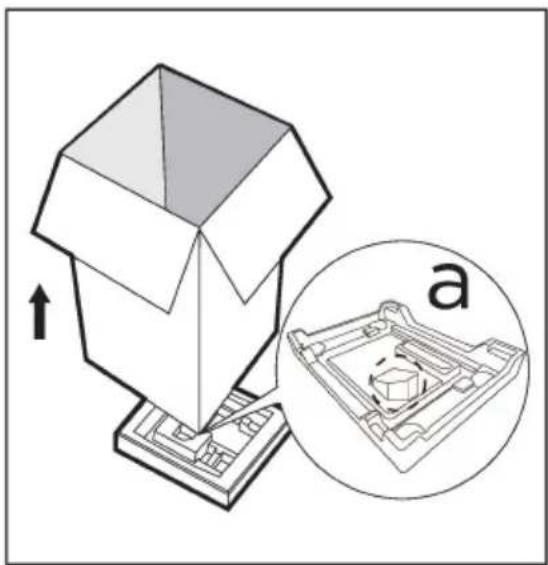

• Remove the cardboard box and styrofoam packing.

• Lift the washing machine and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually.
• Remove the tape securing the power supply cord and drain hose.
• Remove the inlet hose from the drum.

Remove transport bolts

! Warning!

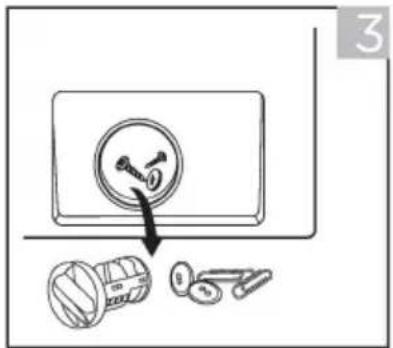

- You must remove the transport bolts from the backside before using the product.

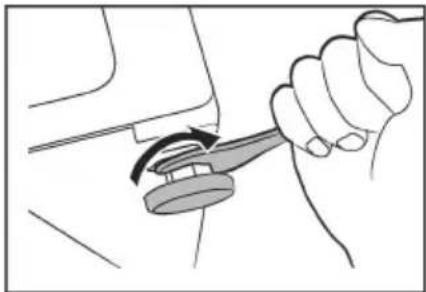

Illustration of a snail being handled with a wrench, showing rotational motion (no text or symbols)

Loosen the 4 transport bolts with a spanner.

Diagram showing a wrench turning a screw with an arrow indicating motion (no text or symbols)

Remove the bolts including the rubber parts and keep them for future use.

Simple line drawing with a curved arrow and a circle, no text or symbols present

Close the holes using the cover caps.

Levelling the machine

Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

Illustration of a hand using a tool to adjust or install a component, showing motion arrows (no text or symbols)

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level using a spirit level.

Connect the water supply hose

Warning!

To prevent leakage or water damage, follow the instructions in this chapter.

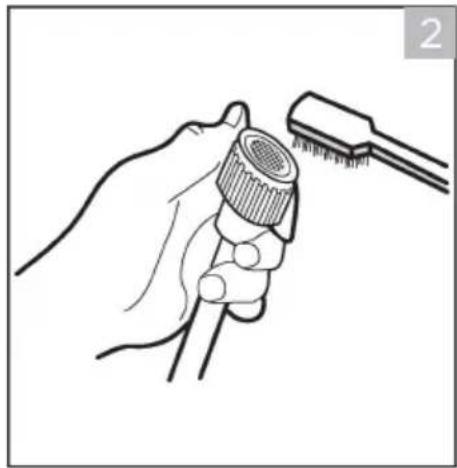

- Do not kink, crush or modify water inlet hose.

Illustration of a person using a camera to adjust equipment, with an inset showing the close-up of the device (no text or symbols present)

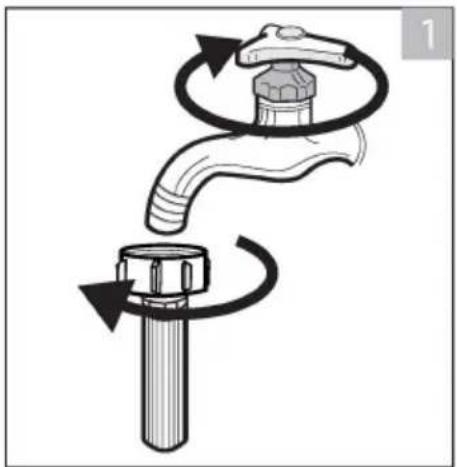

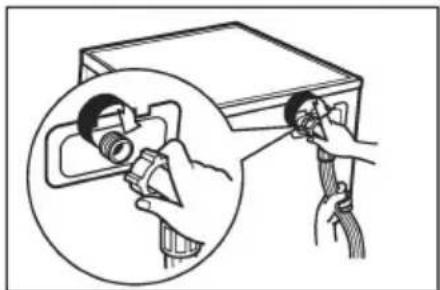

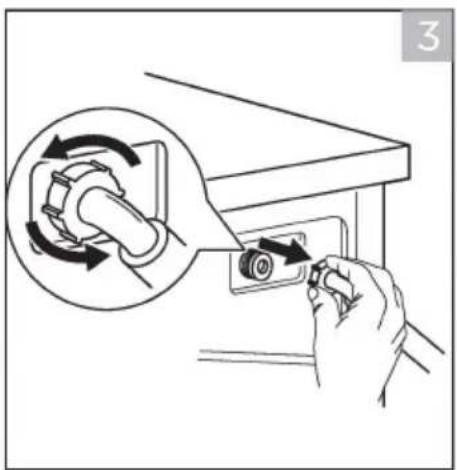

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

Diagram of a faucet and bolt assembly with directional arrows indicating movement (no text or labels)

Note!

- Connect manually, do not use tools. Check if the connections are tight.

Drain Hose

Warning!

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.
• It is not allowed to remove the buckle of drain pipe.

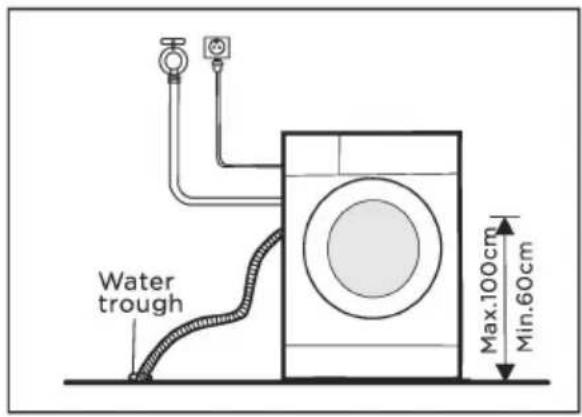

There are two ways to place the end of drain hose:

Water trough Max.100cm Min.60cm

1. Put it into the water trough.

Max100cm Max400cm Min.60cm

1. Connect it to the branch drain pipe of the trough.

Acoustic Sponge

Note!

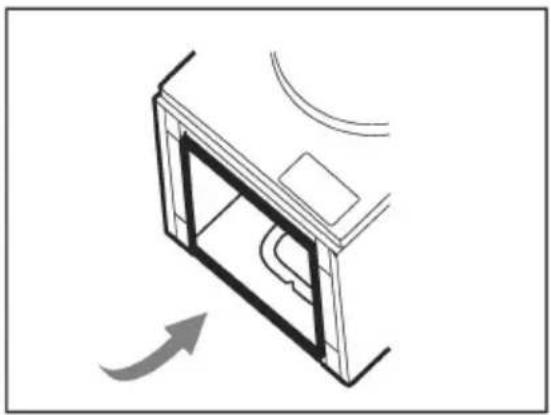

- Please make sure to assemble the acoustic sponges, which can effectively reduce the noise caused by the machine while working, in order to provide you with a more peaceful and quiet living environment.

Diagram of a door frame with an arrow indicating direction (no text or symbols)

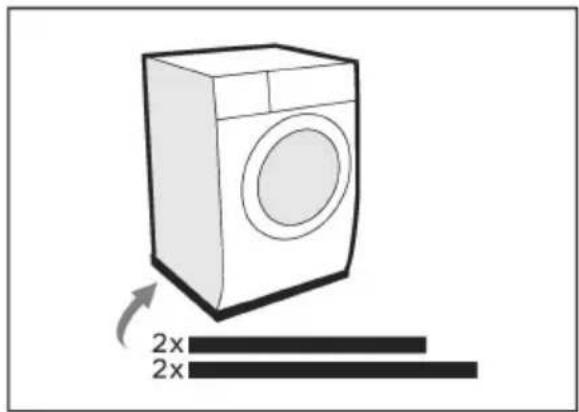

1. Get the machine laid on the floor, using some soft material like foam or clothes between the machine and floor for a protection.
2. Stick the 2x longer sponges to the longer bottom edges of machine, and the 2x shorter sponges to the shorter bottom edges.

2x 2x

3.1 Quick Start

Caution!

• Before washing, please make sure the machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, recommended to clean the inner drum by running the "Drum Clean" or other program with the optional temperature of 90 °C. Be careful not to put laundry and detergent in the machine.

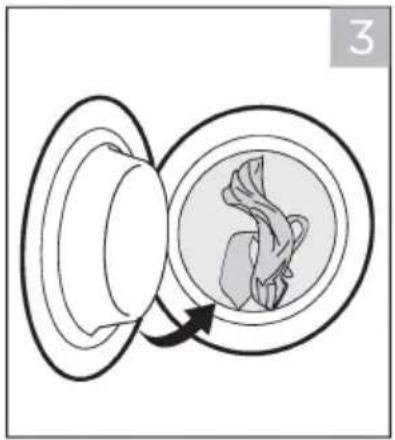

1. Before Washing

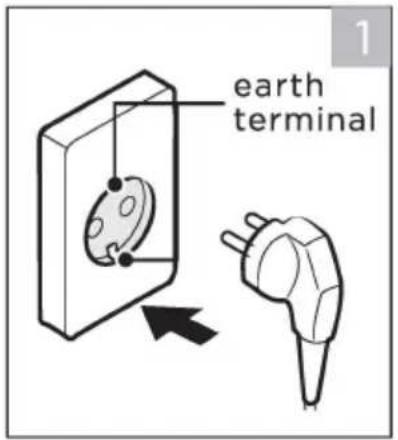

earth terminal

Plug in

Diagram of a faucet with arrows indicating flow direction (no text or symbols)

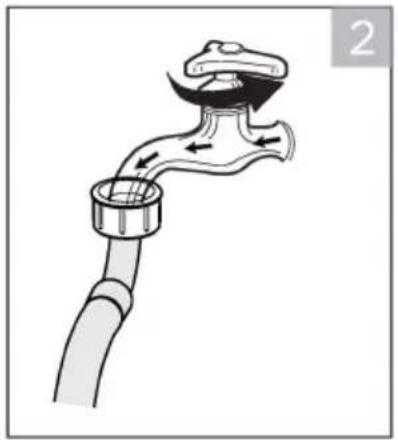

Open tap

Diagram showing a mechanical or biological process with concentric layers and a central circular component, no text or symbols present.

Load

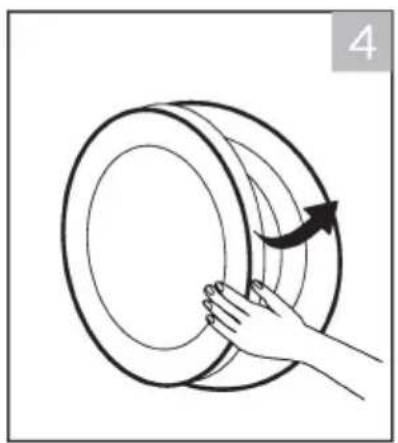

Hand pressing down on a circular object with an arrow indicating rotation (no text or symbols)

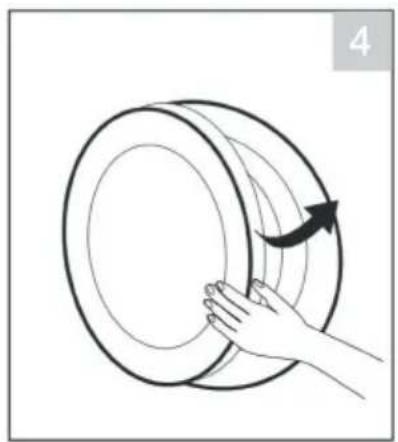

Close door

Main wash Softener Prewash

Add detergent

Note!

- Detergent need to be added in compartment I if the pre-wash function is selected.

2. Washing

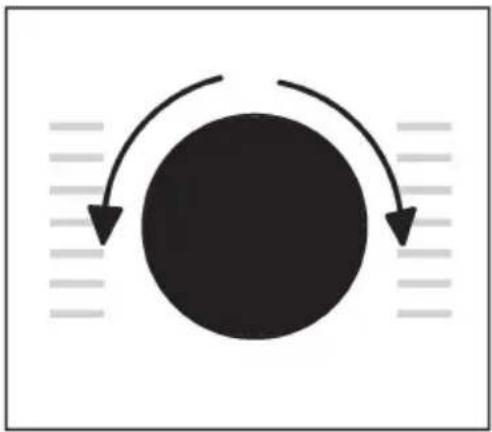

1. Select programme

Simple diagram showing a black circle with curved arrows indicating rotation or flow, surrounded by horizontal lines (no text or symbols)

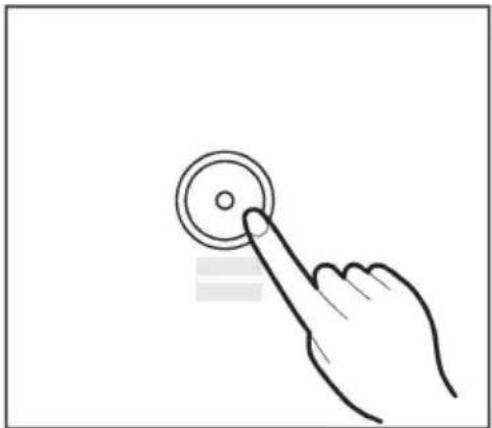

1. Press Start/Pause to start the program

Line drawing of a hand pressing a circular button (no text or symbols)

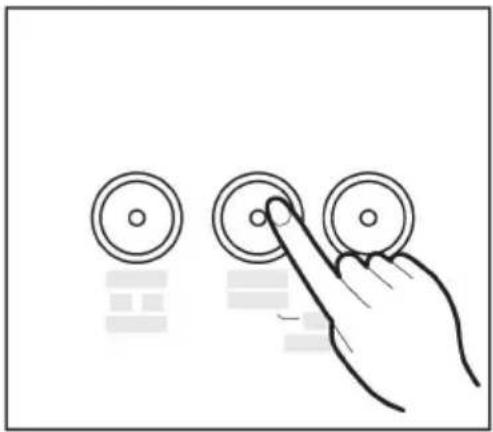

1. Select function or remain default settings

Hand pointing at three circular buttons on a white background (no text or symbols)

3. After Washing

Buzzer beep.

■ 3.2 Before Each Washing

• The ambient temperature of the machine should be 5°C-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for washing machine properly.

Diagram illustrating the use of a key to switch from a small box to a padlock, with directional arrows indicating movement.

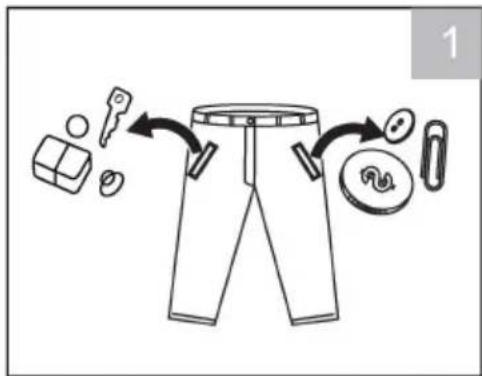

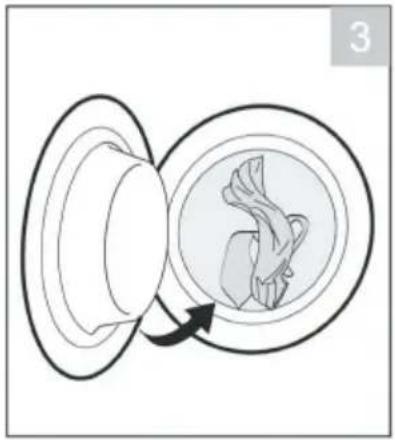

Take all items out of the pockets


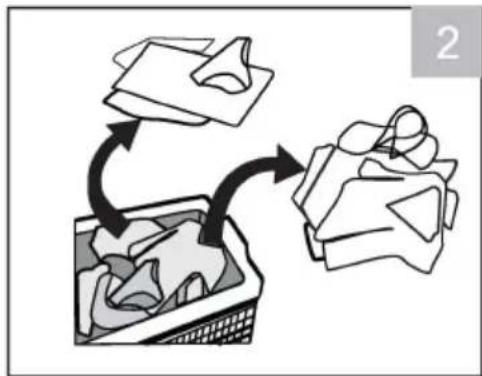

Sort laundry according to color and textile type

Diagram illustrating a three-step procedure for tying a knot, showing step 1 with a bag, hand holding pins, and final knot assembly.

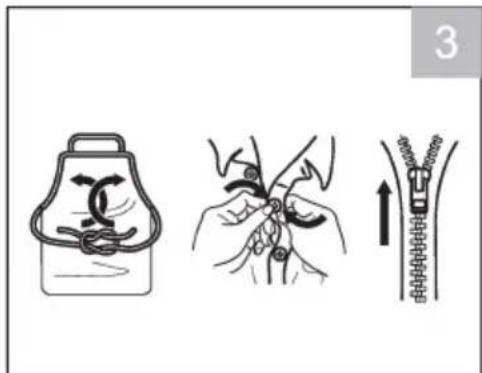

Tie together long textile strips and belts, close zips and button

Line drawing of a container with food items inside, no text or symbols present

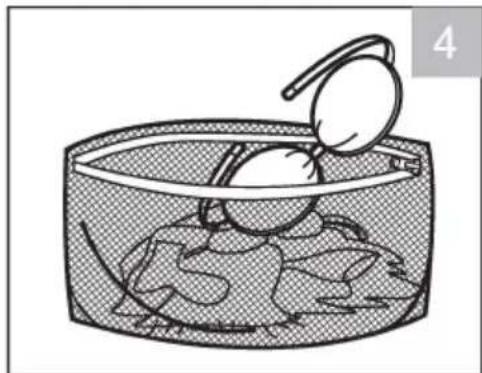

Put small items into a laundry bag

! Warning!

• Do not wash articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly.
• Do not wash, spin, water-proof seats, mats, or clothing.

■ 3.3 Detergent Dispenser

Pre wash

II Main wash

Softener

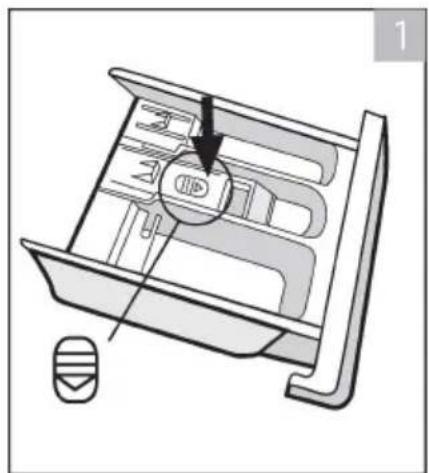

Release button to pull out the dispenser

Technical diagram of a boat hull with labeled components and symbols

Caution!

• Detergent only need to be added in "compartment I" after selecting pre-wash function.
• Do not put laundry beads into the detergent dispenser.

Programme	I	II		Programme	I	II
Cotton 30 °C	○	●	○	Delicate 30 °C		●	○
Cotton 40 °C	○	●	○	Delicate		●	○
Cotton 60 °C	○	●	○	Ends in 9H		●	○
Cotton 90 °C	○	●	○	Ends in 6H		●	○
Synthetic	○	●	○	Ends in 3H		●	○
Synthetic 40 °C	○	●	○	Quick Wash 45'		●	○
Drum Clean				Quick Wash 30'		●	○
Cold Wash	○	●	○	Quick Wash 15'		●	○
Cold Wash 20 °C	○	●	○	ECO 40-60		●	○
Spin Only				Cotton Intensive 40 °C		●	○
Steam Wash		●	○	Cotton Intensive 60 °C		●	○
Rinse&Spin			○

● Means must ○ Means optional

Detergent Recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton,ECO 40-60	30/40 /60/90	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	Cotton,ECO40-60, Cold Wash	Cold/20/30/40/60/90	Coloured laundry made from cotton or linen
Color or mild detergent without optical brighteners	Cold Wash, Synthetic	Cold/20/40	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	Synthetic	Cold /40	Delicate textiles, silk, viscose

Note!

• Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption.
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
  • Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.

Following symptoms are a sign of detergent overdosing:

• heavy foam formation
• poor washing and rinsing result

Following symptoms are a sign of detergent underdosing:

• laundry turns grey
• built-up of limescale deposits on the drum, the heating element and/or the laundry

3.4 Control Panel

Quick Wash 15' OFF Synthetic 30' 40°C 45' COLD Wash Ends in 3H Mix 40°C 6H Cotton30°C 9H 40°C Delicate 60°C 30°C 90°C Rinse&Spin ECO 40-60 Spin Only Cotton Intensive40°C Steam Wash Drum Clean Cotton Intensive60°C Prewash Extra Rinse No Spin Pause Start Press 2 sec. Press 2 sec. 1 4 3 2

1 Off

Turn the appliance on and off.

2 Start/Pause

Start or pause your programme.

3 Option

This allows you to select additional functions and will light when selected.

4 Programmes

Available according to the laundry type.

■ 3.5 Programmes

Programmes are available according to the laundry type.

Programmes
Synthetic	Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Cold Wash	Cold water to wash clothes.
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
ECO 40-60	Able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle.
Cotton Intensive	To increase the washing effects, washing time is increased.
Drum Clean	It applies 90 °C high temperature sterilization to make the clothes washing more green. When this procedure is performed, the clothes or other washing cannot be added. When proper amount of chlorine bleaching agent is put in,the barrel cleaning effect will be better. The customer can use this programme regularly according to the need.
Steam wash	The Steam Wash can deeply penetrate the fiber, which effectively eliminate bacterias and germs, preventing odors and protecting health.
Spin Only	Spins and drains the water.
Rinse & Spin	Rinses and then spins the laundry, and then drains the water.
Delicate	For delicate, washable textiles,e.g. made of silk,satin, synthetic fibres or blended fabrics.
Ends in	The function can be set with this programme,the total time including washing time and delaying time is 3h,6h or 9h.
Quick Wash	It is suitable for washing few and not very dirty clothes quickly. The washing time is 15',30' or 45'.

Programme	Load(kg)	Display Time
	5.0	5.0
Synthetic	2.5	2:20
Synthetic 40°C	2.5	2:20
Cold Wash	5.0	1:00
Cold Wash 20°C	5.0	1:01
Cotton 30°C	5.0	2:40
Cotton 40°C	5.0	2:40
Cotton 60°C	5.0	2:45
Cotton 90°C	5.0	2:50
ECO 40-60	5.0	3:08
Cotton Intensive 40°C	5.0	3:48
Cotton Intensive 60°C	5.0	3:53
Drum Clean	-	1:18
Spin Only	5.0	0:12
Steam Wash	2.5	1:27
Rinse&Spin	5.0	0:20
Delicate 30°C	2.0	0:50
Delicate	2.0	0:48
Ends in 9H	5.0	0:59
Ends in 6H	5.0	0:59
Ends in 3H	5.0	0:59
Quick Wash 45'	2.0	0:45
Quick Wash 30'	2.0	0:30
Quick Wash 15'	2.0	0:15

Note!

- The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.

Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in h:min	Energy consumption in kWh/cycle	Water consumption in L/cycle	Highest washing temperature ^^1)	Residual moisture in %/ Spin speed2)
Cold Wash 20°C	2.5	20	1:01	0.201	34	20	65%/1000
Cotton 60°C	5.0	60	2:45	1.175	51	60	70%/1000
Synthetic	2.5	Cold	2:20	0.327	50	Cold	65%/1000
Quick Wash 15'	2.0	Cold	0:15	0.035	31	Cold	75%/800
Cotton Intensive 40°C	5.0	40	3:48	0.994	51	40	65%/1000
ECO 40-603)	5.0	-	3:08	0.769	46.0	37	71.9%/1000
	2.5	-	2:30	0.485	37.0	31	71.9%/1000
	1.5	-	2:30	0.368	34.0	28	71.9%/1000

- The above data is for reference only, and the data may change due to different actual use conditions.

- The valves given for programmes other than the ECO 40-60 programme are indicative only.

- Concerning to EN 60456:2016+A11:2020 With(EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341,

The EU energy efficiency class is: D

Energy test program: ECO 40-60. Other as the default.

Half load for 5.0kg machine:2.5kg.

Quarter load for 5.0kg machine:1.5kg.

OPERATION

1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved.
3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2014, (EU) 2019/2023, (EU)2021/340, (EU) 2021/341.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the household machine up to the capacity indicated for the respective programmes will contribute to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

3.6 Option

Cycle	Default Temp.(°C)	Default spin speed	Additional functions
Synthetic	Cold	1000	Pre Wash,Extra Rinse,No Spin
Synthetic 40°C	40	1000	Pre Wash,Extra Rinse,No Spin
Cold Wash	Cold	1000	Pre Wash,Extra Rinse,No Spin
Cold Wash 20°C	20	1000	Pre Wash,Extra Rinse,No Spin
Cotton 30°C	30	1000	Pre Wash,Extra Rinse,No Spin
Cotton 40°C	40	1000	Pre Wash,Extra Rinse,No Spin
Cotton 60°C	60	1000	Pre Wash,Extra Rinse,No Spin
Cotton 90°C	90	1000	Pre Wash,Extra Rinse,No Spin
ECO 40-60	-	1000
Cotton Intensive 40°C	40	1000	No Spin
Cotton Intensive 60°C	60	1000	No Spin
Drum Clean	90	-
Spin Only	-	1000	No Spin
Steam Wash	40	1000	Extra Rinse,No Spin
Rinse &Spin	-	1000	Extra Rinse,No Spin
Delicate 30°C	30	600	Extra Rinse,No Spin
Delicate	Cold	600	Extra Rinse,No Spin
Ends in 3H/6H/9H	40	1000
Quick Wash 45'	40	800	No Spin
Quick Wash 30'	30	800	No Spin
Quick Wash 15'	Cold	800	No Spin

Note!

• For the maximum spin speed, program time, and other details of the ECO 40-60 program, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment.

Prewash: The Prewash function can get an extra wash before main wash, it is suitable for washing the dust rises to surface of the clothes; You need to put detergent into the Case (I) when select it.

Extra Rinse: The laundry will undergo extra rinse once after you select it.

No Spin: It will not spin if you choose this function.

Mute the buzzer

Choose the Programme Press the [Prewash]button for 3sec.the buzzer is mute.

To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

Caution!

• After Muting the buzzer function, the sounds will not be activated any more.

Child Lock

To avoid mis operation by children.

Choose the Programme

Start

Press [Extra Rinse] and [No Spin] 3 sec. till buzzer beep.

Caution!

• Only press and hold the two button can release "Child Lock", even power off, switch off and program end, the "Child Lock" will lock all buttons except power button and "Child Lock" button.
• Please release "Child Lock" before selecting program and starting washing.

Note!

Usage counter

1. Unplug the equipment for 10s and reconnect again.
2. Power on and within 10s, please press "Prewash" and "No Spin" on control panel simultaneously and continuously for around 5s until the buzzer beep.
3. The number of times the light flashes represents an Arabic digit, for example, the usage count of equipment is 3456, "Prewash" flashes 3 times; "Extra Rinse" flashes 4 times; "No Spin" flashes 5 times; "Pause/Start" flashes 6 times.
4. Repeat step 1 again and customer can resume to normal operation.

■ 4.1 Cleaning and Care

Warning!

• Always unplug the appliance and close the water tap before cleaning and maintenance.

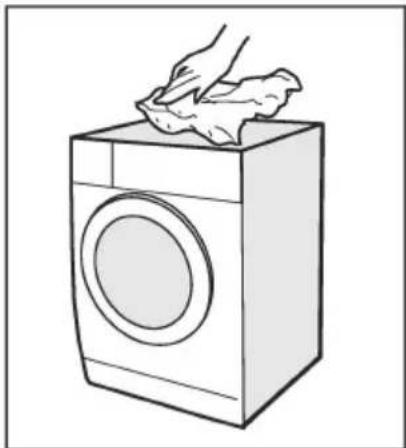

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a towel to wipe it off immediately.

Never use sharp items to clean the appliance.

Line drawing of a hand washing a washing machine with a cloth above it (no text or symbols)

Caution!

- Never use abrasive or caustic agents. formic acids or its diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

Note!

- Keep any laundry away from the machine while cleaning the drum.

Cleaning the Door Seal and Glass

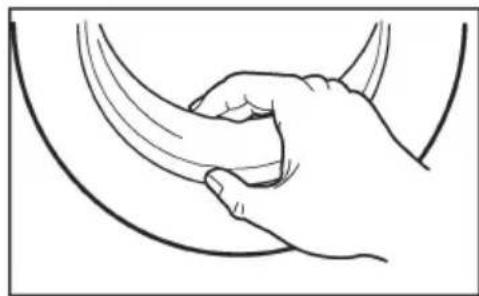

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages.

Remove any coins, buttons and other objects from the seal after each wash. Clean the Door Seal and Glass every month to ensure the normal operation of the appliance.

Line drawing of a hand gripping a curved object, possibly a tool or device (no text or symbols present)

Cleaning the Inlet Filter

Note!

- Diminishing water flow is a sign that the filter need to be cleaned.

Diagram of a faucet with rotating arrows indicating flow or movement (no text or symbols)

1. Close the tap and remove the water supply hose from it.

Line drawing of a hand holding a tool with a screwdriver inserted (no text or symbols)

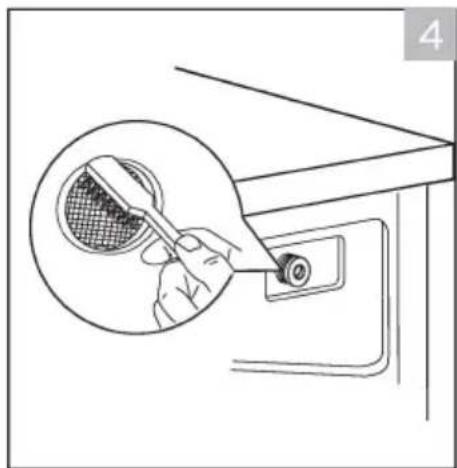

1. Clean the filter with a brush.

Illustration of a hand using a tool to adjust a mechanical component, with an inset showing a rotating component (no text or symbols present)

1. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers.

Line drawing of a hand using a tool to inspect or install a component, with no visible text or symbols.

1. Use a brush to clean the filter.

2. Reinstall the filter to the water inlet and reconnect the water supply hose.

3. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.

Cleaning the Detergent Dispenser

1. Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items with water.
3. Restore the softener cover and push the drawer back into the recess.

Technical diagram of a mechanical component with an arrow indicating direction, no visible text or symbols

Press the release and remove the dispenser drawer

Diagram of a mechanical device with a lever and internal compartments (no text or symbols)

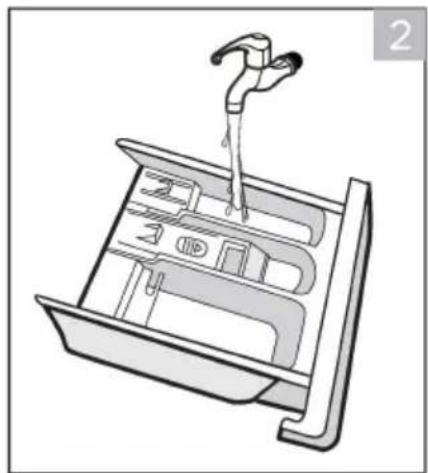

Clean the dispenser drawer and the softener cover under water

Line drawing of a hand using a tool to cut a rectangular object into a window (no text or symbols)

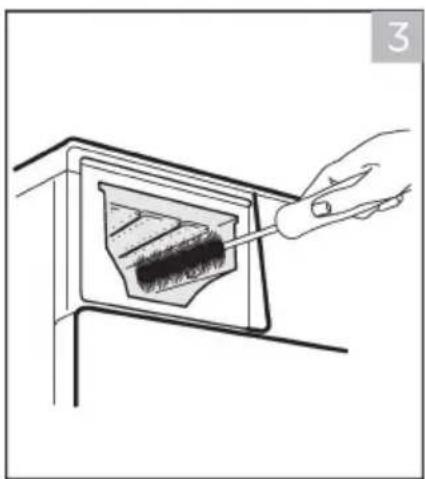

Clean the recess with an soft brush

Technical line drawing of a mechanical drawer or drawer with internal compartments and a directional arrow (no text or symbols)

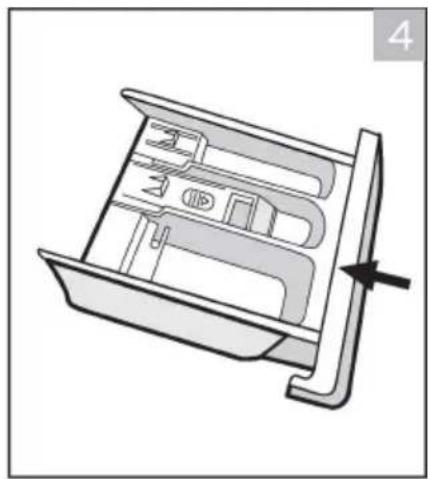

Insert the dispenser drawer

Note!

• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance

Cleaning the Drain Pump Filter

Warning!

• Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter.
- Be careful of hot water. Wait for water cooling down. Risk of scalding!
- Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

Simple line drawing of a mechanical component with a circular feature and an arrow indicating rotation (no text or symbols)

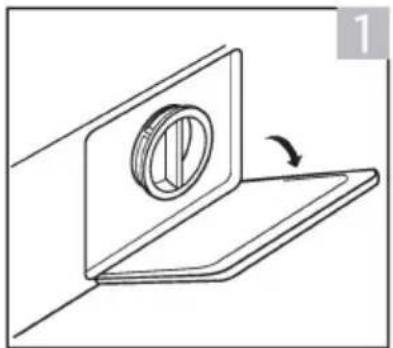

Open the lower cover cap

Hand holding a light bulb above a tray with a circular arrow indicating rotation (no text or symbols)

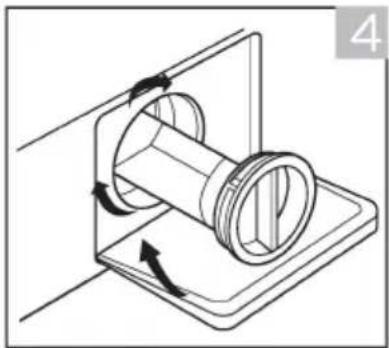

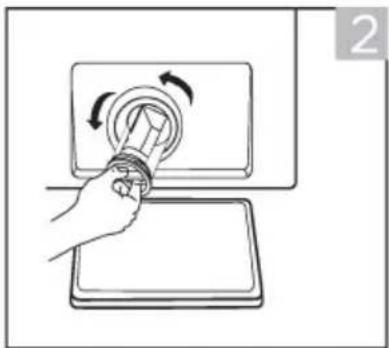

Open the filter by turning to the counter clockwise

Diagram showing a device with a circular component and three separate parts, labeled with numbers 3 and 5.

Remove extraneous matter

Technical line drawing of a mechanical assembly with rotating components and directional arrows (no text or symbols)

Close the lower cover cap

Caution!

- When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

4.2 Trouble Shooting

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service.

Description	Possible cause	Solution
Appliance does not start	Door is not closed properly. Clothes are stuck.	Close the door properly and restart.Check the laundry.
Door can’t be opened	Safety protection is activated.	Disconnect the power and restart.
Water leakage	Connections are not tight enough.	Check and fasten the water inlet pipe.Check and clean the outlet hose.
Detergent residues in the detergent dispenser	Detergent is damp and/or clotted.	Clean and wipe the detergent dispenser dry.
Indicator or display does not work	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise	Fixing bolts still in place. Floor is not solid or level.	Check if the fixing bolts have been removed.Make sure the appliance is installed on a solid and level floor.

Error Codes

Description					Reason	Solution
	Pause/Start	No Spin	Extra Rinse	Prewash
Off	Flash	Off	Off	Off	Door is not closed properly	Restart after the door is closed.Check if the clothes is stuck
Off	Off	Flash	Off	Off	Water injecting problem while washing	Check if the water pressure is too lowStraighten the water pipeCheck if the inlet valve filter is blocked
Off	Flash	Off	Flash	Off	Overtime water draining	Check if the drain hose is blocked
Off	Off	Flash	Off	Flash	Water overflow	Restart the washer
					Others	Please try again first, call up service line if there are still troubles

4.3 Customer service

Spare part for your appliance are available for a minimum of 10 years following EU COMMISSION REGULATION 2019/2023 ANNEX II Ecodesign requirements..

In case of questions, please contact our local customer service center.

Warning!

Risk of electric shock

• Never try repair an appliance which is defective of presumed to defective. You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recognized!

Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

• Unplug the appliance and close the water inlet tap.
• Check, if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house installations.
• Let the water drain completely from the appliance (see "Maintenance Cleaning the drain pump filter")
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door can not be used as a handle.

Model	LF510L23W
Power Supply	220-240V~,50Hz
MAX.Current	10A
Standard Water Pressure	0.05MPa~1MPa
Washing Capacity	5.0kg

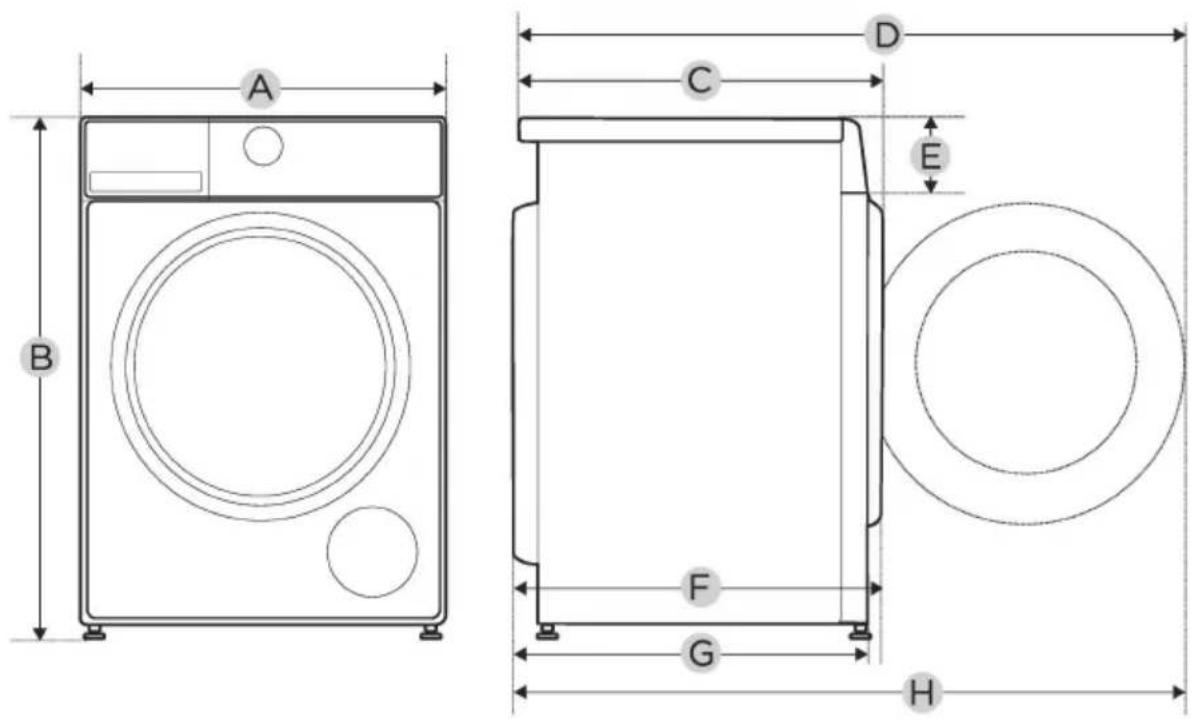

Dimension
A	595mm
B	850mm
C	435mm
D	890mm
E	156mm
F	440mm
G	400mm
H	900mm
Weight	52kg
Rated Power	2000W

Supplier's name or trade mark(“)”(“): FAR

Supplier's address(a)(c):

CONFORAMA FRANCE SA 80 Boulevard du Mandinet LOGNES 77432 MARNE LA VALLEE CEDEX 2 FRANCE.

Model identifier( _a ):LF510L23W

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (b) (kg)	5.0		Dimensions in cm (a), (c)	Height	85
				Width	60
				Depth	40
Energy efficiency index (b)(EEIw)	79.9		Energy efficiency class (b)	D (c)
Washing efficiency index (b)	1.031		Rinsing effectiveness (g/kg) (b)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 pro-gramme. Actual energy consump-tion will depend on how the appli-ance is used.	0.602		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water con-sumption will depend on how the appliance is used and on the hardness of the water.	41
Maximum temperature inside the treated textile (b) (°C)	Rated capacity	37	Weighted remaining moisture content (b) (%)	71.9
	Half	31
	Quarter	28
Spin speed (b) (rpm)	Rated capacity	1000	Spin-drying efficiency class (b)	D (d)
	Half	1000
	Quarter	1000
Programme duration (b) (h:min)	Rated capacity	3:08	Type	free-standing
	Half	2:30
	Quarter	2:30
Airborne acoustical noise emissions in the spinning phase (a)(dB(A) re 1 pW)	79		Airborne acoustical noise emis-sion class (b) (spinning phase)	C (d)
Off-mode (W) (if applicable)	0.50		Standby mode (W) (if applicable)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (if applicable)	N/A

Minimum duration of the guarantee offered by the supplier (a)(c): 12 month

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) is found:

(*) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.
(*) for the eco 40-60 programme.
(*) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
^(c) if the product database automatically generates the definitive content of this cell, the supplier shall not enter these data.

PRODUCT FICHE

1) The actual energy consumption will depend on how the appliance is used.
2) The actual water consumption will depend on how the appliance is used and on the hardness of the water.
3) Delivery of the spare parts within 15 working days after having received the order.

Product Data Sheet concerning (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341.

The product data sheet for your appliance can be found online.

Go to https://eprel.ec.europa.eu and enter the model identifier for your appliance to download the data sheet.

The model identifier for your appliance can be found in the technical specifications section.

Flash the QR code on your appliance to access its main information.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment(WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

Period of availability of repair spare parts: 10 years.

If you need access to the list of spare parts and technical documentation for your product, please go to https://sav-pieces.conforama.fr. There you will be able to buy spare parts for repairing your product or having it repaired.

If you have a problem with your product, before going to your Conforama store, please get in touch with our aftersales services for electrical household appliances:

https://sav-client.conforama.fr

09 69 32 05 05

CE

This instruction book is also available on our website: www.conforama.fr

CONFORAMA France SA
