USER MANUAL 51970A TORO

Model No. 51950A-250000001 & Up

Model No. 51970A—250000001 & Up

Model No. 51990A—250000001 & Up

STOP

If you have questions concerning your trimmer or brushcutter, please call us at 1-866-574-9242 (US) or 1-866-574-9243 (Canadá).

Operator's Manual

WARNING:

To reduce the risk of injury, the user must read and understand the operator's manual. Save this manual.

STOP

READ THIS INFORMATION

Before you use your new trimmer/brushcutter, read the following helpful hints to get you started.

Fueling

DANGER:

Gasoline is extremely flammable and explosive. A fire or explosion from gasoline will burn you and others.

1. Obtain a clean container that is approved for use with gasoline.
2. Mix all of the 2-cycle oil provided with 1 US gallon of 87-octane, unleaded gasoline.
3. Fill the trimmer's gas tank carefully.

Cold Starting vs. Warm Starting

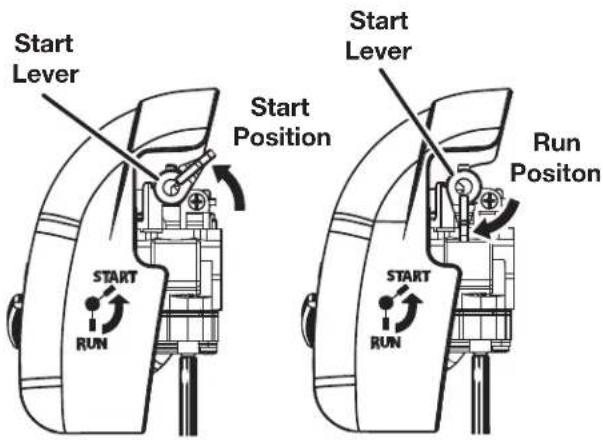

When you restart the trimmer/brushcutter and you are not sure whether the engine is still warm, set the start lever to RUN (Choke Open) and pull the starter cord. If the engine does not start within 5 pulls, refer to “To Start a Cold Engine” later in this manual.

Flooded Engine

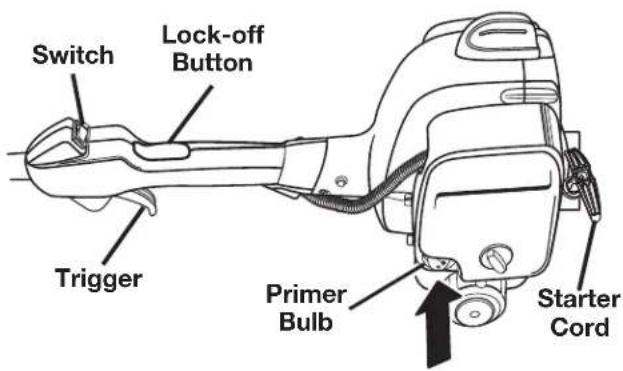

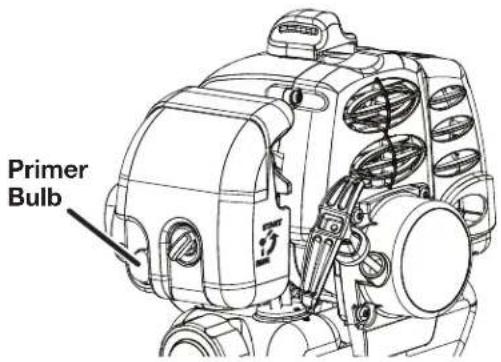

Will the engine start? If not, it may be flooded. Relax, this is easy to correct. Set the start lever to RUN (Choke Open). Squeeze the trigger and pull the starter cord quickly for 10 to 12 pulls. If the engine does not start, refer to “Troubleshooting” later in this manual or call toll-free at 1-866-574-9242 (US) or 1-866-574-9243 (Canada).

NEED HELP ? CASI 1-866-574-9242

For questions concerning your trimmer/brushcutter, call us toll free at 1-866-574-9242.

⚠ WARNING: The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Table of Contents

Introduction......4

Safety Rules 5-6

Symbols 6-7

Product Labels 8

Features....9-11

Product Specifications 9

Assembly....13-16

Unpacking....12

Connecting the Attachment to the Upper Shaft....13

Removing the Attachment from the Upper Shaft....13

Attaching the Front Handle....13

Attaching the Shoulder Strap....13

Attaching the Grass Deflector....13

Converting from Brushcutter to Trimmer....15

Converting from Trimmer to Brushcutter....16

Operation....17

Applications....17

Mixing the Fuel....17

Filling the Tank 17

Starting the Product 18

Stopping the Product....18

Operating the Trimmer ....19

Operating the Brushcutter....20

Maintenance....21

Emissions Maintenance Schedule....21

Cleaning the Product....21

Servicing the Product....21

Replacing the Cutting Line....21-22

Replacing the Spool....22

Checking the Fuel Cap....23

Cleaning the Air Filter 23

Replacing the Spark Arrester....23

Replacing the Spark Plug....24

Storing the Product 24

Transporting the Product....24

Troubleshooting 25

Warranty 26-27

Introduction

Thank you for purchasing a Toro product.

We would like for you to be completely satisfied with your new product, so feel free to contact an authorized service dealer for help with service, genuine Toro parts, or other information you may require.

Whenever you contact an authorized service dealer, always know the model and serial numbers of the product. These numbers will help the service representative provide exact information about your specific product. You will find the model and serial number decal located on the motor housing.

For your convenience, write the product model and serial numbers in the space below.

Model No.
Serial No.

Technical line drawing of a mechanical assembly with no visible text or symbols

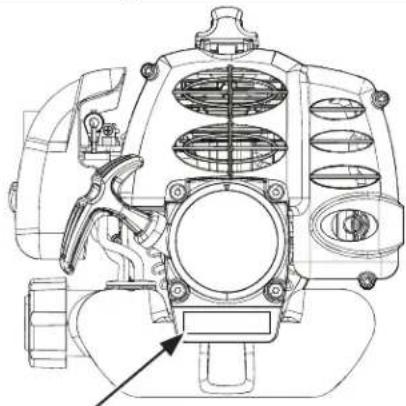

Model No./Serial No. Label

Read this manual carefully to learn how to operate and maintain your product correctly. Reading this manual will help you and others avoid personal injury and damage to the product. Although Toro designs, produces, and markets safe, state-of-the-art products, you are responsible for using the product properly and safely. You are also responsible for training persons you allow to use the product about safe operation.

The Toro warning system in this manual identifies potential hazards and has special safety messages that help you and others avoid personal injury, even death. DANGER, WARNING, and CAUTION are signal words that identify the level of hazard. However, regardless of the hazard, be extremely careful. Two other words, "Important" and "Note," highlight information.

Signal Word Explanation

DANGER	Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING	Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION	Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices that may cause property damage.
Important	Advises you of important information or instructions vital to the operation or maintenance of the equipment.

Note Advises you of additional information concerning the operation or maintenance of the equipment.

WARNING:

Read and understand all instructions. Failure to follow all instructions may result in serious personal injury as well as damage to the product.

This product has been designed and manufactured to meet or exceed the requirements of the current version of ANSI B175.3, safety requirements for gasoline-powered string trimmers and brushcutters.

■ Physical Condition of the Operator. Do not operate this product when tired, ill, or under the influence of alcohol, drugs, or medication.
■ Clothing Requirements. Always wear long heavy pants, boots, and gloves. Do not wear loose clothing, jewelry, short pants, sandals, or go barefoot. Secure hair so that it is above shoulder level to avoid entanglement in moving parts.
■ Protective Accessories Requirements. Wear eye protection marked to comply with ANSI Z87.1 standards when operating this product. Wear hearing protection during extended periods of operation.
■ Condition of Trimmer Before Use. Inspect the product before each use. Replace damaged parts. Check for fuel leaks. Make sure all fasteners are in place and secure. Replace cutting attachment parts that are cracked, chipped, or damaged in any way. Make sure the cutting attachment is properly installed and securely fastened. Be sure the cutting attachment shield is properly attached, and in the position recommended by the manufacturer. Use only flexible, non-metallic line recommended by the manufacturer. For example, never use wire or wire-rope, which can break off and become a dangerous projectile.
■ Proper Stance. Keep firm footing and balance. Do not overreach. Keep the cutting attachment below waist level. Keep all parts of your body away from the rotating cutting attachment and hot surfaces.
■ Exhaust Gases. Never start or run the product inside a closed room or building; breathing exhaust fumes can cause illness or death.
■ Fueling. Mix and pour fuel outdoors where there are no sparks and flames. Slowly remove the fuel cap only after stopping the engine. Do not smoke while fueling or mixing fuel. Wipe spilled fuel from the product. Move at least 30 ft. (9 m) away from the fueling source and site before starting the engine.
■ Work Area. Clear the area to be cut before each use. Remove all objects, such as rocks, broken glass, nails, wire, or string, that can be thrown or become

entangled in the cutting attachment. Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders, and pets outside a 50 ft. (15 m) radius. Because there still may be a risk of injury to bystanders from thrown objects, bystanders should be encouraged to wear eye protection. If you are approached while operating the product, stop the engine and the cutting attachment.

■ Dangerous Environments. To avoid falling, do not use the product in damp or wet locations.

■ Controlling the Product. During carburetor adjustments the cutting attachment may spin. Therefore, you should wear protective equipment and observe all safety instructions when adjusting the carburetor. For products equipped with a clutch, be sure the cutting attachment stops turning when the engine idles. When the product is turned off, make sure the cutting attachment has stopped before setting down the product.

■ Use the Right Product. Use the product for the intended purpose only.

- Condition of Brushcutter Before Use. The handles shall be mounted according to the manufacturer's instructions. Do not attach any blade to a product without proper installation of all required parts. Failure to use the proper parts can cause the blade to fly off and seriously injure the operator and/or bystanders. Discard blades that are bent, warped, cracked, broken, or damaged in any way.

■ Use the Right Equipment. Always use the barrier bar on the front handle and the shoulder strap with the brushcutter.

■ Blade Thrust. Blade thrust may occur when the spinning blade contacts an object that it does not immediately cut. A blade thrust can be violent enough to cause the product and/or operator to be propelled in any direction, and possibly lose control of the product. Blade thrust can occur without warning if the blade snags, stalls, or binds. This is more likely to occur in areas where it is difficult to see the material being cut.

■ Stopping the Product. A coasting blade can cause injury while it continues to spin after the engine is stopped or throttle is released. Maintain proper control until the blade has completely stopped rotating.

Safety Rules

This engine is equipped with a spark arrester muffler. It is a violation of California Public Resource Code Section 4442 to use or operate this engine without a spark arrester muffler on any forest-covered, brush-covered, or grass-covered land. Other states or federal areas may have similar laws.

This spark ignition system complies with Canadian ICES-002.

Save these instructions. Refer to them frequently and use them to instruct others who may use this product. If you loan someone this product, loan these instructions also.

Symbols

The following symbols are located on the product. Please study them and learn their meaning. Proper interpretation of these symbols allows you to operate the product better and safer.

Symbol Name Explanation

Safety Alert Symbol Precautions that involve your safety.

Operator's Manual Read the operator's manual before starting or operating this product.

Failure to follow operating instructions and safety precautions in the operator's manual can result in serious injury.

e and Hearing Protection Wear eye protection which is marked to comply with ANSI Z87.1 as

well as hearing protection when operating this equipment.

Keep Bystanders Away Keep all bystanders at least 50 feet (15 m) away.

Richochet Thrown objects can richochet and result in personal injury or property damage.

Do not install or uses any type of blade on a product displaying this symbol.

Blade Thrust Beware of blade thrust. Products authorized for blade use will

display this symbol to warn of blade thrust.

and Oil Use unleaded gasoline intended for motor vehicle use with an octane

rating of 87 ([R + M] / 2) or higher. This product is powered by a 2-cycle engine and requires pre-mixing gasoline and 2-cycle oil.

Symbols

The following signal words and meanings are intended to explain the levels of risk associated with this product.

SYMBOL SIGNAL MEANING

DANGER:

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING:

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION:

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION:

(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

SERVICE

Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest AUTHORIZED SERVICE CENTER for repair. When servicing, use only identical replacement parts.

WARNING:

To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the operator's manual. Save this operator's manual and review frequently for continuing safe operation and instructing others who may use this product.

WARNING:

The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.

SAVE THESE INSTRUCTIONS

Product labels and instructions are easily visible to the operator and are located near any area of potential danger. Replace damaged or lost labels.

Part No. 986178-001

DO NOT TO START: SQUEEZE THROTTLE TRIGG UNTIL ENGINE STARTS AND RUNS. 1 PRIME x 7 2 SET START RUN 3 PULL = START 4 ALLOW ENGINE TO RUN 15 SECONDS. SQUEEZE TRIGGER STOP: Press For Help Call: Switch to stop 1-866-574-9242 986178-001

Part No. 984032-001

! 50 15m No. 15m

Part No. 985102-001

! 50°13m 50°13m

Part No. 984105-001

Part No. 983961-001 (Shoulder Strap) Part No. 984240-001

OFF ON

Features

Product Specifications

Engine

25.4 cc

Full Crank

Cutting Width

Model No. 51950A 17 in.

Model No. 51970A 18 in.

Model No. 51990A

8 in. for brushcutter, 18 in. for trimmer

Line Size .095 in.

Weight

Model No. 51950A 12-1/2 lbs.

Model No. 51970A 13-1/2 lbs.

Model No. 51990A 13-1/2 lbs.

Know Your Trimmer/Brushcutter

See Figure 1.

Before attempting to use this product, familiarize yourself with all operating features and safety rules.

Common Features

Engine

The engine is powerful and easy to start. It is effectively counterbalanced, which allows for less vibration and more durability.

Ergonomic Design

The design of the product provides for easy handling. It is designed for comfort and ease of grasp when operating in different positions and at different angles.

Curved/Straight Shaft Features

(Model No. 51950A/51970A)

Dual Line

The dual line permits more efficient cutting than a single line.

Grass Deflector

The grass deflector helps protect you from flying debris.

Brushcutter Features

(Model No. 51990A)

Blade

The Tri-Arc® blade allows you to brushcut weeds, vines and light brush.

Brushcutter Guard

The brushcutter guard helps protect you from the blade and from flying debris.

Shoulder Strap

The brushcutter includes a shoulder strap that helps support the product.

Barrier Bar

The handle on the brushcutter contains a barrier bar that restrains the operator in position and maintains a proper distance between the operator and the blade.

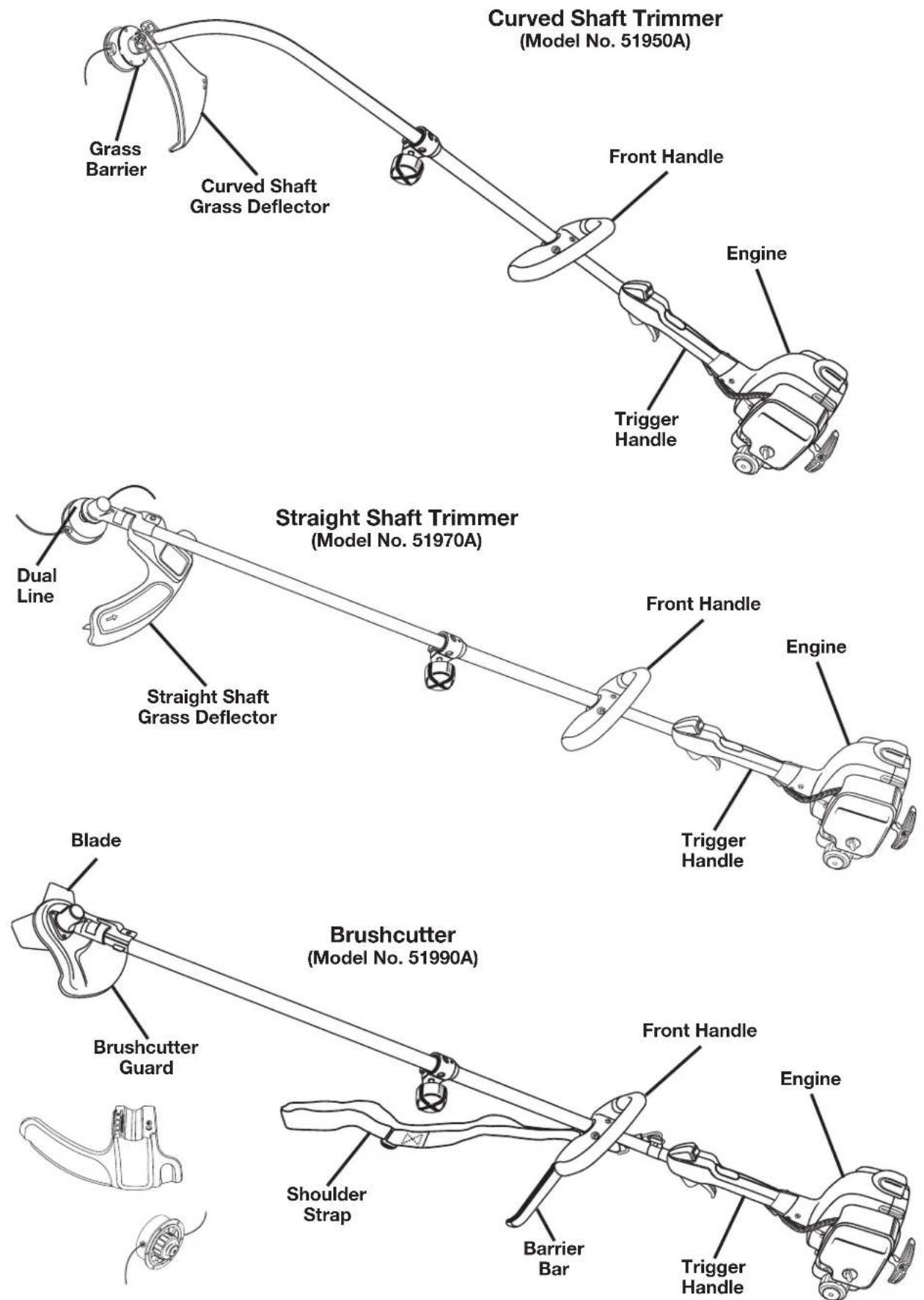

Curved Shaft Trimmer (Model No. 51950A) Grass Barrier Curved Shaft Grass Deflector Front Handle Engine Trigger Handle Straight Shaft Trimmer (Model No. 51970A) Dual Line Straight Shaft Grass Deflector Front Handle Engine Trigger Handle Blade Brushcutter Guard Brushcutter (Model No. 51990A) Shoulder Strap Barrier Bar Front Handle Engine

Figure 1

Unpacking

■ Carefully remove the product from the box.
■ Inspect the product carefully to make sure no breakage or damage occurred during shipping.
■ Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
■ If any parts are damaged or missing, please call toll free 1-866-574-9242 for assistance.

Packing List

Upper shaft (Power head) (1)
Attachment shaft (Cutting head) (1)
Handle (1)
Curved shaft grass deflector (1) (Model No. 51950A)
Straight shaft grass deflector (1) (Model No. 51970A and Model No. 51990A)
Grass barrier (Model No. 51950A)
Hex head cap screw - 1/4-20 x 2 in. (1)
(Model No. 51950A)
Lock washer (1) (Model No. 51950A)
Flat washer (1) (Model No. 51950A)
Wing nut (1) (Model No. 51950A)
Oil

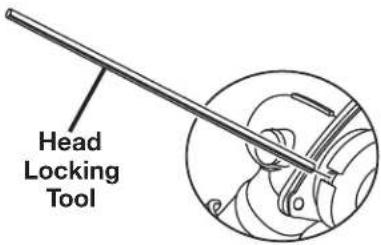

Head locking tool (1) (Model No. 51990A)
Shoulder strap (1) (Model No. 51990A)
Storage cap

WARNING:

If any parts are missing, do not operate the product until the missing parts are replaced. Failure to do so could result in serious personal injury.

WARNING:

Do not attempt to modify this tool or create accessories not recommended for use with this tool. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

WARNING:

Do not start trimmer until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.

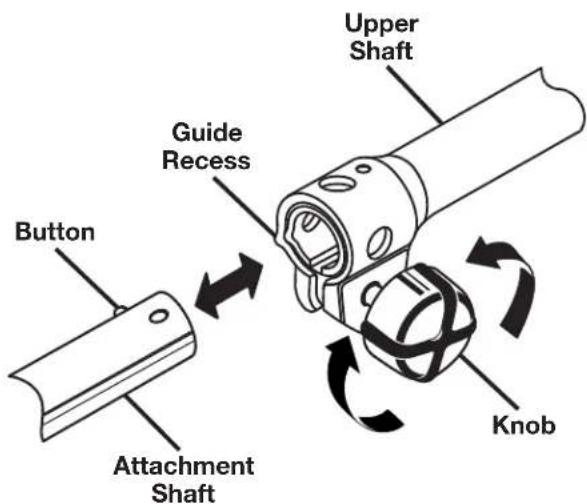

Connecting the Attachment to the Upper Shaft

See Figure 2.

Follow these steps to connect the attachment to the upper shaft.

1. Loosen the knob by turning it counterclockwise.
2. Remove the end cap from the attachment shaft.
3. Align the button on the attachment shaft with the guide recess on the upper shaft.
4. Slide the attachment shaft into the upper shaft until the attachment shaft clicks into place.

Note: You may need to turn the attachment shaft to properly align the two shafts.

1. Tighten the knob securely by turning it clockwise.

Button Attachment Shaft Guide Recess Upper Shaft Knob

Figure 2

Removing the Attachment from the Upper Shaft

See Figure 2.

Follow these steps to remove the attachment from the upper shaft.

1. Loosen the knob by turning it counterclockwise.
2. Push the button while pulling out the attachment.

Attaching the Front Handle

See Figure 3.

Follow these steps to attach the front handle.

1. Remove the slotted Torx ^TM screws to separate the handle from the handle support.

2. Press the handle onto the top of the upper shaft, no less than 10 in. (25.4 cm) from the center of the trigger handle, angling the handle toward the trigger handle.

3. Place the handle along the upper shaft to a position that allows for comfortable operation.

4. Place the handle support on the bottom of the tube on the opposite side of the front handle.
5. Secure the handle with the slotted Torx™ screws.

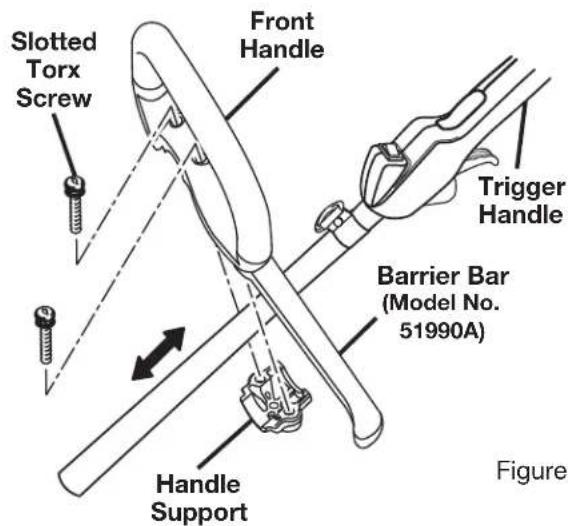

Slotted Torx Screw Front Handle Trigger Handle Barrier Bar (Model No. 51990A) Handle Support Figure

Figure 3

Attaching the Shoulder Strap Model No. 51990A

See Figure 4.

Follow these steps to attach the shoulder strap.

1. Connect the latch on the strap to the hanger bracket.
2. Adjust the strap to a comfortable position.

Note: To quickly release the product from the shoulder strap, sharply pull the quick release tab.

Strap Quick Release Tab Hanger Bracket Latch

Figure 4

Attaching the Grass Deflector

Attaching the grass deflector differs depending on the type of trimmer: curved shaft or straight shaft.

WARNING:

The line cutting blade on the grass deflector is sharp. Avoid contact with the blade. Failure to avoid contact can result in serious personal injury.

Note: To protect the operator, always be sure to attach the grass deflector.

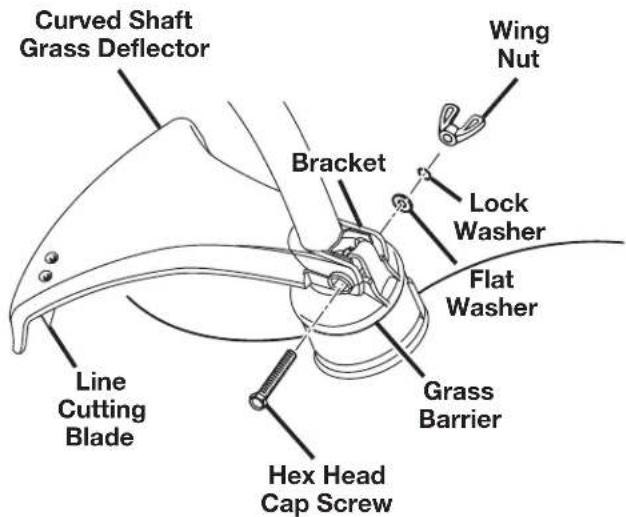

To Attach the Curved Shaft Grass Deflector Model No. 51950A

See Figure 5.

Follow these steps to attach the curved shaft grass deflector.

1. Press the grass deflector onto the bottom of the curved shaft as shown.
2. Lift the grass barrier up slightly.
3. Insert the hex head cap screw through the grass deflector, bracket, and grass barrier.
4. Place the flat washer and lock washer on the hex head cap screw.
5. Place the wing nut or hex nut on the hex head cap screw and turn clockwise to secure.

Curved Shaft Grass Deflector Bracket Wing Nut Lock Washer Flat Washer Line Cutting Blade Grass Barrier Hex Head Cap Screw

Figure 5

To Attach the Straight Shaft Grass Deflector Model No. 51970A and Model No. 51990A

See Figure 6.

Follow these steps to attach the straight shaft grass deflector.

1. Remove the slotted hex head screw from the grass deflector.
2. Insert the tab on the mounting bracket in the slot on the grass deflector.
3. Align the screw hole in the mounting bracket with the screw hole in the grass deflector.
4. Insert the slotted hex head screw through the mounting bracket and into the grass deflector.
5. Tighten the screw securely.

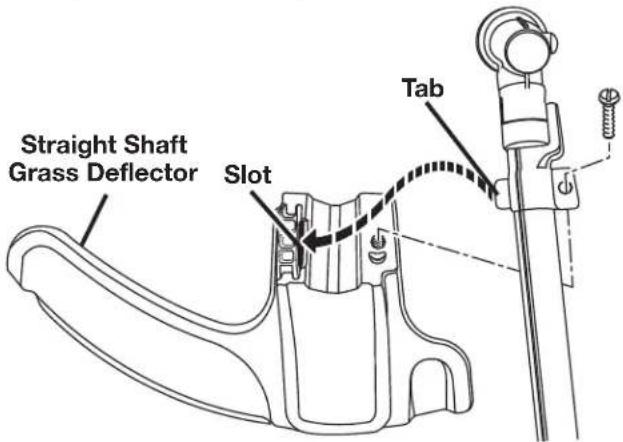

Straight Shaft Grass Deflector Slot Tab

Figure 6

Converting From Brushcutter To Trimmer

Model No. 51990A

To convert from the brushcutter to the trimmer, remove the blade, remove the brushcutter guard, attach the grass deflector, and install the trimmer head assembly.

To Remove the Blade and Brushcutter Guard

See Figure 7 and Figure 8.

Follow these steps to remove the blade and brushcutter guard.

1. Align the slot in the flanged washer with the slot in the gear head.
2. Place the head locking tool through the slot in the flanged washer and gear head.
3. Remove the blade nut by turning it clockwise (left-handed threads).
4. Remove the cupped washer and the blade.

WARNING:

Be careful when handling the blade. It is sharp. Failure to heed this warning can result in serious personal injury.

1. Remove the flanged washer from the gear shaft and retain it for the trimmer head assembly installation.
2. Remove the three screws securing the brushcutter guard.
3. Remove the brushcutter guard.

Note: Store the brushcutter parts together for future use.

To Attach the Grass Deflector

Refer to "To Attach the Straight Shaft Grass Deflector" earlier in this manual.

To Install the Trimmer Head Assembly

See Figure 9.

Follow these steps to install the trimmer head assembly.

1. Align the slot in the flanged washer with the slot in the gear head.
2. Insert the head locking tool through the flanged washer and gear head.
3. Install the drive shaft and trimmer head assembly onto the gear shaft by turning the drive shaft counterclockwise (left-handed threads).
4. Tighten the drive shaft securely.

Head Locking Tool

Figure 7

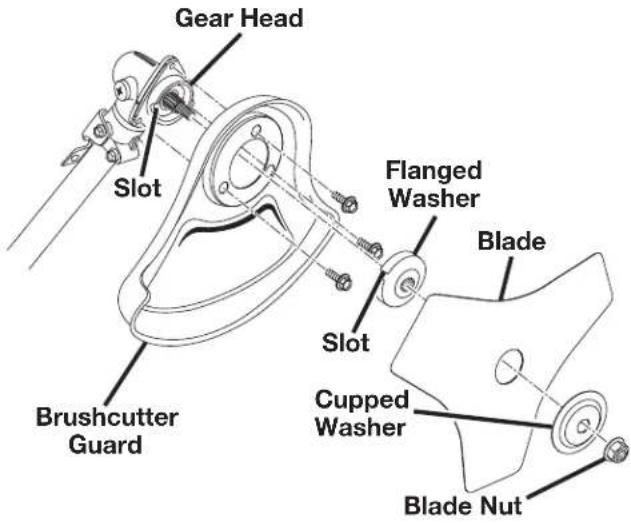

Gear Head Slot Flanged Washer Blade Slot Brushcutter Guard Cupped Washer Blade Nut

Figure 8

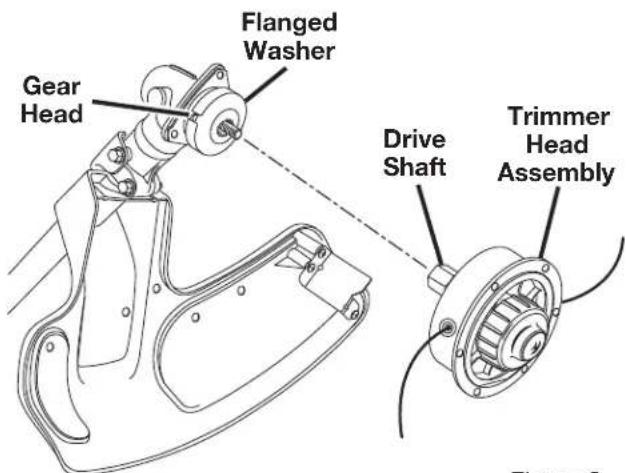

Gear Head Flanged Washer Drive Shaft Trimmer Head Assembly Figure 9

Figure 9

Converting From Trimmer To Brushcutter Model No. 51990A

To convert from the trimmer to the brushcutter, remove the trimmer head assembly, remove the grass deflector, attach the brushcutter guard, and install the blade.

To Remove the Trimmer Head Assembly and Grass Deflector

See Figures 10 and 11.

Follow these steps to remove the trimmer head assembly and grass deflector.

1. Align the slot in the flanged washer with the slot in the gear head.
2. Insert the head locking tool through the flanged washer and gear head.
3. Remove the drive shaft and trimmer head assembly by turning the drive shaft clockwise (left-handed threads).
4. Remove the flanged washer and retain it for the blade installation.
5. Remove the screw securing the grass deflector.
6. Remove the grass deflector.

Note: Store the trimmer head assembly parts together for future use.

To Attach the Brushcutter Guard

See Figure 12.

Note: To protect the operator, always be sure to attach the brushcutter guard.

Follow these steps to attach the brushcutter guard.

1. Place the guard onto the gear head as shown.
2. Insert the three hex head screws from the bottom through the guard into the gear head.
3. Tighten the screws securely and torque to 40-50 in.lb.

To Install the Blade

See Figure 13.

Follow these steps to install the blade.

1. Place flanged washer over the gear shaft with the hollow side toward the brushcutter guard.
2. Center the blade on the flanged washer, making sure the blade fits flat and the raised hub goes through the hole in the blade.
3. Install the cupped washer with the raised center away from the blade.
4. Place the blade nut onto the gear shaft.
5. Insert the head locking tool through the flanged washer and gear head.
6. Install the blade nut by turning it counterclockwise (left-handed threads).
7. Tighten the blade nut and torque to 120 in.lb. minimum (finger tight plus 1/2 turn).

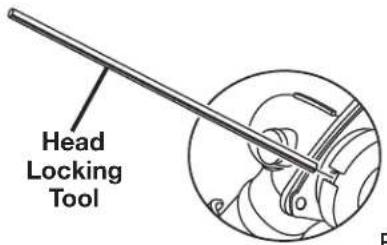

Head Locking Tool

Figure 10

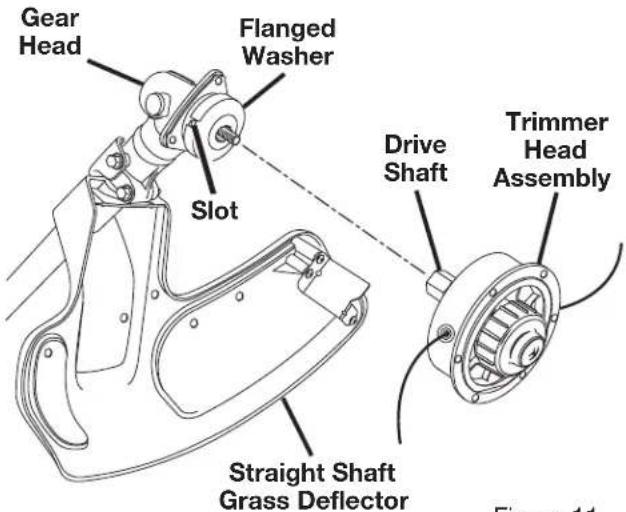

Gear Head Flanged Washer Slot Drive Shaft Trimmer Head Assembly Straight Shaft Grass Deflector Figure 11

Figure 11

Gear Head Brushcutter Guard Hex Head Screw

Figure 12

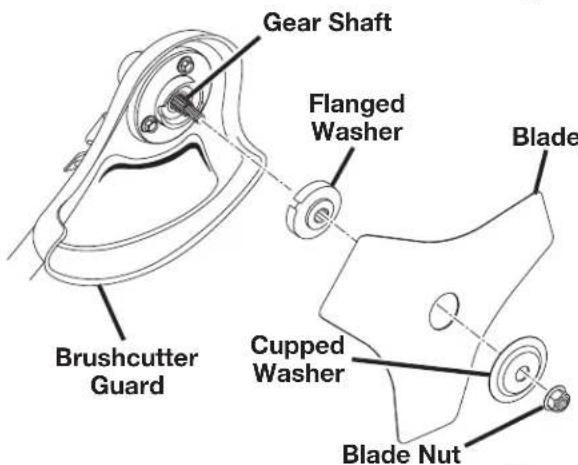

Gear Shaft Flanged Washer Blade Brushcutter Guard Cupped Washer Blade Nut

Figure 13

WARNING:

Do not allow familiarity with tools to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING:

Always wear safety goggles or safety glasses with side shields when operating power tools. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.

WARNING:

Do not use any attachments or accessories not recommended by the manufacturer of this tool. The use of attachments or accessories not recommended can result in serious personal injury.

Applications

Use this product for the following applications:

■ Cutting grass, weeds, and light undergrowth (all models)
■ Edging along sidewalks and driveways (all models)
■ Cutting pulpy weeds, vines, and light brush (Model No. 51990A)

Mixing the Fuel

DANGER:

Gasoline is extremely flammable and explosive. A fire or explosion from gasoline will burn you and others.

This product is powered by a 2-cycle engine and requires premixing gasoline and 2-cycle oil. The oil mix should be 50:1, using oil that meets or exceeds JASO-FC specifications.

Follow these steps to mix the fuel.

1. Obtain a clean container that is approved for use with gasoline.
2. Mix the 2-cycle engine oil provided with unleaded gasoline in the container, according to the instructions on the oil carton.

Important: This engine is certified to operate on unleaded gasoline intended for automotive use with an octane rating of 87 ([R + M] / 2) or higher. Do not use automotive oil or 2-cycle outboard oil. Store the container out of the reach of children.

50:1 Gasoline to Oil Mixing Chart

Gasoline Oil

1/2 US gallon 1.3 oz.

1 US gallon 2.6 oz.

2 US gallons 5.2 oz.

1 liter 20 ml

2 liters 40 ml

3 liters 60 ml

4 liters 80 ml

5 liters 100 ml

Diagram showing a fuel pump and its equivalence with a gas can, indicating equivalence or equivalence.

Filling the Tank

WARNING:

Always stop the engine before filling the tank. Never add fuel to a machine with a running or hot engine. Move at least 30 ft. (9 m) away from the refueling site before starting the engine. Do not smoke while filling the tank.

Follow these steps to fill the tank.

1. Clean the surface around the fuel cap to prevent contamination.
2. Loosen the fuel cap by turning it counterclockwise.
3. Pour the fuel mixture carefully into the tank.
4. Clean and inspect the gasket.
   Note: Replace the fuel cap if the gasket is damaged.
5. Install the fuel cap and tighten it by turning it clockwise.

WARNING:

Check for fuel leaks. If you find any leaks, correct the problem before using the product.

1. Wipe spilled fuel from the product.

2. Move at least 30 ft. (9 m) away before starting the product.

Note: It is normal for the engine to emit smoke during use.

WARNING:

The product may throw objects during operation, causing injury to the operator or to bystanders. Always wear suitable eye protection, long heavy pants, and boots while operating the product.

Starting/Stopping the Product

See Figure 14a, Figure 14b, Figure 14c and Figure 15.

To start an engine that is cold or has run dry:

1. Fill the fuel tank, if necessary. Always use the proper oil/gasoline mixture. See "Mixing the Fuel" on page 17.
2. Place the engine switch in the RUN ( | ) position. Note: Do not engage the throttle lever during the starting process.
3. Slowly push the primer bulb seven times.

Note: If restarting a warm engine, do not push the primer bulb.

1. Set the start lever to the START position.

Note: If restarting a warm engine, leave the choke in the RUN position.

1. Pull the starter cord until the engine runs.
2. Return the starter cord gently to the starter housing. Do not allow the rope to snap back.
3. Allow the engine to run for 15 seconds to warm up before using.
4. Engage the throttle lever to operate.

Switch Lock-off Button Trigger Primer Bulb Starter Cord

Figure 14a

Primer Bulb

Figure 14b

Start Lever Start Position Start Lever Start Position RUN RUN

Figure 14c

Stopping the Product

See Figure 15.

1. Release the throttle lever.
2. Move the engine switch to the OFF (O) position.

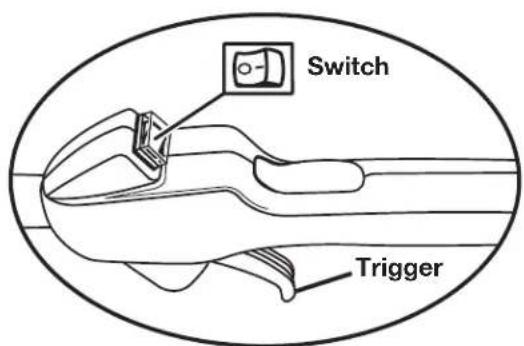

Switch Trigger

Figure 15

Operating the Trimmer

Operating the trimmer differs, depending on whether you are using the curved shaft trimmer or the straight shaft trimmer.

WARNING:

Always hold the string trimmer away from the body, keeping clearance between the body and the product. Any contact with the housing or string trimmer cutting head can result in burns and/or other serious personal injury.

To Operate the Curved Shaft Trimmer (Model No. 51950A)

See Figure 16a.

Follow these steps to operate the curved shaft trimmer.

1. Start the trimmer.
2. Hold the trimmer at waist level with your right hand on the trigger handle and your left hand on the front handle.
3. Place the product on the right side of your body with the engine behind and away from your body.
4. Trim grass and weeds in a right-to-left motion with the line parallel to the ground.

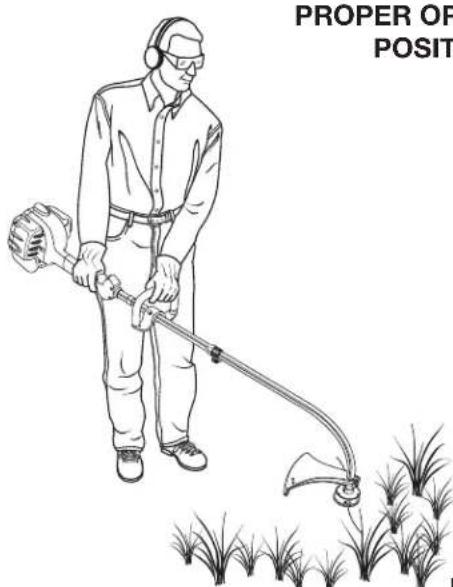

PROPER OF POSIT

Figure 16a

To Operate the Straight Shaft Trimmer (Model No. 51970A)

See Figure 16b.

Follow these steps to operate the straight shaft trimmer.

1. Start the trimmer.
2. Hold the trimmer at waist level with your right hand on the trigger handle and your left hand on the front handle.
3. Place the product on the right side of your body with the engine behind and away from your body.
4. Trim grass and weeds in a left-to-right motion with the line parallel to the ground.

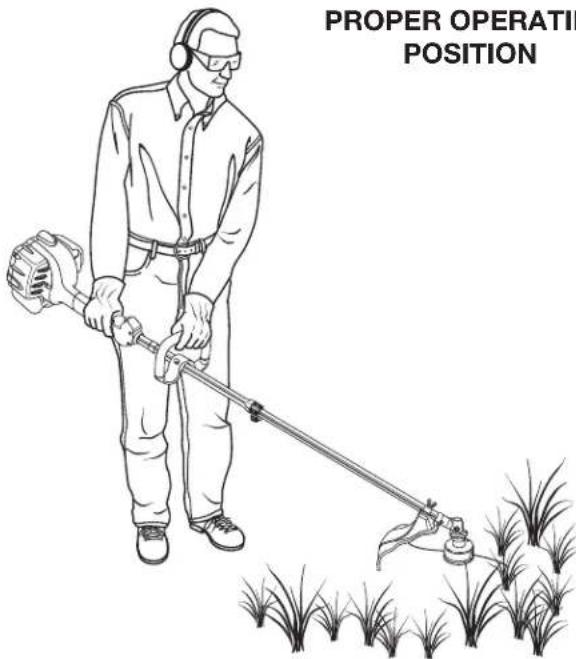

PROPER OPERATI POSITION

Figure 16b

To Advance the Cutting Line

See Figure 16c.

Follow these steps to advance the cutting line.

1. Start the trimmer.
2. Tap the retaining cap lightly on the ground while the motor is running. The line will only advance with the engine at full throttle. Do not hold the retaining cap on the ground.
   Note: The line cutting blade on the grass deflector will cut the line to the proper length.
   Note: To help prevent line tangle, tap only once to lengthen the line. If additional line is required, wait a few seconds before retapping the retaining cap. Do not allow the line to wear too short. Keep the cutting line at full length.

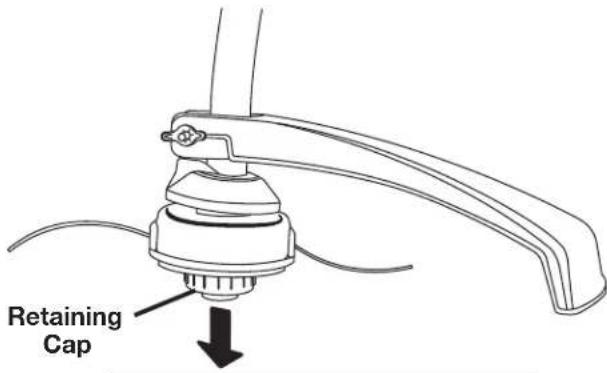

Retaining Cap

Figure 16c

Operating the Brushcutter (Model No. 51990A)

See Figure 17.

Follow these steps to operate the brushcutter.

1. Start the brushcutter.
2. Hold the brushcutter at waist level with your right hand (arm extended) on the trigger handle and your left hand on the front handle.
3. Place the product on the right side of your body with the engine behind and away from your body.
4. Brushcut weeds and vines in a right-to-left motion with the blade parallel to the ground.

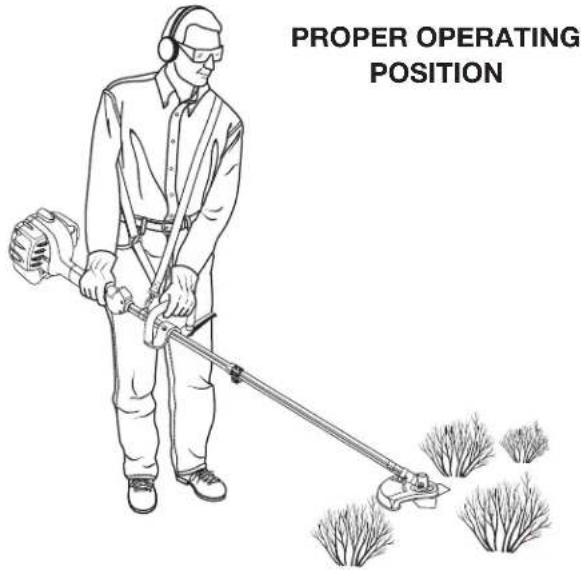

PROPER OPERATING POSITION

Figure 17

Cutting Tips

See Figures 18 and 19.

1. Avoid hot surfaces by always keeping the tool away from your body. (Proper operating position is shown in Figures 16a, 16b and 17.)
2. Keep the trimmer tilted toward the area being cut; this is the best cutting area.
3. The curved shaft trimmer cuts when passing the unit from right to left. the straight shaft trimmer cuts when passing the unit from left to right. This will avoid throwing debris at the operator. Avoid cutting in the dangerous area shown in figures 18 and 19.
4. Use the tip of string to do the cutting; do not force string head into uncut grass.
5. Wire and picket fences cause extra string wear, even breakage. Stone and brick walls, curbs and wood may wear string rapidly.
6. Avoid trees and shrubs. Tree bark, wood moldings, siding and fence posts can easily be damaged by the string.

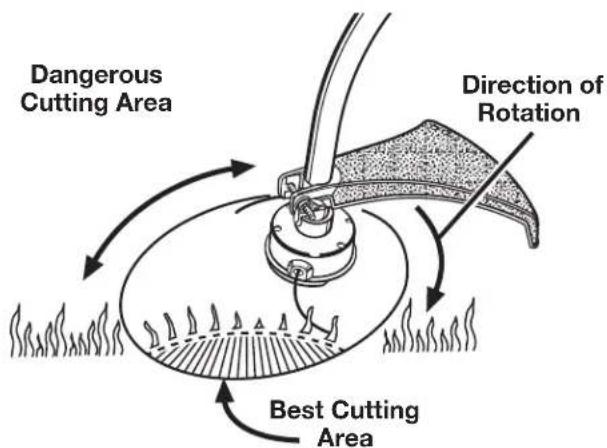

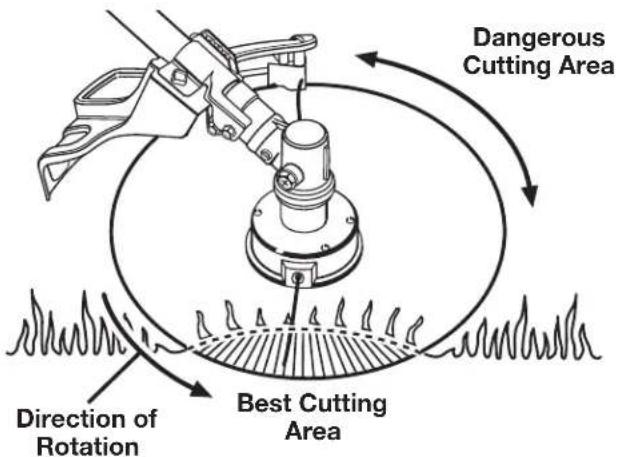

Curved Shaft Trimmer

Dangerous Cutting Area Direction of Rotation Best Cutting Area

Figure 18

Straight Shaft Trimmer

Dangerous Cutting Area Direction of Rotation Best Cutting Area

Figure 19

Emissions Maintenance Schedule

Maintenance, replacement, or repair of the emission control device and systems may be performed by any non-road engine repair establishment or individual.

Emission Part	Inspect before each use	Clean every 5 hours	Replace every 25 hours or yearly	Clean every 25 hours or yearly
Fuel Tank Assembly (Includes Fuel Lines, Fuel Cap, and Fuel Filter)	X
Air Filter	X X
Spark Arrester	X
Spark Plug	X

WARNING:

When servicing, use only Toro replacement parts. Use of any other parts may create a hazard or cause product damage.

Cleaning the Product

■ Stop the product before cleaning.
■ Clean the exterior of the product with a damp cloth.
■ Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.
■ Wipe or scrape the trimmer head and spool area when they accumulate dirt or clippings.
■ Scrape debris away from air intake vents on both sides of the motor housing.

CAUTION:

Keeping air intake vents free of grass and debris prevents motor overheating and possible failure.

Note: Depending on the type of fuel used, the type and amount of oil used, and/or your operating conditions, the exhaust port and muffler may become blocked with carbon deposits. If you notice a power loss with your gas powered tool, you may need to remove these deposits to restore performance. We highly recommended that only qualified service technicians perform this service.

Servicing the Product

- Check and tighten all fasteners. If any part is damaged or lost, repair it or replace it.

Replacing the Cutting Line

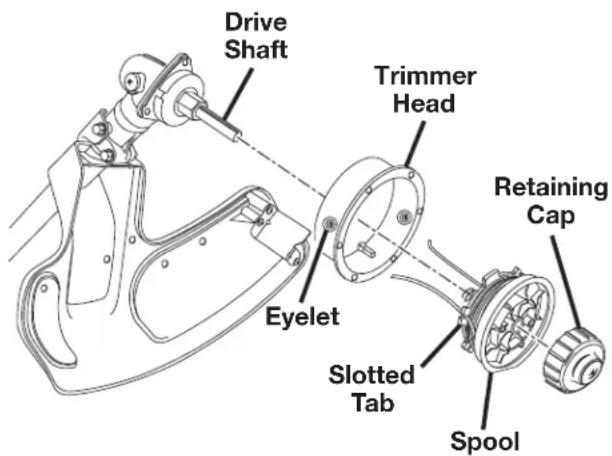

See Figures 20 and 21.

WARNING:

Use of line other than the proper monofilament cutting line could cause personal injury.

Follow these steps to replace the cutting line.

1. Stop the trimmer.

WARNING:

Make sure the trimmer head stops rotating. Contact with a rotating trimmer head could cause personal injury.

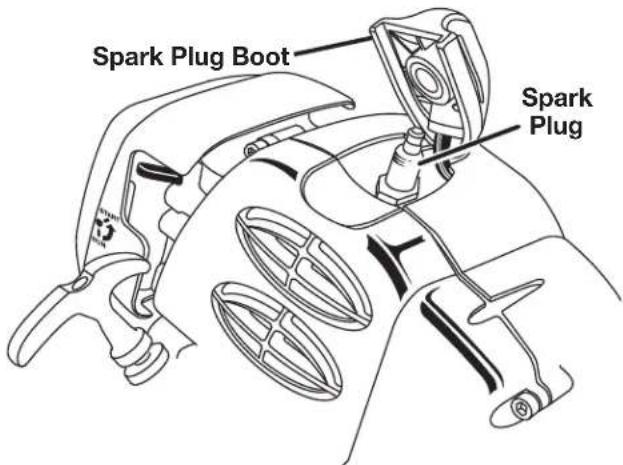

1. Remove the spark plug boot. See Figure 24.
2. Remove the retaining cap.
3. Remove the empty spool.
4. Clean the trimmer head thoroughly. Inspect the trimmer head for any damaged or worn parts.
5. Hold the spool with the spring positioned upward.
6. Insert the end of the new line into the hole in the upper threaded area of the spool.

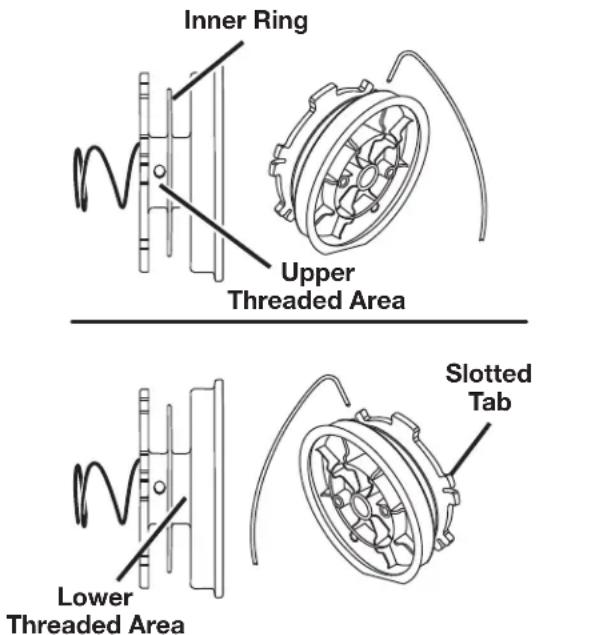

7. Wind the line around the spool as indicated by the arrows on the top of the spool until the line reaches the edge of the spool. Do not wind the line beyond the edge of the inner ring.
8. Secure the line temporarily by pushing it into one of the slotted tabs on the spool.

9. Measure six inches of line from the slotted tab and cut the line at that point.

10. Repeat the process for the lower threaded area of the spool, winding the line and securing it in the slotted tab opposite the first secured line.

11. Insert the lines into the eyelets on the trimmer head.
12. Place the spool on the drive shaft.

Note: To install the spool, you may need to rotate it slightly. If the line should tangle or break at the eyelet, remove the spool, refeed the line through the eyelets, and reassemble the spool on the trimmer.

1. Release the lines from the tabs by sharply pulling each line.
2. Push down on the spool to reveal the threads inside the drive shaft.
3. Thread the retaining cap on the drive shaft.
4. Secure the retaining cap.

WARNING:

An improperly installed retaining cap or spool could fly off the trimmer. Contact with a thrown retaining cap or spool could cause personal injury.

1. Replace the spark plug boot. See Figure 24.

Inner Ring Upper Threaded Area Slotted Tab Lower Threaded Area

Figure 20

Replacing the Spool

See Figure 21.

Note: For best performance, use only Toro spools (Part No. AR04118). The spool may wear during normal use of the line advance feature and may require occasional replacement. Replacement spools are available through your Toro retailer.

Follow these steps to replace the spool.

1. Stop the trimmer.

WARNING:

Make sure the trimmer head stops rotating when you release the trigger. Contact with a rotating trimmer head could cause personal injury.

1. Remove the spark plug boot. See Figure 24.
2. Remove the retaining cap by turning as indicated by the arrow on the cap.
3. Remove the empty spool.
4. Clean the trimmer head thoroughly. Inspect the trimmer head for any damaged or worn parts.
5. Remove the lines from the slotted tabs on the spool and unwind approximately six inches.
6. Secure the lines temporarily by pushing them into the slotted tabs on the spool.
7. Insert the lines of the new spool into the eyelets on the trimmer head.
8. Place the spool on the drive shaft.

Note: To install the spool, you may need to rotate it slightly.

Note: If the line should tangle or break at the eyelet, remove the spool, refeed the line through the eyelets, and reassemble the spool on the trimmer.

1. Release the lines from the tabs by sharply pulling each line.
2. Push down on the spool to reveal the drive shaft.
3. Thread the retaining cap on the drive shaft.
4. Secure the retaining cap.
5. Replace the spark plug boot. See Figure 24.

Drive Shaft Trimmer Head Eyelet Slotted Tab Spool Retaining Cap

Figure 21

Checking the Fuel Cap

WARNING:

A leaking fuel cap is a fire hazard and must be replaced immediately.

The fuel cap contains a non-serviceable filter and check valve. A clogged fuel filter causes poor engine performance. If performance improves when the fuel cap is loosened, the check valve may be faulty or the filter may be clogged. Replace the fuel cap if necessary.

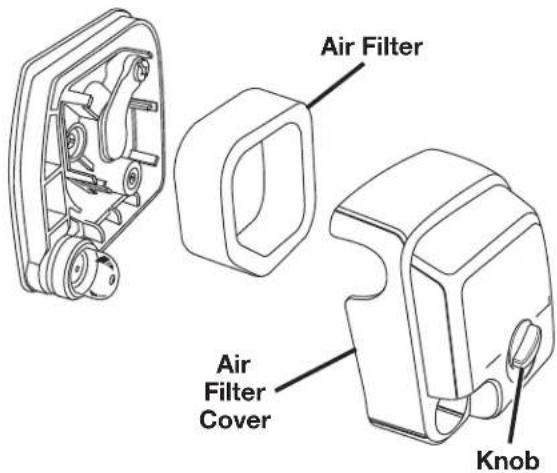

Cleaning the Air Filter

See Figure 22.

Clean the air filter as indicated by the maintenance schedule. Follow these steps to clean the air filter.

1. Stop the trimmer.

WARNING:

Make sure the trimmer head stops rotating when you release the trigger. Contact with a rotating trimmer head could cause personal injury.

1. Remove the spark plug boot.
2. Loosen the air filter cover by turning the knob counterclockwise.
3. Remove the air filter cover.
4. Remove the air filter.
5. Clean the air filter with warm soapy water.
6. Rinse the air filter and let it dry completely.
7. Work two drops of oil into the air filter.
8. Replace the air filter (fits only one way).
9. Replace the air filter cover.
10. Tighten the air filter cover by turning the knob clockwise.
11. Replace the spark plug boot.

Note: Replace the air filter (Part No. 88048) as indicated by the maintenance schedule.

Air Filter Air Filter Cover Knob

Figure 22

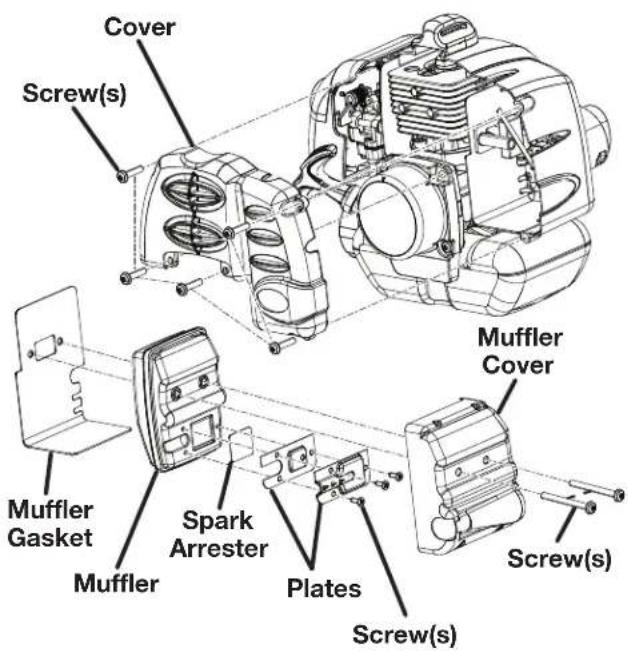

Replacing the Spark Arrester

See Figure 23.

The spark arrester may need to be replaced after repeated use. If replacement is necessary, use Toro part number 986179001.

To replace the spark arrester:

1. Remove the five screws that hold the cover. Note: Removing these screws requires the use of a T20 and T25 torx screwdriver.
2. Remove the cover.
3. Remove the muffler assembly and muffler gasket. It may be necessary to work the muffler assembly free from the muffler gasket.
4. Remove the three screws that hold the plates on the muffler.
5. Remove the spark arrester.
6. Replace the old spark arrester with the new one.
7. Reassemble the muffler by reinstalling the plates and tightening the three screws.
8. Reassemble the muffler and muffler cover and attach to the muffler gasket with the two screws.
9. Reinsert the muffler assembly.
10. Reinstall the cover on the tool and fasten with the five screws.

Note: Do not overtighten screws.

Cover Screw(s) Muffler Cover Muffler Gasket Spark Arrester Muffler Plates Screw(s)

Figure 23

Replacing the Spark Plug

See Figure 24.

All model numbers included in this manual use an NGK BPMR7A or Champion RCJ-6Y spark plug. Use an exact replacement and replace annually.

1. Remove the spark plug boot.
2. Loosen the spark plug by turning it counterclockwise with a socket.
3. Remove the spark plug.
4. Hand thread the new spark plug, turning it clockwise.
5. Tighten with a socket and torque to 170 in.lb. minimum, 190 in.lb. maximum. Do not over tighten.

CAUTION:

Be careful not to cross-thread the spark plug. Cross-threading will seriously damage the product.

Spark Plug Boot Spark Plug

Figure 24

Storing the Product

Storing the product differs depending on the amount of time it will be in storage.

Note: If the product includes another attachment, place the storage cap on the end of the attachment shaft and hang it up to store.

To Store the Product Short Term

Follow these steps to store the product short term.

1. Clean all foreign material from the product.
2. Store the product in a well-ventilated place that is inaccessible to children.

To Store the Product Long Term

If you do not intend to use the product for more than one month, follow the storage procedures below.

Follow these steps to store the product long term.

1. Drain all of the fuel from the tank into a container approved for gasoline.
2. Run the engine until it stops.
3. Clean all foreign material from the product.
4. Store the product in a well-ventilated place that is inaccessible to children.

Note: Keep the product away from corrosive agents such as garden chemicals and de-icing salts.

Important: Abide by all federal and local regulations for the safe storage and handling of gasoline.

Transporting the Product

Follow these steps to transport the product.

1. Drain the fuel mixture into a container that is approved for use with gasoline.
2. Carry the product by the front handle.
3. Secure the product in your vehicle or on a trailer.

Problem Possible Cause Solution
Engine will not start	1. Switch set to the O (OFF) position.2. No spark3. No fuel4. Flooded engine5. Starter cord pulls harder now then when new	1. Set switch to the I (ON) position.2. Remove the spark plug. Reattach the spark plug cap and lay the spark plug on the metal cylinder. Pull the starter cord and watch for a spark at the spark plug tip. If there is no spark, repeat the test with a new spark plug.3. Push primer bulb until the bulb is full of fuel. If the bulb does not fill, the primary fuel delivery system is blocked. If the primer bulb fills, the engine may be flooded. (See next item.)4. Remove the spark plug. Turn the product so that the spark plug hole is aimed at the ground. Make sure the start lever is set to RUN and pull the starter cord 10 to 14 times. This clears excess fuel from the engine. Clean and reinstall the spark plug. With the trigger fully depressed, pull the starter cord 3 times. If the engine does not start, set the start lever to START and follow normal starting instructions. If the engine still fails to start, repeat the procedure with a new spark plug.5. Contact an authorized service dealer.
Engine does not reach full speed and emits excessive smoke	1. Check oil fuel mixture2. Air filter is dirty3. Spark arrestor screen is dirty	1. Use fresh fuel and the correct 2-cycle oil mix.2. Clean the air filter.3. Clean the spark arrester.
Line will not advance when using automatic line lengthening	1. Line welded to itself2. Not enough line on the spool3. Line worn too short4. Line tangled on spool5. Engine speed too slow	1. Lubricate with silicone spray.2. Install more line.3. Pull line while alternately pressing down on and releasing the retaining cap.4. Remove line from spool and rewind.5. Advance line at full throttle.
Retaining cap hard to turn when using automatic line lengthening	Screw threads are dirty or damaged	Clean the threads and lubricate with grease. If this does not solve the problem, replace the retaining cap.
Grass wraps around the trim-mer head assembly and the attachment shaft	1. Cutting tall grass at ground level2. Operating the product at part throttle	1. Cut tall grass from the top down.2. Operate the product at full throttle.
Oil drips from muffler	1. Operating the product at part throttle2. Check oil/fuel mixture3. Air filter is dirty	1. Operate the product at full throttle.2. Use fresh fuel and the correct 2-cycle oil mix.3. Clean the air filter.

OWT Industries, Inc. Gas Trimmer Products Limited Warranty

OWT INDUSTRIES, INC. warrants to the original retail purchaser that this Gas Trimmer Product is free from defects in material and workmanship and agrees to repair or replace, at our option, any defective Product free of charge within these time periods from the date of purchase:

■ Two years for Gas Trimmer Products, if the Product is used for personal, family, or household use;
■ 90 days, if Gas Trimmer Products are used for any other purpose, such as commercial or rental.
■ Two years for emissions control systems on Gas Trimmer Products used for any purpose, as provided below.

Except as provided in the Emission Control Warranty Statement, this warranty extends to the original retail purchaser only and commences on the date of original retail purchase.

Instructions for Obtaining Warranty Service

Any part of the Product manufactured or supplied by OWT Industries, Inc. and found in the reasonable judgement of OWT, Industries, Inc. to be defective in material or workmanship will be repaired or replaced by an authorized service dealer for this product without charge for parts and labor. To locate your nearest authorized service dealer for this product, contact us toll free at 1-866-574-9242 (US) or 1-866-574-9243 (Canada).

The Product, including any defective part, must be returned to an authorized service dealer within the warranty period. The expense of delivering the Gas Trimmer Product to the service dealer for warranty work and the expense of returning it back to the owner after repair or replacement will be paid for by the owner. OWT Industries, Inc.'s responsibility in respect to claims is limited to making the required repairs or replacements and no claim of breach of warranty shall be cause for cancellation or rescission of the contract of sale of any Product. Proof of purchase will be required by the dealer to substantiate any warranty claim. All warranty work must be performed by a service dealer authorized by OWT Industries, Inc. to service this product.

This warranty does not cover any Gas Trimmer Product that has been subject to misuse, neglect, negligence, or accident, or that has been operated in any way contrary to the operating instructions as specified in the operator's manual. This warranty does not apply to any damage to the Gas Trimmer Product that is the result of improper maintenance or to any Gas Trimmer Product that has been altered or modified so as to adversely affect the products operation, performance or durability or that has been altered or modified so as to change its intended use. The warranty does not extend to repairs made necessary by normal wear or by the use of parts or accessories which are either incompatible with the Gas Trimmer Product or adversely affect its operation, performance or durability.

In addition, this warranty does not cover:

A. Tune-ups – Spark Plugs, Carburetor Adjustments, Filters
B. Wear Items – Bump Knobs, Outer Spools, Cutting Lines, Inner Reels, Starter Pulley, Starter Ropes, Drive Belts, Tines, Felt Washers, Hitch Pins, Mulching Blades, Blower Fans, Blower and Vacuum Tubes, Vacuum Bag and Straps, Guide Bars, Saw Chains

OWT Industries, Inc. reserves the right to change or improve the design of any Gas Trimmer Product without assuming any obligation to modify any product previously manufactured.

ALL IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE STATED WARRANTY PERIOD. ACCORDINGLY, ANY SUCH IMPLIED WARRANTIES INCLUDING MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, ARE DISCLAIMED IN THEIR ENTIRETY AFTER THE EXPIRATION OF THE APPROPRIATE TWO-YEAR OR NINETY DAY WARRANTY PERIOD. OWT INDUSTRIES INC.'S OBLIGATION UNDER THIS WARRANTY IS STRICTLY AND EXCLUSIVELY LIMITED TO THE REPAIR OR REPLACEMENT OF DEFECTIVE PARTS AND OWT DOES NOT ASSUME OR AUTHORIZE ANYONE TO ASSUME FOR THEM ANY OTHER OBLIGATION. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

OWT INDUSTRIES INC. ASSUMES NO RESPONSIBILITY FOR INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES INCLUDING, BUT NOT LIMITED TO EXPENSE OF RETURNING THE GAS TRIMMER PRODUCT TO A GAS TRIMMER AUTHORIZED SERVICE DEALER AND EXPENSE OF DELIVERING IT BACK TO THE OWNER, MECHANIC'S TRAVEL TIME, TELEPHONE OR TELEGRAM CHARGES, RENTAL OF A LIKE PRODUCT DURING THE TIME WARRANTY SERVICE IS BEING PERFORMED, TRAVEL, LOSS OR DAMAGE TO PERSONAL PROPERTY, LOSS OF REVENUE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, OR INCONVENIENCE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

This warranty gives you specific legal rights, and you may also have other rights, which vary, from state to state.

This product is manufactured under license from The Toro Company by OWT Industries, Inc.

FEDERAL AND CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS

OWT Industries, Inc. specifically warrants the emissions control system of this Gas Trimmer Product in accordance with the California and Federal legal requirements described below:

OWT Industries, Inc. warrants to the original retail purchasers and subsequent purchasers that the nonroad engine included with this product has been designed, built and equipped, at the time of sale, to comply with applicable EPA regulations, and that the engine is free from defects in material and workmanship that would cause it to fail to conform with the applicable regulations for its warranty period.

The following CARB statement applies to all models

The California Air Resources Board (CARB), and OWT Industries, Inc. are pleased to explain the Emission Control System Warranty on your nonroad or small off-road engine. In California, new small off-road engines must be designed, built and equipped to meet the state's stringent anti-smog standards. OWT Industries, Inc. must (and docs) warrant the emission control system on your nonroad or small off-road engine for the period of time listed above provided there has been no abuse, neglect, or improper maintenance of your nonroad or small off-road engine.

Your emission control system may include parts such as the carburetor or fuel injection system, the ignition system, the catalytic converter. Also included may be hoses, belts, and connectors and other emission related assemblies.

Where a warrantable condition exists, OWT Industries, Inc. will repair your nonroad or small off-road engine at no cost to you, including diagnosis (if the diagnostic work is performed at an authorized dealer), parts, and labor.

Manufacturer's Warranty Coverage

The 1995 and later small off-road engines are warranted for two years in California from original date of purchase. If any emission-related part on your engine is defective, the part will be repaired or replaced by OWT Industries, Inc. free of charge.

Owner's Warranty Responsibilities

As the non-road or small off-road engine owner, you are responsible for the performance of the required maintenance listed in your owner's manual. OWT Industries, Inc. recommends that you retain all receipts covering maintenance on your non-road or small off-road engine, but OWT Industries, Inc. cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.

As the non-road or small off-road engine owner, you should however, be aware that OWT Industries, Inc. may deny you warranty coverage if your non-road or small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.

You are responsible for presenting your nonroad or small off-road engine to an OWT Industries, Inc distribution center or authorized service center as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should contact an OWT Industries, Inc., Customer Representative at 1-866-574-9242 (US) or 1-866-574-9243 (Canada)

Emission-related warranted parts for this product include: Carburetor, Spark Plug, Ignition, Air Filter and Fuel Filter.

Maintenance Requirements

The owner is responsible for the performance of the required maintenance as defined by OWT Industries, Inc. in the owner's manual.

Limitations

The Emission Control Systems Warranty shall not cover any of the following:

a) repair or replacement required because of misuse or neglect, lack of required maintenance, repairs improperly performed or replacements not conforming to OWT Industries, Inc. specifications that adversely affect performance and/or durability, and alterations or modifications not recommended or approved in writing by OWT Industries, Inc., and
b) replacement of parts and other services and adjustments necessary for required maintenance at and after the first scheduled replacement point.

The Emissions Compliance Period referred to on the Emissions Compliance label indicates the number of operating hours for which the engine has been shown to meet Federal emission requirements. Category C=50 hours, B=125 hours, and A=300 hours.

THIS PRODUCT WAS MANUFACTURED WITH A CATALYST MUFFLER

Congratulations! You have made an investment toward protecting the environment. In order to maintain this product's original emission level, please refer to the maintenance section below.

EMISSIONS MAINTENANCE SCHEDULE AND WARRANTED PARTS LIST
Emissions Parts	Inspect Before Each Use	Clean Every 5 Hours	Replace Every 25 Hours or Yearly	Clean Every 25 Hours or Yearly	Replace Every 50 Hours
CATALYTIC MUFFLER ASSEMBLY....X
AIR FILTER ASSY includes:Filter....X....X
SPARK SCREEN....X
CARBURETOR ASSY includes:Heat DamGaskets
FUEL TANK ASSY includes:Fuel Lines....X
Fuel Cap....X
Fuel Filter
IGNITION ASSY includes:Spark Plug....X
ALL EMISSIONS RELATED PARTS ARE WARRANTED FOR TWO YEARS OR FOR THE PERIOD OF TIME PRIOR TO THE PARTS FIRST SCHEDULED REPLACEMENT WHICHEVER COMES FIRST.

NEED HELP ? SALI 1-866-574-9242

CALL US FIRST

For any questions about operating or maintaining your product, call the Toro ^® Help Line!

Your product has been fully tested prior to shipment to ensure your complete satisfaction.

Notes

TORO®

Customer Service Information

If your product requires service or maintenance, contact your nearest authorized service dealer. To locate your nearest authorized service dealer for this product, contact us toll free at 1-866-574-9242 (US) or 1-866-574-9243 (Canada).

OWT Industries, Inc.

P.O. Box 35

Highway 8

Pickens, SC 29671

USA

Technical line drawing of a mechanical device with no visible text or symbols

Diagram showing fuel pump, a droplet with liquid, and a gas can with a flame symbol

Line drawing of a person using a manual lawn power tool to spray grass, no text or symbols present

BONNE POSITION DE TRAVAIL
Figure 16a

OWT Industries, Inc.

OWT Industries, Inc.

P.O. Box 35

Highway 8

Pickens, SC 29671

États-Unis

Technical line drawing of a mechanical engine component with no visible text or symbols

! 50-150m No. 150m

Diagram showing a fuel pump and its corresponding gas collection with a droplet, likely illustrating fuel efficiency or usage.

Llenado del tanque

ADVERTENCIA:

OWT Industries, Inc.

OWT Industries, Inc.

P.O. Box 35

Highway 8

Pickens, SC 29671

USA
