Easy Store Steam & Fold 26740-56 - Iron RUSSELL HOBBS - Free user manual and instructions

Brand	Russell Hobbs
Model	Easy Store Steam & Fold 26740-56
Product type	Vertical steam clothes steamer (steam iron)
Dimensions (approx.)	30 x 20 x 15 cm (unfolded)
Weight (approx.)	1.2 kg
Power supply	220-240 V, 50/60 Hz, 1500 W
Water tank capacity	Not specified (estimated 300 ml)
Heat-up time	Approximately 45 seconds
Auto shut-off function	Yes, after 15 minutes of inactivity
Continuous steam flow	Yes (with switch lock)
Soleplate material	Not specified (plastic/alloy)
Power cord length	Not specified (estimated 2 m)
Included accessories	Fabric accessory (brush)
Recommended water type	Distilled, purified or filtered
Care and cleaning	Wipe with a damp cloth; empty the tank after each use; regular descaling recommended
Safety instructions	Do not leave unattended; keep out of reach of children; do not direct steam at people, animals or plants
Folding/storage	Yes, foldable head; cord wrap around heel
Use	Household use only
Warranty	Not specified

Frequently Asked Questions - Easy Store Steam & Fold 26740-56 RUSSELL HOBBS

What type of water to use in the Russell Hobbs Easy Store Steam & Fold 26740-56 iron?

It is recommended to use distilled, purified or filtered water to avoid mineral buildup. Tap water can reduce the appliance's efficiency in the long term. Never use perfumes, oils or additives.

How to prime the steam pump?

After preheating (about 45 seconds), hold the steam switch pressed until steam is generated. This primes the water pump.

What to do if the iron does not produce enough steam?

Check that the appliance is hot enough (45 seconds heat-up) and that the water tank is not empty. If the pump is not primed, hold the steam switch until steam is obtained.

How to use the steam switch lock for continuous steam?

Press the steam switch, then slide the lock down to keep steam flowing without pressing. To stop, slide the lock up and release the switch.

The appliance turns off by itself, is this normal?

Yes, the auto shut-off function activates after 15 minutes of inactivity. The indicator light flashes quickly. To reactivate, press the steam switch or the on/off button and wait for reheating.

How to clean the fabric accessory?

The accessory can be cleaned with a damp cloth after complete cooling. Make sure it is dry before putting it back.

Can I iron clothes with this appliance?

This appliance is a vertical steam steamer, designed to dewrinkle hanging clothes. It is not suitable for traditional ironing on a board.

How to store the iron after use?

Turn off and unplug the appliance, let it cool completely. Empty the water tank. Fold the head by pushing down and wrap the cord around the heel. Store on a stable surface.

Water droplets drip during use, what to do?

If dripping is excessive, the appliance is not hot enough. Let it heat for an extra minute. Slight dripping is normal. Make sure you have not exceeded the max water level.

Can the appliance be used on all fabrics?

Check the care label. It is not recommended for leather, suede, vinyl, plastic or materials sensitive to steam. Always test on a hidden area.

USER MANUAL Easy Store Steam & Fold 26740-56 RUSSELL HOBBS

Black and white photo of a Russell Hobbs hair dryer with a circular head cover and brand logo (no visible text on device body)

Russell Hobbs

A BRITISH ICON SINCE 1952

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Use and store the appliance out of reach of children under 8 years.

Between uses, the steamer must be rested on a stable, level, heat-resistant surface.

Don't leave the appliance unattended while plugged in, or while it's resting between uses.

Unplug the appliance before filling, before cleaning, and after use.

Don't operate the appliance if it's dropped or damaged, or if it malfunctions or leaks.

If the cable is damaged, return the appliance in order to avoid a hazard.

Do not immerse in any liquid

The surfaces of the appliance will get hot during use.

• Never use anything except water to fill or clean the appliance.
• Never steam clothing that is being worn.
• Never aim steam directly at people, animals or plants. Steam is hot and can cause serious burns and scalds if used without care.
• Never hold the steam head downwards while at rest, or tilt it backwards as this may cause hot water to be discharged and possible injury.
• Ensure the appliance is switched off and cooled down before fitting or removing attachments.
• Don't use the appliance for any purpose other than those described in these instructions.

HOUSEHOLD USE ONLY

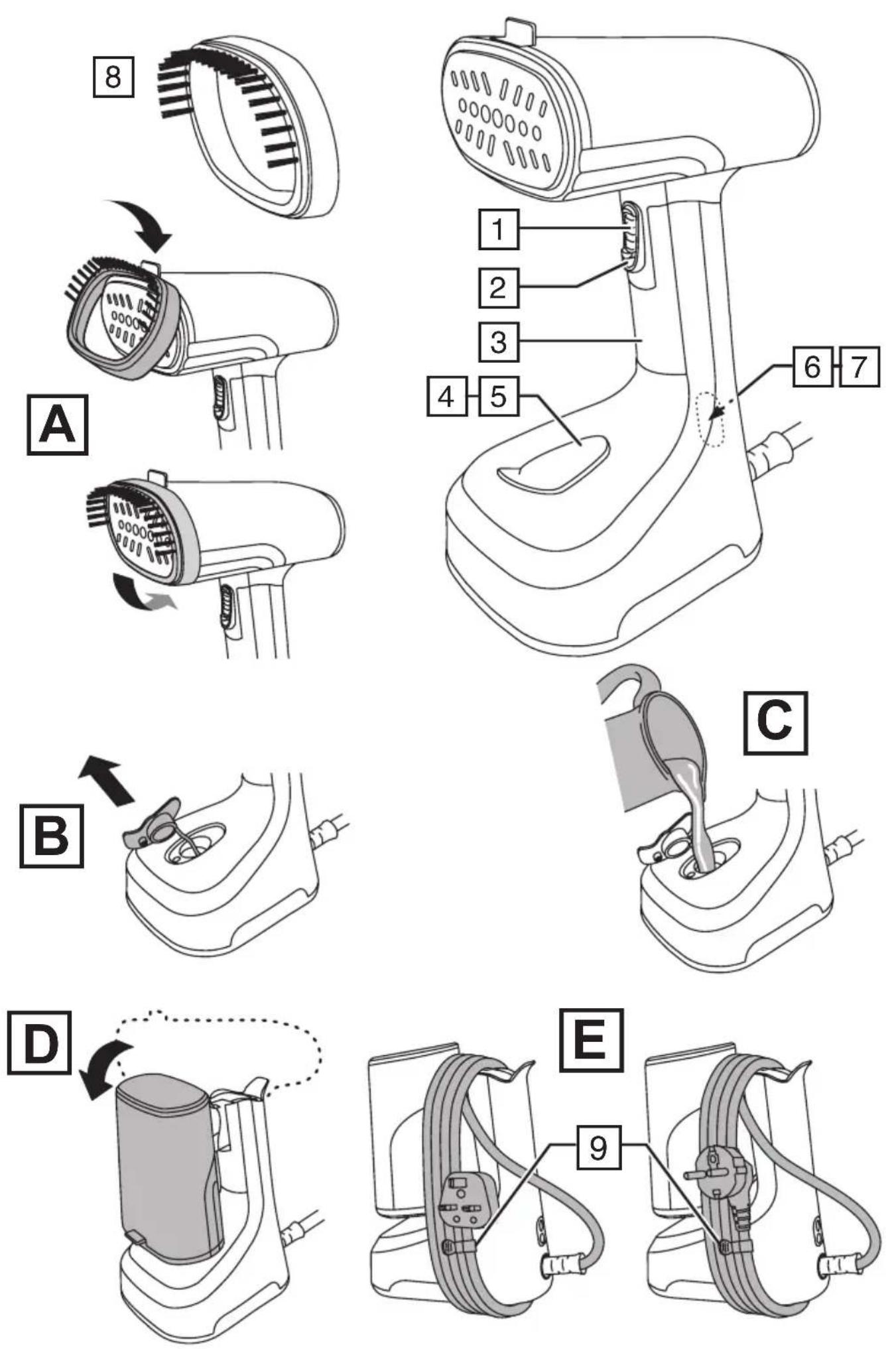

PARTS

1. Steam trigger lock
2. Steam trigger
3. Handle
4. Cover

5. Water inlet

6. Power button

7. Light
8. Fabric attachment
9. Clip

BEFORE USING FOR THE FIRST TIME

• Remove labels, stickers and packaging from the appliance.
• Unfold the steamer before use.

- Note: Any water droplets or condensation inside the water tank are a result of quality testing prior to shipping.

IMPORTANT INFORMATION

• For best performance, we recommend using distilled, purified or filtered water in your steamer. Tap water contains minerals that can build up inside your steamer over time and reduce its efficiency or even cause damage.
• Never use perfumes, oils or other additives.
• Always check the garment's care label before steaming, and always test fabrics for colourfastness in an inconspicuous area. Steamers are not recommended for use on leather, suede, vinyl, plastic, or other materials that are sensitive to steam.
• During use the steamer and accessories will become HOT. Never try to fit or remove attachments while still hot.
  • After preheating, prime the water pump by holding the steam trigger until steam forms.
• It is normal to feel or hear the water pump inside the device. It may become louder when the water level in the tank is low. Check and refill the tank when required.
• Small amounts of dripping might occur during use. If excessive, your steamer needs time to get back up to full temperature. Just allow the steamer a minute to reheat.
• Wearing clothes immediately after ironing or steaming can actually create wrinkles. Always allow the clothing to cool for about 5 minutes before wearing.

ATTACHMENTS

Fabric attachment

Use on garments labelled ☐ that allow the use of steam. Tip: For items with printing/embellishment, turn the garment inside out to avoid damage to sensitive areas.

Fitting/Removing (Fig. A)

1. Make sure that the steamer and attachment are cool.
2. Hook the top of the attachment over the top edge of the steamer. Click the bottom edge into place. Make sure it is fully fitted and not loose or it may detach itself during use.
3. Remove the attachment using the tab. When removing the attachment, watch out for condensation that may have built up during use.

FILLING

1. Place the steamer on its base on a stable surface.
2. Open the cover (Fig. B).
3. Pour slowly, to allow the air in the reservoir to escape, and avoid an airlock.
4. Don't fill past the max mark on the reservoir, or water will escape in use.
5. Wipe up any spillage.
6. To refill at any time during use, turn the steamer off by pressing the power button until the blue indicator light goes out, unplug from outlet, and follow the above procedure.
7. After refilling, allow to reheat for 45 seconds and then prime the pump by holding the steam trigger until steam forms.

USING

- If the label says "do not steam" or shows this icon 📄, do not steam the garment.

1. Hang the garment in an area that will not be affected or damaged by the heat and steam, such as on a shower curtain rail, or in an open doorway.
2. Fit any attachment you wish to use.
3. Plug the steamer in then press the power button. The power button light will slowly flash, indicating that the steamer is heating.
4. After about 45 seconds the power light will stay on, indicating the steamer is preheated.
5. Prime the water pump by holding steam trigger until steam forms.
6. To generate steam, press the steam trigger. As long as the trigger is held, steam will emit from the steamer. When the trigger is released, the steam will stop.
7. To generate a constant flow of steam without holding the trigger, press the steam trigger and then slide the steam trigger lock downwards. You can then release pressure on the steam trigger. To turn the steam off, press the trigger, slide the steam trigger lock upwards, then release the trigger.
8. With your free hand keep the fabric taut. Steam the garment with slow, downward strokes, keeping the head of the steamer in contact with the fabric.
9. When you have finished, press and hold the power button until the light goes out (about 3 seconds) and unplug.
10. Stand the steamer on its base and allow it to completely cool off before storing. To avoid mineral buildup, empty the tank after each use.

Auto shut off

Your steamer will automatically switch to auto shut-off mode after being left inactive for 15 minutes. The power button light will flash rapidly to indicate this. To resume steaming, press the steam trigger or power button and wait for your steamer to fully reheat.

AFTER USE AND STORING

CAUTION: Allow the iron to fully cool before storing.

1. Make sure steamer is off, unplugged and completely cool.
2. Wipe all surfaces with a clean damp cloth.
3. After the steamer has been thoroughly dried, turn it back on and lightly steam over an old cloth. This will help remove any residue left in the steam holes.
4. To avoid mineral buildup, empty the tank after each use.

- For storage purposes it is possible to fold the steamer by pushing the head downwards (Fig. D).

- The cord can be wrapped around the heel of your steamer for storing. Use the clip to secure the last section of cord as shown (Fig. E).

Cleaning attachments

- Wipe with damp cloth to clean.

TROUBLESHOOTING

Problem Possible Cause Solution
The steamer is plugged in but not heating.	The auto shut-off has activated. Press the steam trigger or press the power button to activate the steamer.
Not enough steam or no steam is coming out of the steamer.	The steamer is not heated to full temperature.	Always allow steamer to preheat at least 45 seconds, or until the power button light stops flashing.
	There is not enough water in the water tank.	Fill the water tank.
	The water pump hasn’t been primed.	After preheating, always prime the water pump by holding the steam trigger until steam forms.
Discoloured water is coming through the holes and staining the fabric.	Residue has built up in the water tank.	Empty the water tank after each use. Only use distilled, filtered, or purified water.
	Perfumed or scented additives were used.	Never use perfumed or scented additives.
Steamer is leaking or spitting.	Steamer is not hot enough.	Allow the steamer to heat for about 45 seconds.
	Water tank is running low. Fill the water tank.	Water tank.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
