USER MANUAL Avanti KM770D KRUPS

Labeled diagram of a coffee maker with parts numbered A–Q, including blender, blender, and watermelon.

Line drawing of a hand using an air fryer to press or install a kitchen appliance, with no text or symbols present.

Line drawing of a kitchen blender with liquid being poured into it (no text or symbols)

Diagram showing a test tube with liquid inside, labeled with arrows and page number 3

Illustration of a hand pouring liquid into a blender using a digital kitchen stand (no text or symbols visible)

Illustration of a hand pouring liquid from a filter into a kitchen appliance using a stand mixer (no text or symbols)

Illustration of a kitchen appliance being processed with a tool, showing powder being mixed (no text or symbols)

"click"

Illustration of a hand pouring coffee into a blender using a digital kitchen stand (no text or symbols)

Illustration of a hand pouring liquid into a trash bin with a bag, showing a downward arrow (no text or symbols)

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

Read all instructions prior to first use.
Do not touch hot surfaces. Do not touch the heating plate or bottom of the carafe when the keep warm function is on. Use handles or knobs.

■ To protect against fire, electric shock and injury to persons, do not immerse the cord, plugs or machine in water or other liquids.

■ Not intended for use by children.
■ Close supervision is necessary when any appliance is used by or near children.
This appliance is not designed to be used by children or people without knowledge or experience with the product, unless they are supervised or given prior instructions concerning the use of the appliance by someone responsible for their safety.

Children must be supervised to ensure that they do not play with the appliance.
Burns can occur from touching the hot plate, hot water or steam. Exercise caution.
■ Unplug machine from outlet when not in use and when cleaning. Allow to cool before putting on or taking off parts, before cleaning the machine and before storing.

All machines are subject to stringent quality control. Practical tests using machines taken at random are conducted and this may explain any slight marks or coffee residue prior to use.

- Do not operate any machine with a damaged cord or plug or after the machine malfunctions or has been damaged in any manner. Return the machine to the nearest KRUPS Service Center for examination, repair or adjustment or your respective countries Consumer Service Department.

To reduce the risk of injury do not drape the cord over a counter top or table top where it can be pulled on by children or tripped over accidentally.
Do not let the cord hang over the edge of table or counter, or touch hot surfaces.
The use of accessory attachments not recommended by KRUPS may result in fire, electric shock or injury to persons.

■ Do not use outdoors.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- To disconnect the machine, turn the control to “off” then remove the plug from the wall outlet. Do not yank on the cord, instead grasp the plug and pull to disconnect.
- Do not use the machine for other than intended use.

- Do not pour liquids other than water and descaling solutions specified in this manual into the water tank.

■ Protect the machine against humidity and freezing.
This machine is for household use only.

The carafe is designed for use with this appliance. It must never be used on a range top.

• Do not set a hot carafe on a wet or cold surface.
  Do not use a cracked carafe or a carafe having a loose or weakened handle.
  Do not clean the carafe with cleansers, steel wool pads or other abrasive material.
  ■ Scalding may occur if the lid is removed during the brewing cycles.
  ■ The lid should be closed and not be removed during the brewing or descaling process.

SAVE THESE INSTRUCTIONS

CAUTION

This machine is intended for household use only. Any servicing other than cleaning and user maintenance should be performed by the nearest authorized KRUPS Service Center. Visit our website at www.krups.com or contact your respective country's Consumer Service department for the service center nearest to you.

To reduce the risk of fire or electric shock, do not attempt to disassemble the machine. Repair should be done by an authorized KRUPS Service Center only.

SHORT CORD INSTRUCTIONS

A We do not recommend using an extension cord with this device. A short power cord or a detachable power cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord accidentally.
B If an extension cord is absolutely necessary,

1. the marked electrical rating of the extension cord should be at least as great as the electrical rating of the machine,

2. the longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.

C This machine has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. In the interest of improving products, KRUPS reserves the right to change specifications without prior notice.

1. DESCRIPTION

A Main body
B Top lid
C Water tank
D Water level indicator
E Carafe lid
F Carafe handle
G Carafe
H Heating plate
I Filter holder
J Permanent filter
K On/Off button with blue LED
L Auto on button with blue LED
M Program button
N Hour Clock button
0 Minute Clock button
P Aroma button
Q Clock
R Spoon

2. PRIOR TO THE FIRST USE

Take your coffee maker out of the box and remove the packaging and all other items (stickers, hang tags, etc.)
■ Wash the detachable parts of the machine in warm soapy water.
■ Operate your coffee maker for the first time without coffee using 1 liter of water to rinse the interior of the appliance.

3. SETTING THE CLOCK

1. Press and hold the Hour button (N) for 2 seconds to set the current hour.
2. Then press and hold the Min button (O) for 2 seconds to set the current minute. There is an AM indicator or a PM indicator on the left side. You have to press the Hour button and make a complete turn of the clock in order for the AM or PM indicator to appear.

When the clock stop flashing, the time is set.

TIPS & ADVICE

Your clock has now been set and will continue to keep the correct time, even after the coffee maker has been shut off. Unplugging the coffee maker or a power failure will reset the clock. Repeat the instructions above to reset the clock.

4. MAKING COFFEE

1. Place the coffee maker on a hard, flat surface. With the coffeemaker turned off, plug the machine into a 120V outlet.

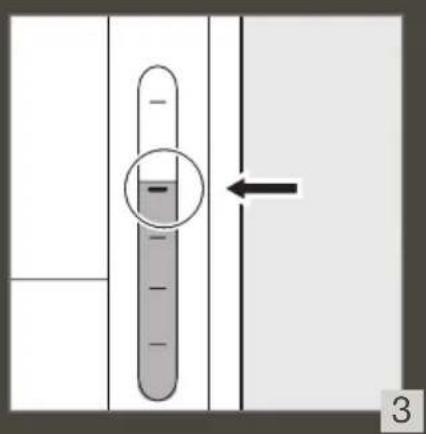

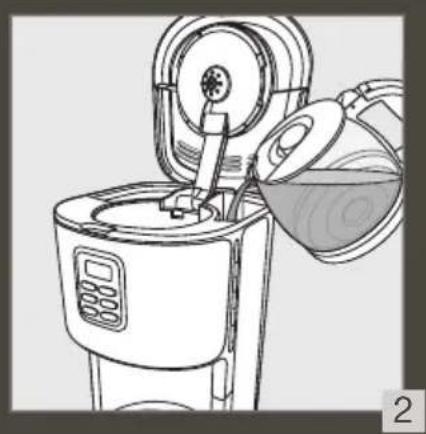

2. Fill the carafe with fresh, cold water (preferably bottled or filtered water). Open the hinged cover and pour the water into the water tank. The number of cups is shown by the water level indicator. Do not exceed the maximum level (Fig. 1, 2 and 3).
3. Place the carafe with its lid onto the heating plate (H), making sure it is secure on the heating plate to activate the pouring mechanism.

TIPS & ADVICE

The amount of brewed coffee will be less than the water placed in the coffeemaker since about 10% is absorbed by the coffee grounds and the filter.

CAUTION: To avoid overflowing the filter holder, the carafe must fit securely into the coffeemaker with the lid on. If not properly positioned on the heating plate, it could cause hot water or hot coffee to overflow.

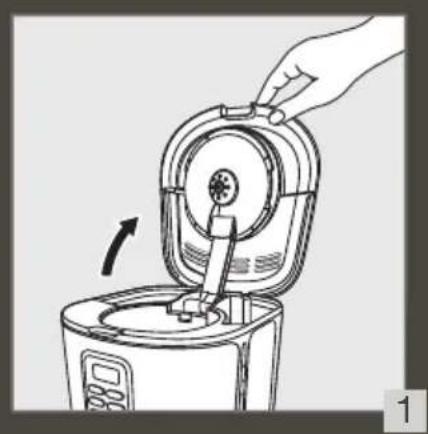

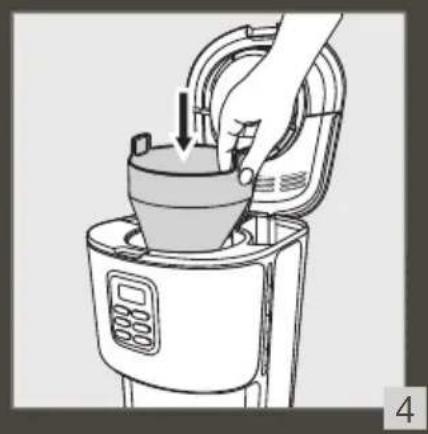

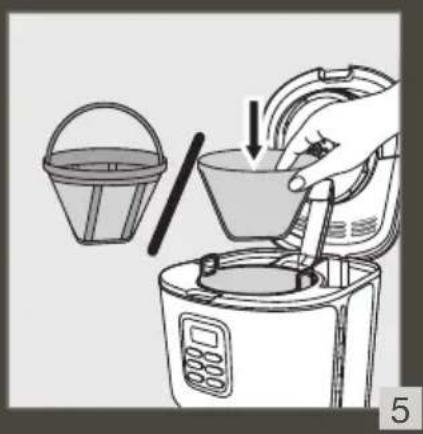

1. Open the coffee maker lid (B), insert the filter holder (I) by using the two handles on either side. Make sure it is securely pushed down and locked into place. Then insert a standard #4 cone paper filter or the permanent filter (J) into the filter holder (I). Use a fresh paper filter or clean the permanent filter for each carafe of coffee (Fig. 4 and 5).

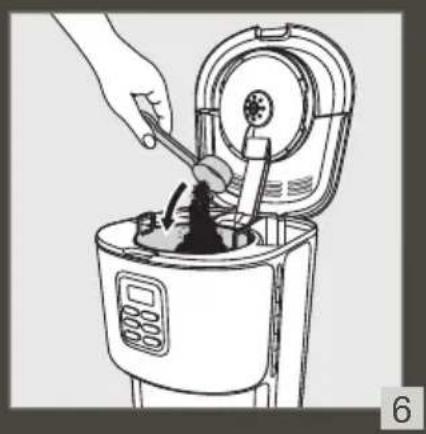

2. Add about 10 flat spoons (R) ground coffee for 12 cups. Experiment with the amount of coffee used in order to adjust the flavor to your taste (Fig.6).

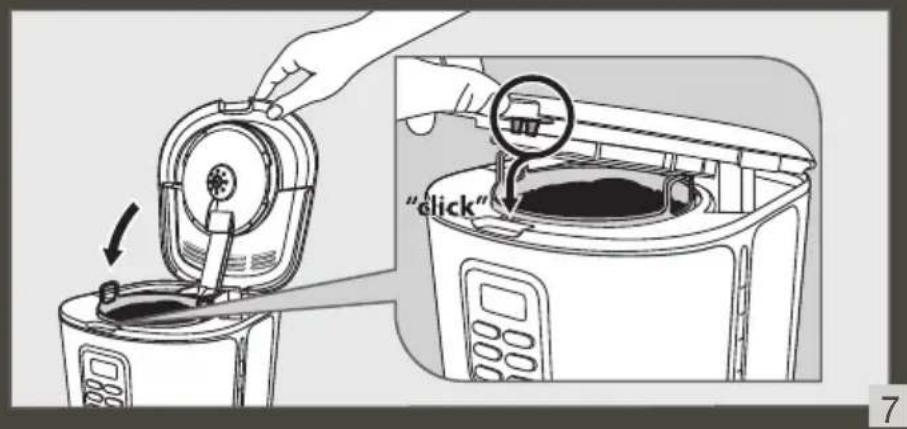

3. Close the top lid making sure it is securely closed (Fig. 7).
4. Press the On/Off button (K). The button will illuminate, indicating that your coffee maker has begun the brewing cycle.

CAUTION: The coffee maker becomes very hot during the brew cycle. Please handle with care.

1. When the brewing cycle is completed, the On/Off button (K) will stay illuminated as the keep warm cycle starts. The anti-drip valve will prevent any remaining coffee from dripping onto the hot plate. Ensure that the carafe is placed back on the hot plate after serving.

Note: When the brewing cycle is finished, there will still be hot liquid in the filter basket. Wait a few minutes for the rest of the liquid to drip through into the carafe. The keep warm function will operate for up to 30 minutes. During the keep warm cycle, the On/Off button (K) will stay illuminated. At any time you can stop the keep warm cycle just by pressing the On/Off button (K).

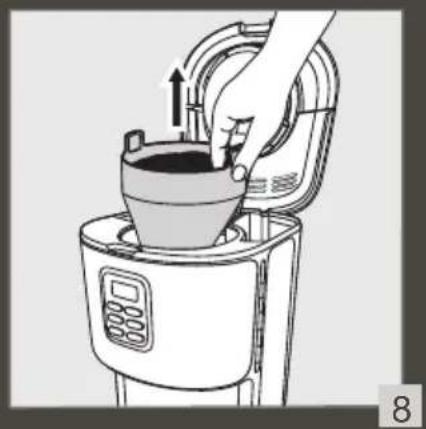

1. Open the top lid and carefully remove the filter holder by grasping the tabs on each side of the filter holder. Discard the used coffee filter and grounds. If you used the permanent filter, wash it immediately (see section 7 CLEANING) (Fig. 8 and 9).

TIPS & ADVICE

At any time during the brewing cycle, you can turn the coffee maker off by simply pressing the On/Off button (K). No buttons will be illuminated, indicating that the coffee maker is off.

TIPS & ADVICE

If two or more pots of coffee are to be made it is recommended that the coffeemaker be allowed to cool for 3 minutes between each brewed pot.

Auto Shut-Off

As a convenience, your coffee maker has been designed with an Auto Shut-Off feature. When the brewing cycle is completed, the coffee maker will shut off automatically after 30 minutes.

5. AROMA FUNCTION

To ensure optimum flavor, the Aroma button (P) allows you to adjust the intensity of the coffee prepared:

1. Follow steps 1 through 6 in the "Making Coffee" section.
2. Press the Aroma button (P) to select a stronger strength of brew.
3. Press the On/Off button (K). The blue LED will light up to indicate the brew cycle has started.
4. To deactivate the Aroma function, press the Aroma button (P) again.

TIPS & ADVICE

This function will slow down the flow of water into the filter basket. It will provide a richer coffee flavor. When the brewing process ends and the water level indicator is empty, there will still be hot liquid in the filter basket. Wait a few minutes for the rest of the liquid to drip through into the carafe.

6. PROGRAMMING YOUR COFFEE MAKER

Auto On Setting

1. Check to ensure that the clock is set to the correct time. If the time is incorrect, follow the instructions in the "Setting the Clock" section.
2. Follow steps 1 through 6 in the "Making Coffee" section.
3. Press the Program button (M).
4. Use the Hour (N) and Min (O) buttons to set the desired start brewing hour (see
   section 3 SETTING THE CLOCK). Refer to the AM and PM indicators on the left side.
5. Press the Auto on button (L). The LED light will illuminate to indicate that the coffee maker is programmed. The digital clock will continue to show the current time.
6. Once the preset brew time is reached, the coffee maker will automatically initiate the brew cycle. The On/Off button (K) will illuminate, indicating that your coffee maker has begun the brewing cycle. The button Auto on (L) will switch off.

To cancel a preset brewing cycle, press the Auto on button (L) - the preset brew cycle is cancelled when the Auto on button (L) is no longer illuminated. For your convenience, your coffee maker will remember your preset brewing time. Simply press the Auto on button (L) to activate the preset brewing cycle. To change the preset brewing time, follow steps 3 through 7 above.

TIPS & ADVICE

At any time during the brewing cycle, you can turn the coffee maker off or cancel the brewing cycle, by simply pressing the On/Off button (K). No buttons will be illuminated, indicating that the coffee maker is off.

Pause & Serve

This feature allows you to interrupt the brewing cycle and pour a cup of coffee before the entire carafe is finished brewing.
While this will temporarily stop the coffee from dripping into the carafe, it does not stop the brewing cycle. After serving, the carafe should be immediately returned to the heating plate to prevent the filter holder from overflowing. Make sure the carafe is positioned firmly against the back of the coffee maker. Do not remove the carafe for longer than 20 seconds.
This setting should be used when the carafe is half full or less, to ensure the coffee quality is maintained.
The Stay Warm setting will continue to operate as long as the unit is on and will shut off automatically after 30 minutes.

TIPS & ADVICE

While the pause and serve feature is a convenient way to pour a cup of coffee mid-cycle, we recommend you wait until the brewing cycle is complete as the strength and flavor of coffee poured mid-cycle will vary from the finished brew.

7. CLEANING & MAINTENANCE

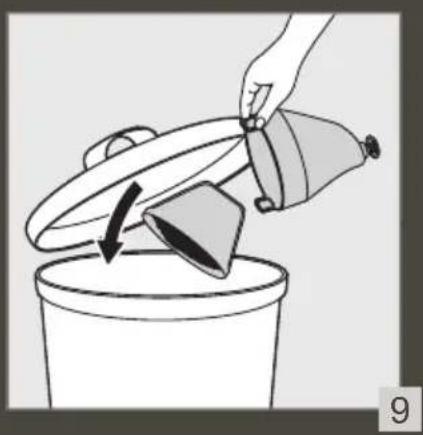

■ To remove the used coffee grounds, remove the filter holder from the coffeemaker. (Fig 8).

■ Unplug the appliance.

■ Do not clean the appliance when it is still hot.

■ Wash carafe, carafe lid and removable filter holder in hot, soapy water or place it in the top rack of the dishwasher.

■ Clean with a soft cloth or a damp sponge. Never use harsh detergents or abrasive leaners on any part of the coffee maker.

To clean the stainless steel parts of your coffee maker, rinse a soft cloth or sponge in warm water and squeeze out the excess water. Wipe the surface of the stainless steel in the direction of the brush marks. Dry thoroughly and polish with a soft dry cloth.

For hard to remove stains, use a plastic mesh pad or cloth dampened in vinegar.
Do not immerse the appliance in water or place it under running water.
■ Any other servicing should be performed by an authorized service representative.

TIPS & ADVICE

Only place the carafe, carafe lid, and removable filter holder in the dishwasher.

All other parts of the coffee maker are not dishwasher safe.

Cord Storage

This feature allows you to store the power cord while the appliance is not in use and disconnected from the power socket.

When you would like to store the cord, hold the power cord and push it inside the appliance slowly, until a part of cord and plug remains outside the appliance.

■ When you would like to release the cord, hold the plug and pull out from the appliance.

8. DESCALING

- Your coffee maker has a descaling indicator which lights up on the digital display automatically after 60 cycles.

You can use:

■ Regular household white vinegar
Pour into the tank (C).
- Allow the liquid to stand for 30 minutes.

■ Restart the coffee maker and let the rest of the liquid pass through to the coffee maker.

■ To rinse, run the coffee maker 2 or 3 more times with full tank of water.

To optimize your coffee maker's performance, the word "Clean" is set to flash on the display after 60 brew cycles. To reset this reminder, press the Hour and Min buttons at the same time.

The guarantee does not cover coffee makers that malfunction or cease to operate because they have not been regularly descaled.

TIPS & ADVICE

To optimize your coffee maker's performance, the word "Clean" is set to flash on the display after 60 brew cycles. To reset this reminder, press the Hour and Min buttons at the same time.

9. TROUBLESHOOTING

PROBLEM SOLUTION

The coffee does not brew or the machine does not switch on.	Check to ensure the appliance plugged into a working outlet, and the appliance is in the “ON” position.The water tank is empty.There was a power failure.There was a power surge. Unpl machine, then plug it back in.The clock must be reset after a failure.The Auto-Off function switches coffee maker. Switch off the coffee maker then switch it back on to make more coffee. For more information, refer to the section “Making Coffee”.
Appliance appears to be leaking.	Make sure that the water tank h been filled beyond the max fill level.
It takes a long time to brew.	It may be time to descale your maker.Numerous minerals may accur in the coffee maker's circuit.Periodic descaling of the machine is recommended. More frequent descaling may be necessary depending on the hardness of the water. For more information, refer to the “Descaling” section.NOTE: do not dismantle the machine.
PROBLEM SOLUTION
The brew basket (J) overflows or the coffee drips too slowly.	■ Coffee maker needs cleaning.■ Excessive amount of coffee recommend that you use one measuring spoon or one tablespoon of coffee ground per cup.■ Coffee grind is too fine (beans ground for an Espresso maker are not suitable for drip coffee makers).■ Some coffee grounds have seeped in between the paper filter or permanent filter and the filter holder (I).■ The paper filter is not open or is incorrectly positioned.■ Rinse out the filter holder (I) before putting in the paper filter so that its edges stick to the damp sides of the filter.■ More than one paper filter in filter holder (I).
The coffee has a bad taste.	■ The coffee dispenser needs cleaned.■ The coffee grounds are not suited to your coffee dispenser.■ The proportion of coffee to water is inadequate. Adjust it to suit your taste.■ The quality and freshness of the coffee are not optimal.■ Poor-quality water. Use filtered or bottled water.
You can not close the top lid of the coffee maker properly.	■ Check to ensure the filter holder is inserted correctly.■ The filter is too large: only use size #4 paper filter.
Coffee drips on the heating plate, when removing the carafe.	■ Place the carafe back on the heating plate. The Pause & Serve mechanism is blocked. Wait until the filter holder is completely empty.■ Clean the filter holder.
On each use, the clock starts at 12:00.	■ Set the clock (section 3 SETTING THE CLOCK). The setting of the clock will be deleted when the appliance is unplugged or after a power failure.
You cannot enter the desired settings for automatic programming.	■ Set the clock (section 3 Setting the clock).

PROBLEM SOLUTION
Set the clock (section 3 Setting the clock).	Check the setting of the clock.Check the start time as well as A PM indicators.
The coffee does not drip in the carafe.	Check to make sure the water filled.The appliance is switched off.

If your appliance still does not work properly, please call your respective country's Customer Service.

10. MANUFACTURER'S WARRANTY

www.krups.com

With a strong commitment to the environment, most of Krups products are repairable during and after the warranty period. Before returning any defective products to the point of purchase, please call Krups consumer service directly at the phone number below for repair options. Your help to sustain the environment is appreciated!

After sales service

The appliance isn't user-serviceable. If it's not working properly, check that:

- You've followed the instructions correctly;

- The main supply fuse/circuit breaker hasn't blown/tripped.

If it still doesn't work, consult your retailer.

The Warranty

This product is guaranteed by Krups for a period of 2 years against any manufacturing defect in materials or workmanship, starting from the initial date of purchase.

The manufacturer's warranty by Krups is an extra benefit which does not affect consumer's Statutory Rights.

The Krups warranty covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labor. At Krups's choice, a replacement product may be provided instead of repairing a defective product. Krups's sole obligation and your exclusive resolution under this warranty are limited to such repair or replacement.

Conditions & Exclusions

The Krups warranty only applies within USA, Canada & Mexico, and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorized service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a Krups authorized service centre. Full address details for each country's authorized service centre are listed on the Krups website (www.krups.com) or by calling the appropriate telephone number listed below to request the appropriate postal address.

Krups shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase.

This warranty will not cover any damage which could occur as a result of misuse, negligence, failure to follow Krups instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorized repair of the product. It also does not cover normal tear and wear, maintenance or replacement of consumable parts, and the following:

- using the wrong type of water

- scaling (any de-scaling must be carried out according to the instructions for use);

- ingress of water, dust or insects into the product;

– mechanical damages, overloading

– damages or bad results due to wrong voltage or frequency

- accidents including fire, flood, lightning, etc

– professional or commercial use

– damage to any glass or porcelain ware in the product

This warranty does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier.

The Krups manufacturer's warranty applies only for products purchased and used in USA, Canada & Mexico. Where a product purchased in one country and then used in another one:

a) The Krups guarantee duration is the one in the country of usage of the product, even if the product was purchased in another listed country with different guarantee duration.

b) The Krups guarantee does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications

c) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by Krups

d) In cases where the product is not repairable in the new country, the Krups guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible.

Consumer Statutory Rights

This Krups manufacturer's warranty does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This warranty gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country or Province to Province. The consumer may assert any such rights at his sole discretion.

Additional information

Accessories, Consumables and end-user replaceable parts can be purchased, if locally available, as described in Krups internet site.

CANADA	GROUPE SEB CANADA345 Passmore Avenue Toronto, ON M1V 3N8	MEXICO	Groupe SEB MEXICO S.A. de C.V. Goldsmith 38 Desp. 401 Col. Polanco Delegacion Miguel Hildalgo 11 560 Mexico D.F. MEXICO	U.S.A.	GROUPE SEB USA 2121 Eden Road Millville, NJ 08332
	1-800-418-3325 01800 1128325 800-526-5377

: www.krups.com
