USER MANUAL DXF2043 DEWALT

English (original instructions) 1

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

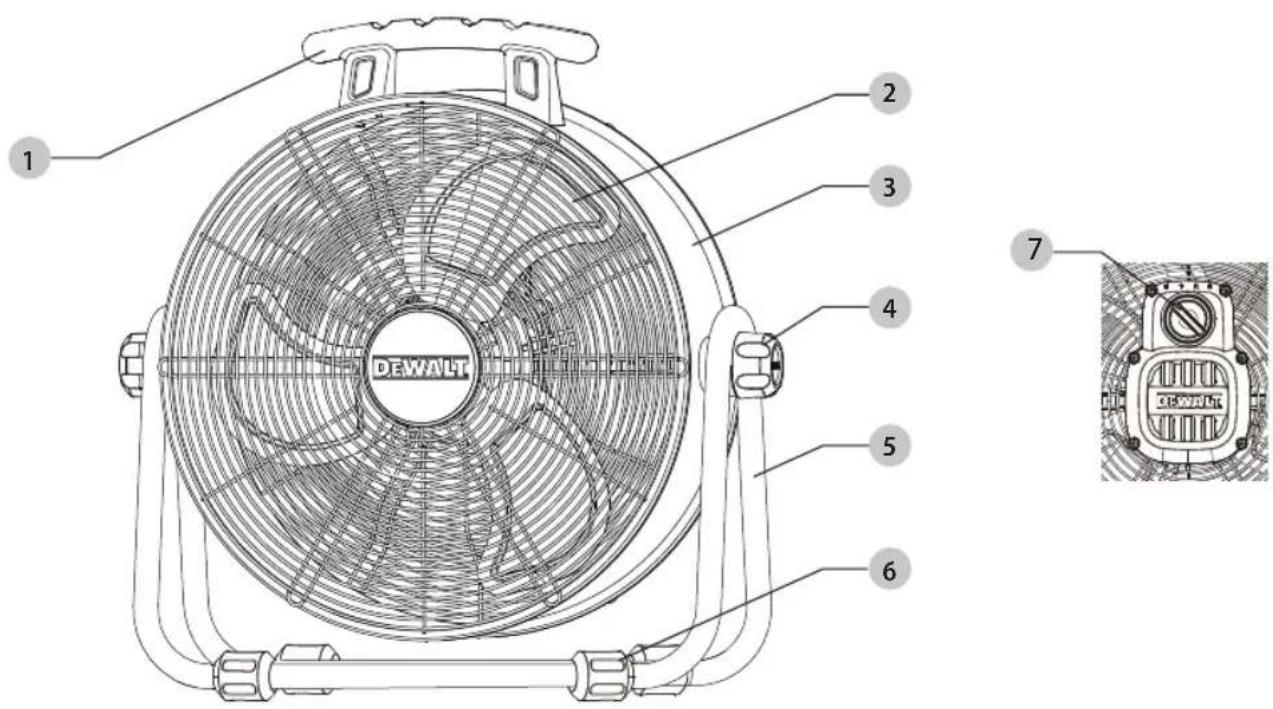

Fig. A Fig. B

1 2 3 4 5 6 7 DEWALT

1 Handle
2 Blade
3 Drum
4 Screw nut
5 Frame
6 Foot pad
7 Switch

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and / or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments, call us at: 1-888-899-0146

ENGLISH

IMPORTANT INSTRUCTIONS

▲ WARNING:

As with all electrical appliances, basic safety precautions should always be followed to reduce the risk of electric shock, fire, or injury to persons, including the following precautions:

Read all the instructions before using this fan.

WARNING:

- Use this fan only as described in this manual. Any other use not recommended by the manufacturer may cause electrical shock, fire or injury to persons.

- Do not operate the fan with a damaged power cord or after the fan malfunctions or has been dropped in any manner.

- Use of extreme caution is necessary when any fan is used by or near children, disabled persons or pets and whenever the fan is left operating unattended.

- Do not place the fan on a small, unlevel, uneven or any surface which might allow fan to tip or fall.

- For proper operation, fan should be placed on a smooth non-combustible, level surface.

• Always unplug fan when not in use, when moving from place to place, when assembling or disassembling parts, and before cleaning.

- The use of attachments that are not recommended or sold by the manufacturer may cause hazards.

- Do not use outdoors.

- Do not use fan in window. Rain may cause electrical hazard.

- Do not operate the fan with blade guards or any safety device removed.

- Do not run power cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic area where it will not be tripped over.

- Do not insert or allow any object to enter any openings on the fan. Doing so may cause electric shock and/or fire hazard. Avoid contact with moving parts.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure they do not play with the appliance.

PROPOSITION 65 WARNING

WARNING:

Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance know to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to: WWW.P65Warnings.ca.gov/wood

Some examples of these chemicals are:

- Lead from lead-based paints,

- Crystalline silica from bricks and cement and other masonry products, and

- Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies depending on how often you to this type of work. To reduce your exposure to these chemicals: work in a well ventilated area and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Handling the power cord on this product may expose you to chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

For more information go to: www.P65Warnings.ca.gov

PRODUCT SPECIFICATIONS

Model	DXF2042
Power	120V / 60 Hz / 120W
Speed	3
Weight	10kgs
Power Cord	SJT 18AWGX3C 6ft

WARNING:

Use only extension cords that are rated for outdoor use. Extension cords in poor condition or that are too small in wire size can pose fire and shock hazards. To reduce the risk of these hazards when using an extension cord, be sure it is in good condition and that the connection does not come into contact with liquid. To keep power loss to a minimum, use the following table to choose the minimum wire size extension cord.

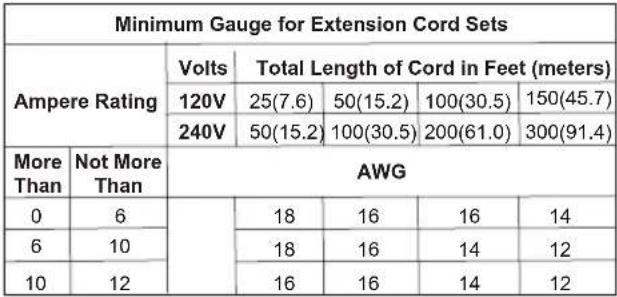

Extension Cord Length	Wire Gauge A.W.G.
0 - 50 ft.	14
	1250

READ&SAVE THESE INSTRUCTIONS

⚠ WARNING: Shock Hazard

Use this fan only in dry environments. This fan is not intended for use in a bathroom, laundry area, or similar locations, or near sinks, washing machines, swimming pools or other sources of water. Never locate fan where it may fall into a bathtub or other water receptacle. Do not use in damp environments such as flooded basements.

⚠ WARNING: Hot Surfaces

Do not touch fan motor when in use. This motor is hot when in use, to avoid burns, do not let bare skin touch hot surfaces.

▲WARNING: Fire Hazard

Fans have arcing or sparking parts inside. Do not use near combustible materials or flammable gases or sources of heat. DO NOT USE in areas where gasoline, paint or flammable materials are used or stored. To prevent a possible fire, do not block air intakes or exhaust

in any manner. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock, fire, or damage the fan.

⚠ WARNING: Electrical Shock Hazard

Do not use with damaged cord or plug. Use with adequate electrical system that is up to code.

⚠ WARNING: To Prevent Electric Shock

Improper connection of the equipment-grounding conductor can result in a risk of electric shock, check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance- if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

⚠ WARNING: To Reduce The Risk Of Or Electric Shock

Do not use this product with any solid-state speed control device.

GROUNDING INSTRUCTIONS

In the event of malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The fan must be connected to a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

▲DANGER: Improper connection of the equipment grounding conductor can result in a risk of electric shock. The conductor with insulation having an outer surface that is green with or without yellow stripes is the equipment grounding conductor. If repair or replacement of the cord or plug is necessary, do not connect the equipment-grounding conductor to a live terminal. Check with a qualified electrician or service person if the grounding instructions are not completely understood, or if in doubt as to whether the fan is properly grounded. Do not modify the plug connected to the fan – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

FOR GROUNDED, CORD-CONNECTED FAN RATED LESS THAN 15A AND INTENDED FOR USE ON A NOMINAL 120V SUPPLY CIRCUIT

ENGLISH

The fan is for use on a nominal 120V circuit, and should be connected to a grounding outlet that looks like that illustrated in sketch a. A temporary adaptor, which looks like the adaptor illustrated in sketch b, may be used to connect this plug to a 2-pole receptacle as shown in sketch b if a properly grounded outlet is not available. The temporary adaptor should be used only until a properly grounded outlet can be installed by a qualified electrician. The green colored rigid ear, lug, and the like, extending from the adaptor must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adaptor is used, it must be held in place by the metal screw.

NOTE: IN CANADA, THE USE OF A TEMPORARY ADAPTOR IS NOT PERMITTED BY THE CANADIAN ELECTRICAL CODE. Ensure that the fan is connected to an outlet having the same configuration as the plug.

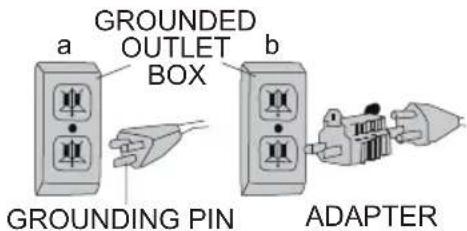

GROUNDED OUTLET BOX a b GROUNDING PIN ADAPTER

USE OF EXTENSION CORDS WITH FAN

Only use a grounded extension cord that is rated at least 15 amps and has a third-wire ground. When a long extension cord is used to connect the fan, a voltage drop occurs. The longer the cord, the greater the voltage drop. This results in less voltage being supplied to the fan and increases the amount of current (amp) draw or reduces performance. A heavier cord with a larger wire size will reduce the voltage drop. Be sure to choose a cord that will supply enough voltage to operate the fan. The table below indicates appropriate gauge for extension cords.

⚠ WARNING: Keep electrical cords in good condition. Do not use worn, bare, or frayed cords because they can cause electrical shock.

⚠ WARNING: Operating equipment at low voltage can cause it to overheat. Using an excessively long extension cord can cause the cord to overheat.

FAN OPERATION

WARNING:

Before assembling the fan, make sure all parts are present. Compare parts with contents list. If any part is missing or damaged, do not attempt to assemble, install, or operate the product. Contact customer service for replacement parts. Unplug fan before assembling any parts to it.

1. Tools Required (Not Included): #2 Phillips Screwdriver or Suitable Drill Equipped with #2 Phillips Bit.

2. Fan Cradle Assembly: Simple assembly is required to use this fan.

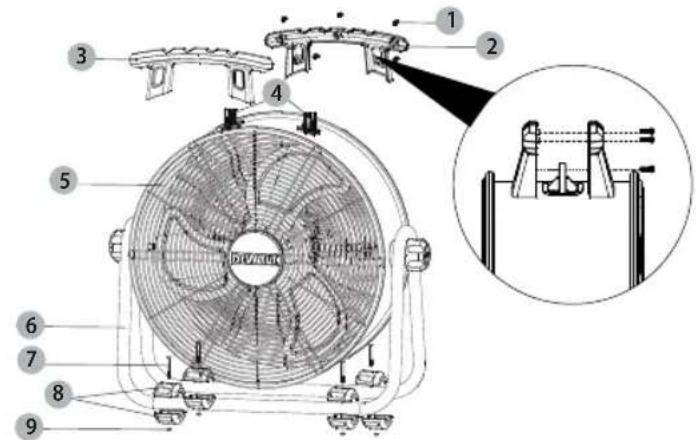

Technical diagram of a fan assembly with numbered parts and an inset close-up view showing internal components.

123 Handle screw Rear handle

Front handle

456 Handle base Drum Frame

●

789 Foot pad screw Foot pad Screw nut

• Insert the 2 and 3 into the slot of 4, then insert the 1 in the holes on 2, then tighten up.

• Insert the 786 through the holes on and, and secure with 9.

• Fan Operation: Always operate the fan with the cradle in its upright position. The fan itself can be tilted into various positions depending on applications, including straight upward.

• Fan Location: Place the fan in an area in the room that will provide the most effective air circulation.

• Fan Connection: Plug fan directly into 120 volt A.C., 60Hz wall outlet. Be sure plug fits tightly in outlet. A loose connection may cause overheating and damage to the plug or fan.
  NOTE: To prevent overloading a circuit, do not plug the fan into a circuit that is servicing other electrical loads.

• Turning Fan On: Place fan on stable level surface. Plug fan into properly grounded outlet. To start the fan, turn the switch from the OFF position to the desired fan speed.
• Turning Fan Off: To turn the fan off, turn the switch from the current fan speed setting to the off position. Remove plug from outlet.
• Adjusting Fan Tilt: Loosen the adjustment knob until the drum rotates freely on the frame. Adjust the fan to desired tilt angle and re-tighten the knob. Do not overtighten adjustment knob.

CARE and MAINTENANCE

Cleaning:

⚠ WARNING: Before cleaning the fan be sure to disconnect power cord from the plug. Clean the grille surface with a clean damp cloth. Do not use harsh chemical or abrasive cleaners.

⚠ WARNING: DO NOT IMMERSE THE FAN OR ANY WIRES IN WATER. Replace front grille before fan use and allow fan to dry completely before use. Periodic grille cleaning with a vacuum will prevent dust build up. The motor is sealed and does not require any interior maintenance, cleaning or lubrication.

Maintenance: The Internal motor bearings are permanently lubricated at the factory and do not require any additional lubrication.

Repair:

▲WARNING: DO NOT OPERATE THE FAN WITHOUT THE GRILLE IN PLACE. DO NOT USE THE FAN IF IT HAS MALFUNCTIONED OR BECOME DAMAGED IN ANY WAY.

Storage: Keep original carton for storage of the fan. Coil and tie the power cord to avoid damage during storage.

Free warning label replacement: If warning labels become illegible or are missing, please call 1-888-899-0146 for free replacement.

OPTIONAL ACCESSORIES

▲ WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this appliance could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.

TROUBLESHOOTING

WARNING:

TO REDUCE THE RISK OF INJURY FROM MOVING PARTS AND/OR ELECTRICAL SHOCK, TURN POWER SWITCH OFF AND DISCONNECT GROUNDED PLUG FROM ELECTRICAL OUTLET BEFORE PERFORMING TROUBLESHOOTING CHECKS.

Minor problems often can be fixed without calling customer service.

PROBLEM CAUSE		SOLUTION
Unit will not run.	1. No power to unit.2. Switch not on.	1. Plug unit in.2. Place in "ON" position.
Unit is not rotating.	1. Obstructions are keeping the fan from working.	1. Check for obstructions. If you find an obstruction, turn the fan off. Unplug the fan and carefully remove the obstruction. Plug the fan in and turn it on again by referring to the operating instructions.
Unit runs but the fan makes loud scraping noise.	1. Unit has been severely jolted causing fan blade to rub against housing or housing to deform.	1. Contact customer service.
Unit runs but vibrates excessively.	1. Dirt build up on fan blade.2. Severe jolt has bent motor shaft.	1. Contact customer service.

▲WARNING: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

TOOL GUARANTEE 5 YEAR LIMITED GUARANTEE

ENGLISH

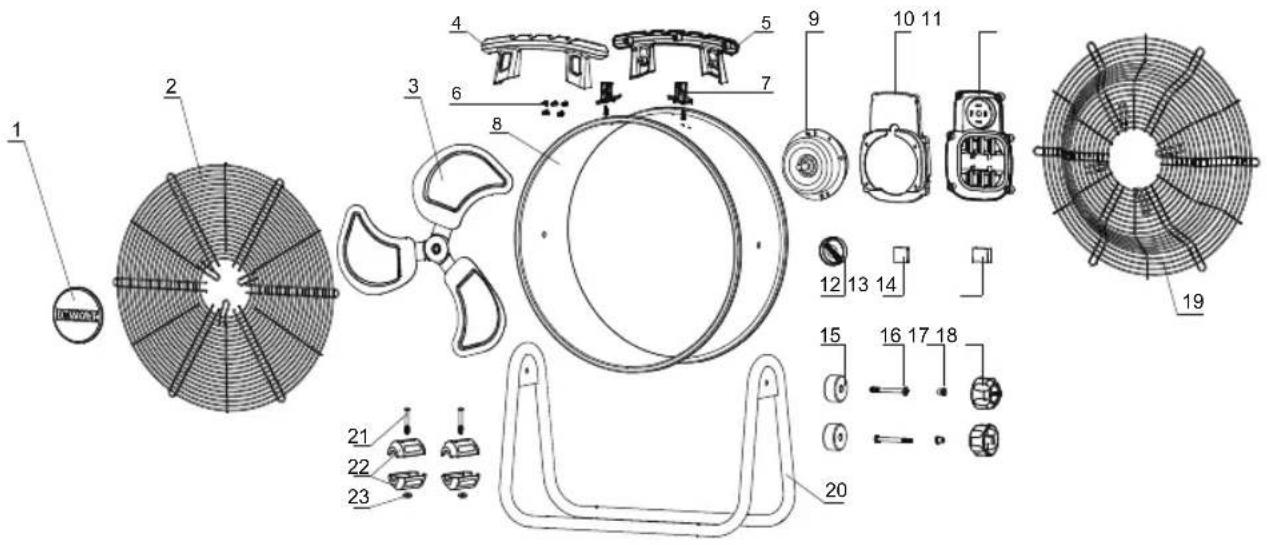

EXPLODED VIEW AND PARTS LIST

Exploded view diagram of a fan assembly with numbered parts and component labels

ITEM PART DESCRIPTION			QTY
1	A1011003421	Logo panel	1
2	A1011003422	Front grille	1
3	A1011003423	Blade	1
4	A1011003424	Front handle	1
5	A1011003425	Rear handle	1
6	A1011003426	Handle screw	7
7	A1011003427	Handle base	2
8	A1011003428	Drum	1
9	A1011003429	Motor	1
10	A1011003430	Rear switch housing	1
11	A1011003431	Front switch housing	1
12	A1011003432	Switch nut	1

13	A1011003433	Switch	1
14	A1011003434	Capacitor	1
15	A1011003435	Rubber ring	2
16	A1011003436	Srews	2
17	A1011003437	Serrated washer	2
18	A1011003438	Adjustment knob	2
19	A1011003439	Rear grille	1
20	A1011003440	Frame	1
21	A1011003441	Short screw	2
22	A1011003442	Foot pad	2
23	A1011003443	Screw nut	2
