USER MANUAL SP 9.500 Dirt Kärcher

Yellow and gray Kürcher water purifier device (no visible text or symbols)

Yellow Krencher water purifier with gray casing and hose (no visible text or symbols)

Yellow Kürcher water purifier with gray body and hose, no visible text or symbols on device body

Deutsch 4

English 8

Français 13

Italiano 18

Nederlands 23

Español 28

Português 33

Dansk 38

Norsk 43

Svenska 47

Suomi 52

Ελληνικά 56

Türkçe 61

Русский 66

Magyar 71

Čeština 76

Slovenščina 81

Polski 85

Românește 90

Slovenčina 95

Hrvatski 100

Srpski 104

Български 109

Eesti 114

Latviešu 119

Lietuviškai 123

Українська 128

Қазақша 133

日本語 138

العربيya 144

A

SP 9.000 Flat 1 2 3 4 5 6 7 8 9 10 11 12

SP 9.500 Dirt SP 11.000 Dirt

B 1" & 1¼" & 1½" 2 3 1 ¾" & 1" 3 4 2 1

3D mechanical component diagram showing a pipe fitting with arrows indicating assembly or connection (no text or symbols)

3D rendered mechanical component with yellow and gray parts, showing internal structure and red directional arrows (no text or symbols)

3D rendered mechanical component with yellow and gray surfaces, showing a small black arrow pointing to a specific feature (no text or symbols)

Illustration of a yellow underwater spray gun with attached cables and a vertical scale indicator (no text or symbols)

Yellow plastic tool holder with black handle and three accessories (no text or symbols visible)

Inhalt

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Contents

General notes.... 8

Intended use 9

Hazard levels 9

Environmental protection 9

Accessories and spare parts.... 9

Scope of delivery.... 9

Warranty....9

Description of the device.... 9

Initial startup.... 10

Operation 10

Care and maintenance.... 11

Transport.... 11

Storage.... 11

Troubleshooting guide.... 11

Technical data 12

Optimising the flow rate.... 12

Declaration of Conformity.... 12

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first

time. Proceed accordingly.

Keep both books for future reference or for future owners.

Intended use

Only use the device in private households. Intended use:

• Removal of water from building sections in the event of flooding
  • Transferring and pumping water from containers
  • Water removal from wells and shafts
• Pumping fresh water out of boats and yachts For notes on functional principle, see chapter Operation.

Permissible feed fluids

⚠️DANGER

Danger of death and risk of damage when pumping explosive, flammable or unsuitable substances!

Flammable or explosive substances may ignite or explode.

Unsuitable substances can damage the pump.

Do not pump explosive, flammable or corrosive liquids or gases (e.g. fuels, petroleum, nitro thinner) and do not pump fats, oils, salt water or waste water from sanitary facilities or water that has a lower flowing ability than clean water.

Permissible feed fluids:

- Fresh water up to the specified degree of contamination SP 9.500 Dirt and SP 11.000 Dirt (dirty water pump):

Water with a degree of contamination up to a diam-eter of 20 mm

SP 9.000 Flat (clean water pump):

Water with a degree of contamination up to a diam-eter of 5 mm

• Swimming pool water with intended dosage of addi-tives
• Washing lye, e.g. from leaking washing machines. Afterwards, rinse and clean the pump with clear fresh water, see chapter Rinsing and cleaning.
• The temperature of the feed fluids should lie between 5 °C and 35 °C

Improper use

ATTENTION

Risk of damage due to frost!

Operation during frost may damage the device.

An incompletely emptied device can be damaged by frost.

Do not operate the device during frost.

Protect the device from frost.

ATTENTION

Risk of damage during continuous operation!

The device is not suitable for continuous operation. Do not operate the device continuously for long periods (e.g. continuous circulation operation in ponds) or as a stationary installation (e.g. as a water lifting system, fountain pump).

Note

The manufacturer accepts no liability for possible damage caused by improper use or incorrect operation.

Hazard levels

⚠️DANGER

- Indication of an imminent threat of danger that will lead to severe injuries or even death.

⚠ WARNING

- Indication of a potentially dangerous situation that may lead to severe injuries or even death.

△CAUTION

- Indication of a potentially dangerous situation that may lead to minor injuries.

ATTENTION

- Indication of a potentially dangerous situation that may lead to damage to property.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic appliances contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can

pose a potential threat to human health and the environment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.com/REACH

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Warranty

The warranty conditions issued by our sales company responsible apply in all countries. We shall remedy possible malfunctions on your device within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Description of the device

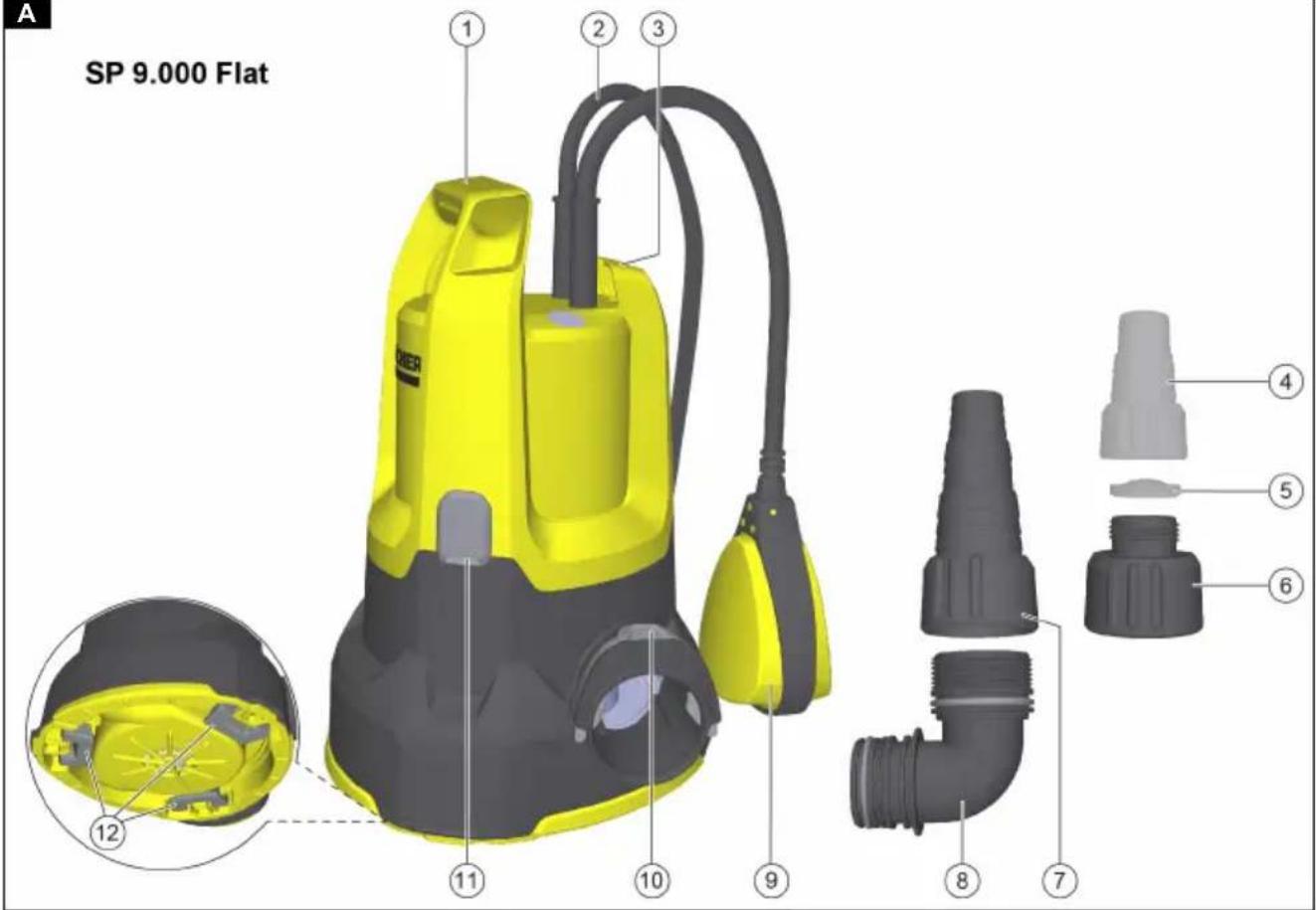

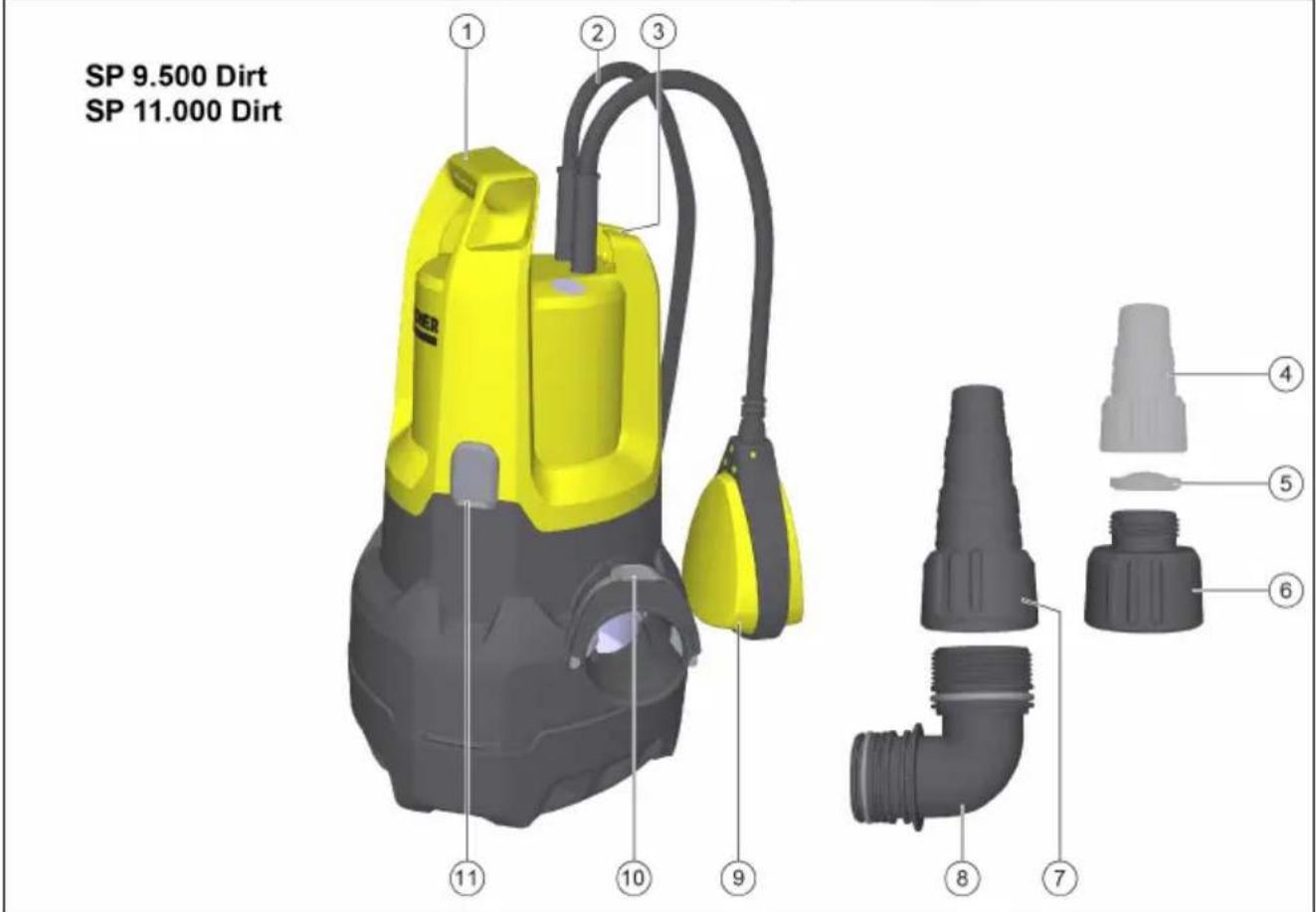

See graphics page for illustrations Illustration A

① Carrying handle
② Power supply cable with plug
③ Lock (float switch)
④ *Pump connecting piece G 1 ( 34 " and 1" hose connection and G 1 - thread)
⑤*Check valve
⑥ G 1 - threaded connection

⑦ Pump connecting piece G 1 ½ (1", 1 ¼" and 1 ½" hose connection and G 1 ½ - thread)
⑧ Pipe union (G 1 12 - thread)
⑨ Float switch
⑩ Quick-Connect
⑪ Automatic venting device
⑫ Feet (SP 9.000 Flat)

*Not included in the scope of delivery.

Initial startup

⚠️DANGER

Risk of electric shock and risk of injury!

The device contains electrical and mechanical components.

Always disconnect the device from the power supply before assembling, disassembling or cleaning.

Note

The shorter the hose length and larger the hose diameter, the higher the pump capacity.

To avoid clogging the pump, use a pre-filter for hose diameters smaller than 1 14 ".

The pump connection is equipped with a plug-in system (Quick-Connect).

The pipe union with pump connecting piece G 1 12 and the G 1 threaded connection are supplied unassembled with the device.

Note

Hoses with a diameter of 1", 1 ¼" and 1 ½" can be connected to the pump connecting piece G 1 ½.

A sufficiently large hose diameter must be selected and the pump connecting piece G 1 12 must be shortened according to the grooves so that the required particle size can be used. A large hose diameter is also recommended for smaller particle sizes to allow a high flow volume.

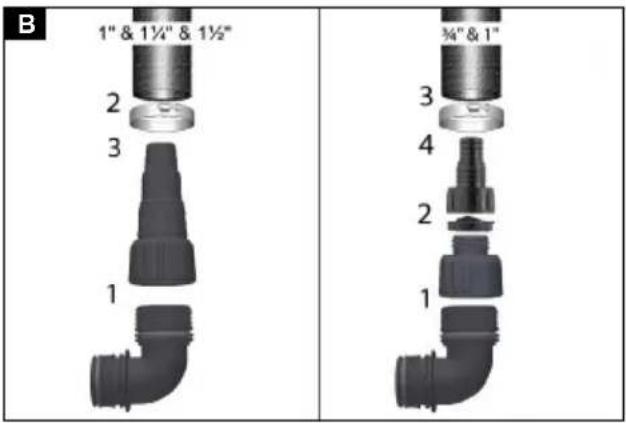

Connect hose to pump if using a 1", 1 14 " or 1 12 " hose:

1 Screw the pump connecting piece G 1 12 onto the pipe union.

Illustration B

2 Push the hose clamp onto the hose.

3 Push the hose onto the pump connecting piece G 1 12 and fasten it with a hose clamp.

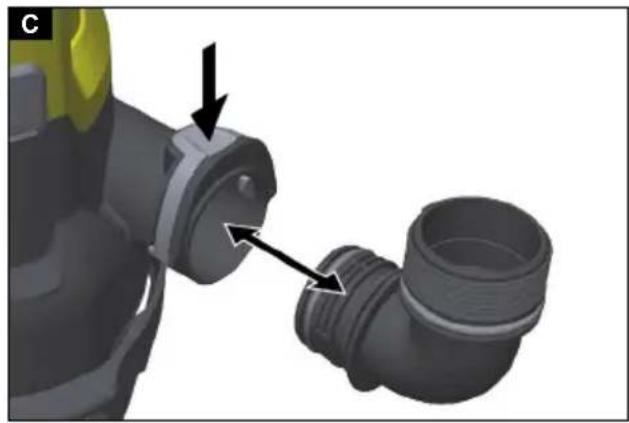

4 Push the pipe union into the Quick-Connect. Illustration C

Connect hose to pump if using a 34 " or 1" hose:

1 Screw the G1 threaded connection onto the pipe union.

Illustration B

2 Fit the special accessory pump connecting piece G 1 (6.997-359.0 pump connecting piece G 1 (33.3 mm) incl. check valve - not included in the scope of delivery) onto the G 1 threaded connection:

a Place the check valve on the G 1 threaded connection so that the lettering 'UP' is legible.

b Screw the pump connecting piece G 1 onto the G 1 threaded connection.

3 Push the hose clamp onto the hose.

4 Push the hose onto the pump connecting piece G 1 and fasten it with a hose clamp.

5 Push the pipe union into the Quick-Connect. Illustration C

Setting up / immersing the pump:

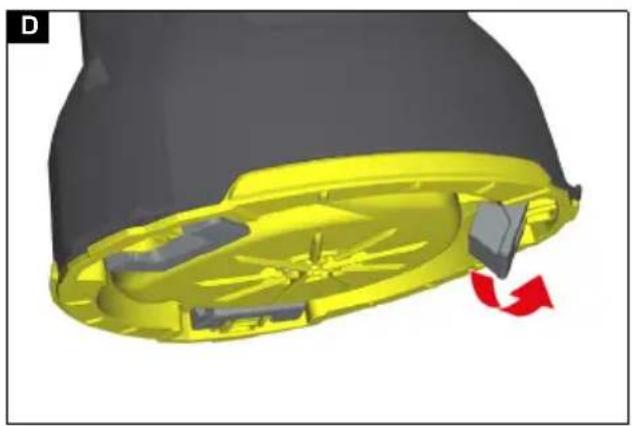

1 Fold out or in the feet (SP 9.000 Flat). Illustration D
2 Place the pump securely on solid ground in the feed fluid or immerse it by means of a rope attached to the carrying handle.

Note

The suction area must not be blocked by contamination. If the ground is muddy, place the pump on a brick or something similar. Make sure that the pump is horizontal. Do not carry the pump using the cable or hose.

Operation

⚠️DANGER

Danger of death from electric shock.

Danger of death from electric shock if live parts are touched.

During operation, do not touch the rope attached to the carrying handle or any objects that are in contact with the pumped liquid (e.g. pipelines protruding into the pumped liquid, railings) and do not reach into the pumped liquid.

Automatic venting device

1. If the fluid level is low, any sucked-in air, or air present in the pump, may escape via the automatic venting device. Fluid can also leak along with air.
   If the pump has problems with suction when the fluid level is low, unplug and plug in the mains plug repeatedly to assist the suction process.

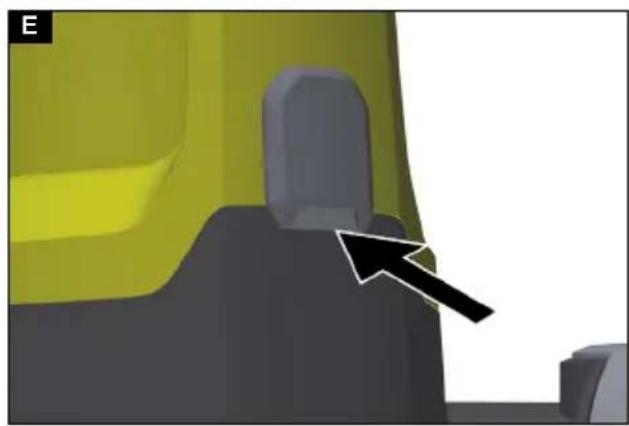

Illustration E

Automatic mode

1. If necessary, fold out the feet, see chapter Initial startup (SP 9.000 Flat).

Note

Folding out the feet is not absolutely necessary, but it does increase the pump capacity.

1. Plug the mains plug into a mains socket.

Note

In automatic mode, the float switch controls the pumping process automatically.

The pump switches on as soon as the float switch has reached the switch-on height caused by the rising fluid level.

The pump switches off as soon as the float switch has reached the switch-off height caused by the sinking fluid level.

The float switch must be able to move freely.

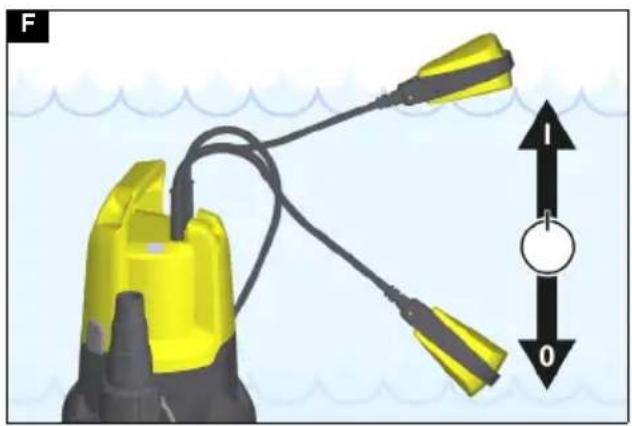

Illustration F

Min / Max	SP 9.000 Flat	SP 9.500 Dirt	SP 11.000 Dirt
Switch-on height cm*	36 / 44 43 / 50	43 / 50
Switch-off height cm*	15 / 24 18 / 30	18 / 30

* The switching heights vary depending on the position of the float switch.

Manual operation

Note

In manual operation, the pump stays switched on continuously. For the pump to suction itself in manual mode, the fluid level must be at least 60 mm (SP 9.500 Dirt and SP 11.000 Dirt) or 7 mm (SP 9.000 Flat).

Note

The pump can pump up to a residual fluid height of 25 mm (SP 9.500 Dirt and SP 11.000 Dirt) or 1 mm (SP 9.000 Flat).

The specified residual fluid heights are only achieved in manual operation.

The float switch must be able to move freely.

1. Fold in the feet, see chapter Initial startup (SP 9.000 Flat).

Note

By folding in the feet, flat suction of the fluid up to 1 mm residual fluid height is possible in manual operation.

1. Fasten the float switch in the lock so it points upwards.

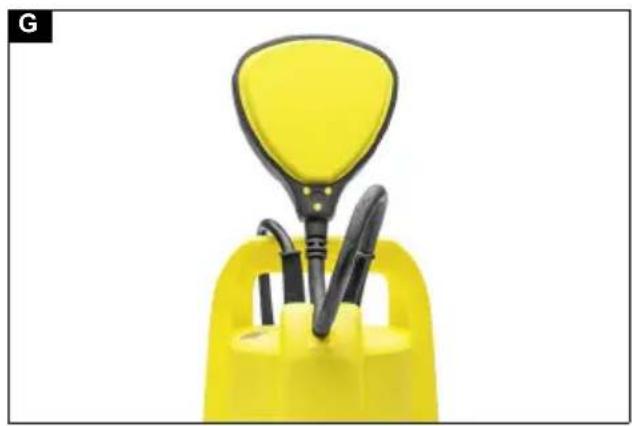

Illustration G

ATTENTION

Risk of damage from dry running!

Dry running leads to increased wear on the pump.

Do not leave the pump unattended in manual operation. In case of dry running, immediately pull the mains plug out of the socket.

1. Plug the mains plug into a mains socket.

Finishing operation

1. Pull the mains plug out of the socket. The device stops.

ATTENTION

Risk of damage!

Risk of damage due to dried soiling or additives.

Rinse and clean the device immediately after each use.

1. If dirty liquids or liquids with additives have been pumped, rinse and clean the device immediately after finishing operation, see chapter Rinsing and cleaning.

2. Drain the device and accessories and let them dry.

Care and maintenance

⚠️DANGER

Risk of electric shock and risk of injury!

The device contains electrical and mechanical components.

Cleaning and user maintenance may not be carried out by children.

Rinsing and cleaning

ATTENTION

Risk of damage!

Risk of damage due to dried soiling or additives.

Rinse and clean the device immediately after each use.

1 If dirty liquids or liquids with additives have been pumped, the device must be rinsed afterwards: Use the device to pump clear fresh water without additives until all soiling or additives have been flushed out of the device.

⚠️DANGER

Risk of electric shock and risk of injury!

The device contains electrical and mechanical components.

Always disconnect the device from the power supply before assembling, disassembling or cleaning.

2 Pull the mains plug out of the socket.

3 Press the Quick-Connect button and remove the connection nozzle.

Illustration C

4 Where necessary, remove residue from the hose and on Quick-Connect.

5 Clean the outside of the device with a soft, clean cloth and clear fresh water.

6 Drain the device and accessories and let them dry.

Service

The device is maintenance-free.

Transport

Manual transport

△CAUTION

Risk of injury from tripping!

There is a risk of injury from tripping on loose cables and hoses.

Be careful of cables and hoses when moving the device.

1. Lift and carry the device by the carrying handle.

Transport in vehicles

⚠ WARNING

Risk of injury, risk of damage!

Note the weight of the device during transport.

Store or secure the device in accordance with applicable guidelines so that it cannot slip or be thrown around during transport.

1. When transporting the device in vehicles, secure it to prevent it from slipping or overturning in accordance with the respectively applicable guidelines.

Storage

ATTENTION

Risk of damage due to frost!

An incompletely emptied device can be damaged by frost.

Completely empty the device and accessories before storing them.

Protect the device from frost.

Store the device in a frost-free place and not outdoors.

△CAUTION

Risk of injury and damage!

The device may tip over on sloping surfaces.

Be aware of the weight of the device during storage.

1. Completely empty the pump and accessories.

2. Allow the pump and accessories to dry out.

3. Store the pump in a frost-protected place.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

Fault Cause Rectification
Pump is running, but not delivering	Air is in the pump. 1. Check for correct startup (see chapter Initial startup and Operation).
	Dirt particles block the suction area. 1. Pull the mains plug out of the socket.2. Clean the suction area.
	The fluid level is too low (manual operation), see chapter Technical data.	1. Immerse the pump deeper into the feed fluid, see chapter Manual operation.

Fault Cause Rectification
The pump does not start or stops during operation	The power supply is disconnected. 1. Check the fuses and the electrical connections.
	The thermal protection switch has switched off the pump because of overheating.	1. Pull the mains plug out of the socket.2. Allow the pump to cool down.3. Clean the suction area.4. Prevent the pump from running dry.
	Dirt particles are trapped in the suction area.	1. Pull the mains plug out of the socket.2. Clean the suction area.
	The float switch switches the pump off. 1.	Automatic mode: Check the position and free movement of the float switch and correct if necessary, see chapter Automatic mode.2. Manual operation: Attach the float swit ch correctly, see chapter Manual operation.
The pump capacity drops or is too low	The suction area is clogged. 1. Pull the mains plug out of the mains socket and clean the suction area.
	The delivery rate of the pump depends on the delivery head and the connected periphery.	1. Observe the maximum delivery height, see chapter Technical data. If necessary, select a larger hose diameter or shorter hose length.
	The cross-section on the pressure side is narrowed, e.g. due to the valve/ball tap not being fully open.	1. Fully open the valve / ball tap.
	The pressure side hose is kinked. 1. Eliminate the kink points in the hose.
Quick-Connect cannot be opened	The Quick-Connect plug system is blocked by contamination.	1. Remove the clip and clean it.

Technical data

		SP9.000Flat	SP9.500Dirt	SP11.000Dirt
Device performance data
Mains voltage V	230-240	230-240	230-240
Power frequen-cy	Hz 50	50	50
Nominal power W		280	280	400
Maximum flow rate	l/h	9,000	9,500	11,000
Pressure (max.)	MPa(bar)	0.06(0.6)	0.06(0.6)	0.07(0.7)
Delivery height (max.)	m	6	6	7
Immersion depth (max.)	m	7	7	7
Perm. temp. feed fluid	°C	5...35	5...35	5...35
Particle size (max.) of per-missible feed fluids	mm	5	20	20
Minimum fluid level (manual mode)	mm	7	60	60
Residual fluid height	mm	1	25	25
Weight (without accessories)	kg	3.7	3.8	4.4

Subject to technical modifications.

Optimising the flow rate

The flow rate is further increased:

• The lower the delivery height is.
- The greater the diameter of the hose used is.
• The shorter the hose used is.
- The smaller the pressure loss caused by the connected up accessories.

Declaration of Conformity

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: Pump

Type: 1.645-xxx

Currently applicable EU Directives

2014/35/EU

2014/30/EU

2011/65/EU

2009/125/EC

Commission Regulation(s)

(EU) 2019/1781

Harmonised standards used

EN 60335-1

EN 60335-2-41

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

The signatories act on behalf of and with the authority of the company management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Declaration of Conformity (UK)

We hereby declare that the product described below complies with the relevant provisions of the following UK Regulations, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval.

Product: Pump

Type: 1.645-xxx

Currently applicable UK Regulations

S.I. 2016/1101 (as amended)

S.I. 2016/1091 (as amended)

S.I. 2012/3032 (as amended)

S.I. 2010/2617 (as amended)

Commission Regulation(s)

(EU) 2019/1781

Designated standards used

EN 60335-1

EN 60335-2-41

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

The signatories act on behalf of and with the authority of the company management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Contenu

⑤* Clapet anti-retour

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/06/2021

Inhoud

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/06/2021

Índice

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

SP 9.000 Flat (rentvandspumpe):

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Indhold

Generelle merknader.... 43

Optimere transportmengden 46

Optimere transportmengden

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Winnenden, 2021/06/01

Innehåll

Allmän information 47

H. Jenner Chairman of the Board of Management

D-71364 Winnenden (Germany)

Tfn: [phone]

Fax: [phone]

Winnenden, 01.06.2021

Sisältö

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Puh.: [phone]

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2021/06/01

İçindekiler

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Содержание

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Obsah

Obecné pokyny 76

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 2021/06/01

Kazalo

Splošna navodila 81

Namenska uporaba 81

Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Winnenden, 1. 6. 2021

Spis treści

Wskazówki ogólne 85

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Directive UE relevante

2014/35/UE

2014/30/UE

2011/65/UE

2009/125/UE

Regulament(e) utilizat(e)

(UE) 2019/1781

Norme armonizate aplicate

EN 60335-1

EN 60335-2-41

EN 62233: 2008

EN 55014-1: 2017 + A11: 2020

EN 55014-2: 2015

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN IEC 63000: 2018

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germania)

Tel.: [phone]

Fax: [phone]

Winnenden, 2021/06/01

Obsah

Všeobecné upozornenia 95

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01.06.2021

Sadržaj

Opće napomene 100

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Opunomoćenik za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Njemačka)

Tel.: [phone]

Telefaks: [phone]

Winnenden, 01.06.2021.

Sadržaj

Opšte napomene	104
Namenska upotreba	105
Stepeni opasnosti	105
Zaštita životne sredine	105
Pribor i rezervni delovi	105
Obim isporuke	105
Garancija	105
Opis uređaja	105
Puštanje u pogonl	106
Rad	106
Nega i održavanje	107
Transport	107
Skladištenje	107
Otklanjanje smetnji	107
Tehnički podaci	108
Optimizacija količine protoka	108
EU izjava o usklađenosti	109

Opšte napomene

Pre prve upotrebe, pročitajte originalna uputstva za upotrebu i priložene bezbednosne instrukcije. Postupajte u

skladu sa tim.

Sačuvajte obe knjižice za buduću upotrebu ili sledeće vlasnike.

Namenska upotreba

Uređaj koristite isključivo za privatno domaćinstvo. Namenska upotreba:

• ispuštanje vode u delovima objekata prilikom poplava
• prepumpavanje i ispumpavanje rezervoara
• uzimanje vode iz bunara i šahtova
• pumpanje slatke vode iz brodova i jahti
  Za napomene o načinu rada pogledajte poglavlje Rad.

Dozvoljene radne tečnosti

⚠ OPASNOST

Opasnost po život i od oštećenja pri transportu eksplozivnih, zapaljivih odn. neodgovarajućih materija!

Zapaljive odn. eksplozivne materije mogu da se zapale odn. eksplodiraju.

Neodgovarajuće matwerije mogu da oštete pumpu. Nemojte transportovati eksplozivne, zapaljive ili nagrizajuće tečnosti ili gasove (npr. goriva, petrolej, nitro razređivač) niti masti, ulja, slanu vodu ili otpadnu vodu iz toaleta ili vodu koja ima manju sposobnost proticanja od čiste vode.

Dozvoljene radne tečnosti:

• Sveža voda do navedenog stepena zagađenja SP 9.500 Dirt i SP 11.000 Dirt (pumpa za otpadne vode):
  Voda sa stepenom zagađenja do veličine zrna 20 mm

SP 9.000 Flat (pumpa za čistu vodu):

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

Lice ovlašćeno za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2021/06/01

Съдържание

Общи указания.... 109

Употреба по предназначение.... 109

Степени на опасност 110

Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Виненден, 2021/06/01

Sisukord

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2021/06/01

Saturs

H. Jenner Chairman of the Board of Management

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Manager Regulatory Affairs & Certification

Chairman of the Board of Management

S. Reiser

Manager Regulatory Affairs & Certification

文書の全権委員：

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

電話番号：[phone]

www.kaercher.com/REACH

Black and white icon of a hand giving a thumbs-up gesture (no text or symbols)

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

Icon showing a gear and wrench inside a square frame (no text or symbols)

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

QR code image with a central logo, likely linking to a digital resource or website.
