Inox Brushed CM740D - Electric coffee maker TEFAL - Free user manual and instructions

USER MANUAL Inox Brushed CM740D TEFAL

IF COFFEEMAKER KM740 NC00115301 NAFTA.EXE 12/09/12 11:24 PageC1

ENp.1-15
FR p. 16-32
ES p. 33-48

User Guide
Guide de l'utilisateur
Gua del usuario

www.t-fol.com

EN FR ES

TF_COFFEEMAKER_KM740_NCO0116301_NAFTA_EXE 1209/12 11:24 PageC4

fig.1 fig.2 fig.3

fig.4 fig.5 fig.6

fig.7 fig.8 fig.9

fig.10 fig.11

TEFAL/T-FAL INTERNATIONAL GUARANTEE

Date of purchase: /Date dachat / Feche de cupma / Data da cupma / Data da acquisto / Kandiatam / Aunkopadum / Kebada / Inkodapadam / Kaputado / Ostipalva / Data da cupma / Data vizcletri / Gigiagino data / Ostiakupiev / Daman kapa / Serosozamid / Datem nikupko / Priscato domina / Datem Kepimaru / Datem kupa / Dato kupa / Dato kupa/ Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa / Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa/ Dato kupa

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

1. Read all instructions prior to first use.
2. Do not touch hot surfaces. Do not touch the heating plate or bottom of the carafe when the keep warm function is on. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons, do not immerse cord, plugs or machine in water or other liquid.
4. Not intended for use by children.
5. Close supervision is necessary when any machine is used near children. Keep machine out of reach of children.
6. This appliance is not designed to be used by children or people without knowledge or experience with the product, unless they are supervised or given prior instructions concerning the use of the appliance by someone responsible for their safety.
7. Children must be supervised to ensure that they do not play with the appliance.
8. Burns can occur from touching the hot plate, hot water or steam. Exercise caution.
9. Unplug machine from outlet when not in use and when cleaning. Allow to cool before putting on or taking off parts, before cleaning the machine, and before storing.
10. All machines are subject to stringent quality control. Practical tests using machines taken at random are conducted and this may explain any slight marks or coffee residue prior to use.
11. Do not operate any machine with a damaged cord or plug or after the machine malfunctions, or has been damaged in any manner. Return machine to the nearest T-fal Service Center for examination, repair or adjustment or your respective countries Consumer Service Department.
12. To reduce the risk of injury do not drape cord over the counter top or table top where it can be pulled on by children or tripped over accidentally.

EN

1. Do not let cord hang over edge of table or counter, or touch hot surfaces.
2. The use of accessory attachments not recommended by T-fal may result in fire, electric shock or injury to persons.
3. Do not use outdoors.
4. Do not place on or near hot gas or electric burner, or in a heated oven.
5. To disconnect the machine, turn the control to "off" then remove plug from wall outlet. Do not yank on cord, instead grasp plug and pull to disconnect.
6. Do not use the machine for other than intended use.
7. Do not pour liquids other than water and descending solutions specified in this manual into the water tank.
8. Protect the machine against humidity and freezing.
9. This machine is for household use only.
10. The container is designed for use with this appliance. It must never be used on a range top.
11. Do not set a hot container on a wet or cold surface.
12. Do not use a cracked container or a container having a loose or weakened handle.
13. Do not clean container with cleansers, steel wool pads, or other abrasive material.

SAVE THESE INSTRUCTIONS

CAUTION

This machine is intended for household use only. Any servicing other than cleaning and user maintenance should be performed by the nearest authorized T-fal Service Center.

Visit our website at www.t-fal.cain Canada or contact your respective country's Consumer Service department for the service center nearest to you.

To reduce the risk of fire or electric shock, do not attempt to disassemble the machine.

Repair should be done by an authorized T-fal Service Center only.

SHORT CORD INSTRUCTIONS

A. We do not recommend using an extension cord with this device. A short power cord or a detachable power cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord accidentally.
B. If an extension cord is absolutely necessary,

1) the marked electrical rating of the extension cord should be at least as great as the electrical rating of the machine,
2) the longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.

C. This machine has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

In the interest of improving products, T-fal reserves the right to change specifications without prior notice.

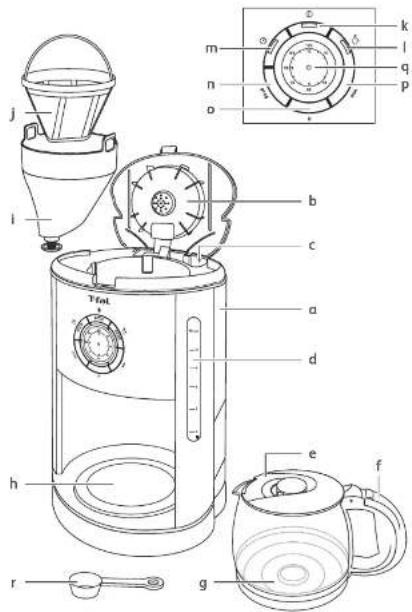

2.Description

a Main body

b Top lid

c Water tank

d Water level indicator

e Carafe lid

f Carafe handle

g Carafe

Heating plate

i Filter holder

j Permanent filter

k On/Off button with red LED

I Keep warm button with orange LED

m Auto button with blue LED

n Programming button

o H Clock button

p MIN Clock button

qClock

r Spoon

3. Prior to first use

• Take your coffee maker out of the box and remove the packaging and all other items (Stickers, hang tags, etc.)
• Wash the detachable parts of the machine in warm soapy water.
• Operate your coffee maker for the first time without coffee using 1 liter of water to rinse the circuit.

4. Setting the clock

1- Press the H button (o) to set the current hour.
2- Then press the MIN button (p) to set the current minute.

There is an AM indicator at the bottom left side or a PM indicator at the bottom right side.

You have to press the H button and make a complete turn of the clock in order for the AM or PM indicator to appear.

Notes: Your clock has now been set and will continue to keep the correct time, even after the coffee maker has been shut off.

Unplugging the coffee maker or a power failure will reset the clock.

Repeat the instructions above to reset the clock.

5. Making coffee

Note: The amount of brewed coffee will be less than the water placed in the coffeemaker since about 10% is absorbed by the coffee grounds and the filter.

1- Place the coffee maker on a hard, flat surface. With the coffeemaker turned off, plug the machine into a 120V outlet.
2- Fill the carafe with fresh, cold water (preferably bottled or filtered water). Open the hinged cover and pour the water into the water tank. The number of cups is shown by the water level indicator. Do not exceed the maximum level (Fig. 1, 2 and 3).
3- Place the carafe with its lid on to the heating plate (h) making sure it is secure on the heating plate to activate the pouring mechanism.

CAUTION: To avoid overflowing the filter holder, the carafe must be dry into the coffeemaker with the lid on. If not properly positioned, eating plate, it could cause hot water or hot coffee to overflow.

4- Open the coffee maker lid (b), insert the filter holder (i) by using the two handles on either side. Make sure it is securely pushed down and locked into place. Then insert a standard #4 cone paper filter or the permanent filter (j) into the filter holder (i). Use a fresh paper filter or clean the permanent filter for each carafe of coffee(Fig. 4 and 5).
5- Add about 2 ounces of ground coffee for 12 cups. Experiment with the amount of coffee used in order to adjust the flavor to your taste. Do not exceed the maximum level (Fig. 6).
6- Close the top lid making sure it is securely closed (Fig. 7).
7. Press the On/Off button (k). The button will illuminate, indicating that your coffee maker has begun the brewing cycle.

CAUTION: The coffee maker becomes very hot during the brew

cycle. Please handle with care.

Note: At any time during the brewing cycle, you can turn the coffee maker off by simply pressing the On/Off button (k). No buttons will be illuminated, indicating that the coffee maker is off.

8- When the brewing cycle is completed, the On/Off button (k) will stay illuminated as the keep warm cycle starts. The keep warm button (l) will illuminate orange (Fig. 8). The anti drip valve will prevent any remaining coffee dripping onto the hot plate. Ensure that the carafe is replaced on the hot plate after serving.

During keep warm mode, bars on the outside of the clock face indicate how long ago the coffee was brewed (Fig. 9).

Notes: When the brewing cycle is finished, there will still be hot liquid in the filter basket. Wait a few minutes for the rest of the liquid to drip through into the carafe.

• The keep warm function will operate for up to two hours. During the keep warm cycle, the On/Off button (k) will stay illuminated as well as the keep warm button (l). At any time you can stop the keep warm cycle just by pressing the On/Off button (k). The LED will switch off and the LCD will display the clock again.

9- Open the top lid and carefully remove the filter holder by grasping the tabs on each side of the filter holder, and lifting straight up from the filter holder. Discard the used coffee filter and grounds. If you use the permanent filter, wash it immediately (see section 7 CLEANING) (Fig. 10 and 11).

Note: If two or more pots of coffee are to be made it is recommended that the coffeemaker be allowed to cool for 3 minutes between each brewed pot.

Auto Shut-Off

As a convenience, your coffee maker has been designed with an Auto Shut-Off feature. When the brewing cycle is completed, the coffee maker will shut off automatically after 2 hours.

6. Programming your coffee maker

Auto on setting

1- Check to ensure that the clock is set to the correct time. If the time is incorrect, follow the instructions in the "Setting the Clock" section.
2- Follow steps 1 through 6 in the "Making Coffee" section.
3- Press the PROG button (n).
4- Use the H (o) and MIN (p) button to set the desired start brewing hour. Refer to the AM and PM indicators on the bottom left and right side.
5- Press the button (m). The LED light will illuminate to indicate that the coffee maker is programmed. The digital clock will continue to show the current time.
6- Once the preset brew time is reached, the coffee maker will automatically initiate the brew cycle. The On/Off button (k) will illuminate, indicating that your coffee maker has begun the brewing cycle. The button (m) will switch off.

To cancel a preset brewing cycle, press the button (m) - the preset brew cycle is cancelled when the button (m) is no longer illuminated. For your convenience, your coffee maker will remember your preset brewing time. Simply press the button (m) to activate the preset brewing cycle. To change the preset brewing time, follow steps 3 through 7 above.

Note: At any time during the brewing cycle, you can turn the coffee maker off or cancel the brewing cycle, by simply pressing the On/Off button (k). No buttons will be illuminated, indicating that the coffee maker is off.

Pause & serve

• This feature allows you to interrupt the brewing cycle and pour a cup of coffee before the entire carafe is finished brewing.

While this will temporarily stop the coffee from dripping into the, it does not stop the brewing cycle. After serving, the carafe immediately returned to the heating plate to prevent the filter from overflowing.

Make sure the carafe is positioned firmly against the back of the coffee maker. Dot not remove the carafe for longer than 30 seconds.

• This coffee maker allows you to adjust the Stay Warm Setting to slightly reduce the temperature of the coffee after it has brewed.
• When brewing the coffee, a steady orange light will appear on the keep warm button (I). To reduce the Keep Warm setting, press the keep warm button (I) once, and the steady orange light will then blink.
• This setting should be used when the carafe is half full or less, to ensure the coffee quality is maintained.
• The Stay Warm setting will continue to operate as long as the unit is on and will shut off automatically after two hours.
• When you begin to brew a new pot of coffee, the steady orange light will reappear, indicating the coffee maker will maintain the temperature of the higher Stay Warm Setting.

NOTE: While the pause and serve feature is a convenient way to pour a cup of coffee mid-cycle, we recommend you wait until the brewing cycle is complete as the strength and flavor of coffee poured mid-cycle will vary from the finished brew.

7. Cleaning

• To remove the used coffee grounds, remove the filter holder from the coffeemaker(Fig 10).
• Unplug the appliance.
• Do not clean the appliance when it is still hot.
• Wash carafe, carafe lid and removable filter

NOTE: Do not place any other part of the coffee maker in the dishwasher.

holder in hot, soapy water or place it in the top rack of the diswasher.

• Clean with a soft cloth or a damp sponge. Never use harsh detergents or abrasive cleaners on any part of the coffee maker.
  To clean the stainless steel parts of your coffee maker, rinse a soft cloth or sponge in warm water and squeeze out the excess water. Wipe the surface of the stainless steel in the direction of the brush marks. Dry thoroughly and polish with a soft dry cloth.
• For hard to remove stains, use a plastic mesh pad or cloth damped in vinegar.
• Do not immerse the appliance in water or place it under running water.

8. Descaling

Calcium build-up frequently occurs in drip coffeemakers. This build-up is normal and is caused by minerals commonly found in drinking water. Periodically, your coffeemaker will need cleaning to remove calcium or mineral deposits that may form. You will know when your unit will need descaling when you notice an obvious slow down in brewing time.
- We recommend descending your unit with a solution of white vinegar and cold water or a suitable descending agent. A solution of two tablespoons of white vinegar to one carafe of cold water works best. Pour this solution into the water tank, and follow your normal operating instructions, without a filter in the filter basket.
- When the brew cycle is finished, empty the carafe and rinse with water. Refill the water reservoir with cold water only and repeat the brew cycle with water only, twice more. This will rinse out any remaining vinegar solution.

• We strongly recommend decalcifying your coffee maker any time the brewing time slows down or when you begin to notice excessive steaming. The frequency of decalcifying will depend on the hardness of your water. We suggest decalcifying approximately every 80 brew cycles if you have soft water or every 40 brew cycles if you have hard water.

EN

9. Troubleshooting

PROBLEM SOLUTION
The coffee does not brew or the machine does not switch on.	Check to ensure the appliance is plugged into a working outlet, and the appliance is in the “ON” position. The water tank is empty. There was a power failure. There was a power surge. Unplug the machine, then plug it back in. The clock must be reset after a power failure. The Auto-Off function switches off the coffee maker. Switch off the coffee maker then switch it back on to make more coffee. For more information, refer to the section “Making coffee”.
Appliance appears to be leaking.	Make sure that the water tank has not been filled beyond the max fill level.
It takes a long time to brew.	It may be time to descale your coffee dispenser. Numerous minerals may accumulate in the coffee maker's circuit. Periodic descaling of the machine is recommended. More frequent descaling may be necessary depending on the hardness of the water. For more information, refer to the “Descaling” section. NOTE: do not dismantle the machine.
The brew basket (j) overflows or the coffee drips too slowly.	Coffee maker needs cleaning. Excessive amount of coffee. We recommend that you use one measuring spoon or one tablespoon of coffee ground per cup. Coffee grind is too fine (beans ground for an Espresso maker are not suitable for drip coffee makers). Some coffee grounds have seeped in between the paper filter or permanent filter and the filter holder (i). The paper filter is not open or is incorrectly positioned. Rinse out the filter holder (i) before putting in the paper filter so that its edges stick to the damp sides of the filter. More than one paper filter in filter holder (i).
The coffee has a bad taste.	· The coffee dispenser needs to be cleaned. · The coffee grounds are no suited to your coffee dispenser. · The proportion of coffee to water is inadequate. Adjust it to suit your taste. · The quality and freshness of the coffee are not optimal. · Poor-quality water. Use filtered or bottled water.
You can not close the top lid of the coffee maker properly	· Check to ensure the filter holder is inserted correctly. · The filter holder is too large: only use a paper filter of the suitable size.
Coffee drips on the heating plate, when removing the carafe	· Place the carafe back on the heating plate, the pause & serve mechanism is blocked. Wait until the filter holder is completely empty. · Clean the filter holder.
On each use, the clock starts at 0:00	· Set the clock (section 4. Setting the clock) The setting of the clock will be deleted when the appliance is unplugged or after a power failure.
You can not enter the desired settings for automatic programming	· Set the clock (section 4. Setting the clock).
You can not pre select the reduced temperature of the warming plate for automatic operation	· The appliance is switched off during programming: you can only program the temperature of the warming plate if the appliance is in operation (red light on ON/OFF button and orange light on the keep warm button). · Adjust the clock. Pay attention to the AM and PM indicators.
The automatic function did not start at the selected time	· Check the setting of the clock. · Check start time as well as AM and PM indicators.
The coffee does not drip in the carafe	· Check to make sure the water tank is filled. · The appliance is switched off.
The coffee is too cold	· Press the keep warm button to switch back to normal temperature (the heating plate temperature is reduced and the orange light of the keep warm button will blink.

If your appliance still does not work properly, please call your respective country's Consumer Service.

10. TEFAL/T-FAL* INTERNATIONAL LIMITED GUARANTEE

EN

www.tefal.com

This product is repairable by TEFAL/T-FAL during and after the guarantee period.

The Guarantee

This product is guaranteed by TEFAL / T-FAL (company address and details included in the country list of the TEFAL / T-FAL International Guarantee) against any manufacturing defect in materials or workmanship during the guarantee period within those countries as stated in the Country List on the last page of the user manual, starting from the initial date of purchase.

The international manufacturer's guarantee by TEFAL / T-FAL is an extra benefit which does not affect consumer's Statutory Rights.

The international manufacturer's guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At TEFAL / T-FAL's choice, a replacement product may be provided instead of repairing a defective product. TEFAL / T-FAL's sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

The international TEFAL / T-FAL guarantee only applies within the guarantee period and for those countries listed in the Country List attached and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorised service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a TEFAL / T-FAL authorised service centre. Full address details for each country's authorised service centres are listed on TEFAL / T-FAL website (www.tefal.com) or by calling the appropriate telephone number as set out in the Country List to request the appropriate postal address.

TEFAL / T-FAL shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase.

This guarantee will not cover any damage which could occur as a result of misuse, negligence, failure to follow TEFAL / T-FAL instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorised repair of the product. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
  -scaling (any de-scaling must be carried out according to the instructions for use)
  -ingress of water, dust or insects into the product
  -mechanical damages, overloading
  -damages or bad results due to wrong voltage or frequency
  -accidents including fire, flood, thunderbolt, etc
  -professional or commercial use
  -damage to any glass or porcelain ware in the product
  -replacement of consumables

This guarantee does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier.

The international TEFAL / T-FAL guarantee applies only for products purchased in one of the countries listed, and used for domestic purposes only in one of the countries listed on the Country List. Where a product purchased in one listed country and then used in another listed country:

• The international TEFAL / T-FAL guarantee duration is the one in the country of usage of the product, even if the product was purchased in another listed country with different guarantee duration.
• The international TEFAL / T-FAL guarantee does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications.
• The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by TEFAL / T-FAL.
• In cases where the product is not repairable in the new country, the international TEFAL / T-FAL guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible

Consumer Statutory Rights

This international TEFAL / T-FAL guarantee does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion.

EN

Additional information

Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the TEFAL / T-FAL internet site.

• TEFAL household appliances appear under the T-FAL brand in some territories like America and Japan. TEFAL/T-FAL are registered trademarks of Groupe SEB.

Table des matières

1. PRECAUTIONS IMPORTANTES p.17
   2.DESCRIPTION p.21
2. AVANT LA PREMIÈRE UTILISATION p.21
3. RÉGLAGE DE L'HORLOGE p.21
4. PREPARATION DU CAFÉ p.22
   6.PROGRAMMATION DE LA MACHINE A CAFÉ p.24
5. NETTOYAGE p.26
6. DETARTRAGE p.27
7. RÉSOLUTION DE PROBLEMES p.28
8. GARANTIE INTERNATIONALE p.30

1. PRECAUTIONS IMPORTANTES

FR
