USER MANUAL CAVA 82 Sonnenkönig

Line drawing of two kitchen appliances: a rectangular box and a rectangular refrigerator, shown in line style without any text or symbols.

FIRMA

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. [phone]

Simple line drawing of a rectangular box or container with no text or symbols

Line drawing of a refrigerator with lid and front panel (no text or symbols)

Technical diagram showing a mechanical component with numbered parts and directional arrows indicating motion or force.

Umkehrbare Tür

Technical line drawings of four different mechanical components or brackets, showing motion and assembly (no text or symbols)

Illustration of a hand cleaning or adjusting a shelf with a tool (no text or symbols visible)

Line drawing of two kitchen appliances: a rectangular box and a rectangular refrigerator, shown in line style without any text or symbols.

MAISON

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel.[phone]

Simple line drawing of a rectangular box or container with rounded corners and a side gap (no text or symbols)

Line drawing of a refrigerator with lid and frontrest (no text or symbols)

Illustration of a hand cleaning or installing a shelf with a tool (no text or symbols visible)

Modifications techniques

Line drawing of two kitchen appliances: a rectangular box and a rectangular refrigerator, shown in line style (no text or symbols)

DITTA

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel.[phone]

Simple line drawing of a rectangular box or container with rounded corners and a flat top (no text or symbols)

Line drawing of a refrigerator with lid and front panel (no text or symbols)

Diagram showing a mechanical or electrical component with numbered parts and directional arrows indicating motion or force.

Porta reversibile

Technical line drawings of four different mechanical components or brackets, showing motion or assembly (no text or symbols)

Illustration of a hand cleaning or installing a shelf with a tool (no text or symbols visible)

Line drawing of two kitchen appliances: a rectangular box and a rectangular refrigerator, shown in line style without any text or symbols.

COMPANY

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel.[phone]

If the unit is transported in a horizontal position, some refrigerant liquid may flow from the compressor into the refrigerant circuit - allow the unit to stand upright for at least 4-6 hours before turning it on to ensure that the refrigerant liquid has flowed back into the compressor.

Please read and understand these instructions completely before attempting to assemble, operate or install the product.

This manual contains important information about the installation, operation and maintenance of this Wine cooler. General safety information is presented on these first pages and is also found throughout this manual. Retain this manual for future reference and to educate new users of this product. This manual should be read in conjunction with the labeling on the product. Safety precautions are essential when dealing with mechanical or electronic powered equipment. These precautions are required when using, storing and maintaining this item. Using this equipment with due respect and caution will reduce the possibility of personal injury or property damage.

Inspect the unit for damage after removing the packaging. If damage is suspected, do not operate the device and contact a specialist. The recyclable packaging material must not be kept accessible to small children, but must be disposed of properly.

This device may only be used for the purpose for which it was expressly designed. Any other use is to be considered improper and consequently dangerous. The supplier is not liable for any personal injury and/or damage to property resulting from improper or incorrect use.

Repairs to electrical equipment may only be carried out by qualified personnel. Improperly performed repairs and modifications to the equipment may result in dangerous consequences for the user, whereupon warranty claims will be rejected.

The following basic precautions should always be followed when handling electrical equipment:

• Read the safety instructions carefully before operating the device for the first time. All information contained on these pages is for the protection of the operator. If you ignore the safety instructions, you endanger your health and life.
• Keep this manual in a safe place so that you can use it when necessary. Follow the instructions exactly to avoid personal injury and damage to property.
• Check the technical periphery of the device! Do all cables and connections to the device function properly? Or are they worn out and do not meet the technical requirements of the device? A check of existing and newly made connections must be carried out by an authorized specialist. All connections and energy-carrying components (incl. wires inside a wall) must be checked by a qualified specialist. All modifications to the power system to enable installation of the unit must be carried out by a qualified professional.
• The appliance is intended for private use only.
• The appliance is intended only for the refrigeration of wine in a private household.
• The device is intended for indoor use only.
• The device is not intended for operation for commercial purposes, during camping and in public transport.
• Operate the device only in accordance with its intended use.
• Do not allow anyone who is not familiar with these operating instructions to operate the device.
• This appliance can be operated by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not be allowed to play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised. Do not connect the

device to the mains if the device itself or the mains cable or plug are visibly damaged.

- Never attempt to repair the device yourself. If the device does not work properly, please contact the store where you purchased the device. Original spare parts should only be used.

- If the power cord is damaged, it must be replaced by the manufacturer or an authorized service center or a qualified professional.

- This unit is equipped with environmentally friendly refrigerant R600a. The refrigerant R600a is flammable. The components of the refrigeration circuit must not be damaged during transport or use.

- If any part of the refrigeration circuit is damaged, do not place the unit near a fire, naked lights or spark-producing devices. Immediately contact the store where you purchased the unit.

- If gas is released in your home:

1) Open all windows.
2) Do not unplug the appliance or use the control panel or the thermostat.
3) Do not touch the appliance until all the gas has disappeared.
4) Failure to do so may produce sparks that ignite the gas.

• Keep all components of the unit away from fire and other sources of ignition when disposing of or decommissioning the unit.
• Do not install the unit near volatile or flammable materials (e.g. gas, fuel, alcohol, paints) and in rooms where air circulation may be poor (e.g. garage).
• DANGER OF EXPLOSION! Do not store explosive materials or sprays containing flammable propellants in your device. Explosive mixtures can explode there.
• When unpacking, keep the packaging materials (polyethylene bags, styring pieces, etc.) away from children. DANGER OF SUFFOCATION!
• Only connect the unit to the power supply when all packaging and transport protection devices have been removed.
• Operate the device only with 220 \~ 240V AC / 50Hz. All connections and energy-carrying components must be replaced by an authorized specialist.
• Do not use a timer, socket board or multiple socket when connecting the unit to the mains.
• A dedicated and properly grounded outlet that complies with the plug data is required to minimize any type of hazard. The device must be properly grounded.
• When moving the unit, make sure that the power cord is not placed under the unit or damaged.
• The technical data of your power supplier must correspond to the data on the nameplate of the unit.
• Your domestic power supply must be equipped with an automatic circuit breaker.
• Do not modify anything on the unit.
• Switch off the power supply before installing the unit and before connecting it to the mains. DANGER OF FATAL ELECTRIC SHOCK!
• Disconnect the appliance from the mains before cleaning or servicing it.
• Do not use electrical appliances on the shelves of your unit unless recommended by the manufacturer of your refrigerator.
• Do not place heat radiating appliances on top of your unit.
• Do not install the appliance in a place where it may come into contact with water/rain. Otherwise, the insulation of the electrical system will be damaged.
• Do not place a kettle or vases on your device. The electrical components of your device can be seriously damaged by boiling water or spilled water.
• Do not use steam cleaners to clean or defrost the unit. The steam may come in contact with the electrical parts and cause an electrical short. RISK OF ELECTRIC SHOCK!
• Never use mechanical devices, knives or other sharp-edged objects to remove encrusted ice in the unit. RISK OF ELECTRICAL SHOCK due to damage to the inside of the unit.
• Never allow children to play with the unit. If you take the device out of operation (even temporarily), make sure that children cannot get into the device. Strictly observe the corresponding safety instructions.

• Strictly follow the instructions in the INSTALLATION chapter.

• The condenser and compressor, located at the rear of the unit, can reach high temperatures during normal operation. Carry out the installation according to this manual. Insufficient ventilation of the unit will affect operation and damage the unit. Do not cover or block the ventilation fins at any time.

• Do not touch the extremely cooled surfaces with wet or damp hands, as your skin may stick to these surfaces.
• When moving the unit, hold it by the base and lift it carefully. Keep the device in an upright position.
• Do not tilt the device more than 45^ .
• If the unit is transported in a horizontal position, some oil from the compressor may flow into the refrigerant circuit.
• Allow the unit to stand upright for 4-6 hours before turning it on to ensure that the oil has flowed back into the compressor.
• Never use the door to move the unit as you will damage the hinges.
• When unpacking the appliance, be aware of the location of each piece of internal equipment in case you need to repack and transport it at a later time.
• Do not operate the appliance unless all components are properly installed.
• Do not stand or lean on the appliance's base, drawers, doors, etc.
• Do not put hot liquids or hot food into the appliance.
• The ventilation openings of the unit or its built-in structure (if the unit is suitable for installation) must be completely open, unobstructed and free of any kind of dirt.

03 - TECHNICAL DETAILS

Simple line drawing of a rectangular box or container (no text or symbols)

Line drawing of a refrigerator with lid and frontrest (no text or symbols)

Model CAVA 49 CAVA 82
Capacity/Bottles 115 L / 45 Bottles 208 L / 76 Bottles
Climate type N N
Protection class I I
Voltage 220-240V Alternating current	220-240V Alternating current
Frequency 50 Hz	50 Hz
Input power	110 W	110 W
Temperature control range	4-22°C	4-22°C
Net weight	38 kg	54 kg
Product size (W×D×H)	550 x 555 x 835 mm	610 x 430 x 1524 mm

Before starting to use your wine cooler, you should pay attention to the following points:

• Before installing your new fridge, read all safety instructions in this manual, then follow the instructions below:
• Place the fridge on a sturdy, level floor for quieter operation. Ensure that the floor is strong enough to support the fridge when it is fully loaded.
• If the refrigerator is to be placed on carpet, support it with a wooden board underneath. Be aware that placing the refrigerator on carpet may mean that heat from the compressor may cause the carpet to fade.
• This appliance is designed to be freestanding only and should not be recessed or built in.
• Do not tilt the fridge more than 45^ from upright when moving it.
• Avoid areas where the appliance would be exposed to direct sunlight, sources of heat (stove, heater, radiator, etc.), extreme cold ambient temperatures or excessive moisture and high humidity. Installing it in the coolest area of the room will save energy consumption and running costs.
• Handle with care! Do not apply force to any part such as the condenser or door. The metal rails on the bottom underneath of this refrigerator may have sharp edges, so always unpack and handle with care. Do not drag the unit: place it carefully in position to avoid scratching the floor.
• Place the unit so there is enough space for the door to open.
• Ensure that air can circulate freely around the back of the cabinet, which is necessary to cool the compressor and condenser. Allow at least 100mm clear space at the back and 50mm at the sides of the unit.
• The appliance must be installed level in order to work properly. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.
• To level the unit, adjust one or both levelling feet at the base of the unit.

Unpacking

• This product has been packaged to protect it against transportation damage.
• Remove all packaging materials from around and inside the appliance, but do not remove any foam insulation surrounding the pipes at the back.
• Keep the original packaging carton and materials in a safe place; it will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. In the event that the carton is to be disposed of, please recycle all packaging materials where possible.
• Plastic wrapping can be a suffocation hazard for babies and young children, so ensure all packaging materials are out of their reach and disposed of safely.
• Parts: Check to ensure you have all the parts pictured on the previous page spread.
• Unwind the power cord to its full length and inspect it for damage. Do not use the appliance if the appliance or its cord have been damaged or are not working properly. In case of damage, contact our after sales support line for advice on examination, repair or return of the damaged product.
• Make sure the refrigerator is disconnected from the power supply before cleaning the interior surfaces and all internal accessories with lukewarm water, a soft cloth and a neutral/mild soap/detergent. This will remove any dust from transit and storage and help remove the typical smell of a brand new product.
• Then dry thoroughly. Important: do not use harsh or abrasive detergents or powders as these will damage the finish.

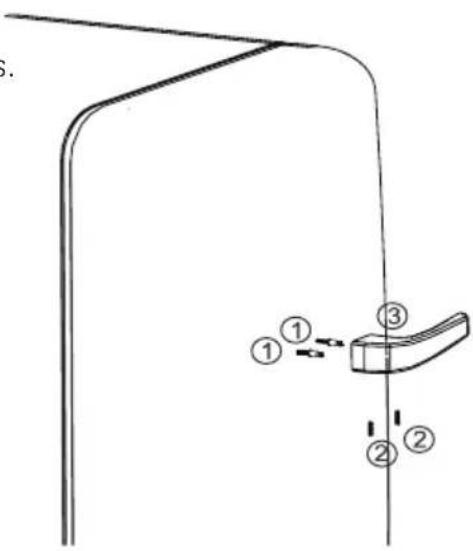

Installing the door handle

The door handle comes unattached due to packaging restrictions. It is easily attached following the instructions below.

• Remove the original screws from door.
  • Fix the two screws (1) on the door.
• Put the metal handle (3) into the two fixed screws, match the two holes on the handle.
  • Install screw (2) at the bottom of handle and fasten it tightly.

Levelling Feet / Adjustable feet

This appliance comes with height adjustable feet which allows the appliance to be installed under bench and ensures the appliance is stable and level. Just screw the bottom feet anticlockwise to raise the height or clockwise to lower the height.

Technical diagram showing a mechanical component with numbered parts and directional arrows indicating motion or force.

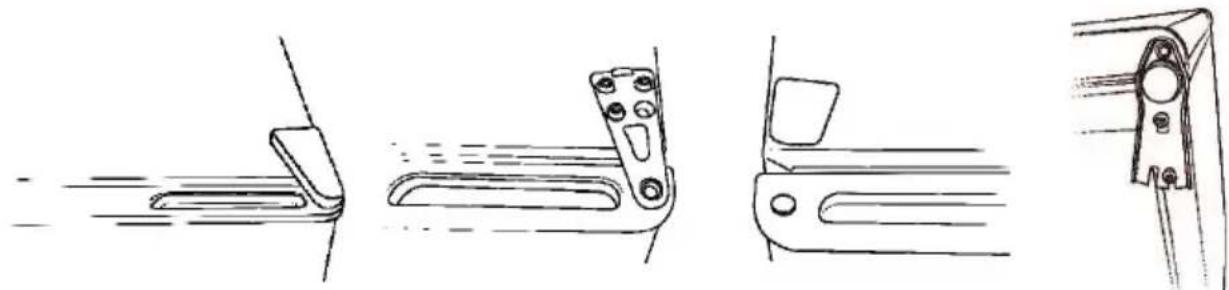

Reversible door

1. Remove the top plastic hinge cover and set aside
2. Unscrew the 3 screws from the metal bracket and set aside, carefully remove the door and place it on a cushioned surface.
3. Remove the plastic insert on the opposite side of the fridge and door. Now fix the top door bracket to this side using the screws that were previously removed. Replace the plastic hinge cover.
4. Remove the adjustable foot at the bottom of the fridge and set aside.
5. Unscrew the two scres holding the bottom door hinge and carefully move it across to the opposite side and before fixing it into position fit the door to the top and bottom hinge (care must be taken as the door will be loose). Once this has been completed screw in the adjustable foot to the opposite side of the fridge.
6. Check taht the door opens and shuts correctly after you have completed the door reversal process.

Technical line drawings of four different mechanical components or brackets, showing motion or assembly (no text or symbols)

The appliance must now be upright for a minimum of 3 hours before turning it on.

Operating

1. To turn on press the ON/OFF button.
2. To turn off press and hold the ON/OFF button for 6 seconds the display will disappear.

Note: If the unit is unplugged, turned off or power is lost you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart without waiting the refrigerator will not start and may damage the compressor.

Setting Temperature

1. Use the UP/DOWN buttons to select the desired temperature, in 1^ C increments.
2. The desired temperature will flash while being changed and will become solid after 3 seconds of no change.

Temperature Scale

To change the highlighted temperature scale press both the UP/DOWN buttons at the same time for 2 seconds.

The selected scale will glow.

Internal Light

To turn light on press the LIGHT button.

To turn light off press the LIGHT button.

It is recommended that the light switch be turned on only when required.

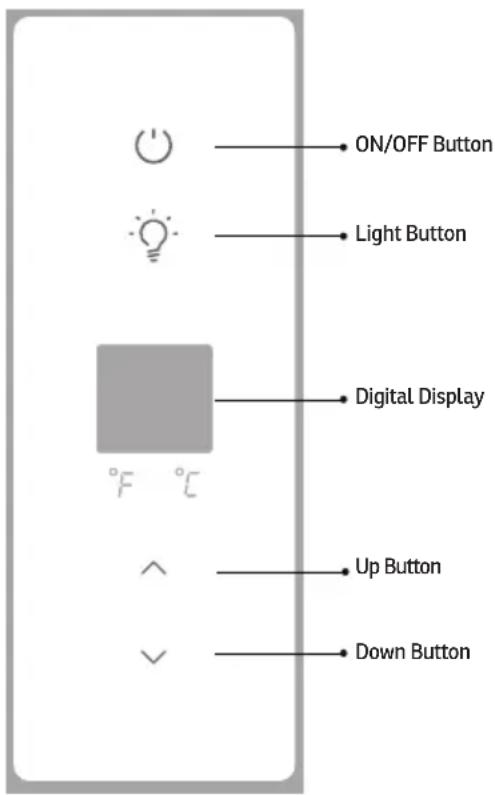

ON/OFF Button Light Button Digital Display Up Button Down Button

06 - USE THE FRIDGE

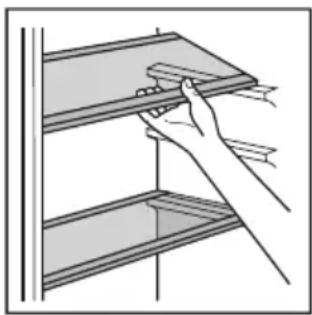

Food storage

• The refrigerator compartment is suitable for short-term storage of fresh food.
• The temperature inside varies depending on the amount of food stored, the ambient temperature and the frequency of door opening. Adjust the thermostat accordingly.

- In order to maintain good cooling efficiency and save energy, we recommend you do not open the door for too long or too often. Do not overload the fridge, and keep enough space around items for cold air flow. Do not block ventilation openings.

- The walls of the fridge are equipped with a series of runners so that the shelves can be positioned to suit individual storage requirements.

- In order to keep fruit and vegetables fresh in the salad drawer, make sure they are properly packaged and the cover sits firmly on top of the salad drawer (applicable model).

- Two wine bottles can be stored conveniently in the shelf-hanging wine rack. If you do not require this wine rack, or to remove it for cleaning, pull the shelf that holds the rack completely out of the fridge, then slide the wine rack off the side of the shelf (applicable model).

Illustration of a hand cleaning or installing a shelf with a tool (no text or symbols visible)

• Energy saving tips
- Place the fridge in the coolest area of the room, away from heat-producing appliances and out of direct sunlight.
- Let heated food and beverages cool to room temperature before placing them into the fridge.
- Do not overload the fridge as it forces the compressor to run longer.
- Wrap foods properly and wipe containers dry before placing them in the fridge.
- This cuts down on frost build-up inside the fridge.
- Do not line any fridge storage bin with aluminum foil, wax paper or paper towels.
- Liners interfere with cold air circulation, reducing cooling efficiency.
- Position food so that air can circulate freely around it.
- Do not leave the fridge door open for longer than required.
- Make sure no food touches the back of the compartment.
- Don't set the thermostat on exceeding cold temperatures.

07 - CLEANING, CARE AND MAINTENANCE

Disconnect the appliance from the power supply before cleaning.

Internal Cleaning

• Do not pour water over the appliance.
• The cavity should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water (5ml to 0.5 litre of water)
• Clean the accessories separately with soap and water. Do not put them in the dishwasher.
• Do not use abrasive products, detergents or soaps.
  • After washing, rinse with clean water and dry carefully.
• When you have finished cleaning reconnect the plug with dry hands.

External Cleaning

• Wash the outer cabinet with warm soapy water. Do NOT use abrasive products.
• There are sharp edges on the underside of the product so care should be taken when cleaning.
• Once or twice a year dust the rear of the appliance and the compressor at the back of the appliance, with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause increased energy consumption.

Warning

• Never clean the unit with an abrasive, acid, oil or solvent based cleaning agent, or with abrasive pads or scourers. Never use flammable fluids or sprays for cleaning as the fumes from these substances can create a fire hazard or explosion.
• Never clean the appliance with a steam cleaner. Moisture could accumulate in the electrical components, danger of electric shock! Hot vapours can lead to the damage of plastic parts.
• The appliance must be completely dry before it is placed back into service.
• Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice from orange peel, or cleansers that contain acetic acid. Do not allow such substances to come into contact with the appliance parts.

Going away?

• Short vacation: Leave the fridge operating during vacations of less than a month.
• Long vacation: If you are not going to use the fridge for longer periods, remove all food and unplug the power cord. Clean and dry the interior thoroughly. Io prevent odour and mould growth, leave the door open slightly, blocking it open, if necessary. (Restrict children's access to the room with the open fridge to avoid creating a child entrapment risk.)

Moving the fridge

• Unplug the fridge and remove all food from inside. Securely tape down the drawer and shelves and tape the door shut. Turn the levelling feet up to the base to avoid damage.
• CAUTION: Never pick up the refrigerator by the door.
• Protect the outside of the unit with a blanket or similar soft material and make sure the fridge stays secure in the upright position during transportation.

External Cleaning

• Wash the outer cabinet with warm soapy water. Do NOT use abrasive products.
• There are sharp edges on the underside of the product so care should be taken when cleaning.
• Once or twice a year dust the rear of the appliance and the compressor at the back of the appliance, with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause increased energy consumption.

08 - TROUBLESHOOTING

PROBLEM SOLUTION
THE DOORS DO NOT CLOSE PROPERLY	·Ensure there are no obstructions preventing door closure.·Check the door compartments and shelves are correctly in place.·Check the door seal is not warped or torn.·Check the appliance is level.
UNUSUAL NOISES	·Check that the appliance is on a flat, level surface and is stable.·Check the spacing's around the appliance and ensure it is not touching other items.·Bubbling and gurgling sound: This noise is emitted as the coolant fluid flow through the pipes within the system. This is normal.·Contraction and expansion of the inside walls may cause popping and cracking noises.
THE COOLER DOOR WILL NOT OPEN	·If the door has just been opened, leave it for a few minutes to allow the air pressure to equalise before trying again.
THE COMPRESSOR RUNS CONSTANTLY	·The temperature is set too cold: select a lower (warmer) setting.·The door is open, or something is obstructing proper door closure.·The room temperature is hotter than usual.
THE EXTERNAL FRIDGE SURFACE IS WARM	·The exterior walls can be warmer than room temperature. This is normal while the compressor works to transfer heat from inside the bottle cabinet.
SMELLS/ODOURS	·Check all the drinks that are in the cooler are in date and correctly packaged. Please remove anything that may be spoiled and repack if necessary.·Check for spillages throughout the cooler. Spillages may cause odours if left unwashed. Wash accordingly to the manufacturers advise.

Warranty

All products are checked from our company before the delivery. In case that there is a lack on your product, please contact the vendor. Please bring your proof of purchase for guarantees. Please save the packaging materials of the unit.

Disposal

Please remove the heater properly. You can bring the product to any specialist dealer fort he removal.

Technical changes

Technical changes in technique and design are possible.

CE declaration of Conformity

This device complies with the following standards

EMC EN 55014-1:2021

EN 55014-2:2021

EN IEC 61000-3-2:2019 + A1:2021

EN 61000-3-3:2013 + A1:2019 + A2:2021

LVD EN 60335-1:2012 + AC:2014 + A11:2014 + A13:2017 + A1:2019 + A2:2019 + A14:2019 +

A15:2021 + A16:2023

EN 60335-2-24:2022 + A11:2022

EN 62233:2008

ErP EN 60704-1:2021

EN 60704-2-14:2013 + A11:2015 + A1:2019

EN 62552-1:2020

EN 62552-2:2020

EN 62552-3:2020, EN IEC 60704-1:2021

LVD 2014/35/EU

EMC 2014/30/EU

RoHS 2015/863/EU

REACH 2011/65/EU, 1907/2006

ErP EU 2019/2016, EU 2019/2019, EU 2021/340, EU2021/341

Any modifications or repairs to the device must be carried out by a qualified person.

Since the development of the produced devices is constantly progressing, your product may differ minimally from the one described.

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 31 March 2015 implementing Directive 2015/863/EU on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste.

Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.

NOTIZEN/NOTE/NOTES

Supplier's name or trade mark Sonnenkönig of Switzerland
Supplier's address^6 Olensbachstrasse 9-15 • CH-9631 Ulisbach • Switzerland
Model identifier CAVA 49
Type of refrigerating appliance
Low-noise appliance No Design type Frees standing
Wine storage appliance Yes Other refrigerating appliance No
General product parameters
Parameter Value Parameter Value
Overall dimen sions (millimetre)	Height 835			Total volume (dm3 or l)	115
	Width	550
	Depth	555
EEI		125		Energy efficiency class	F
Airborne acoustical noise emissions (dB(A) re 1 pW)		39		Airborne acoustical noise emission class	C
Annual energy consumption (in kWh/a)		104		Climate class	N
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16		Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No
Compartment Parameters
Compartment type			Compartment parameters and values
			Compartment Volume (in dm3 oder l)	Recommended temperature setting for optimised food stor age (°C)These settings shall not contradict the storage conditions set out in Annex IV, Table 3;	Freezing capacity (kg/24h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry		No	-	-	-	-
Wine storage		Yes	115	12	-	M
Cellar		No	-	-	-	-
Fresh food		No	-	-	-	-
Chill		No	-	-	-	-
0-star or ice- making		No	-	-	-	-
1-star		No	-	-	-	-
2-star		No	-	-	-	-
3-star		No	-	-	-	-
4-star		No	-	-	-	-
2-star section		No	-	-	-	-
Variable temperature compartment		Compartment types	-	-	-	-
For 4-star compartments
Fast freeze facility				No
For wine storage appliance
Number of standard wine bottles				45
Light source parameters (+) (-):
Type of light source				LED
Energy efficiency class				F
Minimum duration of the guarantee offered by the manufacturer (+): 24 months
Additional information:

(1) as determined in accordance with Commission Delegated Regulation (EU) 2019/2016 (2).
(1) changes to these items shall not be considered relevant for the purposes of point 4 of Article 4 of Regulation (EU) 2017/1369.
(1) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Supplier's name or trade mark Sonnenkönig of Switzerland
Supplier's address(1) Olensbachstrasse 9-15 • CH-9631 Ulisbach • Switzerland
Model identifier CAVA 82
Type of refrigerating appliance
Low-noise appliance No Design type Freestanding
Wine storage appliance Yes Other refrigerating appliance No
General product parameters
Parameter Value Parameter Value
Overall dimen sions (millimetre)	Height 1524			Total volume (dm3 or l)	208
	Width		610
	Depth		430
EEI			162	Energy efficiency class	G
Airborne acoustical noise emissions (dB(A) re 1 pW)			39	Airborne acoustical noise emission class	C
Annual energy consumption (in kWh/a)			146	Climate class	N
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable			16	Maximum ambient temper- rature (°C), for which the refrigerating appliance is suitable	32
Winter setting			No
Compartment Parameters
Compartment type			Compartment parameters and values
			Compartment Volume (in dm3 oder l)	Recommended temperature setting for optimised food stor age (°C)These settings shall not contradict the storage conditions set out in Annex IV, Table 3;	Freezing capacity (kg/24h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry		No	-	-	-	-
Wine storage		Yes	208	12	-	A
Cellar		No	-	-	-	-
Fresh food		No	-	-	-	-
Chill		No	-	-	-	-
0-star or ice- making		No	-	-	-	-
1-star		No	-	-	-	-
2-star		No	-	-	-	-
3-star		No	-	-	-	-
4-star		No	-	-	-	-
2-star section		No	-	-	-	-
Variable temperature compartment		Compartment types	-	-	-	-
For 4-star compartments
Fast freeze facility				No
For wine storage appliance
Number of standard wine bottles				76
Light source parameters (1) (2):
Type of light source				LED
Energy efficiency class				G
Minimum duration of the guarantee offered by the manufacturer (1): 24 months
Additional information:

(1) as determined in accordance with Commission Delegated Regulation (EU) 2019/2016 (2).

(1) changes to these items shall not be considered relevant for the purposes of point 4 of Article 4 of Regulation (EU) 2017/1369.

(1) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

Simple line drawing of a target with a crown on top (no text or symbols)
